Indicators
- Turn Signal Indicators
- High Beam Indicator
- Front Fog Light Indicator
- Park/Headlight ON Indicator
- Electronic Speed Control SET Indicator
- Door Ajar Indicator
- Electronic Stability Control (ESC) OFF Indicator
- Electronic Stability Control (ESC) Activation/Malfunction Indicator
CONTROLS AT A GLANCE
7

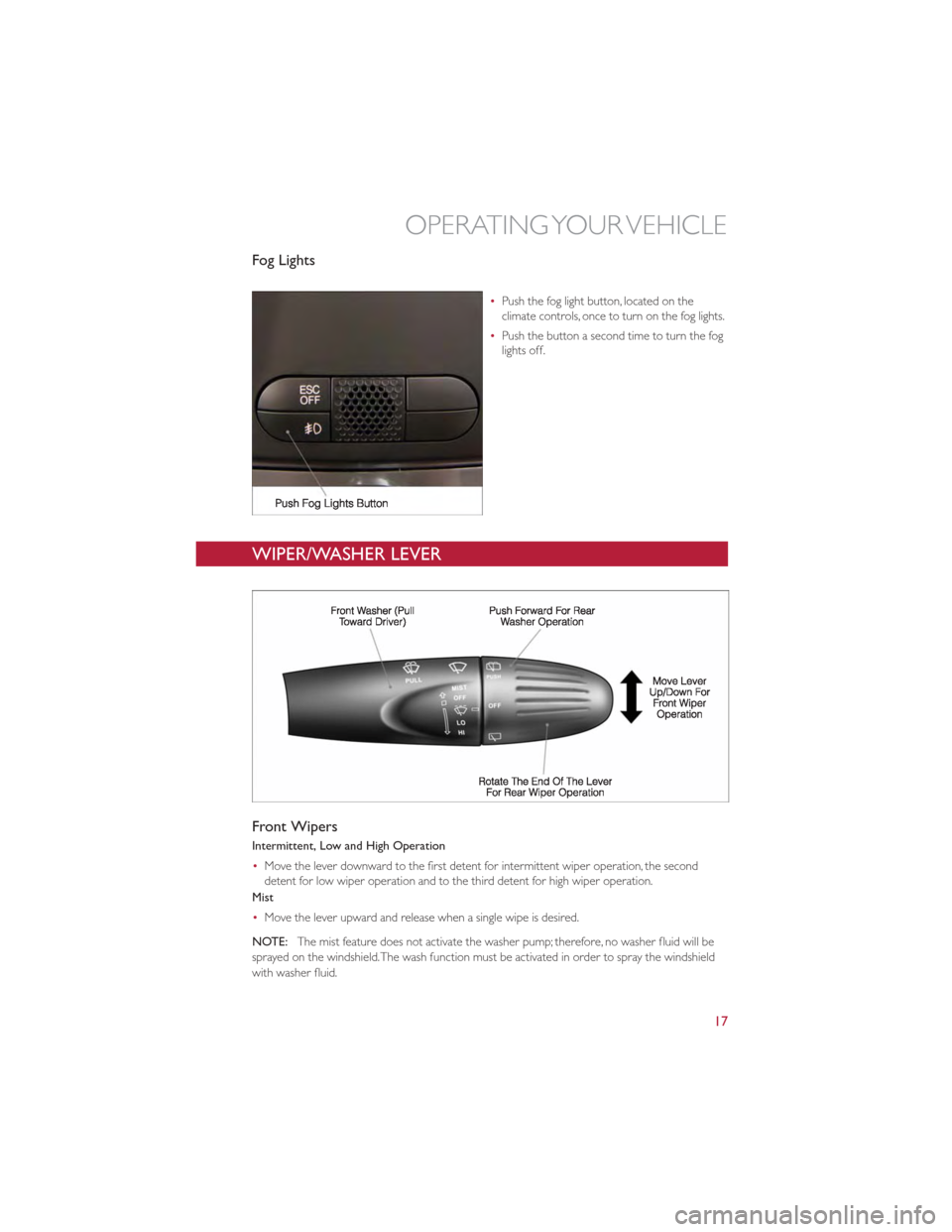

Fog Lights
•Push the fog light button, located on the
climate controls, once to turn on the fog lights.
• Push the button a second time to turn the fog
lights off.
WIPER/WASHER LEVER
Front Wipers
Intermittent, Low and High Operation
•Move the lever downward to the first detent for intermittent wiper operation, the second
detent for low wiper operation and to the third detent for high wiper operation.
Mist
• Move the lever upward and release when a single wipe is desired.
NOTE: The mist feature does not activate the washer pump; therefore, no washer fluid will be
sprayed on the windshield.The wash function must be activated in order to spray the windshield
with washer fluid.
OPERATING YOUR VEHICLE
17

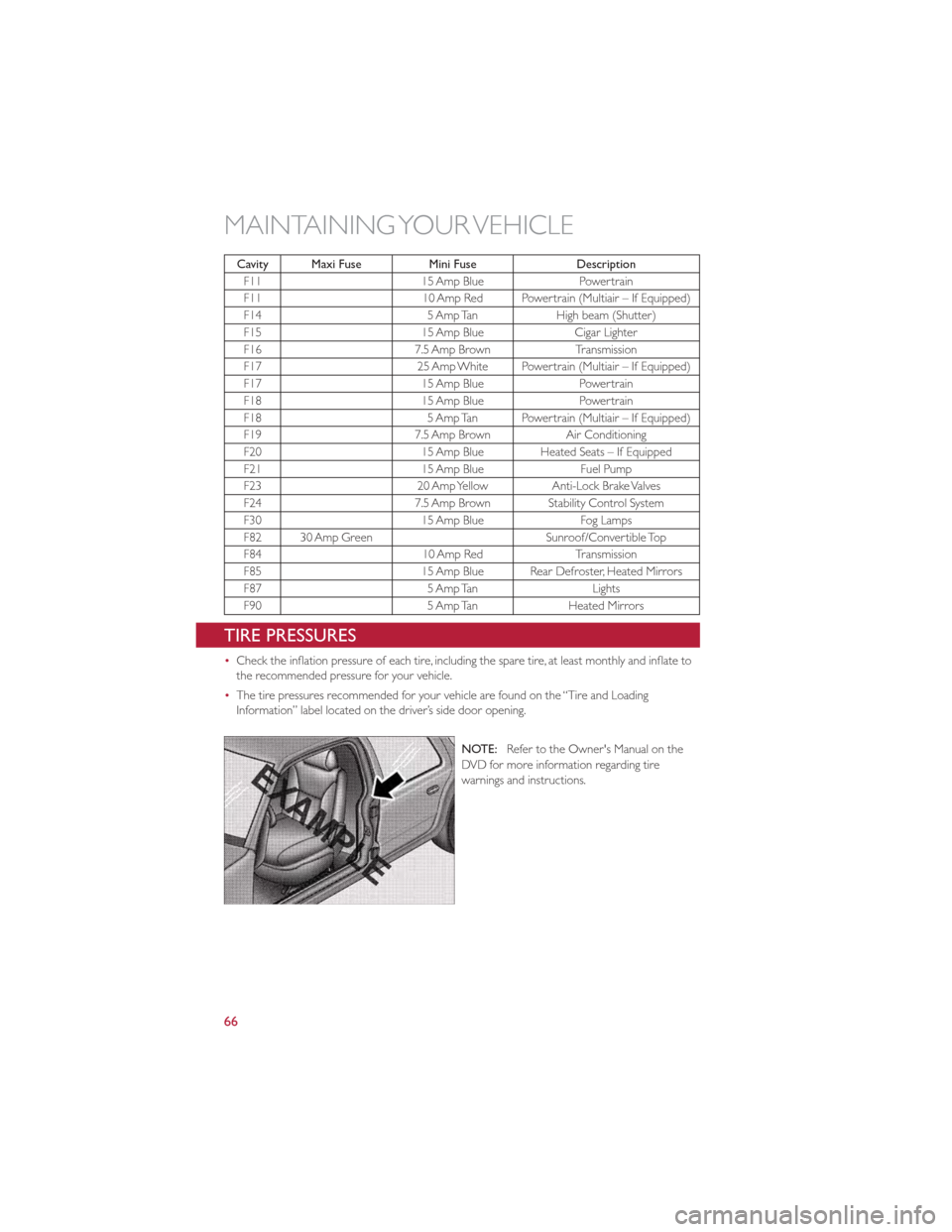

Cavity Maxi FuseMini FuseDescription
F11 15 Amp BluePowertrain
F11 10 Amp Red Powertrain (Multiair – If Equipped)
F14 5 Amp TanHigh beam (Shutter)
F15 15 Amp BlueCigar Lighter
F16 7.5 Amp BrownTransmission
F17 25 Amp White Powertrain (Multiair – If Equipped)
F17 15 Amp BluePowertrain
F18 15 Amp BluePowertrain
F18 5 Amp Tan Powertrain (Multiair – If Equipped)
F19 7.5 Amp BrownAir Conditioning
F20 15 Amp Blue Heated Seats – If Equipped
F21 15 Amp BlueFuel Pump
F23 20 Amp YellowAnti-Lock Brake Valves
F24 7.5 Amp Brown Stability Control System
F30 15 Amp BlueFog Lamps
F82 30 Amp Green Sunroof/Convertible Top
F84 10 Amp RedTransmission
F85 15 Amp Blue Rear Defroster, Heated Mirrors
F87 5 Amp TanLights
F90 5 Amp TanHeated Mirrors
TIRE PRESSURES
•Check the inflation pressure of each tire, including the spare tire, at least monthly and inflate to
the recommended pressure for your vehicle.
• The tire pressures recommended for your vehicle are found on the “Tire and Loading
Information” label located on the driver’s side door opening.
NOTE:Refer to the Owner's Manual on the
DVD for more information regarding tire
warnings and instructions.
MAINTAINING YOUR VEHICLE
66

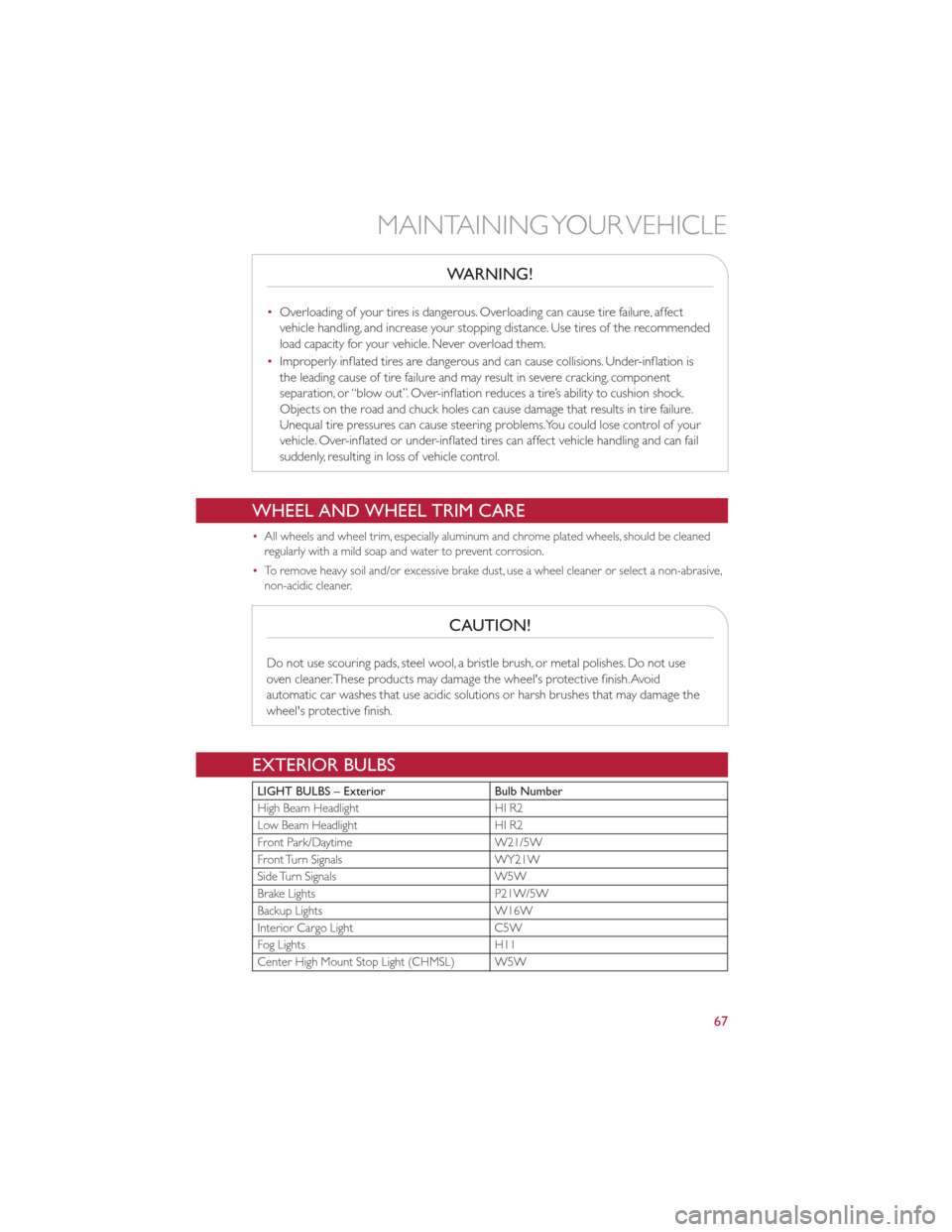

WARNING!
•Overloading of your tires is dangerous. Overloading can cause tire failure, affect
vehicle handling, and increase your stopping distance. Use tires of the recommended
load capacity for your vehicle. Never overload them.
• Improperly inflated tires are dangerous and can cause collisions. Under-inflation is
the leading cause of tire failure and may result in severe cracking, component
separation, or “blow out”. Over-inflation reduces a tire’s ability to cushion shock.
Objects on the road and chuck holes can cause damage that results in tire failure.
Unequal tire pressures can cause steering problems.You could lose control of your
vehicle. Over-inflated or under-inflated tires can affect vehicle handling and can fail
suddenly, resulting in loss of vehicle control.
WHEEL AND WHEEL TRIM CARE
•All wheels and wheel trim, especially aluminum and chrome plated wheels, should be cleaned
regularly with a mild soap and water to prevent corrosion.
• To remove heavy soil and/or excessive brake dust, use a wheel cleaner or select a non-abrasive,
non-acidic cleaner.
CAUTION!
Do not use scouring pads, steel wool, a bristle brush, or metal polishes. Do not use
oven cleaner.These products may damage the wheel's protective finish.Avoid
automatic car washes that use acidic solutions or harsh brushes that may damage the
wheel's protective finish.
EXTERIOR BULBS
LIGHT BULBS – Exterior Bulb Number
High Beam Headlight HI R2
Low Beam Headlight HI R2
Front Park/Daytime W21/5W
Front Turn Signals WY21W
Side Turn Signals W5W
Brake Lights P21W/5W
Backup Lights W16W
Interior Cargo Light C5W
Fog Lights H11
Center High Mount Stop Light (CHMSL) W5W
MAINTAINING YOUR VEHICLE
67
