FIAT 500C 2012 2.G Owners Manual
Manufacturer: FIAT, Model Year: 2012, Model line: 500C, Model: FIAT 500C 2012 2.GPages: 395, PDF Size: 2.37 MB
Page 1 of 395
FIAT 500
Chrysler Group LLCOWNER’S MANUAL
2012
2012 FIAT 500
12FF500-126-AFSixth Edition Rev 1 Printed in U.S.A.
Page 2 of 395
Page 3 of 395
TABLE OF CONTENTSSECTIONPAGE
1INTRODUCTION............................................................3
2THINGS TO KNOW BEFORE STARTING YOUR VEHICLE..............................9
3UNDERSTANDING THE FEATURES OF YOUR VEHICLE............................. 73
4UNDERSTANDING YOUR INSTRUMENT PANEL.................................. 129
5STARTING AND OPERATING................................................203
6WHAT TO DO IN EMERGENCIES............................................. 269
7MAINTAINING YOUR VEHICLE..............................................303
8MAINTENANCE SCHEDULES.................................................351
9IF YOU NEED CONSUMER ASSISTANCE........................................ 367
10INDEX...................................................................377
1
2
3
4
5
6
7
8
9
10
Page 4 of 395
Page 5 of 395
INTRODUCTION
CONTENTS
Introduction ........................... 4
How To Use This Manual .................. 4
Warnings And Cautions ................... 6
Vehicle Identification Number .............. 6
Vehicle Modifications/Alterations ............ 7
1
Page 6 of 395
INTRODUCTION
Congratulations on selecting your new vehicle. Be as-
sured that it represents precision workmanship, distinc-
tive styling, and high quality - all essentials that are
traditional to our vehicles.
This Owner’s Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by Warranty Information, and various
customer-oriented documents. Please take the time to
read these publications carefully. Following the instruc-
tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
The enclosed Warranty Information lists the services that
FIAT Group Automobiles offers to its customers:
•the Warranty Certificate with terms and conditions for
maintaining its validity
•the range of additional services available to FIAT
Group Automobiles customersNOTE: After reviewing the owner information, it
should be stored in the vehicle for convenient referenc-
ing and remain with the vehicle when sold.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained techni-
cians and genuine parts, and cares about your satisfaction.
HOW TO USE THIS MANUAL
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the
items of equipment ordered, certain descriptions and
illustrations may differ from your vehicle’s equipment.
The detailed Index at the back of this Owner’s Manual
contains a complete listing of all subjects.
Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this Owner’s Manual:
4 INTRODUCTION
Page 7 of 395
1
INTRODUCTION 5
Page 8 of 395

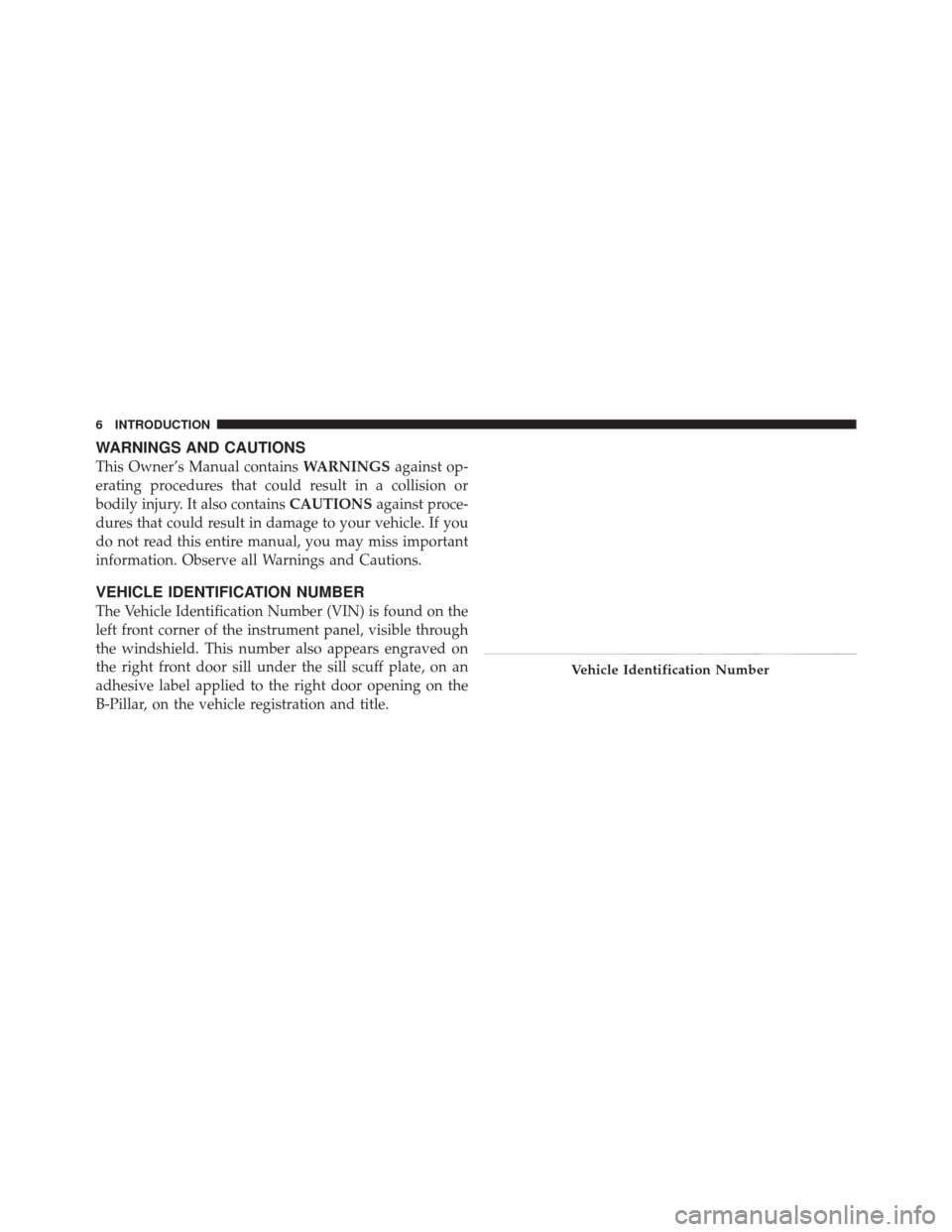

WARNINGS AND CAUTIONS
This Owner’s Manual containsWARNINGSagainst op-
erating procedures that could result in a collision or
bodily injury. It also contains CAUTIONSagainst proce-
dures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears engraved on
the right front door sill under the sill scuff plate, on an
adhesive label applied to the right door opening on the
B-Pillar, on the vehicle registration and title.
Vehicle Identification Number
6 INTRODUCTION
Page 9 of 395
NOTE:It is illegal to remove or alter the VIN.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
Stamped VIN Location
1
INTRODUCTION 7
