Page 346 of 438
▫Automatic Transmission — If Equipped .....374
▫ Appearance Care And Protection From
Corrosion .......................... .376
▫ Convertible Top Care — If Equipped .......383
FUSES ............................. .385
▫ Interior Fuses ....................... .386
▫ Underhood Fuses ..................... .388
VEHICLE STORAGE ....................391
REPLACEMENT BULBS .................392
BULB REPLACEMENT ..................393
▫ Headlamps Low Beam and High Beam ......393▫
Front Turn Signal, Parking And Daytime Running
Lamps ............................ .394
▫ Front Fog Lamps ..................... .394
▫ Front/Rear Side Marker Lamps ............395
▫ Rear Tail, Stop, Backup And Turn Signal
Lamps ............................ .395
▫ Center High Mounted Stop Lamp (CHMSL) . . .396
FLUID CAPACITIES ....................397
FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................. .398
▫ Engine ............................ .398
▫ Chassis ........................... .400
344 MAINTAINING YOUR VEHICLE
Page 389 of 438

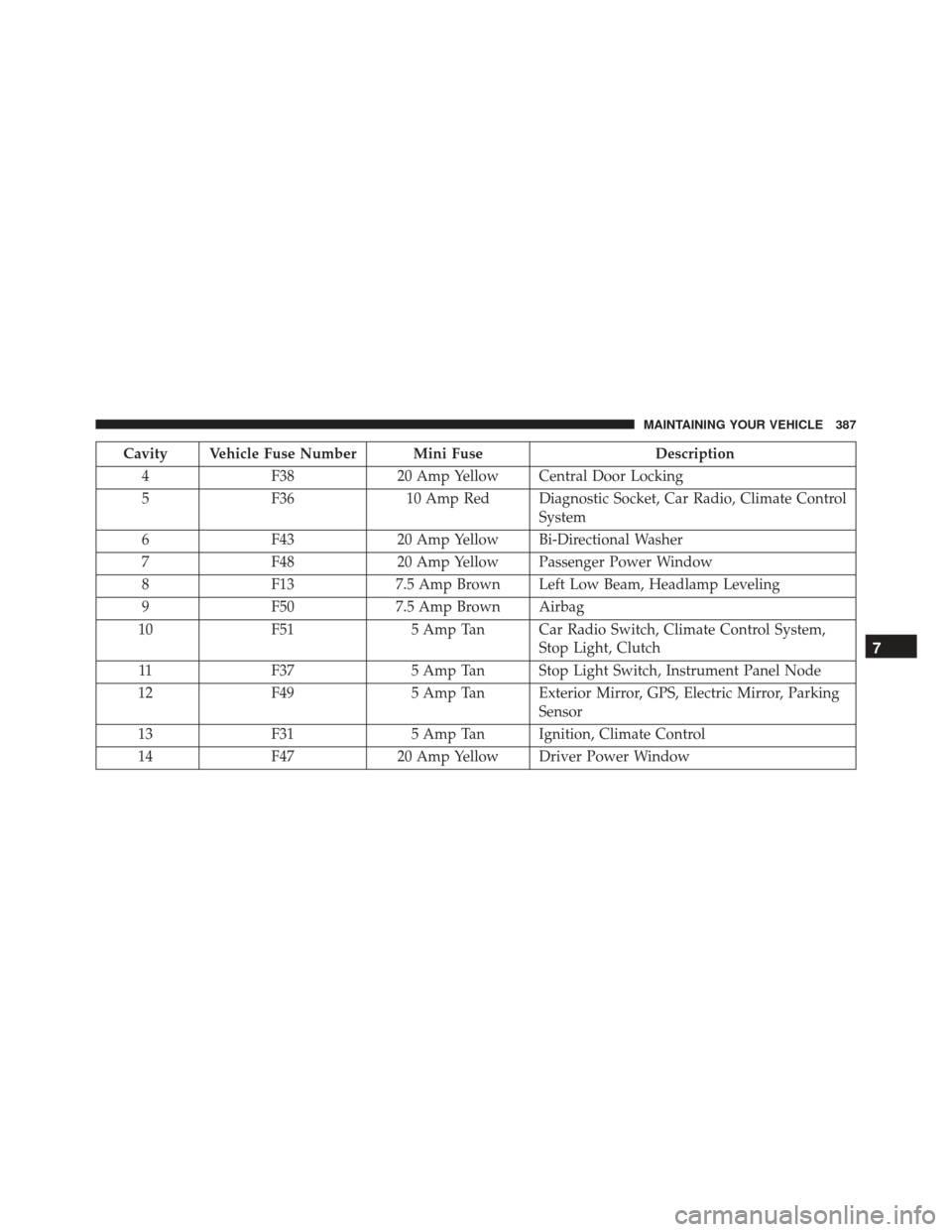

Cavity Vehicle Fuse Number Mini FuseDescription
4 F3820 Amp Yellow Central Door Locking
5 F36 10 Amp Red Diagnostic Socket, Car Radio, Climate Control
System
6 F4320 Amp Yellow Bi-Directional Washer
7 F4820 Amp Yellow Passenger Power Window
8 F137.5 Amp Brown Left Low Beam, Headlamp Leveling
9 F507.5 Amp Brown Airbag
10 F51 5 Amp Tan Car Radio Switch, Climate Control System,
Stop Light, Clutch
11 F37 5 Amp Tan Stop Light Switch, Instrument Panel Node
12 F49 5 Amp Tan Exterior Mirror, GPS, Electric Mirror, Parking
Sensor
13 F31 5 Amp Tan Ignition, Climate Control
14 F4720 Amp Yellow Driver Power Window
7
MAINTAINING YOUR VEHICLE 387
Page 394 of 438

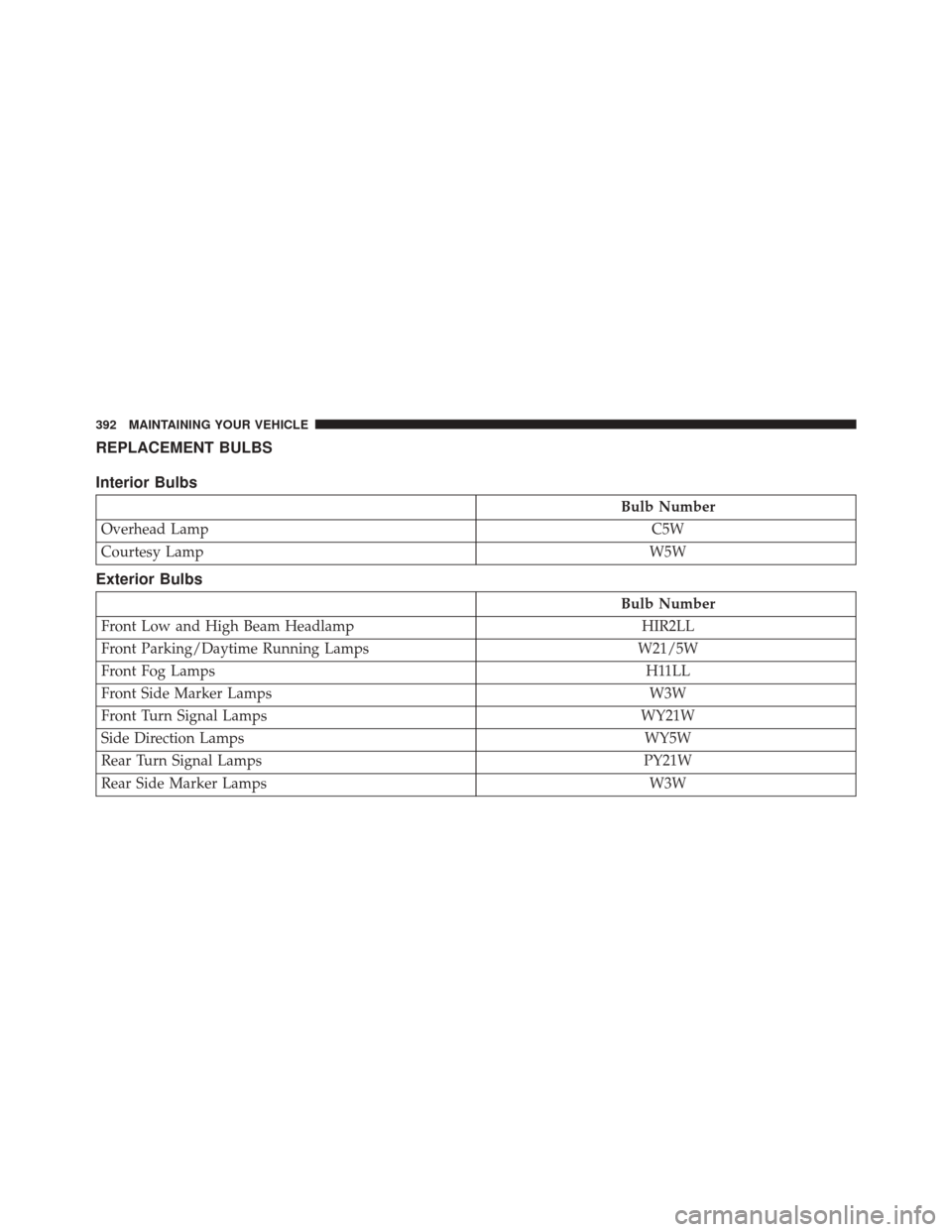

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead Lamp C5W
Courtesy Lamp W5W
Exterior Bulbs
Bulb Number
Front Low and High Beam Headlamp HIR2LL
Front Parking/Daytime Running Lamps W21/5W
Front Fog Lamps H11LL
Front Side Marker Lamps W3W
Front Turn Signal Lamps WY21W
Side Direction Lamps WY5W
Rear Turn Signal Lamps PY21W
Rear Side Marker Lamps W3W
392 MAINTAINING YOUR VEHICLE
Page 395 of 438
Bulb Number
Rear Tail and Stop Lamps P21/5W
Rear Backup Lamps W16W
Center High Mounted Stop Lamp W5W
License Plate Lamps LED (See Authorized dealer)
NOTE: Numbers refer to commercial bulb types that can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE: Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamps Low Beam and High Beam
1. Remove the plastic cap from the back of the headlamp housing.
2. Rotate the bulb counter-clockwise.
3. Remove the bulb and replace as needed.
4. Install the bulb and rotate clockwise to lock in place.
5. Reinstall the plastic cap.7
MAINTAINING YOUR VEHICLE 393
