THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............9
▫ Mechanical Ignition Key Removal ..........9
▫ Locking Doors With A Key ...............10
▫ Key-In-Ignition Reminder ...............10
SENTRY KEY .........................11
▫ Replacement Keys ....................11
▫ General Information ...................12
VEHICLE SECURITY ALARM .............12
▫ To Arm The System ....................12
▫ To Disarm The System: .................12
REMOTE KEYLESS ENTRY ...............13
▫ To Unlock The Doors And Liftgate .........13
▫ Remote Key Unlock, Driver Door/All
Doors 1st Press .......................13 ▫
Opening Power Top Remote Function ......13
▫ To Lock The Doors And Liftgate ...........15
▫ Programming Additional Key Fobs .........15
▫ Key Fob Battery Replacement ............15
▫ General Information ...................17
DOOR LOCKS ........................17
▫ Power Door Locks — If Equipped .........18
▫ Auto Door Locks .....................19
POWER WINDOWS ....................19
▫ Power Window Switches ................19
▫ Auto-Down .........................20
▫ Wind Buffeting ......................20
LIFTGATE ...........................20
OCCUPANT RESTRAINT SYSTEMS .........21
2

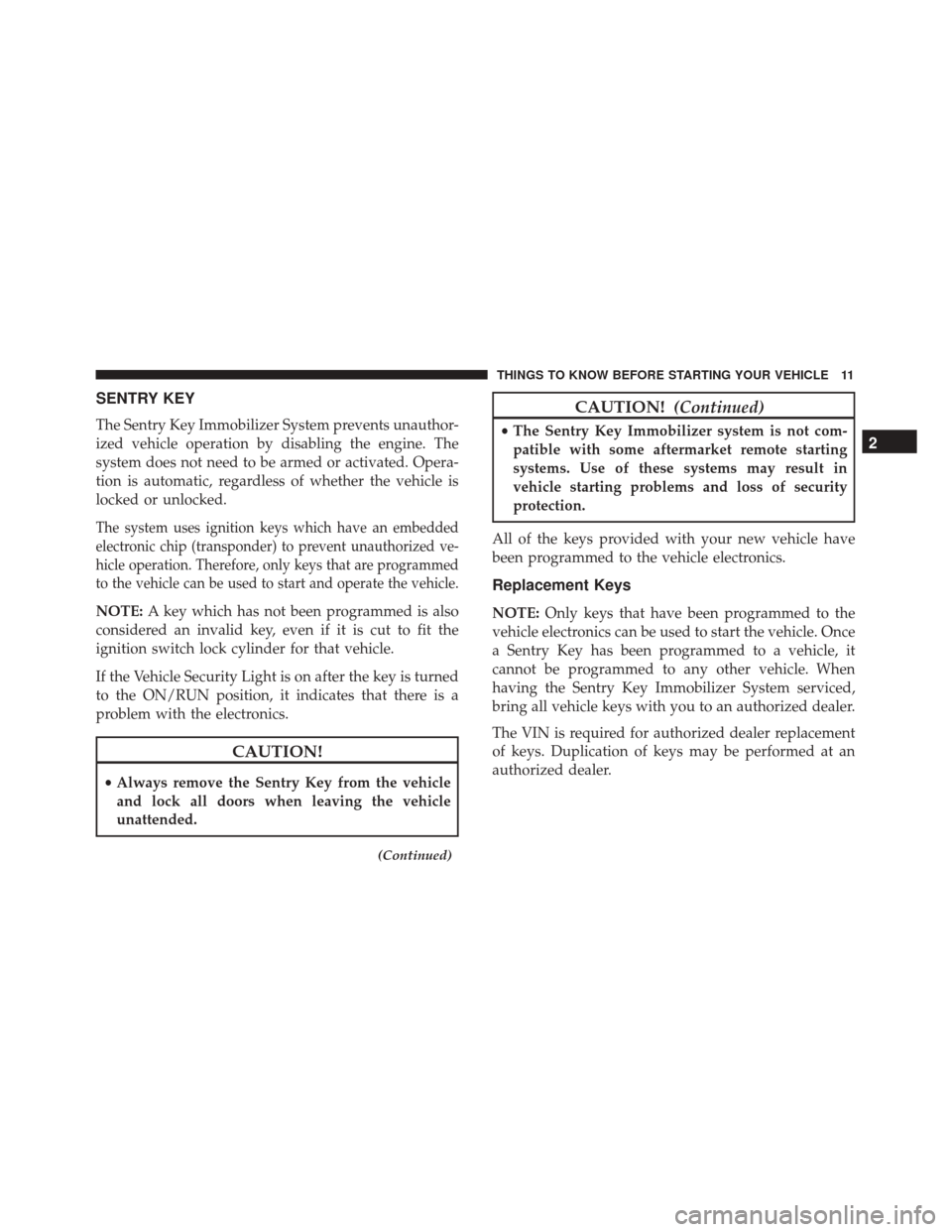

Page 13 of 350
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Opera-
tion is automatic, regardless of whether the vehicle is
locked or unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized ve-
hicle operation. Therefore, only keys that are programmed
to the vehicle can be used to start and operate the vehicle.
NOTE:A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
If the Vehicle Security Light is on after the key is turned
to the ON/RUN position, it indicates that there is a
problem with the electronics.
CAUTION!
• Always remove the Sentry Key from the vehicle
and lock all doors when leaving the vehicle
unattended.
(Continued)
CAUTION! (Continued)
•The Sentry Key Immobilizer system is not com-
patible with some aftermarket remote starting
systems. Use of these systems may result in
vehicle starting problems and loss of security
protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it
cannot be programmed to any other vehicle. When
having the Sentry Key Immobilizer System serviced,
bring all vehicle keys with you to an authorized dealer.
The VIN is required for authorized dealer replacement
of keys. Duplication of keys may be performed at an
authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
Page 15 of 350
REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors and
liftgate from distances up to approximately 66 ft (20 m)
using a hand-held key fob. The key fob does not need to
be pointed at the vehicle to activate the system.
NOTE:The line of transmission must not be blocked
with metal objects.
To Unlock The Doors And Liftgate
Push and release the UNLOCK button on the key fob
once to unlock the driver ’s door or twice, within five
seconds, to unlock all doors and the liftgate. The turn
signal lights will flash to acknowledge the unlock
signal. The illuminated entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors 1st
Press
This feature lets you program the system to unlock
either the driver ’s door or all doors on the first push of
the UNLOCK button on the key fob. To change the
current setting, refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further informa-
tion.
Opening Power Top Remote Function
The remote keyless power top function can only be
used with the engine off.Key Fob
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
Page 16 of 350
NOTE:The remote keyless power top function can be
used to open the power top to the spoiler position.
Opening Power Top Remote Function:
1. OPEN — Push and hold the unlock button down on
the key fob for a minimum of three seconds to
initiate Power Top Open. The roof will stop opening
whenever the unlock button on the key fob is re-
leased, or when it reaches the spoiler position. NOTE:
If your power convertible top does not open
with the remote, please refer to the Power Convertible
Top Relearn Procedure” in “Understanding The Fea-
tures Of Your Vehicle” for further information.
WARNING!
Failure to follow these warnings can result in inju-
ries that are serious or fatal to you, your passengers,
and others around you:
• Before operating the power top, make sure that no
moving parts of the convertible top can injure a
person or animal.
• Never place any extremities (hands, feet, etc.) near
the convertible top components, the upper wind-
shield area, the shelf area behind the rear seats, or
the convertible top stowage area while raising or
lowering the convertible top.
• When using the power top button on key fob, if
potential danger exists while lowering the top,
release the button immediately to interrupt the
operation.
1 — Unlock/Power Top Open button
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 70 of 350
POWER CONVERTIBLE TOP — IF EQUIPPED
On vehicles equipped with a power convertible top, the
power convertible top switch is located on the overhead
console. The switch contains two buttons. The passen-
ger side button, is used to open the power top, and the
driver side button, is used to close the power top.
NOTE:
•The power top buttons will operate when the ignition
switch is turned to the ACC/ON/RUN position. •
The power top can be remotely operated with the key
fob. Refer to “Opening Power Top Remote Function”
in “Things To Know Before Starting” for more infor-
mation.
• The soft top cannot be lowered in temperatures lower
than –22°F (-30°C) but it can be closed at tempera-
tures as low as –4° F (-20°C).
• The highest temperature that the convertible top is
operational is at 176°F (80°C).
Lowering The Power Top
Auto Open
Push the top open button approximately one second for
the three-quarter open/spoiler position. Push the top
open button for approximately one second a second
time to fully open the convertible top.
Manual Open
For manual open, push and hold the open button until
desired roof position or until spoiler position.
NOTE:
• Vertical movement only operates in auto open/close
mode.
Power Convertible Top Switch
68 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

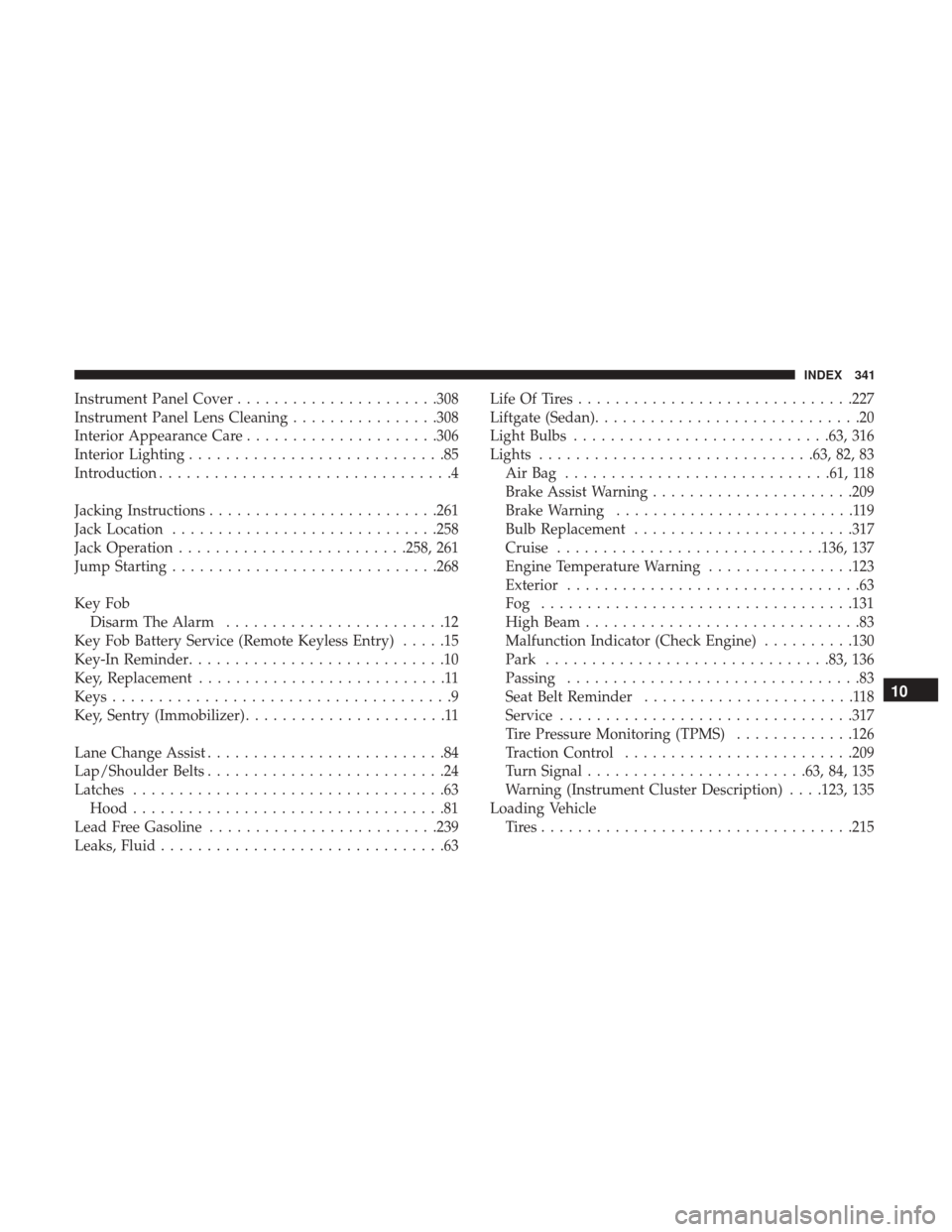

Page 343 of 350
Instrument Panel Cover..................... .308
Instrument Panel Lens Cleaning ................308
Interior Appearance Care .....................306
Interior Lighting ............................85
Introduction ................................4
Jacking Instructions ........................ .261
Jack Location ............................ .258
Jack Operation ........................ .258, 261
Jump Starting ............................ .268
Key Fob Disarm The Alarm ........................12
Key Fob Battery Service (Remote Keyless Entry) .....15
Key-In Reminder ............................10
Key, Replacement ...........................11
Keys .....................................9
Key, Sentry (Immobilizer) ......................11
Lane Change Assist ..........................84
Lap/Shoulder Belts ..........................24
Latches ..................................63
Hood ..................................81
Lead Free Gasoline ........................ .239
Leaks, Fluid ...............................63 Life Of Tires
............................. .227
Liftgate (Sedan) .............................20
Light Bulbs ........................... .63, 316
Lights ............................. .63, 82, 83
AirBag ............................ .61, 118
Brake Assist Warning ..................... .209
Brake Warning ..........................119
Bulb Replacement ....................... .317
Cruise ............................ .136, 137
Engine Temperature Warning ................123
Exterior ................................63
Fog ................................. .131
High Beam ..............................83
Malfunction Indicator (Check Engine) ..........130
Park .............................. .83, 136
Passing ................................83
Seat Belt Reminder .......................118
Service ............................... .317
Tire Pressure Monitoring (TPMS) .............126
Traction Control ........................ .209
T
urn Signal ....................... .63, 84, 135
Warning (Instrument Cluster Description) . . . .123, 135
Loading Vehicle Tires................................. .215
10
INDEX 341
