Page 171 of 338

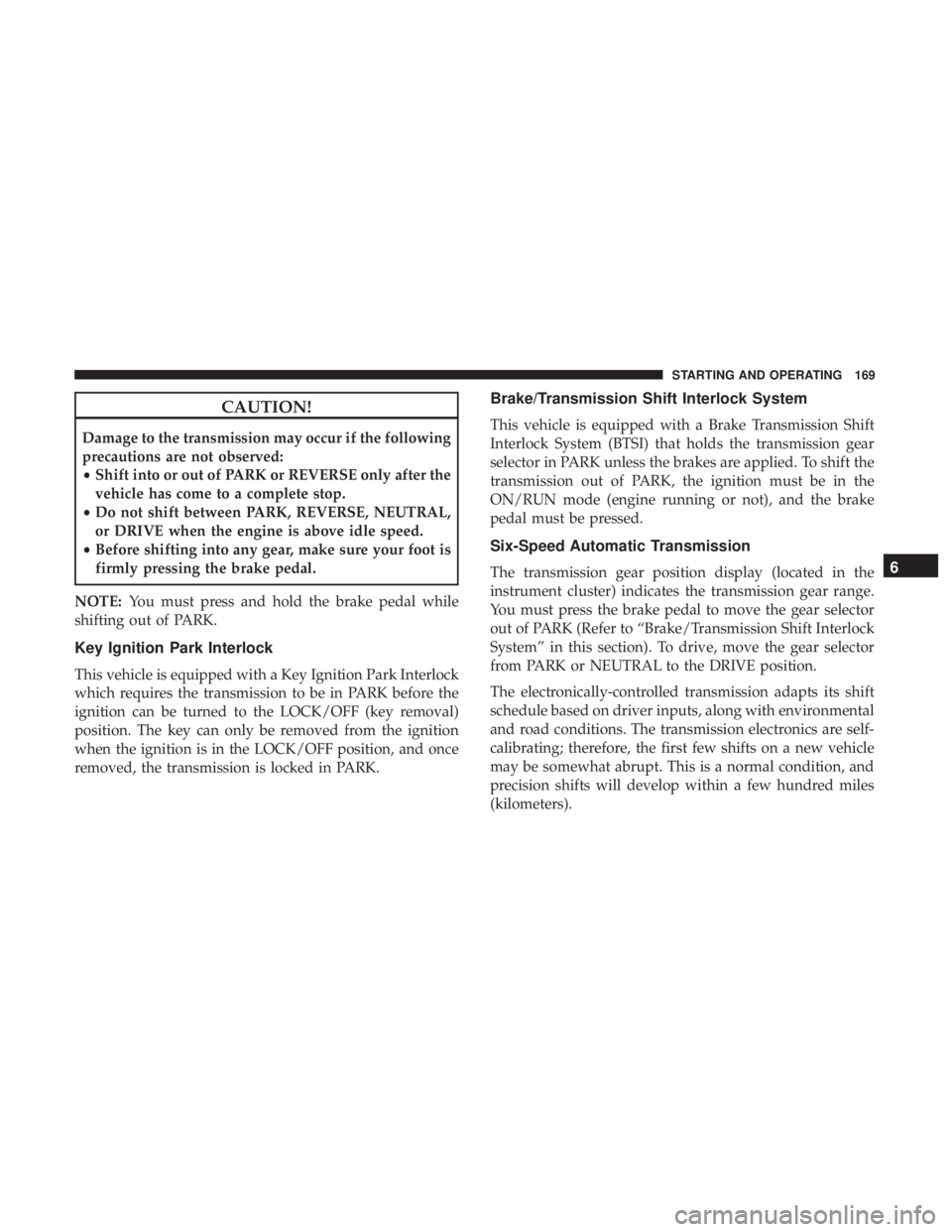

FIAT 500C 2018  Owners Manual CAUTION!Damage to the transmission may occur if the following
precautions are not observed:
• Shift into or out of PARK or REVERSE only after the
vehicle has come to a complete stop.
• Do not shif

Page 172 of 338

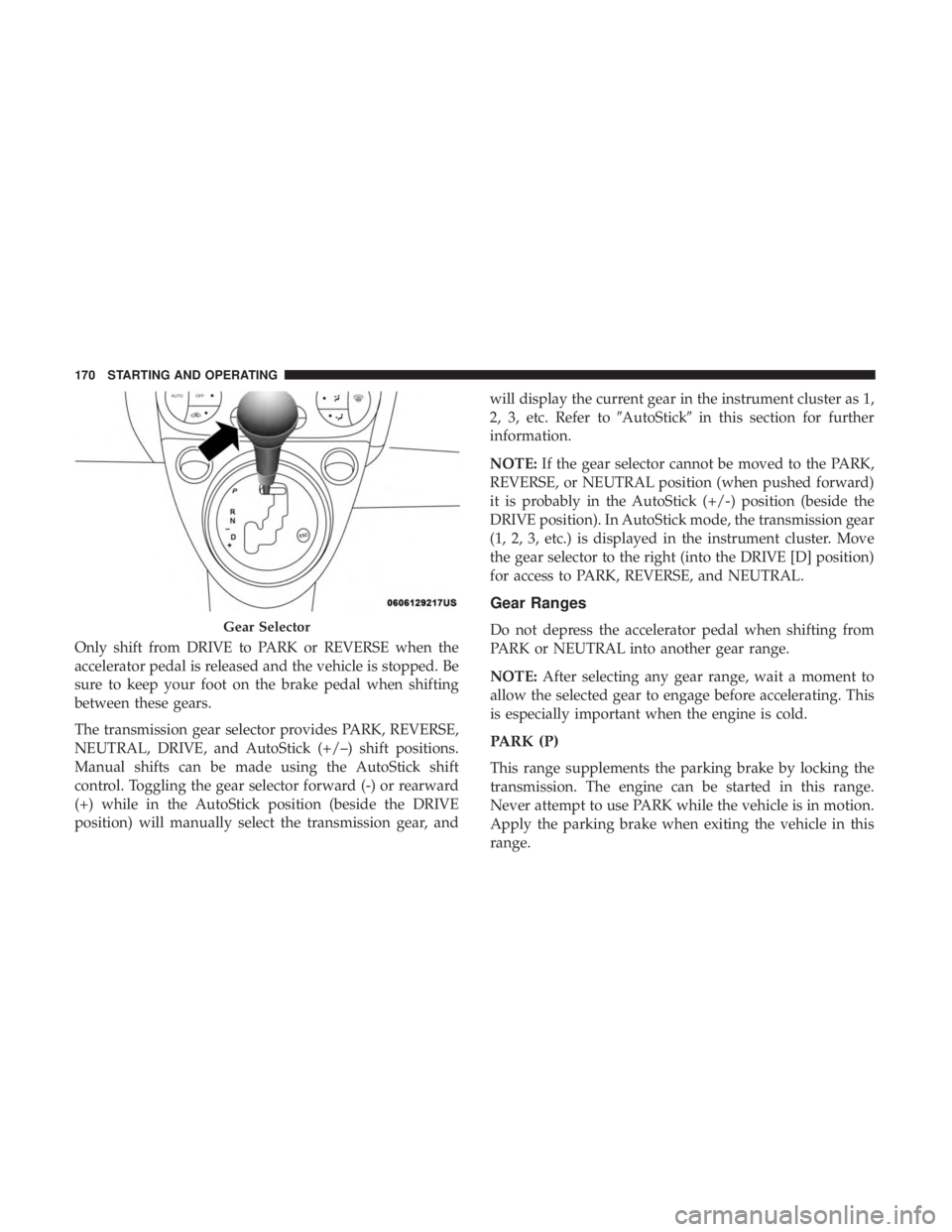

FIAT 500C 2018  Owners Manual Only shift from DRIVE to PARK or REVERSE when the
accelerator pedal is released and the vehicle is stopped. Be
sure to keep your foot on the brake pedal when shifting
between these gears.
The transmis

Page 173 of 338

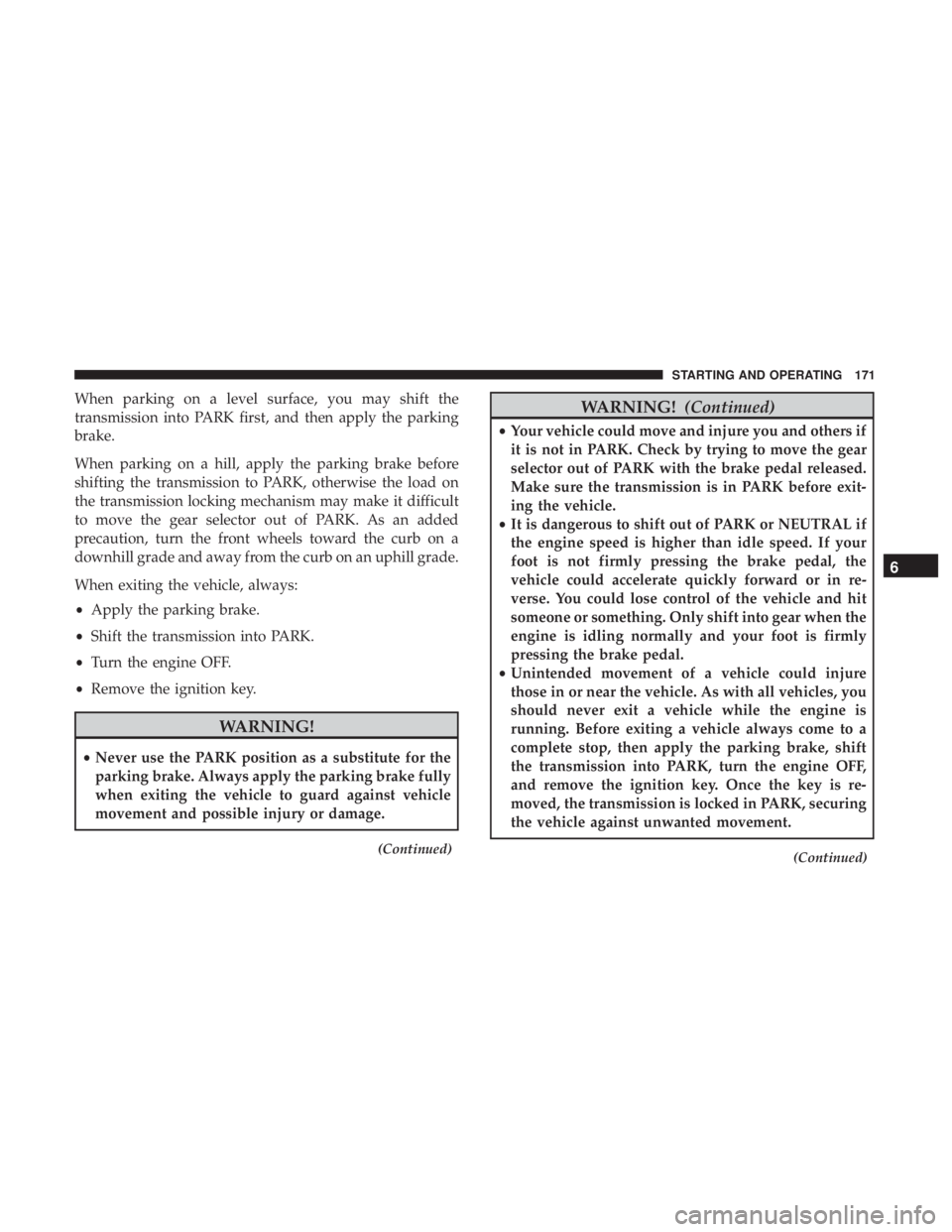

FIAT 500C 2018  Owners Manual When parking on a level surface, you may shift the
transmission into PARK first, and then apply the parking
brake.
When parking on a hill, apply the parking brake before
shifting the transmission to P

Page 174 of 338

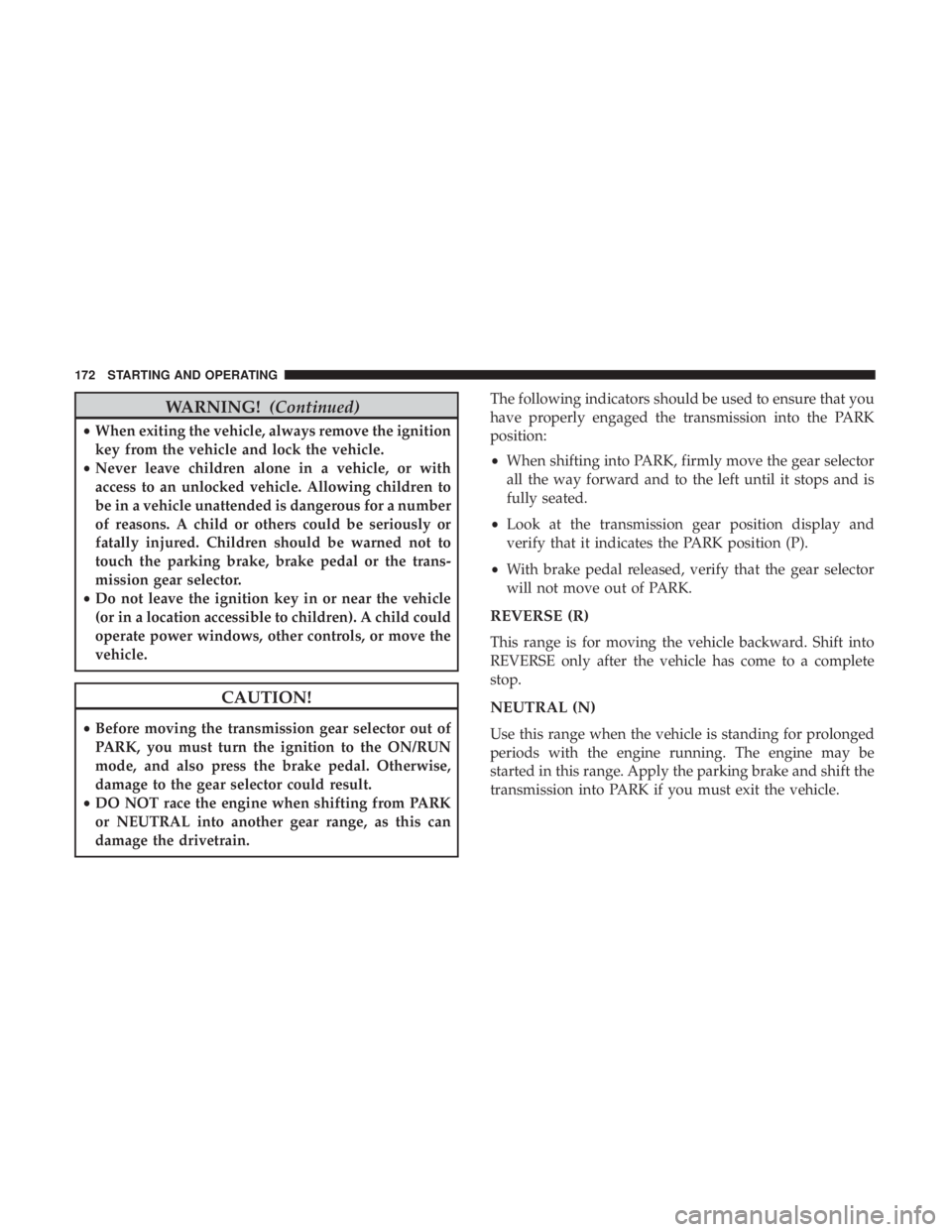

FIAT 500C 2018  Owners Manual WARNING! (Continued)• When exiting the vehicle, always remove the ignition
key from the vehicle and lock the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehic

Page 175 of 338

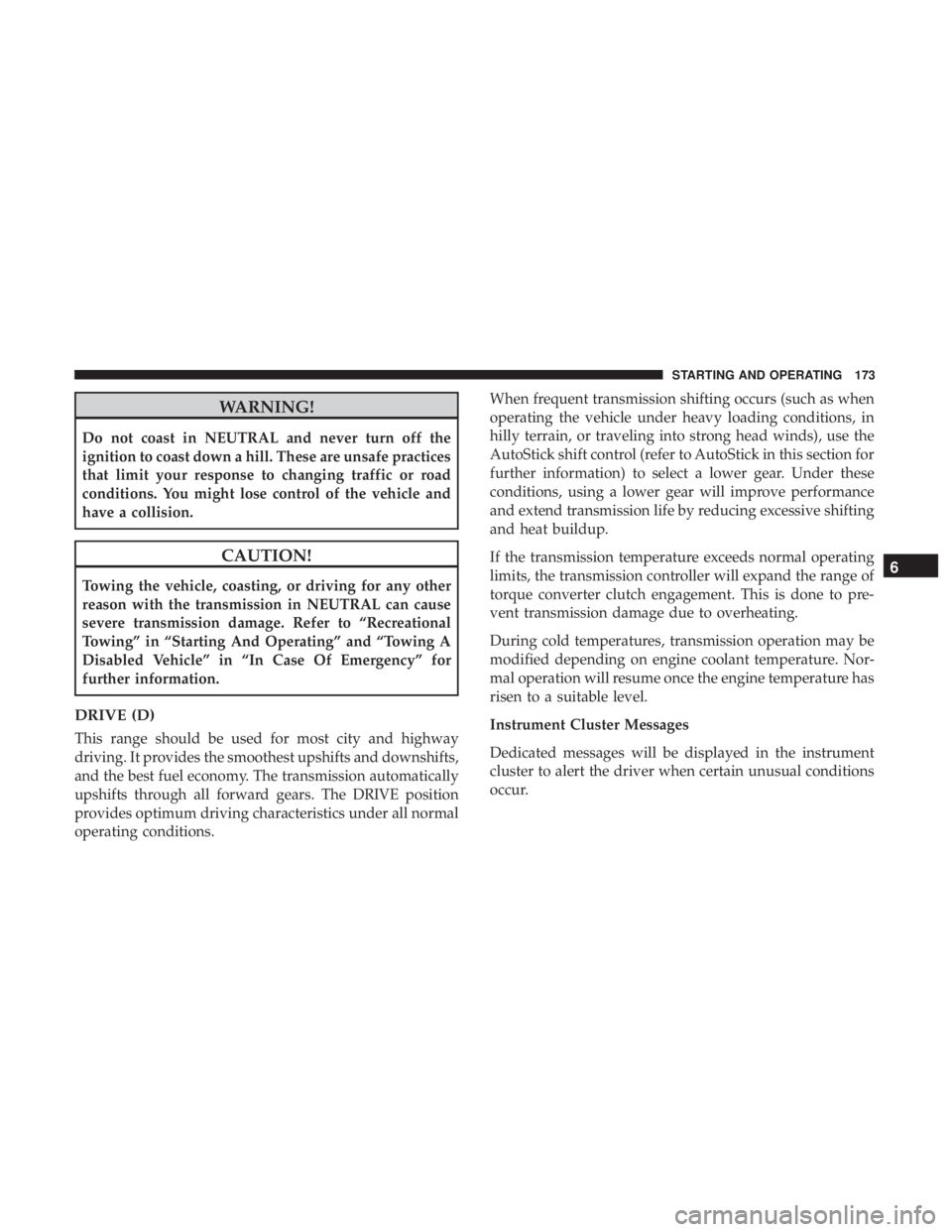

FIAT 500C 2018  Owners Manual WARNING!Do not coast in NEUTRAL and never turn off the
ignition to coast down a hill. These are unsafe practices
that limit your response to changing traffic or road
conditions. You might lose control

Page 176 of 338

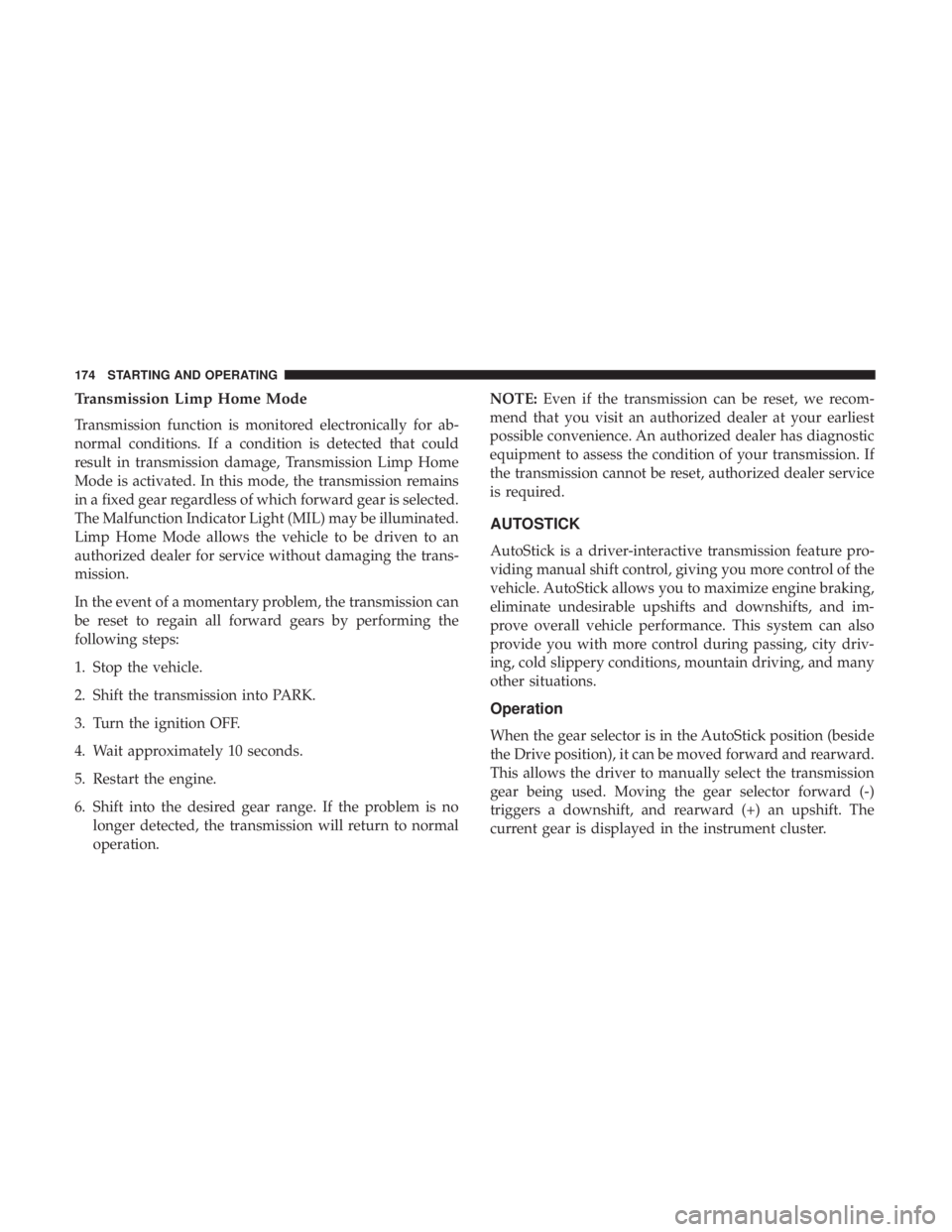

FIAT 500C 2018  Owners Manual Transmission Limp Home Mode
Transmission function is monitored electronically for ab-
normal conditions. If a condition is detected that could
result in transmission damage, Transmission Limp Home
Mod

Page 177 of 338

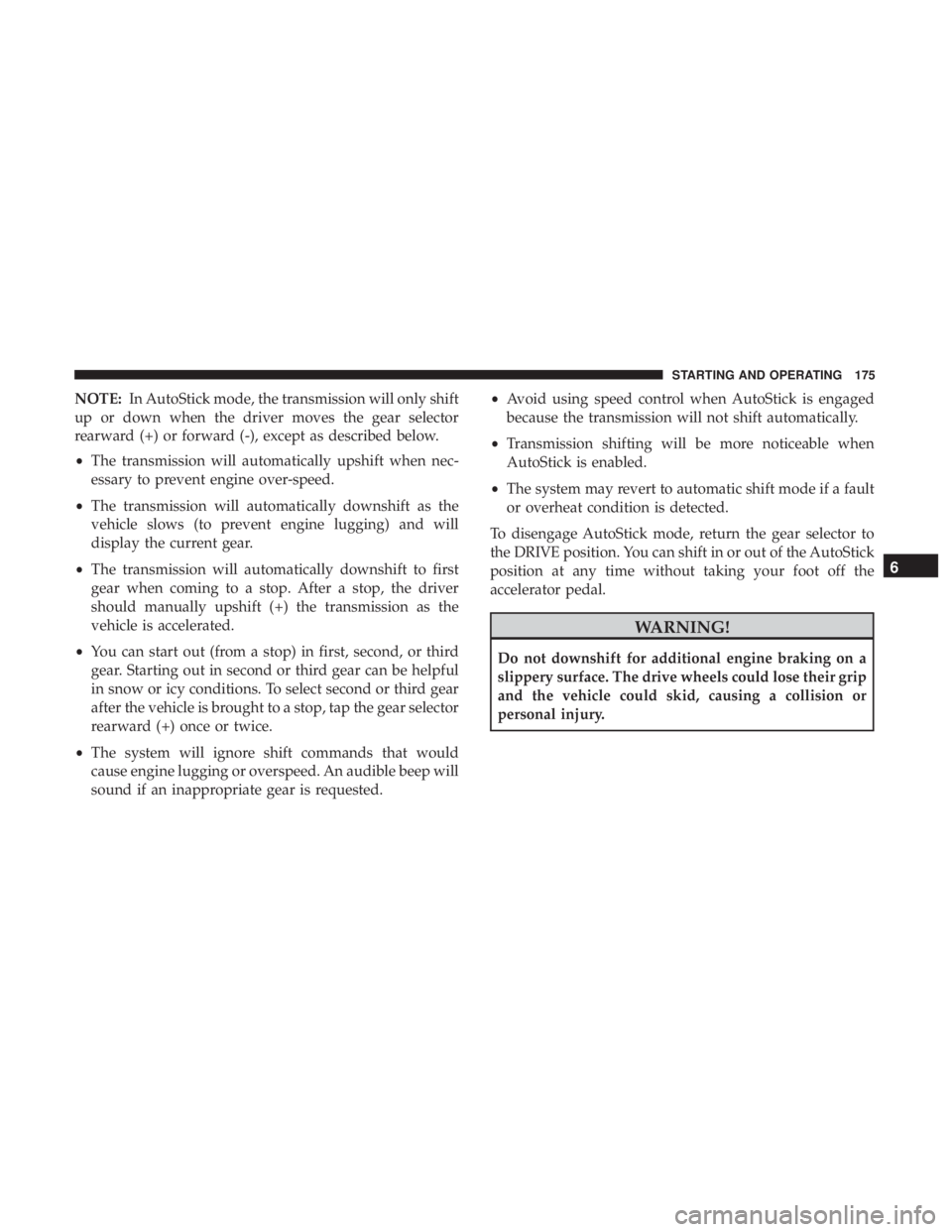

FIAT 500C 2018  Owners Manual NOTE: In AutoStick mode, the transmission will only shift
up or down when the driver moves the gear selector
rearward (+) or forward (-), except as described below.
• The transmission will automatic

Page 178 of 338

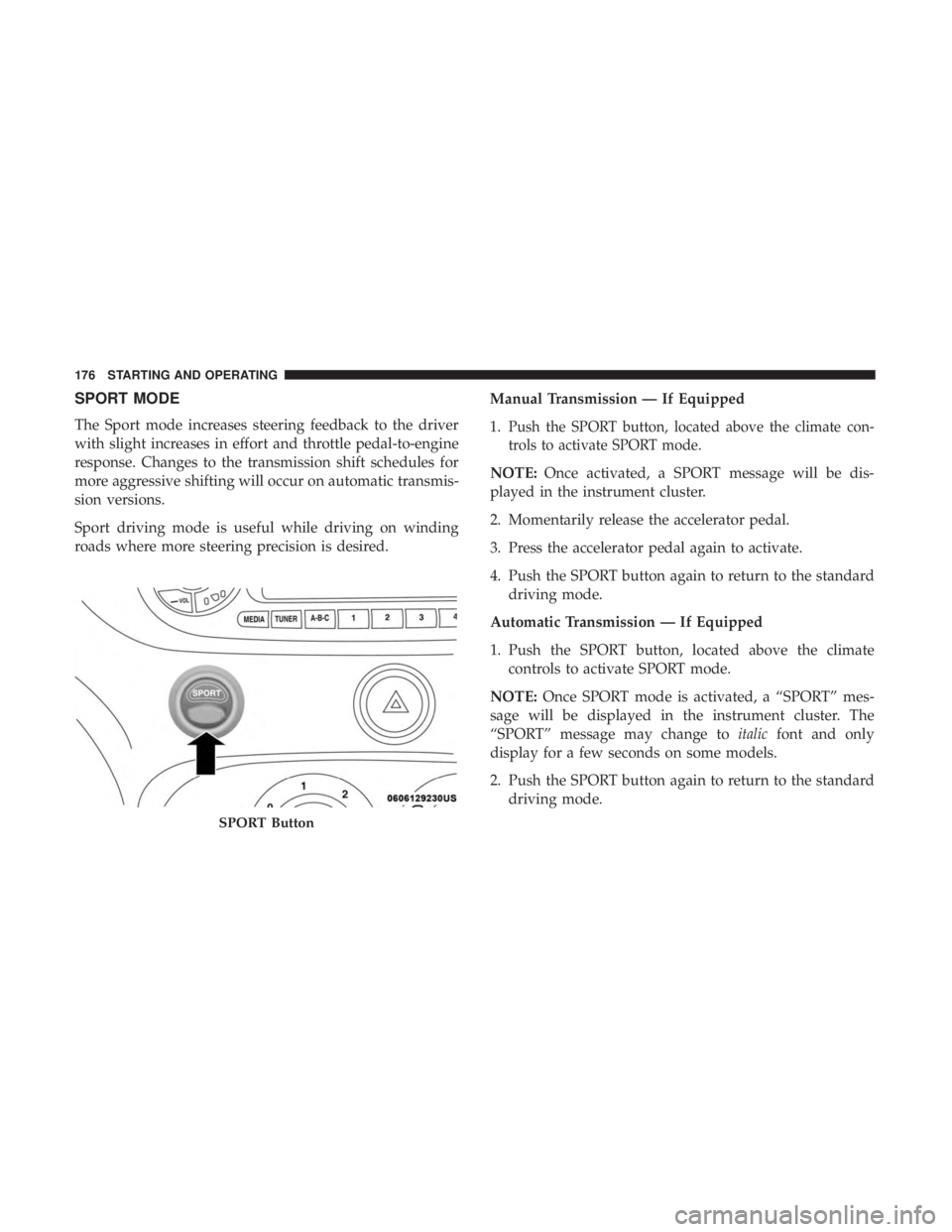

FIAT 500C 2018  Owners Manual SPORT MODE
The Sport mode increases steering feedback to the driver
with slight increases in effort and throttle pedal-to-engine
response. Changes to the transmission shift schedules for
more aggressi

Page 179 of 338

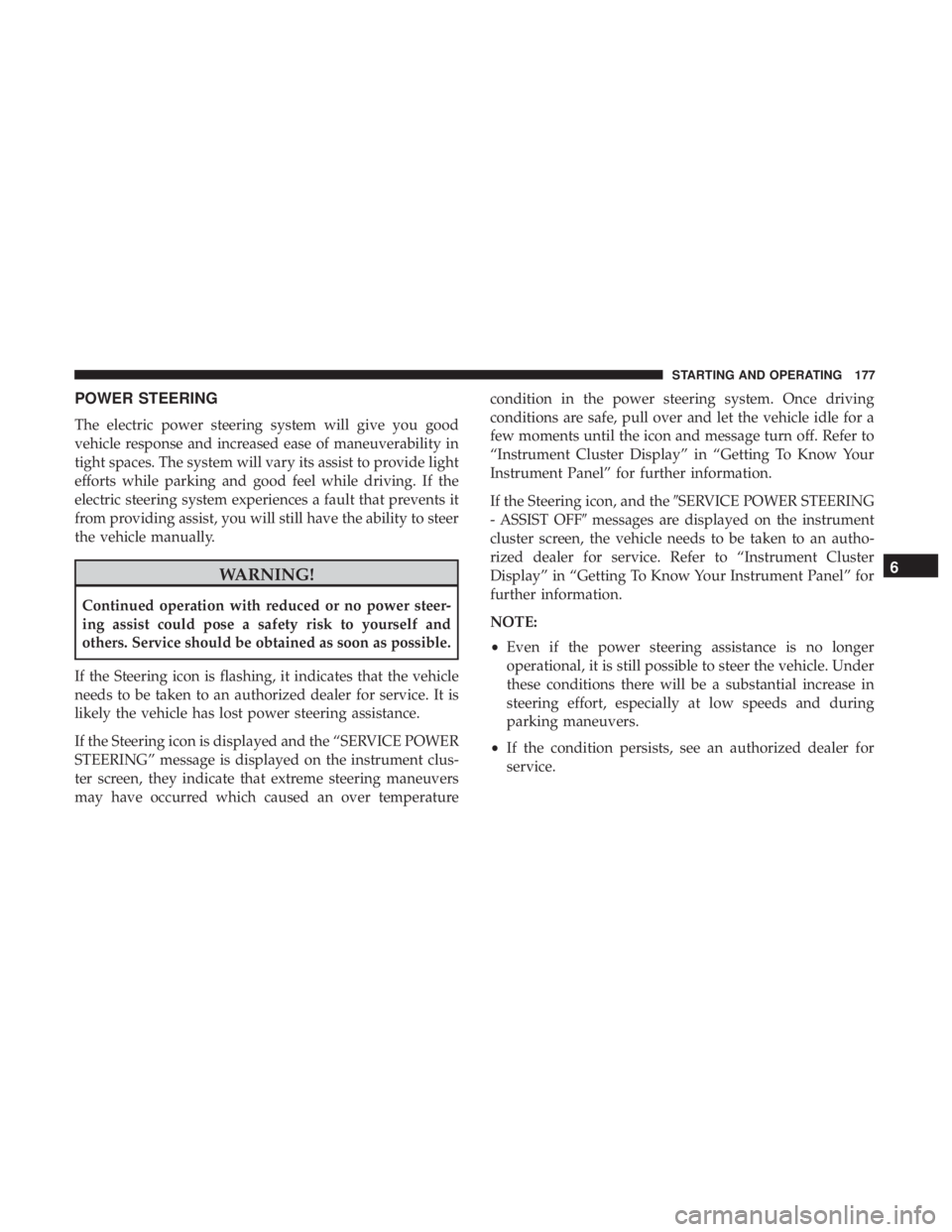

FIAT 500C 2018  Owners Manual POWER STEERING
The electric power steering system will give you good
vehicle response and increased ease of maneuverability in
tight spaces. The system will vary its assist to provide light
efforts wh

Page 180 of 338

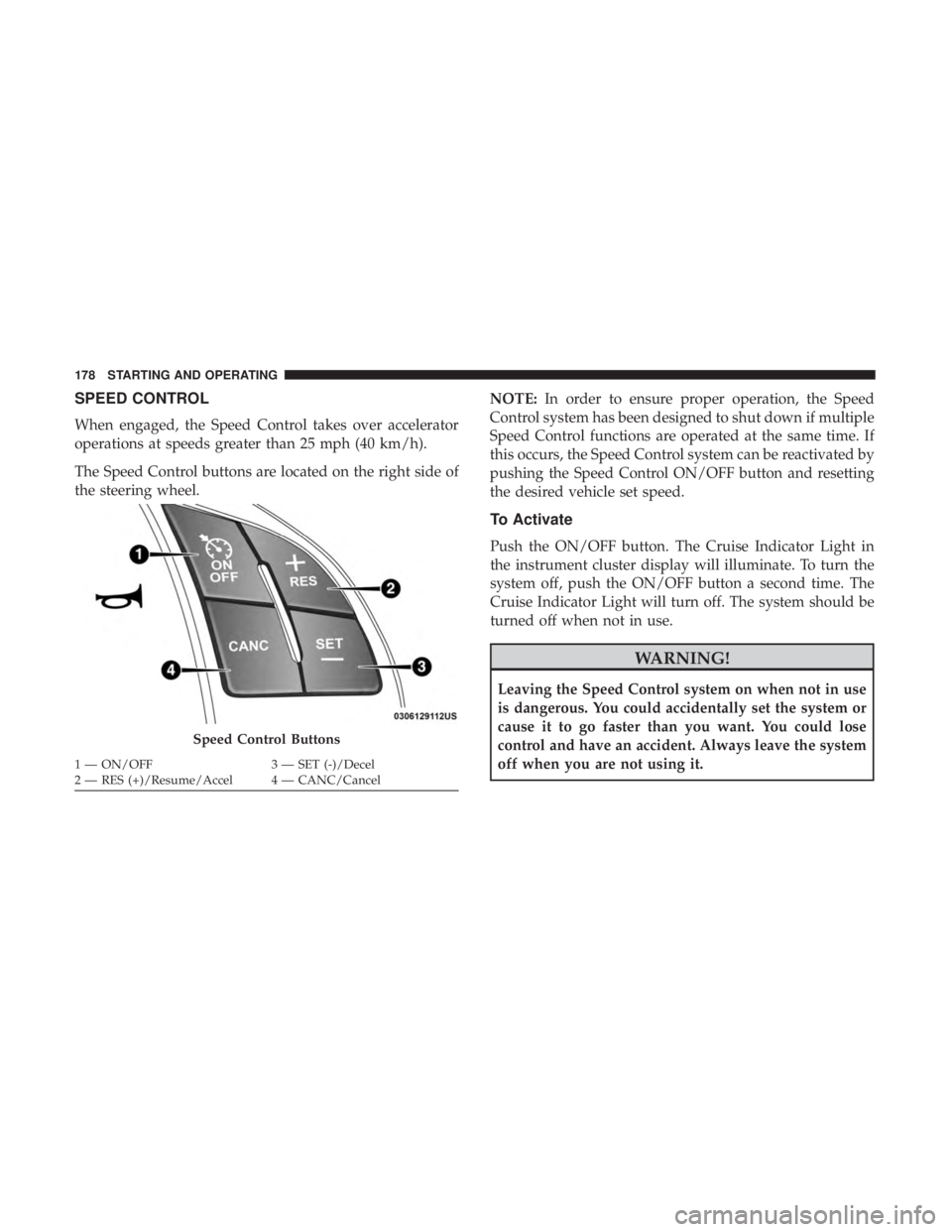

FIAT 500C 2018  Owners Manual SPEED CONTROL
When engaged, the Speed Control takes over accelerator
operations at speeds greater than 25 mph (40 km/h).
The Speed Control buttons are located on the right side of
the steering wheel.
