OWNER’S MANUAL
2018
FIAT ®

500/500c Third Edition
Printed in U.S.A.©2018 FCA US LLC. All Rights Reserved.
FIAT is a registered trademark of FCA Group
Marketing S.p.A., used under license by FCA US LLC.18FF-126-AC
FIAT
®
500/500c
2018

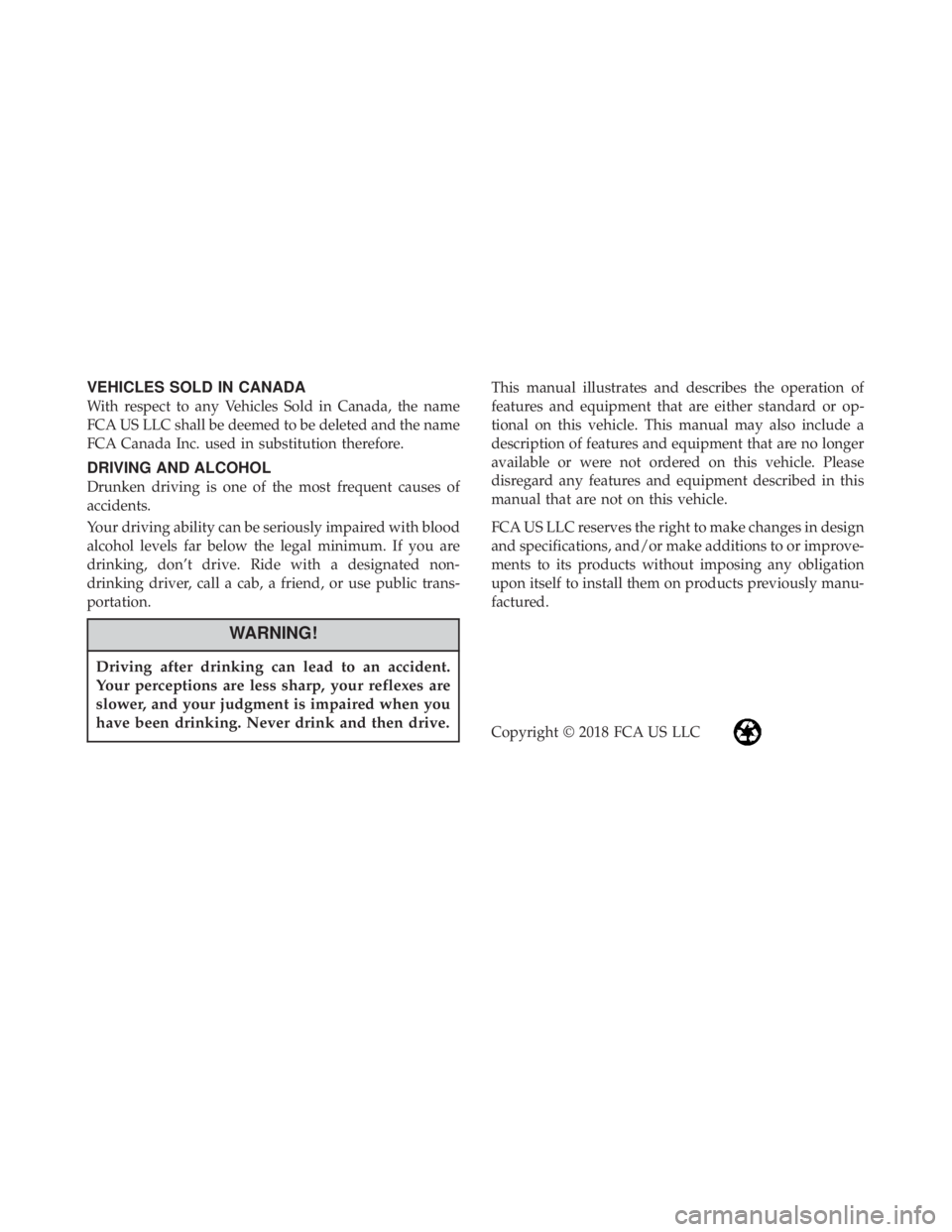

VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name
FCA US LLC shall be deemed to be deleted and the name
FCA Canada Inc. used in substitution therefore.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-
drinking driver, call a cab, a friend, or use public trans-
portation.
WARNING!Driving after drinking can lead to an accident.
Your perceptions are less sharp, your reflexes are
slower, and your judgment is impaired when you
have been drinking. Never drink and then drive. This manual illustrates and describes the operation of
features and equipment that are either standard or op-
tional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
FCA US LLC reserves the right to make changes in design
and specifications, and/or make additions to or improve-
ments to its products without imposing any obligation
upon itself to install them on products previously manu-
factured.
Copyright © 2018 FCA US LLC

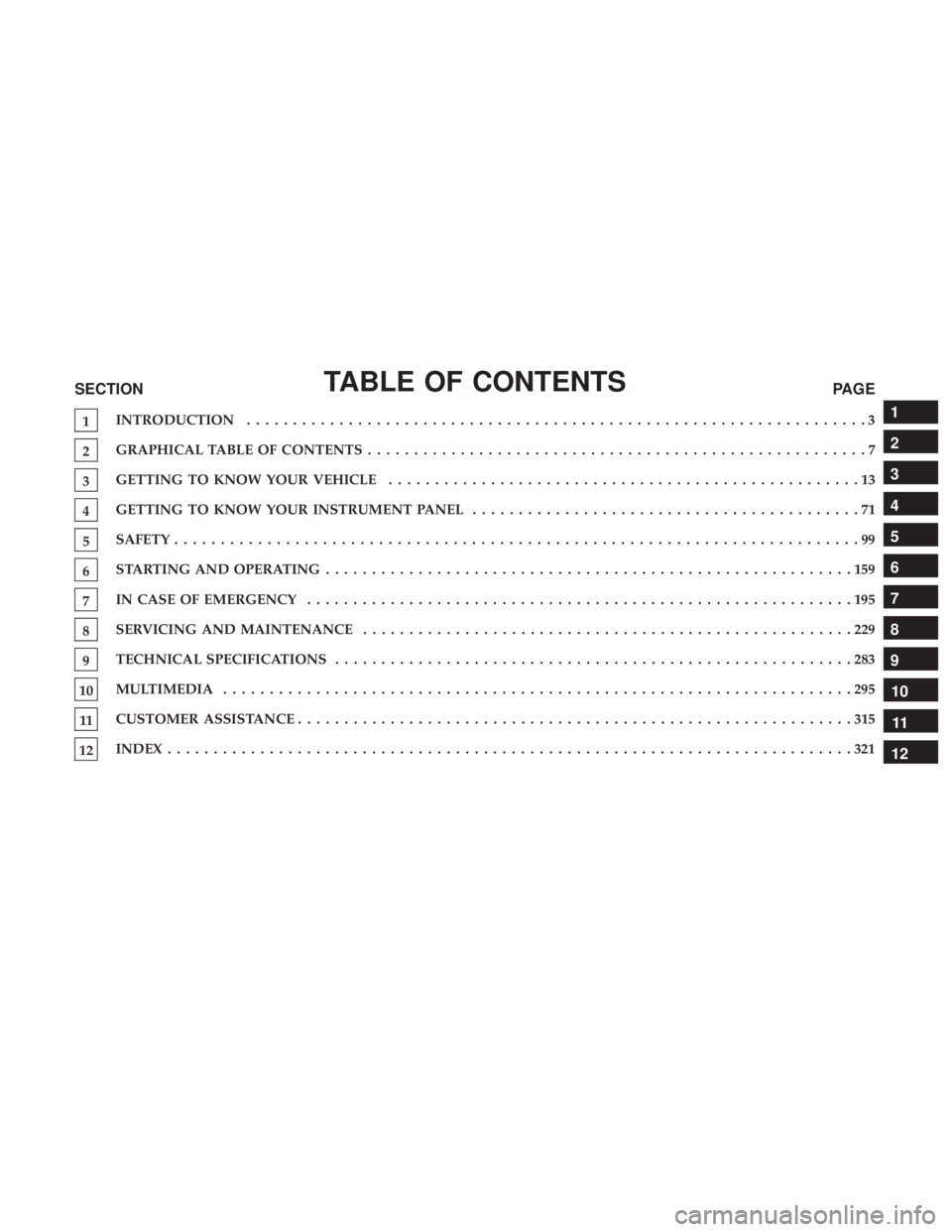

TABLE OF CONTENTSSECTION PAGE1 INTRODUCTION ...................................................................3
2 GRAPHICAL TABLE OF CONTENTS ......................................................7
3 GETTING TO KNOW YOUR VEHICLE ...................................................13
4 GETTING TO KNOW YOUR INSTRUMENT PANEL . .........................................71
5 SAFETY ..........................................................................99
6 STARTINGANDOPERATING.........................................................159
7 INCASEOFEMERGENCY ...........................................................195
8 SERVICING AND MAINTENANCE .....................................................229
9 TECHNICAL SPECIFICATIONS ........................................................283
10 MULTIMEDIA ....................................................................295
11 CUSTOMER ASSISTANCE ............................................................315
12 INDEX..........................................................................321 1
2
3
4
5
6
7
8
9
10
11
12

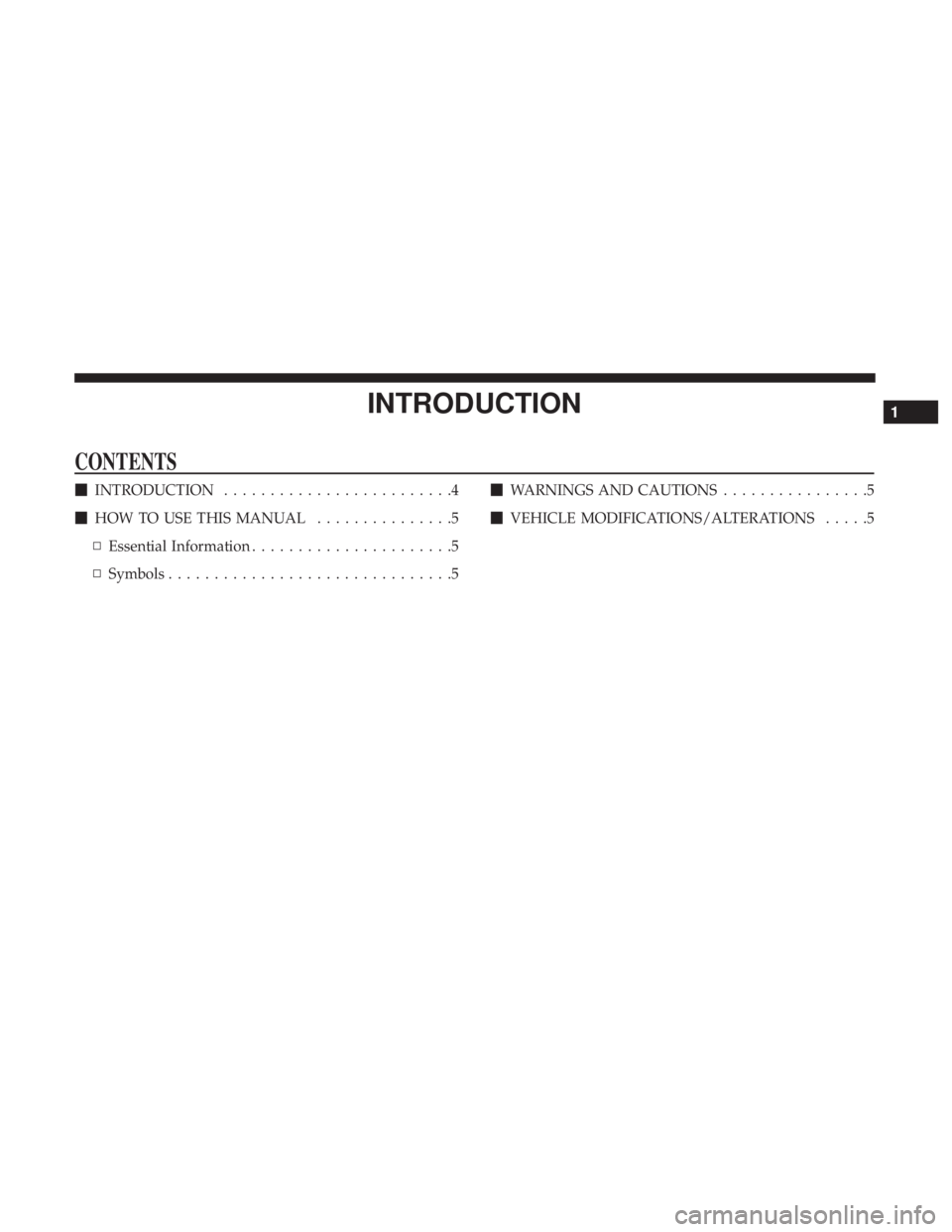

INTRODUCTIONCONTENTS  INTRODUCTION .........................4
 HOW TO USE THIS MANUAL ...............5
▫ Essential Information ......................5
▫ Symbols ...............................5  WARNINGS AND CAUTIONS ................5
 VEHICLE MODIFICATIONS/ALTERATIONS .....5 1

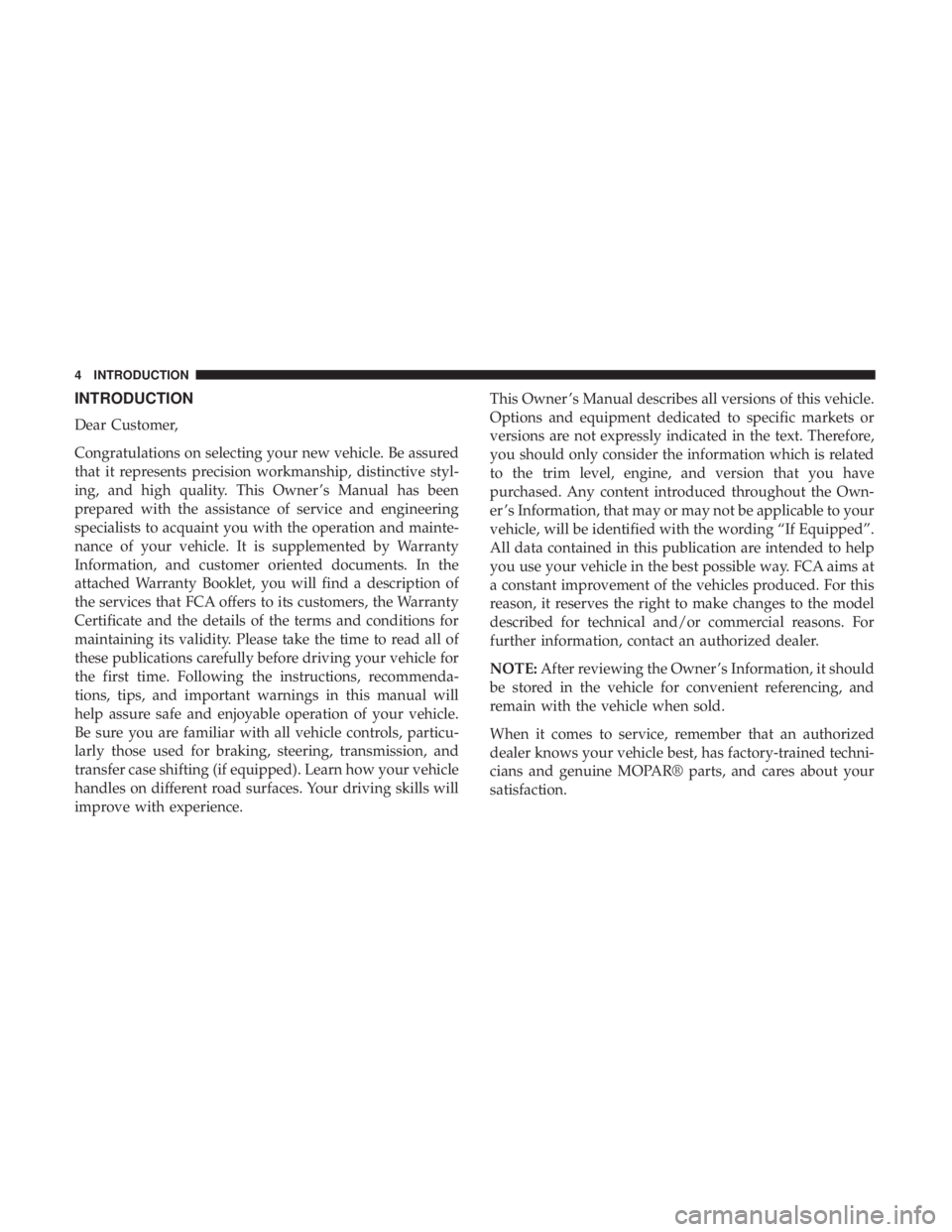

INTRODUCTION
Dear Customer,
Congratulations on selecting your new vehicle. Be assured
that it represents precision workmanship, distinctive styl-
ing, and high quality. This Owner ’s Manual has been
prepared with the assistance of service and engineering
specialists to acquaint you with the operation and mainte-
nance of your vehicle. It is supplemented by Warranty
Information, and customer oriented documents. In the
attached Warranty Booklet, you will find a description of
the services that FCA offers to its customers, the Warranty
Certificate and the details of the terms and conditions for
maintaining its validity. Please take the time to read all of
these publications carefully before driving your vehicle for
the first time. Following the instructions, recommenda-
tions, tips, and important warnings in this manual will
help assure safe and enjoyable operation of your vehicle.
Be sure you are familiar with all vehicle controls, particu-
larly those used for braking, steering, transmission, and
transfer case shifting (if equipped). Learn how your vehicle
handles on different road surfaces. Your driving skills will
improve with experience. This Owner ’s Manual describes all versions of this vehicle.
Options and equipment dedicated to specific markets or
versions are not expressly indicated in the text. Therefore,
you should only consider the information which is related
to the trim level, engine, and version that you have
purchased. Any content introduced throughout the Own-
er ’s Information, that may or may not be applicable to your
vehicle, will be identified with the wording “If Equipped”.
All data contained in this publication are intended to help
you use your vehicle in the best possible way. FCA aims at
a constant improvement of the vehicles produced. For this
reason, it reserves the right to make changes to the model
described for technical and/or commercial reasons. For
further information, contact an authorized dealer.
NOTE: After reviewing the Owner ’s Information, it should
be stored in the vehicle for convenient referencing, and
remain with the vehicle when sold.
When it comes to service, remember that an authorized
dealer knows your vehicle best, has factory-trained techni-
cians and genuine MOPAR® parts, and cares about your
satisfaction.4 INTRODUCTION

HOW TO USE THIS MANUAL
Essential Information
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the items
of equipment ordered, certain descriptions and illustra-
tions may differ from your vehicle’s equipment.
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.
Symbols
Some vehicle components have colored labels whose sym-
bols indicate precautions to be observed when using this
component. Refer to “Warning Lights and Messages” in
“Getting To Know Your Instrument Panel” for further
information on the symbols used in your vehicle. WARNINGS AND CAUTIONS
This Owner ’s Manual contains WARNINGS against oper-
ating procedures that could result in a collision, bodily
injury and/or death. It also contains CAUTIONS against
procedures that could result in damage to your vehicle. If
you do not read this entire Owner ’s Manual, you may miss
important information. Observe all Warnings and Cau-
tions.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and may
lead to a collision resulting in serious injury or death. 1 INTRODUCTION 5

GRAPHICAL TABLE OF CONTENTSCONTENTS  FRONT VIEW ............................8
 REAR VIEW .............................9  INSTRUMENT PANEL .....................10
 INTERIOR .............................11 2

FRONT VIEW
Front View1 — Hood / Engine Compartment 4 — Exterior Mirrors
2 — Windshield 5 — Doors
3 — Headlights 6 — Wheels / Tires8 GRAPHICAL TABLE OF CONTENTS
