Page 261 of 367

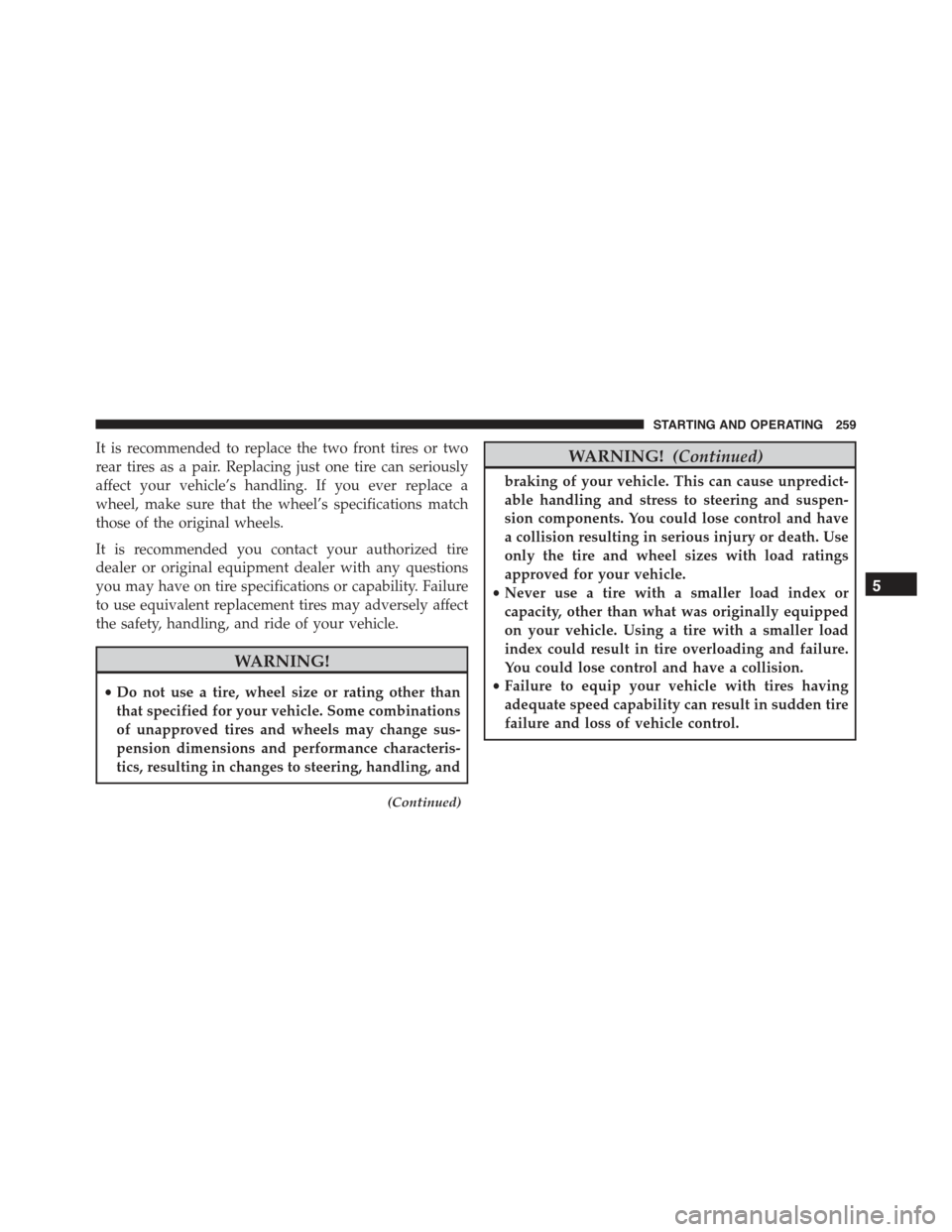

FIAT 500E 2015 2.G Owners Manual It is recommended to replace the two front tires or two
rear tires as a pair. Replacing just one tire can seriously
affect your vehicle’s handling. If you ever replace a
wheel, make sure that the wh

Page 262 of 367

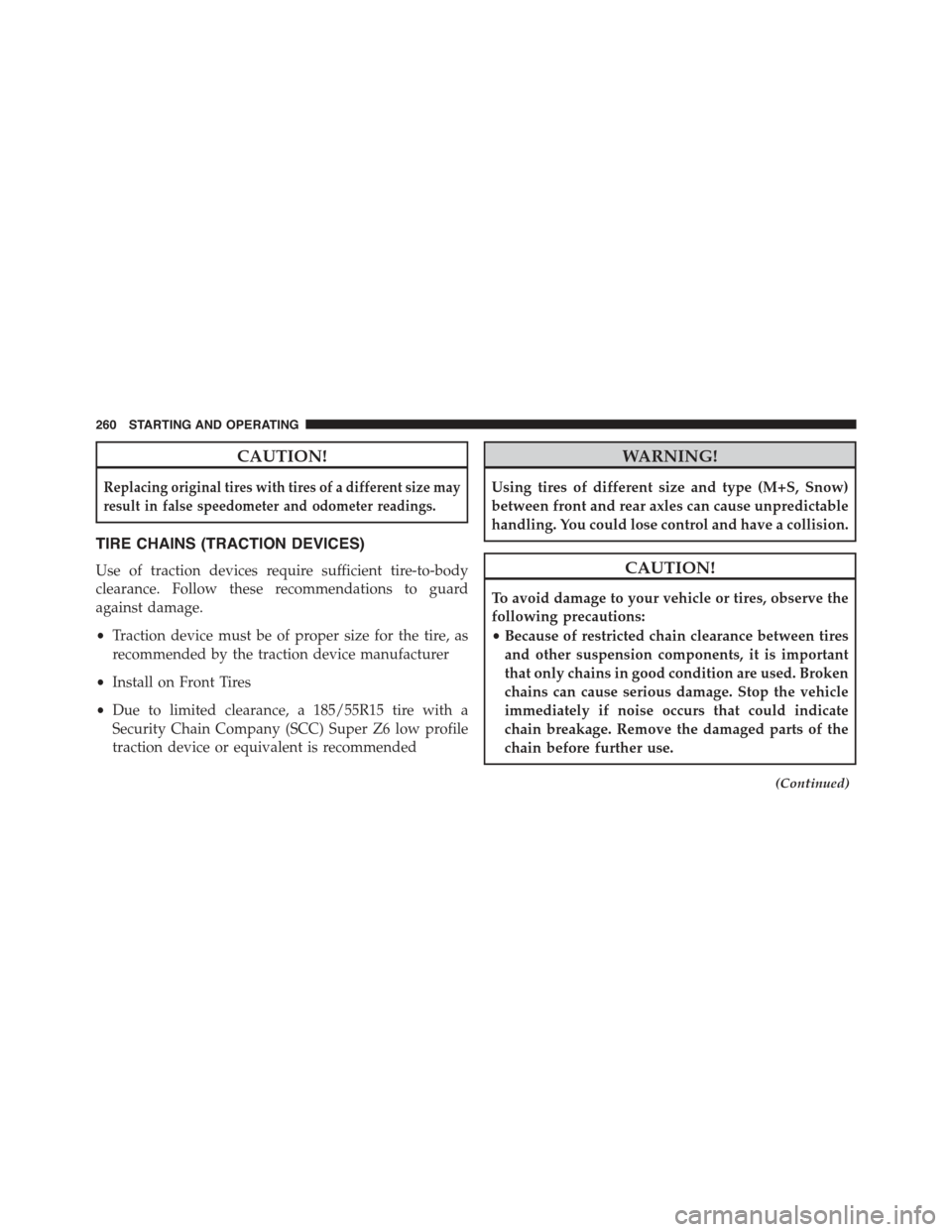

FIAT 500E 2015 2.G Owners Manual CAUTION!
Replacing original tires with tires of a different size may
result in false speedometer and odometer readings.
TIRE CHAINS (TRACTION DEVICES)
Use of traction devices require sufficient tire-t

Page 263 of 367

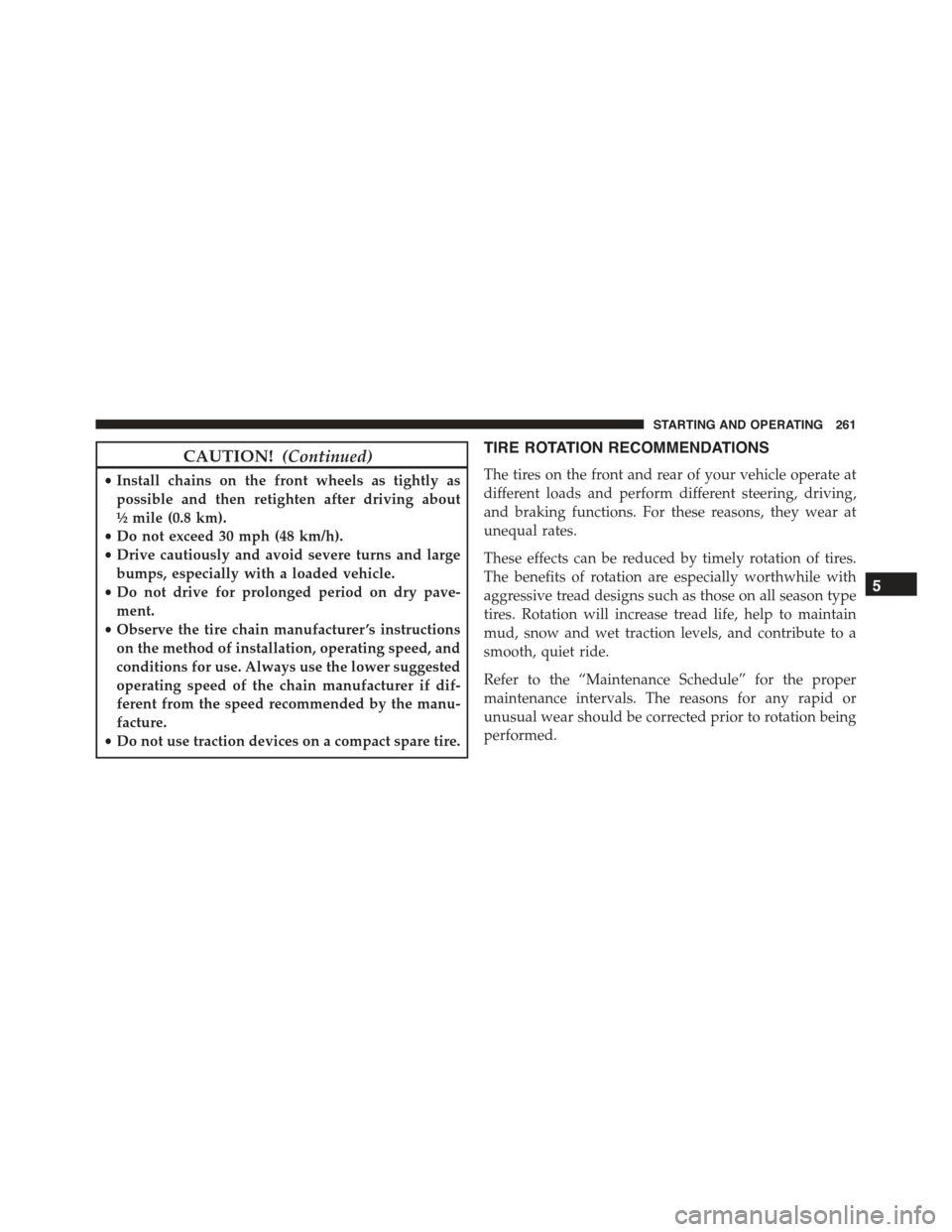

FIAT 500E 2015 2.G Owners Manual CAUTION!(Continued)
•Install chains on the front wheels as tightly as
possible and then retighten after driving about
½mile (0.8 km).
•Do not exceed 30 mph (48 km/h).
•Drive cautiously and avoi

Page 264 of 367

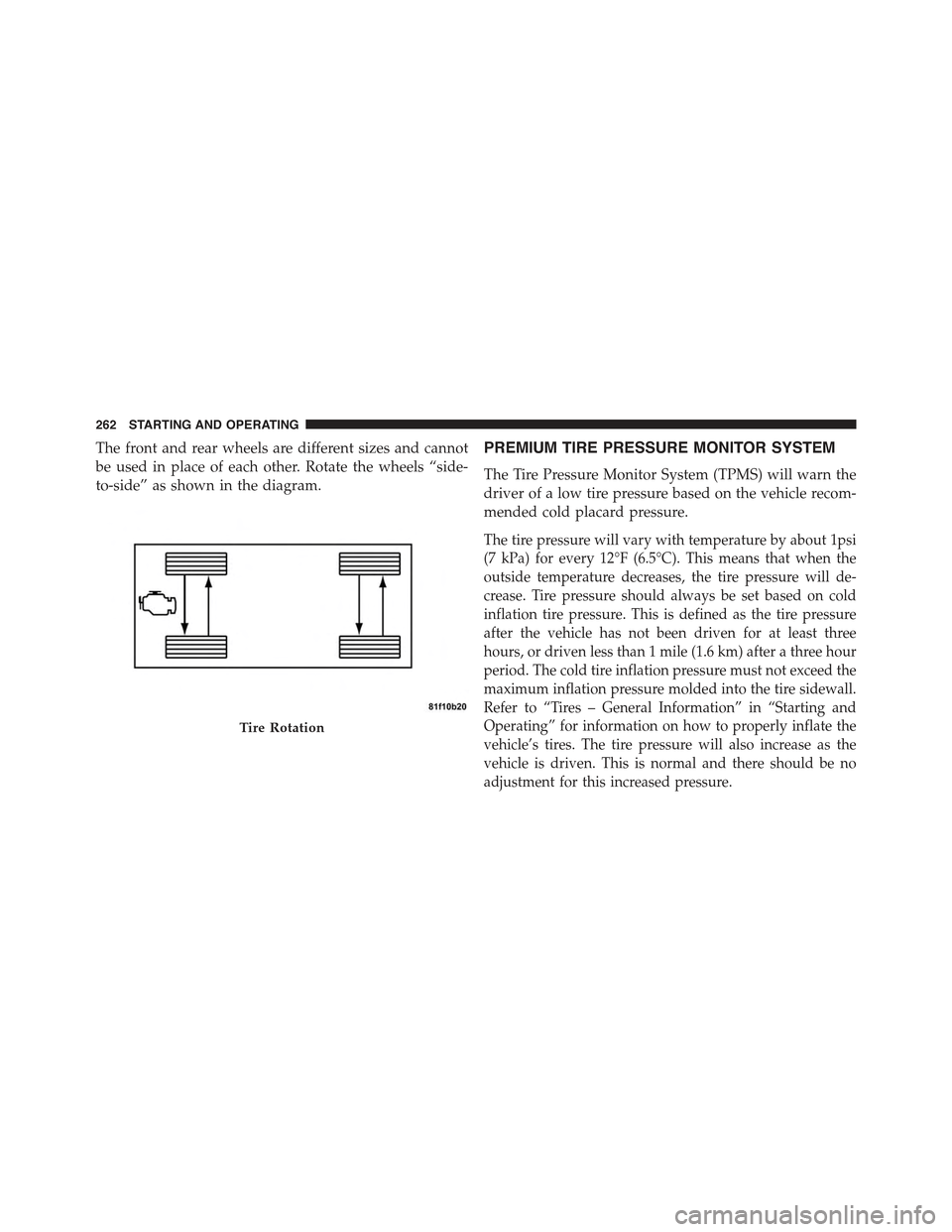

FIAT 500E 2015 2.G Owners Manual The front and rear wheels are different sizes and cannot
be used in place of each other. Rotate the wheels “side-
to-side” as shown in the diagram.
PREMIUM TIRE PRESSURE MONITOR SYSTEM
The Tire Pr

Page 265 of 367

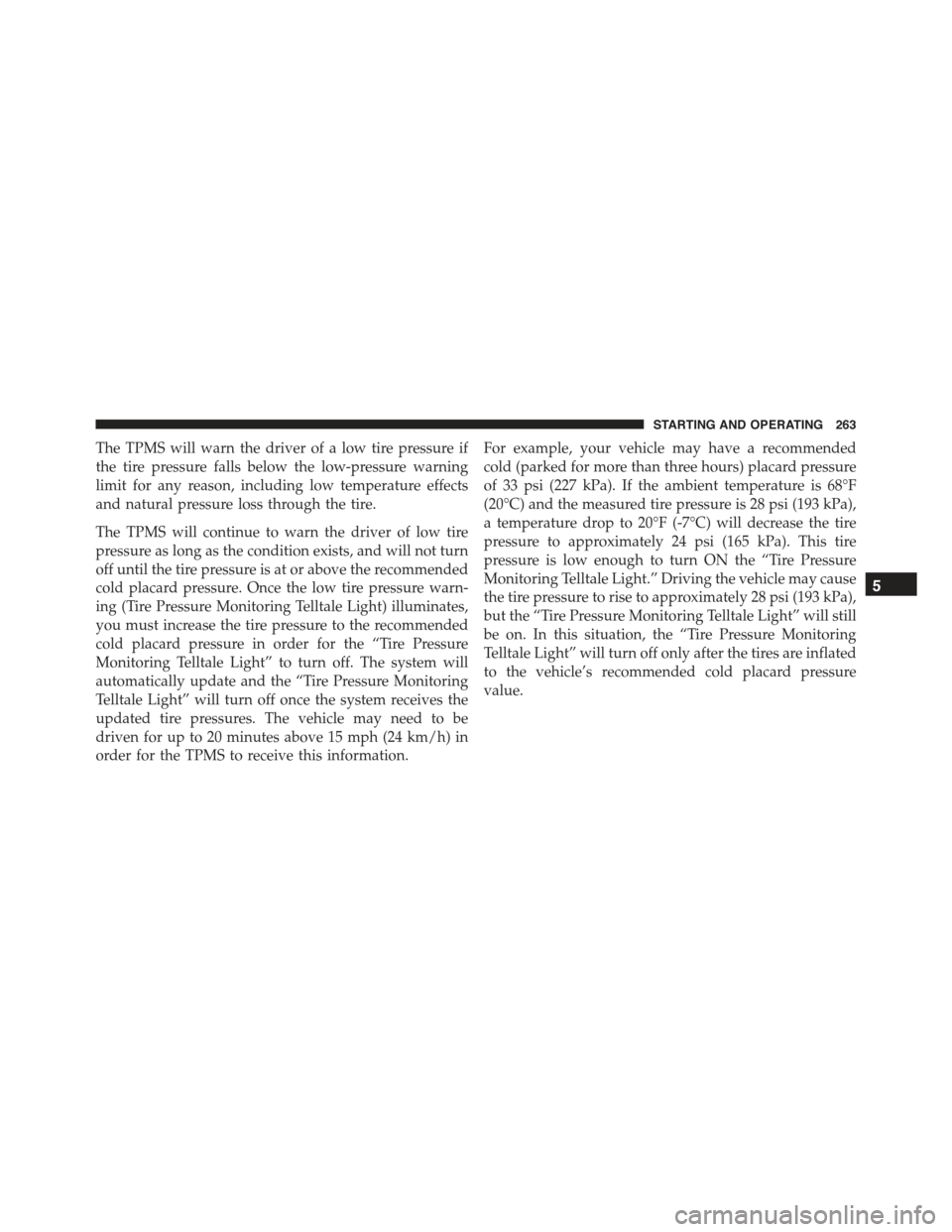

FIAT 500E 2015 2.G Owners Manual The TPMS will warn the driver of a low tire pressure if
the tire pressure falls below the low-pressure warning
limit for any reason, including low temperature effects
and natural pressure loss through

Page 266 of 367

FIAT 500E 2015 2.G Owners Manual CAUTION!
•The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warnings have been established for the tire size
equipped on your vehicle. Undesirable system op

Page 267 of 367

FIAT 500E 2015 2.G Owners Manual •The TPMS is not a substitute for proper tire mainte-
nance, and it is the driver ’s responsibility to maintain
correct tire pressure using an accurate tire pressure
gauge, even if under-inflation

Page 268 of 367

FIAT 500E 2015 2.G Owners Manual Should this occur, you should stop as soon as possible and
inflate the tires with low pressure to the vehicle’s recom-
mended cold placard pressure value. Once the system
receives the updated tire p

Page 269 of 367

FIAT 500E 2015 2.G Owners Manual If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no lo

Page 270 of 367

FIAT 500E 2015 2.G Owners Manual shown. This indicates that the pressure values are still
being received from the TPM sensors but they may not be
located in the correct vehicle position. The system still
needs to be serviced as long
