FIAT 500E 2016 2.G Owners Manual

this button is selected. Push the button a second time to
turn off the Recirculation mode LED and allow outside
air into the vehicle.
NOTE:In cold weather, use of Recirculation mode may
lead to excessive window fogging. The recirculation
feature may be unavailable (indicator light shall blink) if
conditions exist that could create fogging on the inside of
the windshield. On systems with Manual Climate Con-
trols, the Recirculation mode is not allowed in Defrost
mode to improve window clearing operation. Recircula-
tion will be disabled automatically if this mode is se-
lected. Attempting to use Recirculation while in this
mode will cause the LED in the control button to blink
and then turn off.
Automatic Operation
1. Push the AUTO button on the Automatic Temperature Control (ATC) Panel, the indicator will illuminate
when on. 2. Next, adjust the temperature you would like the
system to maintain by adjusting the temperature con-
trol buttons. Once the desired temperature is dis-
played, the system will achieve and automatically
maintain that comfort level.
3. When the system is set up for your comfort level, it is not necessary to change the settings. You will experi-
ence the greatest efficiency by simply allowing the
system to function automatically.
NOTE:
• It is not necessary to move the temperature settings for
cold or hot vehicles. The system automatically adjusts
the temperature, mode and fan speed to provide
comfort as quickly as possible.
• The temperature can be displayed in U.S. or Metric
units by selecting the US/M customer-programmable
4
UNDERSTANDING YOUR INSTRUMENT PANEL 199

feature. Refer to the “Electronic Vehicle Information
Center (EVIC) — Customer-Programmable Features”
in this section of the manual.
Manual Operation
The system allows for manual selection of blower speed,
air distribution mode, A/C status and recirculation con-
trol.
The blower fan speed can be set to any fixed speed by
adjusting the blower control. The fan will now operate at
a fixed speed until additional speeds are selected. This
allows the front occupants to control the volume of air
circulated in the vehicle and cancel the Auto mode.
The operator can also select the direction of the airflow
by selecting one of the available mode settings. A/C
operation and Recirculation control can also be manually
selected in Manual operation.
Operating Tips
NOTE:Refer to the chart at the end of this section for
suggested control settings for various weather condi-
tions.
Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases,
turning the air conditioning (pressing the A/C button) on
will clear the fog. Adjust the temperature control, air
direction, and blower speed to maintain comfort.
As the temperature gets colder, it may be necessary to
direct air onto the windshield. Adjust the temperature
control and blower speed to maintain comfort. Higher
blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
Defrost mode.
200 UNDERSTANDING YOUR INSTRUMENT PANEL

Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.
NOTE:Automatic Temperature Controls (ATC) will au-
tomatically adjust the climate control settings to reduce
or eliminate window fogging on the front windshield.
When this occurs, recirculation will be unavailable.
Summer Operation
Your air conditioning system is also equipped with an
automatic recirculation system. When the system senses
a heavy load or high heat conditions, it may use Recir-
culation A/C mode to provide additional comfort while
in automatic mode.
Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other obstruc-
tions.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air using the high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the air conditioning system
is started again.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 201

Operating Tips Chart
202 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................206
▫ Single-Speed Transmission ...............206
▫ Normal Starting ...................... .206
 SINGLE–SPEED TRANSMISSION ...........208
▫ Key Ignition Park Interlock ...............210
▫ Gear Ranges ........................ .210
▫ Auto Park .......................... .213
 DRIVING ON SLIPPERY SURFACES .........214
▫ Acceleration ........................ .214
▫ Traction ........................... .215
DRIVING THROUGH WATER .............215
▫ Flowing/Rising Water ..................215
▫ Shallow Standing Water .................216
 POWER STEERING .....................217
 PARKING BRAKE ..................... .218
 BRAKE SYSTEM ...................... .220
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .220
▫ Four-Wheel Anti-Lock Brake System (ABS) . . .220
▫ Brake Assist System (BAS) ...............222
▫ Traction Control System (TCS) ............222
5

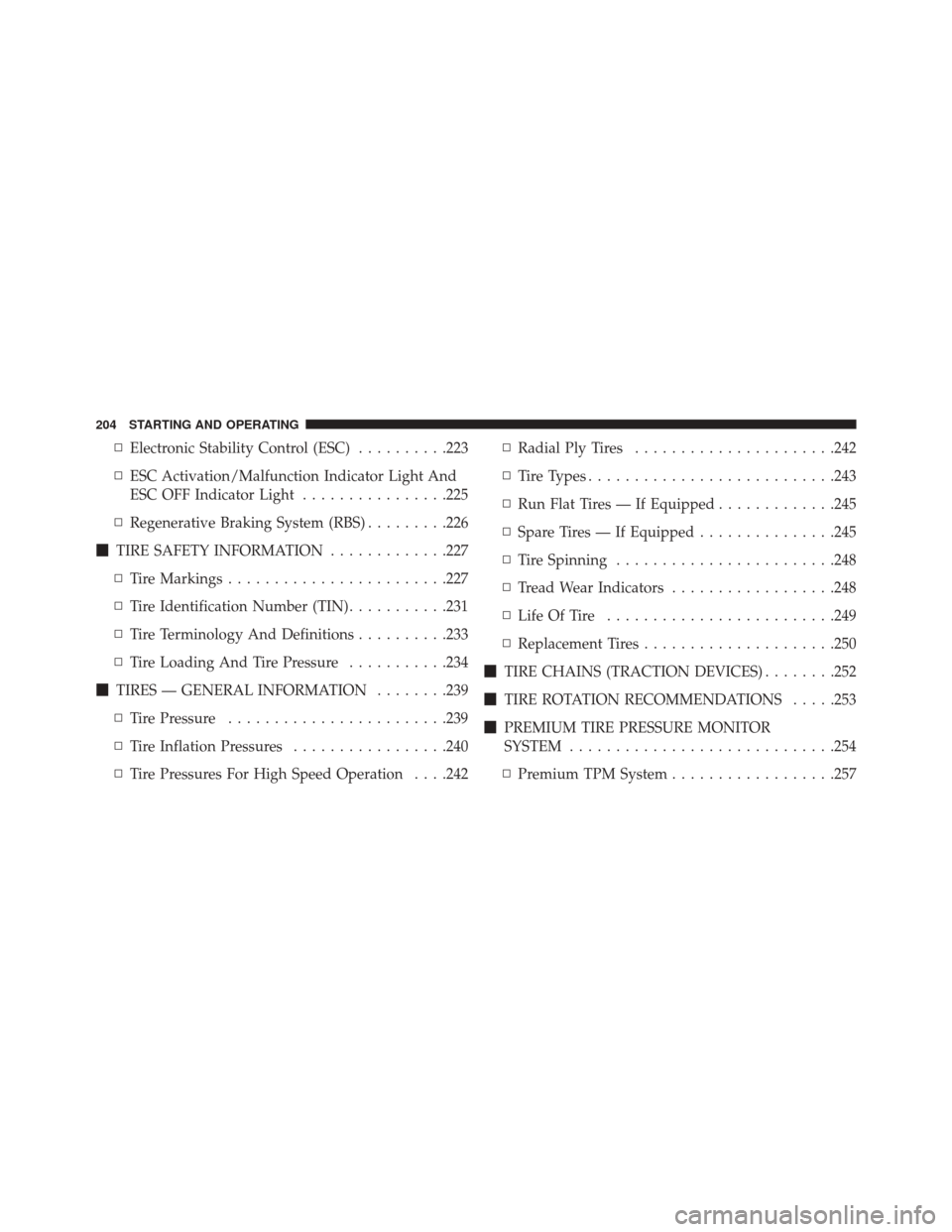

▫Electronic Stability Control (ESC) ..........223
▫ ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light ................225
▫ Regenerative Braking System (RBS) .........226
 TIRE SAFETY INFORMATION .............227
▫ Tire Markings ....................... .227
▫ Tire Identification Number (TIN) ...........231
▫ Tire Terminology And Definitions ..........233
▫ Tire Loading And Tire Pressure ...........234
 TIRES — GENERAL INFORMATION ........239
▫ Tire Pressure ....................... .239
▫ Tire Inflation Pressures .................240
▫ Tire Pressures For High Speed Operation . . . .242 ▫
Radial Ply Tires ..................... .242
▫ Tire Types .......................... .243
▫ Run Flat Tires — If Equipped .............245
▫ Spare Tires — If Equipped ...............245
▫ Tire Spinning ....................... .248
▫ Tread Wear Indicators ..................248
▫ Life Of Tire ........................ .249
▫ Replacement Tires .....................250
 TIRE CHAINS (TRACTION DEVICES) ........252
 TIRE ROTATION RECOMMENDATIONS .....253
 PREMIUM TIRE PRESSURE MONITOR
SYSTEM ............................ .254
▫ Premium TPM System ..................257
204 STARTING AND OPERATING

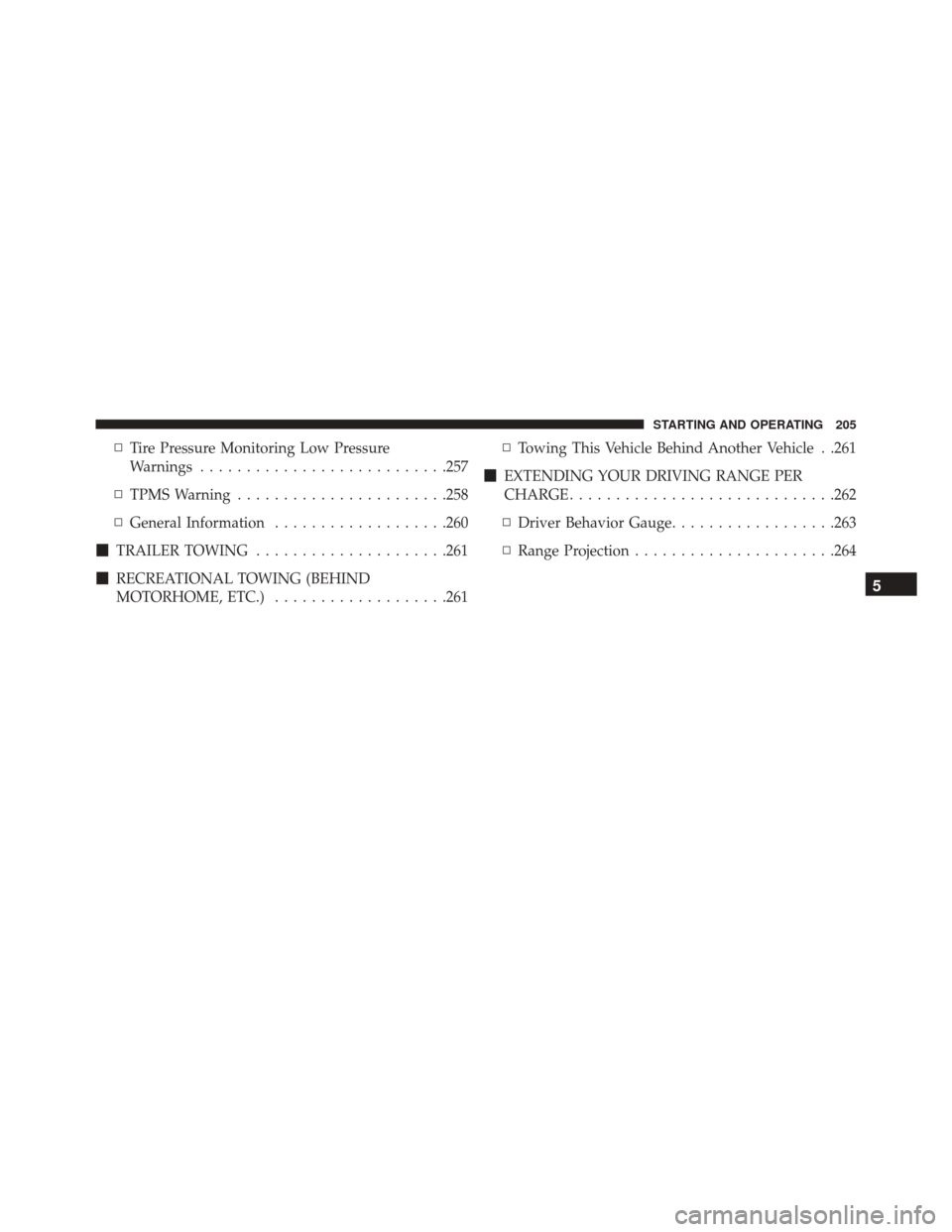

▫Tire Pressure Monitoring Low Pressure
Warnings .......................... .257
▫ TPMS Warning ...................... .258
▫ General Information ...................260
 TRAILER TOWING .....................261
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ...................261 ▫
Towing This Vehicle Behind Another Vehicle . .261
 EXTENDING YOUR DRIVING RANGE PER
CHARGE ............................ .262
▫ Driver Behavior Gauge ..................263
▫ Range Projection ..................... .264
5
STARTING AND OPERATING 205

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children). A child could
operate power windows, other controls, or move
the vehicle.
Single-Speed Transmission
The transmission must be in the PARK or NEUTRAL
position before you can start the vehicle. Apply the
brakes when selecting a transmission gear from Park.
NOTE: You must press the brake pedal before selecting
a transmission gear.
Normal Starting
Turn the key to the START position while your vehicle is
in PARK. When the ignition key is turned to the START
and then released to the RUN position, a chime will
sound and the “READY” indicator in the EVIC will
illuminate to indicate the 500e’s Electric Drive System has
started. When the “READY” indicator is illuminated
your 500e is ready to be driven.
206 STARTING AND OPERATING

NOTE:
•If the key is held in the START position for more than
10 seconds “READY” mode will not be achieved.
Return the key to OFF position, and then back to the
START position and hold for less than 10 seconds to
achieve “READY”.
• If the “READY” indicator fails to illuminate after you
have followed the normal starting procedure contact
your authorized dealer.
“READY” Indicator
5
STARTING AND OPERATING 207

SINGLE–SPEED TRANSMISSION
Your 500e uses a Single-Speed Transmission to direct the
output from the electric motor. The single-speed trans-
mission is operated using push-buttons instead of a
traditional gear selector.
The push-buttons are located on the lower instrument
panel.
Single-Speed Transmission Push-Buttons
208 STARTING AND OPERATING
