NOTE:If the tire becomes over-inflated, push the
Deflation Button to reduce the tire pressure to the
recommended inflation pressure before continuing.

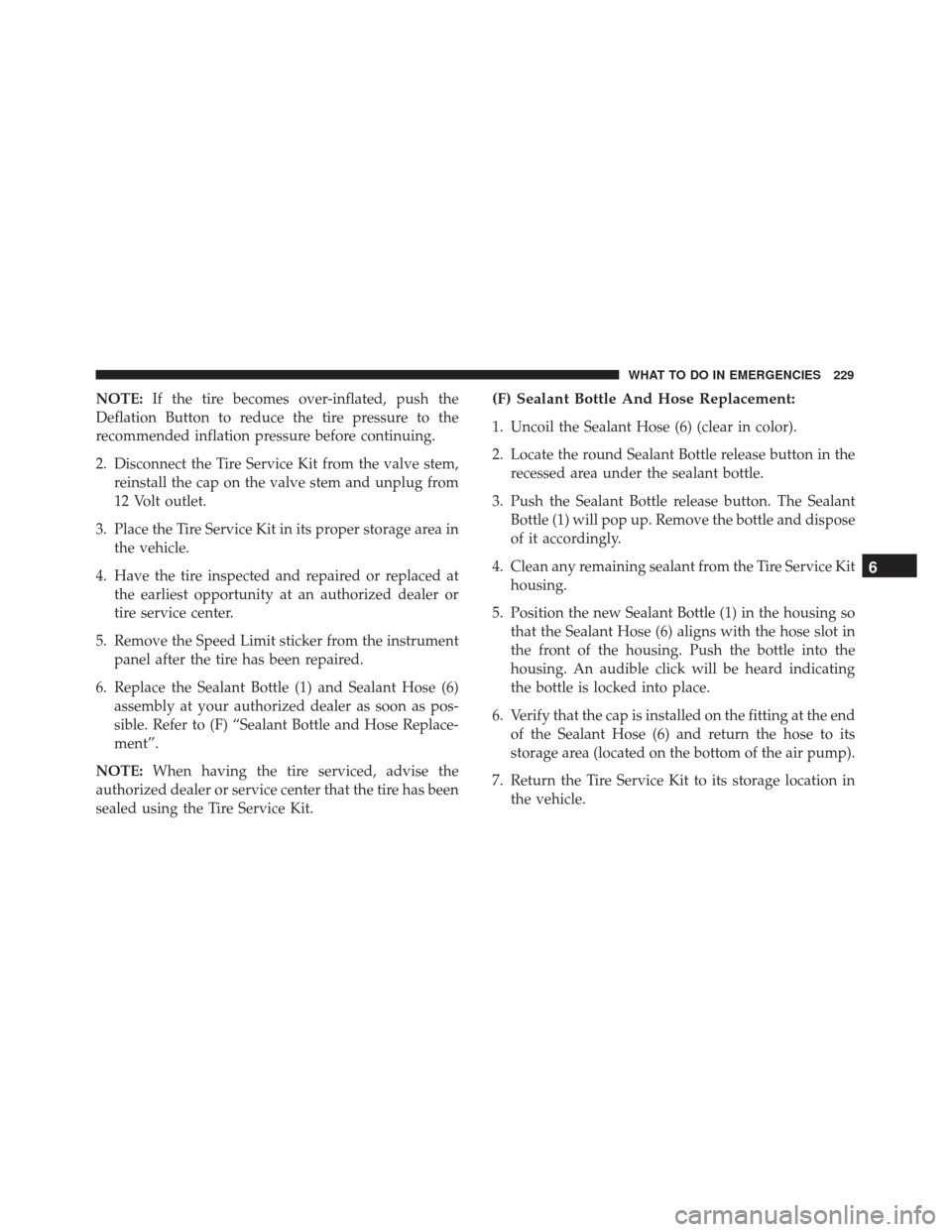

2. Disconnect the Tire Service Kit from the valve stem, reinstall the cap on the valve stem and unplug from
12 Volt outlet.
3. Place the Tire Service Kit in its proper storage area in the vehicle.
4. Have the tire inspected and repaired or replaced at the earliest opportunity at an authorized dealer or
tire service center.
5. Remove the Speed Limit sticker from the instrument panel after the tire has been repaired.
6. Replace the Sealant Bottle (1) and Sealant Hose (6) assembly at your authorized dealer as soon as pos-
sible. Refer to (F) “Sealant Bottle and Hose Replace-
ment”.
NOTE: When having the tire serviced, advise the
authorized dealer or service center that the tire has been
sealed using the Tire Service Kit.(F) Sealant Bottle And Hose Replacement:
1. Uncoil the Sealant Hose (6) (clear in color).
2. Locate the round Sealant Bottle release button in the recessed area under the sealant bottle.
3. Push the Sealant Bottle release button. The Sealant Bottle (1) will pop up. Remove the bottle and dispose
of it accordingly.
4. Clean any remaining sealant from the Tire Service Kit housing.
5. Position the new Sealant Bottle (1) in the housing so that the Sealant Hose (6) aligns with the hose slot in
the front of the housing. Push the bottle into the
housing. An audible click will be heard indicating
the bottle is locked into place.
6. Verify that the cap is installed on the fitting at the end of the Sealant Hose (6) and return the hose to its
storage area (located on the bottom of the air pump).
7. Return the Tire Service Kit to its storage location in the vehicle.
6
WHAT TO DO IN EMERGENCIES 229

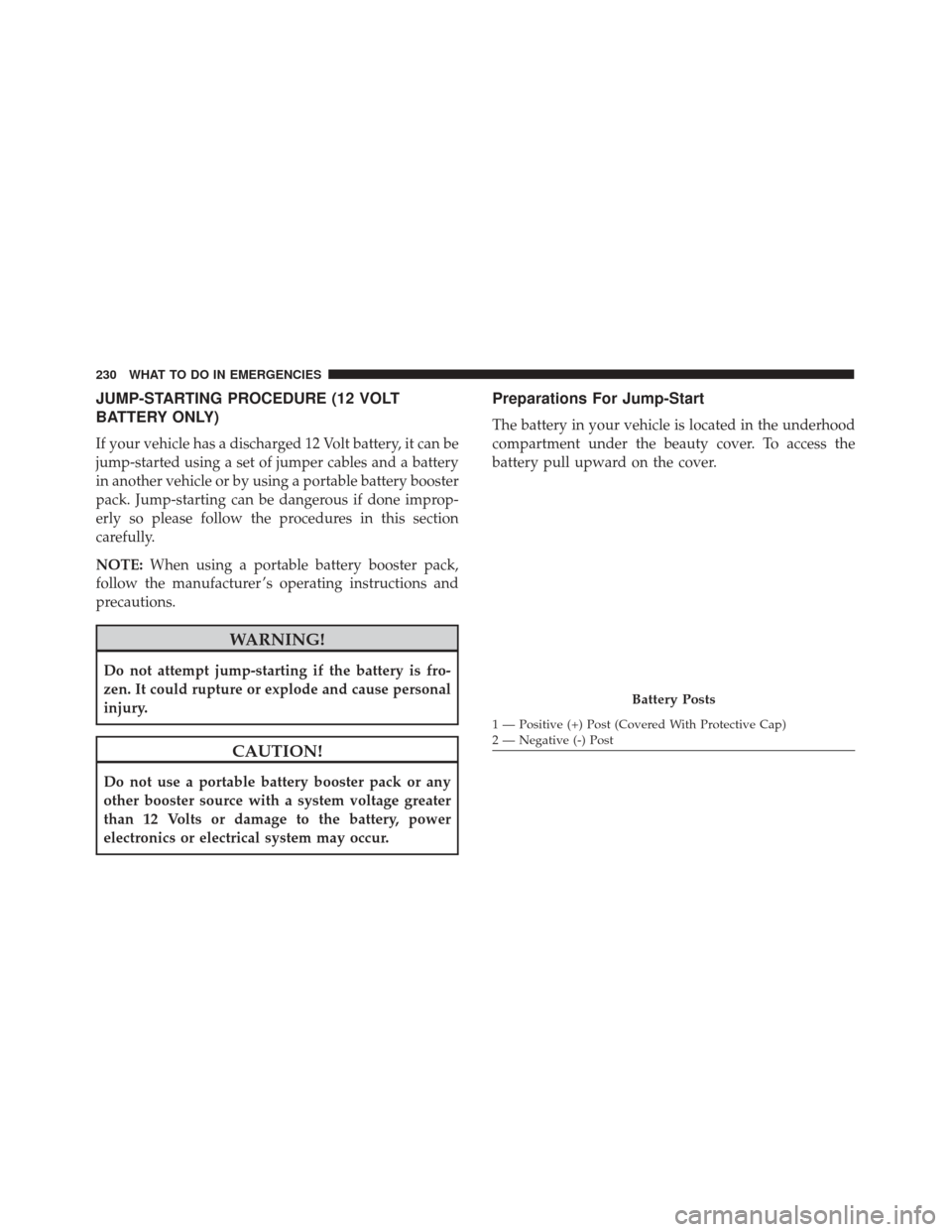

JUMP-STARTING PROCEDURE (12 VOLT
BATTERY ONLY)
If your vehicle has a discharged 12 Volt battery, it can be
jump-started using a set of jumper cables and a battery
in another vehicle or by using a portable battery booster
pack. Jump-starting can be dangerous if done improp-
erly so please follow the procedures in this section
carefully.
NOTE:When using a portable battery booster pack,
follow the manufacturer ’s operating instructions and
precautions.
WARNING!
Do not attempt jump-starting if the battery is fro-
zen. It could rupture or explode and cause personal
injury.
CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, power
electronics or electrical system may occur.
Preparations For Jump-Start
The battery in your vehicle is located in the underhood
compartment under the beauty cover. To access the
battery pull upward on the cover.
Battery Posts
1 — Positive (+) Post (Covered With Protective Cap)
2 — Negative (-) Post
230 WHAT TO DO IN EMERGENCIES

WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is ON. You can be injured by
moving fan blades.
•
Remove any metal jewelry such as rings, watch
bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.
• Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.

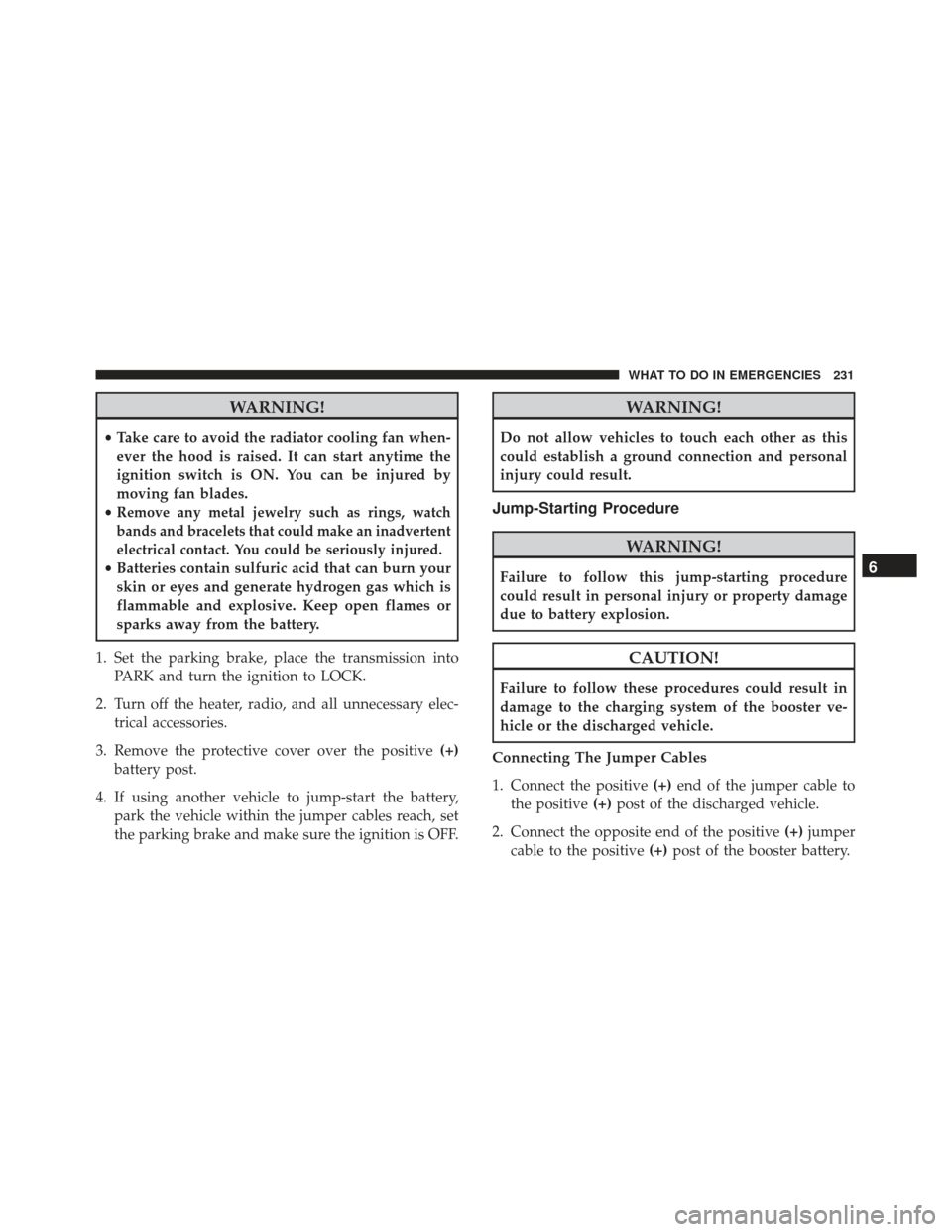

1. Set the parking brake, place the transmission into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary elec- trical accessories.
3. Remove the protective cover over the positive (+)
battery post.
4. If using another vehicle to jump-start the battery, park the vehicle within the jumper cables reach, set
the parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this jump-starting procedure
could result in personal injury or property damage
due to battery explosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster ve-
hicle or the discharged vehicle.
Connecting The Jumper Cables
1. Connect the positive (+)end of the jumper cable to
the positive (+)post of the discharged vehicle.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
6
WHAT TO DO IN EMERGENCIES 231

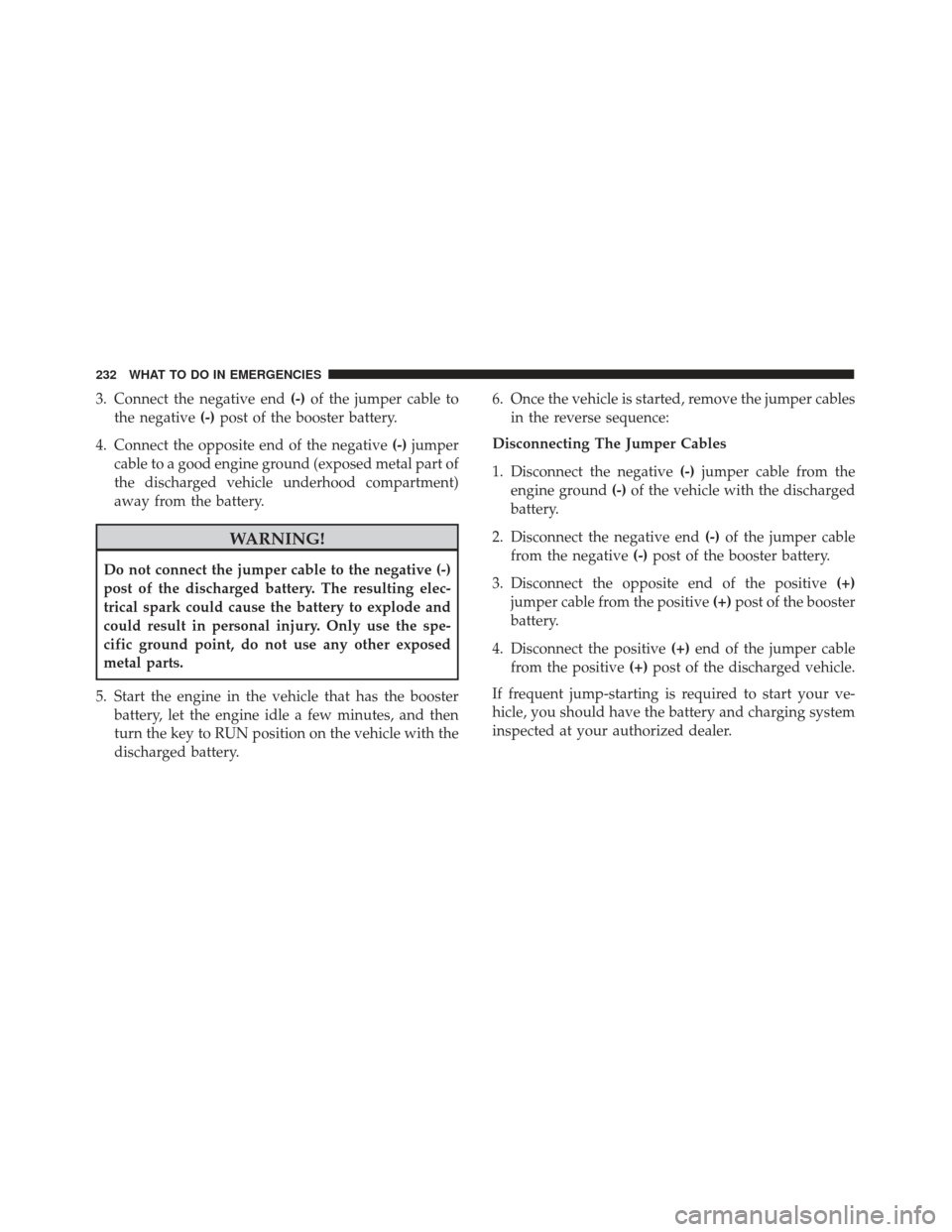

3. Connect the negative end(-)of the jumper cable to
the negative (-)post of the booster battery.
4. Connect the opposite end of the negative (-)jumper
cable to a good engine ground (exposed metal part of
the discharged vehicle underhood compartment)
away from the battery.
WARNING!
Do not connect the jumper cable to the negative (-)
post of the discharged battery. The resulting elec-
trical spark could cause the battery to explode and
could result in personal injury. Only use the spe-
cific ground point, do not use any other exposed
metal parts.
5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then
turn the key to RUN position on the vehicle with the
discharged battery. 6. Once the vehicle is started, remove the jumper cables
in the reverse sequence:
Disconnecting The Jumper Cables
1. Disconnect the negative (-)jumper cable from the
engine ground (-)of the vehicle with the discharged
battery.
2. Disconnect the negative end (-)of the jumper cable
from the negative (-)post of the booster battery.
3. Disconnect the opposite end of the positive (+)
jumper cable from the positive (+)post of the booster
battery.
4. Disconnect the positive (+)end of the jumper cable
from the positive (+)post of the discharged vehicle.
If frequent jump-starting is required to start your ve-
hicle, you should have the battery and charging system
inspected at your authorized dealer.
232 WHAT TO DO IN EMERGENCIES

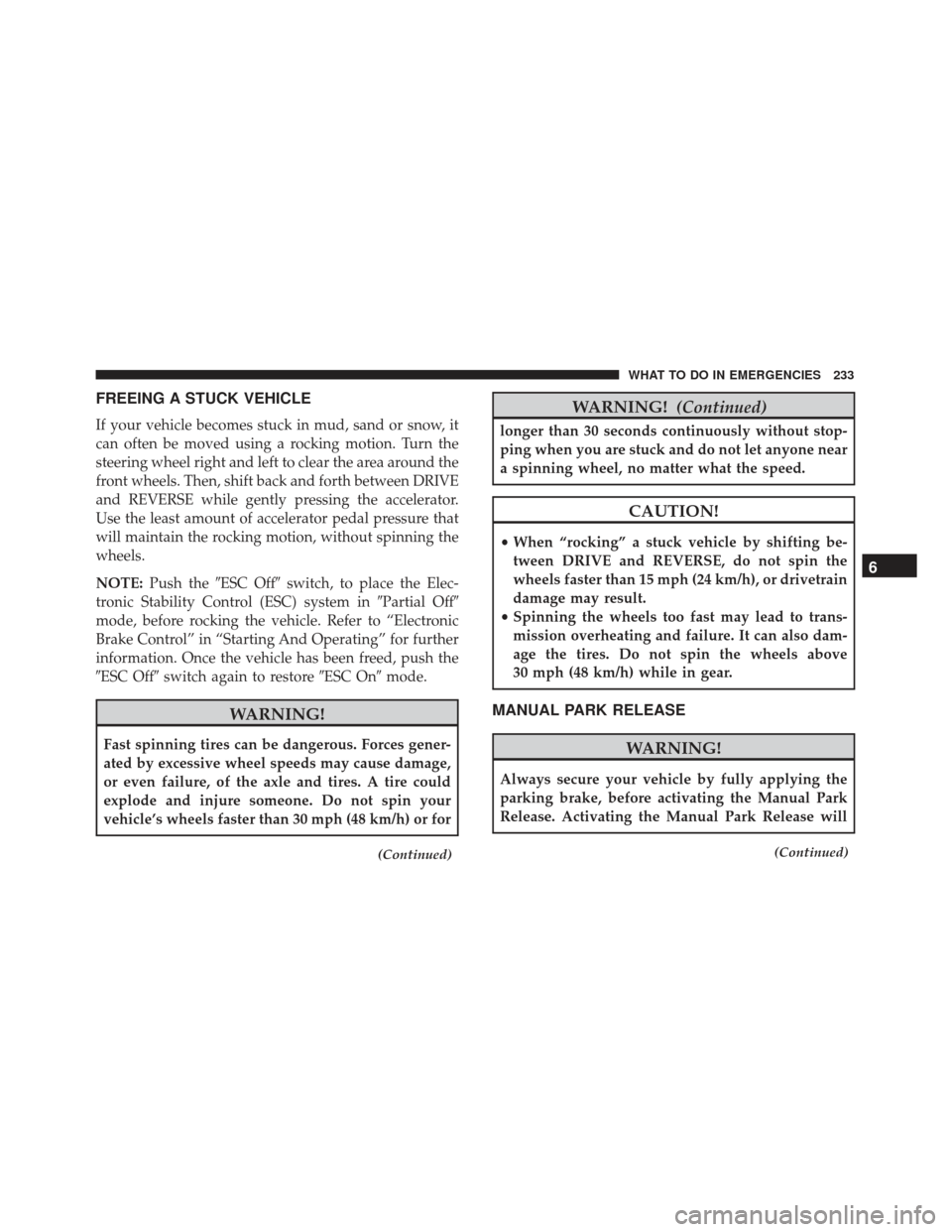

FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand or snow, it
can often be moved using a rocking motion. Turn the
steering wheel right and left to clear the area around the
front wheels. Then, shift back and forth between DRIVE
and REVERSE while gently pressing the accelerator.
Use the least amount of accelerator pedal pressure that
will maintain the rocking motion, without spinning the
wheels.
NOTE:Push the ESC Off switch, to place the Elec-
tronic Stability Control (ESC) system in Partial Off
mode, before rocking the vehicle. Refer to “Electronic
Brake Control” in “Starting And Operating” for further
information. Once the vehicle has been freed, push the
ESC Off switch again to restore ESC Onmode.
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage,
or even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your
vehicle’s wheels faster than 30 mph (48 km/h) or for
(Continued)
WARNING! (Continued)
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
CAUTION!
•When “rocking” a stuck vehicle by shifting be-
tween DRIVE and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.
• Spinning the wheels too fast may lead to trans-
mission overheating and failure. It can also dam-
age the tires. Do not spin the wheels above
30 mph (48 km/h) while in gear.
MANUAL PARK RELEASE
WARNING!
Always secure your vehicle by fully applying the
parking brake, before activating the Manual Park
Release. Activating the Manual Park Release will
(Continued)
6
WHAT TO DO IN EMERGENCIES 233

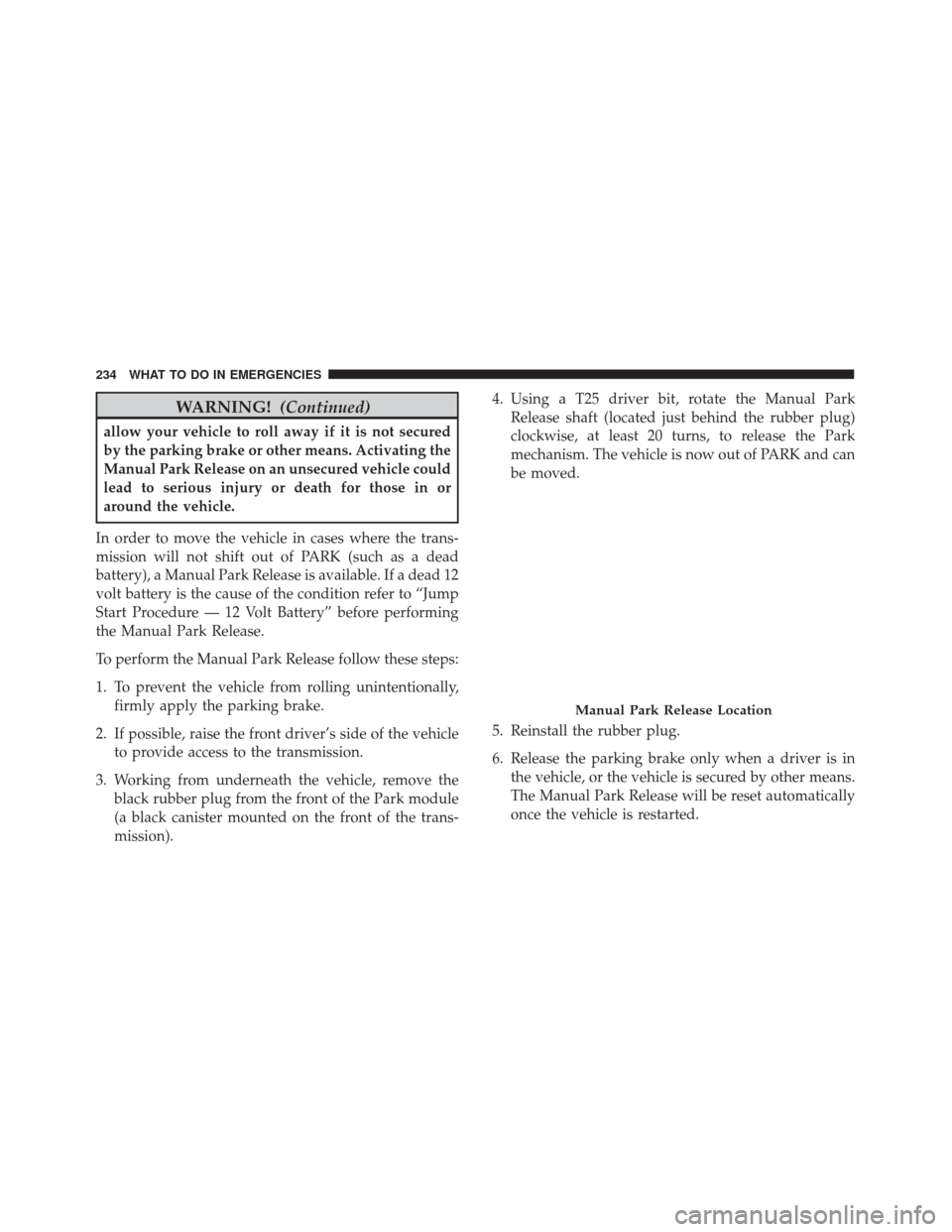

WARNING!(Continued)
allow your vehicle to roll away if it is not secured
by the parking brake or other means. Activating the
Manual Park Release on an unsecured vehicle could
lead to serious injury or death for those in or
around the vehicle.
In order to move the vehicle in cases where the trans-
mission will not shift out of PARK (such as a dead
battery), a Manual Park Release is available. If a dead 12
volt battery is the cause of the condition refer to “Jump
Start Procedure — 12 Volt Battery” before performing
the Manual Park Release.
To perform the Manual Park Release follow these steps:
1. To prevent the vehicle from rolling unintentionally, firmly apply the parking brake.
2. If possible, raise the front driver’s side of the vehicle to provide access to the transmission.
3. Working from underneath the vehicle, remove the black rubber plug from the front of the Park module
(a black canister mounted on the front of the trans-
mission). 4. Using a T25 driver bit, rotate the Manual Park
Release shaft (located just behind the rubber plug)
clockwise, at least 20 turns, to release the Park
mechanism. The vehicle is now out of PARK and can
be moved.
5. Reinstall the rubber plug.
6. Release the parking brake only when a driver is in the vehicle, or the vehicle is secured by other means.
The Manual Park Release will be reset automatically
once the vehicle is restarted.
Manual Park Release Location
234 WHAT TO DO IN EMERGENCIES

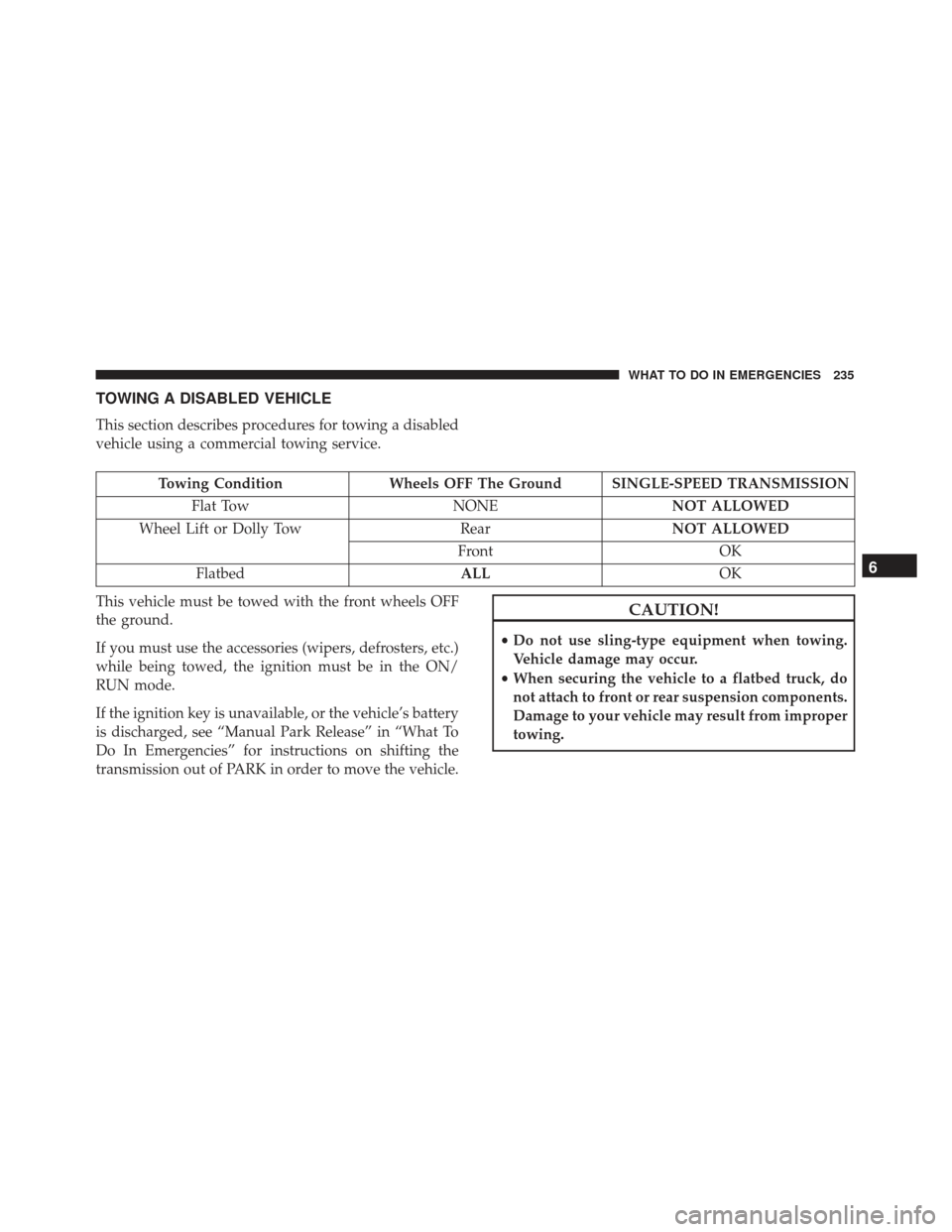

TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service.
Towing ConditionWheels OFF The Ground SINGLE-SPEED TRANSMISSION
Flat Tow NONENOT ALLOWED
Wheel Lift or Dolly Tow RearNOT ALLOWED
Front OK
Flatbed ALLOK
This vehicle must be towed with the front wheels OFF
the ground.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/
RUN mode.
If the ignition key is unavailable, or the vehicle’s battery
is discharged, see “Manual Park Release” in “What To
Do In Emergencies” for instructions on shifting the
transmission out of PARK in order to move the vehicle.
CAUTION!
• Do not use sling-type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flatbed truck, do
not attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
6
WHAT TO DO IN EMERGENCIES 235

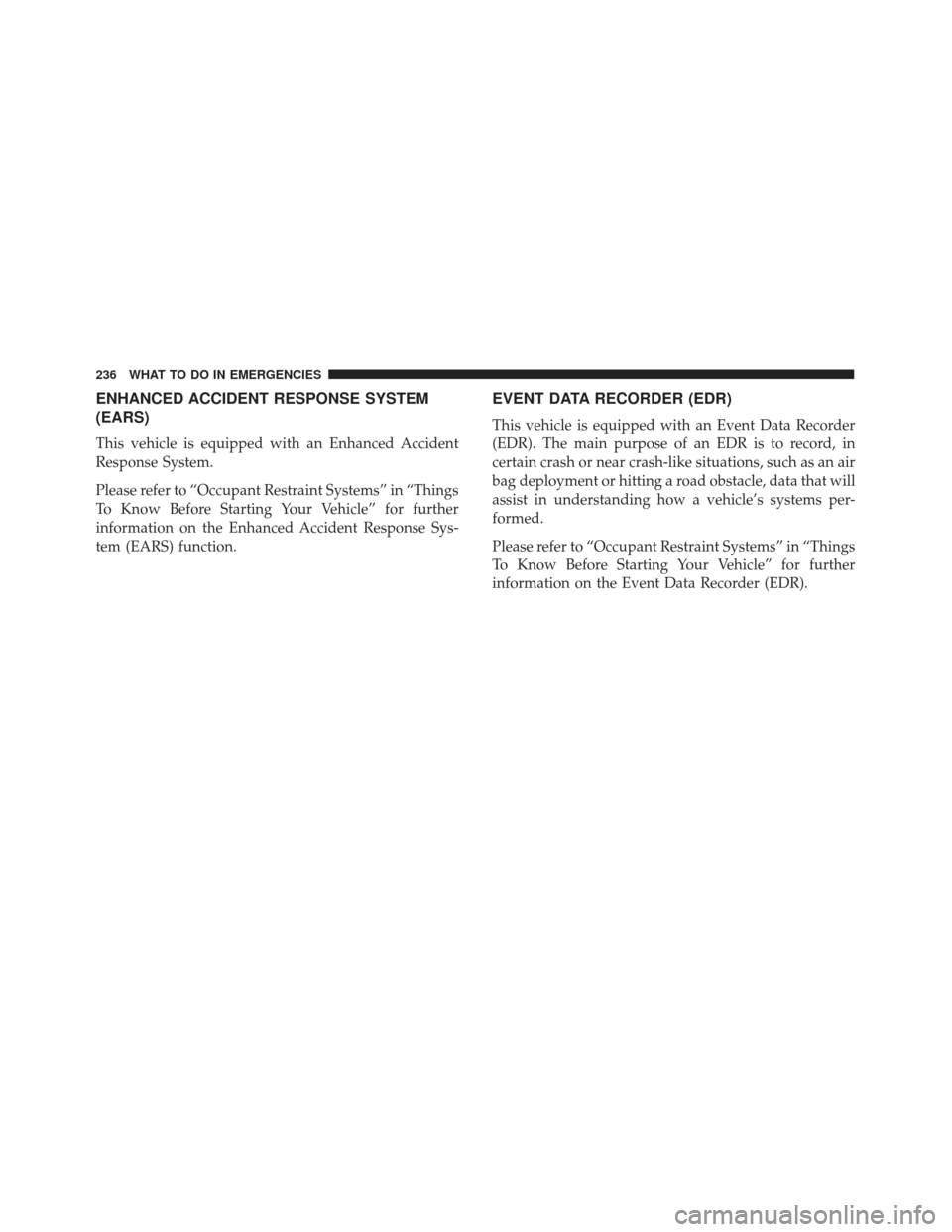

ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)
This vehicle is equipped with an Enhanced Accident
Response System.
Please refer to “Occupant Restraint Systems” in “Things
To Know Before Starting Your Vehicle” for further
information on the Enhanced Accident Response Sys-
tem (EARS) function.
EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will
assist in understanding how a vehicle’s systems per-
formed.
Please refer to “Occupant Restraint Systems” in “Things
To Know Before Starting Your Vehicle” for further
information on the Event Data Recorder (EDR).
236 WHAT TO DO IN EMERGENCIES

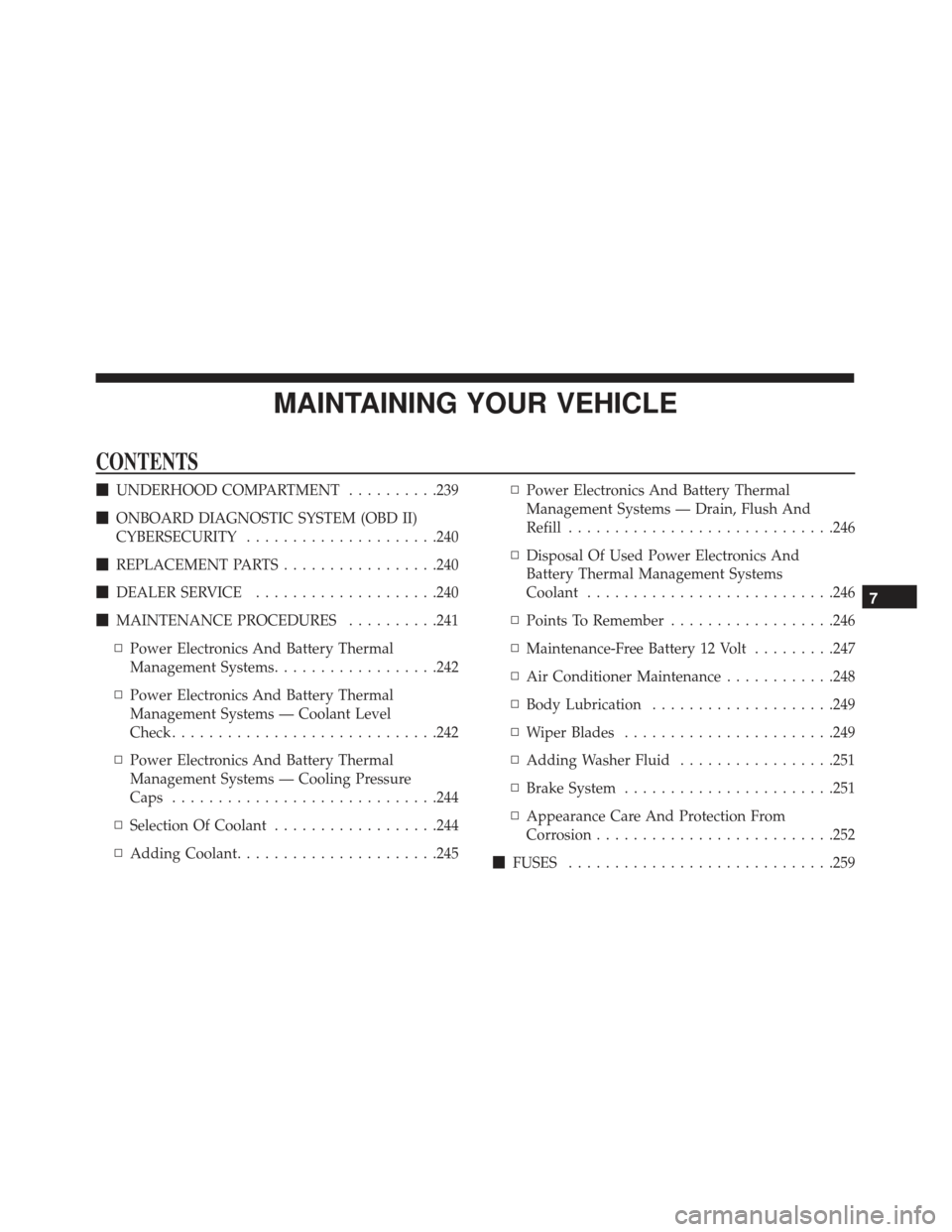

MAINTAINING YOUR VEHICLE
CONTENTS
UNDERHOOD COMPARTMENT ..........239
 ONBOARD DIAGNOSTIC SYSTEM (OBD II)
CYBERSECURITY .....................240
 REPLACEMENT PARTS .................240
 DEALER SERVICE ....................240
 MAINTENANCE PROCEDURES ..........241
▫ Power Electronics And Battery Thermal
Management Systems ..................242
▫ Power Electronics And Battery Thermal
Management Systems — Coolant Level
Check ............................ .242
▫ Power Electronics And Battery Thermal
Management Systems — Cooling Pressure
Caps ............................ .244
▫ Selection Of Coolant ..................244
▫ Adding Coolant ..................... .245▫
Power Electronics And Battery Thermal
Management Systems — Drain, Flush And
Refill ............................ .246
▫ Disposal Of Used Power Electronics And
Battery Thermal Management Systems
Coolant .......................... .246
▫ Points To Remember ..................246
▫ Maintenance-Free Battery 12 Volt .........247
▫ Air Conditioner Maintenance ............248
▫ Body Lubrication ....................249
▫ Wiper Blades ...................... .249
▫ Adding Washer Fluid .................251
▫ Brake System ...................... .251
▫ Appearance Care And Protection From
Corrosion ......................... .252
 FUSES ............................ .259
7

▫Interior Fuses ...................... .259
▫ Power Distribution Center #1 ............262
▫ Power Distribution Center (PDC) #2 .......264
 VEHICLE STORAGE ...................265
 REPLACEMENT BULBS ................266
BULB REPLACEMENT .................267
▫ Interior Bulbs ...................... .267
▫ Exterior Bulbs ...................... .267
 FLUID CAPACITIES ...................269
 FLUIDS, LUBES, AND GENUINE PARTS . . . .270
238 MAINTAINING YOUR VEHICLE
