CARGO AREA FEATURES
The rear seatbacks have a fold down feature to allow
increased cargo capacity.
Push down the release button, located at the outboard
top of the seatback and move the seatback to its folded-
down position to provide a flat load floor cargo area.
When returning the seatback to its upright position, push
rearward until the seatback is properly latched.
REAR CARGO STORAGE FEATURES
The rear cargo area has a upper shelf which allows for
additional storage below the cargo floor.
To raise the cargo floor lift it up by the handle and place
it in the rear housing which is located behind the rear seat
back.
Front Center Armrest Raised Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149

The rear cargo area is equipped with two storage bins
located on the both sides of the cargo area along with two
cargo hooks.
Rear Housing For Cargo FloorStorage Bin And Cargo Hook
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

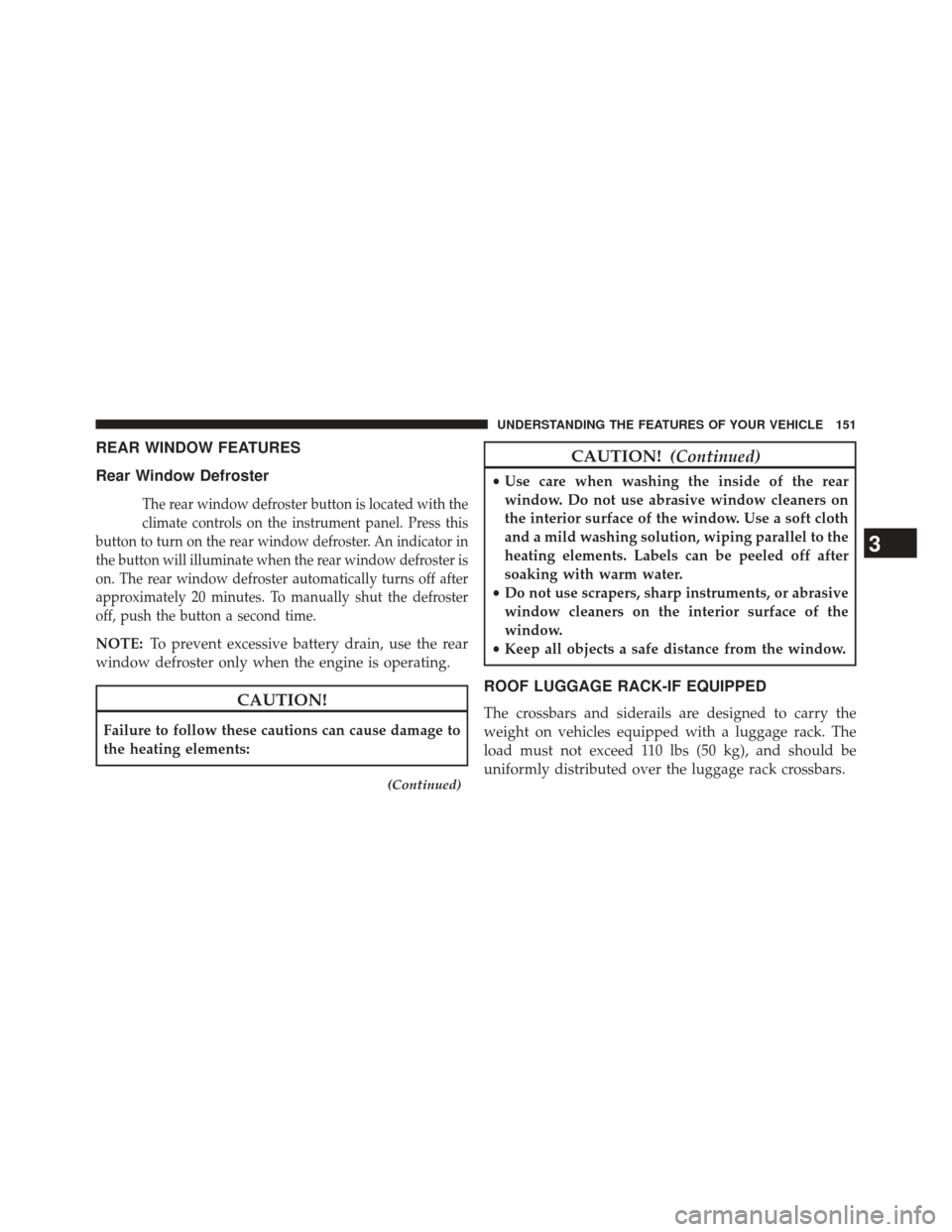

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located with the
climate controls on the instrument panel. Press this
button to turn on the rear window defroster. An indicator in
the button will illuminate when the rear window defroster is
on. The rear window defroster automatically turns off after
approximately 20 minutes. To manually shut the defroster
off, push the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
(Continued)
CAUTION! (Continued)
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
ROOF LUGGAGE RACK-IF EQUIPPED
The crossbars and siderails are designed to carry the
weight on vehicles equipped with a luggage rack. The
load must not exceed 110 lbs (50 kg), and should be
uniformly distributed over the luggage rack crossbars.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

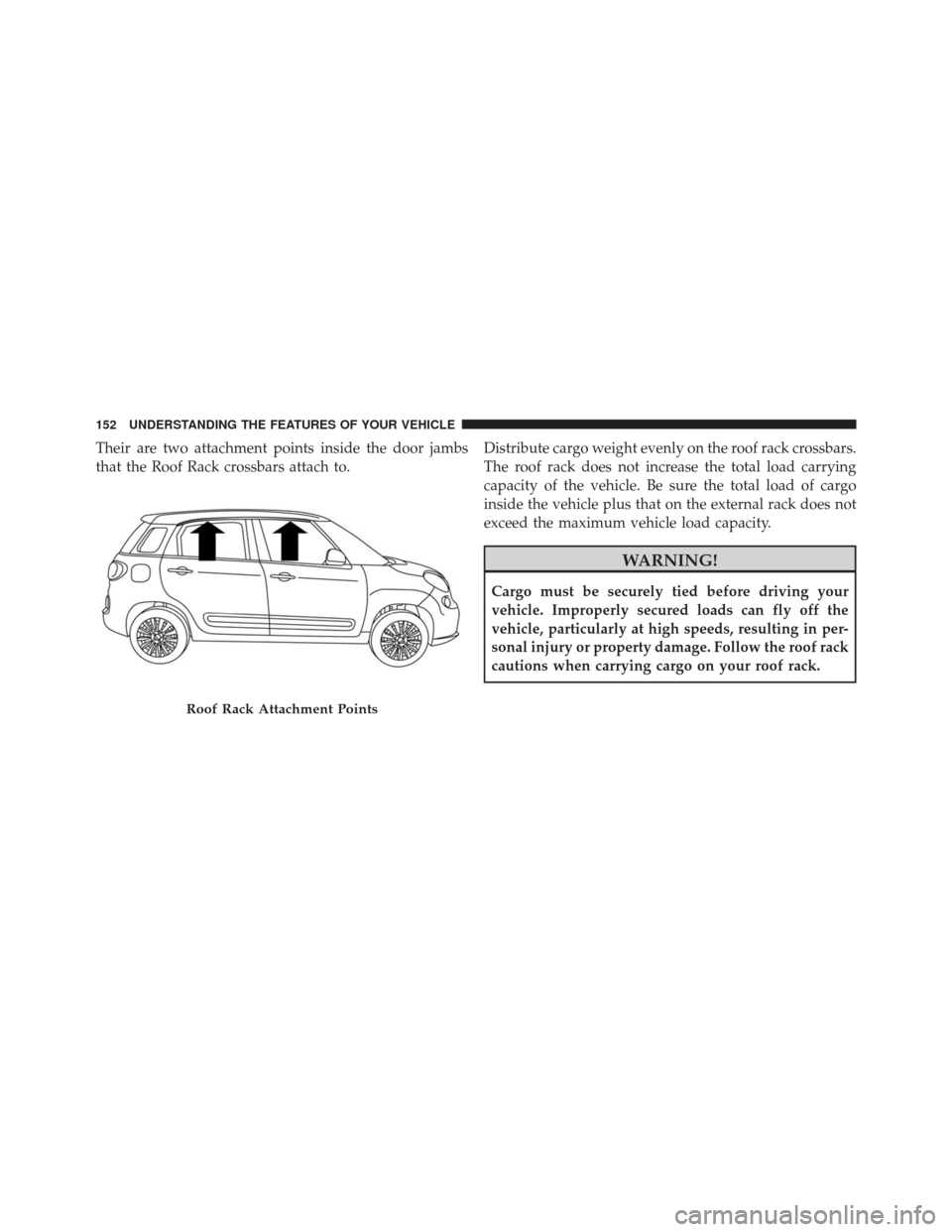

Their are two attachment points inside the door jambs
that the Roof Rack crossbars attach to.Distribute cargo weight evenly on the roof rack crossbars.
The roof rack does not increase the total load carrying
capacity of the vehicle. Be sure the total load of cargo
inside the vehicle plus that on the external rack does not
exceed the maximum vehicle load capacity.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
Roof Rack Attachment Points
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL

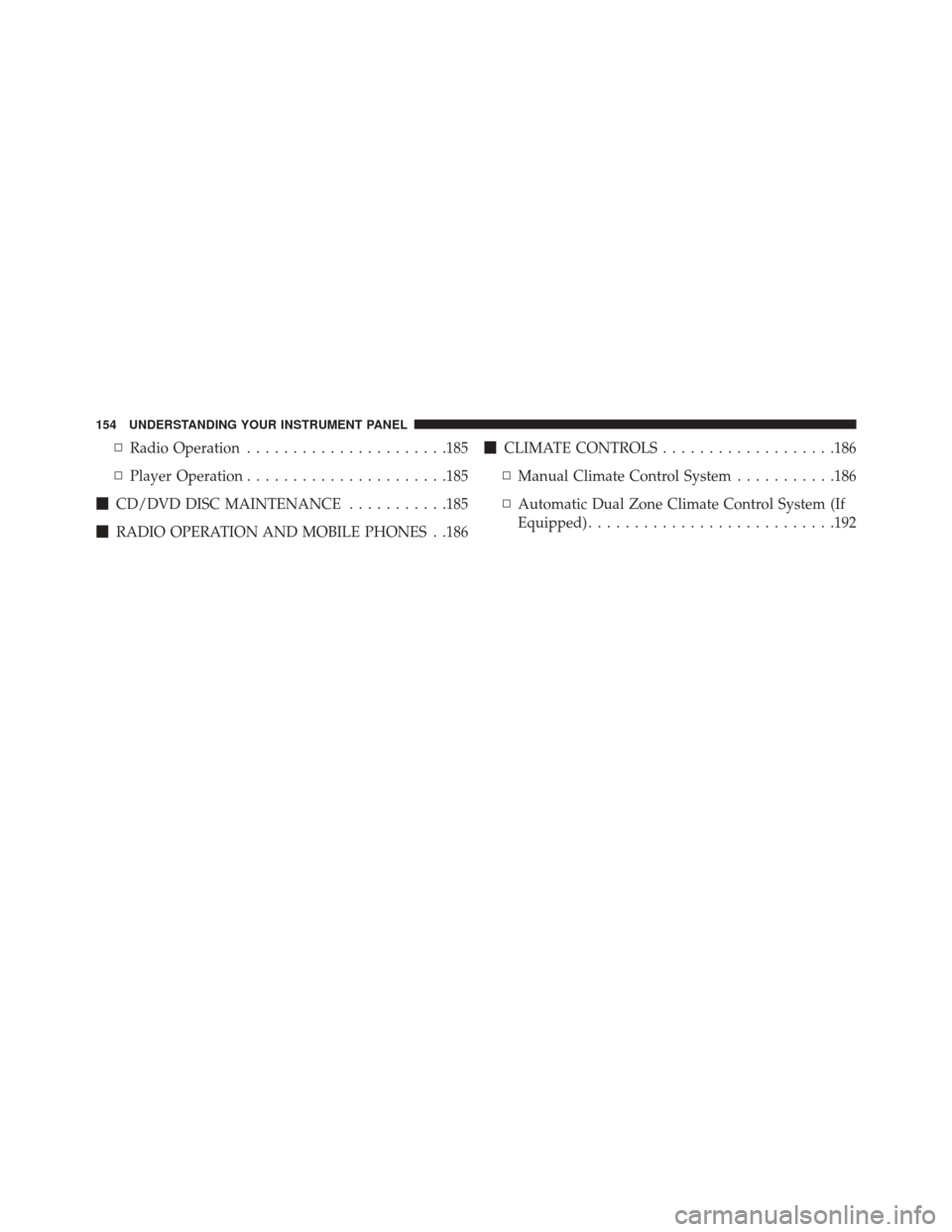

CONTENTS
INSTRUMENT PANEL FEATURES ..........155
 INSTRUMENT CLUSTER .................156
 INSTRUMENT CLUSTER DESCRIPTIONS .....157
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) ...................... .168
▫ EVIC Screen ........................ .169
▫ EVIC Control Buttons ..................169
▫ Electronic Vehicle Information Center (EVIC)
Setup Menu ........................ .170
▫ Change Engine Oil Indicator System ........171▫
Trip Computer ...................... .172
▫ Trip Button ......................... .172
▫ Trip Functions ....................... .174
▫ Values Displayed ..................... .174
▫ Personal Settings (Customer-Programmable
Features) ........................... .175
 Uconnect® RADIOS .....................183
 iPod®/USB/SD CARD/MEDIA PLAYER
CONTROL .......................... .183
 STEERING WHEEL AUDIO CONTROLS ......184
4

▫Radio Operation ..................... .185
▫ Player Operation ..................... .185
 CD/DVD DISC MAINTENANCE ...........185
 RADIO OPERATION AND MOBILE PHONES . .186
CLIMATE CONTROLS ...................186
▫ Manual Climate Control System ...........186
▫ Automatic Dual Zone Climate Control System (If
Equipped) .......................... .192
154 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Side Vent7 — Fixed Upper Air Vent13 — Climate Controls
2 — Radio Controls Behind The Steering Wheel 8 — Passenger Advanced Front Air Bag 14 — USB Port/SD Card/AUX Socket
3 — Multifunction Lever – Light Control 9 — Upper Glove Compartment 15 — Uconnect® Audio System
4 — Instrument Cluster And Warning Lights 10 — Storage Compartment 16 — Ignition Switch
5 — Windshield Wiper, Washer, Trip Computer 11 — Lower Glove Compartment 17 — Driver Advanced Front Air Bag / Horn
6 — Central Air Vents 12 — Upper Switch Bank18 — Electronic Cruise Control Located
On Steering Wheel
4
UNDERSTANDING YOUR INSTRUMENT PANEL 155

INSTRUMENT CLUSTER
156 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER DESCRIPTIONS
1. Speedometer
The Speedometer shows the vehicle speed in miles per
hour (mph) and/or kilometers per hour (km/h).
2. Cruise On Indicator — If EquippedThis light will turn on when the electronic
speed control is ON. For further information,
refer to “Electronic Speed Control” in “Under-
standing Your Instrument Panel.”
3. Cruise SET Indicator — If Equipped
This light will turn on when the electronic
speed control is SET. For further information,
refer to “Electronic Speed Control” in “Under-
standing Your Instrument Panel.” 4. Electronic Stability Control OFF (ESC OFF) Indicator
Light
This light indicates the Electronic Stability Con-
trol system (ESC) has been turned off by the
driver.
5. Electronic Stability Control (ESC) Activation / Mal-
function Indicator Light The ESC Activation/Malfunction Indicator
Light in the instrument cluster will come on for
four seconds when the ignition switch is
turned to the ON/RUN position. If the ESC
Activation/Malfunction Indicator Light comes on con-
tinuously with the engine running, a malfunction has
been detected in the ESC system. If this light remains on,
see your authorized dealer as soon as possible to have the
problem diagnosed and corrected.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 157

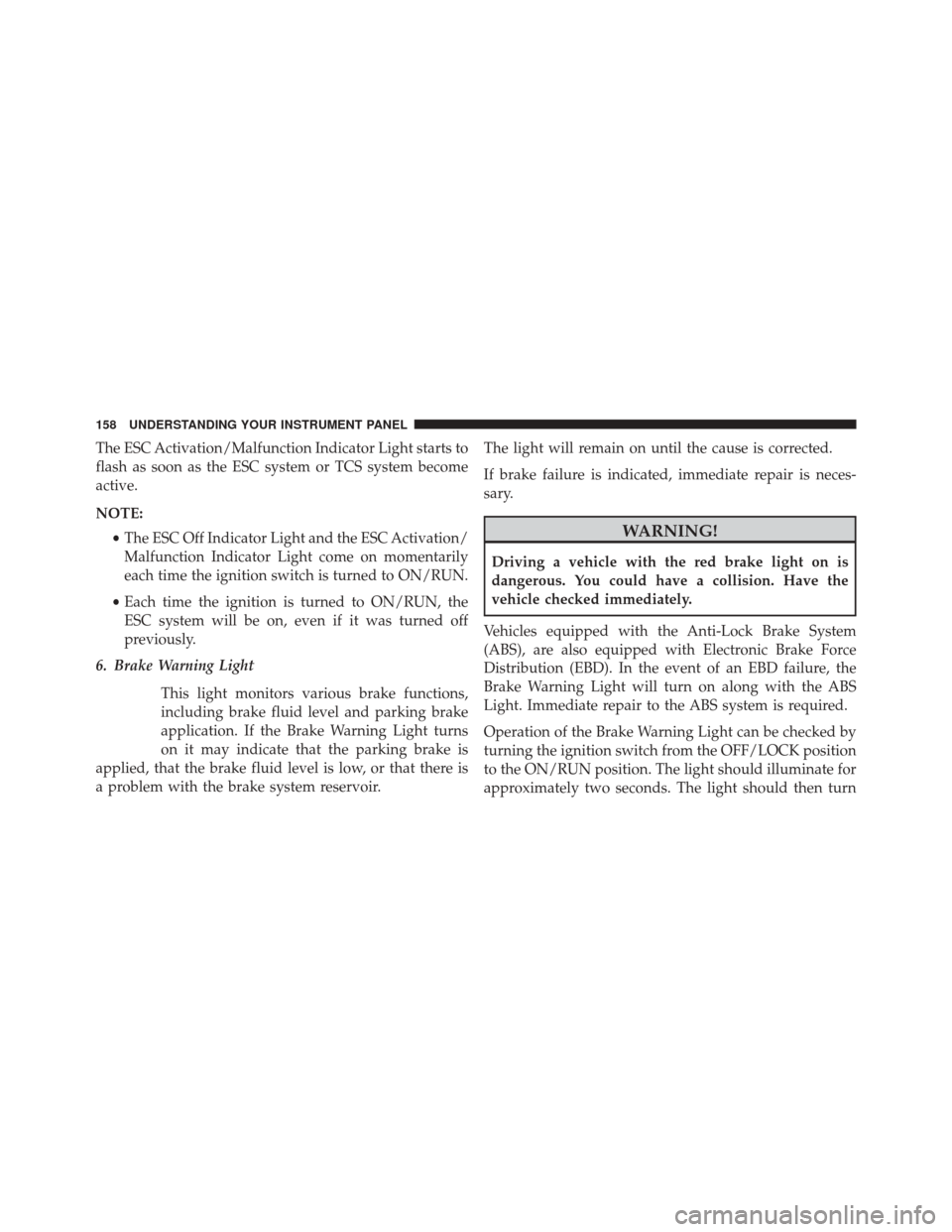

The ESC Activation/Malfunction Indicator Light starts to
flash as soon as the ESC system or TCS system become
active.
NOTE:•The ESC Off Indicator Light and the ESC Activation/
Malfunction Indicator Light come on momentarily
each time the ignition switch is turned to ON/RUN.
• Each time the ignition is turned to ON/RUN, the
ESC system will be on, even if it was turned off
previously.
6. Brake Warning Light
This light monitors various brake functions,
including brake fluid level and parking brake
application. If the Brake Warning Light turns
on it may indicate that the parking brake is
applied, that the brake fluid level is low, or that there is
a problem with the brake system reservoir. The light will remain on until the cause is corrected.
If brake failure is indicated, immediate repair is neces-
sary.
WARNING!
Driving a vehicle with the red brake light on is
dangerous. You could have a collision. Have the
vehicle checked immediately.
Vehicles equipped with the Anti-Lock Brake System
(ABS), are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.
Operation of the Brake Warning Light can be checked by
turning the ignition switch from the OFF/LOCK position
to the ON/RUN position. The light should illuminate for
approximately two seconds. The light should then turn
158 UNDERSTANDING YOUR INSTRUMENT PANEL
