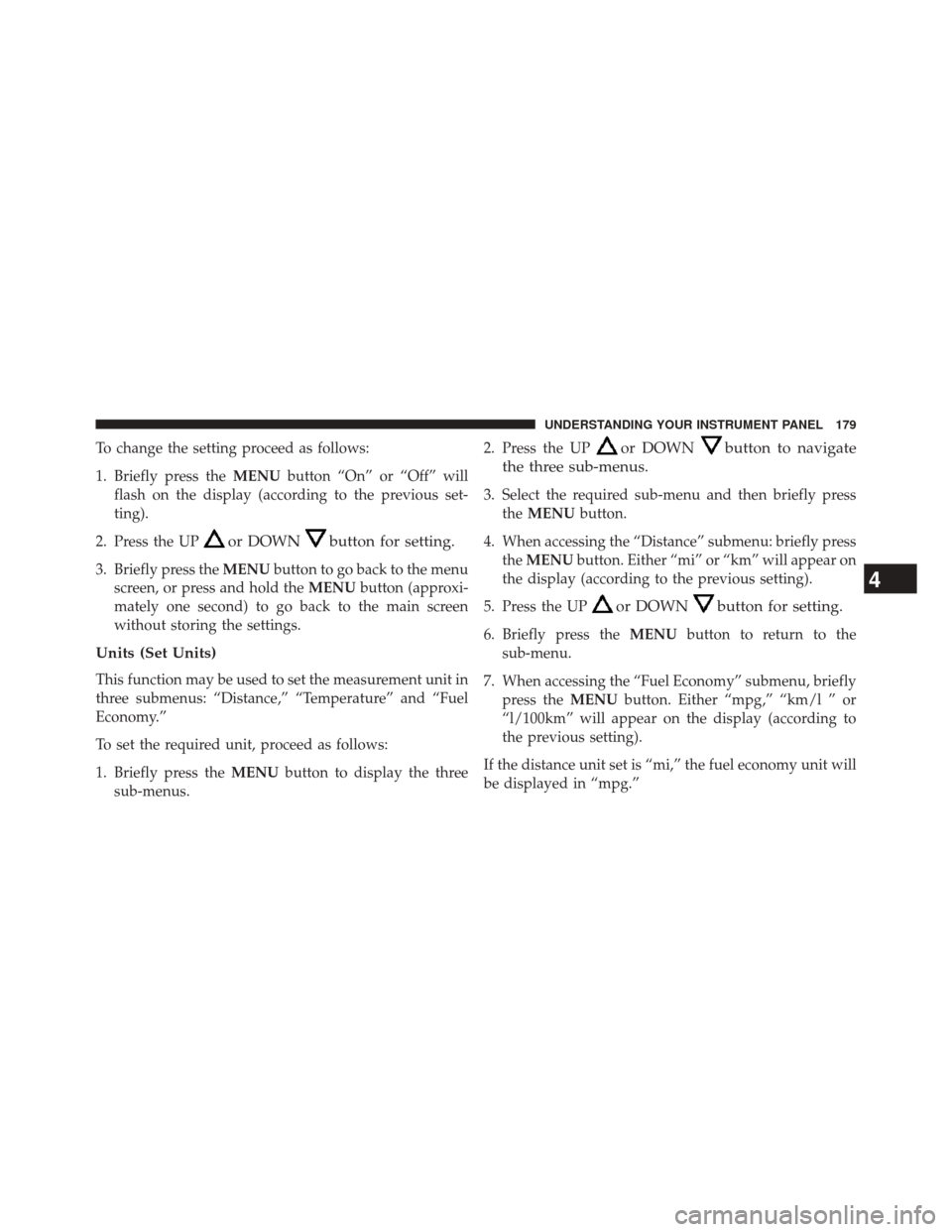

To change the setting proceed as follows:
1. Briefly press theMENUbutton “On” or “Off” will
flash on the display (according to the previous set-
ting).
2. Press the UP
or DOWNbutton for setting.
3. Briefly press the MENUbutton to go back to the menu
screen, or press and hold the MENUbutton (approxi-
mately one second) to go back to the main screen
without storing the settings.
Units (Set Units)
This function may be used to set the measurement unit in
three submenus: “Distance,” “Temperature” and “Fuel
Economy.”
To set the required unit, proceed as follows:
1. Briefly press the MENUbutton to display the three
sub-menus. 2. Press the UP
or DOWNbutton to navigate
the three sub-menus.
3. Select the required sub-menu and then briefly press the MENU button.
4. When accessing the “Distance” submenu: briefly press the MENU button. Either “mi” or “km” will appear on
the display (according to the previous setting).
5. Press the UP
or DOWNbutton for setting.
6. Briefly press the MENUbutton to return to the
sub-menu.
7. When accessing the “Fuel Economy” submenu, briefly press the MENUbutton. Either “mpg,” “km/l ” or
“l/100km” will appear on the display (according to
the previous setting).
If the distance unit set is “mi,” the fuel economy unit will
be displayed in “mpg.”
4
UNDERSTANDING YOUR INSTRUMENT PANEL 179

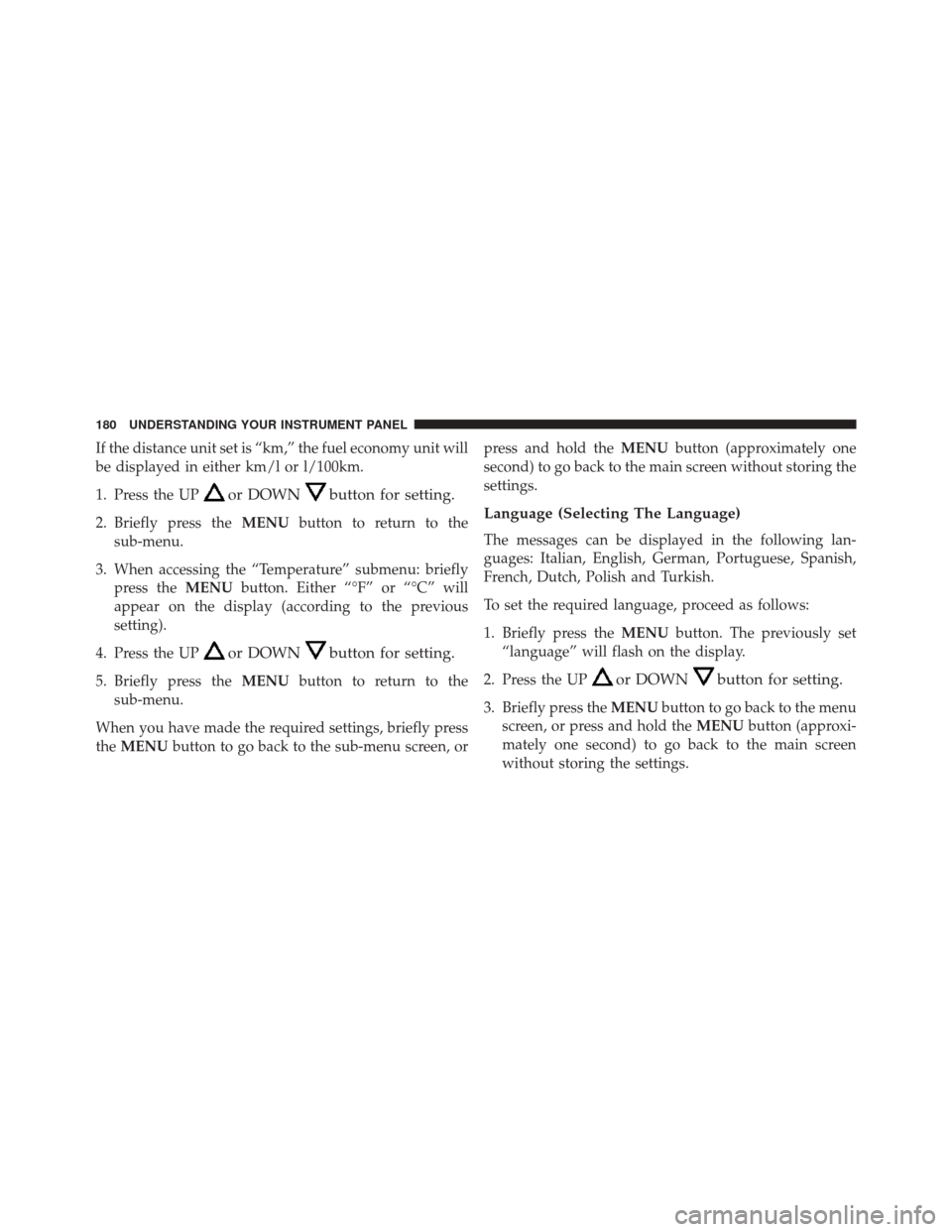

If the distance unit set is “km,” the fuel economy unit will
be displayed in either km/l or l/100km.
1. Press the UP
or DOWNbutton for setting.
2. Briefly press theMENUbutton to return to the
sub-menu.
3. When accessing the “Temperature” submenu: briefly press the MENUbutton. Either “°F” or “°C” will
appear on the display (according to the previous
setting).
4. Press the UP
or DOWNbutton for setting.
5. Briefly press the MENUbutton to return to the
sub-menu.
When you have made the required settings, briefly press
the MENU button to go back to the sub-menu screen, or press and hold the
MENUbutton (approximately one
second) to go back to the main screen without storing the
settings.
Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English, German, Portuguese, Spanish,
French, Dutch, Polish and Turkish.
To set the required language, proceed as follows:
1. Briefly press the MENUbutton. The previously set
“language” will flash on the display.
2. Press the UP
or DOWNbutton for setting.
3. Briefly press the MENUbutton to go back to the menu
screen, or press and hold the MENUbutton (approxi-
mately one second) to go back to the main screen
without storing the settings.
180 UNDERSTANDING YOUR INSTRUMENT PANEL

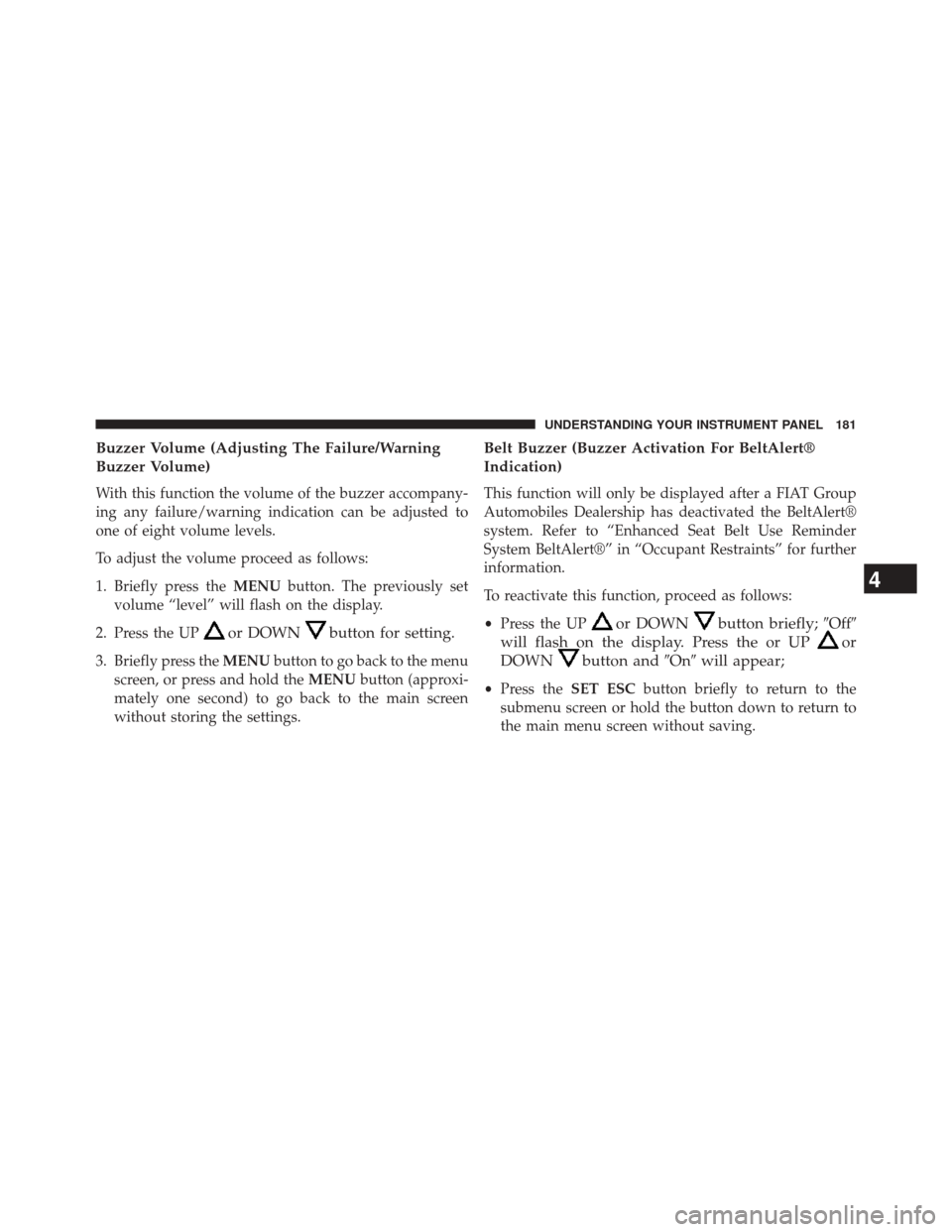

Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function the volume of the buzzer accompany-
ing any failure/warning indication can be adjusted to
one of eight volume levels.
To adjust the volume proceed as follows:
1. Briefly press theMENUbutton. The previously set
volume “level” will flash on the display.
2. Press the UP
or DOWNbutton for setting.
3. Briefly press the MENUbutton to go back to the menu
screen, or press and hold the MENUbutton (approxi-
mately one second) to go back to the main screen
without storing the settings.
Belt Buzzer (Buzzer Activation For BeltAlert®
Indication)
This function will only be displayed after a FIAT Group
Automobiles Dealership has deactivated the BeltAlert®
system. Refer to “Enhanced Seat Belt Use Reminder
System BeltAlert®” in “Occupant Restraints” for further
information.
To reactivate this function, proceed as follows:
• Press the UP
or DOWNbutton briefly; Off
will flash on the display. Press the or UP
or
DOWN
button and Onwill appear;
•Press the SET ESC button briefly to return to the
submenu screen or hold the button down to return to
the main menu screen without saving.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 181

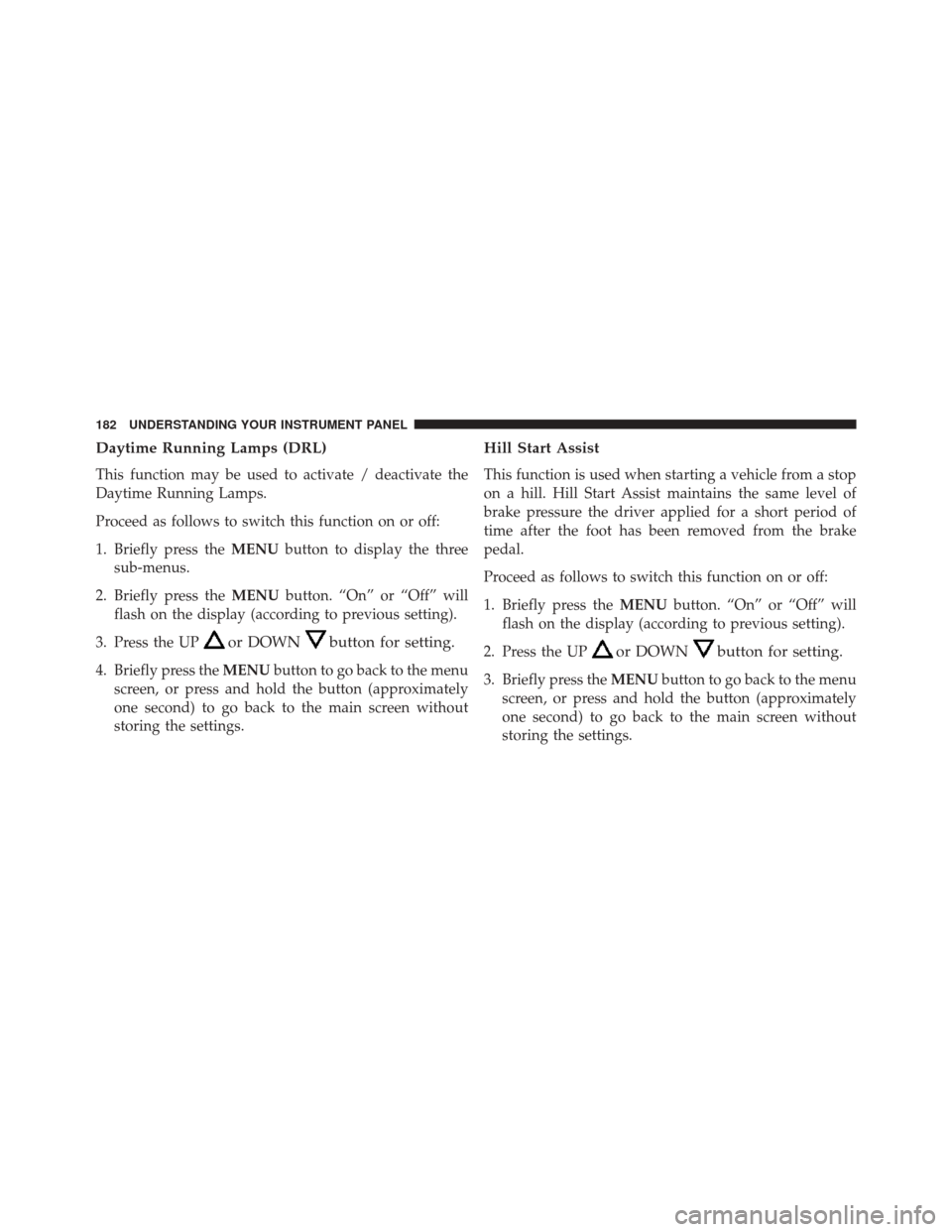

Daytime Running Lamps (DRL)
This function may be used to activate / deactivate the
Daytime Running Lamps.
Proceed as follows to switch this function on or off:
1. Briefly press theMENUbutton to display the three
sub-menus.
2. Briefly press the MENUbutton. “On” or “Off” will
flash on the display (according to previous setting).
3. Press the UP
or DOWNbutton for setting.
4. Briefly press the MENUbutton to go back to the menu
screen, or press and hold the button (approximately
one second) to go back to the main screen without
storing the settings.
Hill Start Assist
This function is used when starting a vehicle from a stop
on a hill. Hill Start Assist maintains the same level of
brake pressure the driver applied for a short period of
time after the foot has been removed from the brake
pedal.
Proceed as follows to switch this function on or off:
1. Briefly press the MENUbutton. “On” or “Off” will
flash on the display (according to previous setting).
2. Press the UP
or DOWNbutton for setting.
3. Briefly press the MENUbutton to go back to the menu
screen, or press and hold the button (approximately
one second) to go back to the main screen without
storing the settings.
182 UNDERSTANDING YOUR INSTRUMENT PANEL

Exit Menu
This function closes the initial menu screen.
Briefly press theMENUbutton to go back to the main
screen.
Press the
button to return to the first menu option
(Speed Beep).
Press thebutton to return to the last menu option
(Daylights).
Uconnect® RADIOS
For detailed information about your Uconnect® radio,
refer to your Uconnect® supplement Manual.
iPod®/USB/SD CARD/MEDIA PLAYER CONTROL
This feature allows an iPod® or external USB device to be
plugged into the USB port or an SD Card (6.5 Only) to be
plugged into the SD Card slot Refer to the Uconnect® 5.0/6.5 User’s Manual for iPod®,
external USB or SD Card device support capability.
1 — SD Card Slot (6.5 Only)
2 — USB Connector
3 — AUX/Cable Jack
4
UNDERSTANDING YOUR INSTRUMENT PANEL 183

STEERING WHEEL AUDIO CONTROLS
The remote sound system controls are located on the rear
surface of the steering wheel. Reach behind the wheel to
access the switches.The right-hand control is a rocker-type switch with a
pushbutton in the center and controls the volume and
mode of the sound system. Pressing the top of the rocker
switch will increase the volume, and pressing the bottom
of the rocker switch will decrease the volume.
Pressing the center button will make the radio switch
between the various modes available (AM/FM/SAT/
AUX/Media Player, etc.) and can also be used to select/
enter an item while scrolling through menu.
The left-hand control is a rocker-type switch with a
pushbutton in the center. The function of the left-hand
control is different depending on which mode you are in.
The following describes the left-hand control operation in
each mode.
Remote Sound System Controls (Back View Of Steering
Wheel)
184 UNDERSTANDING YOUR INSTRUMENT PANEL

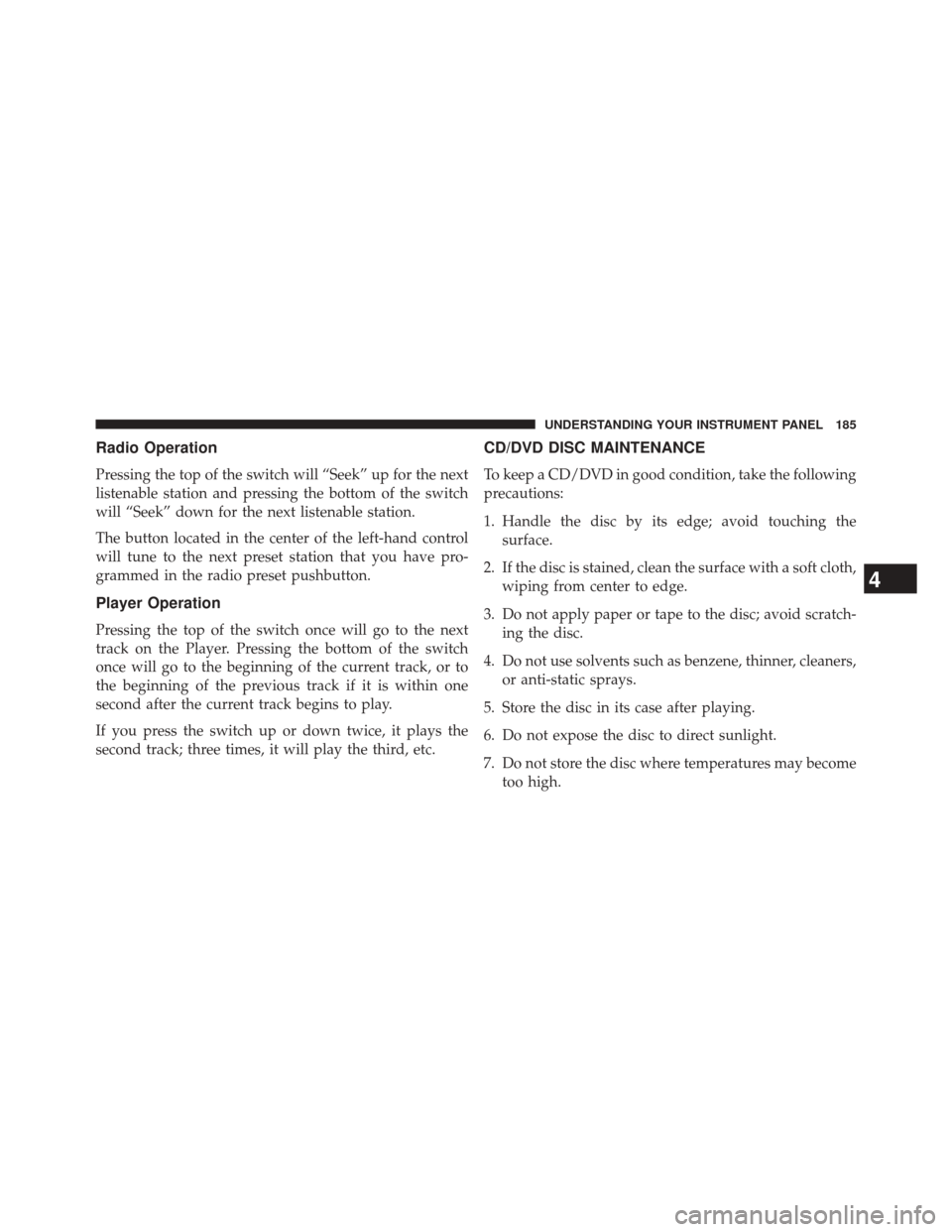

Radio Operation
Pressing the top of the switch will “Seek” up for the next
listenable station and pressing the bottom of the switch
will “Seek” down for the next listenable station.
The button located in the center of the left-hand control
will tune to the next preset station that you have pro-
grammed in the radio preset pushbutton.
Player Operation
Pressing the top of the switch once will go to the next
track on the Player. Pressing the bottom of the switch
once will go to the beginning of the current track, or to
the beginning of the previous track if it is within one
second after the current track begins to play.
If you press the switch up or down twice, it plays the
second track; three times, it will play the third, etc.
CD/DVD DISC MAINTENANCE
To keep a CD/DVD in good condition, take the following
precautions:
1. Handle the disc by its edge; avoid touching thesurface.
2. If the disc is stained, clean the surface with a soft cloth, wiping from center to edge.
3. Do not apply paper or tape to the disc; avoid scratch- ing the disc.
4. Do not use solvents such as benzene, thinner, cleaners, or anti-static sprays.
5. Store the disc in its case after playing.
6. Do not expose the disc to direct sunlight.
7. Do not store the disc where temperatures may become too high.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 185

NOTE:If you experience difficulty in playing a particular
disc, it may be damaged (i.e., scratched, reflective coating
removed, a hair, moisture or dew on the disc) oversized,
or have protection encoding. Try a known good disc
before considering disc player service.
RADIO OPERATION AND MOBILE PHONES
Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the mobile phone antenna. This condition is
not harmful to the radio. If your radio performance does
not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during mobile phone operation.
CLIMATE CONTROLS
Manual Climate Control System
Controls
The Manual Climate controls consist of a series of rotary
dials, an inner push knob and two push buttons.
Manual Temperature Control (MTC)
186 UNDERSTANDING YOUR INSTRUMENT PANEL

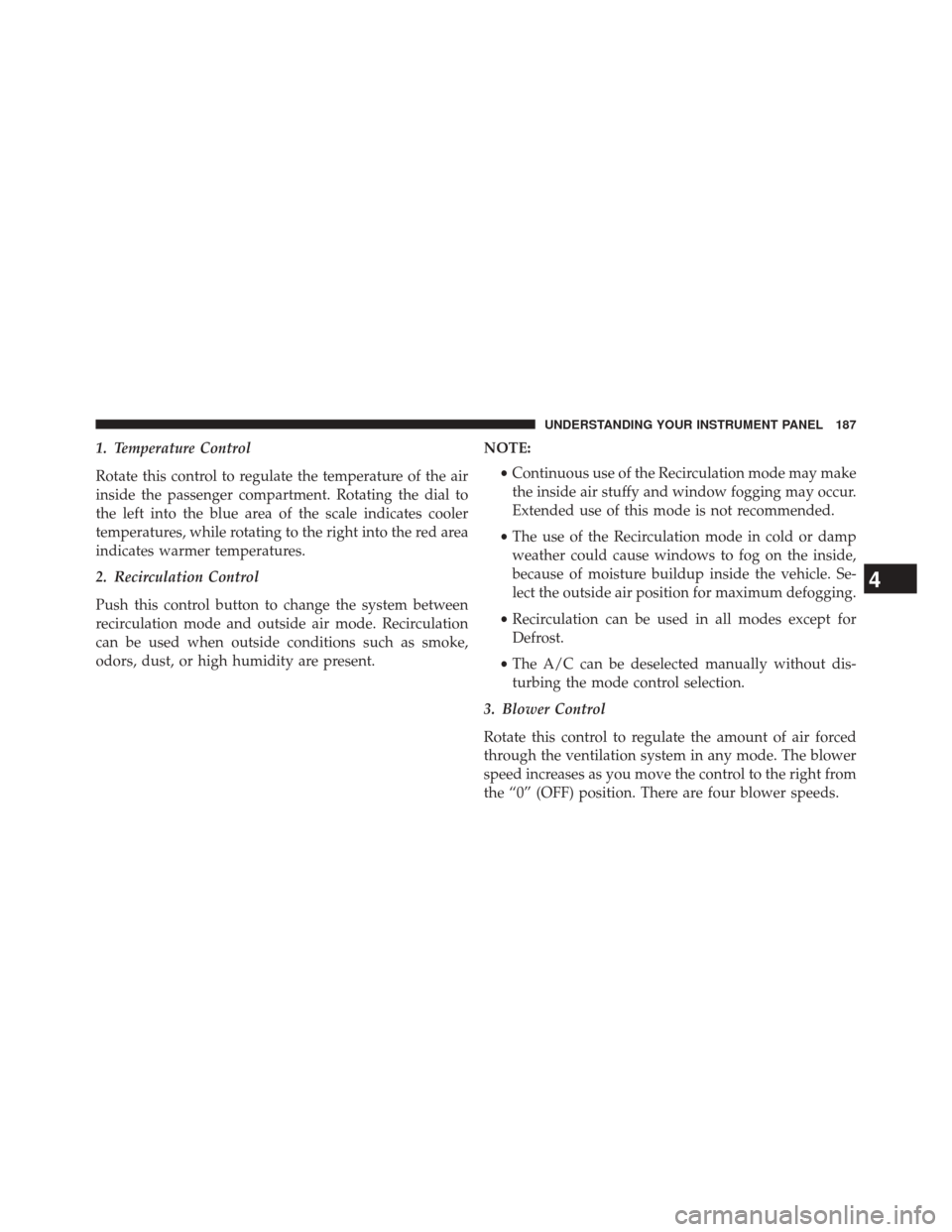

1. Temperature Control
Rotate this control to regulate the temperature of the air
inside the passenger compartment. Rotating the dial to
the left into the blue area of the scale indicates cooler
temperatures, while rotating to the right into the red area
indicates warmer temperatures.
2. Recirculation Control
Push this control button to change the system between
recirculation mode and outside air mode. Recirculation
can be used when outside conditions such as smoke,
odors, dust, or high humidity are present.NOTE:
•Continuous use of the Recirculation mode may make
the inside air stuffy and window fogging may occur.
Extended use of this mode is not recommended.
• The use of the Recirculation mode in cold or damp
weather could cause windows to fog on the inside,
because of moisture buildup inside the vehicle. Se-
lect the outside air position for maximum defogging.
• Recirculation can be used in all modes except for
Defrost.
• The A/C can be deselected manually without dis-
turbing the mode control selection.
3. Blower Control
Rotate this control to regulate the amount of air forced
through the ventilation system in any mode. The blower
speed increases as you move the control to the right from
the “0” (OFF) position. There are four blower speeds.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

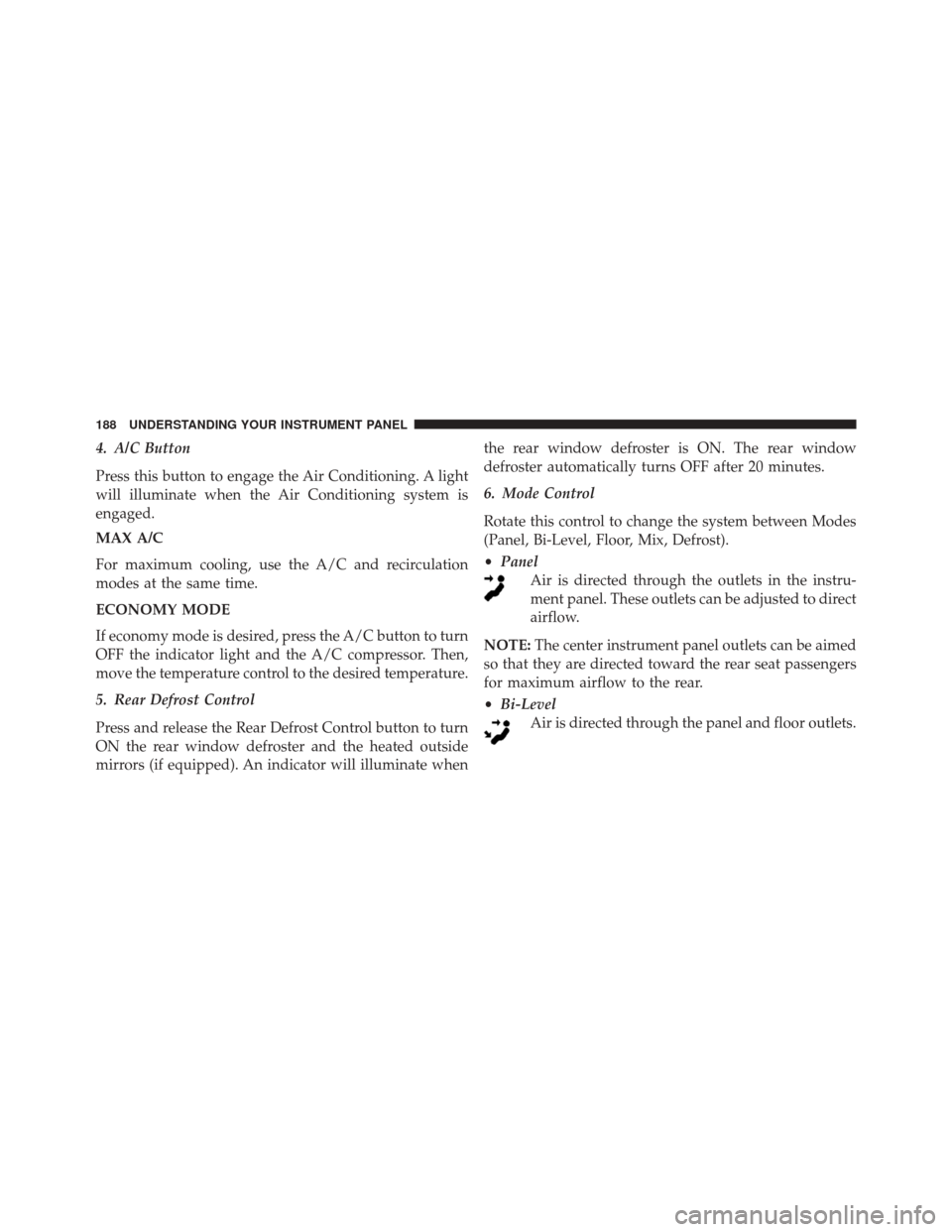

4. A/C Button
Press this button to engage the Air Conditioning. A light
will illuminate when the Air Conditioning system is
engaged.
MAX A/C
For maximum cooling, use the A/C and recirculation
modes at the same time.
ECONOMY MODE
If economy mode is desired, press the A/C button to turn
OFF the indicator light and the A/C compressor. Then,
move the temperature control to the desired temperature.
5. Rear Defrost Control
Press and release the Rear Defrost Control button to turn
ON the rear window defroster and the heated outside
mirrors (if equipped). An indicator will illuminate whenthe rear window defroster is ON. The rear window
defroster automatically turns OFF after 20 minutes.
6. Mode Control
Rotate this control to change the system between Modes
(Panel, Bi-Level, Floor, Mix, Defrost).
•
Panel
Air is directed through the outlets in the instru-
ment panel. These outlets can be adjusted to direct
airflow.
NOTE: The center instrument panel outlets can be aimed
so that they are directed toward the rear seat passengers
for maximum airflow to the rear.
• Bi-Level
Air is directed through the panel and floor outlets.
188 UNDERSTANDING YOUR INSTRUMENT PANEL
