FIAT 500L 2015 2.G Owner's Manual

NOTE:The line of transmission must not be blocked with
metal objects.
To Unlock The Doors And Liftgate
Push and release the UNLOCK button on the RKE
transmitter once to unlock the driver ’s door or twice,
within five seconds, to unlock all doors and the liftgate.
The turn signal lights will flash to acknowledge the
unlock signal. The illuminated entry system will also
turn on.
To Lock The Doors And Liftgate
Push and release the LOCK button on the RKE transmit-
ter to lock all doors and the liftgate. The turn signal lights
will flash and the horn will chirp to acknowledge the
signal.Remote Keyless Entry Transmitter With Mechanical Key
Release Button
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

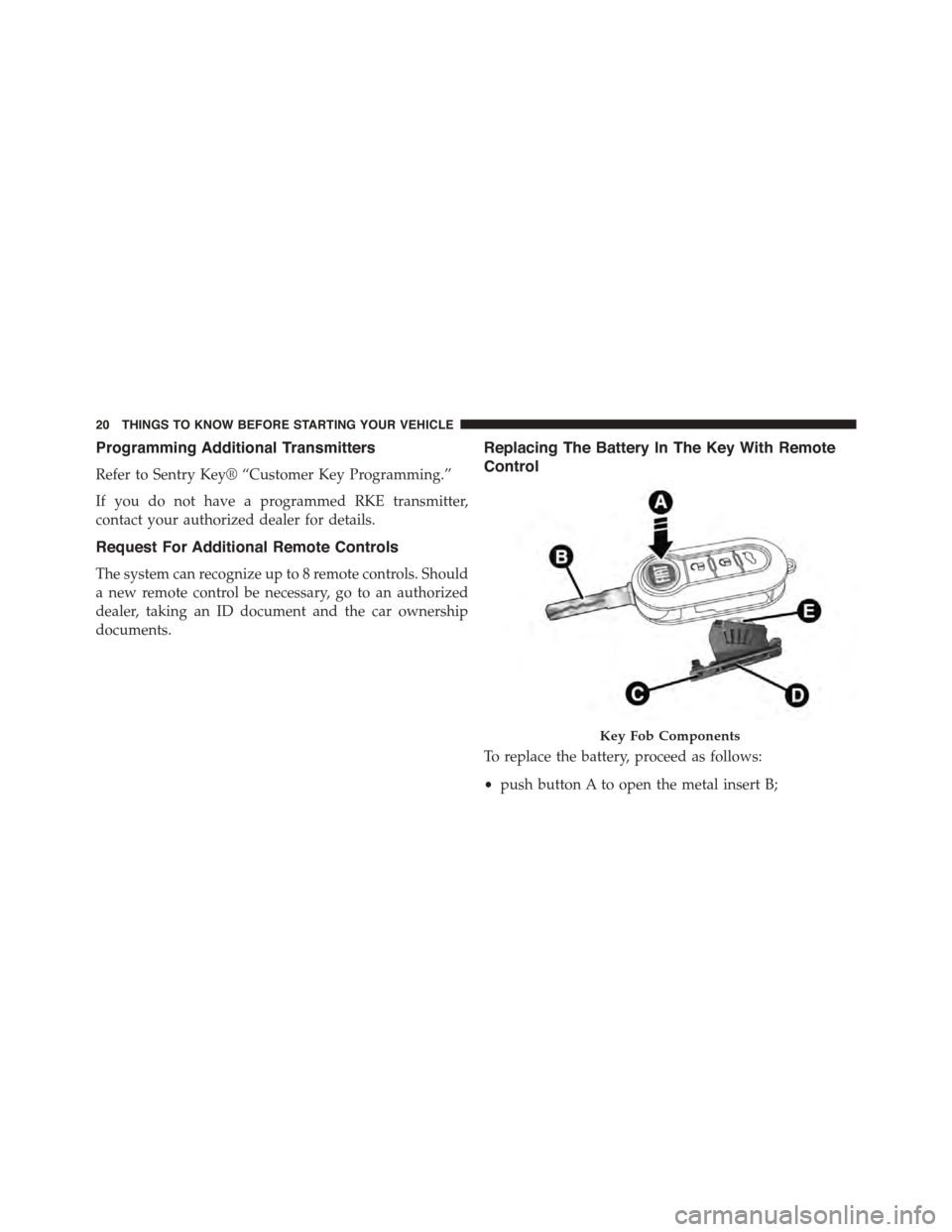

Programming Additional Transmitters
Refer to Sentry Key® “Customer Key Programming.”
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Request For Additional Remote Controls
The system can recognize up to 8 remote controls. Should
a new remote control be necessary, go to an authorized
dealer, taking an ID document and the car ownership
documents.
Replacing The Battery In The Key With Remote
Control
To replace the battery, proceed as follows:
•push button A to open the metal insert B;
Key Fob Components
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•turn the screw C to Unlock using a small screwdriver;
•take out the battery case D and replace the battery E
making sure that polarities are correct;
•refit the battery case D inside the key and lock it
turning the screw C to Lock.
NOTE:Used batteries should be properly disposed of as
specified by law, see your authorized dealer for assis-
tance needed.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB
radios.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

DOOR LOCKS
Press the central LOCK/UNLOCK button located on the
instrument panel, in the switch bank below the radio.
The button has an LED that indicates whether the doors
are locked or unlocked.
•LED ON:doors locked. Pressing the central LOCK/
UNLOCK button once will unlock all doors. The LED
will switch off once the doors are unlocked.
•LED OFF:doors unlocked. Pressing the central
LOCK/UNLOCK button once will lock all doors. The
LED will switch on once the doors are locked.
Once the doors have been locked with the RKE transmit-
ter, it will no longer be possible to unlock them by
pressing central LOCK/UNLOCK button.
Central LOCK/UNLOCK Button
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:With central locking active (LED ON), opening
one of the front doors, it is possible to perform a central
unlocking (LED OFF). With central locking active (LED
ON), in order to open one of the rear passenger doors, it
is necessary pulling the internal door handle twice. With
one of the rear door open (LED OFF), the unlocking is
performed only for that door, not for all the vehicle.
To unlock the front doors, pull the inside door handle to
the first detent. If the rear doors are locked, you must pull
the door handle once to unlock the door and pull the
door handle a second time to open the door.
WARNING!
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
(Continued)
WARNING!(Continued)
•For personal security and safety in the event of a
collision, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
•Before exiting a vehicle, always turn the vehicle
OFF, apply the parking brake, shift the automatic
transmission into PARK or the manual transmis-
sion into REVERSE, and remove the Key Fob from
the ignition. When leaving the vehicle, always lock
your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

WARNING!(Continued)
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
•Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
of the doors when leaving the vehicle unattended.
Doors Lock With One Or More Doors Open
It is possible locking the vehicle through the RKE,
internal button or external key pawl, also if one or more
doors are open. At lock command request, LED is
switched ON. At closing of the last door, the vehicle
maintains the central locking status if key is not inserted
in Ignition Device, otherwise the vehicle will be unlocked
and the LED will be switched OFF.
NOTE:If the key is not inserted in the ignition switch,
but is inside the vehicle, the system does not recognize
the presence of the key and after the closing of last door,
the vehicle remains locked.
Auto — Relocking (Only For Rear Doors)
With the vehicle locked and all doors closed (LED ON), if
a passenger opens one of the rear doors (LED OFF), as
soon as the door is closed, it will be locked again (LED
ON).
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

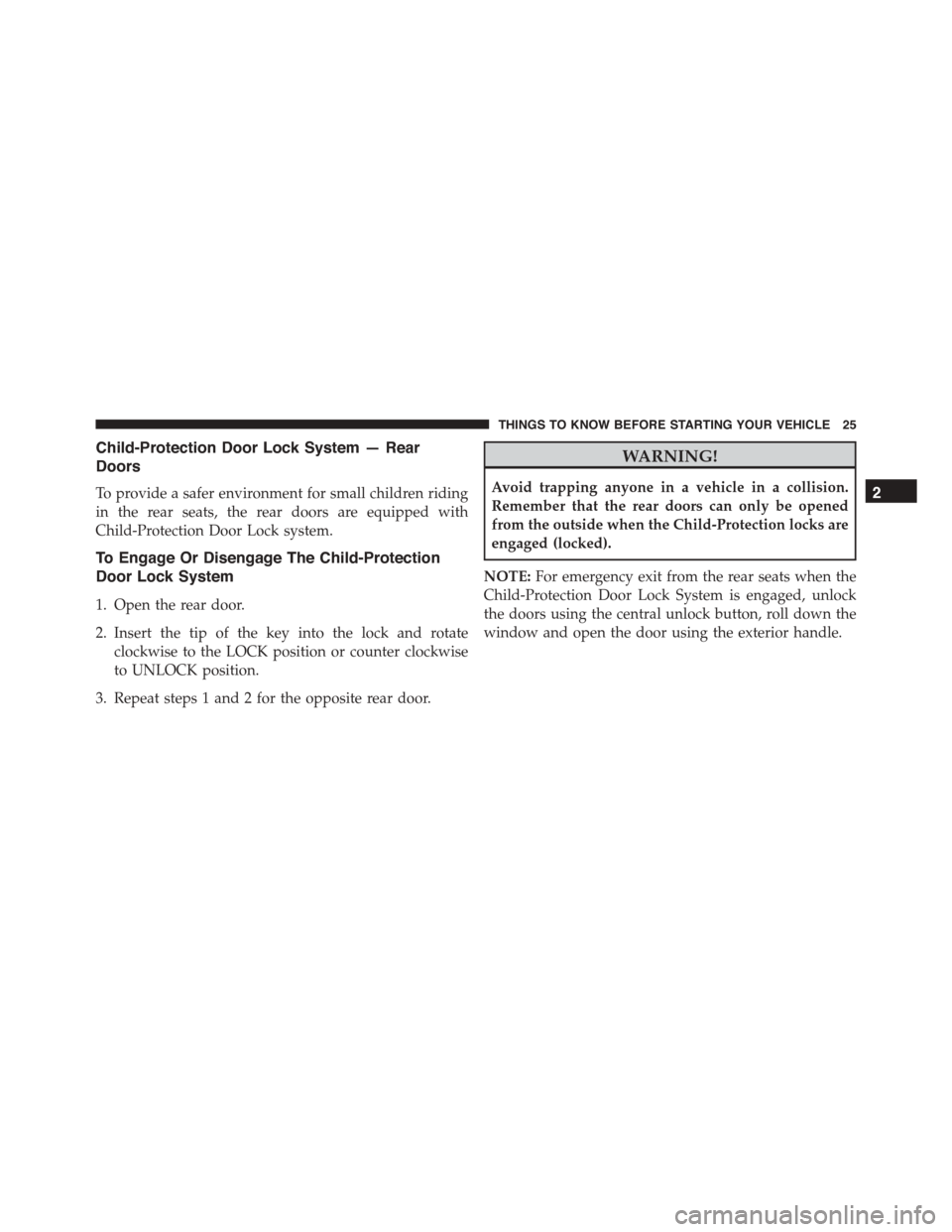

Child-Protection Door Lock System — Rear
Doors
To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with
Child-Protection Door Lock system.
To Engage Or Disengage The Child-Protection
Door Lock System
1. Open the rear door.
2. Insert the tip of the key into the lock and rotate
clockwise to the LOCK position or counter clockwise
to UNLOCK position.
3. Repeat steps 1 and 2 for the opposite rear door.
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks are
engaged (locked).
NOTE:For emergency exit from the rear seats when the
Child-Protection Door Lock System is engaged, unlock
the doors using the central unlock button, roll down the
window and open the door using the exterior handle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

POWER WINDOWS
Power Window Switches
The power window controls are located on the driver’s
door trim panel. There is a single switch on the front
passenger door, which operate the front passenger win-
dow and a single switch on each rear door that operates
the rear passenger door window. The window controls
will operate only when the ignition switch is in the
ON/RUN position.
A— Driver Front WindowSwitchD — Driver Rear WindowSwitchB—PassengerFrontWindowSwitchE — Passenger Rear WindowSwitchC—WindowLockoutSwitch
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The power window switches will remain active
for up to three minutes after the ignition switch is cycled
to the OFF position. Opening either front door will cancel
this feature.
WARNING!
Never leave children unattended in a vehicle, and do
not let children play with power windows. Do not
leave the Key Fob in or near the vehicle, or in a
location accessible to children. Occupants, particu-
larly unattended children, can become entrapped by
the windows while operating the power window
switches. Such entrapment may result in serious
injury or death.
Auto-Down
The window switches have an Auto-Down feature. Push
the window switch for approximately one second, re-
lease, and the window will go down automatically. To
cancel the Auto-Down movement, operate the switch in
either the up or down direction and release the switch.
AUTO-Up Feature With Anti-Pinch Protection — If
Equipped
Lift the window switch to the second detent, release, and
the window will go up automatically.
To stop the window from going all the way up during the
AUTO-up operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release it when you want the window
to stop.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

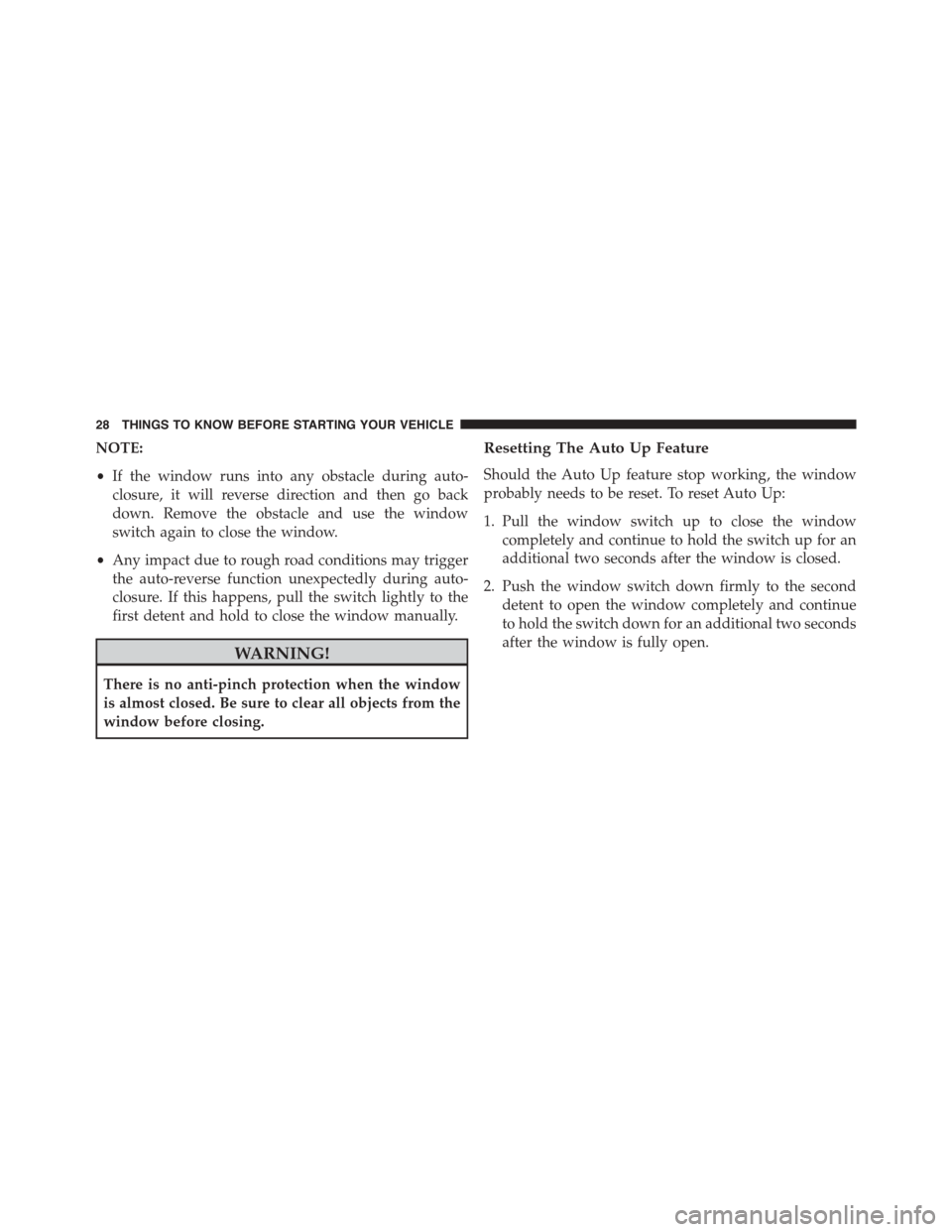

NOTE:
•If the window runs into any obstacle during auto-
closure, it will reverse direction and then go back
down. Remove the obstacle and use the window
switch again to close the window.
•Any impact due to rough road conditions may trigger
the auto-reverse function unexpectedly during auto-
closure. If this happens, pull the switch lightly to the
first detent and hold to close the window manually.
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Resetting The Auto Up Feature
Should the Auto Up feature stop working, the window
probably needs to be reset. To reset Auto Up:
1. Pull the window switch up to close the window
completely and continue to hold the switch up for an
additional two seconds after the window is closed.
2. Push the window switch down firmly to the second
detent to open the window completely and continue
to hold the switch down for an additional two seconds
after the window is fully open.
