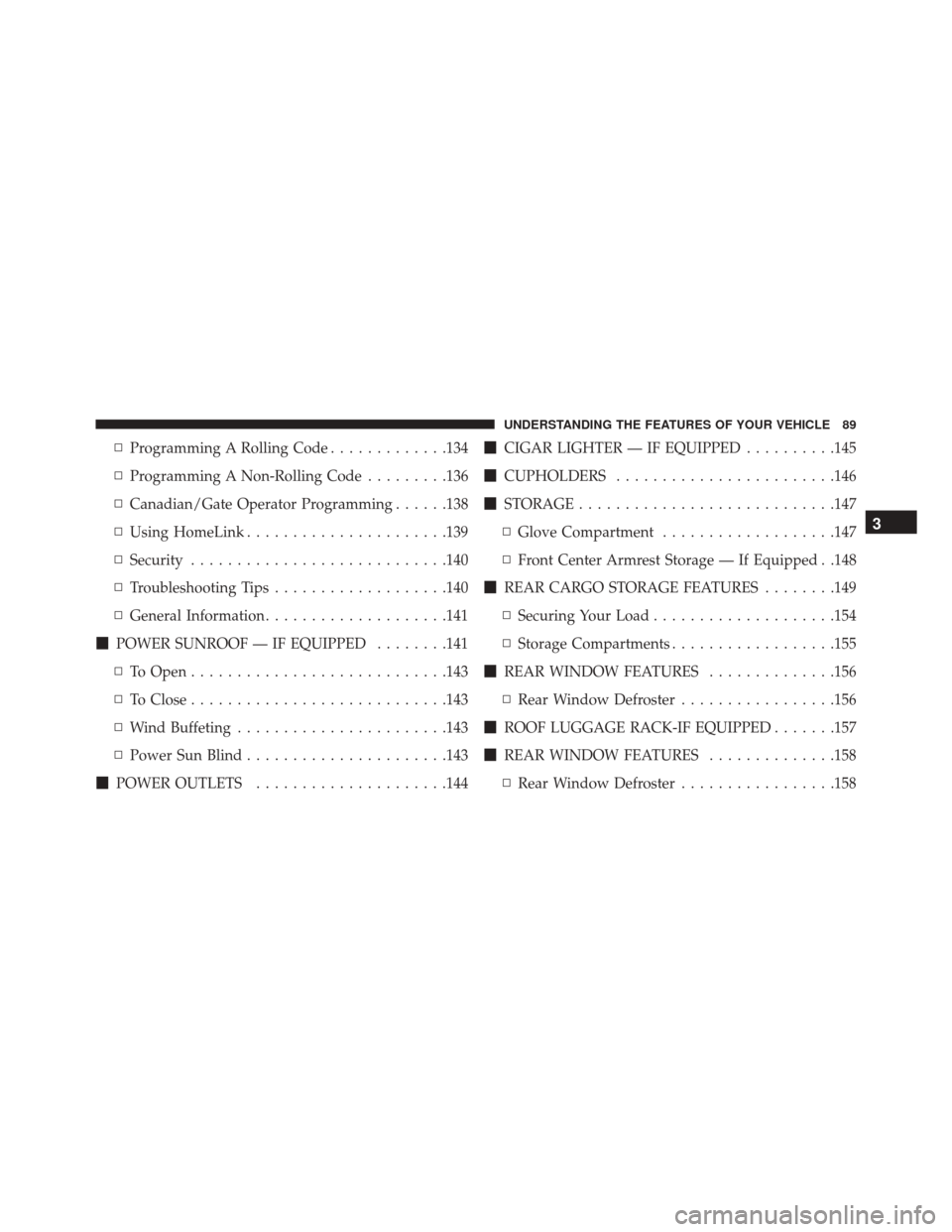

▫Programming A Rolling Code .............134
▫ Programming A Non-Rolling Code .........136
▫ Canadian/Gate Operator Programming ......138
▫ Using HomeLink ..................... .139
▫ Security ........................... .140
▫ Troubleshooting Tips ...................140
▫ General Information ....................141
 POWER SUNROOF — IF EQUIPPED ........141
▫ To Open ........................... .143
▫ To Close ........................... .143
▫ Wind Buffeting ...................... .143
▫ Power Sun Blind ..................... .143
 POWER OUTLETS .....................144
CIGAR LIGHTER — IF EQUIPPED ..........145
 CUPHOLDERS ....................... .146
 STORAGE ........................... .147
▫ Glove Compartment ...................147
▫ Front Center Armrest Storage — If Equipped . .148
 REAR CARGO STORAGE FEATURES ........149
▫ Securing Your Load ....................154
▫ Storage Compartments ..................155
 REAR WINDOW FEATURES ..............156
▫ Rear Window Defroster .................156
 ROOF LUGGAGE RACK-IF EQUIPPED .......157
 REAR WINDOW FEATURES ..............158
▫ Rear Window Defroster .................158
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

MIRRORS
Inside Day/Night Mirror
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the wind-
shield. The mirror installs on the windshield button with
a counterclockwise rotation and requires no tools for
mounting. The mirror head can be adjusted up, down,
left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while the small control under the
mirror is set in the day position (toward the windshield).
Adjusting Rearview Mirror
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pushing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

Conversation Mirror — If Equipped
There is a conversation mirror located at the top of the
overhead console.
To gain access to the conversation mirror, pull downward
on the mirror to the open position.
Power Mirrors
The power mirror controls are located on the driver ’s
door trim panel. To adjust a mirror, turn the control knob
toward the left or right mirror positions indicated. Tilt the
control wand in the direction you want the mirror to
Conversation Mirror Location
Conversation Mirror
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

move. When you are finished adjusting the mirror, turn
the control to the center position to prevent accidentally
moving a mirror.Folding Mirrors
The exterior mirrors are hinged to allow the mirror to
pivot forward or rearward to help avoid damage. The
mirror has three detent positions: full forward, normal
and full rearward.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature can be activated whenever you turn on the
rear window defroster.
Sun Visors
The driver and passenger sun visors are located on the
headliner, near the front windshield. The sun visor can be
rotated downward or up against the door glass. Both sun
visors are equipped with illuminated courtesy mirrors.
Power Mirror Controls
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

Sun Visor “Slide-On-Rod” Feature
The sun visor “Slide-On-Rod” feature allows for addi-
tional flexibility in positioning the visor to block out the
sun.To use the “Slide-On-Rod” feature, rotate the sun visor
downward and unclip it. Pull the sun visor along the
“Slide-On-Rod” until the sun visor is in the desired
position.
Sun Visor (Driver Side Shown)
“Slide-On-Rod” Feature
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

SEATS
Front Seats
Forward/Rearward Adjustment
The adjusting bar is located at the front of the seats, near
the floor.
While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once the
desired position is reached. Then, using body pressure,
move forward and rearward on the seat to be sure that
the seat adjusters have latched.
Adjusting Bar
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
Seat Height Adjustment
The seat height adjustment lever is located on the out-
board side of the seat. Pull upward on the lever to raise
the seat height or push downward on the lever to lower
the seat height.Height Adjustment Lever
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Recliner Adjustment
The recline lever is located on the outboard side of the
seat. To recline the seat, lean forward slightly, lift the
lever, lean back to the desired position and release the
lever. To return the seatback to its normal upright posi-
tion, lean forward and lift the lever. Release the lever
once the seatback is in the upright position.
WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
(Continued)
Recline Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

WARNING!(Continued)
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Power Lumbar — If Equipped
Push the power lumbar switch to adjust the lumbar
support. Release the switch when you reach the desired
position.
Heated Seats — If Equipped
On some models, the front driver and passenger seats
may be equipped with heaters in both the seat cushions
and seatbacks. The controls for the front heated seats are
located on the outer side of the seat.
Power Lumbar Switch
