FIAT 500L 2017 2.G Owners Manual

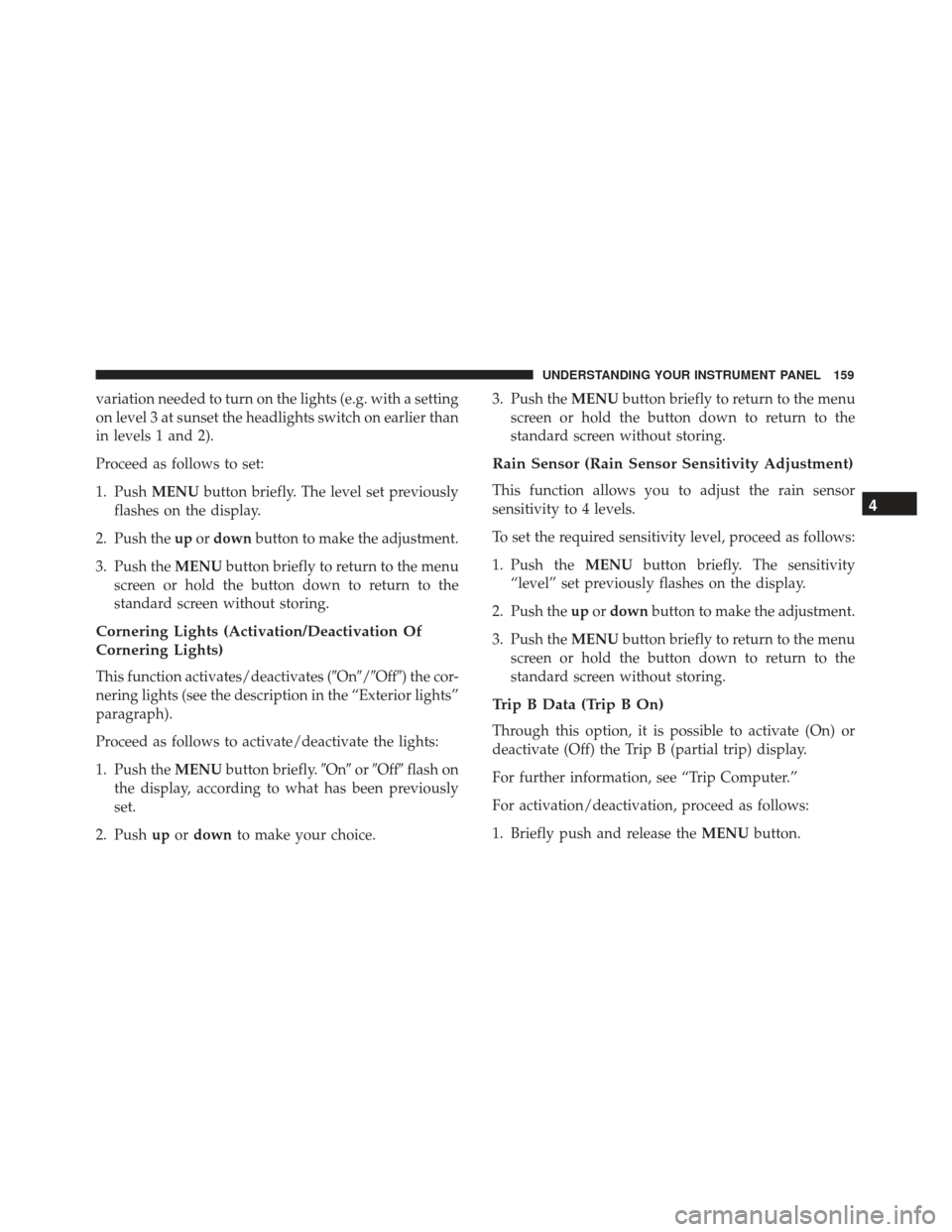

variation needed to turn on the lights (e.g. with a setting
on level 3 at sunset the headlights switch on earlier than
in levels 1 and 2).
Proceed as follows to set:
1. PushMENUbutton briefly. The level set previously
flashes on the display.
2. Push the upordown button to make the adjustment.
3. Push the MENUbutton briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Cornering Lights (Activation/Deactivation Of
Cornering Lights)
This function activates/deactivates (On/Off) the cor-
nering lights (see the description in the “Exterior lights”
paragraph).
Proceed as follows to activate/deactivate the lights:
1. Push the MENUbutton briefly. OnorOff flash on
the display, according to what has been previously
set.
2. Push upordown to make your choice. 3. Push the
MENUbutton briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Rain Sensor (Rain Sensor Sensitivity Adjustment)
This function allows you to adjust the rain sensor
sensitivity to 4 levels.
To set the required sensitivity level, proceed as follows:
1. Push the MENUbutton briefly. The sensitivity
“level” set previously flashes on the display.
2. Push the upordown button to make the adjustment.
3. Push the MENUbutton briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Trip B Data (Trip B On)
Through this option, it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.
For further information, see “Trip Computer.”
For activation/deactivation, proceed as follows:
1. Briefly push and release the MENUbutton.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 159

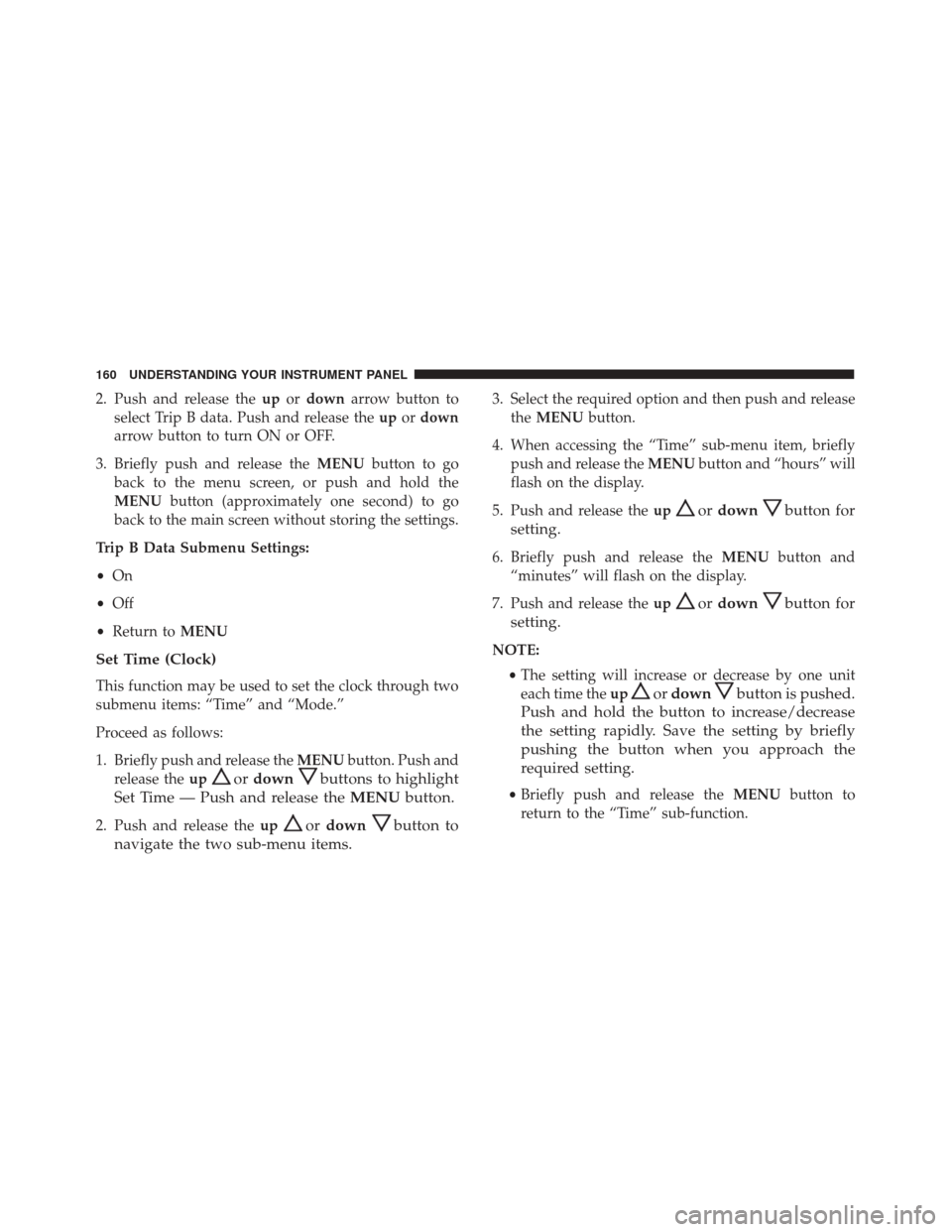

2. Push and release theupordown arrow button to
select Trip B data. Push and release the upordown
arrow button to turn ON or OFF.
3. Briefly push and release the MENUbutton to go
back to the menu screen, or push and hold the
MENU button (approximately one second) to go
back to the main screen without storing the settings.
Trip B Data Submenu Settings:
• On
• Off
• Return to MENU
Set Time (Clock)
This function may be used to set the clock through two
submenu items: “Time” and “Mode.”
Proceed as follows:
1. Briefly push and release the MENUbutton. Push and
release the up
ordownbuttons to highlight
Set Time — Push and release the MENUbutton.
2. Push and release the upordownbutton to
navigate the two sub-menu items.
3. Select the required option and then push and release the MENU button.
4. When accessing the “Time” sub-menu item, briefly push and release the MENUbutton and “hours” will
flash on the display.
5. Push and release the up
ordownbutton for
setting.
6. Briefly push and release the MENUbutton and
“minutes” will flash on the display.
7. Push and release the up
ordownbutton for
setting.
NOTE:
•The setting will increase or decrease by one unit
each time the up
ordownbutton is pushed.
Push and hold the button to increase/decrease
the setting rapidly. Save the setting by briefly
pushing the button when you approach the
required setting.
• Briefly push and release the MENUbutton to
return to the “Time” sub-function.
160 UNDERSTANDING YOUR INSTRUMENT PANEL

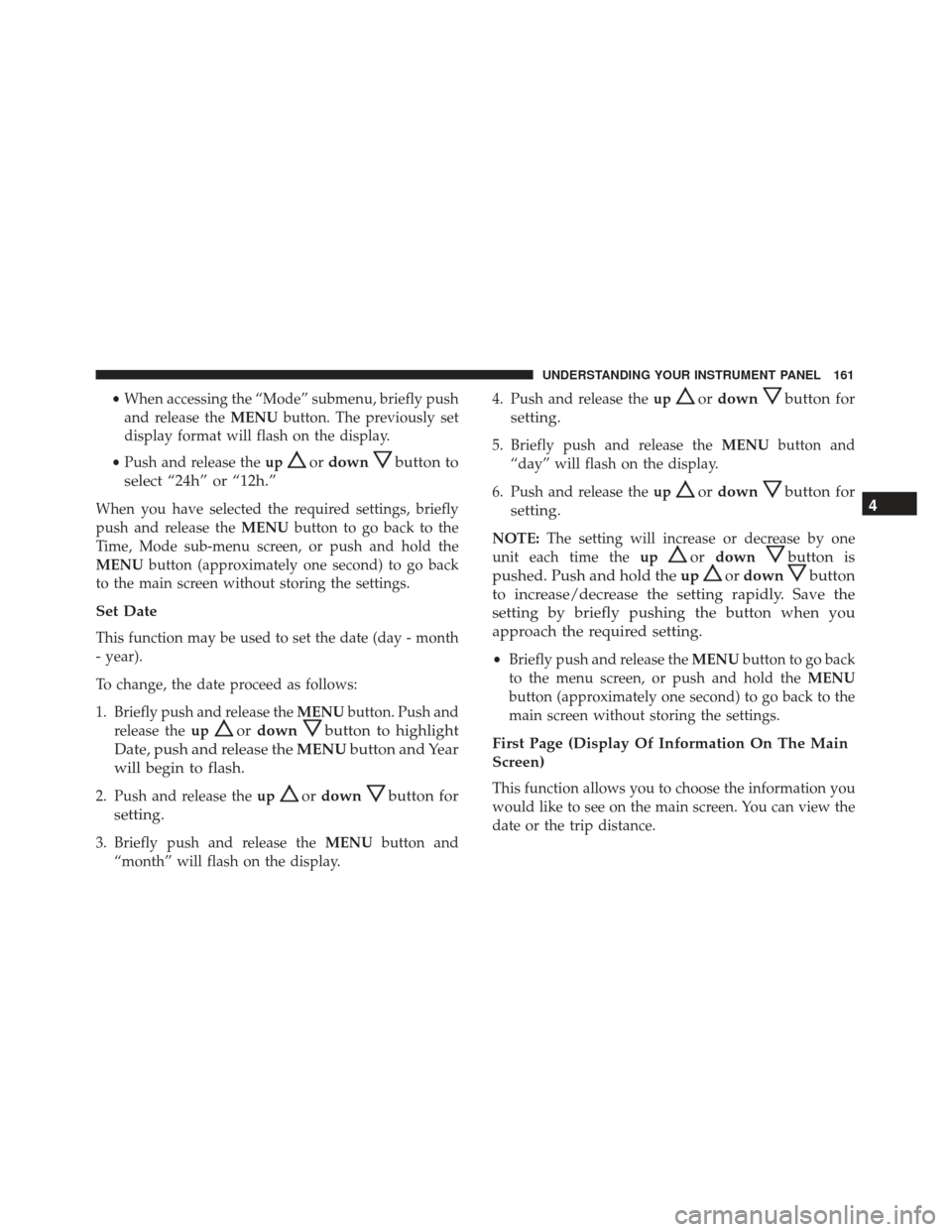

•When accessing the “Mode” submenu, briefly push
and release the MENUbutton. The previously set
display format will flash on the display.
• Push and release the up
ordownbutton to
select “24h” or “12h.”
When you have selected the required settings, briefly
push and release the MENUbutton to go back to the
Time, Mode sub-menu screen, or push and hold the
MENU button (approximately one second) to go back
to the main screen without storing the settings.
Set Date
This function may be used to set the date (day - month
- year).
To change, the date proceed as follows:
1. Briefly push and release the MENUbutton. Push and
release the up
ordownbutton to highlight
Date, push and release the MENUbutton and Year
will begin to flash.
2. Push and release the upordownbutton for
setting.
3. Briefly push and release the MENUbutton and
“month” will flash on the display. 4. Push and release the
up
ordownbutton for
setting.
5. Briefly push and release the MENUbutton and
“day” will flash on the display.
6. Push and release the up
ordownbutton for
setting.
NOTE: The setting will increase or decrease by one
unit each time the up
ordownbutton is
pushed. Push and hold the up
ordownbutton
to increase/decrease the setting rapidly. Save the
setting by briefly pushing the button when you
approach the required setting.
• Briefly push and release the MENUbutton to go back
to the menu screen, or push and hold the MENU
button (approximately one second) to go back to the
main screen without storing the settings.
First Page (Display Of Information On The Main
Screen)
This function allows you to choose the information you
would like to see on the main screen. You can view the
date or the trip distance.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 161

To make your choice, proceed as follows:
•Briefly push the MENUbutton.Initial page will be
displayed.
• Briefly push the MENUbutton again to display the
date andengine info options.
• Push the up
ordownbuttons to select the
information you wish to see on the main page of
the display.
• Briefly push the MENUbutton to go back to the
menu screen or hold the button down to go back to
the standard screen without saving.
When the key is turned to MAR/ON and the initial
check stage is over, the display will show the informa-
tion selected via the First Pagemenu function.
Audio Repetition (Repeat Audio Information)
With this function active, the instrument cluster display
shows information relevant to the sound system.
•Radio: tuned radio station frequency, automatic tun-
ing activation or AutoStore.
• CD audio, CD MP3: track number. To activate (On) or to deactivate (Off) the sound system
info displaying, proceed as follows:
1. Briefly push and release the
MENUbutton. Push and
release the up
ordownarrow button to
highlight See Radio and push and release the
MENU button.
2. Push and release the upordownarrow
button for setting.
3. Briefly push and release the MENUbutton to go
back to the menu screen, or push and hold the
MENU button (approximately one second) to go
back to the main screen without storing the settings.
If the radio has Uconnect, refer to the appropriate
“Uconnect Radio Supplement” for further information.
Audio Repetition Submenu Settings:
• Off
• On
• Return to MENU
162 UNDERSTANDING YOUR INSTRUMENT PANEL

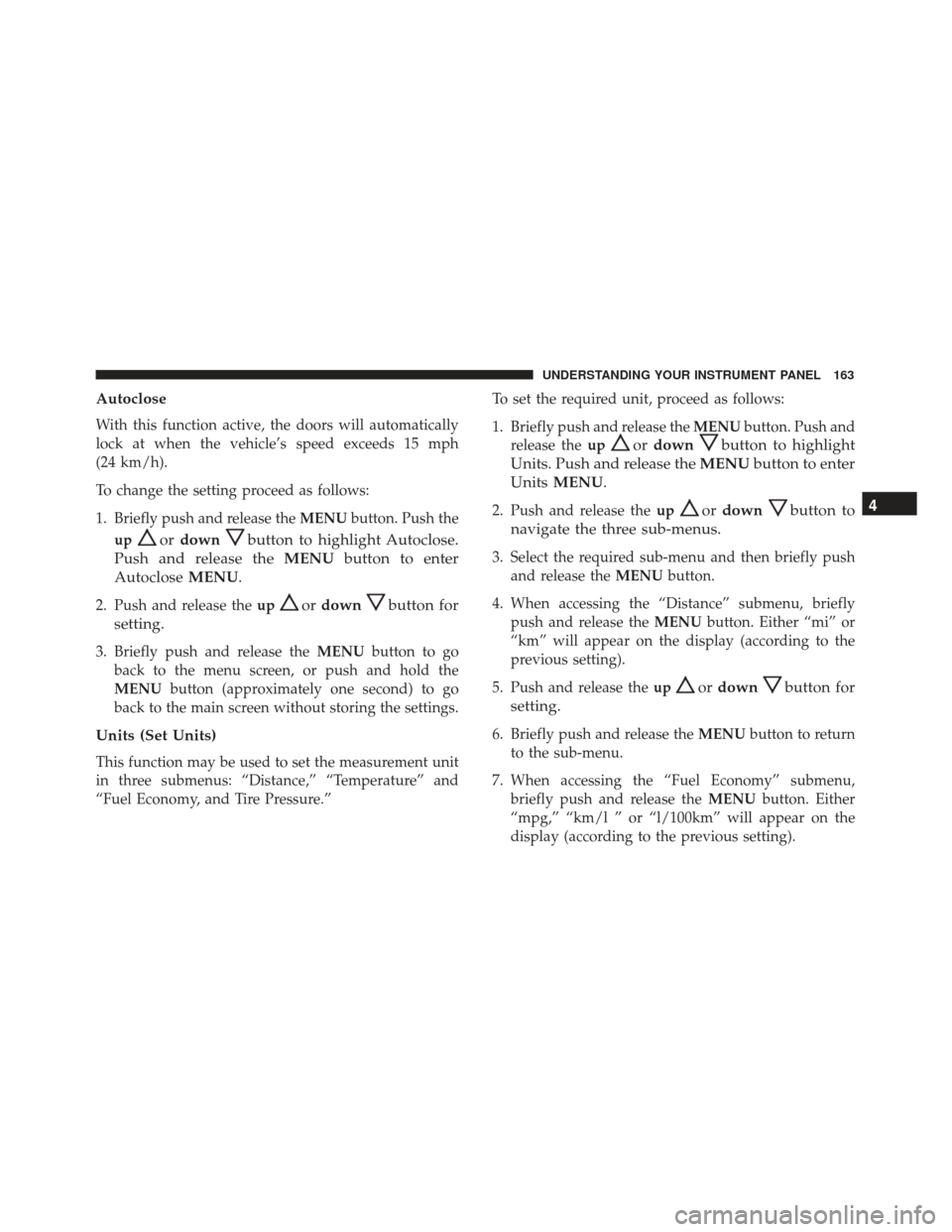

Autoclose
With this function active, the doors will automatically
lock at when the vehicle’s speed exceeds 15 mph
(24 km/h).
To change the setting proceed as follows:
1. Briefly push and release theMENUbutton. Push the
up
or downbutton to highlight Autoclose.
Push and release the MENUbutton to enter
Autoclose MENU.
2. Push and release the upordownbutton for
setting.
3. Briefly push and release the MENUbutton to go
back to the menu screen, or push and hold the
MENU button (approximately one second) to go
back to the main screen without storing the settings.
Units (Set Units)
This function may be used to set the measurement unit
in three submenus: “Distance,” “Temperature” and
“Fuel Economy, and Tire Pressure.” To set the required unit, proceed as follows:
1. Briefly push and release the
MENUbutton. Push and
release the up
ordownbutton to highlight
Units. Push and release the MENUbutton to enter
Units MENU.
2. Push and release the upordownbutton to
navigate the three sub-menus.
3. Select the required sub-menu and then briefly push and release the MENUbutton.
4. When accessing the “Distance” submenu, briefly push and release the MENUbutton. Either “mi” or
“km” will appear on the display (according to the
previous setting).
5. Push and release the up
ordownbutton for
setting.
6. Briefly push and release the MENUbutton to return
to the sub-menu.
7. When accessing the “Fuel Economy” submenu, briefly push and release the MENUbutton. Either
“mpg,” “km/l ” or “l/100km” will appear on the
display (according to the previous setting).
4
UNDERSTANDING YOUR INSTRUMENT PANEL 163

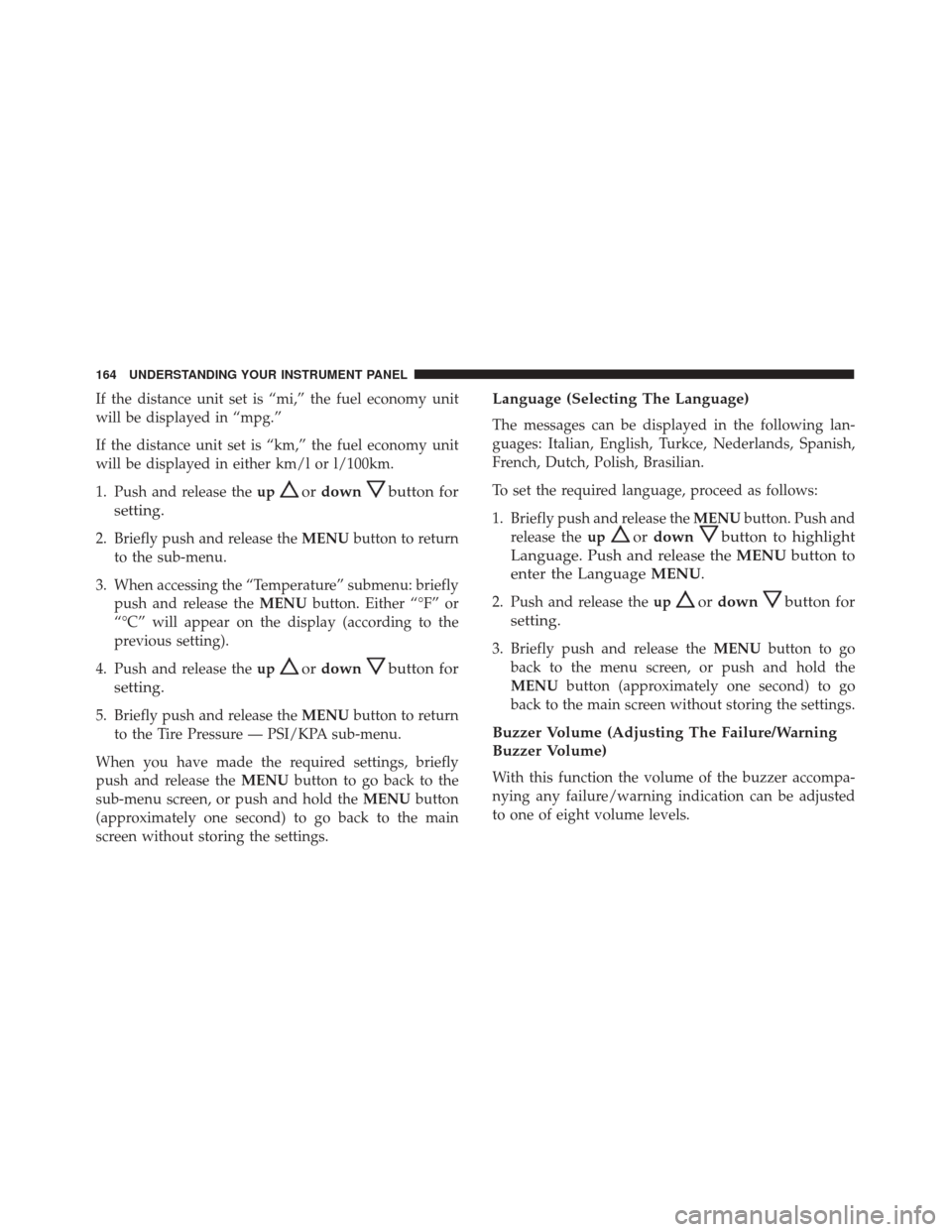

If the distance unit set is “mi,” the fuel economy unit
will be displayed in “mpg.”
If the distance unit set is “km,” the fuel economy unit
will be displayed in either km/l or l/100km.
1. Push and release theup
ordownbutton for
setting.
2. Briefly push and release the MENUbutton to return
to the sub-menu.
3. When accessing the “Temperature” submenu: briefly push and release the MENUbutton. Either “°F” or
“°C” will appear on the display (according to the
previous setting).
4. Push and release the up
ordownbutton for
setting.
5. Briefly push and release the MENUbutton to return
to the Tire Pressure — PSI/KPA sub-menu.
When you have made the required settings, briefly
push and release the MENUbutton to go back to the
sub-menu screen, or push and hold the MENUbutton
(approximately one second) to go back to the main
screen without storing the settings.
Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English, Turkce, Nederlands, Spanish,
French, Dutch, Polish, Brasilian.
To set the required language, proceed as follows:
1. Briefly push and release the MENUbutton. Push and
release the up
ordownbutton to highlight
Language. Push and release the MENUbutton to
enter the Language MENU.
2. Push and release the upordownbutton for
setting.
3. Briefly push and release the MENUbutton to go
back to the menu screen, or push and hold the
MENU button (approximately one second) to go
back to the main screen without storing the settings.
Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function the volume of the buzzer accompa-
nying any failure/warning indication can be adjusted
to one of eight volume levels.
164 UNDERSTANDING YOUR INSTRUMENT PANEL

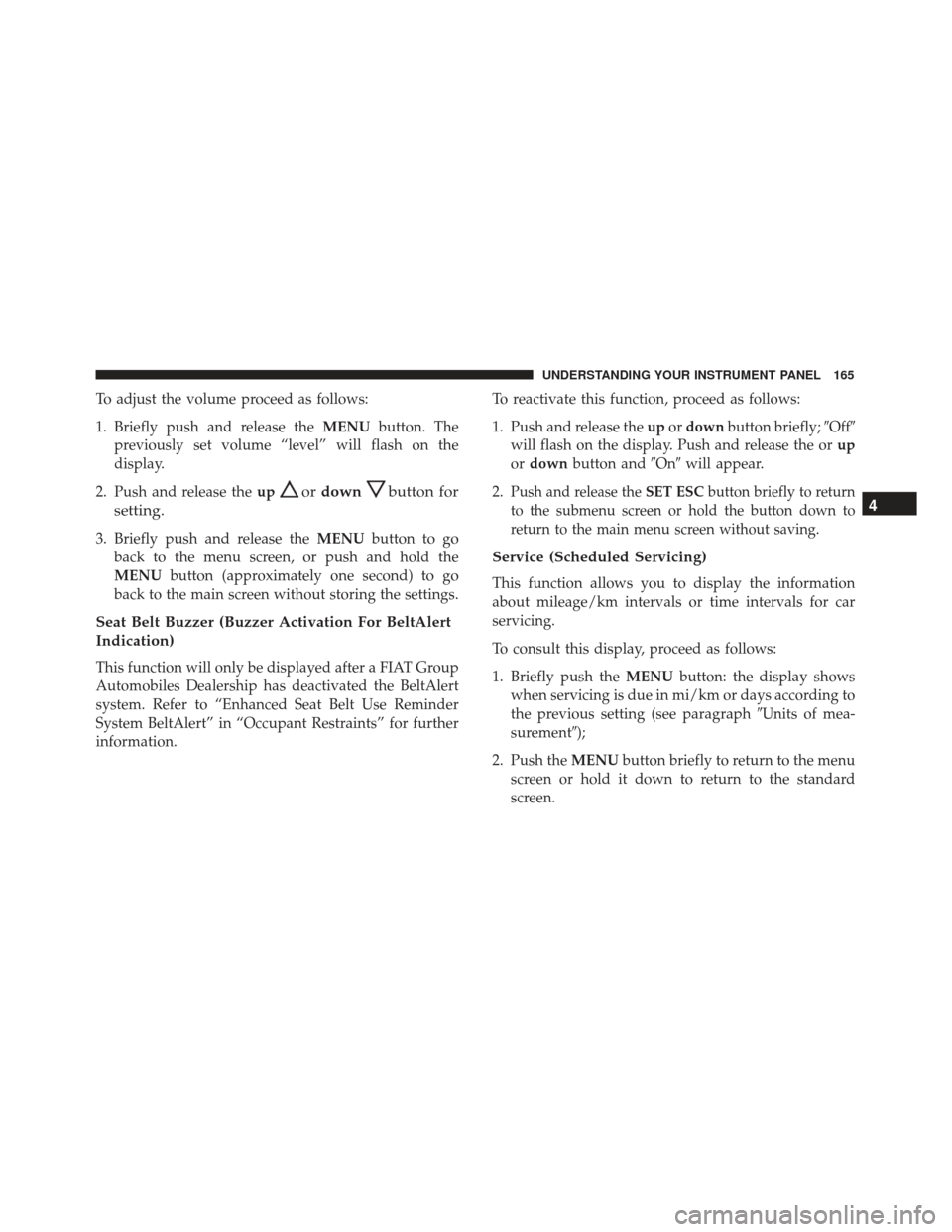

To adjust the volume proceed as follows:
1. Briefly push and release theMENUbutton. The
previously set volume “level” will flash on the
display.
2. Push and release the up
ordownbutton for
setting.
3. Briefly push and release the MENUbutton to go
back to the menu screen, or push and hold the
MENU button (approximately one second) to go
back to the main screen without storing the settings.
Seat Belt Buzzer (Buzzer Activation For BeltAlert
Indication)
This function will only be displayed after a FIAT Group
Automobiles Dealership has deactivated the BeltAlert
system. Refer to “Enhanced Seat Belt Use Reminder
System BeltAlert” in “Occupant Restraints” for further
information. To reactivate this function, proceed as follows:
1. Push and release the
upordown button briefly; Off
will flash on the display. Push and release the or up
or down button and Onwill appear.
2.
Push and release the SET ESCbutton briefly to return
to the submenu screen or hold the button down to
return to the main menu screen without saving.
Service (Scheduled Servicing)
This function allows you to display the information
about mileage/km intervals or time intervals for car
servicing.
To consult this display, proceed as follows:
1. Briefly push the MENUbutton: the display shows
when servicing is due in mi/km or days according to
the previous setting (see paragraph Units of mea-
surement);
2. Push the MENUbutton briefly to return to the menu
screen or hold it down to return to the standard
screen.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 165

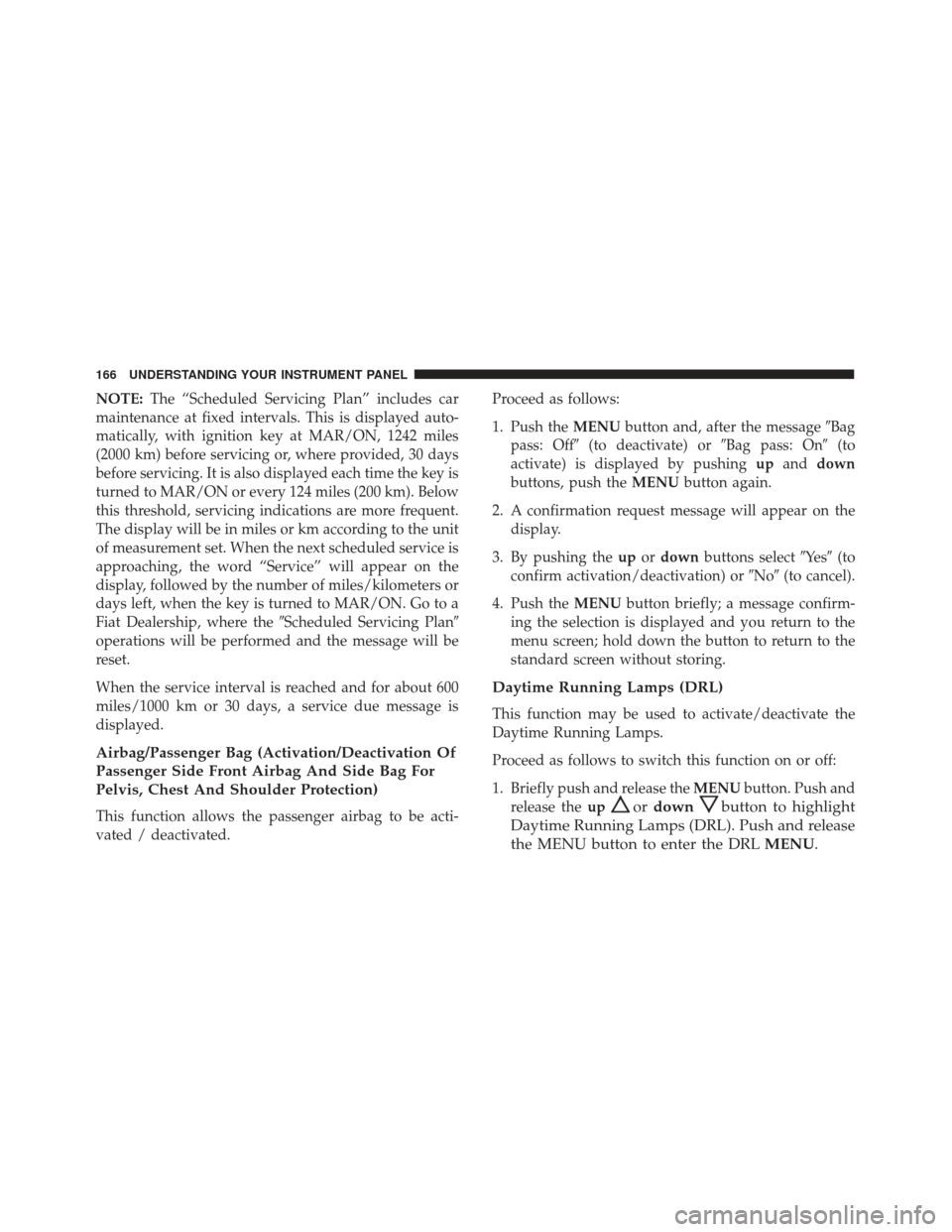

NOTE:The “Scheduled Servicing Plan” includes car
maintenance at fixed intervals. This is displayed auto-
matically, with ignition key at MAR/ON, 1242 miles
(2000 km) before servicing or, where provided, 30 days
before servicing. It is also displayed each time the key is
turned to MAR/ON or every 124 miles (200 km). Below
this threshold, servicing indications are more frequent.
The display will be in miles or km according to the unit
of measurement set. When the next scheduled service is
approaching, the word “Service” will appear on the
display, followed by the number of miles/kilometers or
days left, when the key is turned to MAR/ON. Go to a
Fiat Dealership, where the Scheduled Servicing Plan
operations will be performed and the message will be
reset.
When the service interval is reached and for about 600
miles/1000 km or 30 days, a service due message is
displayed.
Airbag/Passenger Bag (Activation/Deactivation Of
Passenger Side Front Airbag And Side Bag For
Pelvis, Chest And Shoulder Protection)
This function allows the passenger airbag to be acti-
vated / deactivated. Proceed as follows:
1. Push the
MENUbutton and, after the message Bag
pass: Off (to deactivate) or Bag pass: On(to
activate) is displayed by pushing upand down
buttons, push the MENUbutton again.
2. A confirmation request message will appear on the display.
3. By pushing the upordown buttons select Ye s(to
confirm activation/deactivation) or No(to cancel).
4. Push the MENUbutton briefly; a message confirm-
ing the selection is displayed and you return to the
menu screen; hold down the button to return to the
standard screen without storing.
Daytime Running Lamps (DRL)
This function may be used to activate/deactivate the
Daytime Running Lamps.
Proceed as follows to switch this function on or off:
1. Briefly push and release the MENUbutton. Push and
release the up
ordownbutton to highlight
Daytime Running Lamps (DRL). Push and release
the MENU button to enter the DRL MENU.
166 UNDERSTANDING YOUR INSTRUMENT PANEL

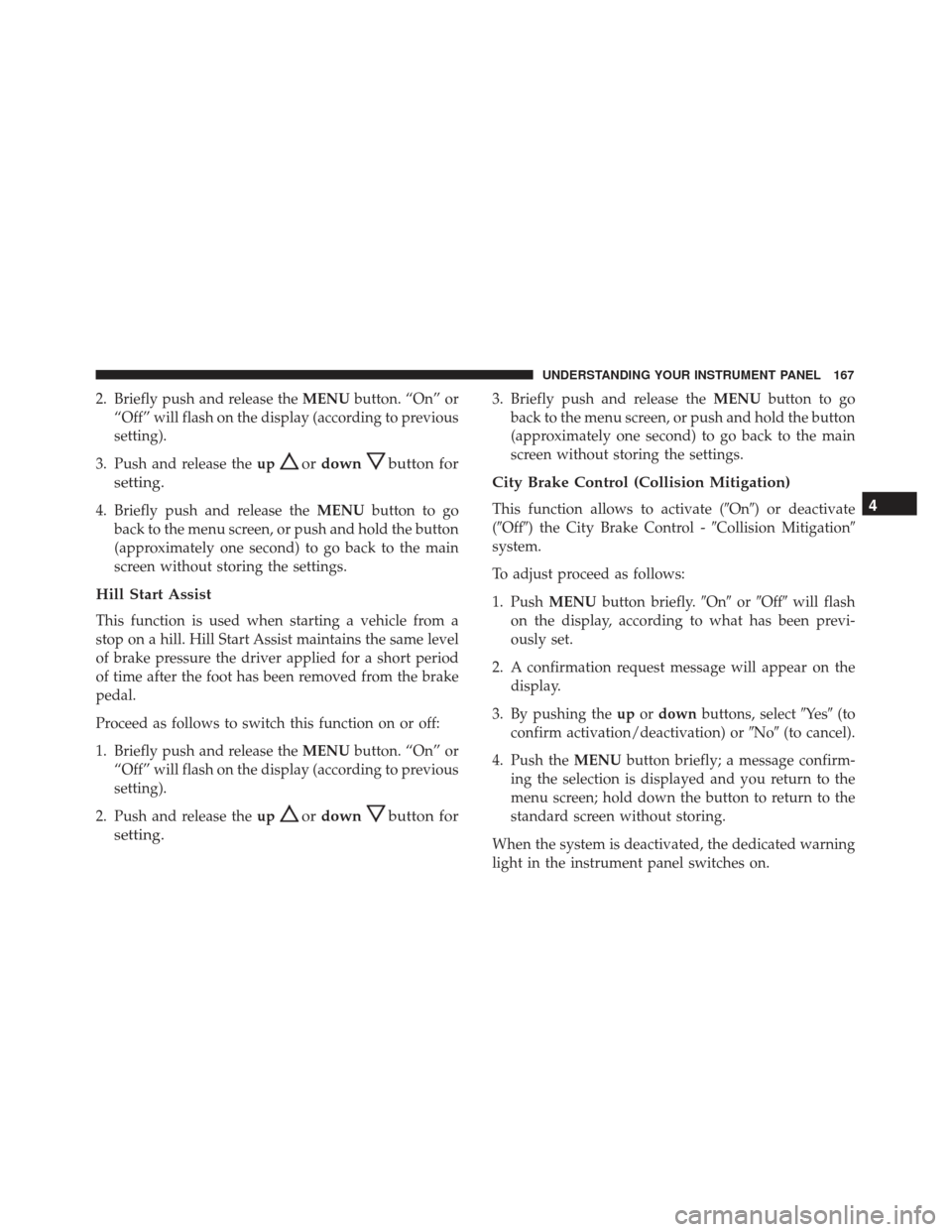

2. Briefly push and release theMENUbutton. “On” or
“Off” will flash on the display (according to previous
setting).
3. Push and release the up
ordownbutton for
setting.
4. Briefly push and release the MENUbutton to go
back to the menu screen, or push and hold the button
(approximately one second) to go back to the main
screen without storing the settings.
Hill Start Assist
This function is used when starting a vehicle from a
stop on a hill. Hill Start Assist maintains the same level
of brake pressure the driver applied for a short period
of time after the foot has been removed from the brake
pedal.
Proceed as follows to switch this function on or off:
1. Briefly push and release the MENUbutton. “On” or
“Off” will flash on the display (according to previous
setting).
2. Push and release the up
ordownbutton for
setting.
3. Briefly push and release the MENUbutton to go
back to the menu screen, or push and hold the button
(approximately one second) to go back to the main
screen without storing the settings.
City Brake Control (Collision Mitigation)
This function allows to activate (On) or deactivate
(Off) the City Brake Control - Collision Mitigation
system.
To adjust proceed as follows:
1. Push MENUbutton briefly. OnorOff will flash
on the display, according to what has been previ-
ously set.
2. A confirmation request message will appear on the display.
3. By pushing the upordown buttons, select Ye s(to
confirm activation/deactivation) or No(to cancel).
4. Push the MENUbutton briefly; a message confirm-
ing the selection is displayed and you return to the
menu screen; hold down the button to return to the
standard screen without storing.
When the system is deactivated, the dedicated warning
light in the instrument panel switches on.4
UNDERSTANDING YOUR INSTRUMENT PANEL 167

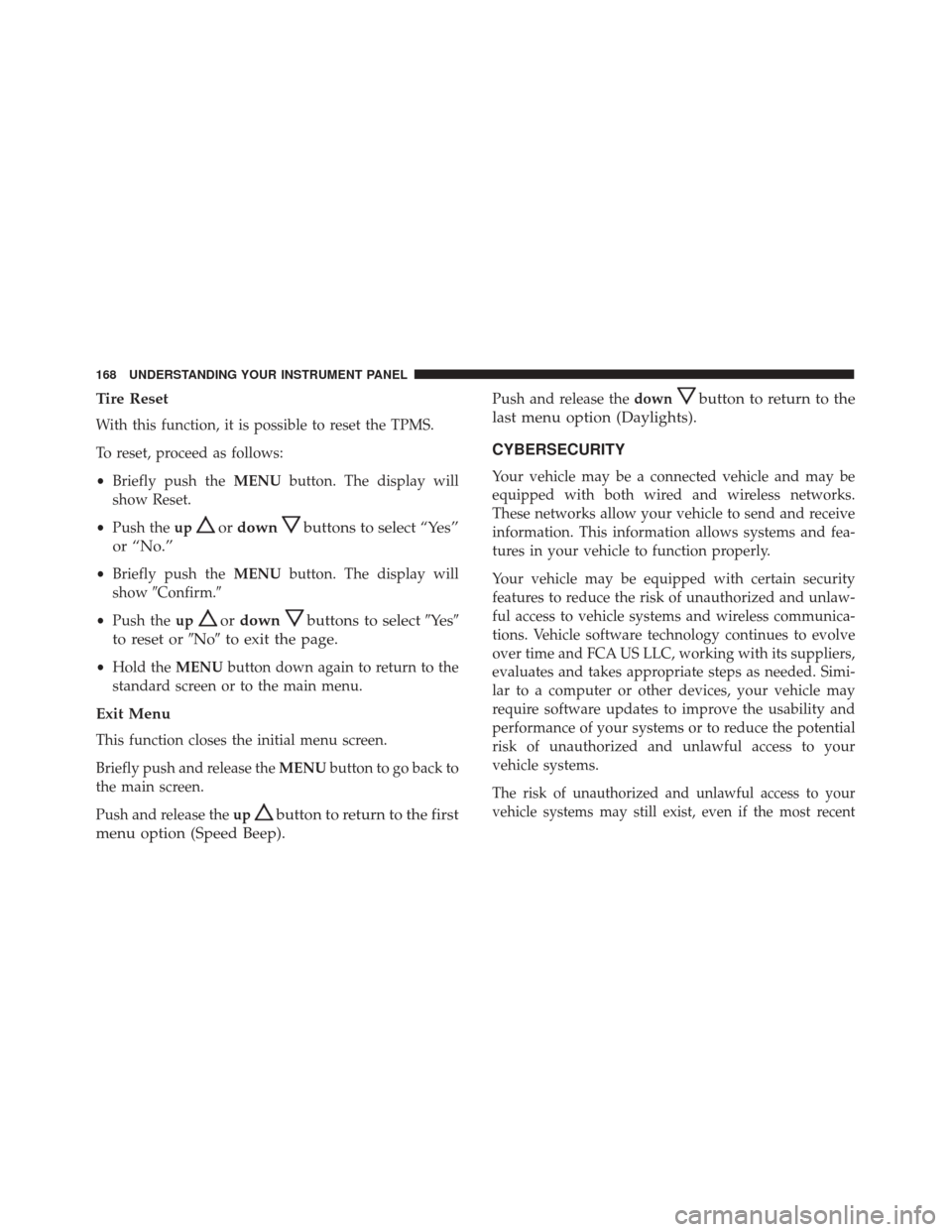

Tire Reset
With this function, it is possible to reset the TPMS.
To reset, proceed as follows:
•Briefly push the MENUbutton. The display will
show Reset.
• Push the up
ordownbuttons to select “Yes”
or “No.”
• Briefly push the MENUbutton. The display will
show Confirm.
• Push the up
ordownbuttons to select Ye s
to reset or Noto exit the page.
•Hold the MENUbutton down again to return to the
standard screen or to the main menu.
Exit Menu
This function closes the initial menu screen.
Briefly push and release the MENUbutton to go back to
the main screen.
Push and release the up
button to return to the first
menu option (Speed Beep).
Push and release the downbutton to return to the
last menu option (Daylights).
CYBERSECURITY
Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks.
These networks allow your vehicle to send and receive
information. This information allows systems and fea-
tures in your vehicle to function properly.
Your vehicle may be equipped with certain security
features to reduce the risk of unauthorized and unlaw-
ful access to vehicle systems and wireless communica-
tions. Vehicle software technology continues to evolve
over time and FCA US LLC, working with its suppliers,
evaluates and takes appropriate steps as needed. Simi-
lar to a computer or other devices, your vehicle may
require software updates to improve the usability and
performance of your systems or to reduce the potential
risk of unauthorized and unlawful access to your
vehicle systems.
The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
168 UNDERSTANDING YOUR INSTRUMENT PANEL
