FIAT 500L 2017 2.G Owners Manual

Basic Voice Commands
The basic Voice Commands below can be given at any
point while using your Uconnect system.
Push the VR button
. After the beep, say
•Cancel to stop a current voice session.
• Help to hear a list of suggested Voice Commands.
• Repeat to listen to the system prompts again.
Notice the visual cues that inform you of your voice
recognition system’s status. Cues appear on the touch-
screen.
Radio
Use your voice to quickly get to the AM, FM or
SiriusXM Satellite Radio stations you would like to
hear. (Subscription or included SiriusXM Satellite Radio
trial required.)
Push the VR button
. After the beep, say
• Tune to ninety-five-point-five FM.
• Tune to Satellite Channel Hits 1.
Uconnect 5.0
Uconnect 6.5 NAV
4
UNDERSTANDING YOUR INSTRUMENT PANEL 209

TIP:At any time, if you are not sure of what to say or
want to learn a Voice Command, push the VR button
and say “Help.”The system will provide you
with a list of commands.
Media
Uconnect offers connections via USB Port, Bluetooth
and Auxiliary Ports (If Equipped). Voice operation is
only available for connected USB and iPod devices.
(Remote CD player optional and not available on all
vehicles.)
Push the VR button
. After the beep, say one of the
following commands and follow the prompts to
switch your media source or choose an artist.
• Change source to Bluetooth.
• Change source to iPod.
Uconnect 5.0 Radio
Uconnect 6.5 NAV Radio
210 UNDERSTANDING YOUR INSTRUMENT PANEL

•Change source to USB.
• Play artist Beethoven;Play album Greatest Hits;
Play song Moonlight Sonata; Play genreClassical.
TIP: Press the Browse button on the touchscreen to see
all of the music on your iPod or USB device. Your Voice
Command must match exactlyhow the artist, album,
song and genre information is displayed.
Phone
Making and answering hands-free phone calls is easy
with Uconnect. When the Phonebook button is illumi-
nated on your touchscreen, your system is ready. Check
UconnectPhone.com for mobile phone compatibility
and pairing instructions.
Push the Phone button
. After the beep, say one of
the following commands
•Call John Smith.
• Dial 123-456-7890 and follow the system prompts.
Uconnect 5.0 Media
Uconnect 6.5 NAV Media
4
UNDERSTANDING YOUR INSTRUMENT PANEL 211

•Redial (call previous outgoing phone number).
• Call back (call previous incoming phone number).
TIP: When providing a Voice Command, push the
Phone button
and say “Call,”then pronounce the
name exactly as it appears in your phone book.
When a contact has multiple phone numbers, you
can say “CallJohn Smith work.”
Navigation (6.5N)
The Uconnect navigation feature helps you save time
and become more productive when you know exactly
how to get to where you want to go.
1. To enter a destination, push the VR button
. After
the beep, say: “Navigate to800 Chrysler Drive
Auburn Hills, Michigan.”
2. Then follow the system prompts.Uconnect 5.0 Phone
Uconnect 6.5 NAVPhone
212 UNDERSTANDING YOUR INSTRUMENT PANEL

TIP:To start a POI search, push the VR button.
After the beep, say: “ Find nearestcoffee shop.”
Voice Text Reply
Uconnect will announce incomingtext messages. Push
the Phone button
and say “Listen.” (Must have
compatible mobile phone paired to Uconnect sys-
tem.)
1. Once an incoming text message is read to you, push the Phone button
. After the beep, say: “Reply.”
2. Listen to the Uconnect prompts. After the beep,
repeat one of the pre-defined messages and follow
the system prompts.
PRE-DEFINED VOICE TEXT REPLY RESPONSES
Yes. Stuck in
Traffic. See you later.
No. Start without
me. I’ll be Late.
Okay. Where are
you? I will be

minutes late.
Call me. Are you there
yet?
I’ll call you later. I need
directions. See you in
of minutes.
I’m on my way. Can’t talk right
now.
I’m lost. Thanks.
TIP: Your mobile phone must have the full implemen-
tation of the Message Access Profile (MAP) to take
advantage of this feature. For details about MAP, visit
UconnectPhone.com. Apple iPhone iOS6 or later sup-
ports reading incomingtext messages only.
Uconnect 6.5 NAV Navigation
4
UNDERSTANDING YOUR INSTRUMENT PANEL 213

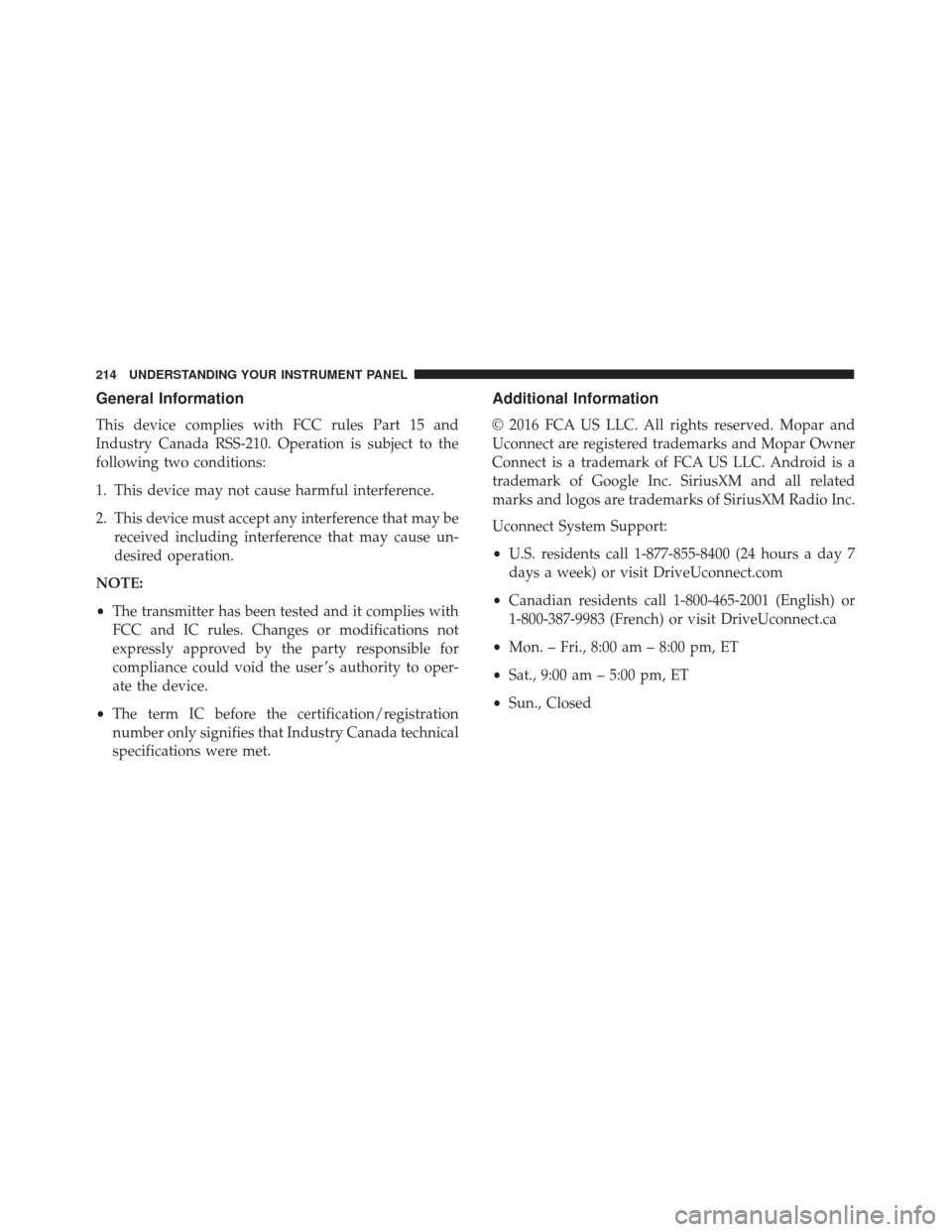

General Information
This device complies with FCC rules Part 15 and
Industry Canada RSS-210. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may bereceived including interference that may cause un-
desired operation.
NOTE:
• The transmitter has been tested and it complies with
FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for
compliance could void the user ’s authority to oper-
ate the device.
• The term IC before the certification/registration
number only signifies that Industry Canada technical
specifications were met.
Additional Information
© 2016 FCA US LLC. All rights reserved. Mopar and
Uconnect are registered trademarks and Mopar Owner
Connect is a trademark of FCA US LLC. Android is a
trademark of Google Inc. SiriusXM and all related
marks and logos are trademarks of SiriusXM Radio Inc.
Uconnect System Support:
•U.S. residents call 1-877-855-8400 (24 hours a day 7
days a week) or visit DriveUconnect.com
• Canadian residents call 1-800-465-2001 (English) or
1-800-387-9983 (French) or visit DriveUconnect.ca
• Mon. – Fri., 8:00 am – 8:00 pm, ET
• Sat., 9:00 am – 5:00 pm, ET
• Sun., Closed
214 UNDERSTANDING YOUR INSTRUMENT PANEL

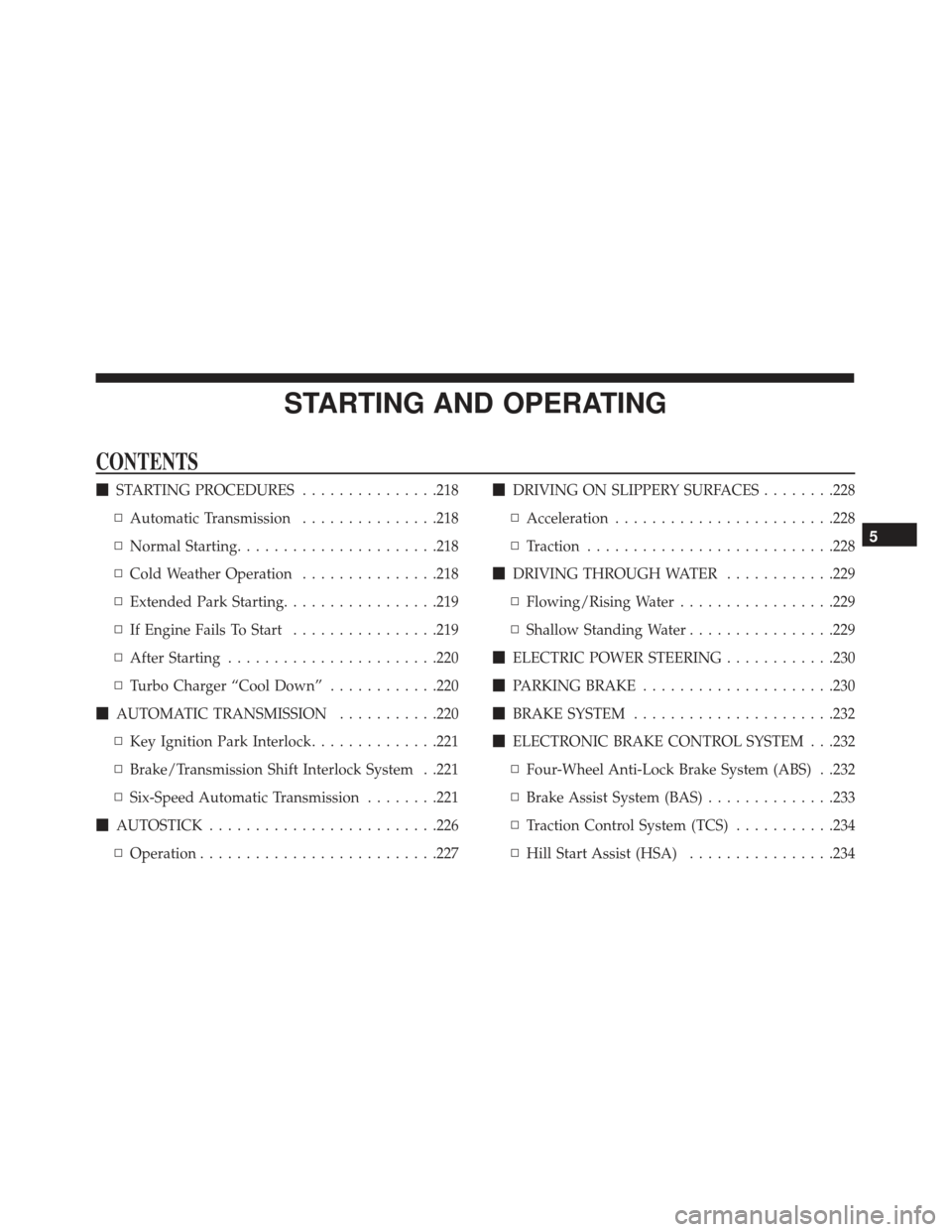

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ...............218
▫ Automatic Transmission ...............218
▫ Normal Starting ..................... .218
▫ Cold Weather Operation ...............218
▫ Extended Park Starting .................219
▫ If Engine Fails To Start ................219
▫ After Starting .......................220
▫ Turbo Charger “Cool Down” ............220
 AUTOMATIC TRANSMISSION ...........220
▫ Key Ignition Park Interlock ..............221
▫ Brake/Transmission Shift Interlock System . .221
▫ Six-Speed Automatic Transmission ........221
 AUTOSTICK ........................ .226
▫ Operation ..........................227
DRIVING ON SLIPPERY SURFACES ........228
▫ Acceleration ........................228
▫ Traction .......................... .228
 DRIVING THROUGH WATER ............229
▫ Flowing/Rising Water .................229
▫ Shallow Standing Water ................229
 ELECTRIC POWER STEERING ............230
 PARKING BRAKE .....................230
 BRAKE SYSTEM ..................... .232
 ELECTRONIC BRAKE CONTROL SYSTEM . . .232
▫ Four-Wheel Anti-Lock Brake System (ABS) . .232
▫ Brake Assist System (BAS) ..............233
▫ Traction Control System (TCS) ...........234
▫ Hill Start

Assist (HSA) ................234
5

▫Dynamic Steering Torque (DST) ..........235
▫ Electronic Stability Control (ESC) .........235
▫ ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light ...............236
▫ Electronic Roll Mitigation (ERM) .........238
 TIRE SAFETY INFORMATION ............239
▫ Tire Markings .......................239
▫ Tire Identification Number (TIN) ..........243
▫ Tire Terminology And Definitions .........244
▫ Tire Loading And Tire Pressure ..........245
 TIRES — GENERAL INFORMATION .......249
▫ Tire Pressure .......................249
▫ Tire Inflation Pressures ................250
▫ Tire Pressures For High Speed Operation . . .251
▫ Radial Ply Tires .....................251
▫ Tire Types ..........................252
▫ Run Flat Tires — If Equipped ............253▫
Spare Tires — If Equipped ..............253
▫ Tire Spinning .......................256
▫ Tread Wear Indicators .................256
▫ Life Of Tire ........................257
▫ Replacement Tires ....................258
 TIRE CHAINS (TRACTION DEVICES) ......259
 TIRE ROTATION RECOMMENDATIONS . . . .260
 DEPARTMENT OF TRANSPORTATION
UNIFORM TIRE QUALITY GRADES .......261
▫ Treadwear ..........................261
▫ Traction Grades ..................... .261
▫ Temperatur

e Grades ...................261
 TIRE PRESSURE MONITORING SYSTEM
(TPMS) ............................ .262
▫ Base System ........................264
▫ General Information ...................266
 FUEL REQUIREMENTS — 1.4L Turbo .......266
▫ Reformulated Gasoline ................266
216 STARTING AND OPERATING

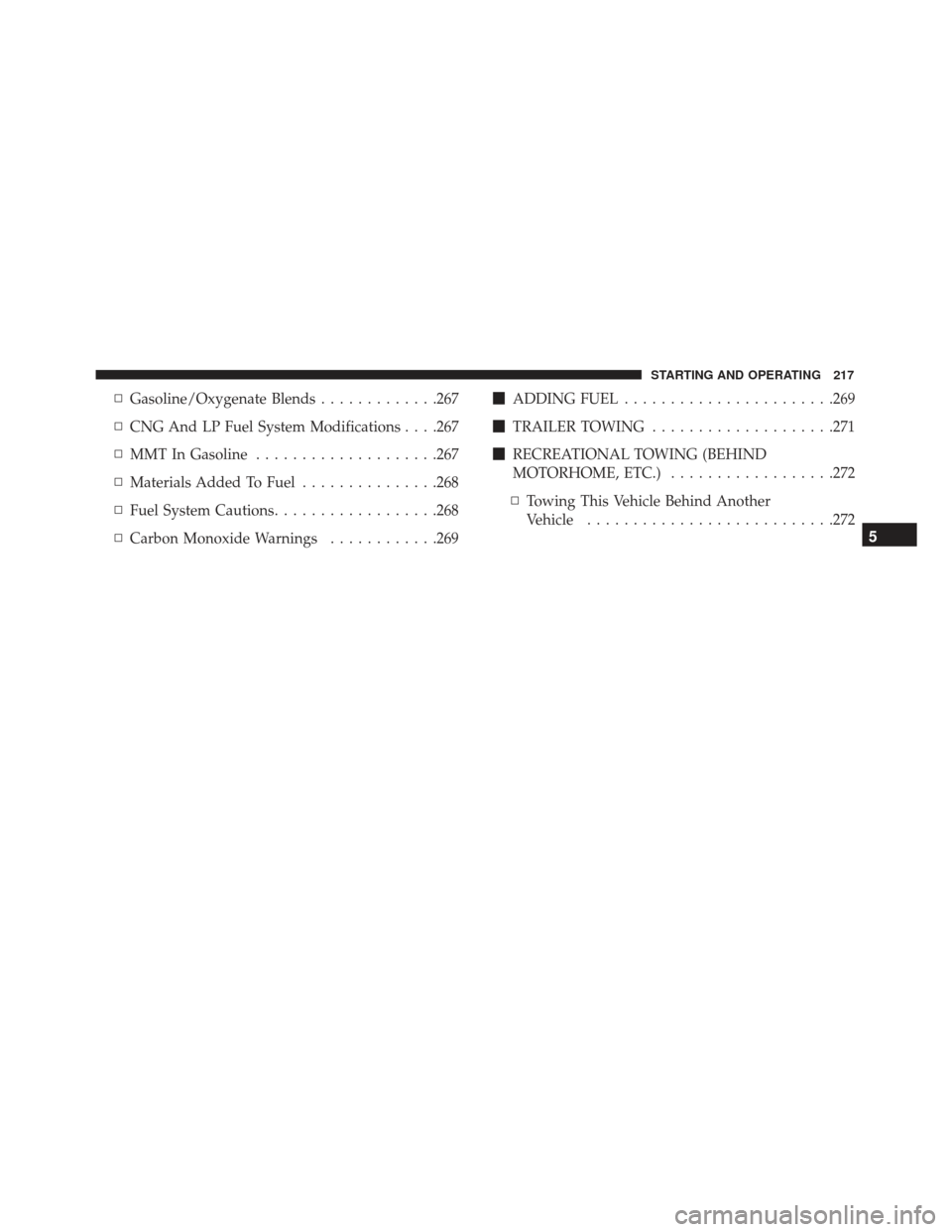

▫Gasoline/Oxygenate Blends .............267
▫ CNG And LP Fuel System Modifications . . . .267
▫ MMT In Gasoline ....................267
▫ Materials Added To Fuel ...............268
▫ Fuel System Cautions ..................268
▫ Carbon Monoxide Warnings ............269
ADDING FUEL .......................269
 TRAILER TOWING ....................271
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ..................272
▫ Towing This Vehicle Behind Another
Vehicle .......................... .272
5
STARTING AND OPERATING 217

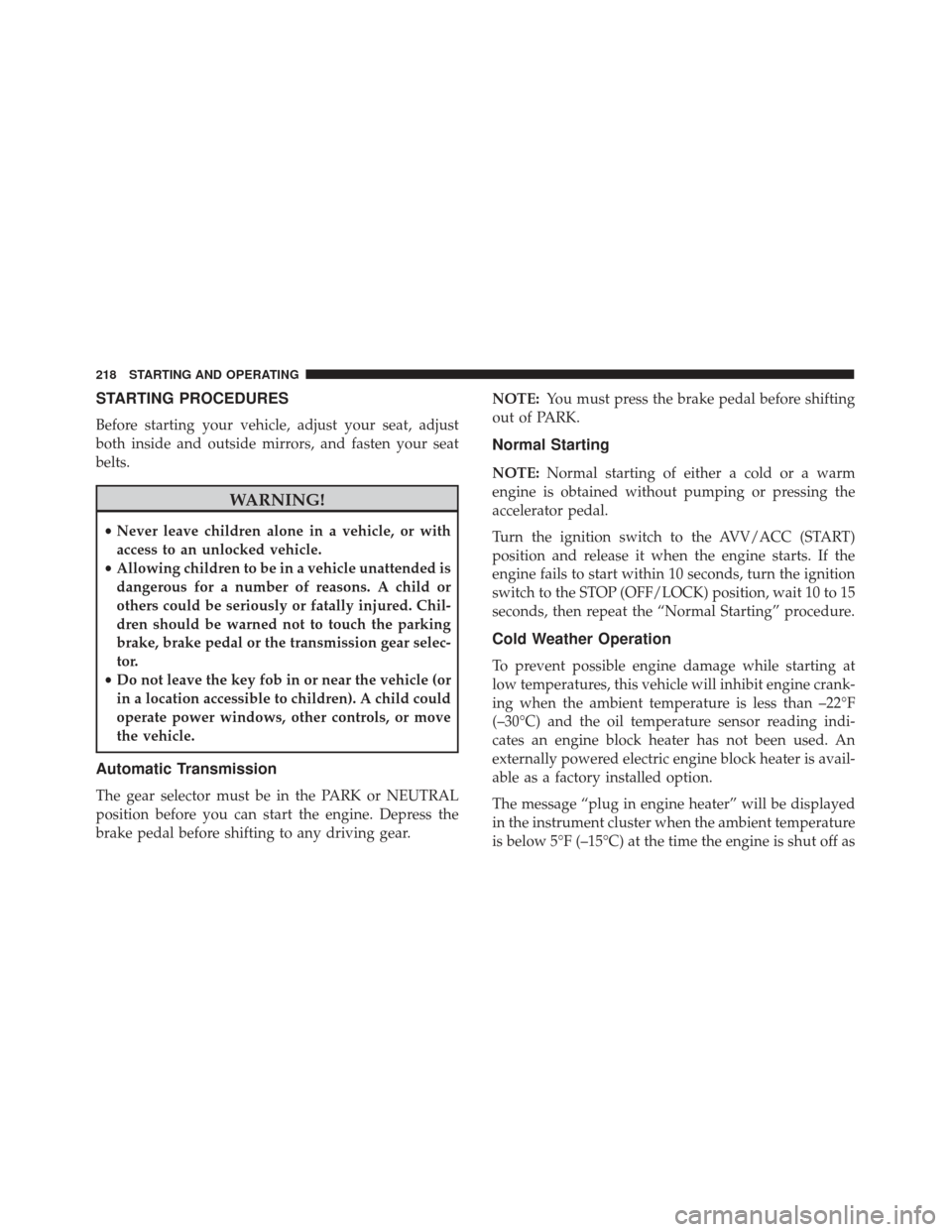

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust
both inside and outside mirrors, and fasten your seat
belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
• Do not leave the key fob in or near the vehicle (or
in a location accessible to children). A child could
operate power windows, other controls, or move
the vehicle.
Automatic Transmission
The gear selector must be in the PARK or NEUTRAL
position before you can start the engine. Depress the
brake pedal before shifting to any driving gear. NOTE:
You must press the brake pedal before shifting
out of PARK.
Normal Starting
NOTE: Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
Turn the ignition switch to the AVV/ACC (START)
position and release it when the engine starts. If the
engine fails to start within 10 seconds, turn the ignition
switch to the STOP (OFF/LOCK) position, wait 10 to 15
seconds, then repeat the “Normal Starting” procedure.
Cold Weather Operation
To prevent possible engine damage while starting at
low temperatures, this vehicle will inhibit engine crank-
ing when the ambient temperature is less than –22°F
(–30°C) and the oil temperature sensor reading indi-
cates an engine block heater has not been used. An
externally powered electric engine block heater is avail-
able as a factory installed option.
The message “plug in engine heater” will be displayed
in the instrument cluster when the ambient temperature
is below 5°F (–15°C) at the time the engine is shut off as
218 STARTING AND OPERATING
