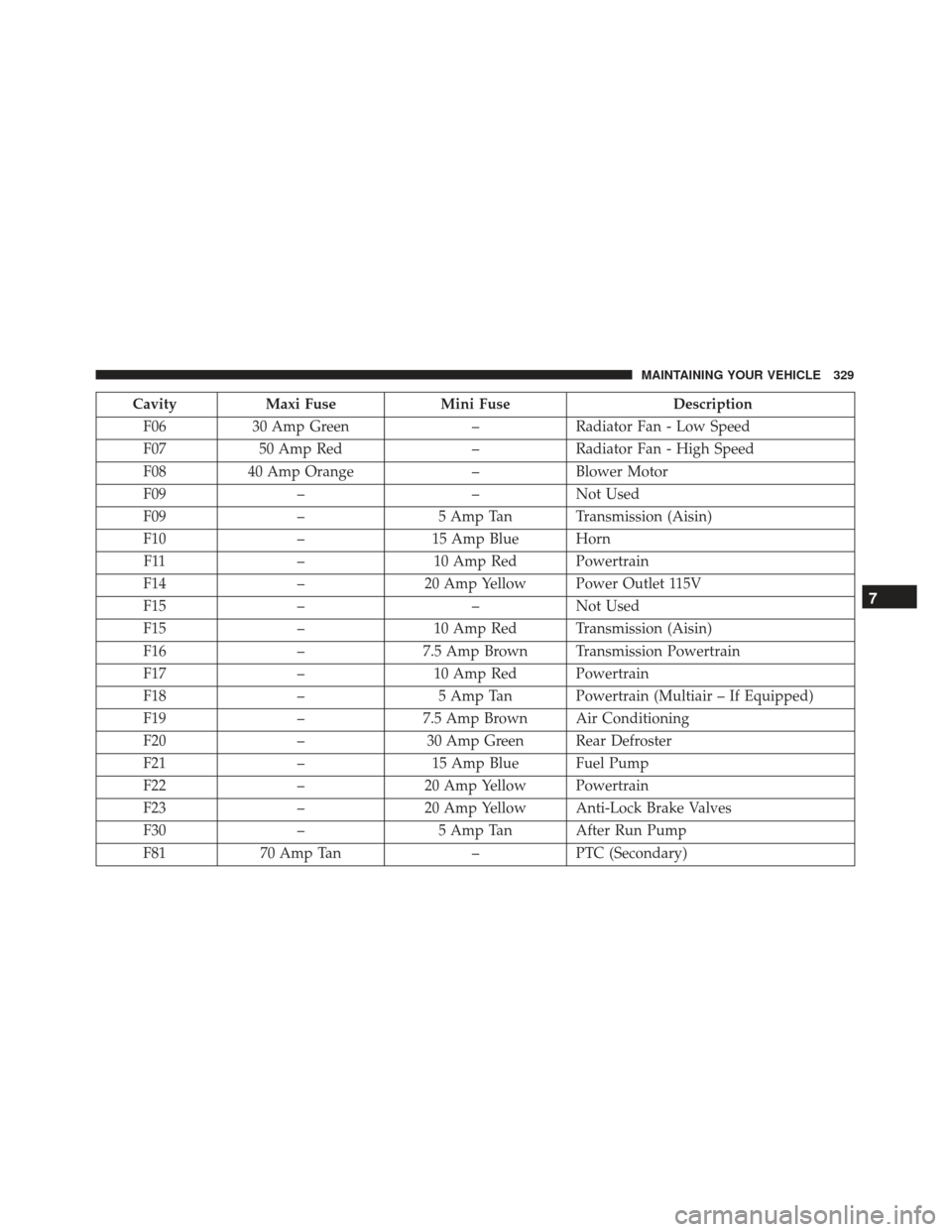

CavityMaxi Fuse Mini Fuse Description
F06 30 Amp Green –Radiator Fan - Low Speed
F07 50 Amp Red –Radiator Fan - High Speed
F08 40 Amp Orange –Blower Motor
F09 – –Not Used
F09 –5 Amp Tan Transmission (Aisin)
F10 –15 Amp Blue Horn
F11 –10 Amp Red Powertrain
F14 –20 Amp Yellow Power Outlet 115V
F15 – –Not Used
F15 –10 Amp Red Transmission (Aisin)
F16 –7.5 Amp Brown Transmission Powertrain
F17 –10 Amp Red Powertrain
F18 –5 Amp Tan Powertrain (Multiair – If Equipped)
F19 –7.5 Amp Brown Air Conditioning
F20 –30 Amp Green Rear Defroster
F21 –15 Amp Blue Fuel Pump
F22 –20 Amp Yellow Powertrain
F23 –20 Amp Yellow Anti-Lock Brake Valves
F30 –5 Amp Tan After Run Pump
F81 70 Amp Tan –PTC (Secondary)
7
MAINTAINING YOUR VEHICLE 329
Page 332 of 370
CavityMaxi Fuse Mini Fuse Description
F82 40 Amp Orange –Transmission
F83 40 Amp Orange –PTC (Primary)
F84 –7.5 Amp Brown Transmission
F85 –15 Amp Blue Front Power Outlet 12V
F88 –7.5 Amp Brown Heated Mirrors
Interior Fuses
The interior fuse panel is part of the Body Control
Module (BCM) and is located on the driver’s side under
the instrument panel.
Interior Fuse Panel
330 MAINTAINING YOUR VEHICLE
Page 333 of 370
Cavity Vehicle Fuse Number Mini FuseDescription
1 F127.5 Amp Brown Right Low Beam
2 F327.5 Amp Brown Front and Rear Ceiling Lights Trunk and
Door Courtesy Lights
3 F537.5 Amp Brown Instrument Panel Node

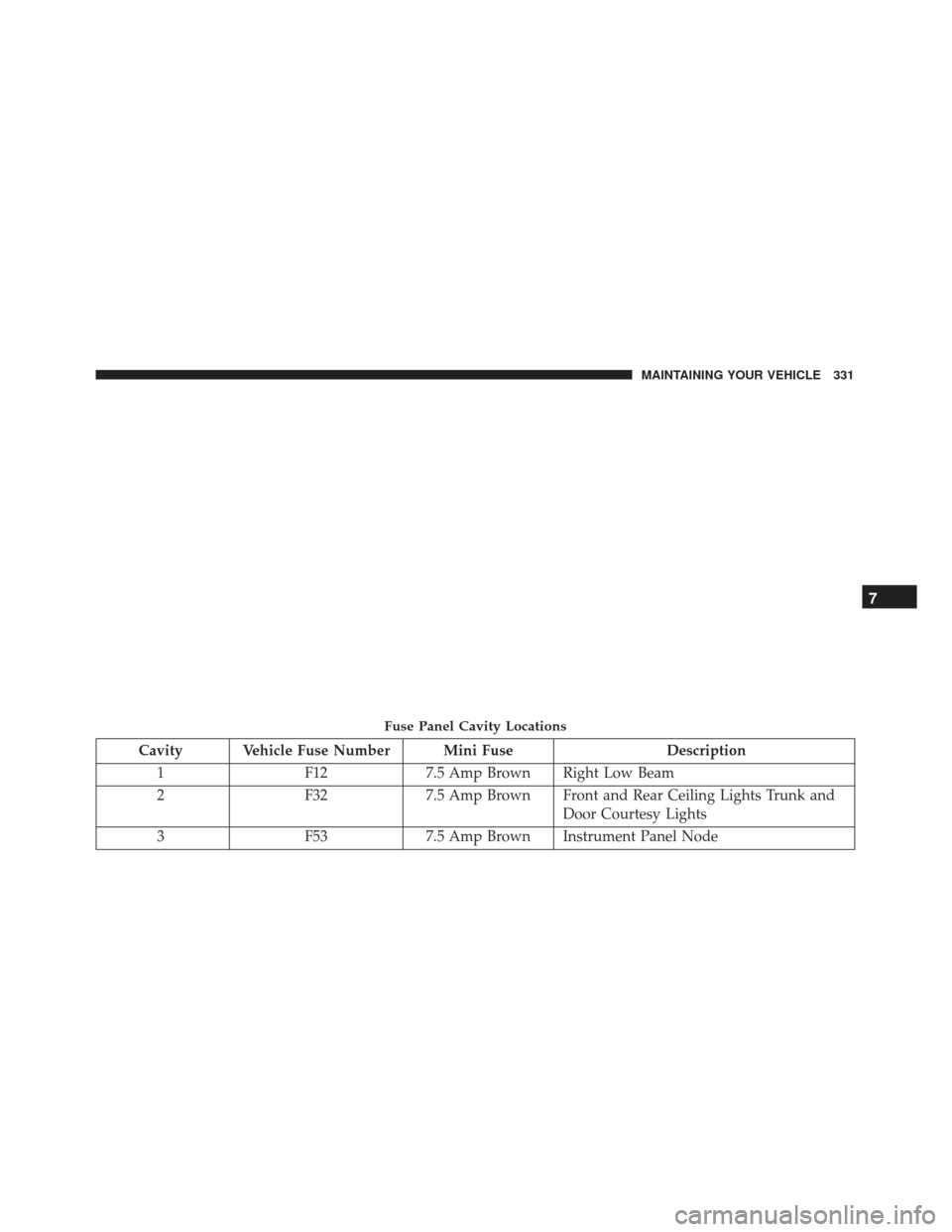

Fuse Panel Cavity Locations
7
MAINTAINING YOUR VEHICLE 331
Page 334 of 370

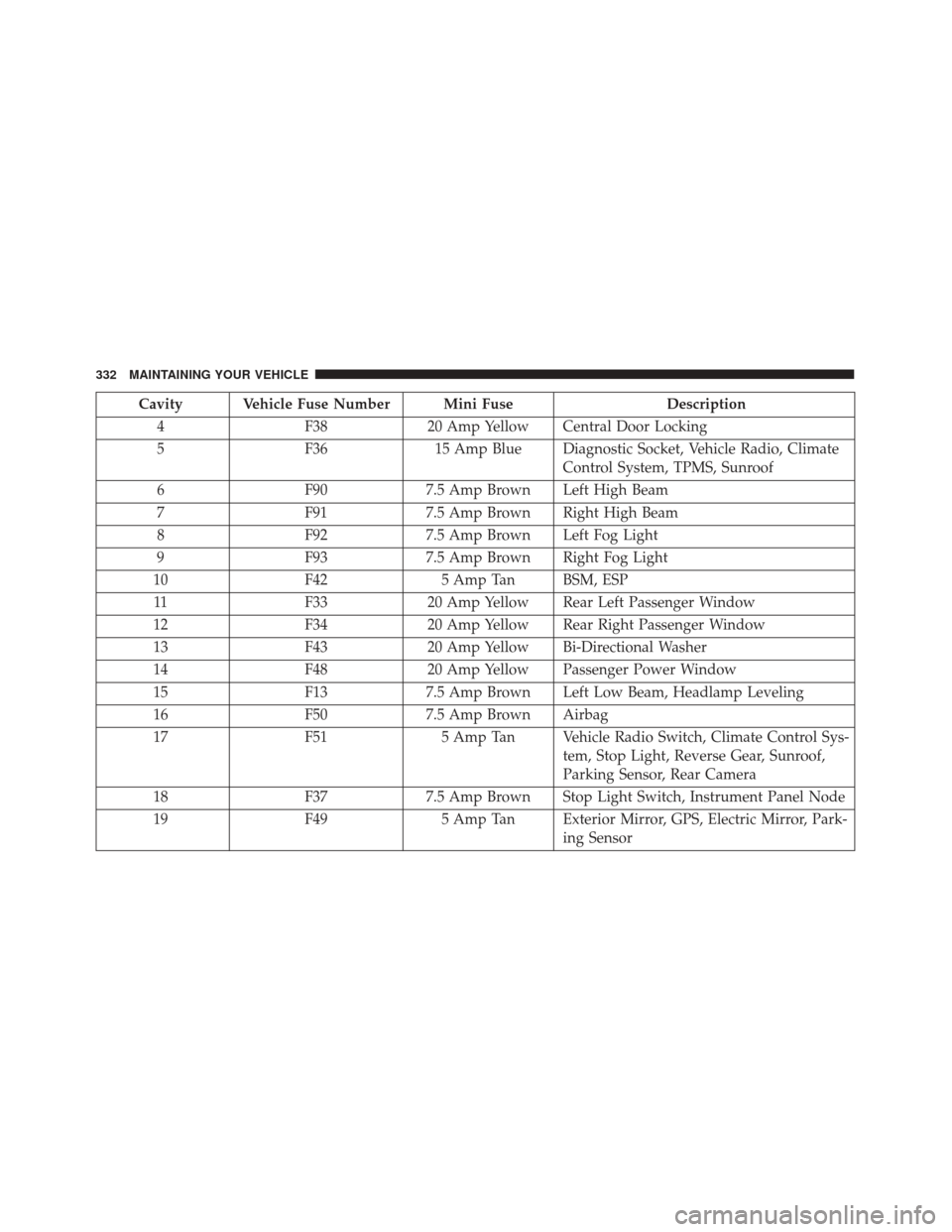

Cavity Vehicle Fuse Number Mini FuseDescription
4 F3820 Amp Yellow Central Door Locking
5 F3615 Amp Blue Diagnostic Socket, Vehicle Radio, Climate
Control System, TPMS, Sunroof
6 F907.5 Amp Brown Left High Beam
7 F917.5 Amp Brown Right High Beam
8 F927.5 Amp Brown Left Fog Light
9 F937.5 Amp Brown Right Fog Light
10 F425 Amp Tan BSM, ESP
11 F3320 Amp Yellow Rear Left Passenger Window
12 F3420 Amp Yellow Rear Right Passenger Window
13 F4320 Amp Yellow Bi-Directional Washer
14 F4820 Amp Yellow Passenger Power Window
15 F137.5 Amp Brown Left Low Beam, Headlamp Leveling
16 F507.5 Amp Brown Airbag
17 F515 Amp Tan Vehicle Radio Switch, Climate Control Sys-
tem, Stop Light, Reverse Gear, Sunroof,
Parking Sensor, Rear Camera
18 F377.5 Amp Brown Stop Light Switch, Instrument Panel Node
19 F495 Amp Tan Exterior Mirror, GPS, Electric Mirror, Park-
ing Sensor
332 MAINTAINING YOUR VEHICLE
Page 335 of 370
Cavity Vehicle Fuse Number Mini FuseDescription
20 F315 Amp Tan Climate Control, Seat Regulation
21 F4720 Amp Yellow Driver Power Window
Rear Interior Fuses
The rear interior fuse panel is located on the driver’s
side in the rear compartment.

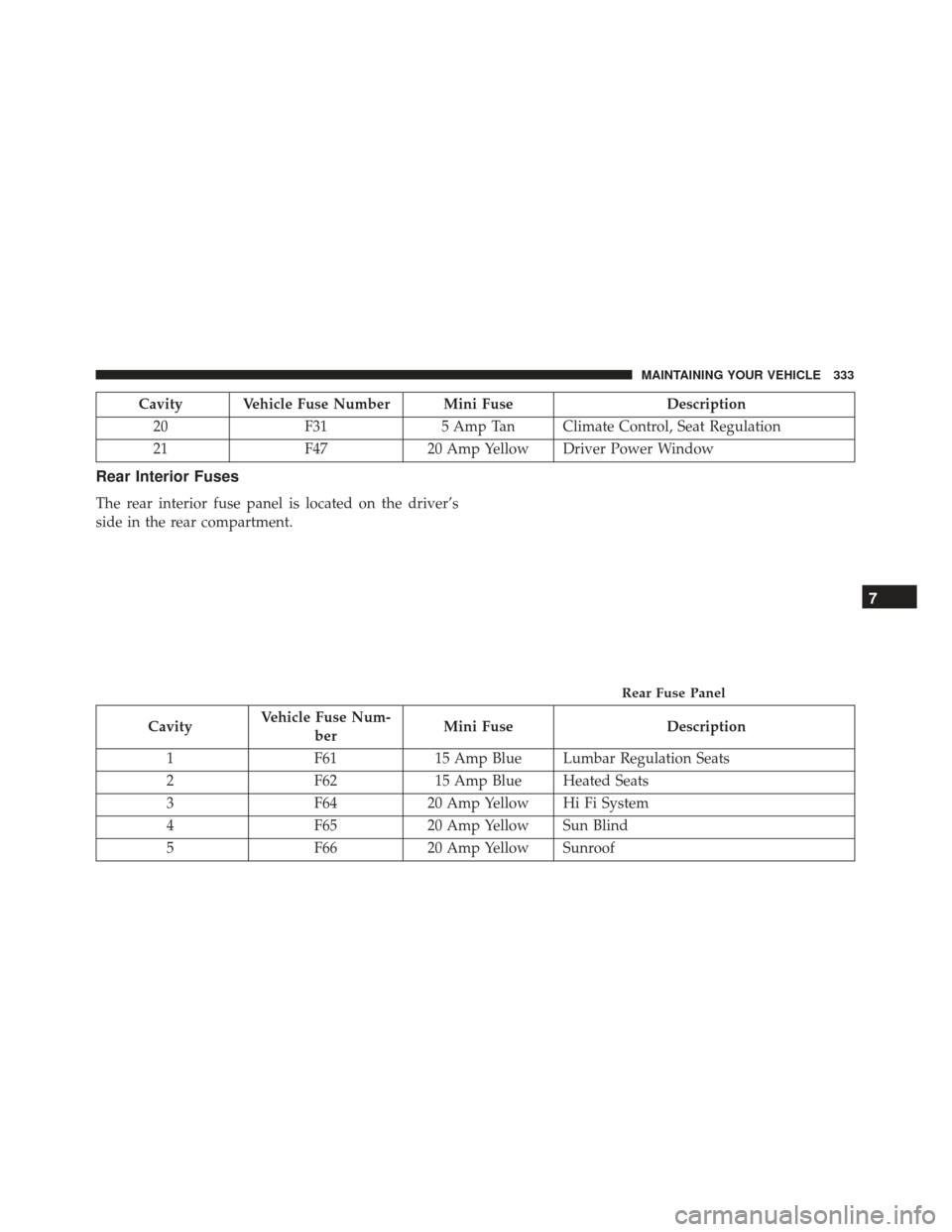

CavityVehicle Fuse Num-
ber Mini Fuse
Description
1 F6115 Amp Blue Lumbar Regulation Seats
2 F6215 Amp Blue Heated Seats
3 F6420 Amp Yellow Hi Fi System
4 F6520 Amp Yellow Sun Blind
5 F6620 Amp Yellow Sunroof
Rear Fuse Panel
7
MAINTAINING YOUR VEHICLE 333
Page 336 of 370

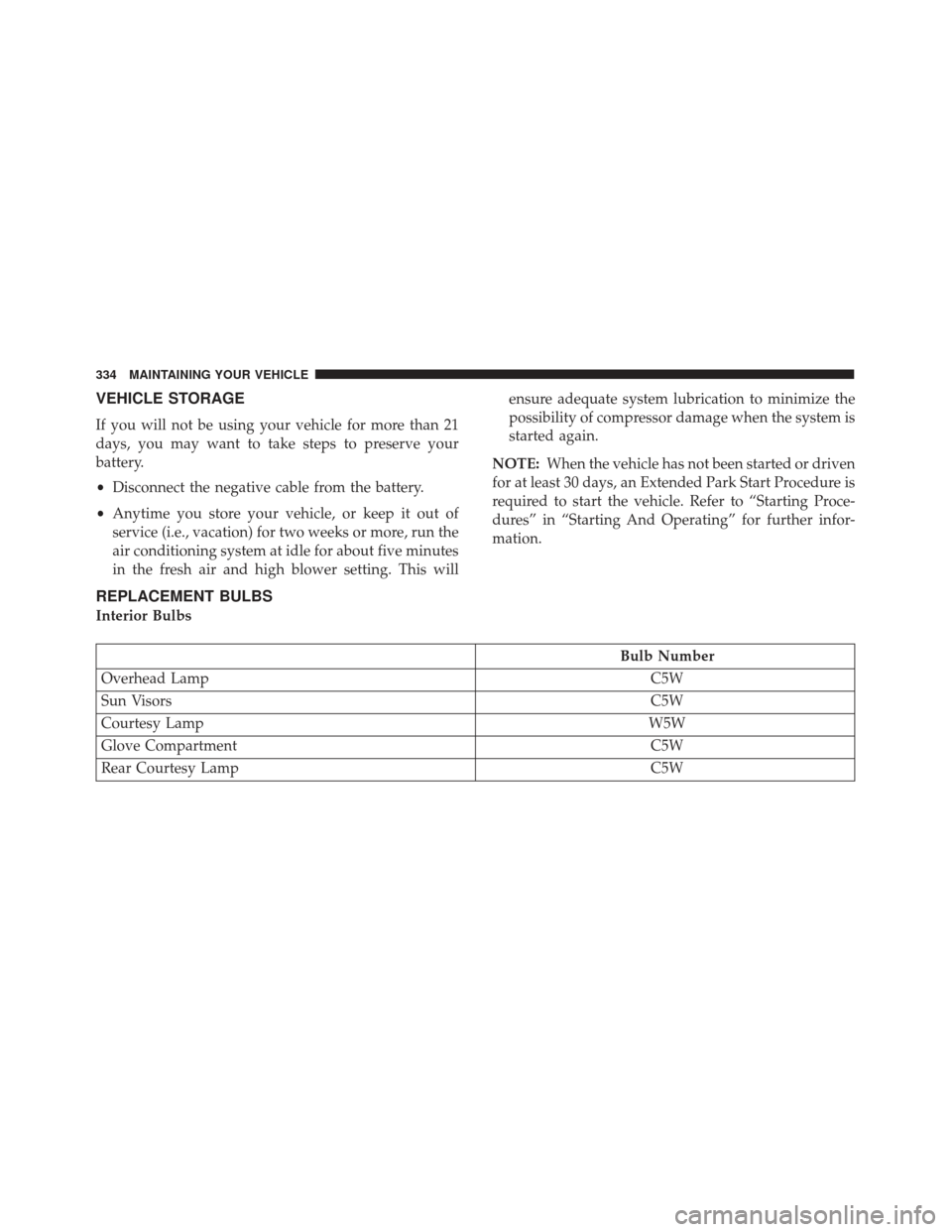

VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery.
•Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
NOTE: When the vehicle has not been started or driven
for at least 30 days, an Extended Park Start Procedure is
required to start the vehicle. Refer to “Starting Proce-
dures” in “Starting And Operating” for further infor-
mation.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead Lamp C5W
Sun Visors C5W
Courtesy Lamp W5W
Glove Compartment C5W
Rear Courtesy Lamp C5W
334 MAINTAINING YOUR VEHICLE
Page 337 of 370

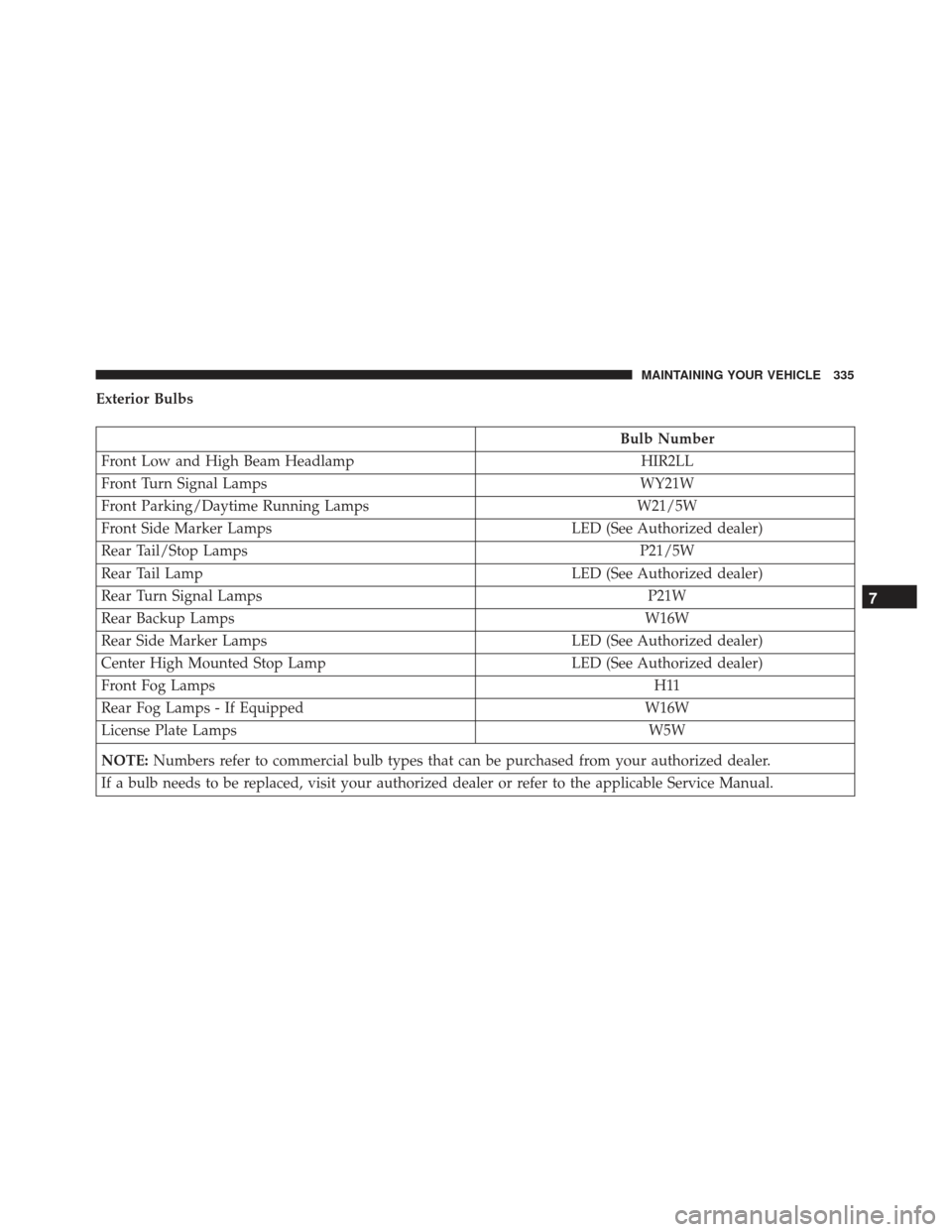

Exterior Bulbs
Bulb Number
Front Low and High Beam Headlamp HIR2LL
Front Turn Signal Lamps WY21W
Front Parking/Daytime Running Lamps W21/5W
Front Side Marker Lamps LED (See Authorized dealer)
Rear Tail/Stop Lamps P21/5W
Rear Tail Lamp LED (See Authorized dealer)
Rear Turn Signal Lamps P21W
Rear Backup Lamps W16W
Rear Side Marker Lamps LED (See Authorized dealer)
Center High Mounted Stop Lamp LED (See Authorized dealer)
Front Fog Lamps H11
Rear Fog Lamps - If Equipped W16W
License Plate Lamps W5W
NOTE: Numbers refer to commercial bulb types that can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized dealer or refer to the applicable Service Manual.
7
MAINTAINING YOUR VEHICLE 335
Page 338 of 370
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmo-
spheric conditions change to allow the condensation to
change back into a vapor. Turning the lamps on will
usually accelerate the clearing process.
Headlamps Low Beam And High Beam
1. Remove the plastic sealing cap from the back of the headlamp housing by turning it counterclockwise.
2. Rotate the bulb counterclockwise. 3. Remove the bulb when all the tabs are aligned with
the openings in the metal holder.
Headlamp Sealing Cap Removal
Bulb Removal Procedure
336 MAINTAINING YOUR VEHICLE
Page 339 of 370
4. Disconnect the electrical connector from the bulb. 5. Install the new bulb and rotate clockwise to lock inplace.
Electrical Connector Removal
New Bulb Installation
7
MAINTAINING YOUR VEHICLE 337
Page 340 of 370
6. Reinstall the plastic cap.
Front Turn Signal, Parking And Daytime
Running Lamps
1. Turn front wheels inboard to access upper cover inwheel liner.
2. Open the upper cover on the front of the wheel liner.
3. Remove the cap from the back of the lower headlamp housing. 4. Rotate the bulb counterclockwise and remove.
5. Install the bulb into socket, and rotate bulb/socket
clockwise into lamp locking it in place.
6. Reinstall the plastic cap and close the cover on the wheel liner.
Front Fog Lamps
To replace the front fog lights, see your authorized
dealer.
Front, Rear Roof Lamps
1. Remove two screw and remove the lamp assembly.
2. Remove the socket bulb by turning counterclock-wise.
3. Remove bulb and replace as needed.
4. Reinstall the bulb socket and rotate clockwise to lock in place.
5. Reinstall lamp.Headlamp Sealing Cap Installation
338 MAINTAINING YOUR VEHICLE
