WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss
of control which could cause a collision and
serious injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly ad-
justed seat belt.
Seat Height Adjustment
The seat height adjustment lever is located on the
outboard side of the seat. Pull upward on the lever to
raise the seat height or push downward on the lever to
lower the seat height.Recliner Adjustment
The recline lever is located on the outboard side of the
seat. To recline the seat, lean forward slightly, lift the
lever, lean back to the desired position and release the
lever. To return the seatback to its normal upright
position, lean forward and lift the lever. Release the
lever once the seatback is in the upright position.
Height Adjustment Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79

WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Power Lumbar — If Equipped
Push the power lumbar switch to adjust the lumbar
support. Release the switch when you reach the desired
position.
Heated Seats — If Equipped
On some models, the front driver and passenger seats
may be equipped with heaters in both the seat cushions
and seatbacks. The controls for the front heated seats
are located on the outer side of the seat.
Recline Lever
Power Lumbar Switch
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
• Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabe-
tes, spinal cord injury, medication, alcohol use,
exhaustion or other physical condition must exer-
cise care when using the seat heater. It may cause
burns even at low temperatures, especially if used
for long periods of time.
(Continued)
WARNING! (Continued)
•Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cush-
ion. This may cause the seat heater to overheat.
Sitting in a seat that has been overheated could
cause serious burns due to the increased surface
temperature of the seat.
Rear Seats
Rear Seats Forward/Rearward Adjustment
The adjusting bar is located at the front of the seats, near
the floor.Heated Seat Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81

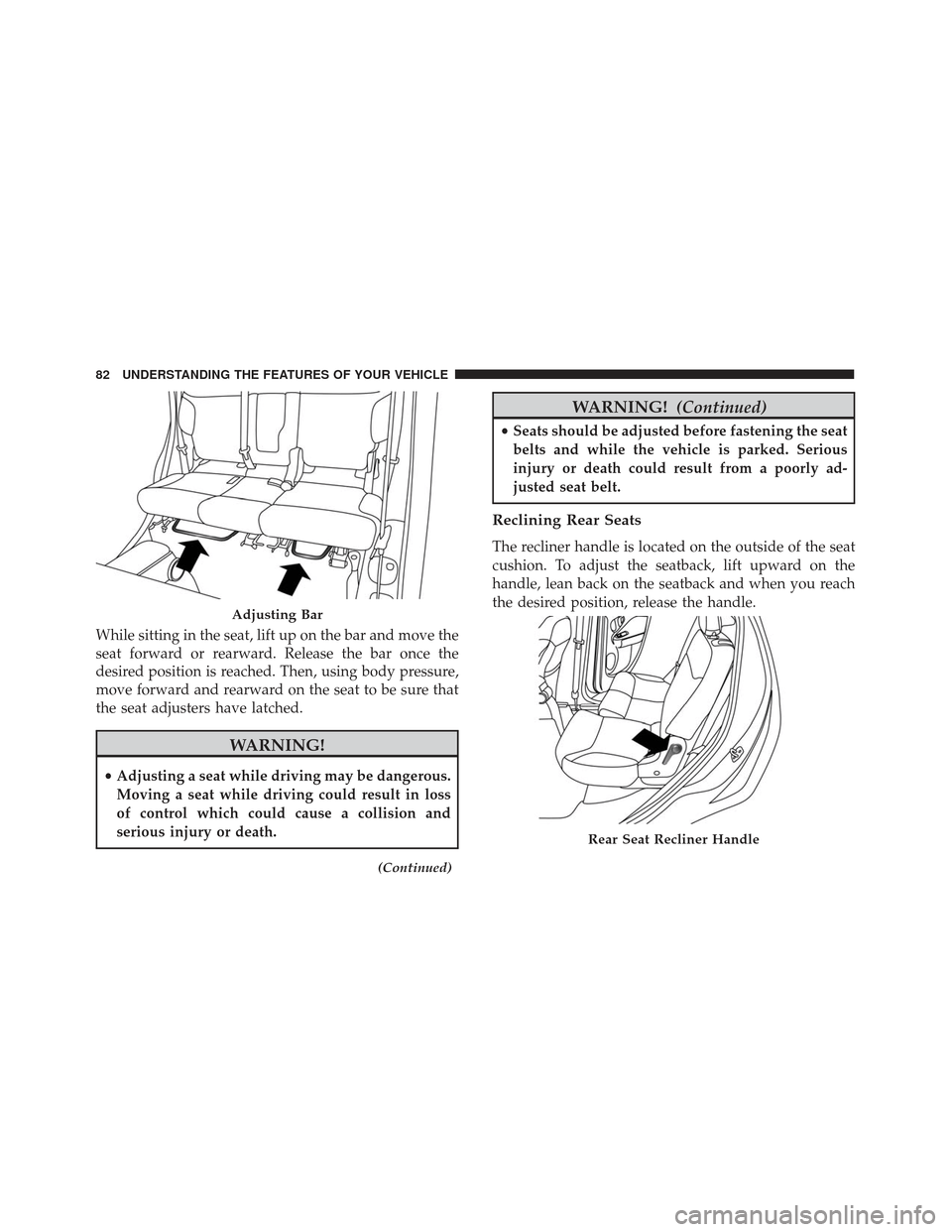

While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once the
desired position is reached. Then, using body pressure,
move forward and rearward on the seat to be sure that
the seat adjusters have latched.
WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss
of control which could cause a collision and
serious injury or death.
(Continued)
WARNING! (Continued)
•Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly ad-
justed seat belt.
Reclining Rear Seats
The recliner handle is located on the outside of the seat
cushion. To adjust the seatback, lift upward on the
handle, lean back on the seatback and when you reach
the desired position, release the handle.
Adjusting Bar
Rear Seat Recliner Handle
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

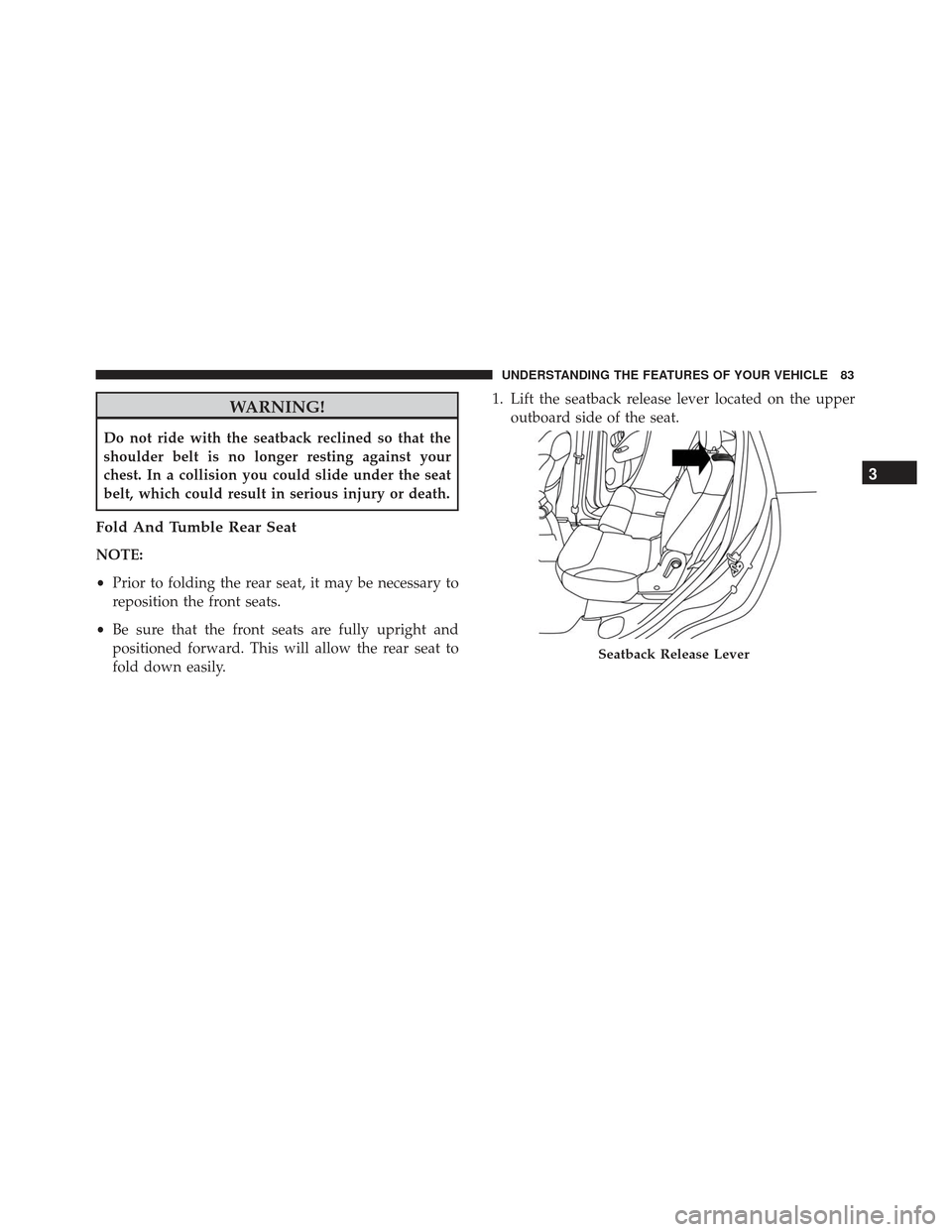

WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt, which could result in serious injury or death.
Fold And Tumble Rear Seat
NOTE:
•Prior to folding the rear seat, it may be necessary to
reposition the front seats.
• Be sure that the front seats are fully upright and
positioned forward. This will allow the rear seat to
fold down easily. 1. Lift the seatback release lever located on the upper
outboard side of the seat.
Seatback Release Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

2. Fold the seatback forward.
NOTE:You may experience deformation in the seat
cushion from the seat belt buckles if the seats are left
folded for an extended period of time. This is normal
and by simply opening the seats to the open position,
over time the seat cushion will return to its normal
shape. 3. Locate the seatback recline lever on the outboard side
of the seat and lift upward on the lever.
Seatback Folded
Seatback Recline Lever
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4. Slowly flip the entire seat forward.
5. Slowly flip the entire seat rearward and firmly lockthe seat into position.
6. Raise the rear seatback and firmly lock the seatback into position.Rear Armrest — If Equipped
To use the armrest, lower it downward.
Folding Rear Seat
Folding Rear Seat Armrest
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

Head Restraints
Head restraints are designed to reduce the risk of injury
by restricting head movement in the event of a rear-
impact. Head restraints should be adjusted so that the
top of the head restraint is located above the top of your
ear.
WARNING!
•All occupants, including the driver, should not
operate a vehicle or sit in a vehicle’s seat until the
(Continued)
WARNING! (Continued)
head restraints are placed in their proper posi-
tions in order to minimize the risk of neck injury
in the event of a crash.
• Head restraints should never be adjusted while
the vehicle is in motion. Driving a vehicle with
the head restraints improperly adjusted or re-
moved could cause serious injury or death in the
event of a collision.
Reactive Head Restraints — Front Seats
The front driver and passenger seats are equipped with
Reactive Head Restraints. In the event of a rear impact
the Reactive Head Restraints will automatically extend
forward minimizing the gap between the back of the
occupant’s head and the Reactive Head Restraint.
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjust-
ment button located at the base of the head restraint,
and push downward on the head restraint.
To remove the head restraint, raise it as far as it can go
then push the adjustment button, and the release button
at the base of each post while pulling the head restraintArmrest Cupholder
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

up. To reinstall the head restraint, put the head restraint
posts into the holes and push downward. Then adjust it
to the appropriate height.
The Reactive Head Restraints will automatically return
to their normal position following a rear impact. If the
Reactive Head Restraints do not return to their normal
position, see your authorized dealership immediately.NOTE:
Do not reposition the head restraint 180 degrees
to the incorrect position in an attempt to gain additional
clearance to the back of the head.
WARNING!
• A loose head restraint thrown forward in a colli-
sion or hard stop could cause serious injury or
death to occupants of the vehicle. Always securely
stow removed head restraints in a location out-
side the occupant compartment.
• ALL the head restraints MUST be reinstalled in
the vehicle to properly protect the occupants.
Follow the re-installation instructions above prior
to operating the vehicle or occupying a seat.
• Do not place items over the top of the Active
Head Restraint, such as coats, seat covers or
portable DVD players. These items may interfere
with the operation of the Reactive Head Restraint
in the event of a collision and could result in
serious injury or death.
Rear Head Restraints
The rear seats are equipped with adjustable head re-
straints, the outboard head restraints have two comfort
positions, while the central head restraint have to use in
1 — Release Button
2 — Adjustment Button
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

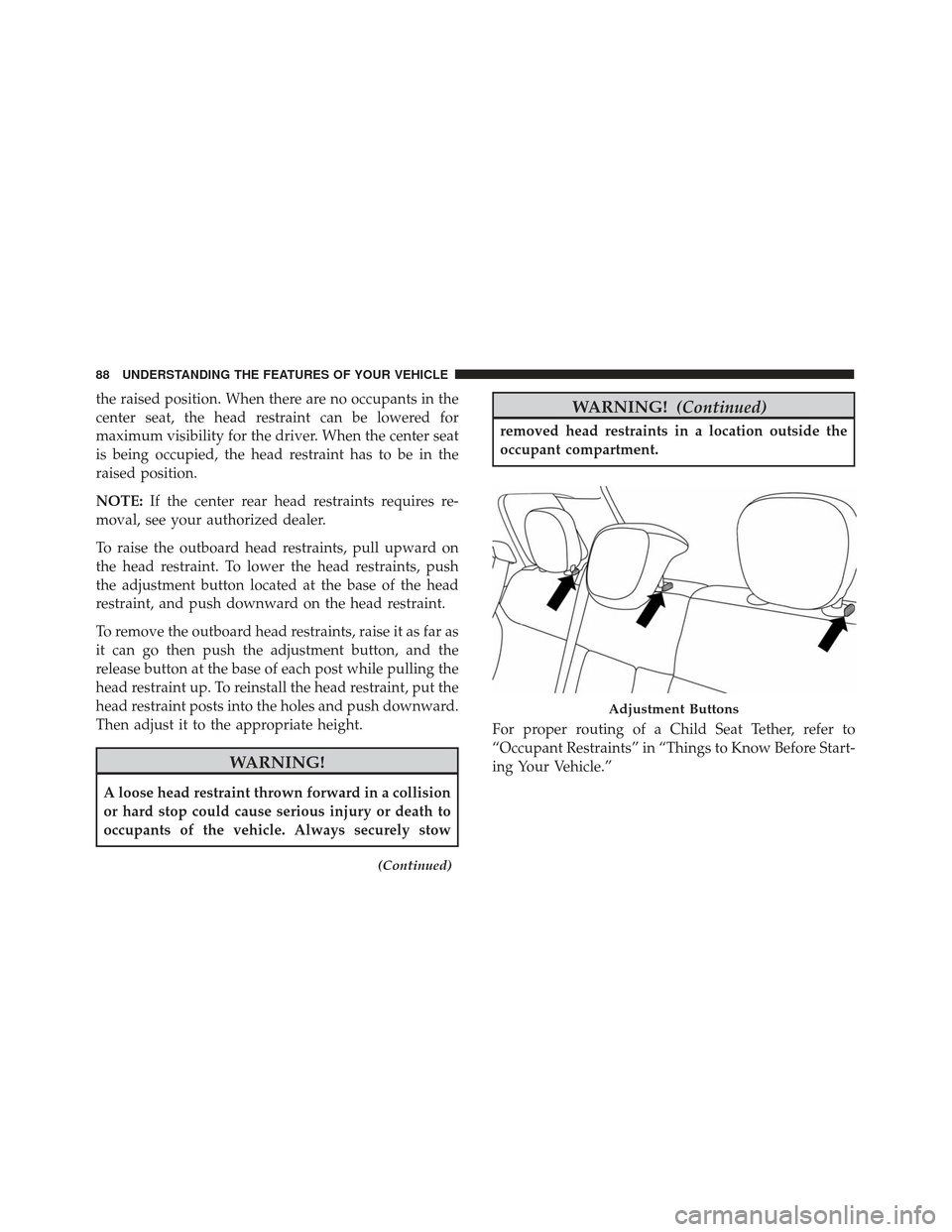

the raised position. When there are no occupants in the
center seat, the head restraint can be lowered for
maximum visibility for the driver. When the center seat
is being occupied, the head restraint has to be in the
raised position.
NOTE:If the center rear head restraints requires re-
moval, see your authorized dealer.
To raise the outboard head restraints, pull upward on
the head restraint. To lower the head restraints, push
the adjustment button located at the base of the head
restraint, and push downward on the head restraint.
To remove the outboard head restraints, raise it as far as
it can go then push the adjustment button, and the
release button at the base of each post while pulling the
head restraint up. To reinstall the head restraint, put the
head restraint posts into the holes and push downward.
Then adjust it to the appropriate height.
WARNING!
A loose head restraint thrown forward in a collision
or hard stop could cause serious injury or death to
occupants of the vehicle. Always securely stow
(Continued)
WARNING! (Continued)
removed head restraints in a location outside the
occupant compartment.
For proper routing of a Child Seat Tether, refer to
“Occupant Restraints” in “Things to Know Before Start-
ing Your Vehicle.”
Adjustment Buttons
