fuses FIAT 500L 2018 Owner handbook (in English)

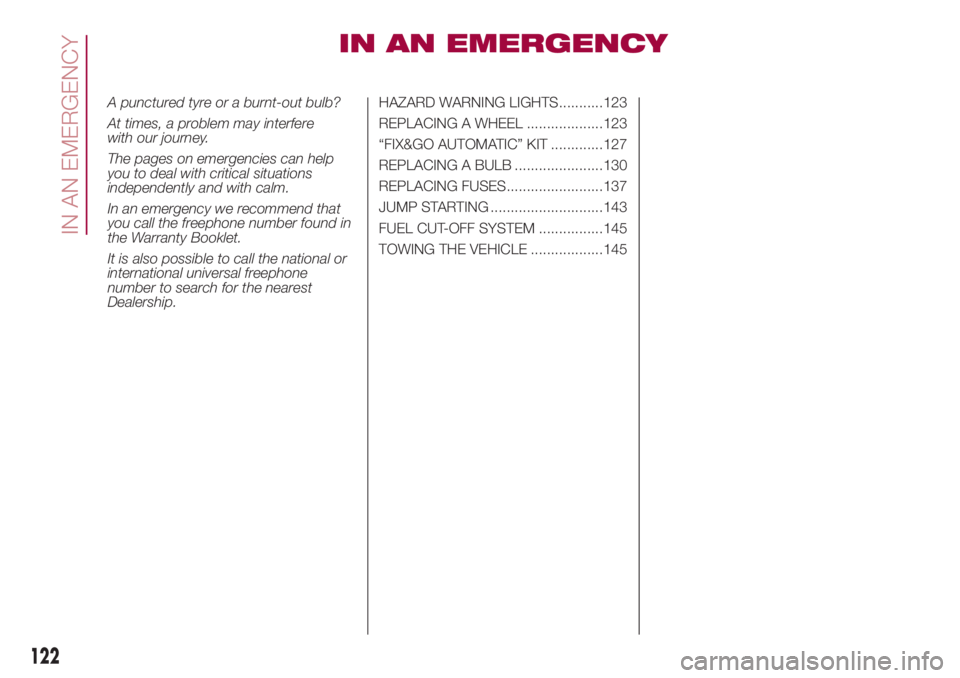

IN AN EMERGENCY
A punctured tyre or a burnt-out bulb?
At times, a problem may interfere
with our journey.
The pages on emergencies can help
you to deal with critical situations
independently and with calm.
In an emergency we recommend that
you call the freephone number found in
the Warranty Booklet.
It is also possible to call the national or
international universal freephone
number to search for the nearest
Dealership.HAZARD WARNING LIGHTS...........123
REPLACING A WHEEL ...................123
“FIX&GO AUTOMATIC” KIT .............127
REPLACING A BULB ......................130
REPLACING FUSES........................137
JUMP STARTING ............................143
FUEL CUT-OFF SYSTEM ................145
TOWING THE VEHICLE ..................145
122
IN AN EMERGENCY

WARNING
63)The sealant is effective with external
temperatures of between -40°C and
+55°C. The sealant has an expiry date. It is
possible to repair tyres which have been
damaged on tread up to a diameter of
6 mm. Show the cartridge and the label to
the personnel charged with handling the
tyre treated with the tyre repair kit.
WARNING
2)Dispose of the bottle and the sealant
liquid properly. Have the sealing fluid and
the bottle disposed of in compliance
with national and local regulations.

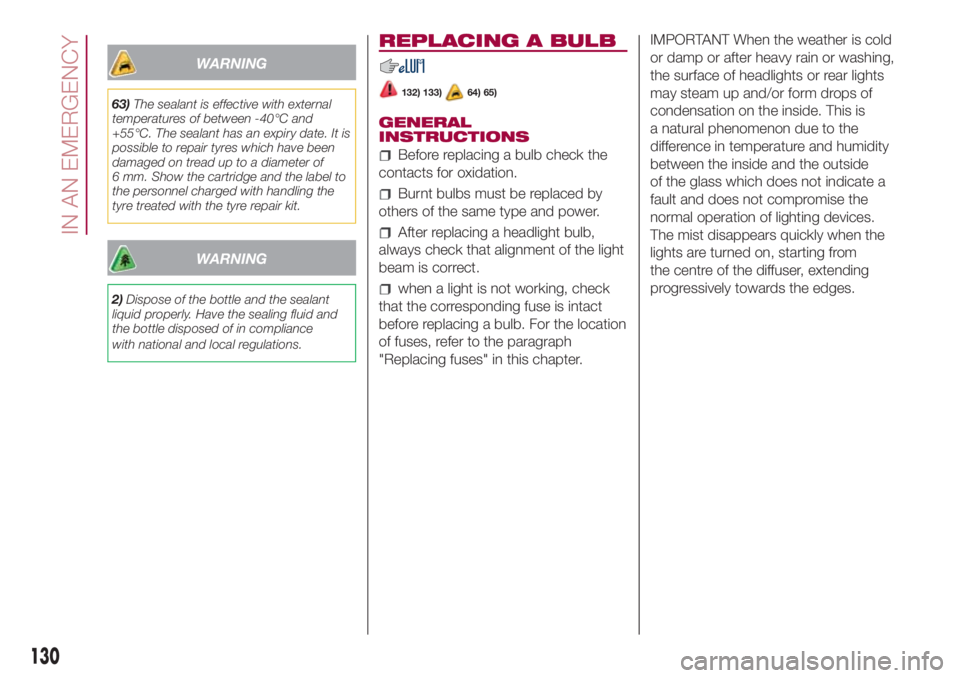

REPLACING A BULB
132) 133)64) 65)
GENERAL
INSTRUCTIONS
Before replacing a bulb check the
contacts for oxidation.
Burnt bulbs must be replaced by
others of the same type and power.
After replacing a headlight bulb,
always check that alignment of the light
beam is correct.
when a light is not working, check
that the corresponding fuse is intact
before replacing a bulb. For the location
of fuses, refer to the paragraph
"Replacing fuses" in this chapter.IMPORTANT When the weather is cold
or damp or after heavy rain or washing,
the surface of headlights or rear lights
may steam up and/or form drops of
condensation on the inside. This is
a natural phenomenon due to the
difference in temperature and humidity
between the inside and the outside
of the glass which does not indicate a
fault and does not compromise the
normal operation of lighting devices.
The mist disappears quickly when the
lights are turned on, starting from
the centre of the diffuser, extending
progressively towards the edges.
130
IN AN EMERGENCY

WARNING
64)Halogen bulbs must be handled
holding the metallic part only. Touching the
transparent part of the bulb with your
fingers may reduce the intensity of the
emitted light and even reduce the lifespan
of the bulb. In the event of accidental
contact, wipe the bulb with a cloth
moistened with alcohol and let the bulb
dry.
65)Where possible, it is advisable to have
bulbs changed at a Fiat Dealership. The
correct operation and direction of the
external lights are absolutely essential for
the safety of the car and of compliance
with the law.

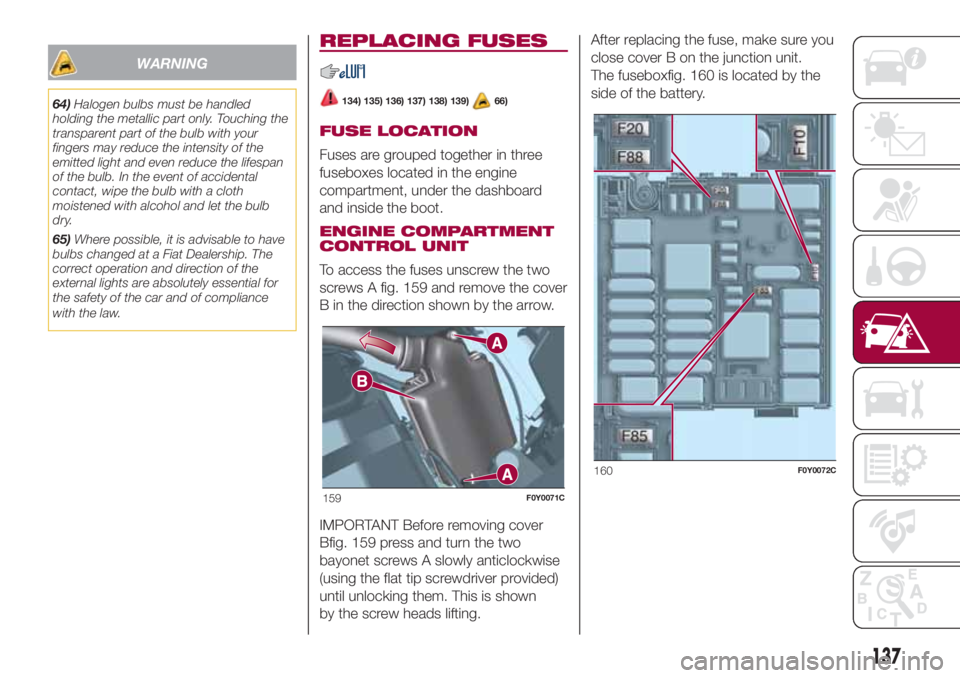

REPLACING FUSES
134) 135) 136) 137) 138) 139)66)
FUSE LOCATION
Fuses are grouped together in three
fuseboxes located in the engine
compartment, under the dashboard
and inside the boot.
ENGINE COMPARTMENT
CONTROL UNIT
To access the fuses unscrew the two
screws A fig. 159 and remove the cover
B in the direction shown by the arrow.
IMPORTANT Before removing cover
Bfig. 159 press and turn the two
bayonet screws A slowly anticlockwise
(using the flat tip screwdriver provided)
until unlocking them. This is shown
by the screw heads lifting.After replacing the fuse, make sure you
close cover B on the junction unit.
The fuseboxfig. 160 is located by the
side of the battery.
159F0Y0071C
160F0Y0072C
137

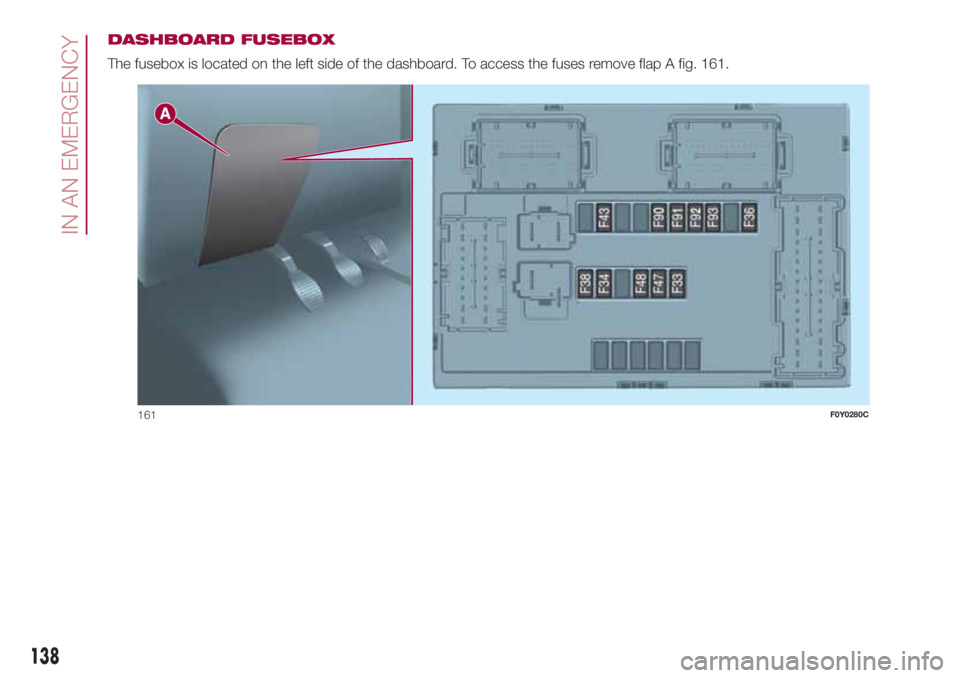

DASHBOARD FUSEBOX
The fusebox is located on the left side of the dashboard. To access the fuses remove flap A fig. 161.
161F0Y0280C
138
IN AN EMERGENCY

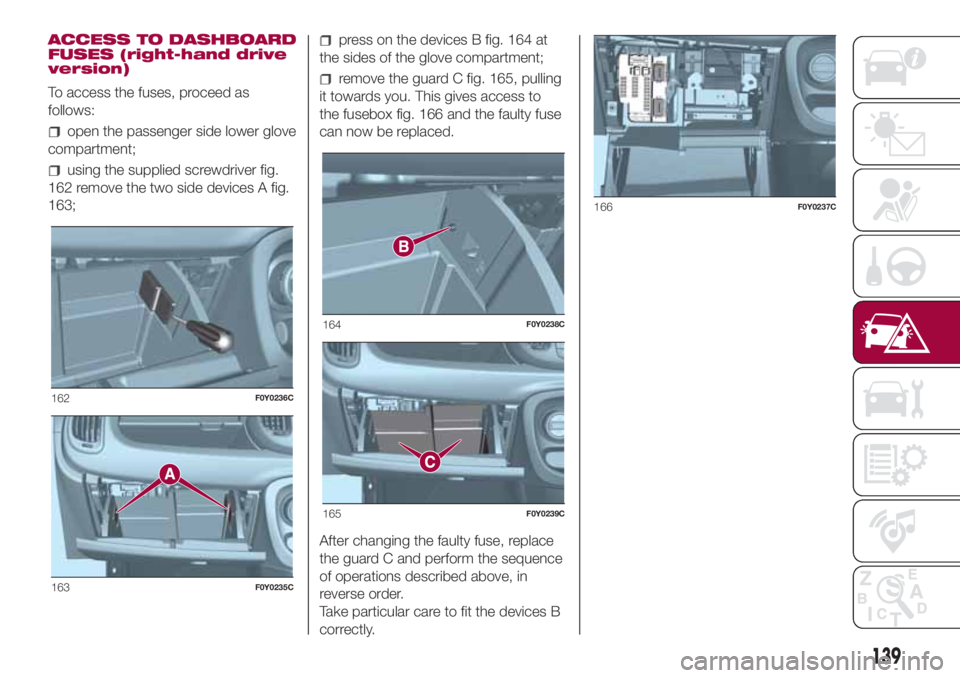

ACCESS TO DASHBOARD
FUSES (right-hand drive
version)
To access the fuses, proceed as
follows:
open the passenger side lower glove
compartment;
using the supplied screwdriver fig.
162 remove the two side devices A fig.
163;
press on the devices B fig. 164 at
the sides of the glove compartment;
remove the guard C fig. 165, pulling
it towards you. This gives access to
the fusebox fig. 166 and the faulty fuse
can now be replaced.
After changing the faulty fuse, replace
the guard C and perform the sequence
of operations described above, in
reverse order.
Take particular care to fit the devices B
correctly.
162F0Y0236C
163F0Y0235C
164F0Y0238C
165F0Y0239C
166F0Y0237C
139

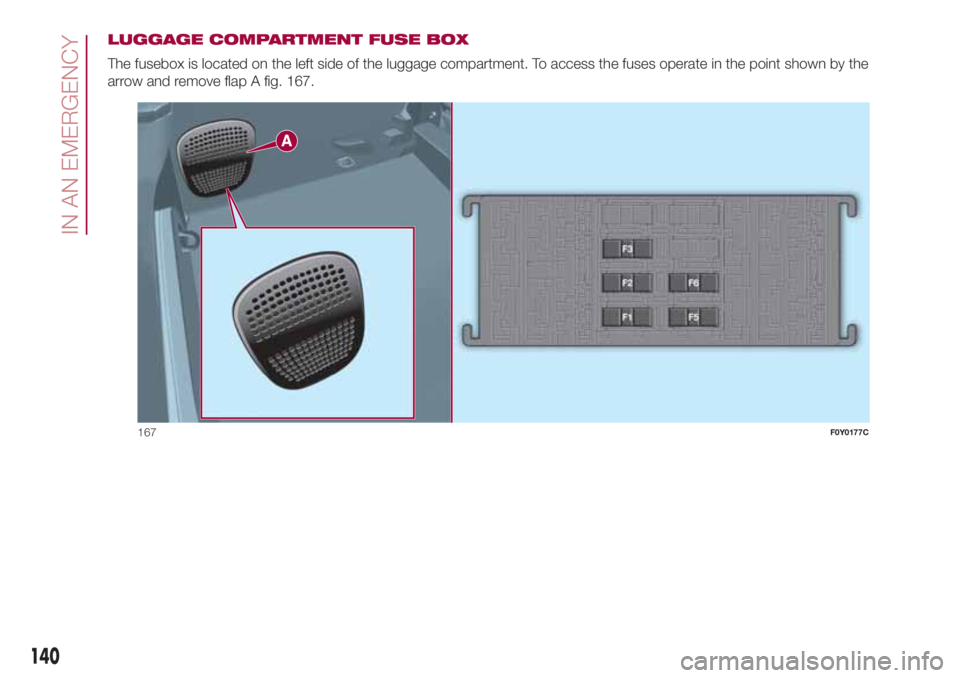

LUGGAGE COMPARTMENT FUSE BOX
The fusebox is located on the left side of the luggage compartment. To access the fuses operate in the point shown by the
arrow and remove flap A fig. 167.
167F0Y0177C
140
IN AN EMERGENCY

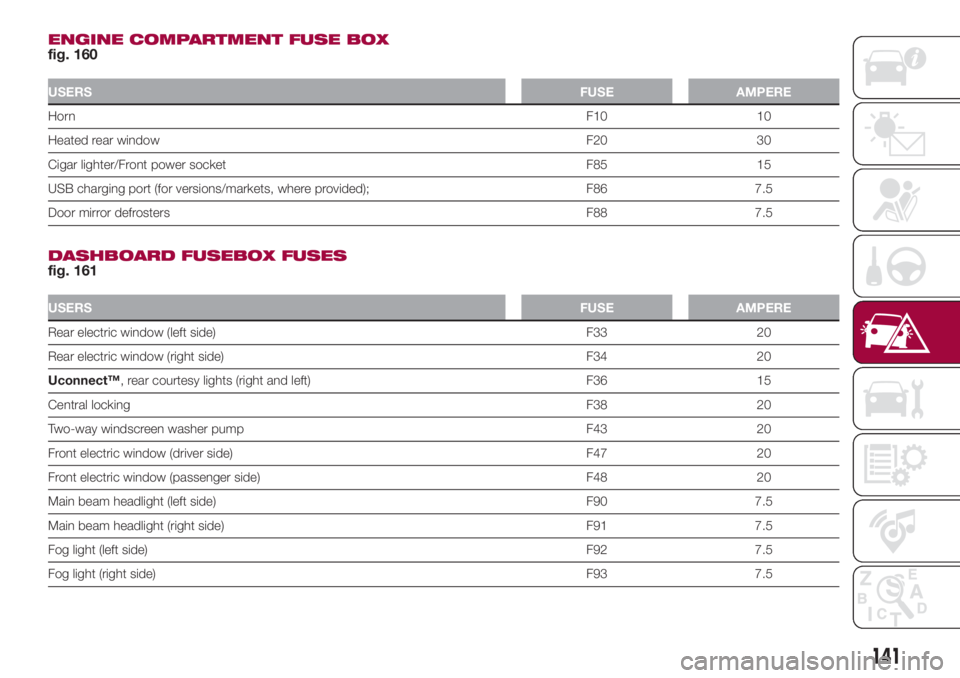

ENGINE COMPARTMENT FUSE BOX
fig. 160
USERSFUSE AMPERE
HornF10 10
Heated rear windowF20 30
Cigar lighter/Front power socket F85 15
USB charging port (for versions/markets, where provided); F86 7.5
Door mirror defrostersF88 7.5
DASHBOARD FUSEBOX FUSES
fig. 161
USERSFUSE AMPERE
Rear electric window (left side) F33 20
Rear electric window (right side) F34 20
Uconnect™, rear courtesy lights (right and left) F36 15
Central lockingF38 20
Two-way windscreen washer pump F43 20
Front electric window (driver side) F47 20
Front electric window (passenger side) F48 20
Main beam headlight (left side) F90 7.5
Main beam headlight (right side) F91 7.5
Fog light (left side)F92 7.5
Fog light (right side)F93 7.5
141
