spark plugs FIAT 500L 2018 Owner handbook (in English)

Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Replace the spark plugs (3)●●●●●
Change the brake fluid (4)●●●●●
Replace filter inside the pressure
regulator (LPG versions only)●
Replace paper filter (LPG in gaseous
state) (LPG versions only)●●●●●
Replace the accessory drive belt(s)(5)
(3) For 0.9 TwinAir Turbo 105 HP versions, to guarantee correct operation and prevent serious damage to the engine, it is essential to proceed as follows: only use
spark plugs specifically certified for these engines; all spark plugs should be of the same type and brand (see the "Engine" paragraph in the "Technical
specifications" chapter); strictly comply with the spark plugs replacement intervals in the Scheduled Servicing Plan. It is advisable to contact a FIAT Dealership
for plug replacement.
(4) The brake fluid replacement has to be done every two years, irrespective of the mileage
(5) Areas that are not dusty: recommended maximum distance 120,000 km. The belt must be replaced every 6 years, regardless of distance travelled. Dusty areas
and/or demanding use of the vehicle (cold climates, town use, long periods of idling): advised maximum mileage 60,000 km. Regardless of the mileage, the belt
must be replaced every 4 years.
154
SERVICING AND CARE

ENGINE
Versions 0.9 TwinAir Turbo Natural Power 0.9 TwinAir Turbo 105HP
Type code 312A2000 199B6000
Cycle Otto Otto
Number and position of cylinders 2 in line 2 in line
Piston bore and stroke (mm) 80.5 × 86.0 80.5 × 86.0
Total displacement (cm³) 875 875
Compression ratio 10 ± 0.2 10 ± 0.2
METHANE PETROL
Maximum power (EEC) (kW) 59 62.5 77
72
(*)
Maximum power (EEC) (HP) 80 85 105
98(*)
corresponding engine speed (rpm) 5500 5500 5500
5750(*)
Maximum torque (EEC) (Nm) 145 145 145
120(*)
Maximum torque (EEC) (kgm) 14.8 14.8 14.8
12.2(*)
corresponding engine speed (rpm) 2500 2000 2000
1750(*)
Spark plugs NGK ILKR9G8 or NGK ILKR9H8 NGK ILKR9G8
FuelMethane for motor
vehiclesUnleaded petrol 95
R.O.N. (EN228
specifications)Unleaded petrol 95 R.O.N. (EN228
specifications)
Emission level Euro 6 Euro 6
(*) Engine data with ECO button pressed
176
TECHNICAL DATA

Versions 1.4 16V 95 HP 1.4 16V 120HP 1.4 16V 120 HP LPG
Type code 843A1000 940B7000 940B7000
Cycle Otto Otto Otto
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72.0 × 84.0 72.0 × 84.0 72.0 × 84.0
Total displacement (cm³) 1368 1368 1368
Compression ratio 11 ± 0.2 9.8 ± 0.2 9.8 ± 0.2
LPG PETROL
Maximum power (EEC) (kW) 70 88 88 88
Maximum power (EEC) (HP) 95 120 120 120
corresponding engine speed (rpm) 6000 5000 5000 5000
Maximum torque (EEC) (Nm) 127 215 215 215
Maximum torque (EEC) (kgm) 12.9 22 22 22
corresponding engine speed (rpm) 4500 2500 2500 2500
Spark plugs NGK DCPR7E-N-10 NGK IKR9J8 NGK IKR9J8
FuelUnleaded petrol 95
R.O.N. (EN228
specifications)Unleaded petrol 95
R.O.N. (EN228
specifications)LPG for motor
vehicles (EN589
Specification)Unleaded petrol 95
R.O.N. (EN228
specifications)
Emission level Euro 6 Euro 6 Euro 6
177

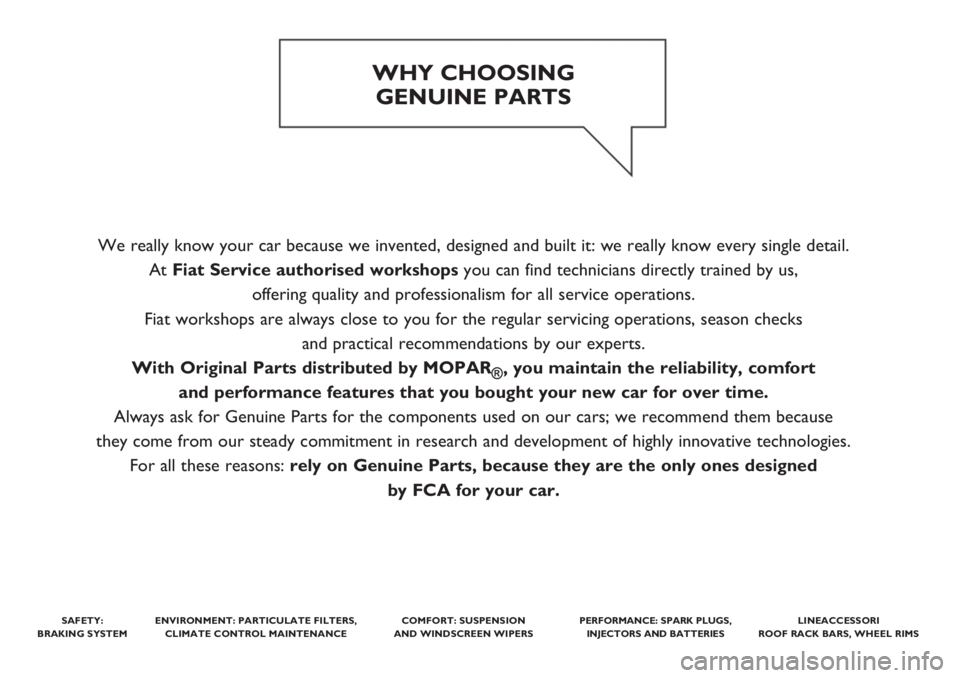

We really know your car because we invented, designed and built it: we really know every single detail.
