technical data FIAT 500L 2019 Owner handbook (in English)

500L CROSS VERSIONS
Versionskm/h
1.4 16V 95 HP162
1.3 16V 95 HP Multijet166
1.3 16V 95CV MultiJet Dualogic163
1.6 16V 120 HP MultiJet183
184
TECHNICAL DATA

WEIGHTS
NOTE Towing trailers is not permitted on versions for Cyprus.

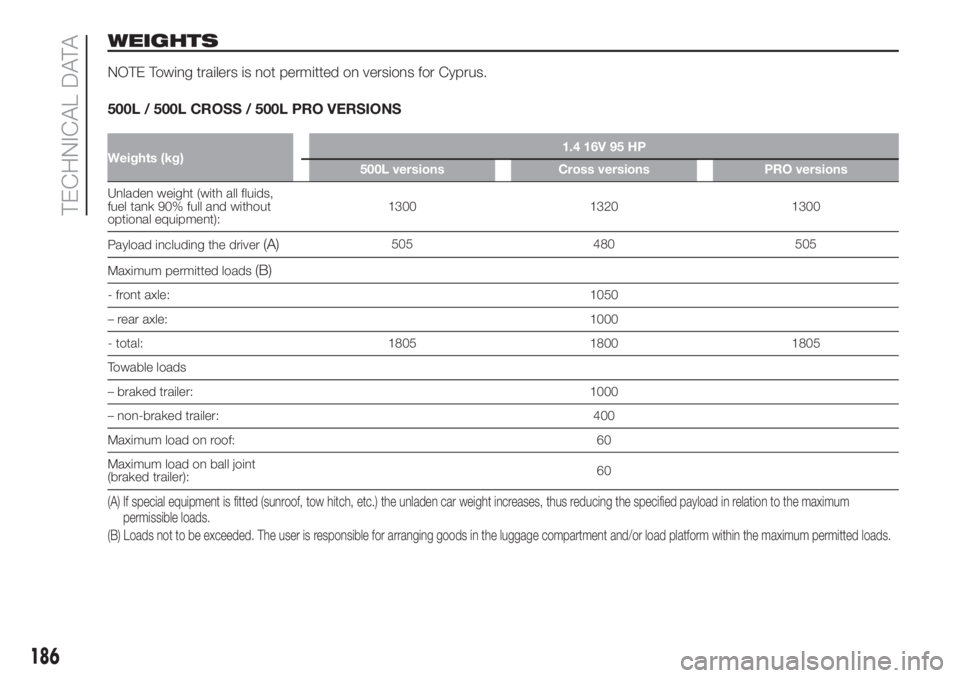

500L / 500L CROSS / 500L PRO VERSIONS
Weights (kg)1.4 16V 95 HP
500L versions Cross versions PRO versions
Unladen weight (with all fluids,
fuel tank 90% full and without
optional equipment):1300 1320 1300
Payload including the driver
(A)505 480 505
Maximum permitted loads
(B)
- front axle:1050
– rear axle:1000
- total: 1805 1800 1805
Towable loads
– braked trailer: 1000
– non-braked trailer: 400
Maximum load on roof: 60
Maximum load on ball joint
(braked trailer):60
(A) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to themaximum
permissible loads.
(B) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
186
TECHNICAL DATA

Weights (kg) 1.3 16V 95CV MultiJet Dualogic
500L versions Cross versions PRO versions
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1410 1430 1410
Payload including the driver
(A)505 500 505
Maximum permitted loads
(B)
- front axle:1050
– rear axle:1000
- total: 1915 1930 1915
Towable loads
– braked trailer:1000
– non-braked trailer:400
Maximum load on roof:60
Maximum load on ball joint (braked trailer): 60
(A) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to themaximum
permissible loads.
(B) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
188
TECHNICAL DATA

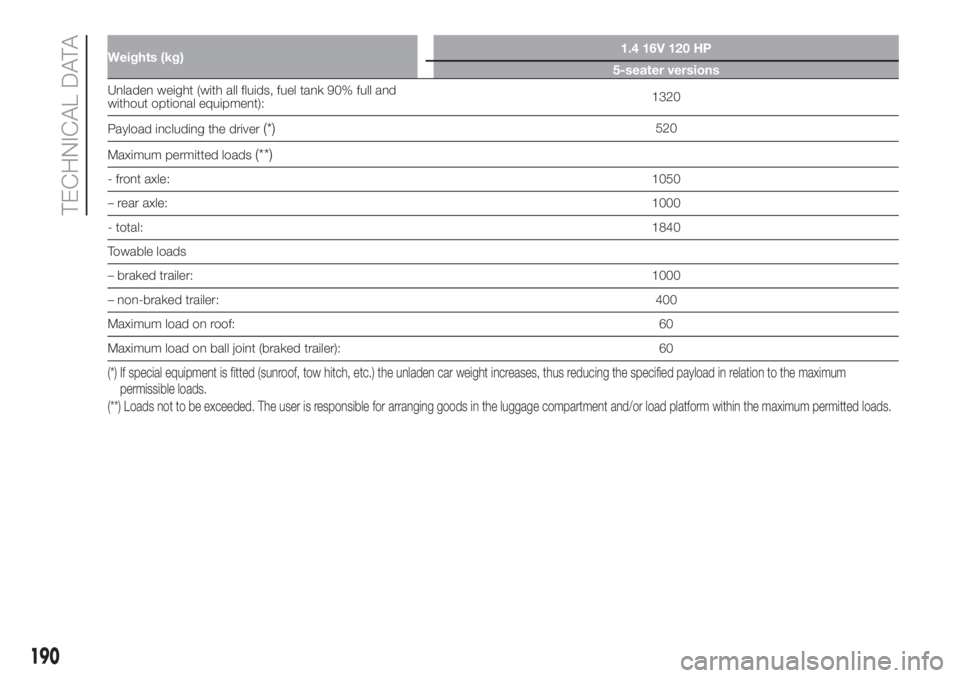

Weights (kg)1.4 16V 120 HP
5-seater versions
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1320
Payload including the driver
(*)520
Maximum permitted loads
(**)
- front axle:1050
– rear axle:1000
- total:1840
Towable loads
– braked trailer:1000
– non-braked trailer:400
Maximum load on roof:60
Maximum load on ball joint (braked trailer): 60
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to themaximum
permissible loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
190
TECHNICAL DATA

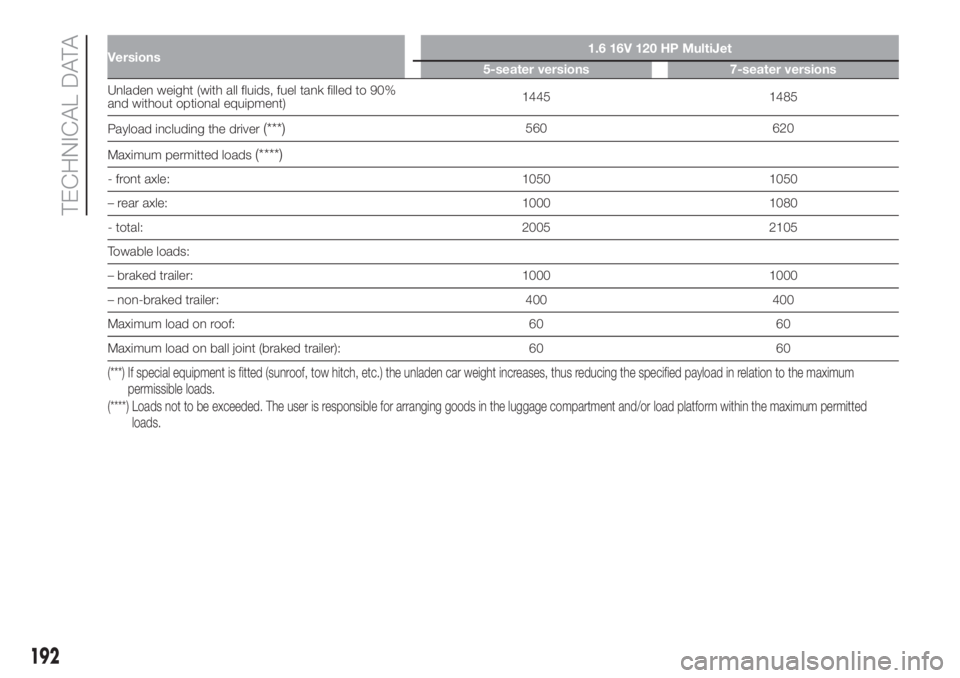

Versions1.6 16V 120 HP MultiJet
5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1445 1485
Payload including the driver
(***)560 620
Maximum permitted loads
(****)
- front axle: 1050 1050
– rear axle: 1000 1080
- total: 2005 2105
Towable loads:
– braked trailer: 1000 1000
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
192
TECHNICAL DATA

1.3 16V MultiJet 1.6 16V MultiJetPrescribed fuels and original
lubricants
Fuel tank (litres) 50 50
Diesel for motor vehicles (EN590
Specification)
including a reserve of (litres) 6 ÷ 8 6 ÷ 8
Engine cooling system (litres) 5.9 6.35Mixture of distilled water and
PARAFLU
UPliquid at 50%(*)
Engine sump (litres) with
AdBlue® (UREA)3.7 4.4
SELENIA ECO2
(**)/ SELENIA WR
FORWARD 0W-20
(***)Engine sump and filter (litres) con
AdBlue® (UREA)3.9 4.8
Gearbox casing/differential (litres) 2.0 2.0TUTELA TRANSMISSION
GEARFORCE
Dualogic transmission hydraulic
activation system (litres)0.7 – TUTELA CS SPEED
Hydraulic brake circuit (kg) 0.5 0.5 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.9 2.9Mixture of water and PETRONAS
DURANCE SC35
AdBlue® (UREA) tank (for
versions/markets, where
provided) approximate capacity
(litres):12 12AdBlue® (water-UREA solution)
DIN 70 070 and ISO 22241-1
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(**) 1.3 MultiJet 16V versions
(***) 1.6 MultiJet 16V versions
194
TECHNICAL DATA

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionSAE 75W grade synthetic
lubricant.9.55550-MZ6 or
MS.90030-M1TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference N° F002.F10Manual gearbox and
differential
Fully synthetic lubricant
with dedicated additive.9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference No. F005.F98Dualogic gearbox
hydraulic activation
system
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2.9.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference N° F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient. N.L.G.I.
consistency 0-1.9.55580-GRAS IITUTELA STAR 700
Contractual Technical
Reference N° F701.C07Differential side constant
velocity joints
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLU
UP
Contractual Technical
Reference N° F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLUUP(*)
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
196
TECHNICAL DATA

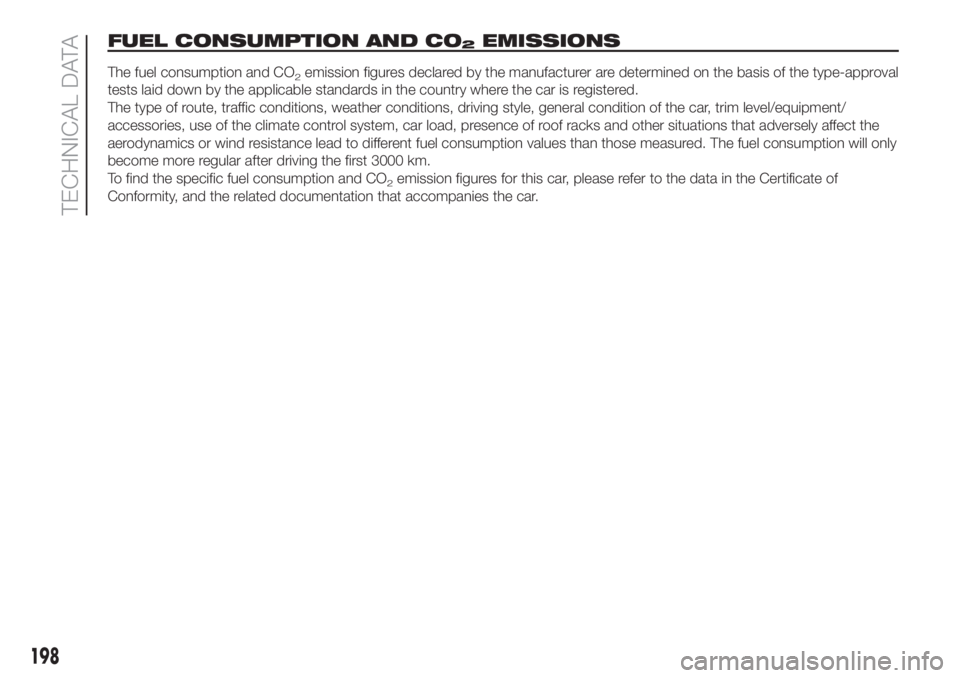

FUEL CONSUMPTION AND CO2EMISSIONS
The fuel consumption and CO2emission figures declared by the manufacturer are determined on the basis of the type-approval
tests laid down by the applicable standards in the country where the car is registered.
The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/equipment/
accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely affect the
aerodynamics or wind resistance lead to different fuel consumption values than those measured. The fuel consumption will only
become more regular after driving the first 3000 km.
To find the specific fuel consumption and CO
2emission figures for this car, please refer to the data in the Certificate of
Conformity, and the related documentation that accompanies the car.
198
TECHNICAL DATA

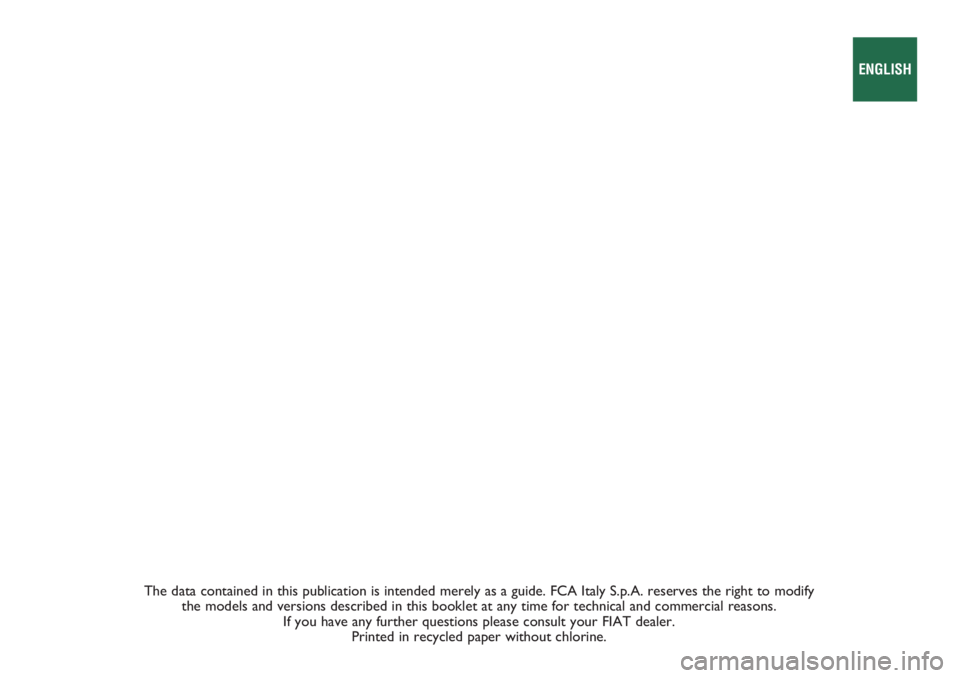

The data contained in this publication is intended merely as a guide. FCA Italy S.p.A. reserves the right to modify
the models and versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your FIAT dealer.
Printed in recycled paper without chlorine.
