technical data FIAT 500L 2019 Owner handbook (in English)

Dear Customer,
We would like to congratulate and thank you for choosing a Fiat 500L.
We have written this handbook to help you get to know all the features of your car and use it in the best possible way.
Here you will find information, advice and important warnings regarding use of your vehicle and how to achieve the best performance
from the technical features of your Fiat 500L.
You are advised to read it right through before taking to the road for the first time, to become familiar with the controls and above all
with those concerning brakes, steering and transmission; at the same time, you can understand the car behaviour on different road
surfaces.
This document contains specifications, special procedures and essential information for caring for and maintaining your Fiat 500L over
time, driving it safely and running it correctly.
After reading it, you are advised to keep the handbook inside the car, for an easy reference and for making sure it remains on board
the car should it be sold.
In the attached Warranty Booklet you will also find a description of the Services that Fiat offers to its customers, the Warranty
Certificate and the detail of the terms and conditions for maintaining its validity.
We are sure that these will help you to get in touch with and appreciate your new car and the service provided by the people at Fiat.
Enjoy reading. Happy motoring!
This Owner Handbook describes all Fiat 500L versions. Options, equipment dedicated to specific markets or versions are
not explicitly indicated in the text: as a consequence, you should only consider the information which is related to the
trim level, engine and version that you have purchased. Any content introduced throughout the production of the model,
outside the explicit request of options at the time of purchase, will be identified with the wording(for versions/markets,
where provided).
All data contained in this publication are purely indicative. FCA Italy S.p.A. can modify the specifications of the vehicle
model described in this publication at any time, for technical or marketing purposes. For further information, contact
a Fiat Dealership.
For further information, contact a Fiat Dealership.

KNOWING YOUR CAR
KNOWING THE INSTRUMENT PANEL
SAFETY
STARTING AND DRIVING
IN AN EMERGENCY
SERVICING AND CARE
TECHNICAL DATA
MULTIMEDIA
INDEX
7

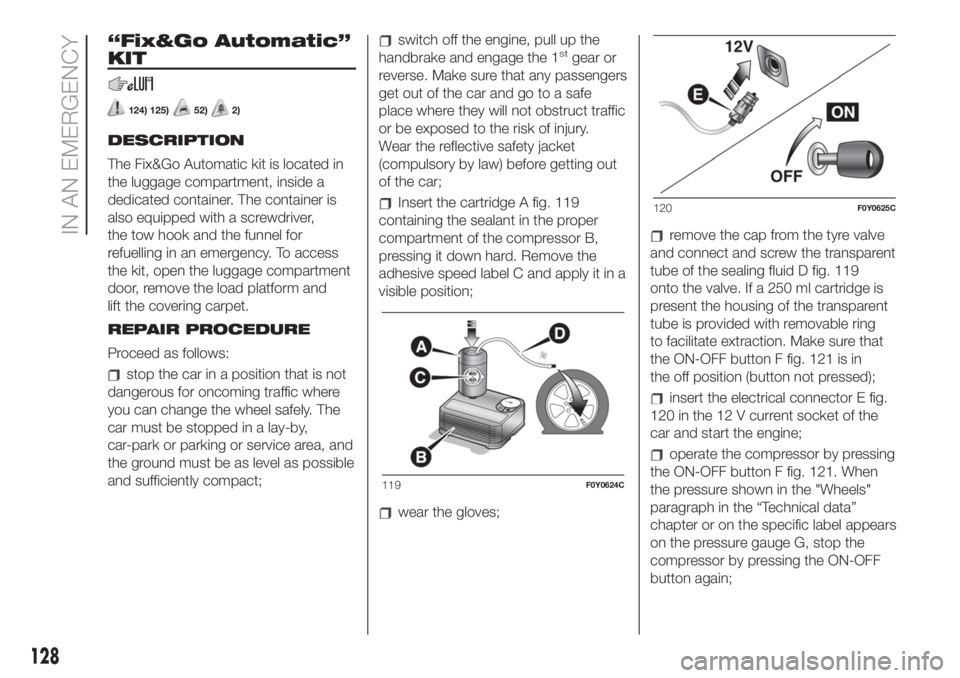

“Fix&Go Automatic”
KIT
124) 125)52)2)
DESCRIPTION
The Fix&Go Automatic kit is located in
the luggage compartment, inside a
dedicated container. The container is
also equipped with a screwdriver,
the tow hook and the funnel for
refuelling in an emergency. To access
the kit, open the luggage compartment
door, remove the load platform and
lift the covering carpet.
REPAIR PROCEDURE
Proceed as follows:
stop the car in a position that is not
dangerous for oncoming traffic where
you can change the wheel safely. The
car must be stopped in a lay-by,
car-park or parking or service area, and
the ground must be as level as possible
and sufficiently compact;
switch off the engine, pull up the
handbrake and engage the 1stgear or
reverse. Make sure that any passengers
get out of the car and go to a safe
place where they will not obstruct traffic
or be exposed to the risk of injury.
Wear the reflective safety jacket
(compulsory by law) before getting out
of the car;
Insert the cartridge A fig. 119
containing the sealant in the proper
compartment of the compressor B,
pressing it down hard. Remove the
adhesive speed label C and apply it in a
visible position;
wear the gloves;
remove the cap from the tyre valve
and connect and screw the transparent
tube of the sealing fluid D fig. 119
onto the valve. If a 250 ml cartridge is
present the housing of the transparent
tube is provided with removable ring
to facilitate extraction. Make sure that
the ON-OFF button F fig. 121 is in
the off position (button not pressed);
insert the electrical connector E fig.
120 in the 12 V current socket of the
car and start the engine;
operate the compressor by pressing
the ON-OFF button F fig. 121. When
the pressure shown in the "Wheels"
paragraph in the “Technical data”
chapter or on the specific label appears
on the pressure gauge G, stop the
compressor by pressing the ON-OFF
button again;
119F0Y0624C
120F0Y0625C
128
IN AN EMERGENCY

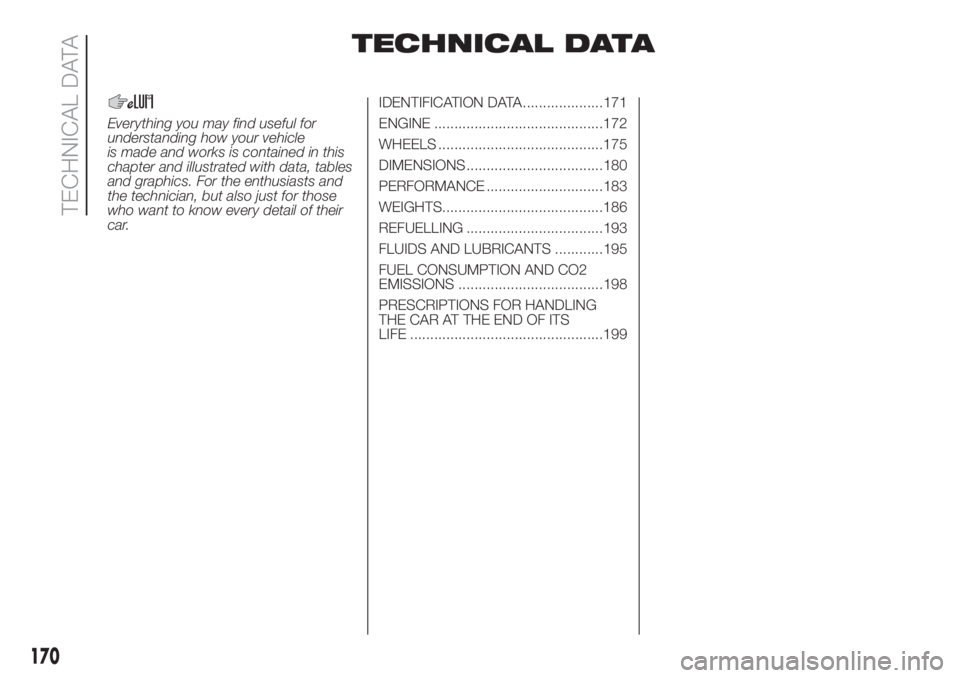

TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
car.IDENTIFICATION DATA....................171
ENGINE ..........................................172
WHEELS .........................................175
DIMENSIONS ..................................180
PERFORMANCE .............................183
WEIGHTS........................................186
REFUELLING ..................................193
FLUIDS AND LUBRICANTS ............195
FUEL CONSUMPTION AND CO2
EMISSIONS ....................................198
PRESCRIPTIONS FOR HANDLING
THE CAR AT THE END OF ITS
LIFE ................................................199
170
TECHNICAL DATA

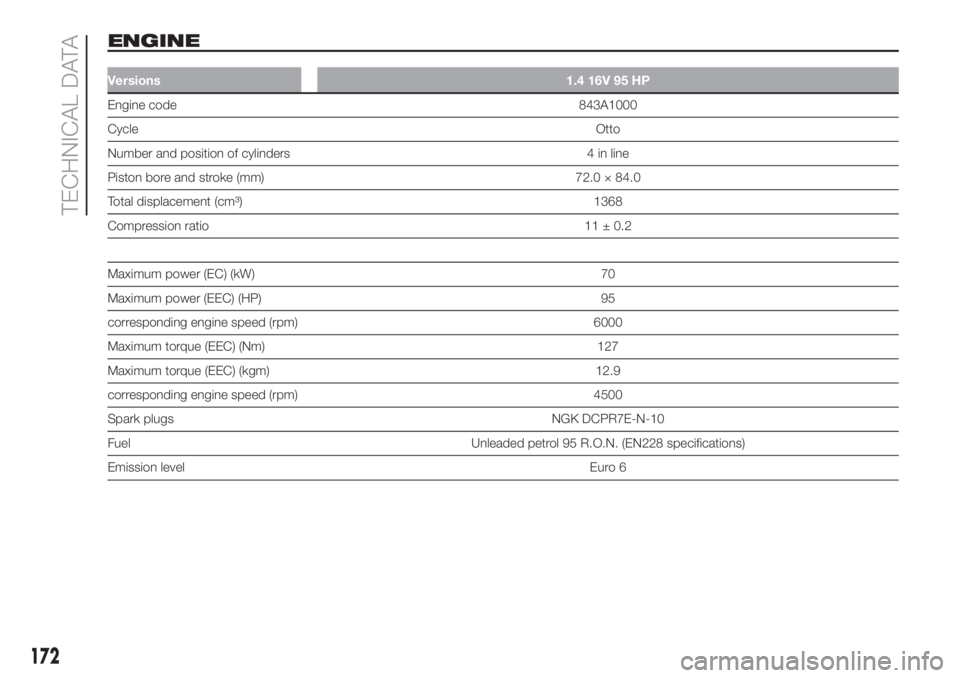

ENGINE
Versions 1.4 16V 95 HP
Engine code 843A1000
CycleOtto
Number and position of cylinders 4 in line
Piston bore and stroke (mm) 72.0 × 84.0
Total displacement (cm³) 1368
Compression ratio 11 ± 0.2
Maximum power (EC) (kW) 70
Maximum power (EEC) (HP) 95
corresponding engine speed (rpm) 6000
Maximum torque (EEC) (Nm) 127
Maximum torque (EEC) (kgm) 12.9
corresponding engine speed (rpm) 4500
Spark plugs NGK DCPR7E-N-10
Fuel Unleaded petrol 95 R.O.N. (EN228 specifications)
Emission level Euro 6
172
TECHNICAL DATA

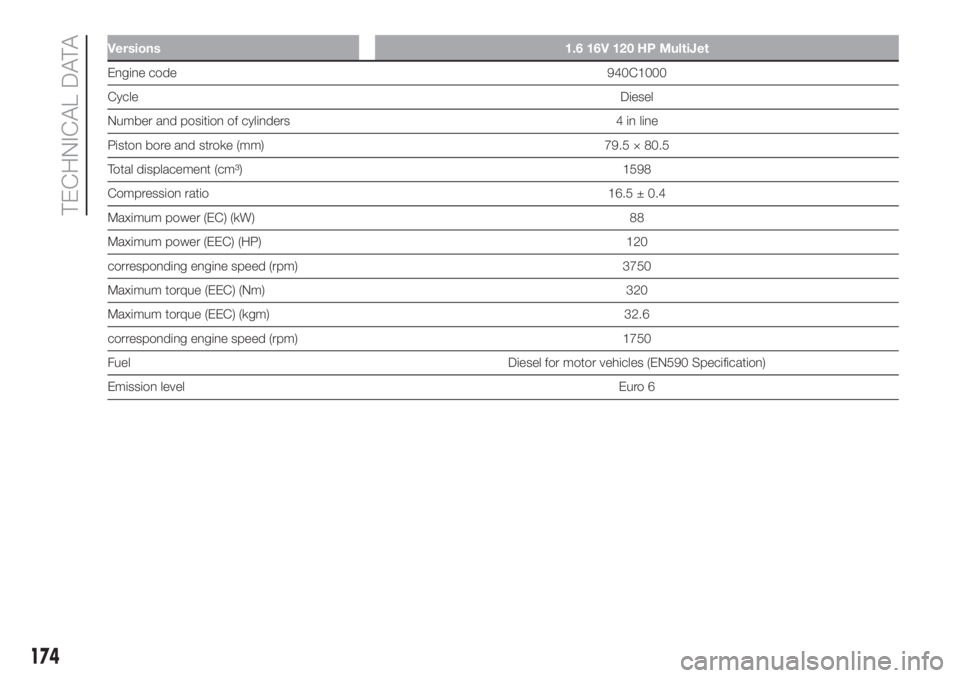

Versions 1.6 16V 120 HP MultiJet
Engine code940C1000
CycleDiesel
Number and position of cylinders 4 in line
Piston bore and stroke (mm) 79.5 × 80.5
Total displacement (cm³) 1598
Compression ratio 16.5 ± 0.4
Maximum power (EC) (kW) 88
Maximum power (EEC) (HP) 120
corresponding engine speed (rpm) 3750
Maximum torque (EEC) (Nm) 320
Maximum torque (EEC) (kgm) 32.6
corresponding engine speed (rpm) 1750
Fuel Diesel for motor vehicles (EN590 Specification)
Emission levelEuro 6
174
TECHNICAL DATA

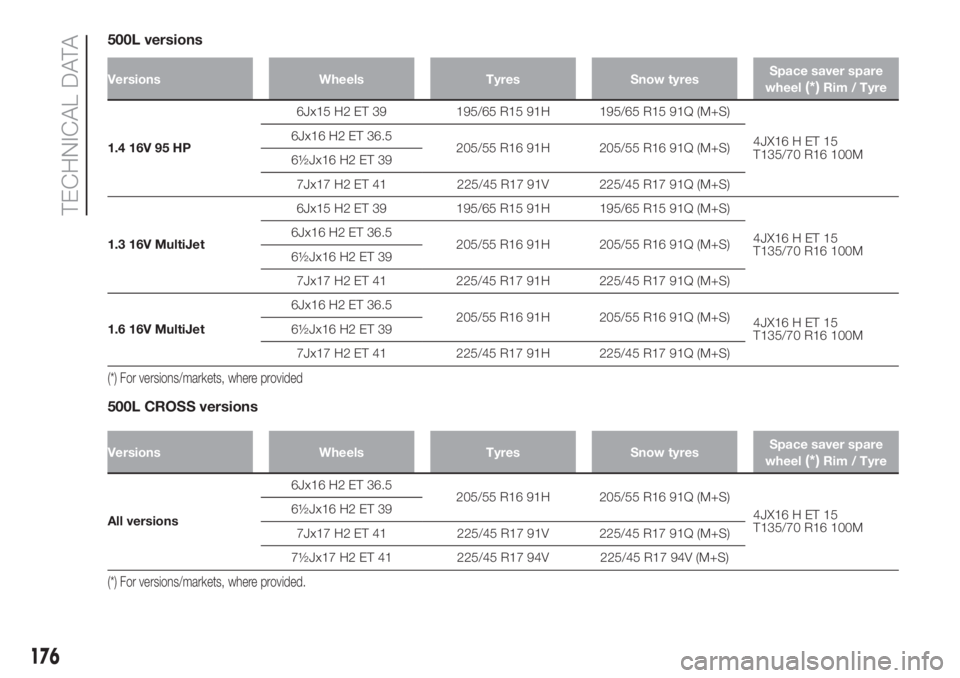

500L versions
Versions Wheels Tyres Snow tyresSpace saver spare
wheel(*)Rim / Tyre
1.4 16V 95 HP6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.3 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91H 225/45 R17 91Q (M+S)
1.6 16V MultiJet6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91H 225/45 R17 91Q (M+S)
(*) For versions/markets, where provided
500L CROSS versions
Versions Wheels Tyres Snow tyresSpace saver spare
wheel(*)Rim / Tyre
All versions6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
7½Jx17 H2 ET 41 225/45 R17 94V 225/45 R17 94V (M+S)
(*) For versions/markets, where provided.
176
TECHNICAL DATA

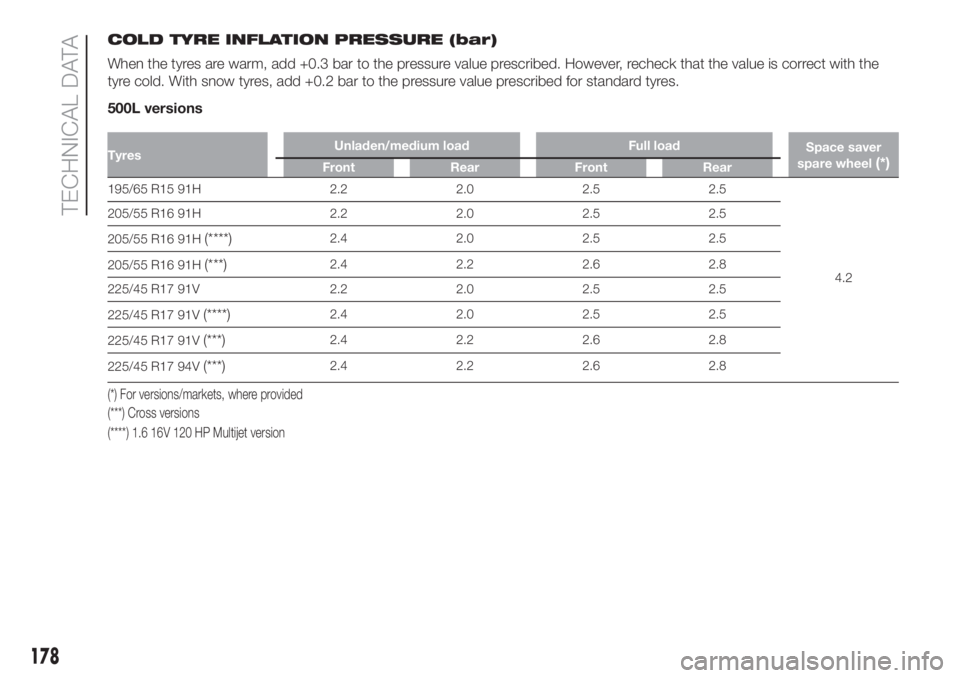

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, add +0.3 bar to the pressure value prescribed. However, recheck that the value is correct with the
tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
500L versions
TyresUnladen/medium load Full load
Space saver
spare wheel(*)Front Rear Front Rear
195/65 R15 91H 2.2 2.0 2.5 2.5
4.2 205/55 R16 91H 2.2 2.0 2.5 2.5
205/55 R16 91H
(****)2.4 2.0 2.5 2.5
205/55 R16 91H
(***)2.4 2.2 2.6 2.8
225/45 R17 91V 2.2 2.0 2.5 2.5
225/45 R17 91V
(****)2.4 2.0 2.5 2.5
225/45 R17 91V
(***)2.4 2.2 2.6 2.8
225/45 R17 94V
(***)2.4 2.2 2.6 2.8
(*) For versions/markets, where provided
(****) 1.6 16V 120 HP Multijet version (***) Cross versions
178
TECHNICAL DATA

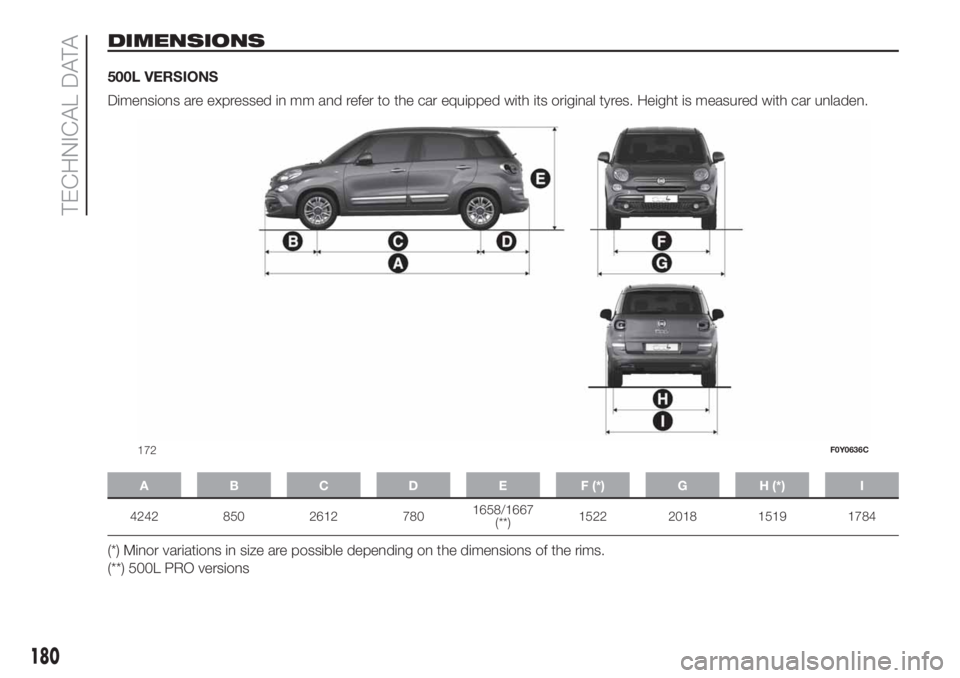

DIMENSIONS
500L VERSIONS
Dimensions are expressed in mm and refer to the car equipped with its original tyres. Height is measured with car unladen.
A B C D E F (*) G H (*) I
4242 850 2612 7801658/1667
(**)1522 2018 1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
(**) 500L PRO versions
172F0Y0636C
180
TECHNICAL DATA

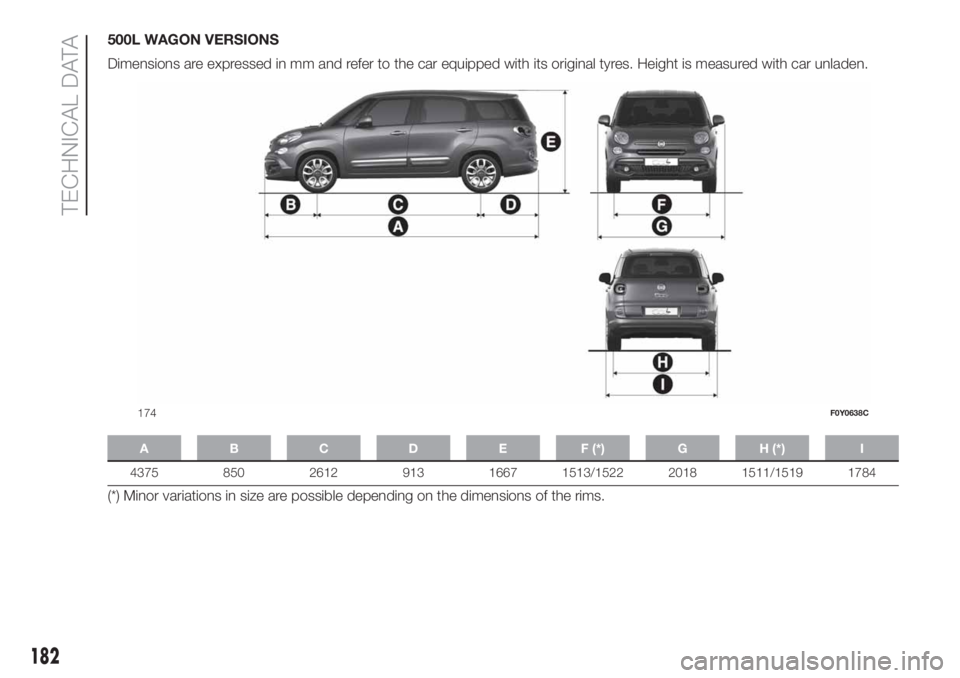

500L WAGON VERSIONS
Dimensions are expressed in mm and refer to the car equipped with its original tyres. Height is measured with car unladen.
A B C D E F (*) G H (*) I
4375 850 2612 913 1667 1513/1522 2018 1511/1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
174F0Y0638C
