Warning light What it means
CONTINUOUSLY ON: LOW ENGINE OIL PRESSURE
The warning light turns on constantly, on some versions along with a message and a symbol on the
display, when the system detects that engine oil pressure is insufficient.
28)
FLASHING: EXHAUSTED ENGINE OIL (only Diesel versions with DPF)
The warning light switches on and flashes, on some versions with the displaying of a message. Depending
on the versions, the warning light will continue to flash in cycles for 1 minute every two hours or for 3
minute cycles with the warning light off for 5 seconds until the oil is changed.
After the first indication, at each engine start up the warning light will continue flashing as described above
until the oil is changed. On some versions, the display shows a dedicated message.
If the warning light flashes, this does not mean that there is a fault, but simply informs that it is now
necessary to change the oil as a result of regular use of the vehicle.
Engine oil degradation is accelerated by a predominant town use of the vehicle, which makes DPF
regeneration process more frequent, and also by use of the vehicle for short trips, preventing the engine to
reach the operating temperature, repeated interruptions of the regeneration process reported by the
switching on of the
warning light.29)
WARNING
28)If the warning light comes on when the vehicle is travelling, stop the engine immediately and contact a Fiat Dealership.
29)If the warning light switches on, the degraded engine oil must be changed as soon as possible, and never more than 500 km from the
first time that the warning light has switched on. Failure to observe the above indications may result in severe damage to the engine and
invalidate the warranty. The activation of this warning light is not related to the amount of oil in the engine. Therefore, never top up with oil
when the warning light starts flashing.
49

Warning light What it means

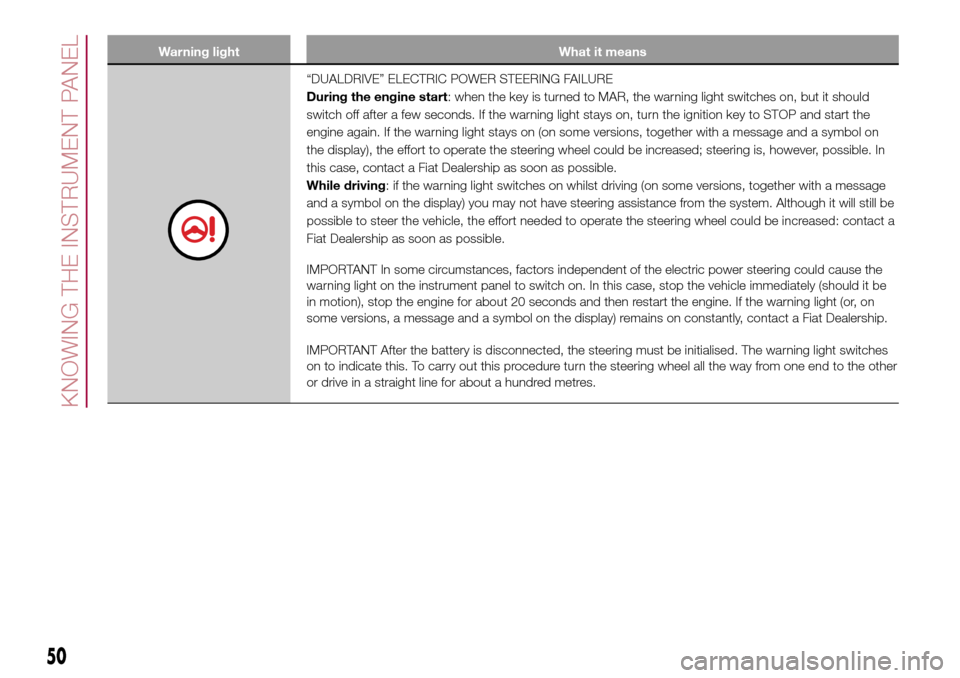

“DUALDRIVE” ELECTRIC POWER STEERING FAILURE
During the engine start: when the key is turned to MAR, the warning light switches on, but it should
switch off after a few seconds. If the warning light stays on, turn the ignition key to STOP and start the
engine again. If the warning light stays on (on some versions, together with a message and a symbol on
the display), the effort to operate the steering wheel could be increased; steering is, however, possible. In
this case, contact a Fiat Dealership as soon as possible.
While driving: if the warning light switches on whilst driving (on some versions, together with a message
and a symbol on the display) you may not have steering assistance from the system. Although it will still be
possible to steer the vehicle, the effort needed to operate the steering wheel could be increased: contact a
Fiat Dealership as soon as possible.
IMPORTANT In some circumstances, factors independent of the electric power steering could cause the
warning light on the instrument panel to switch on. In this case, stop the vehicle immediately (should it be
in motion), stop the engine for about 20 seconds and then restart the engine. If the warning light (or, on
some versions, a message and a symbol on the display) remains on constantly, contact a Fiat Dealership.
IMPORTANT After the battery is disconnected, the steering must be initialised. The warning light switches
on to indicate this. To carry out this procedure turn the steering wheel all the way from one end to the other
or drive in a straight line for about a hundred metres.
50
KNOWING THE INSTRUMENT PANEL

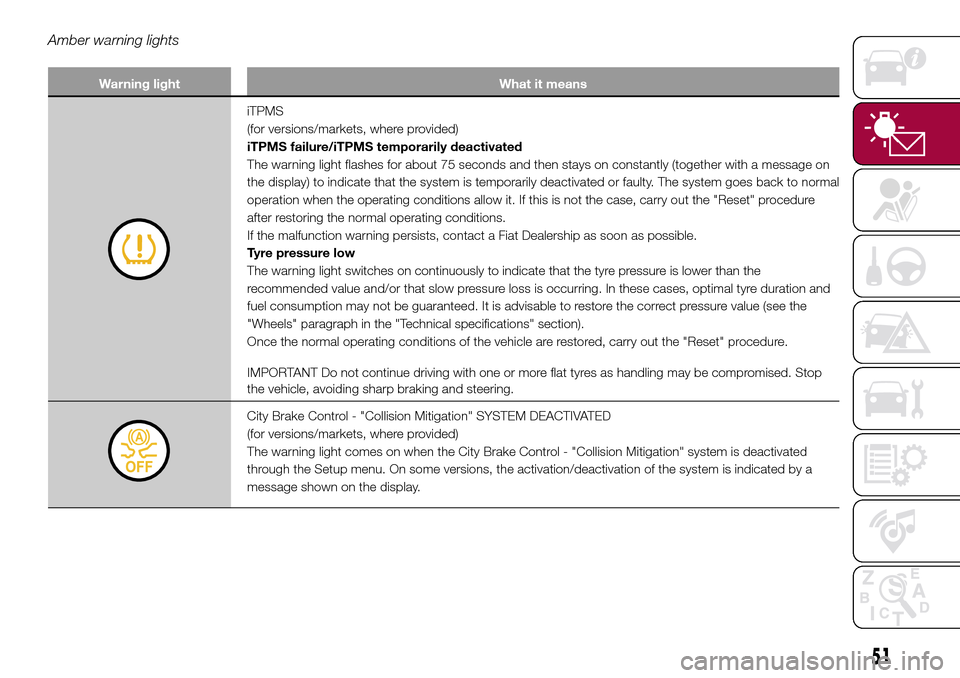

Amber warning lights
Warning light What it means
iTPMS
(for versions/markets, where provided)
iTPMS failure/iTPMS temporarily deactivated
The warning light flashes for about 75 seconds and then stays on constantly (together with a message on
the display) to indicate that the system is temporarily deactivated or faulty. The system goes back to normal
operation when the operating conditions allow it. If this is not the case, carry out the "Reset" procedure
after restoring the normal operating conditions.
If the malfunction warning persists, contact a Fiat Dealership as soon as possible.
Tyre pressure low
The warning light switches on continuously to indicate that the tyre pressure is lower than the
recommended value and/or that slow pressure loss is occurring. In these cases, optimal tyre duration and
fuel consumption may not be guaranteed. It is advisable to restore the correct pressure value (see the
"Wheels" paragraph in the "Technical specifications" section).
Once the normal operating conditions of the vehicle are restored, carry out the "Reset" procedure.
IMPORTANT Do not continue driving with one or more flat tyres as handling may be compromised. Stop
the vehicle, avoiding sharp braking and steering.
City Brake Control - "Collision Mitigation" SYSTEM DEACTIVATED
(for versions/markets, where provided)
The warning light comes on when the City Brake Control - "Collision Mitigation" system is deactivated
through the Setup menu. On some versions, the activation/deactivation of the system is indicated by a
message shown on the display.
51

Warning light What it means

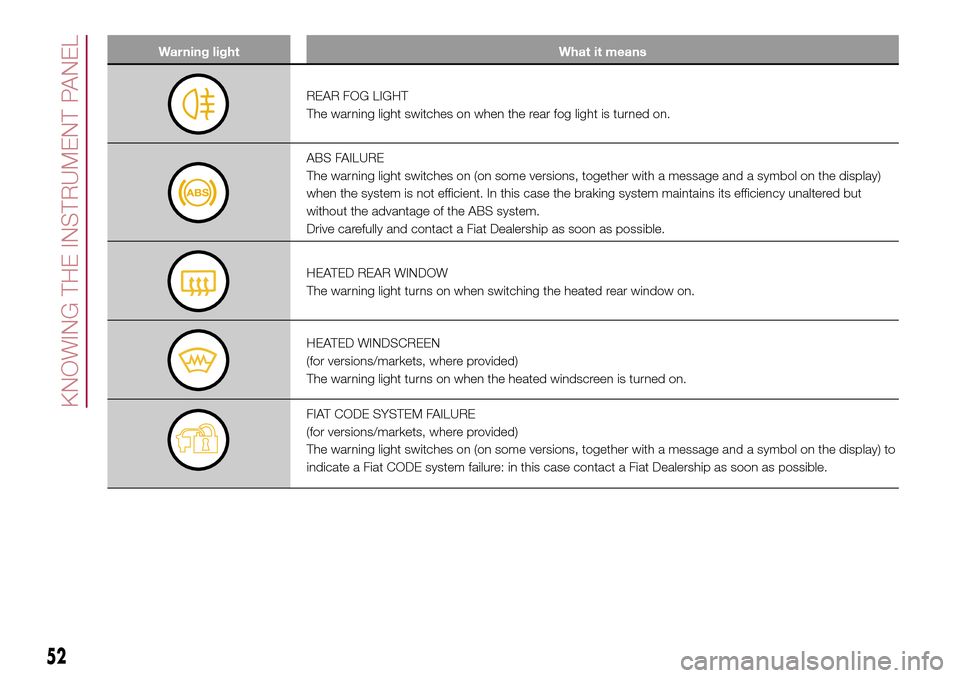

REAR FOG LIGHT
The warning light switches on when the rear fog light is turned on.
ABS FAILURE
The warning light switches on (on some versions, together with a message and a symbol on the display)
when the system is not efficient. In this case the braking system maintains its efficiency unaltered but
without the advantage of the ABS system.
Drive carefully and contact a Fiat Dealership as soon as possible.
HEATED REAR WINDOW
The warning light turns on when switching the heated rear window on.
HEATED WINDSCREEN
(for versions/markets, where provided)
The warning light turns on when the heated windscreen is turned on.
FIAT CODE SYSTEM FAILURE
(for versions/markets, where provided)
The warning light switches on (on some versions, together with a message and a symbol on the display) to
indicate a Fiat CODE system failure: in this case contact a Fiat Dealership as soon as possible.
52
KNOWING THE INSTRUMENT PANEL

Warning light What it means

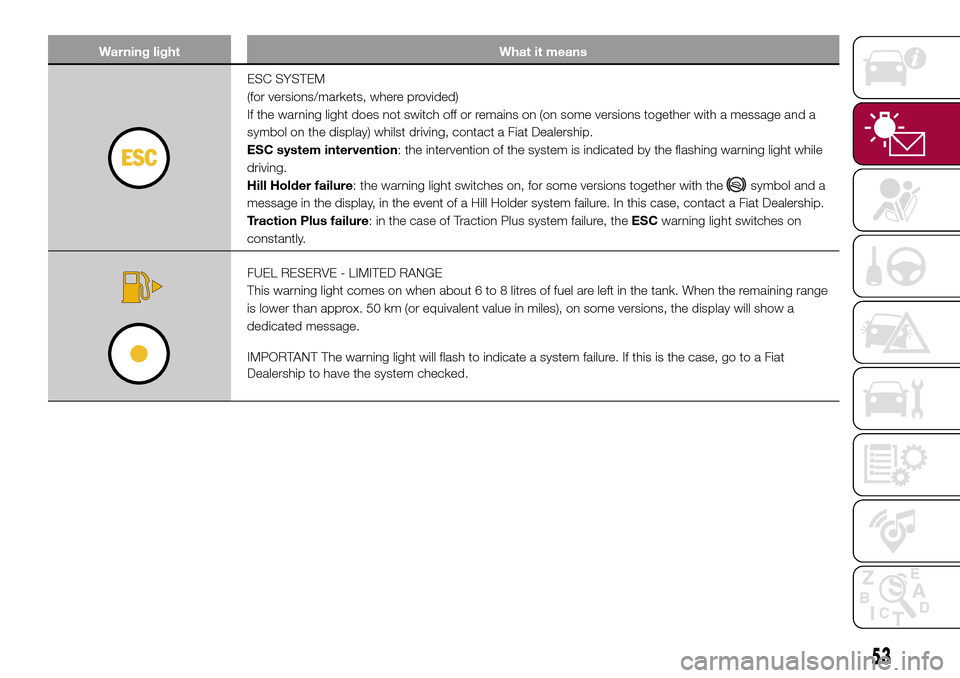

ESC SYSTEM
(for versions/markets, where provided)
If the warning light does not switch off or remains on (on some versions together with a message and a
symbol on the display) whilst driving, contact a Fiat Dealership.
ESC system intervention: the intervention of the system is indicated by the flashing warning light while
driving.
Hill Holder failure: the warning light switches on, for some versions together with the
symbol and a
message in the display, in the event of a Hill Holder system failure. In this case, contact a Fiat Dealership.
Traction Plus failure: in the case of Traction Plus system failure, theESCwarning light switches on
constantly.
FUEL RESERVE - LIMITED RANGE
This warning light comes on when about 6 to 8 litres of fuel are left in the tank. When the remaining range
is lower than approx. 50 km (or equivalent value in miles), on some versions, the display will show a
dedicated message.
IMPORTANT The warning light will flash to indicate a system failure. If this is the case, go to a Fiat
Dealership to have the system checked.
53

Warning light What it means

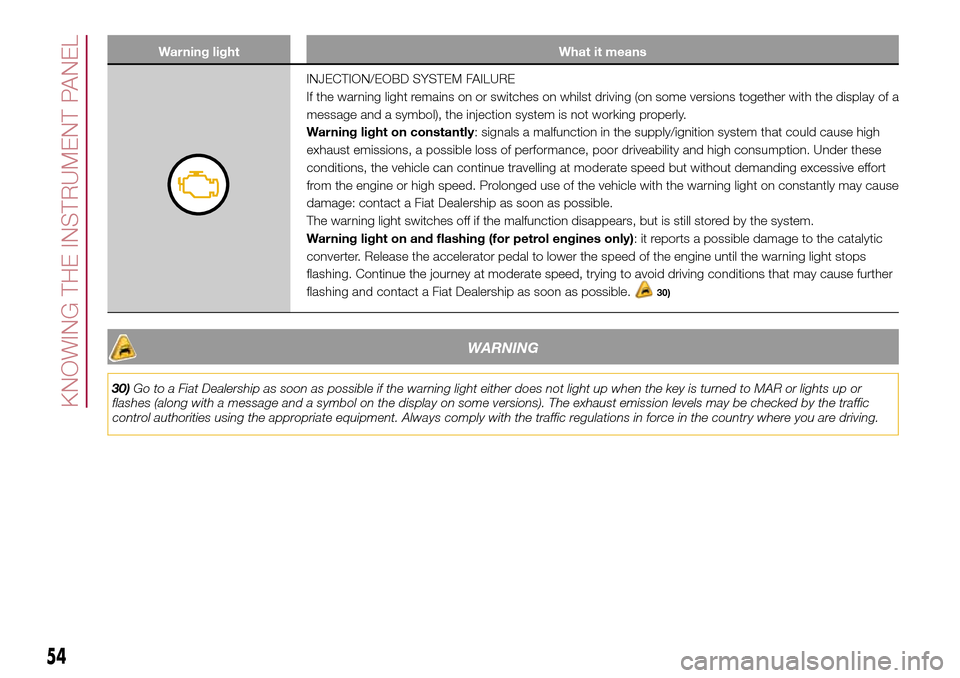

INJECTION/EOBD SYSTEM FAILURE
If the warning light remains on or switches on whilst driving (on some versions together with the display of a
message and a symbol), the injection system is not working properly.
Warning light on constantly: signals a malfunction in the supply/ignition system that could cause high
exhaust emissions, a possible loss of performance, poor driveability and high consumption. Under these
conditions, the vehicle can continue travelling at moderate speed but without demanding excessive effort
from the engine or high speed. Prolonged use of the vehicle with the warning light on constantly may cause
damage: contact a Fiat Dealership as soon as possible.
The warning light switches off if the malfunction disappears, but is still stored by the system.
Warning light on and flashing (for petrol engines only): it reports a possible damage to the catalytic
converter. Release the accelerator pedal to lower the speed of the engine until the warning light stops
flashing. Continue the journey at moderate speed, trying to avoid driving conditions that may cause further
flashing and contact a Fiat Dealership as soon as possible.
30)
WARNING
30)Go to a Fiat Dealership as soon as possible if the warning light either does not light up when the key is turned to MAR or lights up or
flashes (along with a message and a symbol on the display on some versions). The exhaust emission levels may be checked by the traffic
control authorities using the appropriate equipment. Always comply with the traffic regulations in force in the country where you are driving.
54
KNOWING THE INSTRUMENT PANEL

Warning light What it means
GLOW PLUG PREHEATING FAILURE (Diesel versions)
The warning light will flash (on some versions, together with a message and a symbol on the display) to
indicate a fault in the plug preheating system.
In this case, contact a Fiat Dealership as soon as possible.
LPG FUEL RESERVE (LPG versions)
(for versions/markets, where provided)
The warning light switches on when the residual quantity of LPG in the cylinder goes below 1/5 of the
capacity. The display will also show a dedicated message.
METHANE RESERVE (Natural Power versions)
The warning light switches on when the residual quantity of methane in the cylinder goes below 1/5 of the
capacity. The display will also show a dedicated message.
55

Warning light What it means
DPF (PARTICULATE FILTER) CLEANING IN PROGRESS (Diesel versions with DPF only)
The warning light (on some versions, together with a message and a symbol on the display) switches on
constantly to notify the driver that the DPF system needs to eliminate captured pollutants (particulate)
through the regeneration process.
The warning light does not come on during every DPF regeneration, but only when driving conditions
require that the driver is notified.
To switch the warning light off, the car must be kept moving until the regeneration process is completed.
As an average, the process lasts fifteen minutes. The best conditions to complete the regeneration process
are reached driving the car at about 60 km/h with engine speed over 2000 rpm.
When this warning light switches on, it does not indicate a car failure and thus it should not be taken to a
workshop. On some versions, together with the warning light switching on, the display shows a dedicated
message.
31)
WARNING
31)Vehicle travel speed should always be adapted to the traffic and weather conditions, and must always comply with traffic regulations. The
engine can be stopped even if the warning light is on: however, repeated interruptions of the regeneration process could cause premature
degradation of the engine oil. For this reason, it is always advisable to wait for the warning light to go off before turning the engine off,
following the instructions appearing above. It is not advisable to complete DPF regeneration with the vehicle stationary.
56
KNOWING THE INSTRUMENT PANEL

Warning light What it means
GENERIC FAILURE INDICATION
The warning light switches on in the following circumstances. In these cases contact a Fiat Dealership to
have the fault fixed as soon as possible:
❒Limit speed exceeded: on some versions, when the limit speed is exceeded, a message and a symbol
are displayed, along with a buzzer;
❒Fuel cut-off system intervention/failure
❒External light failure: the warning light switches on when a failure is detected in one of the following lights:
daytime running lights (DRL) (where provided)/side lights/direction indicator/rear fog light/reversing light/
number plate light/brake lights (for versions with multifunction display only). The fault relating to these lights
could be: one or more blown bulbs, a blown protection fuse or a break in the electrical connection;
❒DST (Dynamic Steering Torque or steering corrector) system failure
❒Water in diesel fuel filter
❒Stop/Start system failure
❒Methane level sensor failure (or LPG level)
❒Temporary or permanent City Brake Control - "Collision Mitigation" system failure
❒Rain sensor failure
❒Assisted parking failure
❒Dusk sensor failure
❒Engine oil pressure sensor failure(on versions with reconfigurable multifunction display the failure is
indicated by the switching on of the icon in the display)
❒Warning light failure
On some versions, the warning light switches on along with the display of a message and a symbol.
57

Green warning lights
Warning light What it means
LPG COMPLETION (or METHANE) (LPG or Natural Power versions)
The warning light switches on (together with a message on the display) when an LPG level sensor failure is
detected (LPG versions) or methane level sensor (Natural Power versions). In this case, the vehicle
switches to petrol operation directly.
SIDE LIGHTS AND DIPPED BEAM HEADLIGHTS/FOLLOW ME HOME
The warning light switches on when side lights or dipped beam headlights are turned on.
Follow me home: the warning light switches on (on some versions together with a message and a symbol
on the display) when this device is used. The display shows also the time set for this functions (in seconds).
AUTOMATIC MAIN BEAM HEADLIGHTS
This warning light comes on when the automatic main beam headlights are turned on.
FOG LIGHTS
The warning light switches on when the fog lights are turned on.
LEFT DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved downwards or, together
with the right direction indicator, when the hazard warning light button is pressed.
RIGHT DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved upwards or, together with
the left direction indicator, when the hazard warning light button is pressed.
58
