FIAT 500L LIVING 2019 Owner handbook (in English)

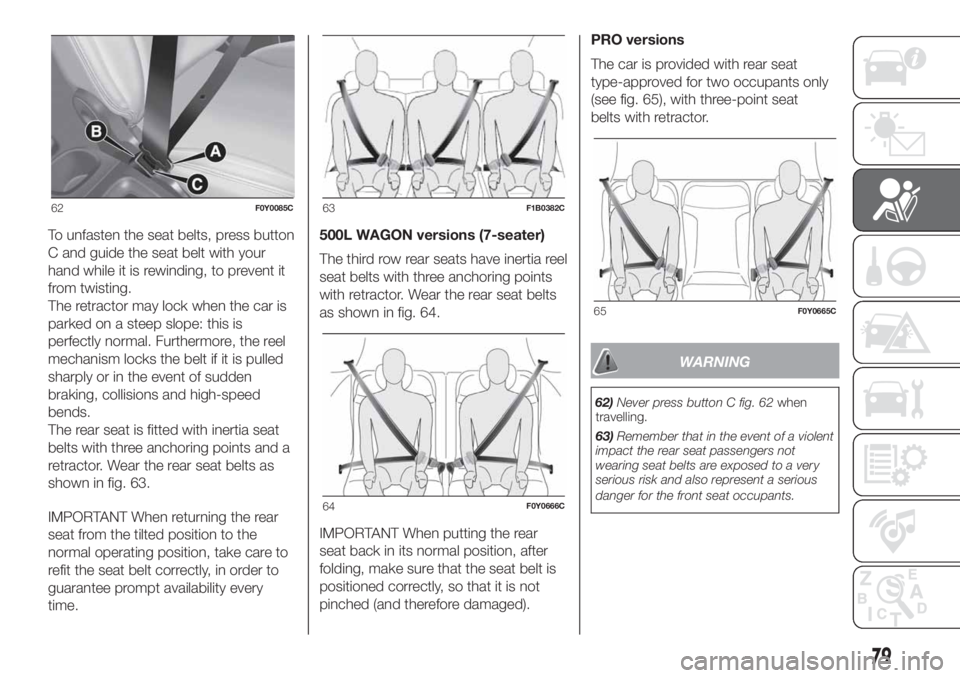

To unfasten the seat belts, press button
C and guide the seat belt with your
hand while it is rewinding, to prevent it
from twisting.
The retractor may lock when the car is
parked on a steep slope: this is
perfectly normal. Furthermore, the reel
mechanism locks the belt if it is pulled
sharply or in the event of sudden
braking, collisions and high-speed
bends.
The rear seat is fitted with inertia seat
belts with three anchoring points and a
retractor. Wear the rear seat belts as
shown in fig. 63.
IMPORTANT When returning the rear
seat from the tilted position to the
normal operating position, take care to
refit the seat belt correctly, in order to
guarantee prompt availability every
time.500L WAGON versions (7-seater)
The third row rear seats have inertia reel
seat belts with three anchoring points
with retractor. Wear the rear seat belts
as shown in fig. 64.
IMPORTANT When putting the rear
seat back in its normal position, after
folding, make sure that the seat belt is
positioned correctly, so that it is not
pinched (and therefore damaged).PRO versions
The car is provided with rear seat
type-approved for two occupants only
(see fig. 65), with three-point seat
belts with retractor.
WARNING
62)Never press button C fig. 62when
travelling.
63)Remember that in the event of a violent
impact the rear seat passengers not
wearing seat belts are exposed to a very
serious risk and also represent a serious
danger for the front seat occupants.
62F0Y0085C63F1B0382C
64F0Y0666C
65F0Y0665C
79

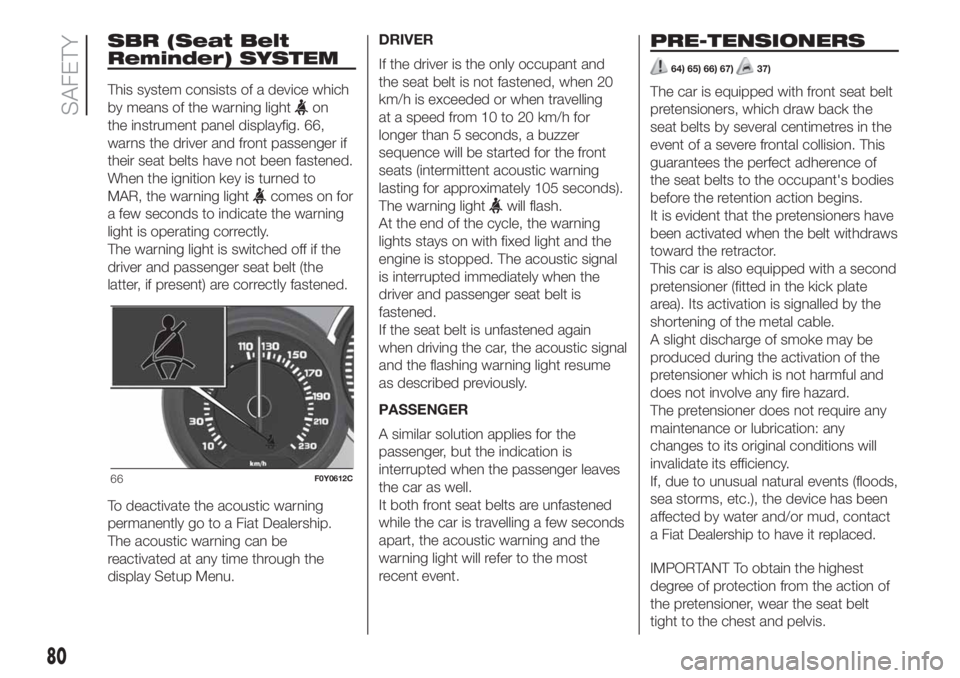

SBR (Seat Belt
Reminder) SYSTEM
This system consists of a device which
by means of the warning light
on
the instrument panel displayfig. 66,
warns the driver and front passenger if
their seat belts have not been fastened.
When the ignition key is turned to
MAR, the warning light
comes on for
a few seconds to indicate the warning
light is operating correctly.
The warning light is switched off if the
driver and passenger seat belt (the
latter, if present) are correctly fastened.
To deactivate the acoustic warning
permanently go to a Fiat Dealership.
The acoustic warning can be
reactivated at any time through the
display Setup Menu.DRIVER
If the driver is the only occupant and
the seat belt is not fastened, when 20
km/h is exceeded or when travelling
at a speed from 10 to 20 km/h for
longer than 5 seconds, a buzzer
sequence will be started for the front
seats (intermittent acoustic warning
lasting for approximately 105 seconds).
The warning lightwill flash.
At the end of the cycle, the warning
lights stays on with fixed light and the
engine is stopped. The acoustic signal
is interrupted immediately when the
driver and passenger seat belt is
fastened.
If the seat belt is unfastened again
when driving the car, the acoustic signal
and the flashing warning light resume
as described previously.
PASSENGER
A similar solution applies for the
passenger, but the indication is
interrupted when the passenger leaves
the car as well.
It both front seat belts are unfastened
while the car is travelling a few seconds
apart, the acoustic warning and the
warning light will refer to the most
recent event.
PRE-TENSIONERS
64) 65) 66) 67)37)
The car is equipped with front seat belt
pretensioners, which draw back the
seat belts by several centimetres in the
event of a severe frontal collision. This
guarantees the perfect adherence of
the seat belts to the occupant's bodies
before the retention action begins.
It is evident that the pretensioners have
been activated when the belt withdraws
toward the retractor.
This car is also equipped with a second
pretensioner (fitted in the kick plate
area). Its activation is signalled by the
shortening of the metal cable.
A slight discharge of smoke may be
produced during the activation of the
pretensioner which is not harmful and
does not involve any fire hazard.
The pretensioner does not require any
maintenance or lubrication: any
changes to its original conditions will
invalidate its efficiency.
If, due to unusual natural events (floods,
sea storms, etc.), the device has been
affected by water and/or mud, contact
a Fiat Dealership to have it replaced.
IMPORTANT To obtain the highest
degree of protection from the action of
the pretensioner, wear the seat belt
tight to the chest and pelvis.
66F0Y0612C
80
SAFETY

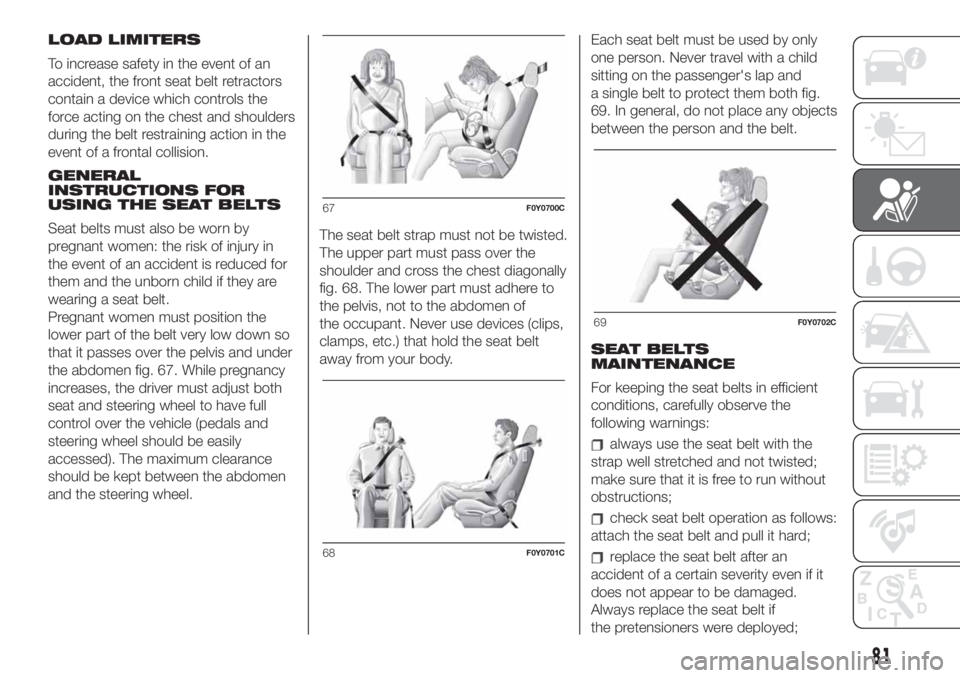

LOAD LIMITERS
To increase safety in the event of an
accident, the front seat belt retractors
contain a device which controls the
force acting on the chest and shoulders
during the belt restraining action in the
event of a frontal collision.
GENERAL
INSTRUCTIONS FOR
USING THE SEAT BELTS
Seat belts must also be worn by
pregnant women: the risk of injury in
the event of an accident is reduced for
them and the unborn child if they are
wearing a seat belt.
Pregnant women must position the
lower part of the belt very low down so
that it passes over the pelvis and under
the abdomen fig. 67. While pregnancy
increases, the driver must adjust both
seat and steering wheel to have full
control over the vehicle (pedals and
steering wheel should be easily
accessed). The maximum clearance
should be kept between the abdomen
and the steering wheel.The seat belt strap must not be twisted.
The upper part must pass over the
shoulder and cross the chest diagonally
fig. 68. The lower part must adhere to
the pelvis, not to the abdomen of
the occupant. Never use devices (clips,
clamps, etc.) that hold the seat belt
away from your body.Each seat belt must be used by only
one person. Never travel with a child
sitting on the passenger's lap and
a single belt to protect them both fig.
69. In general, do not place any objects
between the person and the belt.
SEAT BELTS
MAINTENANCE
For keeping the seat belts in efficient
conditions, carefully observe the
following warnings:
always use the seat belt with the
strap well stretched and not twisted;
make sure that it is free to run without
obstructions;
check seat belt operation as follows:
attach the seat belt and pull it hard;
replace the seat belt after an
accident of a certain severity even if it
does not appear to be damaged.
Always replace the seat belt if
the pretensioners were deployed;
67F0Y0700C
68F0Y0701C
69F0Y0702C
81

prevent the retractors from getting
wet: their correct operation is only
guaranteed if water does not get inside;
replace the seat belt when it shows
wear or cuts.
WARNING
64)The pretensioner may be used only
once. Contact a Fiat Dealership to have it
replaced after it has been deployed.
65)Removing or otherwise tampering with
pretensioner and seat belt components
is strictly prohibited. Any intervention
on these components must be performed
by qualified and authorised technicians.
Always contact a Fiat Dealership.
66)For maximum safety, keep the backrest
upright, lean back into it and make sure
the seat belt fits closely across your chest
and pelvis. Always fasten the seat belts
for both the front and rear seats! Travelling
without wearing seat belts will increase
the risk of serious injury and even death in
the event of an accident.
67)If the belt has been subjected to high
levels of stress, for example after an
accident, it should be changed completely
together with the attachments, attachment
fixing screws and the pretensioner. In
fact, even if the belt has no visible defects,
it may have lost its resilience.
WARNING
37)Operations implying impacts, vibrations
or localised heating (over 100°C for a
maximum of six hours) in the area around
the pretensioner may damage or deploy
it. Contact a Fiat Dealership should
intervention be necessary on these
components.
CHILD PROTECTION
SYSTEMS
CARRYING CHILDREN
SAFELY
68) 69) 70) 71) 72) 73) 74)
For optimal protection in the event of an
impact, all occupants must be seated
and wearing adequate restraint
systems, including newborn and other
children! This prescription is
compulsory in all EC countries
according to EC Directive 2003/20/EC.
Children below the height of 1.50
metres and up to 12 years must be
protected with suitable restraint
systems and be seated on the rear
seats.
Statistics on accidents indicate that the
rear seats offer greater safety for
children.
Compared with an adult, a child's head
is larger and heavier in proportion to
their body and the child's muscular and
bone structures are not fully developed.
Therefore, correct restraint systems
other than adult seat belts are
necessary to reduce as much as
possible the risk of injuries in the event
of an accident, braking or sudden
manoeuvre.
82
SAFETY

Children must be seated safely and
comfortably. As far as the
characteristics of the child seats used
allow, you are advised to keep children
in rear facing child seats for as long
as possible (at least until 3–4 years old),
since this is the most protected
position in the event of an impact.
The choice of the most suitable child
restraint system depends on the weight
and size of the child. There are various
types of child restraint systems, which
can be secured to the car by means
of the seat belts or with the ISOFIX/
i-Size anchoring points. It is
recommended to always choose the
restraint system most suitable for
the child; for this reason always refer to
the Owner Handbook provided with
the child restraint system, to be sure
that it is of the right type for the children
it is intended for.In Europe the characteristics of child
restraint systems are ruled by the
regulation ECE-R44, dividing them into
five weight groups:
Group Weight range
Group 0 up to 10 kg in weight
Group 0+ up to 13 kg in weight
Group 1 9-18 kg
Group 2 15 - 25 kg
Group 3 22 - 36 kg
The ECE-R44 standard was recently
paired with the ECE R-129 regulation,
which defines the features of the new
i-Size child restraint systems (see
the "Suitability of passenger seats for
i-Size child restraint system use"
paragraph for more information).
All restraint devices must bear the
type-approval data, together with the
control mark, on a label solidly fixed to
the child restraint system which must
never be removed.
Lineaccessori MOPAR
®includes child
restraint systems for each weight
group. These devices are
recommended having been specifically
designed for Fiat vehicles.IMPORTANT For correct installation on
the vehicle, some universal child
restraint systems require an accessory
(base) sold separately by the restraint
system's producer. Therefore, FCA
recommends confirming the retailer if
the desired child seat can be installed in
the car by having it done, before
buying the seat.
500L PRO versions
IMPORTANT The Highway Code
forbids transporting children on this
version, regardless of the child restraint
system: seat, ISOFIX/i-Size seat and
seat belts. This limitation also applies to
rear seats.
INSTALLING A CHILD
CARSEAT WITH
SEATBELTS
The Universal child restraint systems
installed with the seat belts only are
type-approved on the basis of the ECE
R44 standard and are divided into
various weight groups.
500L WAGON versions
Only forward facing child restraint
systems in Group 1, 2, 3 can be fitted
on the third row of rear seats.
83

IMPORTANT The figures are indicative
and provided for assembly purposes
only. Fit the child restraint system
according to the instructions, which
must be included.
Group 0 and 0+
Babies up to 13 kg must be carried
with a rear facing child restraint system
of a type as shown in fig. 70 which,
supporting the head, does not induce
stress on the neck in the event of
sudden decelerations.
The child restraint system is secured by
the vehicle seat belts, as shown in the
figure and it must restrain the child in
turn with its own belts.Group 1
Children weighing from 9 to 18 kg may
be transported in forward facing child
restraint systems fig. 71.
Group 2
Children from 15 to 25 kg may use the
vehicle seat belts directly fig. 72.Group 3
For children between 22 and 36 kg,
there are dedicated restraint systems
that allow the seat belt to be worn
correctly.
The fig. 73 shows the correct child
positioning on the rear seat.
Children over 1.50 m in height can wear
seat belts like adults.
70F0Y0703C
71F0Y0704C
72F0Y0705C
73F0Y0706C
84
SAFETY

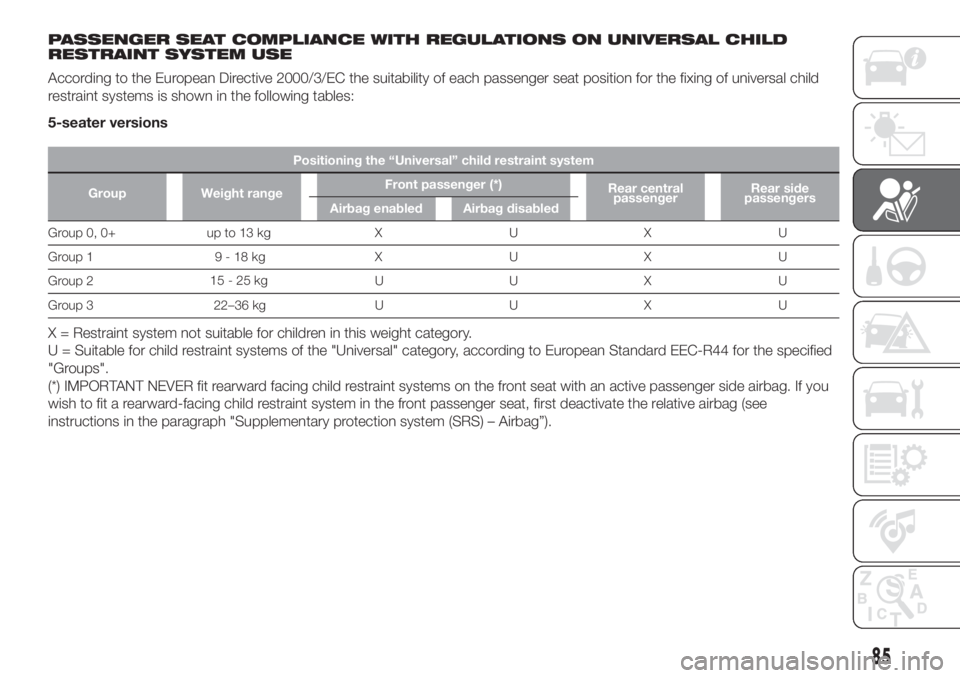

PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON UNIVERSAL CHILD
RESTRAINT SYSTEM USE
According to the European Directive 2000/3/EC the suitability of each passenger seat position for the fixing of universal child
restraint systems is shown in the following tables:
5-seater versions
Positioning the “Universal” child restraint system
Group Weight rangeFront passenger (*)
Rear central
passengerRear side
passengers
Airbag enabled Airbag disabled
Group 0, 0+ up to 13 kg X U X U
Group 1 9 - 18 kg X U X U
Group 215 - 25 kg
UUX U
Group 3 22–36 kg U U X U
X = Restraint system not suitable for children in this weight category.
U = Suitable for child restraint systems of the "Universal" category, according to European Standard EEC-R44 for the specified
"Groups".
(*) IMPORTANT NEVER fit rearward facing child restraint systems on the front seat with an active passenger side airbag. If you
wish to fit a rearward-facing child restraint system in the front passenger seat, first deactivate the relative airbag (see
instructions in the paragraph "Supplementary protection system (SRS) – Airbag”).
85

7-seater versions
Positioning the “Universal” child restraint system
Group Weight rangeFront passenger (*)2nd row rear
central
passenger2nd row side
rear
passengers3rd row side
rear
passengers (**)
Airbag enabled Airbag disabled
Group 0, 0+ up to 13 kg X U X U X
Group 1 9 - 18 kg X U X U UF (***)
Group 2 15 - 25 kg U U X U UF (***)
Group 3 22–36 kg U U X U UF (***)
X = Restraint system not suitable for children in this weight category.
U = Suitable for child restraint systems of the "Universal" category, according to European Standard EEC-R44 for the specified
"Groups".
UF = Suitable for forward facing child restraint systems in the “Universal” category, according to European Standard EEC-R44
for the specified “Groups”.
(*) IMPORTANT NEVER fit rearward facing child restraint systems on the front seat with an active passenger side airbag. If you
wish to fit a rearward-facing child restraint system in the front passenger seat, first deactivate the relative airbag (see
instructions in the paragraph "Supplementary protection system (SRS) – Airbag”).
(**) For versions/markets, where provided.
(***) The 2nd row seat must be adjusted.
86
SAFETY

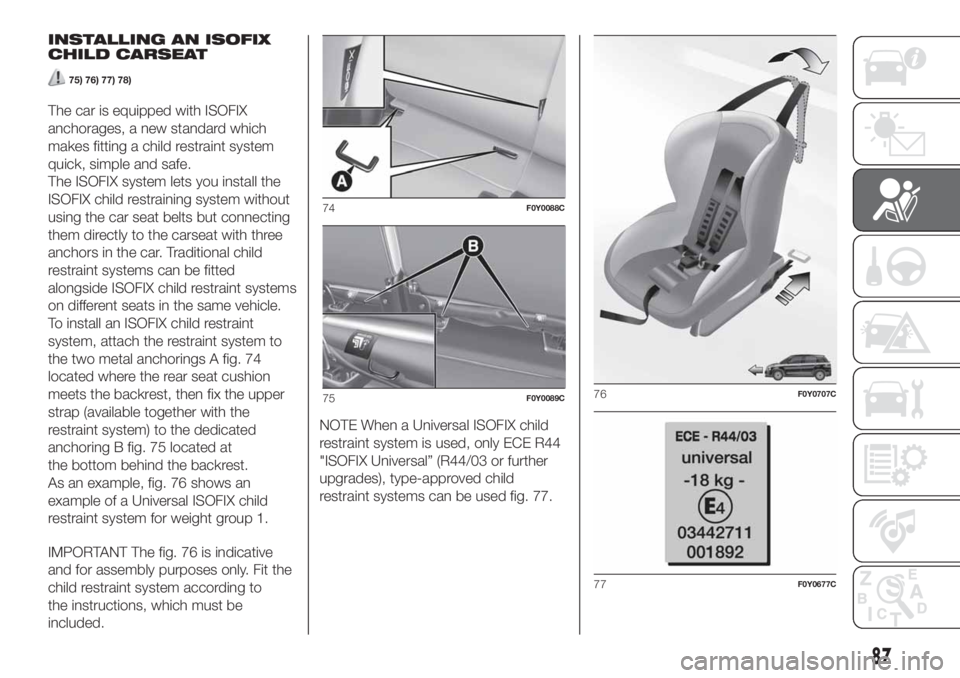

INSTALLING AN ISOFIX
CHILD CARSEAT
75) 76) 77) 78)
The car is equipped with ISOFIX
anchorages, a new standard which
makes fitting a child restraint system
quick, simple and safe.
The ISOFIX system lets you install the
ISOFIX child restraining system without
using the car seat belts but connecting
them directly to the carseat with three
anchors in the car. Traditional child
restraint systems can be fitted
alongside ISOFIX child restraint systems
on different seats in the same vehicle.
To install an ISOFIX child restraint
system, attach the restraint system to
the two metal anchorings A fig. 74
located where the rear seat cushion
meets the backrest, then fix the upper
strap (available together with the
restraint system) to the dedicated
anchoring B fig. 75 located at
the bottom behind the backrest.
As an example, fig. 76 shows an
example of a Universal ISOFIX child
restraint system for weight group 1.
IMPORTANT The fig. 76 is indicative
and for assembly purposes only. Fit the
child restraint system according to
the instructions, which must be
included.NOTE When a Universal ISOFIX child
restraint system is used, only ECE R44
"ISOFIX Universal” (R44/03 or further
upgrades), type-approved child
restraint systems can be used fig. 77.
74F0Y0088C
75F0Y0089C76F0Y0707C
77F0Y0677C
87

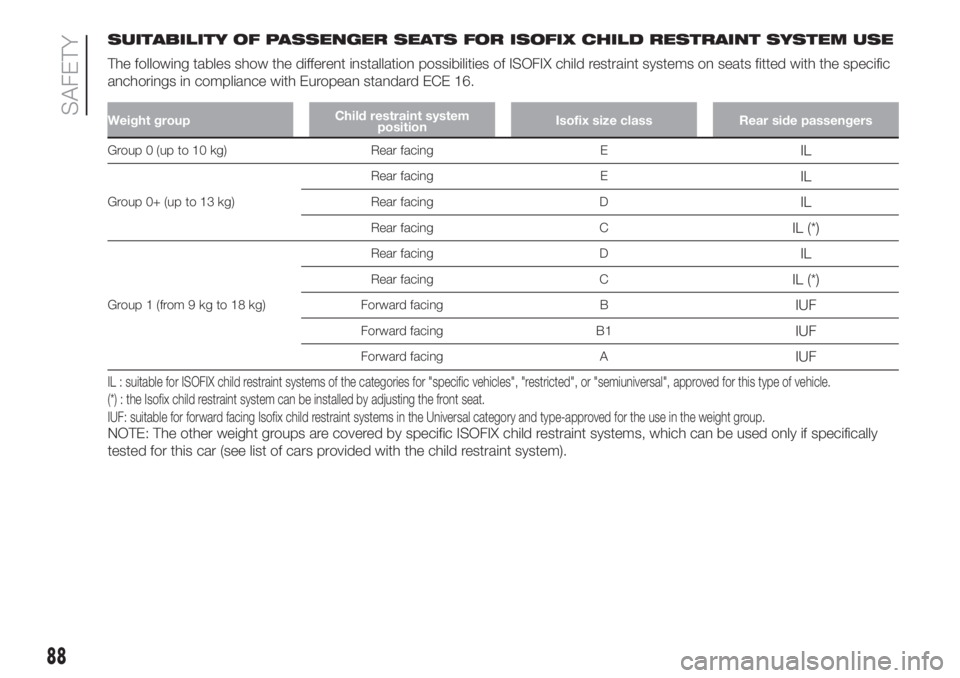

SUITABILITY OF PASSENGER SEATS FOR ISOFIX CHILD RESTRAINT SYSTEM USE
The following tables show the different installation possibilities of ISOFIX child restraint systems on seats fitted with the specific
anchorings in compliance with European standard ECE 16.
Weight groupChild restraint system
positionIsofix size class Rear side passengers
Group 0 (up to 10 kg) Rear facing EIL
Group 0+ (up to 13 kg)Rear facing E
IL
Rear facing DIL
Rear facing CIL (*)
Group 1 (from 9 kg to 18 kg)Rear facing D
IL
Rear facing CIL (*)
Forward facing BIUF
Forward facing B1IUF
Forward facing AIUF
IL : suitable for ISOFIX child restraint systems of the categories for "specific vehicles", "restricted", or "semiuniversal", approved for this type of vehicle.
(*) : the Isofix child restraint system can be installed by adjusting the front seat.
IUF: suitable for forward facing Isofix child restraint systems in the Universal category and type-approved for the use in the weight group.
NOTE: The other weight groups are covered by specific ISOFIX child restraint systems, which can be used only if specifically
tested for this car (see list of cars provided with the child restraint system).
88
SAFETY
