heater FIAT 500L LIVING 2019 Owner handbook (in English)

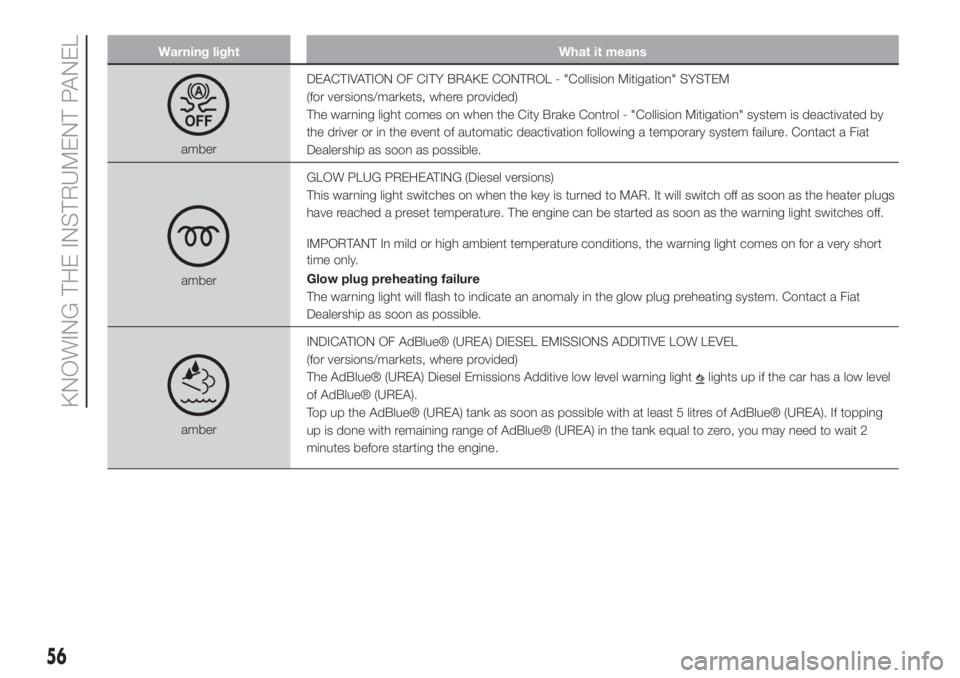

Warning light What it means
amberDEACTIVATION OF CITY BRAKE CONTROL - "Collision Mitigation" SYSTEM
(for versions/markets, where provided)
The warning light comes on when the City Brake Control - "Collision Mitigation" system is deactivated by
the driver or in the event of automatic deactivation following a temporary system failure. Contact a Fiat
Dealership as soon as possible.
amberGLOW PLUG PREHEATING (Diesel versions)
This warning light switches on when the key is turned to MAR. It will switch off as soon as the heater plugs
have reached a preset temperature. The engine can be started as soon as the warning light switches off.
IMPORTANT In mild or high ambient temperature conditions, the warning light comes on for a very short
time only.
Glow plug preheating failure
The warning light will flash to indicate an anomaly in the glow plug preheating system. Contact a Fiat
Dealership as soon as possible.
amberINDICATION OF AdBlue® (UREA) DIESEL EMISSIONS ADDITIVE LOW LEVEL
(for versions/markets, where provided)
The AdBlue® (UREA) Diesel Emissions Additive low level warning light
lights up if the car has a low level
of AdBlue® (UREA).
Top up the AdBlue® (UREA) tank as soon as possible with at least 5 litres of AdBlue® (UREA). If topping
up is done with remaining range of AdBlue® (UREA) in the tank equal to zero, you may need to wait 2
minutes before starting the engine.
56
KNOWING THE INSTRUMENT PANEL
