Display
By selecting Display,you can access the following
settings:
• Screen Setup: Allows you to configure the display
screen.
• Language: Allows you to select the language in
which to display the information/warnings.
• Automatic Reset Trip B: Allows you to set the options
to reset the Trip B (never, always, every 2 hours or
every 8 hours).
• Phone Repetition: Allows you to select “On” or
“Off,” The instrument cluster display can also dis-
play the information concerning phone mode. The
information that can be displayed is the connection
status of the mobile phone (phone connected or
disconnected), the active telephone calls/ incoming/on hold, and the management of double
calls (first incoming second waiting, etc.).
• Navigation Repetition: Allows you to select “On” or
“Off”, on the instrument cluster display, information
relating to the navigation mode.
Units
By selecting the item Units Of Measure,” you can select
the unit of measure used in the display.
Possible options are:
• US
• Metric
• Custom
Clock And Date
By selecting the item clock and date,you can adjust
the clock.
Possible options are:
• Set Time: Adjust hours/minutes.
• Set Format: Adjust the time format 12h(12 hours) or
24h (24 hours).
• Set Date: Adjust day/month/year.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 129

Security
By selecting the item “Security,” you can make the
following adjustments:
•Speed Warning: Set the vehicle speed limit (MPH
or km/h), which the driver is notified through a
visual and acoustic signaling (display of a message
and a symbol on the display).
• Seat Belt Buzzer: This function is only viewable when
the Seat Belt Reminder (SBR) system is active.
• Hill Start Assist: Activation/Deactivation of the Hill
Start Assist system.
Safety And Assistance
By selecting the item Safety & Assistance, you can
make the following adjustments:
• FCW: A selection of operating modes of the system
Forward Collision Warning Plus.
• FCW Sensitivity: A selection of the readinessof
intervention of the Forward Collision Warning Plus
system, based on the distance to the obstacle.
• ParkSense: A selection of the type of information
provided by ParkSense. •
ParkSense Vol.: A selection of the volume of acoustic
signals provided by ParkSense.
• Auto Wipers: Enabling/disabling the automatic op-
eration of wipers in the event of rain.
• LaneSense Warning: A selection of the readinessof
intervention of LaneSense.
• Warning Buzzer Volume: Increase or decrease the
volume of the buzzerby selecting “Low”, “Medium”,
or “High”.
• Maintenance Brakes — If Equipped: Activation of the
procedure to carry out braking system maintenance.
• Auto Park Brake — If Equipped: Enable/disable
auto-insertion of the Electric Parking Brake.
Lights
By selecting the item Lights,you can make the follow-
ing adjustments:
• Headlight Off Delay: Set the delay for headlight
shutoff after engine shutoff.
• Headlight Sensor: Adjust the sensitivity of headlight
brightness.
130 GETTING TO KNOW YOUR INSTRUMENT PANEL

•Interior Ambient Lights: Increase of decrease the
brightness of the Interior Ambient Lights.
• Greeting Lights: Enable/disable the vehicle’s Greet-
ing Lights.
• Auto High Beam: Activate/deactivate the automatic
main beam headlights — If Equipped.
• Daytime Lights: Activate/deactivate the daytime
running lights.
• Cornering Lights: activate/deactivate the cornering
lights — If Equipped.
Doors And Locks
By selecting the item Doors & Locks,you can make the
following adjustments:
• Auto Door Lock: Activate/deactivate the automatic
locking of the doors with the vehicle moving.
• Auto Unlock On Exit: Automatic unlocking of the
doors when exiting the vehicle.
• Flash Light With Lock: Activate the direction indica-
tors when closing the doors. •
Sound Horn With Lock: Activate/deactivate the horn
when pushing the lock button on the Remote Keyless
Entry. The options are Off,First Press,” and Sec-
ond Press.
• Horn With Remote Start: activate/deactivate the
horn at the Remote Starting of the engine with the
Remote Keyless Entry.
• Unlock On First Press Of Key Fob (vehicles without
Passive Entry): allows you to choose whether to
unlock all the doors or only the driver’s side door on
the first push of the unlock button on the Remote
Keyless Entry.
• Remote Door Unlock: Allows you to open the driver
door only on the first push of the unlock button on
the Remote Keyless Entry.
• Passive Entry — If Equipped: Activate the automatic
locking of the doors.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 131

WARNING AND INDICATOR LIGHTS
The warning/indicator lights switch on in the instru-
ment panel together with a dedicated message and/or
acoustic signal when applicable. These indications are
indicative and precautionary and as such must not be
considered as exhaustive and/or alternative to the
information contained in the Owner ’s Manual, which
you are advised to read carefully in all cases. Always
refer to the information in this chapter in the event of a
failure indication.All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some
telltales are optional and may not appear.
Red Telltale Indicator Lights
Air Bag Warning Light
Red Telltale
Light What It Means
Air Bag Warning Light
This light will turn on for four to eight seconds as a bulb check when the ignition switch is
first turned to ON/RUN. If the light is either not on during startup, stays on, or turns on
while driving, have the system inspected at an authorized dealer as soon as possible. This
light will illuminate with a single chime when a fault with the Air Bag Warning Light has
been detected, it will stay on until the fault is cleared. If the light comes on intermittently or
remains on while driving, have an authorized dealer service the vehicle immediately. Refer
to “Occupant Restraints” in “Safety” for further information.
132 GETTING TO KNOW YOUR INSTRUMENT PANEL

Seat Belt Reminder Warning Light
Red TelltaleLight What It Means
Seat Belt Reminder Warning Light
When the ignition switch is first turned to ON/RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if the driver’s seat belt is unbuckled, a
chime will sound. After the bulb check or when driving, if the driver ’s seat belt remains un-
buckled, the Seat Belt Reminder Light will flash or remain on continuously and a chime will
sound. Refer to “Occupant Restraint Systems” in “Safety” for further information.
Brake Warning Light
Red Telltale
Light What It Means
English
Metric
Brake Warning Light
This light monitors various brake functions, including brake fluid level and parking brake appli-
cation. If the brake light turns on it may indicate that the parking brake is applied, that the brake
fluid level is low, or that there is a problem with the anti-lock brake system reservoir.
If the light remains on when the parking brake has been disengaged, and the fluid level is at the
full mark on the master cylinder reservoir, it indicates a possible brake hydraulic system malfunc-
tion or that a problem with the Brake Booster has been detected by the Anti-Lock Brake System
(ABS) / Electronic Stability Control (ESC) system. In this case, the light will remain on until the
condition has been corrected. If the problem is related to the Brake Booster, the ABS pump will
run when applying the brake, and a brake pedal pulsation may be felt during each stop.
NOTE:
Brake Warning Light may illuminate due to excessive wear to brake pads.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 133

The dual brake system provides a reserve braking
capacity in the event of a failure to a portion of the
hydraulic system. A leak in either half of the dual brake
system is indicated by the Brake Warning Light, which
will turn on when the brake fluid level in the master
cylinder has dropped below a specified level.
The light will remain on until the cause is corrected.
NOTE:The light may flash momentarily during sharp
cornering maneuvers, which change fluid level condi-
tions. The vehicle should have service performed, and
the brake fluid level checked.
If brake failure is indicated, immediate repair is neces-
sary.WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have
failed. It will take longer to stop the vehicle. You
could have a collision. Have the vehicle checked
immediately.
Vehicles equipped with the Anti-Lock Brake System
(ABS) are also equipped with Electronic Brake Force
Distribution (EBD).
CAUTION!
In the event of an EBD failure, the Brake Warning
Light will turn on along with the ABS Light.
Immediate repair to the ABS system is required.
134 GETTING TO KNOW YOUR INSTRUMENT PANEL

Operation of the Brake Warning Light can be checked
by placing the ignition in the MAR (ACC/ON/RUN)
position. The light should illuminate for approximately
two seconds. The light should then turn off unless the
parking brake is applied or a brake fault is detected. If
the light does not illuminate, have the light inspected by
an authorized dealer.The light also will turn on when the parking brake is
applied with the ignition placed in the MAR (ACC/
ON/RUN) position.
NOTE:
This light shows only that the parking brake is
applied. It does not show the degree of brake applica-
tion.
Battery Charge Warning Light
Red Telltale Light What It Means
Battery Charge Warning Light
This light illuminates when the battery is not charging properly. If it stays on while the en-
gine is running, there may be a malfunction with the charging system. Contact your autho-
rized dealer as soon as possible. This indicates a possible problem with the electrical system
or a related component.
If jump starting is required, refer to “Jump Starting” in “In Case Of Emergency.”
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 135

Coolant Temperature Warning Light
Red TelltaleLight What It Means
Coolant Temperature Warning Light
This light warns of an overheated engine condition. If the light turns on while driving,
safely pull over and stop the vehicle. If the A/C system is on, turn it off. Also, shift the
transmission into NEUTRAL and idle the vehicle. If the temperature reading does not return
to normal, turn the engine off immediately and call for service.
NOTE:
As the coolant temperature gauge approaches
H,a Red Dot lamp located to the left of the
“H” will illuminate and a single chime will sound. Further overheating will cause the tem-
perature gauge to pass H.In this case, a continuous chime will sound until the engine is
allowed to cool or the 4 minute duration is expired, whichever comes first.
Door Open Warning Light
Red Telltale Light What It Means
Door Open Warning Light
This indicator will illuminate when a door is ajar/open and not fully closed.
•
Driver ’s Door Open
• Passenger Door Open
• Driver and Passenger Door Open
136 GETTING TO KNOW YOUR INSTRUMENT PANEL

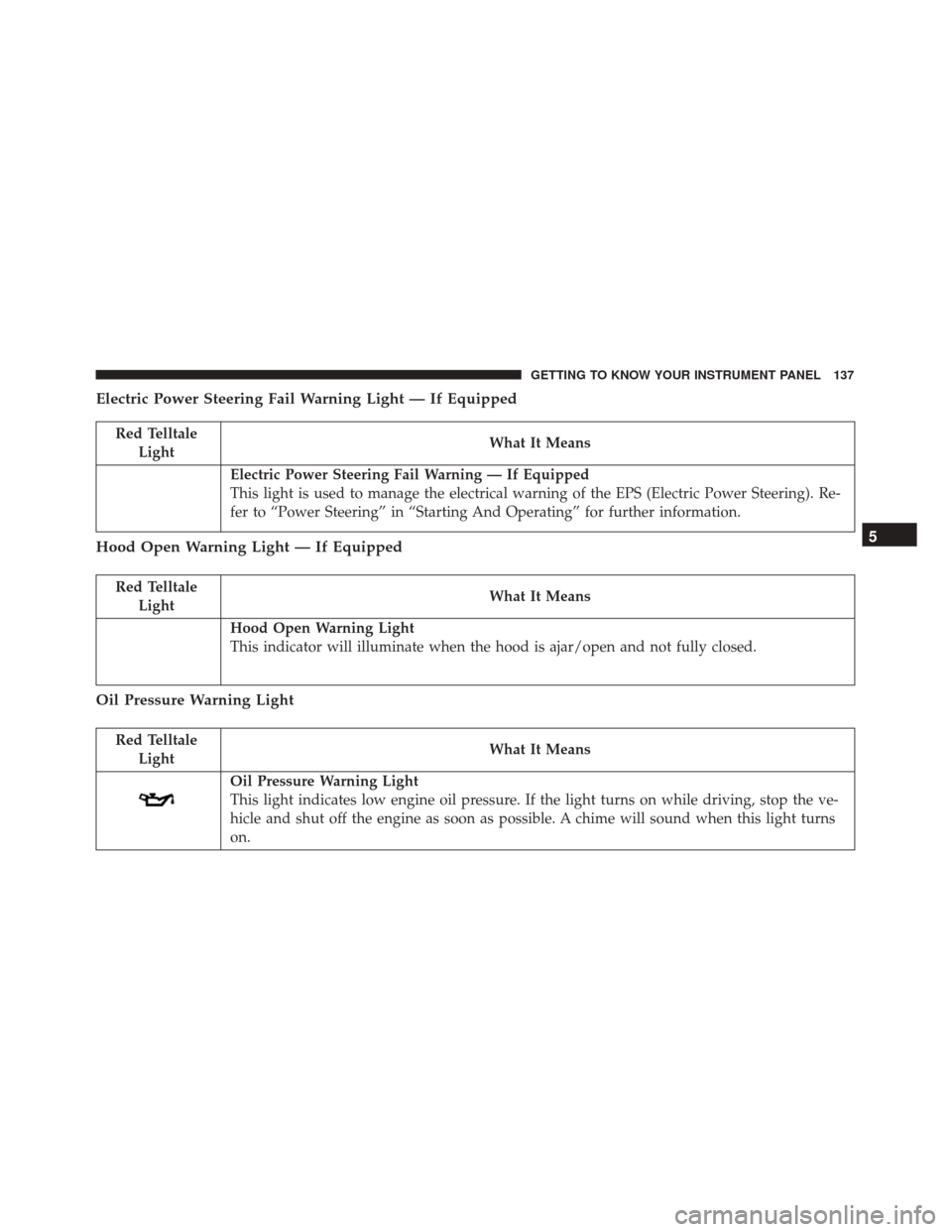

Electric Power Steering Fail Warning Light — If Equipped
Red TelltaleLight What It Means
Electric Power Steering Fail Warning — If Equipped
This light is used to manage the electrical warning of the EPS (Electric Power Steering). Re-
fer to “Power Steering” in “Starting And Operating” for further information.
Hood Open Warning Light — If Equipped
Red Telltale
Light What It Means
Hood Open Warning Light
This indicator will illuminate when the hood is ajar/open and not fully closed.
Oil Pressure Warning Light
Red Telltale
Light What It Means
Oil Pressure Warning Light
This light indicates low engine oil pressure. If the light turns on while driving, stop the ve-
hicle and shut off the engine as soon as possible. A chime will sound when this light turns
on.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 137

Red TelltaleLight What It Means
Do not operate the vehicle until the cause is corrected. This light does not indicate how
much oil is in the engine. The engine oil level must be checked under the hood.
Transmission Fault Warning Light
Red Telltale Light What It Means
Transmission Fault Warning Light
This light will illuminate (together with a message in the instrument cluster display and a
buzzer) to indicate a transmission fault. Contact your authorized dealer if the message re-
mains after restarting the engine.
WARNING!
If you continue operating the vehicle when the
Transmission Temperature Warning Light is illumi-
nated you could cause the fluid to boil over, come in
contact with hot engine or exhaust components and
cause a fire.
CAUTION!
Continuous driving with the Transmission Tem-
perature Warning Light illuminated will eventually
cause severe transmission damage or transmission
failure.
138 GETTING TO KNOW YOUR INSTRUMENT PANEL
