CONTROL PANEL AND ON-BOARD INSTRUMENTSVERSIONS WITH SINGLE-COLOUR DISPLAYA. Speedometer (speed indicator) – B. Fuel level digital gauge with reserve warning light – C. Display – D. Digital engine coolant temperature gauge
with overheating warning light – E. Rev counter.
Warning light supplied on diesel versions only.
IMPORTANT The illumination of the instrument panel graphics may vary according to version.
50
F1B0177C
39
15-12-2014 8:23 Pagina 39

VERSIONS WITH COLOUR DISPLAYA. Speedometer (speed indicator) – B. Fuel level digital gauge with reserve warning light – C. Display – D. Digital engine coolant temperature gauge
with overheating warning light – E. Rev counter.
Warning light supplied on diesel versions only.
IMPORTANT The illumination of the instrument panel graphics may vary according to version.
51
F1B0178C
40
KNOWING THE INSTRUMENT PANEL
15-12-2014 8:23 Pagina 40

WARNING LIGHTS AND MESSAGESIMPORTANT The warning light switches on in the instrument panel together with a dedicated message and/or acoustic signal
when applicable. These indications are indicative and precautionary and as such must not be considered as exhaustive and/or
alternative to the information contained in the Owner Handbook, which you are advised to read carefully in all cases. Always
refer to the information in this chapter in the event of a failure indication.
IMPORTANT Failure indications displayed are divided into two categories: serious and less serious failures. Serious failures are
indicated by a repeated and prolonged warning "cycle". Less serious failures are indicated by a warning "cycle" with a shorter
duration. The display cycle of both categories can be interrupted. The instrument panel warning light will stay on until the cause
of the failure is eliminated.
Warning light What it means
INSUFFICIENT BRAKE FLUID / ELECTRIC PARKING BRAKE ON
Low brake fluid level
The warning light switches on when the brake fluid in the reservoir falls below the minimum level, possibly
due to a leak in the circuit. Restore the brake fluid level, then check that the warning light has switched off.
If the warning light stays on, contact a Fiat Dealership.
Electric parking brake on
The warning light switches on when the electric parking brake is engaged. Release the electric parking
brake, then check that the warning light has switched off. If the warning light stays on, contact a Fiat
Dealership.EBD FAILURE
The simultaneous switching on of the
(red) and
(amber) warning lights with the engine on
indicates either a failure of the EBD system or that the system is not available. In this case, the rear wheels
may suddenly lock and the vehicle may swerve when braking sharply.
Drive very carefully to the nearest Fiat Dealership to have the system inspected immediately.
44
KNOWING THE INSTRUMENT PANEL
15-12-2014 8:23 Pagina 44

Warning light What it means
ENGINE COOLANT TEMPERATURE TOO HIGH
The warning light (or the icon on the display on some versions) switches on when the engine is overheated.
When driving normally: stop the vehicle, switch off the engine and check that the water level in the
reservoir is not below the MIN mark. If it is, wait for the engine to cool down, then slowly and carefully open
the cap, top up with coolant and check that the level is between the MIN and MAX marks on the reservoir.
Also check visually for any fluid leaks. If, when restarting, the warning light switches on (or the icon is
displayed) again, contact a Fiat Dealership.
If the vehicle is used under demanding conditions(e.g. in high-performance driving): slow down and,
if the warning light stays on, stop the vehicle. Stop for two or three minutes with the engine running and
slightly accelerated to facilitate better coolant circulation, then turn the engine off. Check that the coolant
level is correct as described above.
IMPORTANT Over demanding routes, it is advisable to keep the engine running and slightly accelerated for
a few minutes before turning it off.ELECTRONIC ALARM
The warning light turns on when the electronic alarm is activated (deterrent function).
46
KNOWING THE INSTRUMENT PANEL
15-12-2014 8:23 Pagina 46

Warning light What it means
ESC SYSTEM
ESC system activation
Intervention by the system is indicated by the flashing of the warning light: it indicates that the vehicle is in
critical stability and grip conditions.
ESC system failure
If the warning light does not switch off, or if it stays on with the engine running, a failure was found on the
ESC system. Contact a Fiat Dealership as soon as possible.
Hill Hold Control system failure
The warning light switches on and the displays shows the dedicated message, indicating Hill Hold Control
system failure. Contact a Fiat Dealership as soon as possible.PARTIAL / TOTAL DEACTIVATION OF ACTIVE SAFETY SYSTEMS
The warning light switches on to indicate that some active safety systems have been partially or totally
deactivated. When the systems are reactivated, the warning light switches off.REAR FOG LIGHT
The warning light switches on when the rear fog light is turned on.ELECTRIC PARKING BRAKE FAILURE
The warning light switches on when electric parking brake failure is detected. Contact a Fiat Dealership as
soon as possible.
30)
WARNING
30)If a failure is present with sharp braking, the rear wheels may lock and the vehicle may swerve.
48
KNOWING THE INSTRUMENT PANEL
15-12-2014 8:23 Pagina 48

Warning light What it means
INJECTION/EOBD SYSTEM FAILURE
In normal conditions, when the ignition device is brought to MAR, the warning light switches on, but it
should switch off as soon as the engine is started. The operation of the warning light may be checked by
the traffic police using specific devices. Comply with the laws and regulations of the country where you are
driving.
13)
Injection system failure
If the warning light remains on, or it switches on whilst driving, the injection system is not working properly.
The warning light on constantly signals a malfunction in the supply/ignition system which could cause high
exhaust emissions, a possible loss of performance, poor driveability and high consumption. On some
versions, the display shows the dedicated message. The warning light switches off if the malfunction
disappears, but it is still stored by the system. Under these conditions, the vehicle can continue travelling at
moderate speed but without demanding excessive effort from the engine or high speed. Prolonged use of
the vehicle with the warning light on may cause damage. Contact a Fiat Dealership as soon as possible.
Catalytic converter damaged
If the warning light flashes, it means that the catalytic converter may be damaged. Release the accelerator
pedal to lower the speed of the engine until the warning light stops flashing. Continue the journey at
moderate speed, trying to avoid driving conditions that may cause further flashing and contact a Fiat
Dealership as soon as possible.
14)
WARNING
13)If, turning the ignition device to MAR, the
warning light does not turn on or if it turns on steadily or flashing when travelling (on some
versions together with the message on the display), contact a Fiat Dealership as soon as possible.
14)If, turning the ignition device to MAR, the warning light does not turn on or if it turns on steadily or flashing when travelling, contact a Fiat
Dealership as soon as possible.
49
15-12-2014 8:23 Pagina 49

Warning light What it means

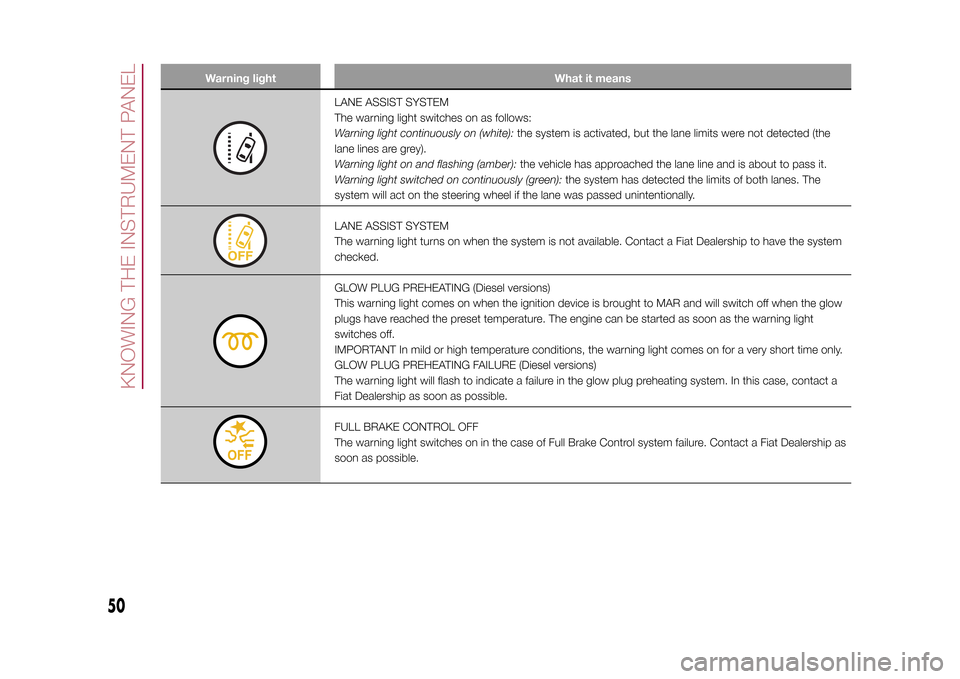

LANE ASSIST SYSTEM
The warning light switches on as follows:
Warning light continuously on (white):the system is activated, but the lane limits were not detected (the
lane lines are grey).
Warning light on and flashing (amber):the vehicle has approached the lane line and is about to pass it.
Warning light switched on continuously (green):the system has detected the limits of both lanes. The
system will act on the steering wheel if the lane was passed unintentionally.LANE ASSIST SYSTEM
The warning light turns on when the system is not available. Contact a Fiat Dealership to have the system
checked.GLOW PLUG PREHEATING (Diesel versions)
This warning light comes on when the ignition device is brought to MAR and will switch off when the glow
plugs have reached the preset temperature. The engine can be started as soon as the warning light
switches off.
IMPORTANT In mild or high temperature conditions, the warning light comes on for a very short time only.
GLOW PLUG PREHEATING FAILURE (Diesel versions)
The warning light will flash to indicate a failure in the glow plug preheating system. In this case, contact a
Fiat Dealership as soon as possible.FULL BRAKE CONTROL OFF
The warning light switches on in the case of Full Brake Control system failure. Contact a Fiat Dealership as
soon as possible.
50
KNOWING THE INSTRUMENT PANEL
15-12-2014 8:23 Pagina 50

Warning light What it means
RIGHT-HAND DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved upwards or, together with
the left indicator, when the hazard warning light button is pressed.START&STOP SYSTEM ACTIVATION/DEACTIVATION
Activation: the symbol turns on when the system is activated; in this case the LED on the button is off.
Deactivation: a dedicated message appears on the display when the Start&Stop system is deactivated; in
this case the LED on the button is on.MAIN BEAM HEADLIGHTS
The warning light switches on when the main beam headlights are turned on.
SYMBOLS ON THE DISPLAY
Symbol What it means
LOW ENGINE OIL PRESSURE
The symbol switches on, together with a message on the display, if there is insufficient engine oil pressure.
16)
IMPORTANT Do not use the vehicle until the failure has been eliminated. The switching on of the symbol
does not indicate the quantity of oil in the engine: the oil level must be checked manually.
WARNING
16)If the
symbol switches on when driving, stop the engine immediately and contact a Fiat Dealership.
52
KNOWING THE INSTRUMENT PANEL
15-12-2014 8:23 Pagina 52

Symbol What it means
AIRBAG FAILURE
If the symbol switches on constantly, this indicates a failure in the airbag system. Contact a Fiat Dealership
as soon as possible.BONNET NOT PROPERLY SHUT
The symbol switches on when the bonnet is not properly shut. Close the bonnet properly.TAILGATE NOT PROPERLY SHUT
The symbol switches on when the tailgate is not properly shut. Close the tailgate correctly.AUTOMATIC TRANSMISSION FAILURE
The symbol switches on to indicate that there is a failure in the automatic transmission. Contact a Fiat
Dealership as soon as possible.
17)
WARNING
17)Driving the vehicle with this symbol on may severely damage the gearbox, with resulting breakage. The oil may also overheat: contact
with hot engine or with exhaust components at high temperature could cause fires.
53
15-12-2014 8:23 Pagina 53

Symbol What it means
ALTERNATOR FAILURE
The switching on of the symbol with engine on corresponds to an alternator failure. Contact a Fiat
Dealership as soon as possible.INCOMPLETE DOOR LOCKING
The symbol switches on when one or more doors are not completely shut. An acoustic signal is activated
with the doors open and the vehicle moving. Close the doors properly.DST FAILURE
The symbol switches on in the case of failure of the DST system. Contact a Fiat Dealership as soon as
possible.FULL BRAKE CONTROL SYSTEM FAILURE
The amber symbol switches on in the case of temporary Full Brake Control system failure.
The red symbol switches on in the case of permanent Full Brake Control system failure. In this case,
contact a Fiat Dealership as soon as possible.
