FIAT 500X 2016 2.G Owners Manual

The information displayed is:
•“Radio (AM or FM)”
• View Radio Station Name (if equipped), frequency,
and graphical icon
• MP3”
• Title display or number song playing
• USB
• Title display or number song playing
• Ipod
• Display song title (if equipped)
Messages (Stored)
This menu item allows you to display the information
messages/malfunction stored. The background color of the display varies according to
the priorities of the failure:
•
Failed Messages with low priority displays in yellow
• Failed Messages with high priority displays in red
Settings
This menu item allows you to change the settings for the
following:
•Display
• Units
• Clock and Date
• Security
• Safety and Assistance
• Lights
• Doors and Locks5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 169

Refer to “Uconnect Settings” in “Multimedia” for more
information.
Display
By selectingDisplay,you can access the following
settings:
• Screen Setup: Allows you to configure the display
screen.
• Language: Allows you to select the language in which
to display the information/warnings.
• Automatic Reset Trip B: Allows you to set the options
to reset the Trip B (never, always, every 2 hours or
every 8 hours);
• Phone Repetition: The instrument cluster display can
also display the information concerning phone mode.
The information that can be displayed is the connec-
tion status of the mobile phone (phone connected or disconnected), the active telephone calls/incoming/on
hold, and the management of double calls (first incom-
ing second waiting, etc.).
• Navigation Repetition: Allows you to view, on the
instrument cluster display, information relating to the
navigation mode.
Units
By selecting the item Units Of Measure,” you can select
the unit of measure used in the display.
Possible options are:
• US
• Metric
• Custom
170 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

Clock and Date
By selecting the itemclock and date,you can adjust the
clock.
Possible options are:
• Set Time: Adjust hours/minutes
• Set Format: Adjust the time format 12h(12 hours) or
 24h (24 hours)
• Set Date: Adjust day/month/year
Security
By selecting the item “Security,” you can make the
following adjustments:
• Speed Warning: Set the vehicle speed limit (MPH
or km/h), which the driver is notified through a visual
and acoustic signaling (display of a message and a
symbol on the display). •
Seat Belt Buzzer: This function is only viewable when
the Seat Belt Reminder (SBR) system is active.
• Hill Start Assist: Activation/Deactivation of the Hill
Start Assist system.
Safety and Assistance
By selecting the item Safety & Assistance, you can make
the following adjustments:
• FCW: A selection of operating modes of the system
Forward Collision Warning Plus
• FCW Sensitivity: A selection of the readinessof
intervention of the Forward Collision Warning Plus
system, based on the distance to the obstacle
• ParkSense: A selection of the type of information
provided by ParkSense
• ParkSense Vol.: A selection of the volume of acoustic
signals provided by ParkSense
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 171

•Auto Wipers: Enabling/disabling the automatic opera-
tion of wipers in the event of rain
• LaneSense Warning: A selection of the readinessof
intervention of LaneSense
• Warning Buzzer Volume: Increase or decrease the
volume of the buzzer.
• Maintenance Brakes — If Equipped: Activation of the
procedure to carry out braking system maintenance
• Auto Park Brake — If Equipped: Enable/disable auto-
insertion of the Electric Parking Brake
Lights
By selecting the item Lights,you can make the follow-
ing adjustments:
• Headlight Off Delay: Set the delay for headlight shut-
off after engine shutoff •
Headlight Sensor: Adjust the sensitivity of headlight
brightness
• Interior Ambient Lights: Increase of decrease the
brightness of the Interior Ambient Lights
• Greeting Lights: Enable/disable the vehicle’s Greeting
Lights
• Auto. High Beam: Activate/deactivate the automatic
main beam headlights — If Equipped
• Daytime Lights: Activate/deactivate the daytime run-
ning lights
• Cornering Lights: activate/deactivate the cornering
lights — If Equipped
172 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

Doors And Locks
By selecting the itemDoors & Locks,you can make the
following adjustments:
• Auto Door Lock: Activate/deactivate the automatic
locking of the doors with the vehicle moving
• Auto Unlock On Exit: Automatic unlocking of the
doors when exiting the vehicle
• Flash Light With Lock: Activate the direction indica-
tors when closing the doors
• Sound Horn With Lock: Activate/deactivate the horn
when pushing the LOCK button on the RKE. The
options are Off,First Press,” and Second Press.
• Horn With Remote Start: activate/deactivate the horn
at the Remote Starting of the engine with the RKE. •
Unlock On First Press Of Key Fob (vehicles without
Passive Entry): allows you to choose whether to un-
lock all the doors or only the driver’s side door on the
first push of the UNLOCK button on the RKE
• Remote Door Unlock: Allows you to open the driver
door only on the first push of the UNLOCK button on
the RKE
• Passive Entry — If Equipped: Activate the automatic
locking of the doors
TRIP COMPUTER
The Trip computer is used to display information on car
operation when the key is turned to the MAR/RUN
position.
This function allows you to define two separate trips
called “Trip A” and “Trip B” where the car’s complete
trips are monitored in an independent manner.
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 173

Both trips can be reset (reset - start of a new trip). To
perform a reset, push and hold the OK button on the
steering wheel controls.
“Trip A” is used to display the figures relating to:
•Distance Travelled
• Average Consumption
• Travel Time (driving time)
• Average Speed
Quantities Displayed
Distance Travelled
Indicates the distance travelled by the start of the new
trip.
Average Consumption
Represents the average fuel consumption since the start
of the new trip. Travel Time
Elapsed time since the start of the new trip.
OK Button
Short Push Of The Button: display of various parameters.
Long Push Of The Button: reset quantities and begin a
new trip.
New trip
Starts after reset:
•
Manual by pushing the OK button.
• Automatic when thedistance reaches the value is
62140 (99999.9 km) or when the time travelreaches
the value of 999.59 (999 hours and 59 minutes).
• After each disconnection and reconnection of the bat-
tery.
174 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

WARNING LIGHTS AND MESSAGES
The EVIC display consists of three sections:
1. The reconfigurable top line where compass, direction,and outside temperature are displayed.
• Right side default to Ignition Status for those with
push button ignition.
2. The main display area where the menus and pop up messages are displayed.
3. The reconfigurable telltales section.
The main display area will normally display the main
menu or the screens of a selected feature of the main
menu. The main display area also displays pop up
messages that consist of approximately 60 possible warn-
ing or information messages. These pop up messages fall
into several categories:
• Five Second Stored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five seconds and then returns to the previous screen. Most of
the messages of this type are then stored (as long as the
condition that activated it remains active) and can be
reviewed from the
Messagesmain menu item. As long
as there is a stored message, an iwill be displayed in the
compass/outside temp line. Examples of this message
type are Right Front Turn Signal Lamp Out andLow
Tire Pressure.
• Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Examples
of this message type are Turn Signal On(if a turn signal
is left on) and Lights On(if driver leaves the vehicle).
• Unstored Messages Until RUN
These messages deal primarily with the Remote Start
feature. This message type is displayed until the ignition
is in the MAR/RUN state. Examples of this message type
are Remote Start Aborted - Door Ajar andPress Brake
Pedal and Push Button to Start.
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 175

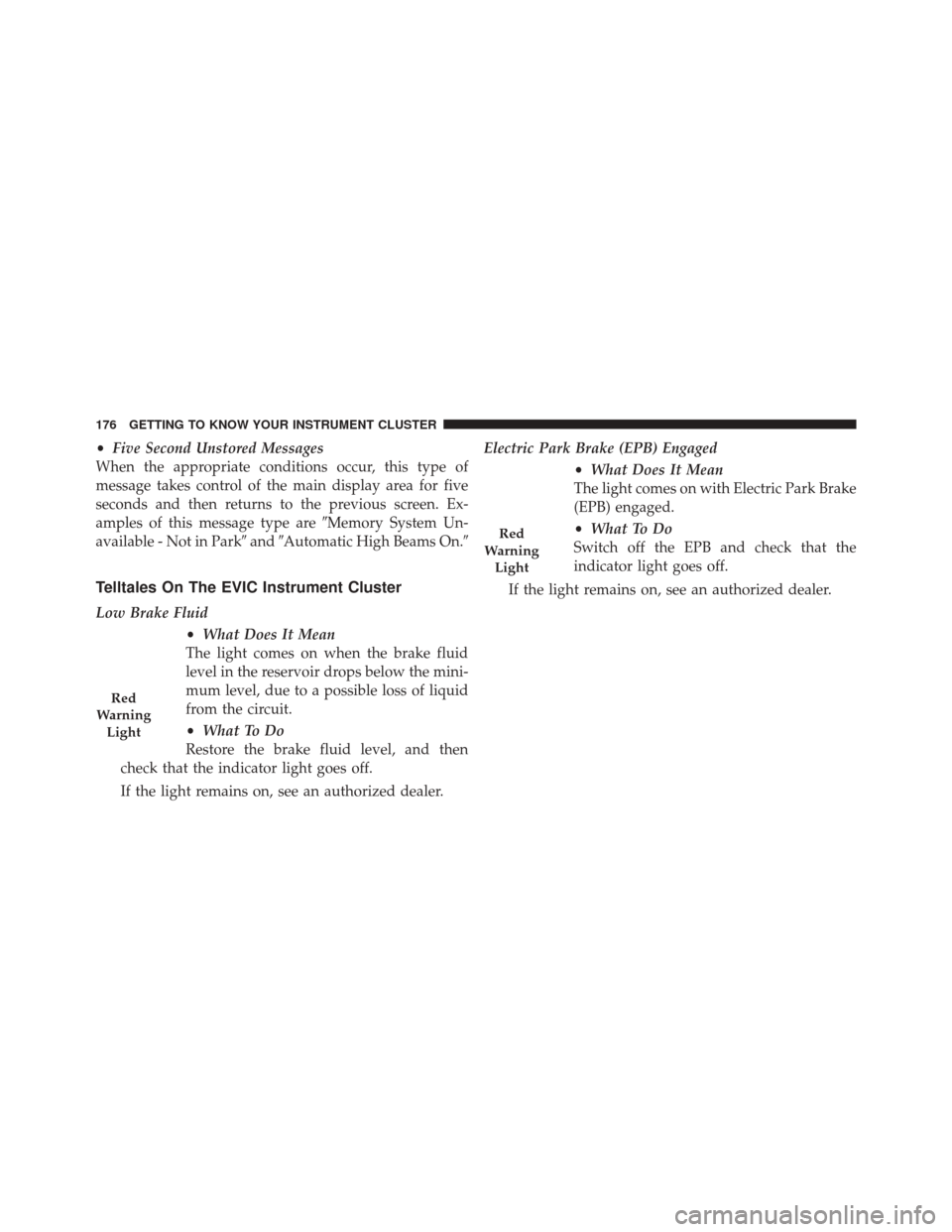

•Five Second Unstored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. Ex-
amples of this message type are Memory System Un-
available - Not in Park andAutomatic High Beams On.
Telltales On The EVIC Instrument Cluster
Low Brake Fluid
•What Does It Mean
The light comes on when the brake fluid
level in the reservoir drops below the mini-
mum level, due to a possible loss of liquid
from the circuit.
• What To Do
Restore the brake fluid level, and then
check that the indicator light goes off.
If the light remains on, see an authorized dealer. Electric Park Brake (EPB) Engaged
•What Does It Mean
The light comes on with Electric Park Brake
(EPB) engaged.
• What To Do
Switch off the EPB and check that the
indicator light goes off.
If the light remains on, see an authorized dealer.
Red
Warning Light
Red
Warning Light
176 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

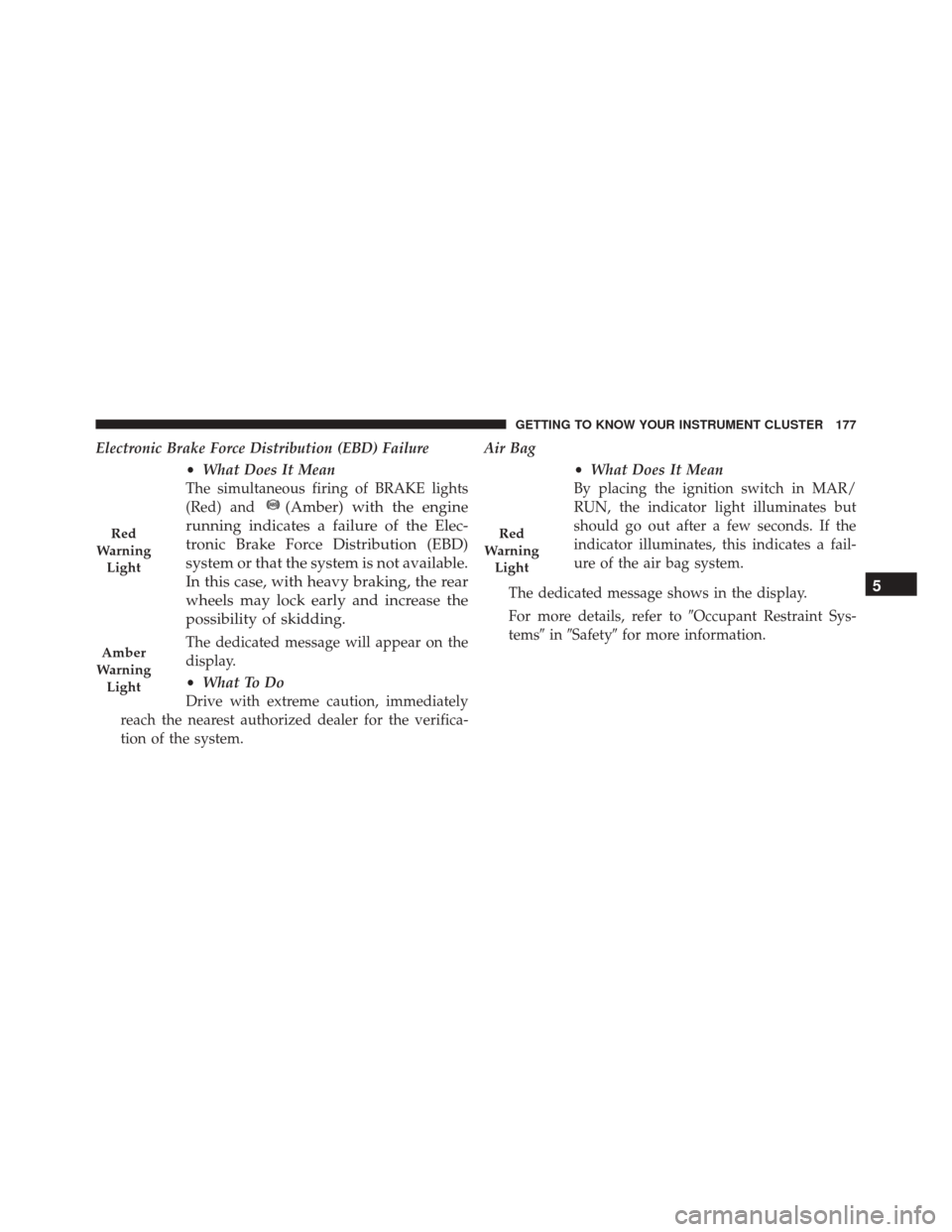

Electronic Brake Force Distribution (EBD) Failure•What Does It Mean
The simultaneous firing of BRAKE lights
(Red) and
(Amber) with the engine
running indicates a failure of the Elec-
tronic Brake Force Distribution (EBD)
system or that the system is not available.
In this case, with heavy braking, the rear
wheels may lock early and increase the
possibility of skidding.
The dedicated message will appear on the
display.
• What To Do
Drive with extreme caution, immediately
reach the nearest authorized dealer for the verifica-
tion of the system. Air Bag
•What Does It Mean
By placing the ignition switch in MAR/
RUN, the indicator light illuminates but
should go out after a few seconds. If the
indicator illuminates, this indicates a fail-
ure of the air bag system.
The dedicated message shows in the display.
For more details, refer to Occupant Restraint Sys-
tems inSafety for more information.
Red
Warning Light
Amber
Warning Light
Red
Warning Light
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 177

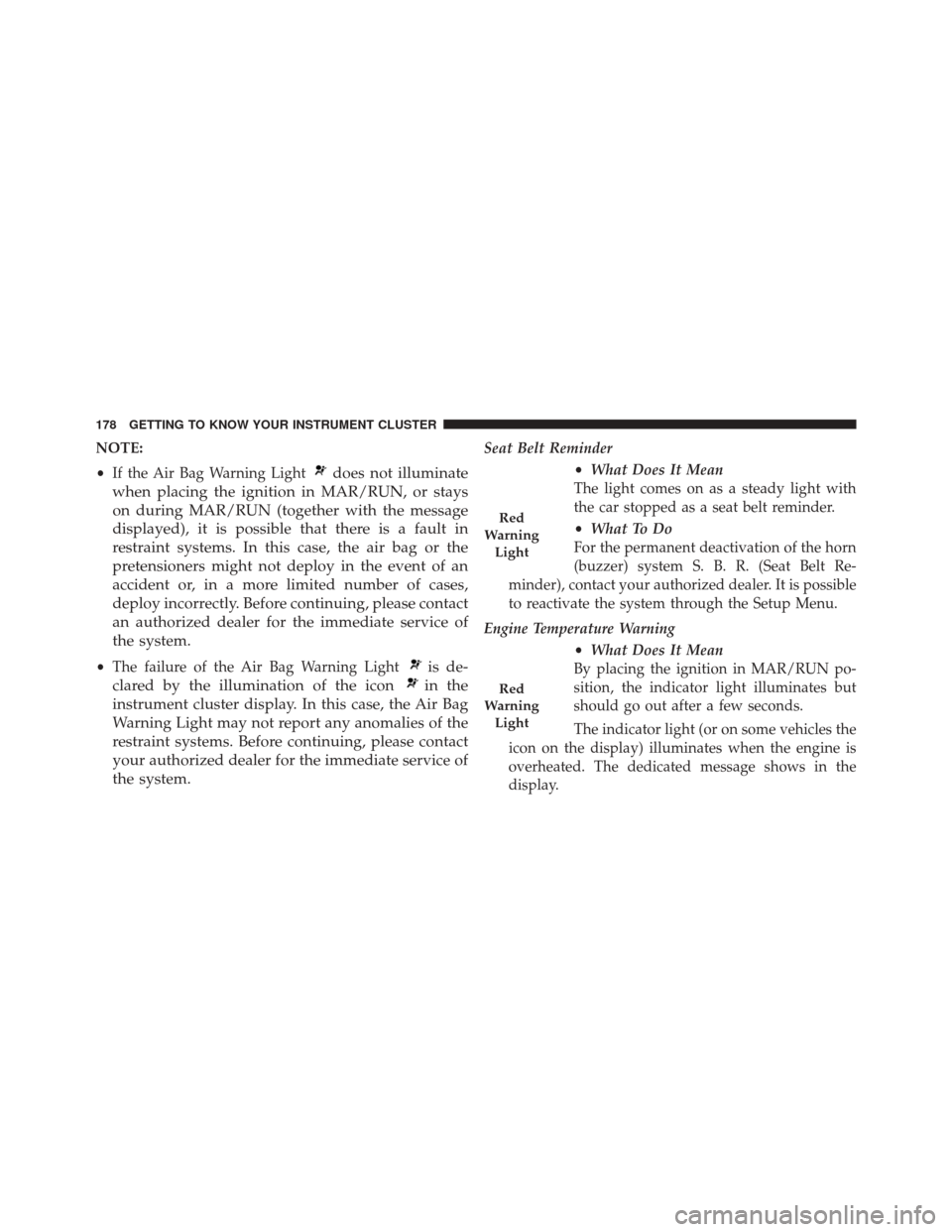

NOTE:
•If the Air Bag Warning Light
does not illuminate
when placing the ignition in MAR/RUN, or stays
on during MAR/RUN (together with the message
displayed), it is possible that there is a fault in
restraint systems. In this case, the air bag or the
pretensioners might not deploy in the event of an
accident or, in a more limited number of cases,
deploy incorrectly. Before continuing, please contact
an authorized dealer for the immediate service of
the system.
• The failure of the Air Bag Warning Lightis de-
clared by the illumination of the icon
in the
instrument cluster display. In this case, the Air Bag
Warning Light may not report any anomalies of the
restraint systems. Before continuing, please contact
your authorized dealer for the immediate service of
the system.
Seat Belt Reminder
•What Does It Mean
The light comes on as a steady light with
the car stopped as a seat belt reminder.
• What To Do
For the permanent deactivation of the horn
(buzzer) system S. B. R. (Seat Belt Re-
minder), contact your authorized dealer. It is possible
to reactivate the system through the Setup Menu.
Engine Temperature Warning •What Does It Mean
By placing the ignition in MAR/RUN po-
sition, the indicator light illuminates but
should go out after a few seconds.
The indicator light (or on some vehicles the
icon on the display) illuminates when the engine is
overheated. The dedicated message shows in the
display.
Red
Warning Light
Red
Warning Light
178 GETTING TO KNOW YOUR INSTRUMENT CLUSTER
