FIAT 500X 2016 2.G Owners Manual

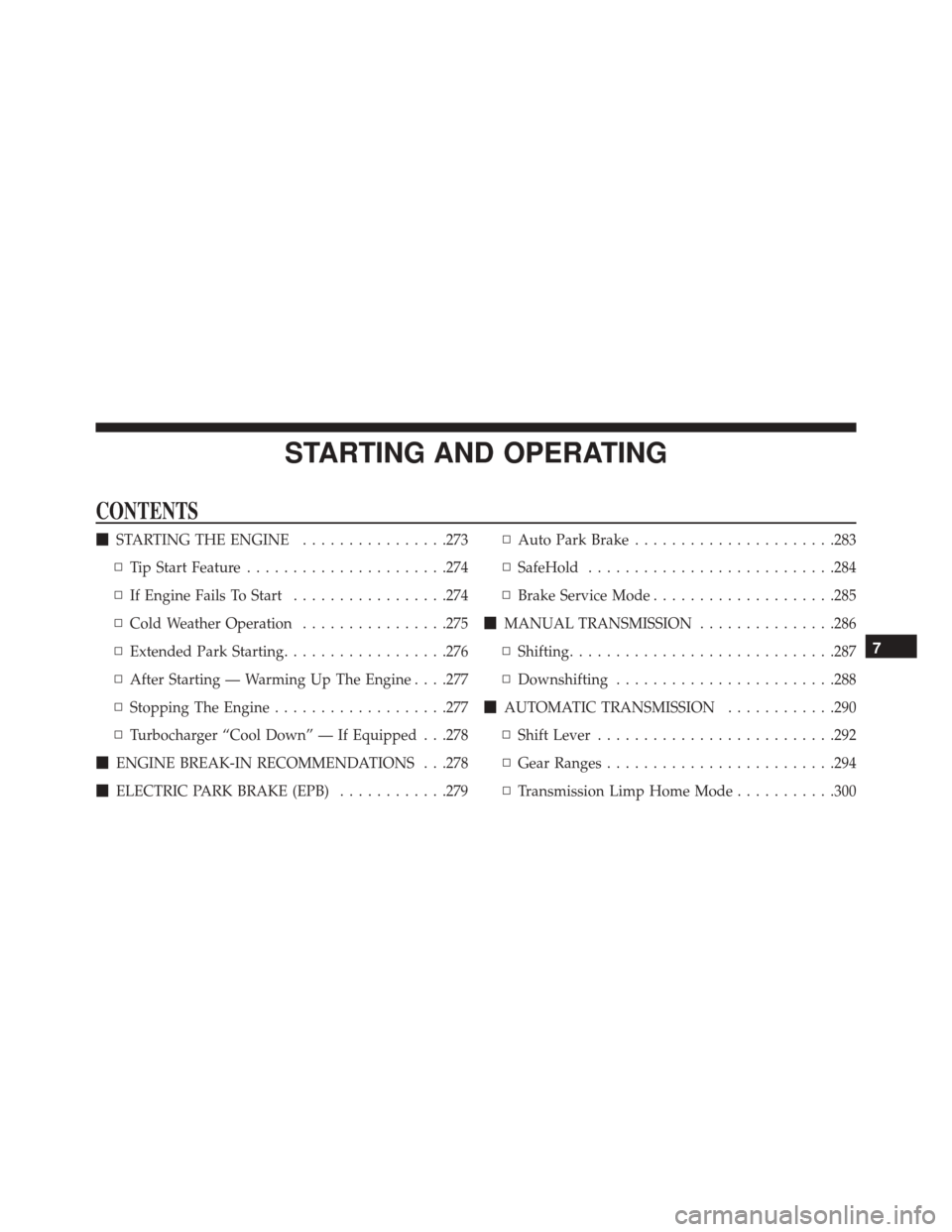

STARTING AND OPERATING
CONTENTS
STARTING THE ENGINE ................273
▫ Tip Start Feature ..................... .274
▫ If Engine Fails To Start .................274
▫ Cold Weather Operation ................275
▫ Extended Park Starting ..................276
▫ After Starting — Warming Up The Engine . . . .277
▫ Stopping The Engine ...................277
▫ Turbocharger “Cool Down” — If Equipped . . .278
 ENGINE BREAK-IN RECOMMENDATIONS . . .278
 ELECTRIC PARK BRAKE (EPB) ............279▫
Auto Park Brake ..................... .283
▫ SafeHold .......................... .284
▫ Brake Service Mode ....................285
 MANUAL TRANSMISSION ...............286
▫ Shifting ............................ .287
▫ Downshifting ....................... .288
 AUTOMATIC TRANSMISSION ............290
▫ Shift Lever ......................... .292
▫ Gear Ranges ........................ .294
▫ Transmission Limp Home Mode ...........300
7

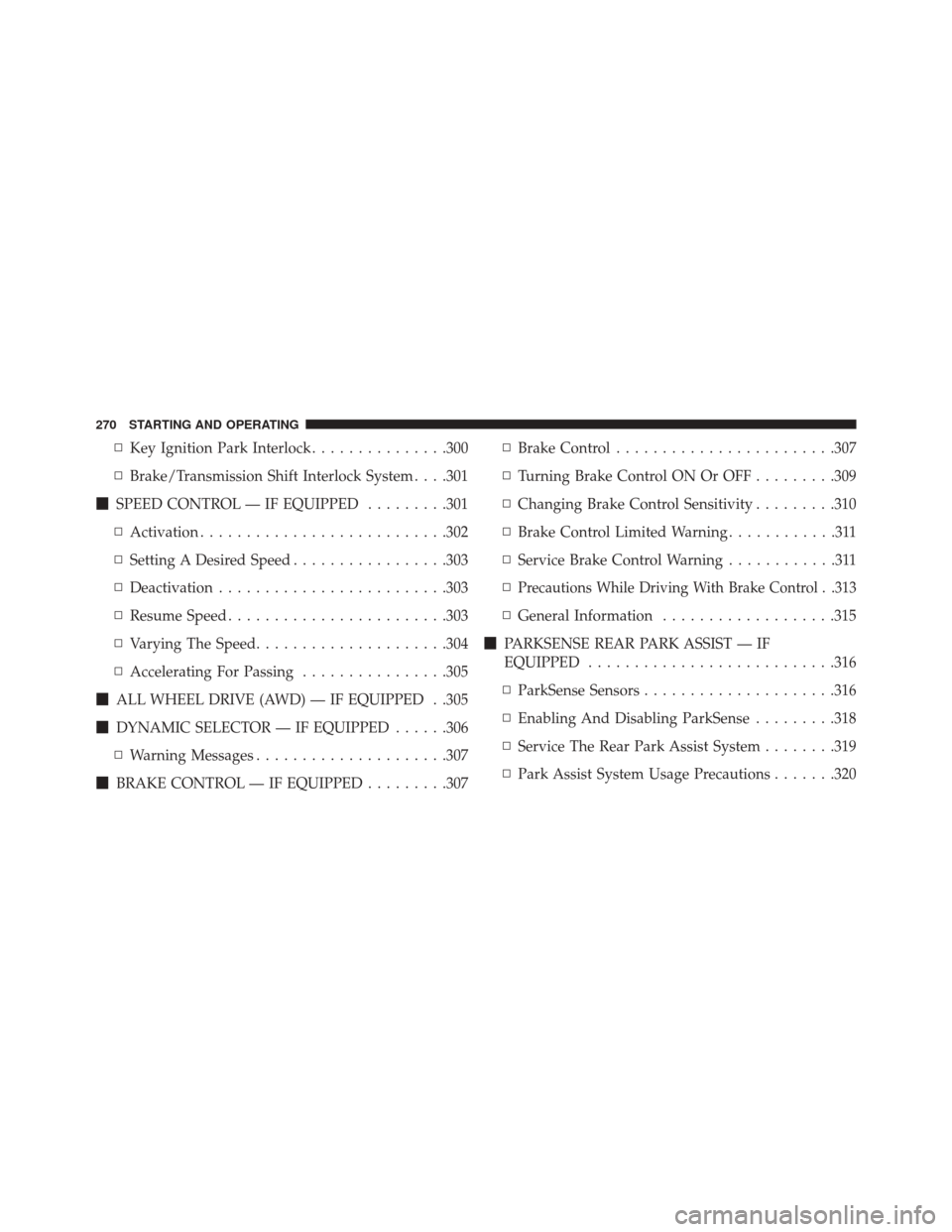

▫Key Ignition Park Interlock ...............300
▫ Brake/Transmission Shift Interlock System . . . .301
 SPEED CONTROL — IF EQUIPPED .........301
▫ Activation .......................... .302
▫ Setting A Desired Speed .................303
▫ Deactivation ........................ .303
▫ Resume Speed ....................... .303
▫ Varying The Speed .....................304
▫ Accelerating For Passing ................305
 ALL WHEEL DRIVE (AWD) — IF EQUIPPED . .305
 DYNAMIC SELECTOR — IF EQUIPPED ......306
▫ Warning Messages .....................307
 BRAKE CONTROL — IF EQUIPPED .........307▫
Brake Control ....................... .307
▫ Turning Brake Control ON Or OFF .........309
▫ Changing Brake Control Sensitivity .........310
▫ Brake Control Limited Warning ............311
▫ Service Brake Control Warning ............311
▫
Precautions While Driving With Brake Control . .313
▫ General Information ...................315
 PARKSENSE REAR PARK ASSIST — IF
EQUIPPED .......................... .316
▫ ParkSense Sensors .....................316
▫ Enabling And Disabling ParkSense .........318
▫ Service The Rear Park Assist System ........319
▫ Park Assist System Usage Precautions .......320
270 STARTING AND OPERATING

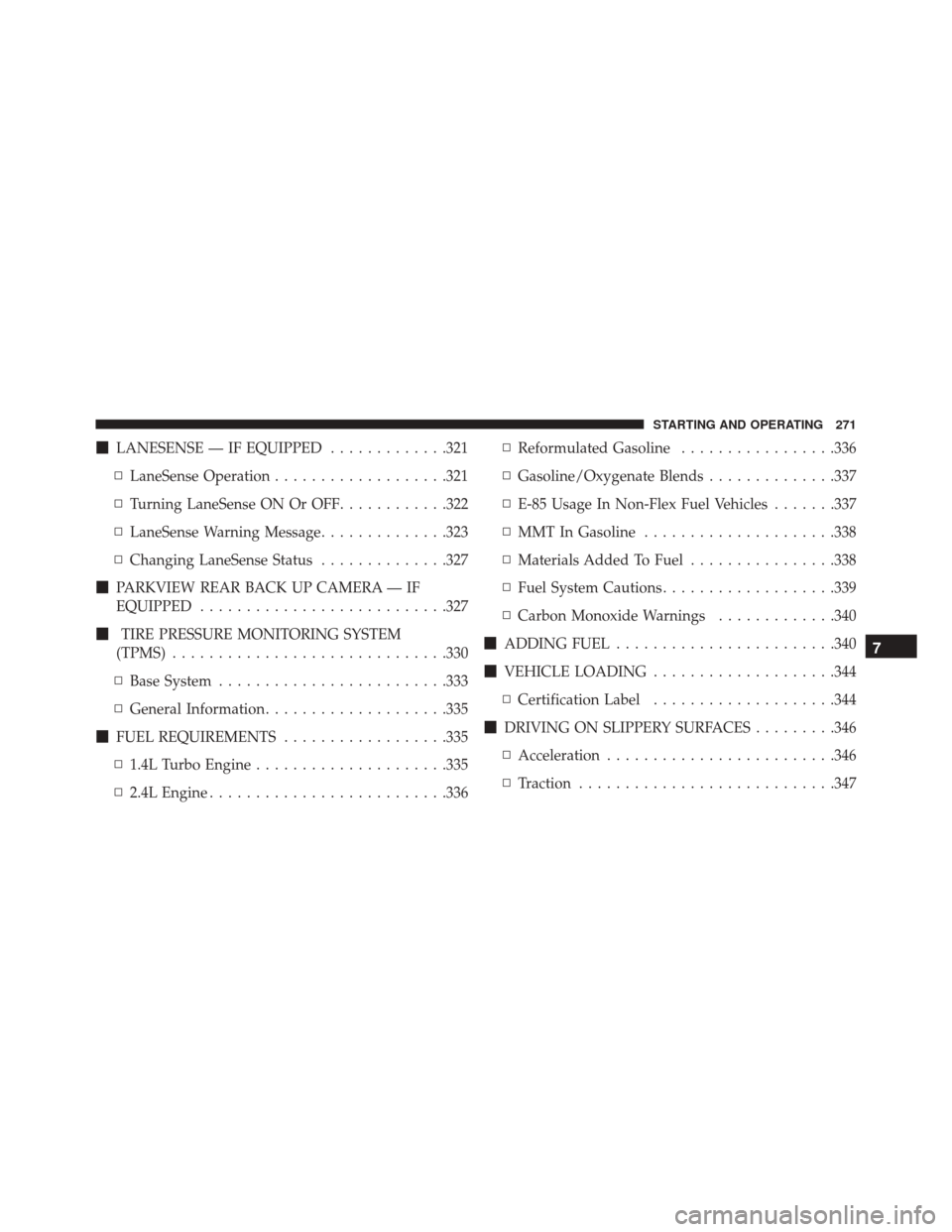

LANESENSE — IF EQUIPPED .............321
▫ LaneSense Operation ...................321
▫ Turning LaneSense ON Or OFF ............322
▫ LaneSense Warning Message ..............323
▫ Changing LaneSense Status ..............327
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED .......................... .327
 TIRE PRESSURE MONITORING SYSTEM
(TPMS) ............................. .330
▫ Base System ........................ .333
▫ General Information ....................335
 FUEL REQUIREMENTS ..................335
▫ 1.4L Turbo Engine .....................335
▫ 2.4L Engine ......................... .336▫
Reformulated Gasoline .................336
▫ Gasoline/Oxygenate Blends ..............337
▫ E-85 Usage In Non-Flex Fuel Vehicles .......337
▫ MMT In Gasoline .....................338
▫ Materials Added To Fuel ................338
▫ Fuel System Cautions ...................339
▫ Carbon Monoxide Warnings .............340
 ADDING FUEL ....................... .340
 VEHICLE LOADING ....................344
▫ Certification Label ....................344
 DRIVING ON SLIPPERY SURFACES .........346
▫ Acceleration ........................ .346
▫ Traction ........................... .347
7
STARTING AND OPERATING 271

DRIVING THROUGH WATER .............347
▫ Flowing/Rising Water ..................347
▫ Shallow Standing Water .................348
 POWER STEERING .....................349
TRAILER TOWING .....................350
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ...................351
▫ Towing This Vehicle Behind Another Vehicle . .351
272 STARTING AND OPERATING

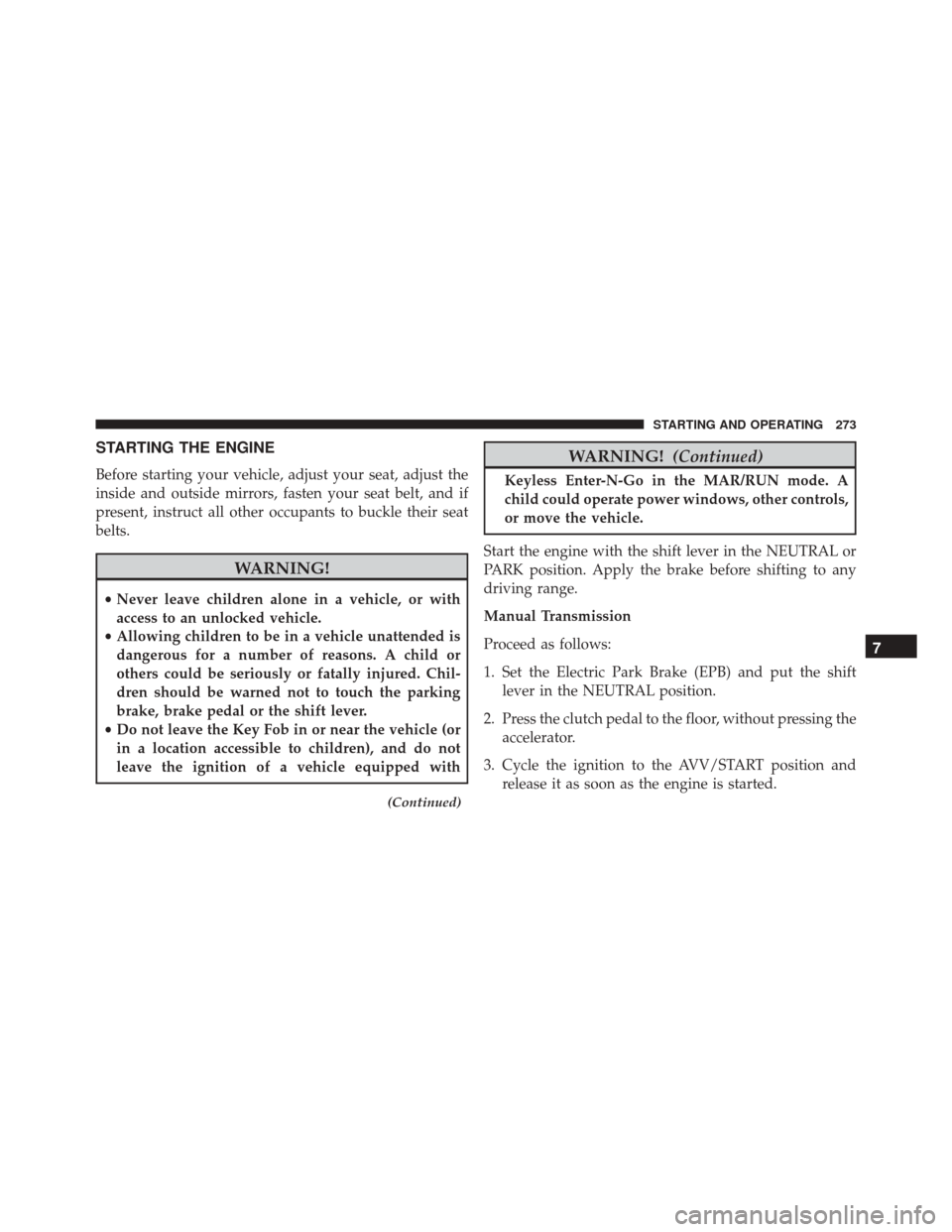

STARTING THE ENGINE
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
• Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
(Continued)
WARNING! (Continued)
Keyless Enter-N-Go in the MAR/RUN mode. A
child could operate power windows, other controls,
or move the vehicle.
Start the engine with the shift lever in the NEUTRAL or
PARK position. Apply the brake before shifting to any
driving range.
Manual Transmission
Proceed as follows:
1. Set the Electric Park Brake (EPB) and put the shift lever in the NEUTRAL position.
2. Press the clutch pedal to the floor, without pressing the accelerator.
3. Cycle the ignition to the AVV/START position and release it as soon as the engine is started.
7
STARTING AND OPERATING 273

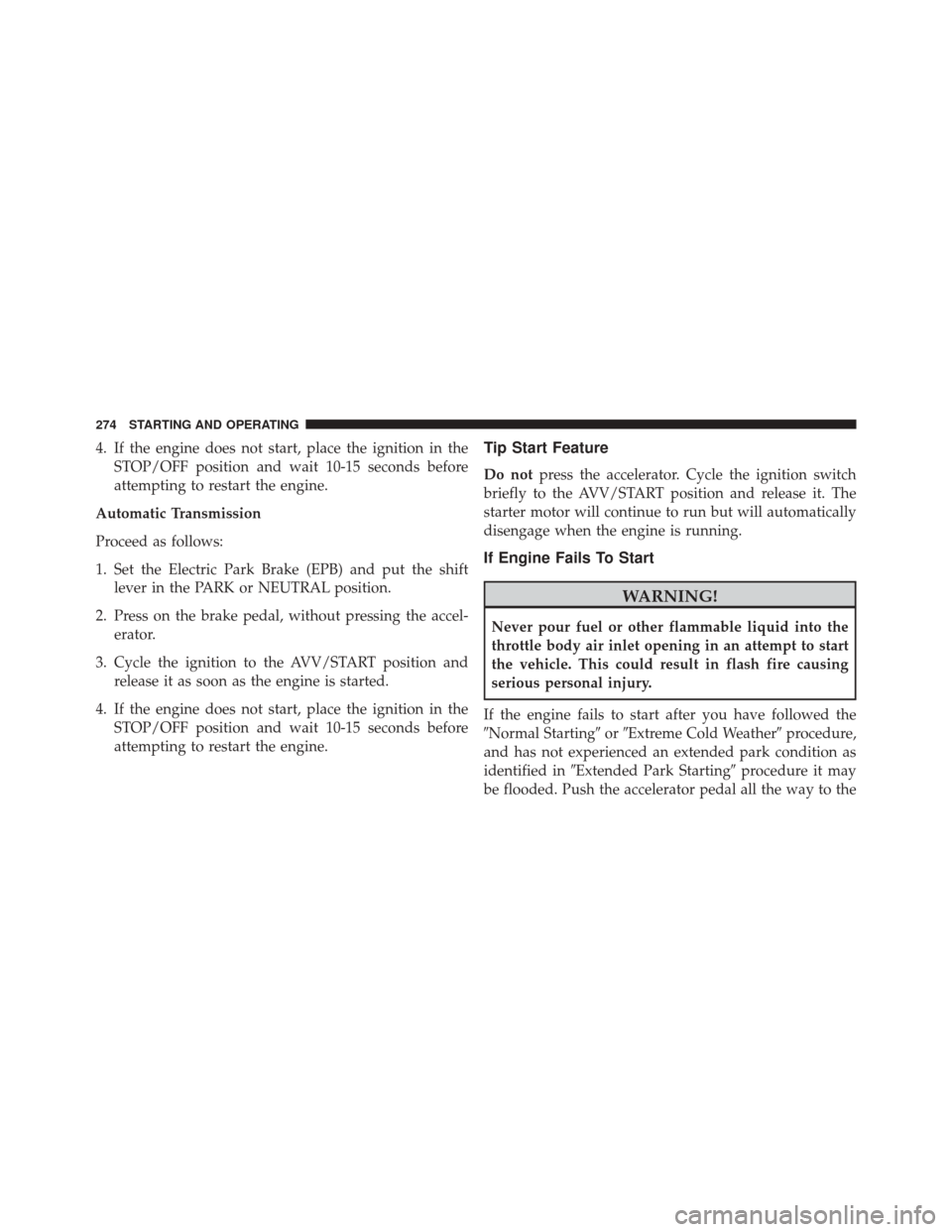

4. If the engine does not start, place the ignition in theSTOP/OFF position and wait 10-15 seconds before
attempting to restart the engine.
Automatic Transmission
Proceed as follows:
1. Set the Electric Park Brake (EPB) and put the shift lever in the PARK or NEUTRAL position.
2. Press on the brake pedal, without pressing the accel- erator.
3. Cycle the ignition to the AVV/START position and release it as soon as the engine is started.
4. If the engine does not start, place the ignition in the STOP/OFF position and wait 10-15 seconds before
attempting to restart the engine.Tip Start Feature
Do not press the accelerator. Cycle the ignition switch
briefly to the AVV/START position and release it. The
starter motor will continue to run but will automatically
disengage when the engine is running.
If Engine Fails To Start
WARNING!
Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
If the engine fails to start after you have followed the
Normal Starting orExtreme Cold Weather procedure,
and has not experienced an extended park condition as
identified in Extended Park Starting procedure it may
be flooded. Push the accelerator pedal all the way to the
274 STARTING AND OPERATING

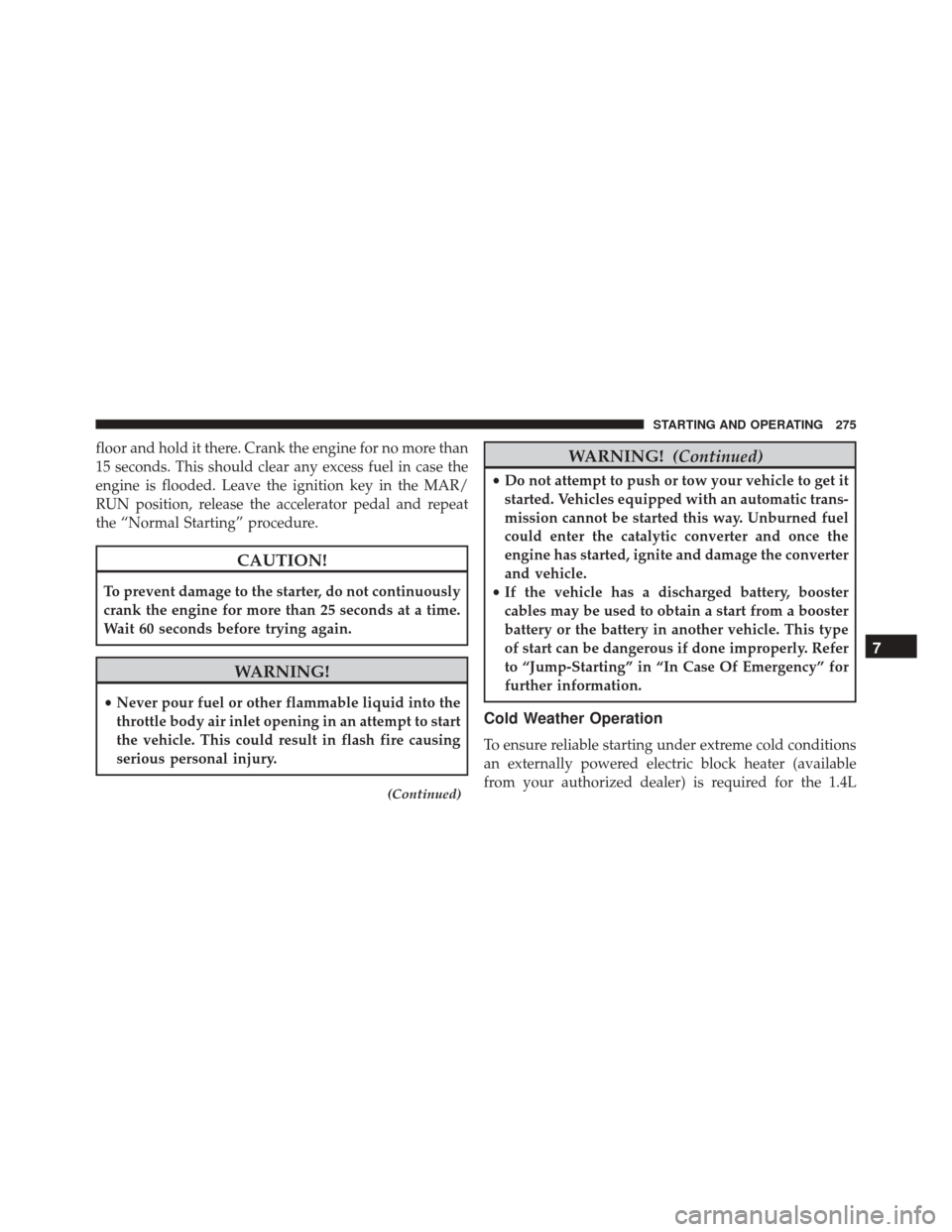

floor and hold it there. Crank the engine for no more than
15 seconds. This should clear any excess fuel in case the
engine is flooded. Leave the ignition key in the MAR/
RUN position, release the accelerator pedal and repeat
the “Normal Starting” procedure.
CAUTION!
To prevent damage to the starter, do not continuously
crank the engine for more than 25 seconds at a time.
Wait 60 seconds before trying again.
WARNING!
•Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
(Continued)
WARNING! (Continued)
•Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.
• If the vehicle has a discharged battery, booster
cables may be used to obtain a start from a booster
battery or the battery in another vehicle. This type
of start can be dangerous if done improperly. Refer
to “Jump-Starting” in “In Case Of Emergency” for
further information.
Cold Weather Operation
To ensure reliable starting under extreme cold conditions
an externally powered electric block heater (available
from your authorized dealer) is required for the 1.4L
7
STARTING AND OPERATING 275

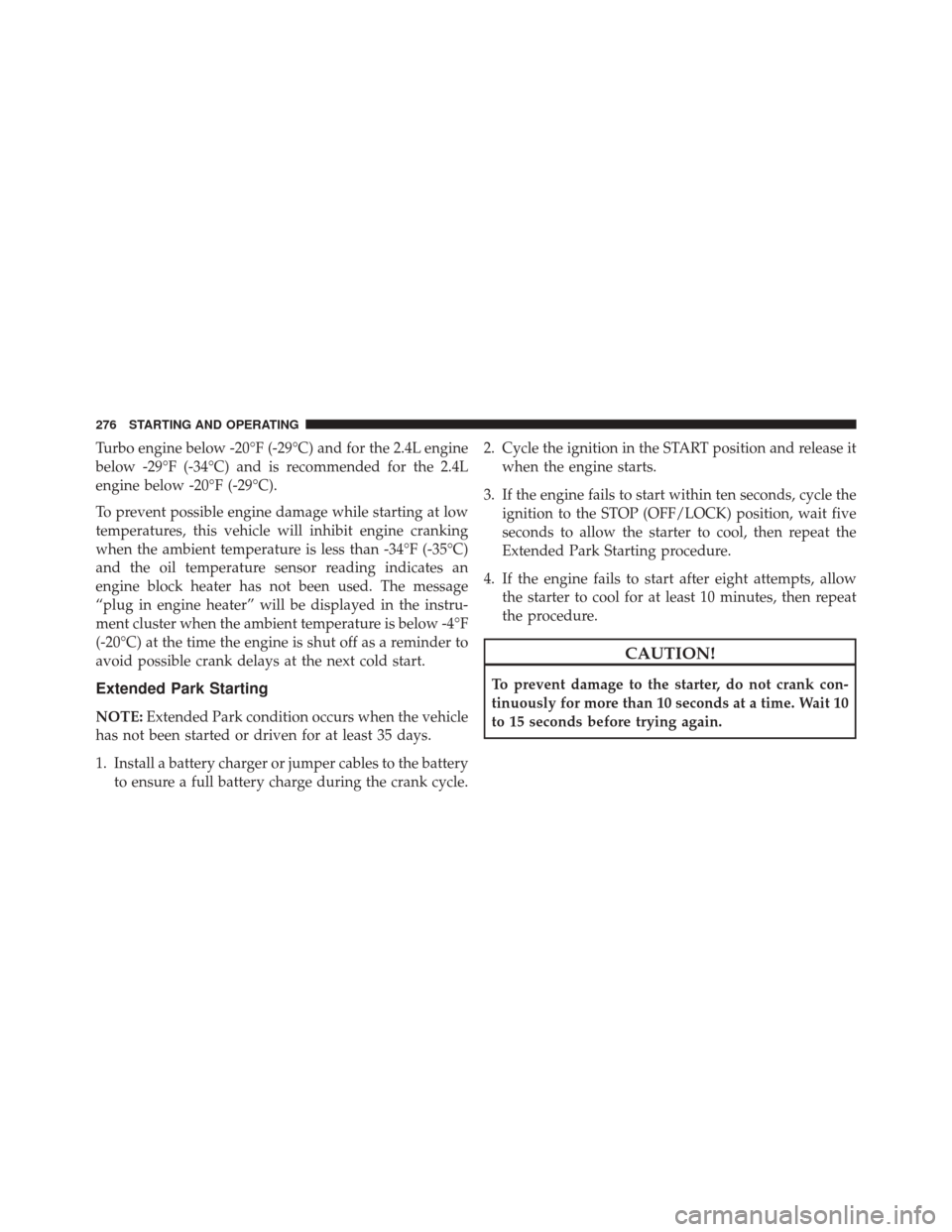

Turbo engine below -20°F (-29°C) and for the 2.4L engine
below -29°F (-34°C) and is recommended for the 2.4L
engine below -20°F (-29°C).
To prevent possible engine damage while starting at low
temperatures, this vehicle will inhibit engine cranking
when the ambient temperature is less than -34°F (-35°C)
and the oil temperature sensor reading indicates an
engine block heater has not been used. The message
“plug in engine heater” will be displayed in the instru-
ment cluster when the ambient temperature is below -4°F
(-20°C) at the time the engine is shut off as a reminder to
avoid possible crank delays at the next cold start.
Extended Park Starting
NOTE:Extended Park condition occurs when the vehicle
has not been started or driven for at least 35 days.
1. Install a battery charger or jumper cables to the battery to ensure a full battery charge during the crank cycle. 2. Cycle the ignition in the START position and release it
when the engine starts.
3. If the engine fails to start within ten seconds, cycle the ignition to the STOP (OFF/LOCK) position, wait five
seconds to allow the starter to cool, then repeat the
Extended Park Starting procedure.
4. If the engine fails to start after eight attempts, allow the starter to cool for at least 10 minutes, then repeat
the procedure.
CAUTION!
To prevent damage to the starter, do not crank con-
tinuously for more than 10 seconds at a time. Wait 10
to 15 seconds before trying again.
276 STARTING AND OPERATING

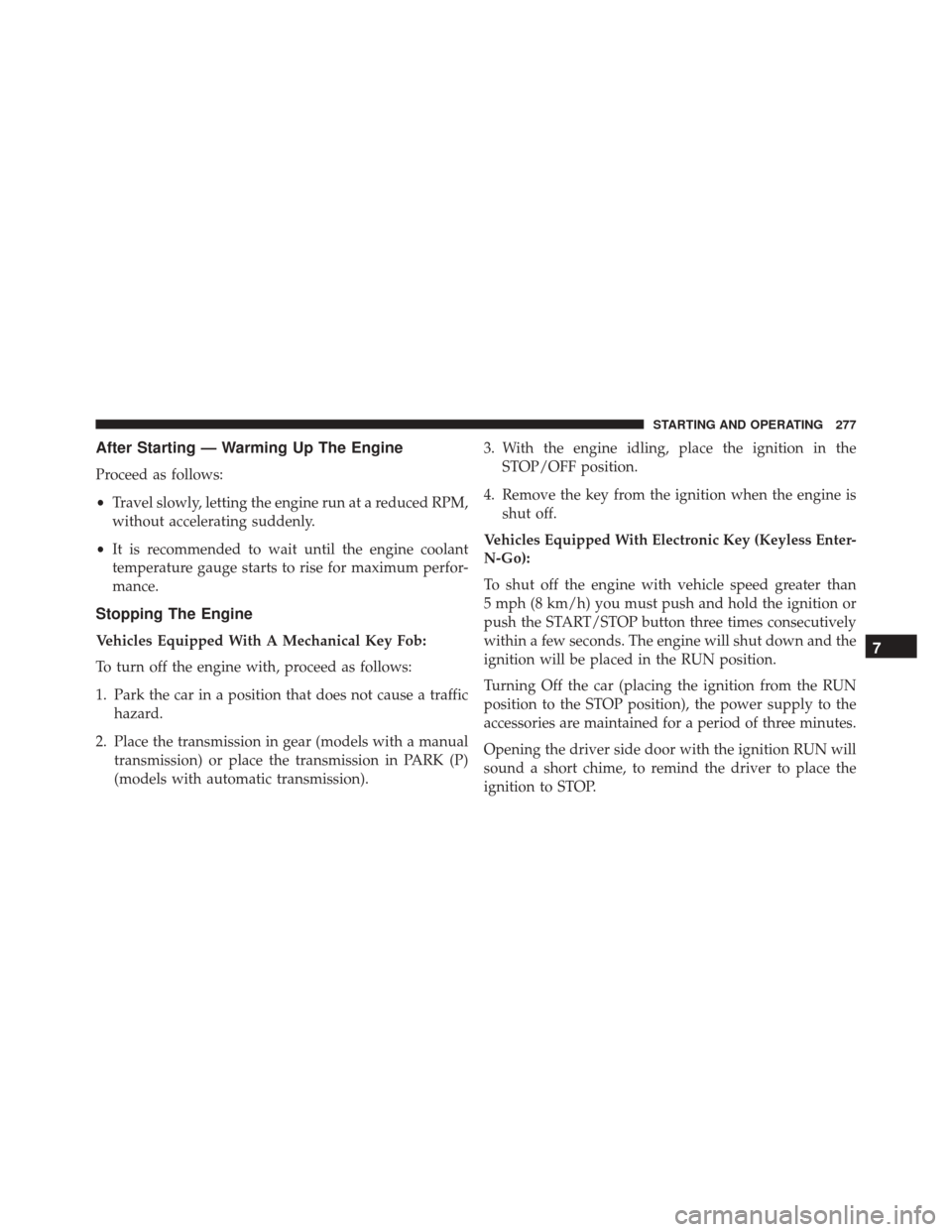

After Starting — Warming Up The Engine
Proceed as follows:
•Travel slowly, letting the engine run at a reduced RPM,
without accelerating suddenly.
• It is recommended to wait until the engine coolant
temperature gauge starts to rise for maximum perfor-
mance.
Stopping The Engine
Vehicles Equipped With A Mechanical Key Fob:
To turn off the engine with, proceed as follows:
1. Park the car in a position that does not cause a traffic hazard.
2. Place the transmission in gear (models with a manual transmission) or place the transmission in PARK (P)
(models with automatic transmission). 3. With the engine idling, place the ignition in the
STOP/OFF position.
4. Remove the key from the ignition when the engine is shut off.
Vehicles Equipped With Electronic Key (Keyless Enter-
N-Go):
To shut off the engine with vehicle speed greater than
5 mph (8 km/h) you must push and hold the ignition or
push the START/STOP button three times consecutively
within a few seconds. The engine will shut down and the
ignition will be placed in the RUN position.
Turning Off the car (placing the ignition from the RUN
position to the STOP position), the power supply to the
accessories are maintained for a period of three minutes.
Opening the driver side door with the ignition RUN will
sound a short chime, to remind the driver to place the
ignition to STOP.7
STARTING AND OPERATING 277

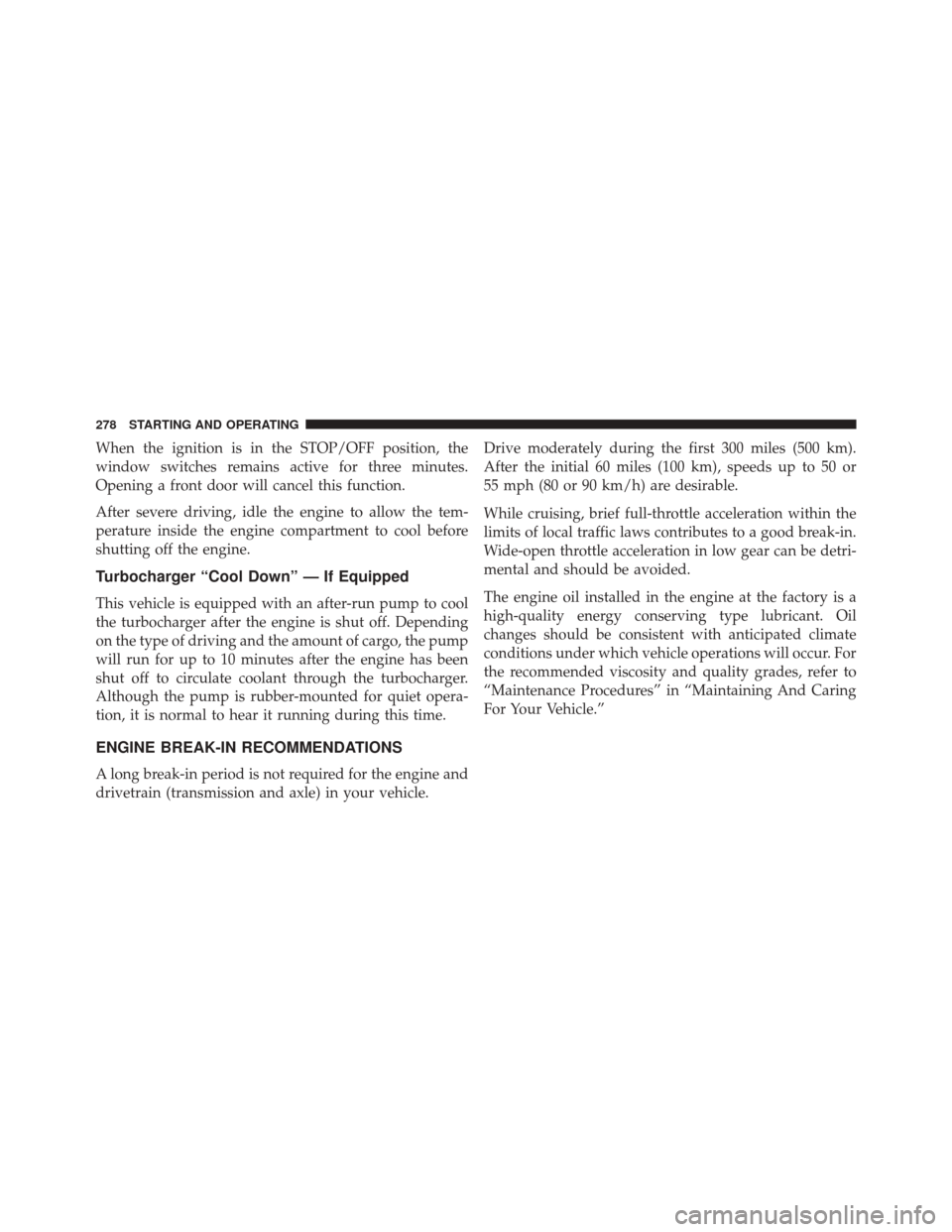

When the ignition is in the STOP/OFF position, the
window switches remains active for three minutes.
Opening a front door will cancel this function.
After severe driving, idle the engine to allow the tem-
perature inside the engine compartment to cool before
shutting off the engine.
Turbocharger “Cool Down” — If Equipped
This vehicle is equipped with an after-run pump to cool
the turbocharger after the engine is shut off. Depending
on the type of driving and the amount of cargo, the pump
will run for up to 10 minutes after the engine has been
shut off to circulate coolant through the turbocharger.
Although the pump is rubber-mounted for quiet opera-
tion, it is normal to hear it running during this time.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur. For
the recommended viscosity and quality grades, refer to
“Maintenance Procedures” in “Maintaining And Caring
For Your Vehicle.”
278 STARTING AND OPERATING
