FIAT 500X 2016 2.G Owners Manual

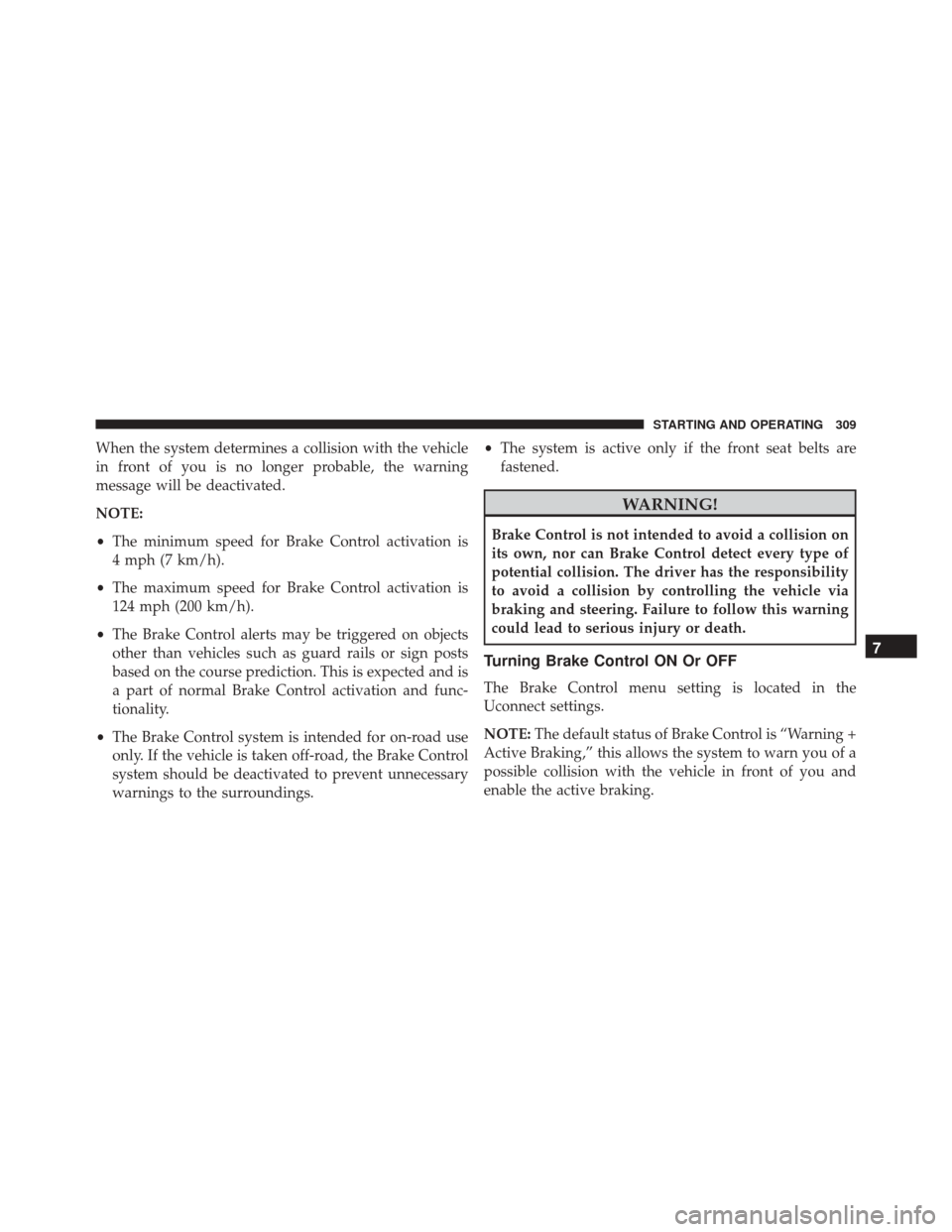

When the system determines a collision with the vehicle
in front of you is no longer probable, the warning
message will be deactivated.
NOTE:
•The minimum speed for Brake Control activation is
4 mph (7 km/h).
• The maximum speed for Brake Control activation is
124 mph (200 km/h).
• The Brake Control alerts may be triggered on objects
other than vehicles such as guard rails or sign posts
based on the course prediction. This is expected and is
a part of normal Brake Control activation and func-
tionality.
• The Brake Control system is intended for on-road use
only. If the vehicle is taken off-road, the Brake Control
system should be deactivated to prevent unnecessary
warnings to the surroundings. •
The system is active only if the front seat belts are
fastened.
WARNING!
Brake Control is not intended to avoid a collision on
its own, nor can Brake Control detect every type of
potential collision. The driver has the responsibility
to avoid a collision by controlling the vehicle via
braking and steering. Failure to follow this warning
could lead to serious injury or death.
Turning Brake Control ON Or OFF
The Brake Control menu setting is located in the
Uconnect settings.
NOTE: The default status of Brake Control is “Warning +
Active Braking,” this allows the system to warn you of a
possible collision with the vehicle in front of you and
enable the active braking.
7
STARTING AND OPERATING 309

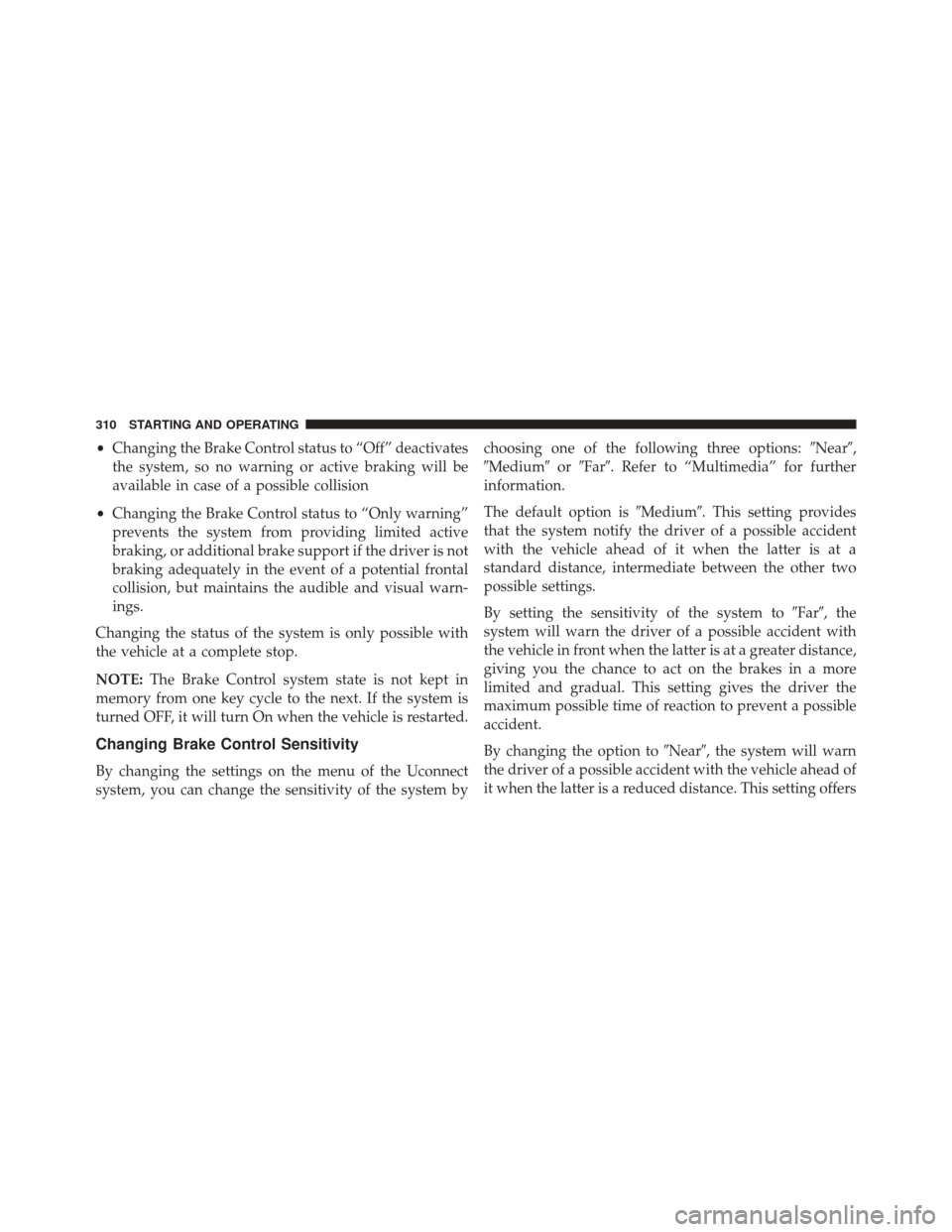

•Changing the Brake Control status to “Off” deactivates
the system, so no warning or active braking will be
available in case of a possible collision
• Changing the Brake Control status to “Only warning”
prevents the system from providing limited active
braking, or additional brake support if the driver is not
braking adequately in the event of a potential frontal
collision, but maintains the audible and visual warn-
ings.
Changing the status of the system is only possible with
the vehicle at a complete stop.
NOTE: The Brake Control system state is not kept in
memory from one key cycle to the next. If the system is
turned OFF, it will turn On when the vehicle is restarted.
Changing Brake Control Sensitivity
By changing the settings on the menu of the Uconnect
system, you can change the sensitivity of the system by choosing one of the following three options:
Near,
Medium orFar. Refer to “Multimedia” for further
information.
The default option is Medium. This setting provides
that the system notify the driver of a possible accident
with the vehicle ahead of it when the latter is at a
standard distance, intermediate between the other two
possible settings.
By setting the sensitivity of the system to Far, the
system will warn the driver of a possible accident with
the vehicle in front when the latter is at a greater distance,
giving you the chance to act on the brakes in a more
limited and gradual. This setting gives the driver the
maximum possible time of reaction to prevent a possible
accident.
By changing the option to Near, the system will warn
the driver of a possible accident with the vehicle ahead of
it when the latter is a reduced distance. This setting offers
310 STARTING AND OPERATING

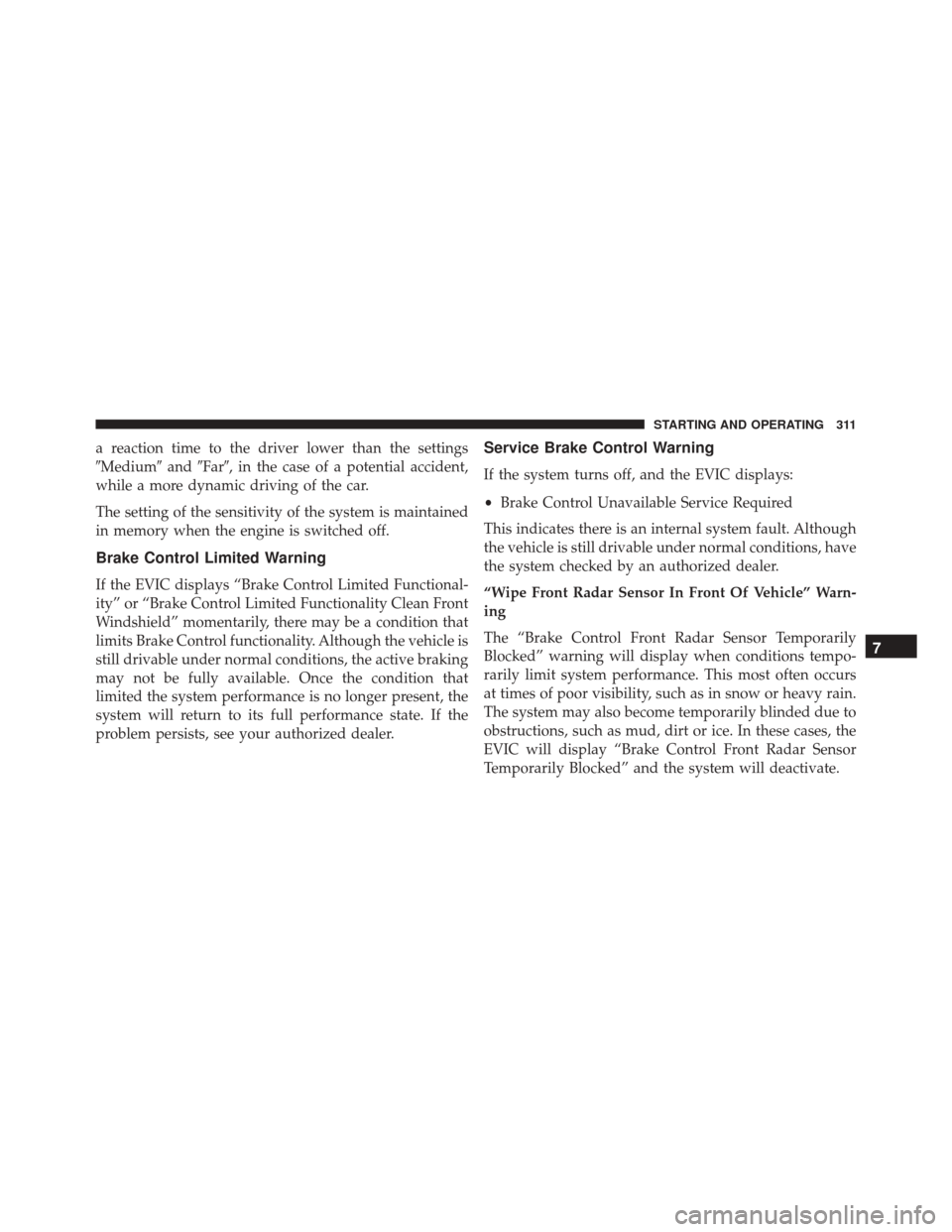

a reaction time to the driver lower than the settings
MediumandFar, in the case of a potential accident,
while a more dynamic driving of the car.
The setting of the sensitivity of the system is maintained
in memory when the engine is switched off.
Brake Control Limited Warning
If the EVIC displays “Brake Control Limited Functional-
ity” or “Brake Control Limited Functionality Clean Front
Windshield” momentarily, there may be a condition that
limits Brake Control functionality. Although the vehicle is
still drivable under normal conditions, the active braking
may not be fully available. Once the condition that
limited the system performance is no longer present, the
system will return to its full performance state. If the
problem persists, see your authorized dealer.
Service Brake Control Warning
If the system turns off, and the EVIC displays:
• Brake Control Unavailable Service Required
This indicates there is an internal system fault. Although
the vehicle is still drivable under normal conditions, have
the system checked by an authorized dealer.
“Wipe Front Radar Sensor In Front Of Vehicle” Warn-
ing
The “Brake Control Front Radar Sensor Temporarily
Blocked” warning will display when conditions tempo-
rarily limit system performance. This most often occurs
at times of poor visibility, such as in snow or heavy rain.
The system may also become temporarily blinded due to
obstructions, such as mud, dirt or ice. In these cases, the
EVIC will display “Brake Control Front Radar Sensor
Temporarily Blocked” and the system will deactivate.
7
STARTING AND OPERATING 311

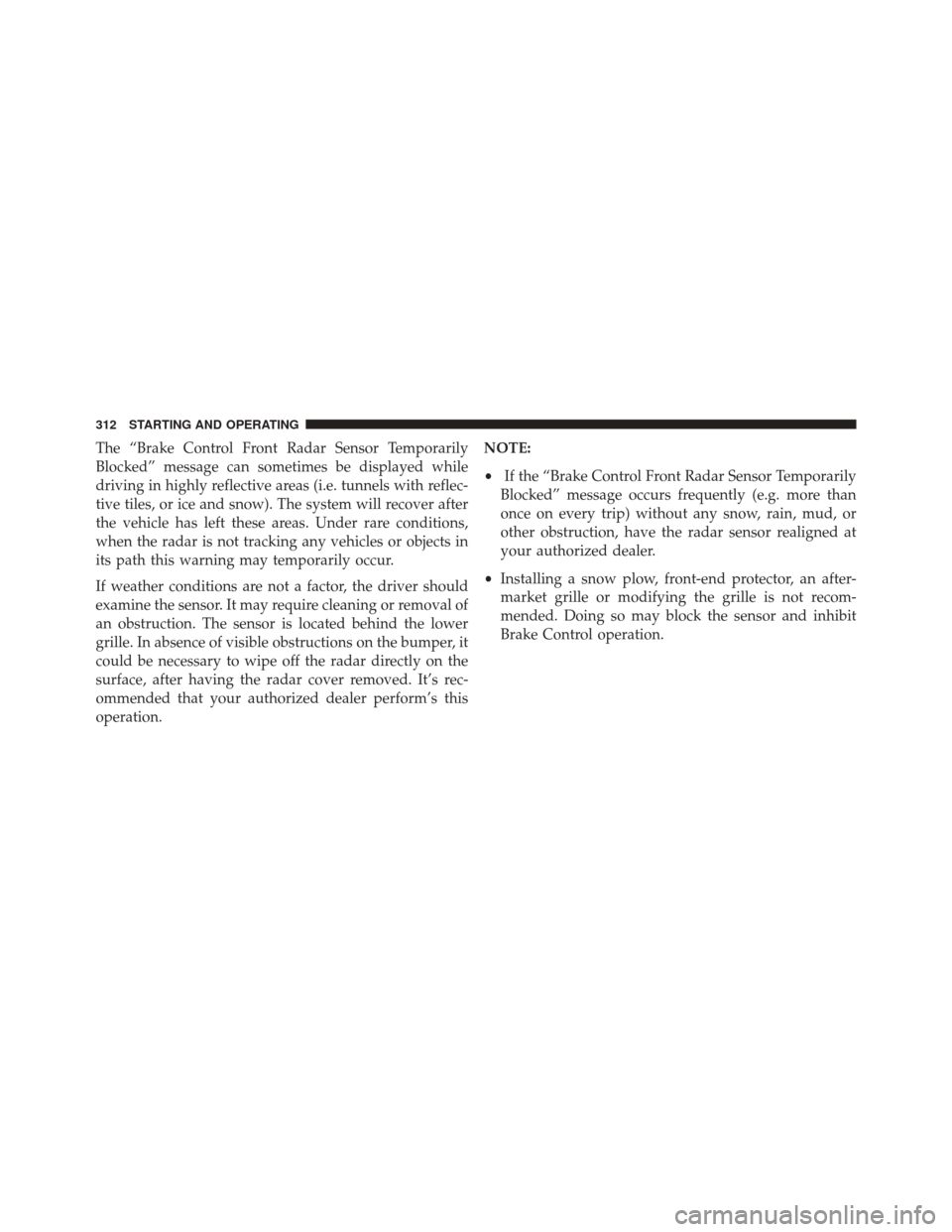

The “Brake Control Front Radar Sensor Temporarily
Blocked” message can sometimes be displayed while
driving in highly reflective areas (i.e. tunnels with reflec-
tive tiles, or ice and snow). The system will recover after
the vehicle has left these areas. Under rare conditions,
when the radar is not tracking any vehicles or objects in
its path this warning may temporarily occur.
If weather conditions are not a factor, the driver should
examine the sensor. It may require cleaning or removal of
an obstruction. The sensor is located behind the lower
grille. In absence of visible obstructions on the bumper, it
could be necessary to wipe off the radar directly on the
surface, after having the radar cover removed. It’s rec-
ommended that your authorized dealer perform’s this
operation.NOTE:
•
If the “Brake Control Front Radar Sensor Temporarily
Blocked” message occurs frequently (e.g. more than
once on every trip) without any snow, rain, mud, or
other obstruction, have the radar sensor realigned at
your authorized dealer.
• Installing a snow plow, front-end protector, an after-
market grille or modifying the grille is not recom-
mended. Doing so may block the sensor and inhibit
Brake Control operation.
312 STARTING AND OPERATING

Precautions While Driving With Brake Control
In certain driving conditions, such as:
•Driving in the vicinity of a curve
• Small vehicles and/or not aligned to the lane
• Lane changing of other vehicles
• Passing of vehicles in an oncoming intersection
The intervention of the system could be unexpected or
delayed. The driver must therefore always pay particular
attention, while maintaining control of the car to drive in
complete safety.
Driving In The Vicinity Of A Curve
Entering or exiting a large curve, the system could detect
the presence of a vehicle that is in front of the car, but that
does not preside in the same lane. In cases such as this,
the system might respond. Small Vehicles And/Or Not Aligned To The Lane
The system is not able to detect the presence of vehicles
that are in front of the car but placed outside the field of
Driving In The Vicinity Of A Curve
7
STARTING AND OPERATING 313

action of the radar sensor and could therefore not react in
the presence of small vehicles such as bicycles or motor-
cycles.Lane Changing Of Other Vehicles
Vehicles that suddenly change lane, while standing in the
traffic lane of their car and inside the field of action of the
radar sensor may cause the intervention of the system.
Small Vehicles And/Or Not Aligned To The Lane
Lane Changing Of Other Vehicles
314 STARTING AND OPERATING

Passing Of Vehicles In An Oncoming Intersection
The system could temporarily react to a vehicle that
crossed the range of the radar sensor, in an oncoming
intersection.General Information
This vehicle has systems that operate on radio frequency
that comply with Part 15 of the Federal Communications
Commission (FCC) rules and with Industry Canada
Standards RSS- GEN/210/220/310.
Operation is subject to the following two conditions:
1. The device may not cause harmful interference.
2. The device must accept any interference received,including interference that may cause undesired op-
eration of the device.
Changes or modifications to any of these systems by
other than an authorized service facility could void
authorization to use this equipment.
Passing Of Vehicles In An Oncoming Intersection
7
STARTING AND OPERATING 315

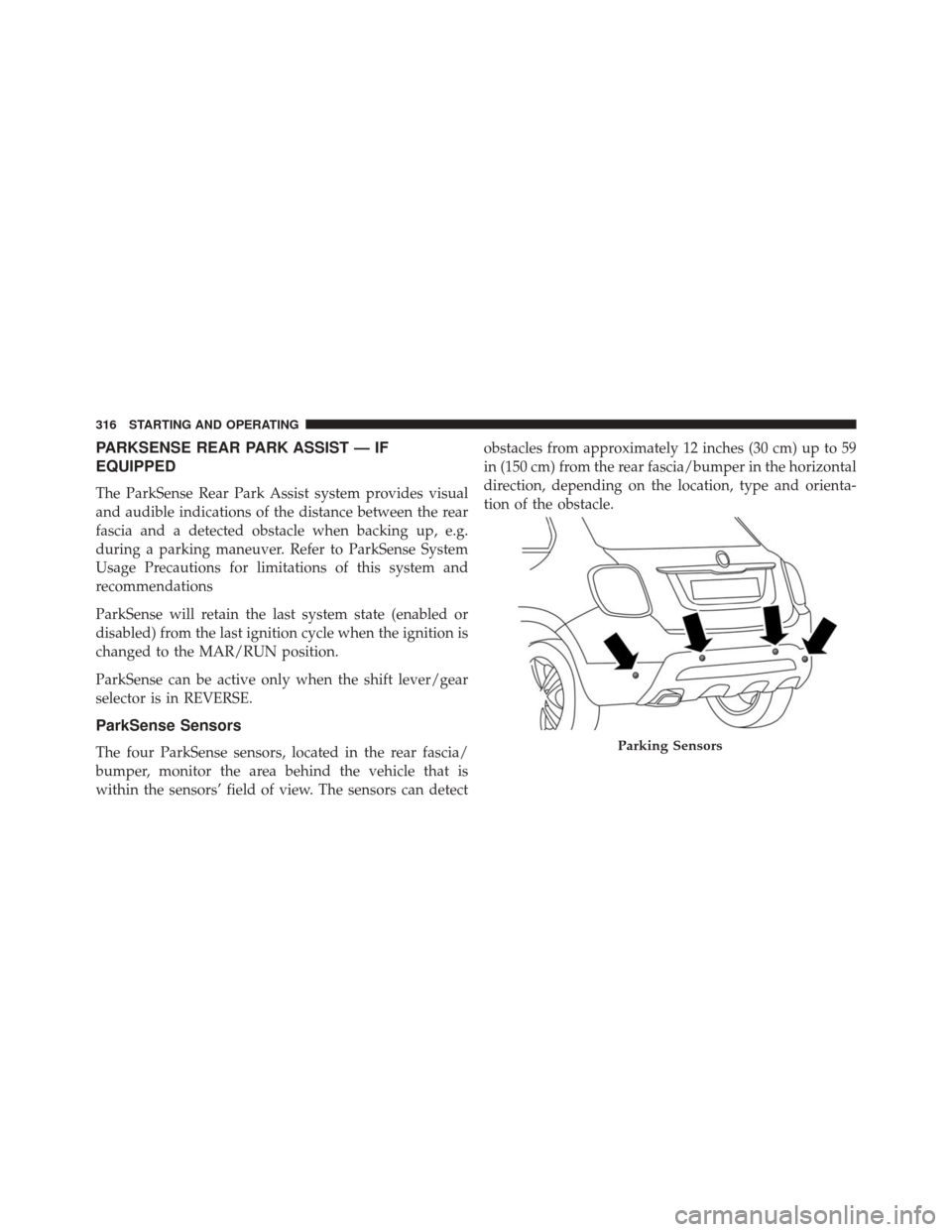

PARKSENSE REAR PARK ASSIST — IF
EQUIPPED
The ParkSense Rear Park Assist system provides visual
and audible indications of the distance between the rear
fascia and a detected obstacle when backing up, e.g.
during a parking maneuver. Refer to ParkSense System
Usage Precautions for limitations of this system and
recommendations
ParkSense will retain the last system state (enabled or
disabled) from the last ignition cycle when the ignition is
changed to the MAR/RUN position.
ParkSense can be active only when the shift lever/gear
selector is in REVERSE.
ParkSense Sensors
The four ParkSense sensors, located in the rear fascia/
bumper, monitor the area behind the vehicle that is
within the sensors’ field of view. The sensors can detectobstacles from approximately 12 inches (30 cm) up to 59
in (150 cm) from the rear fascia/bumper in the horizontal
direction, depending on the location, type and orienta-
tion of the obstacle.Parking Sensors
316 STARTING AND OPERATING

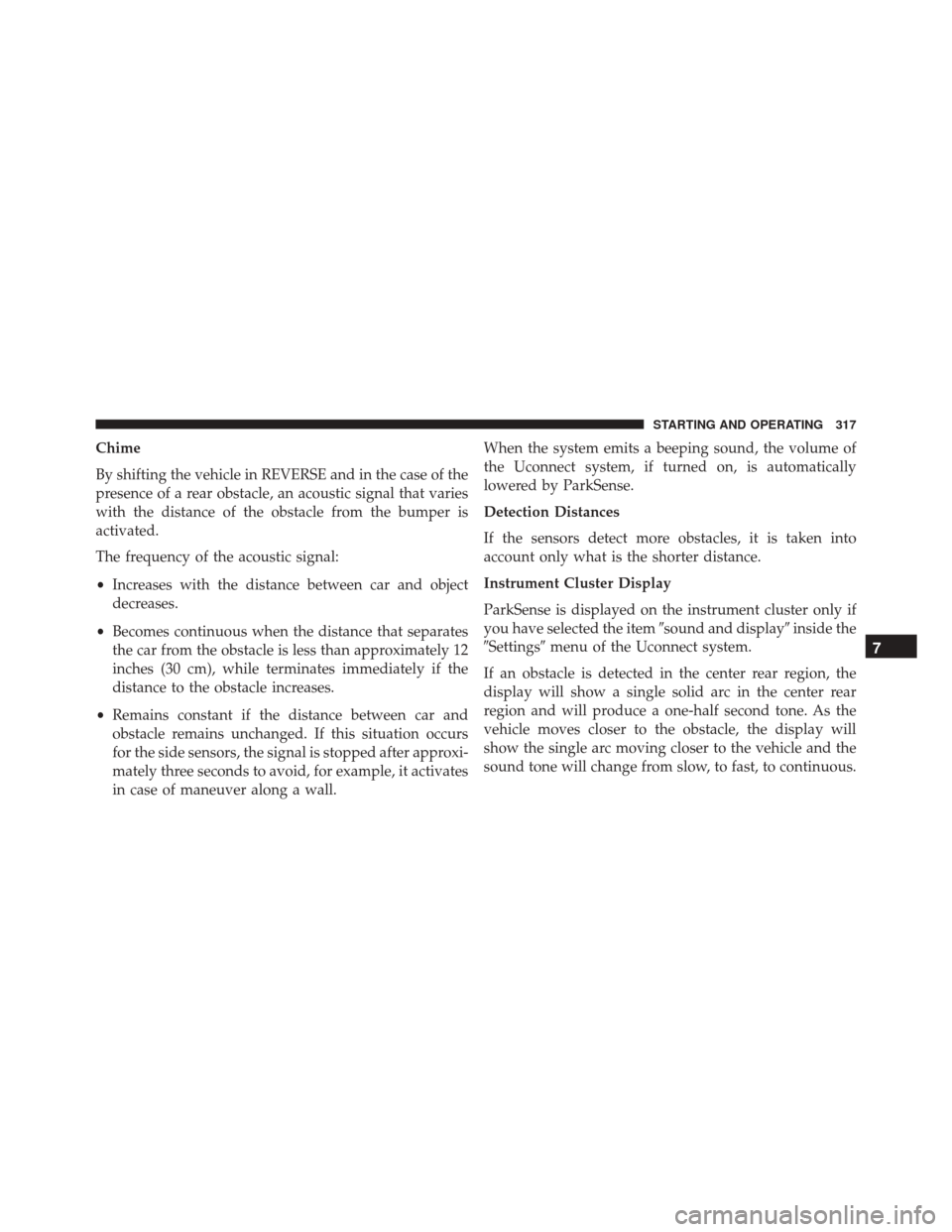

Chime
By shifting the vehicle in REVERSE and in the case of the
presence of a rear obstacle, an acoustic signal that varies
with the distance of the obstacle from the bumper is
activated.
The frequency of the acoustic signal:
•Increases with the distance between car and object
decreases.
• Becomes continuous when the distance that separates
the car from the obstacle is less than approximately 12
inches (30 cm), while terminates immediately if the
distance to the obstacle increases.
• Remains constant if the distance between car and
obstacle remains unchanged. If this situation occurs
for the side sensors, the signal is stopped after approxi-
mately three seconds to avoid, for example, it activates
in case of maneuver along a wall. When the system emits a beeping sound, the volume of
the Uconnect system, if turned on, is automatically
lowered by ParkSense.
Detection Distances
If the sensors detect more obstacles, it is taken into
account only what is the shorter distance.
Instrument Cluster Display
ParkSense is displayed on the instrument cluster only if
you have selected the item
sound and displayinside the
Settings menu of the Uconnect system.
If an obstacle is detected in the center rear region, the
display will show a single solid arc in the center rear
region and will produce a one-half second tone. As the
vehicle moves closer to the obstacle, the display will
show the single arc moving closer to the vehicle and the
sound tone will change from slow, to fast, to continuous.
7
STARTING AND OPERATING 317

If an obstacle is detected in the left and/or right rear
region, the display will show a single flashing arc in the
left and/or right rear region and will produce a fast
sound tone. As the vehicle moves closer to the obstacle,
the display will show the single arc moving closer to the
vehicle and the tone will change from fast to continuous.
In general, the car is closest to the obstacle when the
display shows only a flashing arc and the chime becomes
continuous.
The color on the display depends on the distance and
location of the obstacle.
Enabling And Disabling ParkSense
ParkSense can be enabled and disabled with the
ParkSense switch.When the ParkSense switch is pushed to dis-
able the system, the instrument cluster will
display the “PARKSENSE OFF” message for approximately five seconds. Refer to “Electronic Vehicle
Information Center (EVIC)” in “Getting To Know Your
Instrument Panel” for further information. When the
shift lever is moved to REVERSE and the system is
disabled, the EVIC will display the “PARKSENSE OFF”
message for as long as the vehicle is in REVERSE.
The ParkSense switch LED will be ON when ParkSense is
disabled or requires service. The ParkSense switch LED
will be OFF when the system is enabled. If the ParkSense
switch is pushed, and requires service, the ParkSense
switch LED will blink momentarily, and then the LED
will be ON.
ParkSense will remember the previous state when the
vehicle is switch off.
318 STARTING AND OPERATING
