stop start FIAT 500X 2017 Owner handbook (in English)

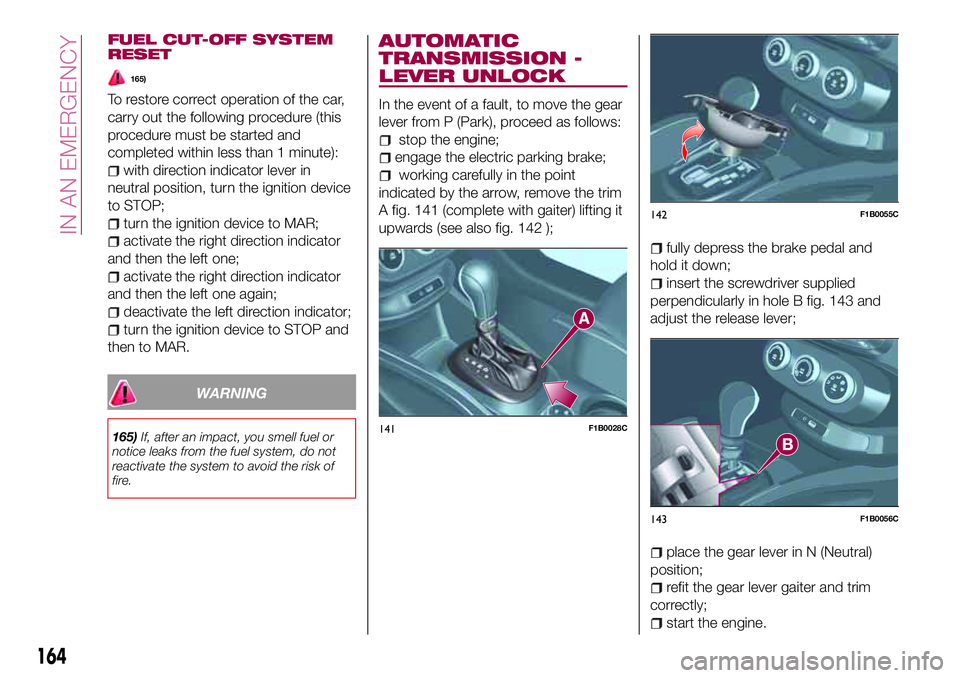

FUEL CUT-OFF SYSTEM
RESET
165)
To restore correct operation of the car,
carry out the following procedure (this
procedure must be started and
completed within less than 1 minute):
with direction indicator lever in
neutral position, turn the ignition device
to STOP;
turn the ignition device to MAR;
activate the right direction indicator
and then the left one;
activate the right direction indicator
and then the left one again;
deactivate the left direction indicator;
turn the ignition device to STOP and
then to MAR.
WARNING
165)If, after an impact, you smell fuel or
notice leaks from the fuel system, do not
reactivate the system to avoid the risk of
fire.
AUTOMATIC
TRANSMISSION -
LEVER UNLOCK
In the event of a fault, to move the gear
lever from P (Park), proceed as follows:
stop the engine;
engage the electric parking brake;
working carefully in the point
indicated by the arrow, remove the trim
A fig. 141 (complete with gaiter) lifting it
upwards (see also fig. 142 );
fully depress the brake pedal and
hold it down;
insert the screwdriver supplied
perpendicularly in hole B fig. 143 and
adjust the release lever;
place the gear lever in N (Neutral)
position;
refit the gear lever gaiter and trim
correctly;
start the engine.
141F1B0028C
142F1B0055C
143F1B0056C
164
IN AN EMERGENCY

IMPORTANT
71)It is advisable to contact a Fiat
Dealership to have the refitting procedure
carried out. If you would like to proceed
autonomously, special attention must be
paid to the correct coupling of the retaining
clips. Otherwise, noise might be heard due
to an incorrect fastening of the lower cover
with the upper cover.

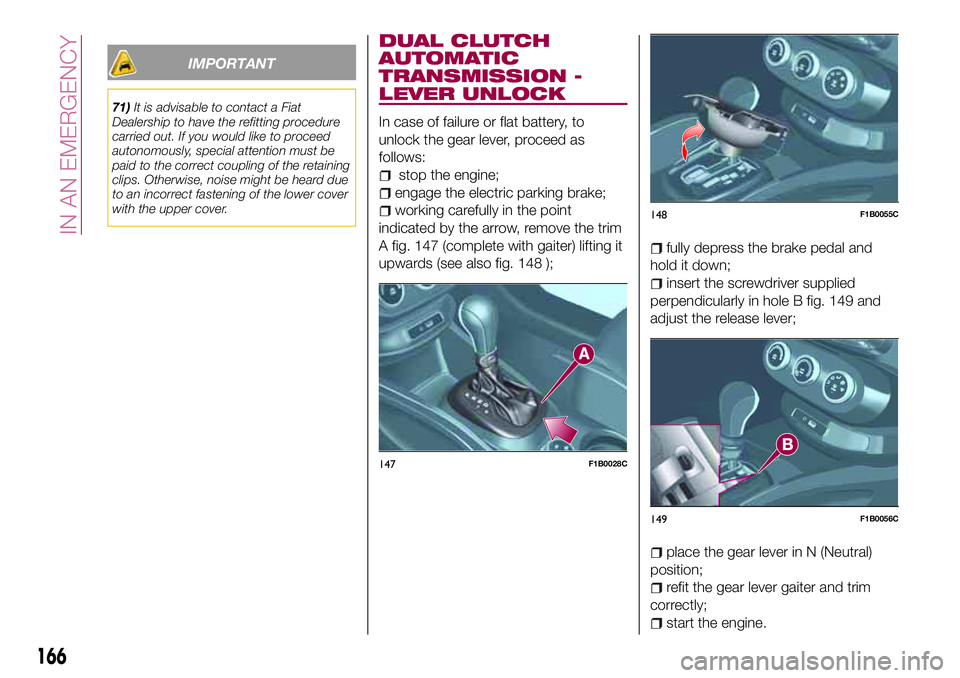

DUAL CLUTCH
AUTOMATIC
TRANSMISSION -
LEVER UNLOCK
In case of failure or flat battery, to
unlock the gear lever, proceed as
follows:
stop the engine;
engage the electric parking brake;
working carefully in the point
indicated by the arrow, remove the trim
A fig. 147 (complete with gaiter) lifting it
upwards (see also fig. 148 );
fully depress the brake pedal and
hold it down;
insert the screwdriver supplied
perpendicularly in hole B fig. 149 and
adjust the release lever;
place the gear lever in N (Neutral)
position;
refit the gear lever gaiter and trim
correctly;
start the engine.
147F1B0028C
148F1B0055C
149F1B0056C
166
IN AN EMERGENCY

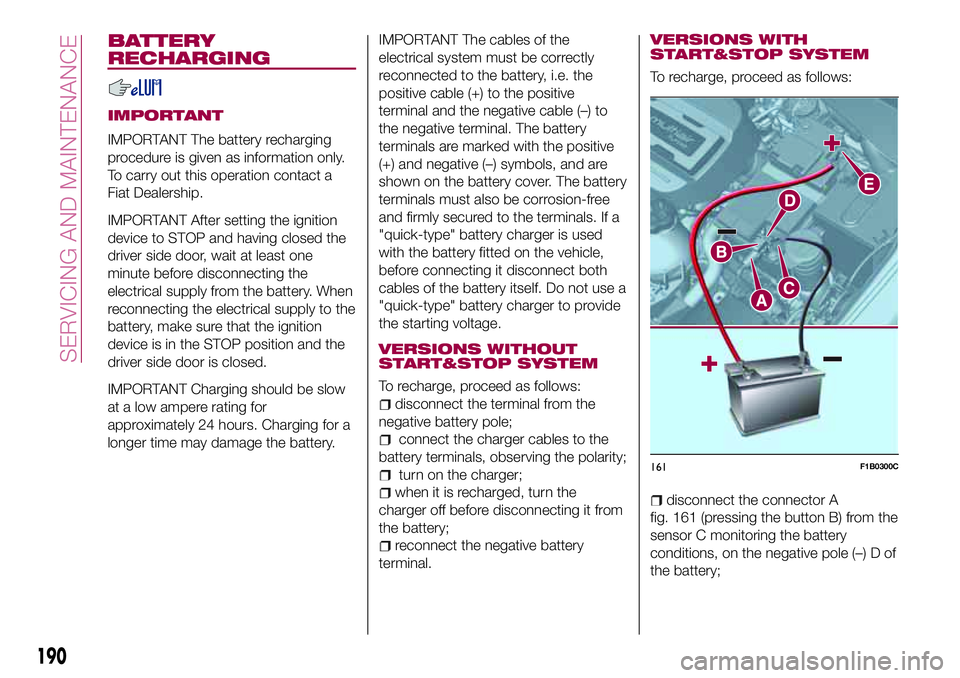

BATTERY
RECHARGING
IMPORTANT
IMPORTANT The battery recharging
procedure is given as information only.
To carry out this operation contact a
Fiat Dealership.
IMPORTANT After setting the ignition
device to STOP and having closed the
driver side door, wait at least one
minute before disconnecting the
electrical supply from the battery. When
reconnecting the electrical supply to the
battery, make sure that the ignition
device is in the STOP position and the
driver side door is closed.
IMPORTANT Charging should be slow
at a low ampere rating for
approximately 24 hours. Charging for a
longer time may damage the battery.IMPORTANT The cables of the
electrical system must be correctly
reconnected to the battery, i.e. the
positive cable (+) to the positive
terminal and the negative cable (–) to
the negative terminal. The battery
terminals are marked with the positive
(+) and negative (–) symbols, and are
shown on the battery cover. The battery
terminals must also be corrosion-free
and firmly secured to the terminals. If a
"quick-type" battery charger is used
with the battery fitted on the vehicle,
before connecting it disconnect both
cables of the battery itself. Do not use a
"quick-type" battery charger to provide
the starting voltage.
VERSIONS WITHOUT
START&STOP SYSTEM
To recharge, proceed as follows:
disconnect the terminal from the
negative battery pole;
connect the charger cables to the
battery terminals, observing the polarity;
turn on the charger;
when it is recharged, turn the
charger off before disconnecting it from
the battery;
reconnect the negative battery
terminal.
VERSIONS WITH
START&STOP SYSTEM
To recharge, proceed as follows:
disconnect the connector A
fig. 161 (pressing the button B) from the
sensor C monitoring the battery
conditions, on the negative pole (–) D of
the battery;
161F1B0300C
190
SERVICING AND MAINTENANCE

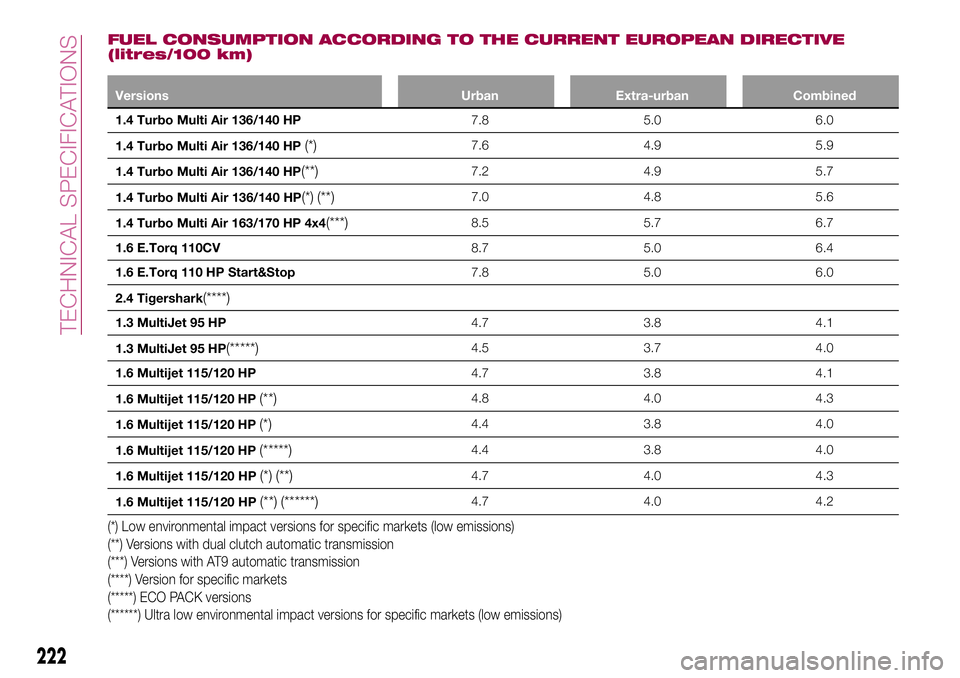

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)
Versions Urban Extra-urban Combined
1.4 Turbo Multi Air 136/140 HP7.8 5.0 6.0
1.4 Turbo Multi Air 136/140 HP
(*)7.6 4.9 5.9
1.4 Turbo Multi Air 136/140 HP
(**)7.2 4.9 5.7
1.4 Turbo Multi Air 136/140 HP
(*) (**)7.0 4.8 5.6
1.4 Turbo Multi Air 163/170 HP 4x4
(***)8.5 5.7 6.7
1.6 E.Torq 110CV8.7 5.0 6.4
1.6 E.Torq 110 HP Start&Stop7.8 5.0 6.0
2.4 Tigershark
(****)
1.3 MultiJet 95 HP4.7 3.8 4.1
1.3 MultiJet 95 HP
(*****)4.5 3.7 4.0
1.6 Multijet 115/120 HP4.7 3.8 4.1
1.6 Multijet 115/120 HP
(**)4.8 4.0 4.3
1.6 Multijet 115/120 HP
(*)4.4 3.8 4.0
1.6 Multijet 115/120 HP
(*****)4.4 3.8 4.0
1.6 Multijet 115/120 HP
(*) (**)4.7 4.0 4.3
1.6 Multijet 115/120 HP
(**) (******)4.7 4.0 4.2
(*) Low environmental impact versions for specific markets (low emissions)
(**) Versions with dual clutch automatic transmission
(***) Versions with AT9 automatic transmission
(****) Version for specific markets
(*****) ECO PACK versions
(******) Ultra low environmental impact versions for specific markets (low emissions)
222
TECHNICAL SPECIFICATIONS

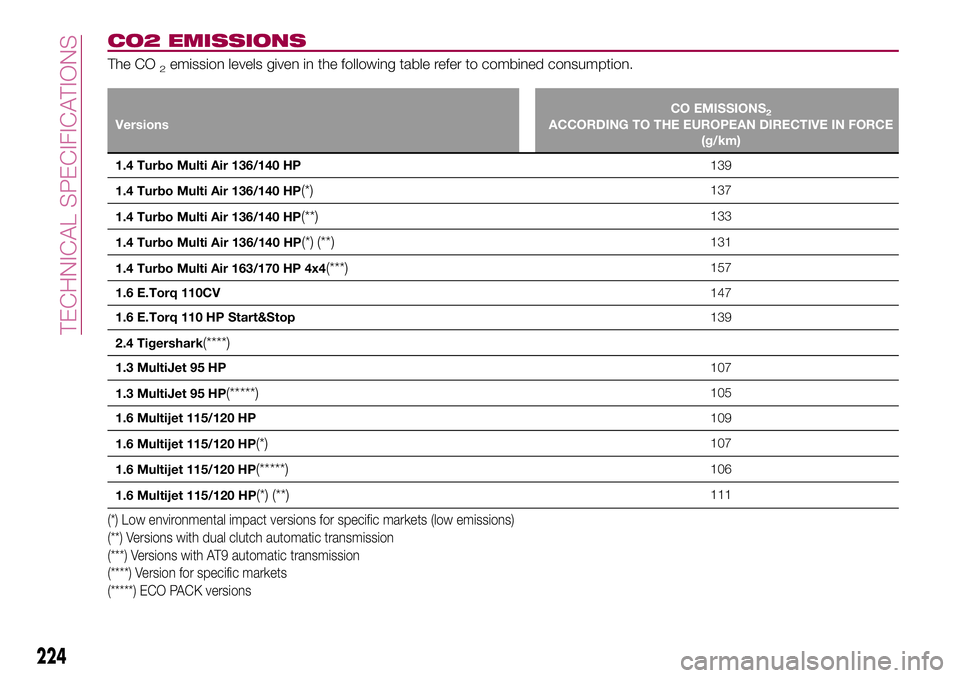

CO2 EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
VersionsCO EMISSIONS2ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE
(g/km)
1.4 Turbo Multi Air 136/140 HP139
1.4 Turbo Multi Air 136/140 HP
(*)137
1.4 Turbo Multi Air 136/140 HP
(**)133
1.4 Turbo Multi Air 136/140 HP
(*) (**)131
1.4 Turbo Multi Air 163/170 HP 4x4
(***)157
1.6 E.Torq 110CV147
1.6 E.Torq 110 HP Start&Stop139
2.4 Tigershark
(****)
1.3 MultiJet 95 HP107
1.3 MultiJet 95 HP
(*****)105
1.6 Multijet 115/120 HP109
1.6 Multijet 115/120 HP
(*)107
1.6 Multijet 115/120 HP
(*****)106
1.6 Multijet 115/120 HP
(*) (**)111
(*) Low environmental impact versions for specific markets (low emissions)
(**) Versions with dual clutch automatic transmission
(***) Versions with AT9 automatic transmission
(****) Version for specific markets
(*****) ECO PACK versions
224
TECHNICAL SPECIFICATIONS

USB/iPod SOURCE
To activate the USB/iPod mode insert
the corresponding device (USB or iPod)
in the USB port present on the vehicle.
SETTINGS
Press the MENU button on the front
panel to display the "Settings" menu.
NOTE The menu items displayed can
vary according to the versions.
The menu includes the following items:
System Settings: Language, Reset
Default Value, Ignition time, Volume
limit, Audio-On Radio.
Radio Settings: FM Browse, Traffic
Announcement, Regional, Alternative
Frequency.
Radio off delay: permits the system
to be kept on for a preset time after the
ignition key is turned to STOP.
AUDIO MODE
To access the "Audio" settings menu
briefly press the AUDIO button on the
front panel.
The menu includes the following items:
TREBLE: adjustment of high tones;
MID: adjustment of mid tones;
BASS: adjustment of bass tones;
FADER: balancing of front/rear
speakers;
BALANCE: balancing of left/right
speakers;
SVC: speed adjustment according to
vehicle speed;
LOUDNESS: audio improvement at
low volume;
AUX OFFSET: radio on or off when
the vehicle is started.
172F1B0006C
237

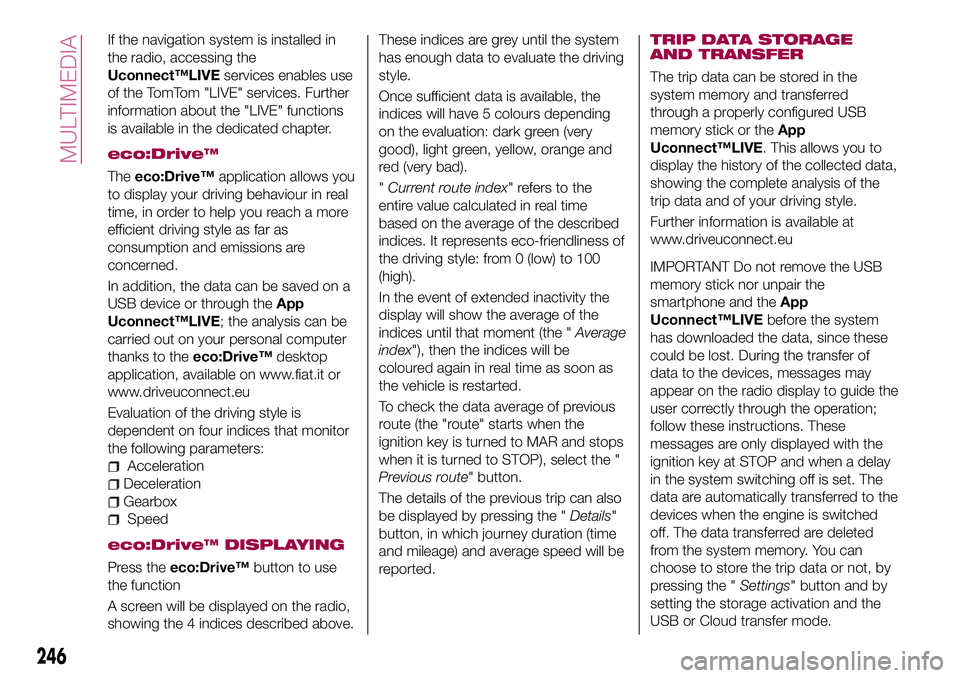

If the navigation system is installed in
the radio, accessing the
Uconnect™LIVEservices enables use
of the TomTom "LIVE" services. Further
information about the "LIVE" functions
is available in the dedicated chapter.
eco:Drive™
Theeco:Drive™application allows you
to display your driving behaviour in real
time, in order to help you reach a more
efficient driving style as far as
consumption and emissions are
concerned.
In addition, the data can be saved on a
USB device or through theApp
Uconnect™LIVE; the analysis can be
carried out on your personal computer
thanks to theeco:Drive™desktop
application, available on www.fiat.it or
www.driveuconnect.eu
Evaluation of the driving style is
dependent on four indices that monitor
the following parameters:
Acceleration
Deceleration
Gearbox
Speed
eco:Drive™ DISPLAYING
Press theeco:Drive™button to use
the function
A screen will be displayed on the radio,
showing the 4 indices described above.These indices are grey until the system
has enough data to evaluate the driving
style.
Once sufficient data is available, the
indices will have 5 colours depending
on the evaluation: dark green (very
good), light green, yellow, orange and
red (very bad).
"Current route index" refers to the
entire value calculated in real time
based on the average of the described
indices. It represents eco-friendliness of
the driving style: from 0 (low) to 100
(high).
In the event of extended inactivity the
display will show the average of the
indices until that moment (the "Average
index"), then the indices will be
coloured again in real time as soon as
the vehicle is restarted.
To check the data average of previous
route (the "route" starts when the
ignition key is turned to MAR and stops
when it is turned to STOP), select the "
Previous route" button.
The details of the previous trip can also
be displayed by pressing the "Details"
button, in which journey duration (time
and mileage) and average speed will be
reported.
TRIP DATA STORAGE
AND TRANSFER
The trip data can be stored in the
system memory and transferred
through a properly configured USB
memory stick or theApp
Uconnect™LIVE. This allows you to
display the history of the collected data,
showing the complete analysis of the
trip data and of your driving style.
Further information is available at
www.driveuconnect.eu
IMPORTANT Do not remove the USB
memory stick nor unpair the
smartphone and theApp
Uconnect™LIVEbefore the system
has downloaded the data, since these
could be lost. During the transfer of
data to the devices, messages may
appear on the radio display to guide the
user correctly through the operation;
follow these instructions. These
messages are only displayed with the
ignition key at STOP and when a delay
in the system switching off is set. The
data are automatically transferred to the
devices when the engine is switched
off. The data transferred are deleted
from the system memory. You can
choose to store the trip data or not, by
pressing the "Settings" button and by
setting the storage activation and the
USB or Cloud transfer mode.
246
MULTIMEDIA

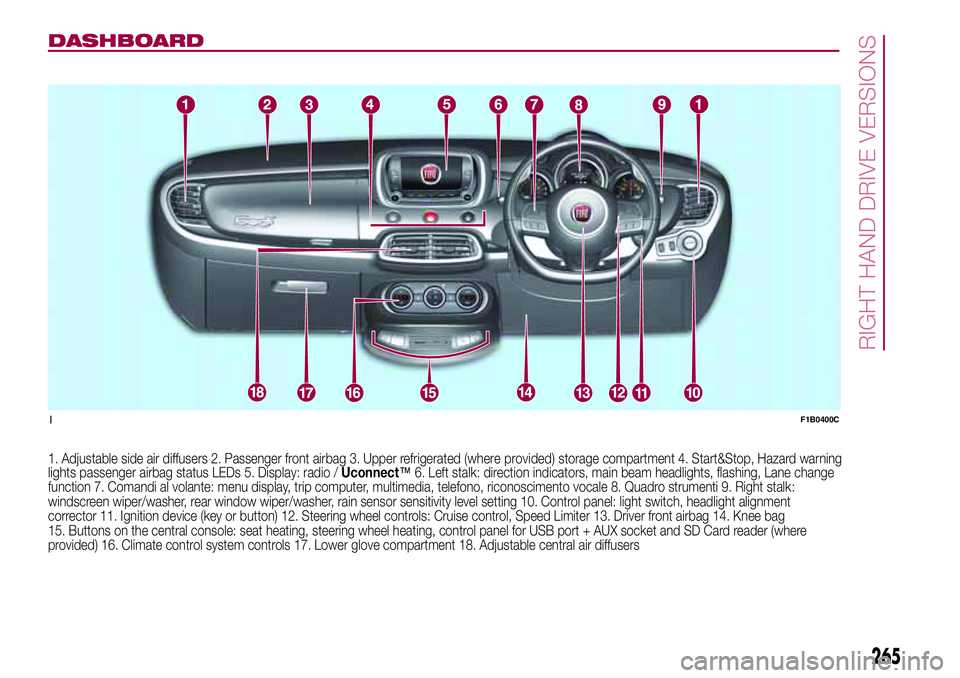

DASHBOARD
1. Adjustable side air diffusers 2. Passenger front airbag 3. Upperrefrigerated(where provided) storage compartment 4. Start&Stop, Hazard warning
lights passengerairbag status LEDs 5. Display: radio /Uconnect™6. Left stalk: direction indicators, main beam headlights, flashing, Lane change
function 7. Comandi al volante: menu display, trip computer, multimedia, telefono, riconoscimento vocale 8. Quadro strumenti 9. Right stalk:
windscreen wiper/washer, rear window wiper/washer, rain sensor sensitivity level setting 10. Control panel: light switch, headlight alignment
corrector 11. Ignition device (key or button) 12. Steering wheel controls: Cruise control, Speed Limiter 13. Driver front airbag 14. Knee bag
15. Buttons on the central console: seat heating, steering wheel heating, control panel for USB port + AUX socket and SD Card reader (where
provided) 16. Climate control system controls 17. Lower glove compartment 18. Adjustable central air diffusers
1F1B0400C
265
RIGHT HAND DRIVE VERSIONS

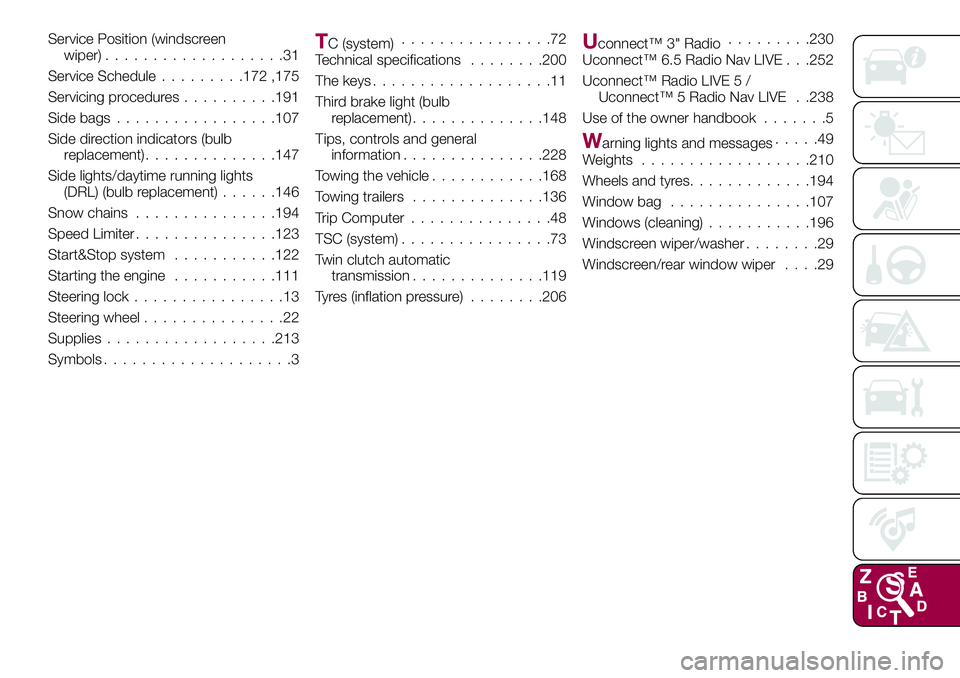

Service Position (windscreen
wiper)...................31
Service Schedule.........172 ,175
Servicing procedures..........191
Side bags.................107
Side direction indicators (bulb
replacement)..............147
Side lights/daytime running lights
(DRL) (bulb replacement)......146
Snow chains...............194
Speed Limiter...............123
Start&Stop system...........122
Starting the engine...........111
Steering lock................13
Steering wheel...............22
Supplies..................213
Symbols....................3TC (system)................72
Technical specifications........200
The keys...................11
Third brake light (bulb
replacement)..............148
Tips, controls and general
information...............228
Towing the vehicle............168
Towing trailers..............136
Trip Computer...............48
TSC (system)................73
Twin clutch automatic
transmission..............119
Tyres (inflation pressure)........206Uconnect™ 3" Radio.........230
Uconnect™ 6.5 Radio Nav LIVE . . .252
Uconnect™ Radio LIVE 5 /
Uconnect™ 5 Radio Nav LIVE . .238
Use of the owner handbook.......5
Warning lights and messages.....49
Weights..................210
Wheels and tyres.............194
Window bag...............107
Windows (cleaning)...........196
Windscreen wiper/washer........29
Windscreen/rear window wiper....29
