MAIN MENU
The Menu includes the following items:
TRIP
MOOD SELECTOR (or DRIVE MODE
VEHICLE INFO
DRIVER ASSIST
AUDIO
PHONE
NAVIGATION
WARNINGS
VEHICLE SETTINGS
Vehicle setup (Change car settings)
This menu item allows you to change
the settings for:
"Display";
"Units";
"Clock & Date";
"Security"
"Security & Assistance";
"Lights";
"Doors & Locks".
Display
By selecting item "Display" you can
access the settings/information
regarding: "Language", "See phone",
"See navigation", "Automatic Trip B
reset", “Repeat Drive Mode” or
(where provided)."Units"
Select item "Units" to choose the unit of
measurement between: "Imperial",
"Metric", "Customised".
"Clock & Date"
Select item "Clock & Date" to make the
following adjustments: "Set time", "Time
format", "Set date".
"Security"
Select item "Security" to make the
following adjustments: "Passenger
AIRBAG", "Speed beep", "Seat belt
buzzer", "Hill Hold Control".
"Passenger AIRBAG" adjustment allows
you to activate/deactivate the
passenger airbag:
Passenger's protection active:
the
ONLED comes on constantly in
the instrument panel dashboard.
Passenger's protection not
active: the
OFFLED comes on
constantly in the instrument panel
dashboard.
"Security & Assistance"
For possible adjustments see
paragraphUconnect™in the
dedicated chapter."Lights"
Select item "Lights" to make the
following adjustments: "Interior Ambient
lighting", "Headlight sensor", "Follow
me", "Headlights while opening", "Auto
high beams", "Daytime Lights",
"Cornering lights".
"Doors & Locks"
Select item "Doors & Locks" to make
the following adjustments: "Autoclose",
"Aut. unl. on exit", "Flsh.Light w/Lock",
"Horn with Lock", "Horn with remote
start", "Remote unlock", "Door Unlock"
(versions with Keyless Entry), "Keyless
Entry".
NOTE With theUconnect™system,
some Menu items are shown and
managed on the display of the latter
and not on the instrument panel display
(refer to the Multimedia chapter or to
the supplement available online).
47
GSIfor some markets) (where provided) /
“Repeat Mood Selector” (for

some markets)

this function the mobile phone must
support the SMS exchange function
through
Bluetooth®.
If this function is not supported by the
phone, the corresponding
button is
deactivated (greyed out).
When a text message is received, the
display will show a screen where the
options "Listen", "Call" or "Ignore" can
be selected.
Press the
button to access the list
of SMS messages received by the
mobile phone (the list displays a
maximum of 60 messages received).
NOTE On some mobile phones, to
make the SMS voice reading function
available, the SMS notification option
on the phone must be enabled; this
option is usually available on the phone,
in the
Bluetooth®connections menu
for a device registered asUconnect™.
After enabling this function on the
mobile phone, it must be disconnected
and reconnected with theUconnect™
system in order to make it effective.
IMPORTANT Some mobile phones may
not take the text delivery confirmation
settings into account when interfacing
withUconnect™. If a text message is
sent via theUconnect™system, the
driver could face an additional cost,
without any warning, due to the text
message delivery confirmation request
sent by the phone. For any problemsrelated to the above, contact your
telephone service provider.
SMS message options
Default SMS messages are stored in
the system memory and can be sent to
answer a received message or as a
new message:
Ye s
No
Okay
I can't talk right now
Call me
I'll call you later
I'm on my way
Thanks
I'll be late
Stuck in traffic
Start without me
Where are you?
Are you there yet?
I need directions
I'm lost
See you later
I am 5 (or 10, 15, 20, 25, 30, 45, 60)
(*) minutes late
See you in 5 (or 10, 15, 20, 25, 30,
45, 60) (*) minutes
(*) Only use the numbers listed,
otherwise the system will not take the
message.
NOTE For details on how to send an
SMS using the voice commands, refer
to the dedicated paragraph.
Uconnect LIVE
SERVICES
Press the APPS button to access the
menu, where all the system application
functions are present, such as: Trip
Computer, Settings, Compass (if the
navigation system is available),
Uconnect™LIVEapplications.
If theUconnect™LIVEicon is present,
the system is set up for the connected
services and allows the applications to
be used directly from the radio, for a
more efficient and advanced use of the
vehicle. The application functions are
present according to the vehicle
configuration and to the market.
To use theUconnect™LIVEservices it
is necessary to:
download theApp
Uconnect™LIVEfrom the "App Store"
or "Google play" on your compatible
smartphone, making sure that the data
connection is enabled
register on the
www.driveuconnect.eu or www.fiat.it
site through theApp Uconnect™LIVE
start theApp Uconnect™LIVEon
your smartphone and enter your details.
For further information about the
services available in your market, visit
the www.driveuconnect.eu site
244
MULTIMEDIA

If the navigation system is installed in
the radio, accessing the
Uconnect™LIVEservices enables use
of the TomTom "LIVE" services. Further
information about the "LIVE" functions
is available in the dedicated chapter.
eco:Drive™
Theeco:Drive™application allows you
to display your driving behaviour in real
time, in order to help you reach a more
efficient driving style as far as
consumption and emissions are
concerned.
In addition, the data can be saved on a
USB device or through theApp
Uconnect™LIVE; the analysis can be
carried out on your personal computer
thanks to theeco:Drive™desktop
application, available on www.fiat.it or
www.driveuconnect.eu
Evaluation of the driving style is
dependent on four indices that monitor
the following parameters:
Acceleration
Deceleration
Gearbox
Speed
eco:Drive™ DISPLAYING
Press theeco:Drive™button to use
the function
A screen will be displayed on the radio,
showing the 4 indices described above.These indices are grey until the system
has enough data to evaluate the driving
style.
Once sufficient data is available, the
indices will have 5 colours depending
on the evaluation: dark green (very
good), light green, yellow, orange and
red (very bad).
"Current route index" refers to the
entire value calculated in real time
based on the average of the described
indices. It represents eco-friendliness of
the driving style: from 0 (low) to 100
(high).
In the event of extended inactivity the
display will show the average of the
indices until that moment (the "Average
index"), then the indices will be
coloured again in real time as soon as
the vehicle is restarted.
To check the data average of previous
route (the "route" starts when the
ignition key is turned to MAR and stops
when it is turned to STOP), select the "
Previous route" button.
The details of the previous trip can also
be displayed by pressing the "Details"
button, in which journey duration (time
and mileage) and average speed will be
reported.
TRIP DATA STORAGE
AND TRANSFER
The trip data can be stored in the
system memory and transferred
through a properly configured USB
memory stick or theApp
Uconnect™LIVE. This allows you to
display the history of the collected data,
showing the complete analysis of the
trip data and of your driving style.
Further information is available at
www.driveuconnect.eu
IMPORTANT Do not remove the USB
memory stick nor unpair the
smartphone and theApp
Uconnect™LIVEbefore the system
has downloaded the data, since these
could be lost. During the transfer of
data to the devices, messages may
appear on the radio display to guide the
user correctly through the operation;
follow these instructions. These
messages are only displayed with the
ignition key at STOP and when a delay
in the system switching off is set. The
data are automatically transferred to the
devices when the engine is switched
off. The data transferred are deleted
from the system memory. You can
choose to store the trip data or not, by
pressing the "Settings" button and by
setting the storage activation and the
USB or Cloud transfer mode.
246
MULTIMEDIA

through acoustic warnings only, via the
speakers in the vehicle.
- "Sound & Display": the system warns
the driver that an obstacle is present
through acoustic (via the speakers in
the vehicle) and visual (on the
instrument panel) warnings.
"Front Park Assist vol."(where
provided): this function can be used to
select the volume of the acoustic
warnings provided by the front Park
Assist system.
"Rear Park Assist vol."(where
provided): this function can be used to
select the volume of the acoustic
warnings provided by the rear Park
Assist system.
"Park Assist vol."(where provided):
this function can be used to select the
volume of the acoustic warnings
provided by the Park Assist system.
"Lane Assist Warning"(where
provided): this function can be used to
select the LaneAssist system
intervention "readiness".
"Lane Assist Strength"(where
provided): this function can be used to
select the force to apply to the steering
wheel to put the vehicle back in the
lane through the electric steering
system, in the event of Lane Assist
system intervention.
"Blind Spot Alert"(where provided):
this function can be used to select thetype of warning ("Sound Only" or
"Sound & Display") to indicate the
presence of objects in the blind spot of
the door mirror.
"Rain sensor"(where provided): this
function can be used to activate/
deactivate the automatic operation of
the wipers in the event of rain.
"Brakes"(where provided): this
function can be used to select the
following submenus:
- "Brake Service" (where provided):
allows you to activate the procedure for
carrying out braking system servicing;
- "Auto Park Brake" (where provided):
allows you to activate/deactivate the
automatic park brake engagement.
NAVIGATION(5" Uconnect Radio Nav LIVE only)
Programming a route
IMPORTANT In the interest of safety
and to reduce distractions while you are
driving, you should always plan a route
before you start driving.
To plan a route, do the following:
tap the screen to open the Main
menu;
Tap "Navigate to" or "Drive to".
Tap "Address". You can change the
country or state setting by tapping the
flag before you select a city.
Enter the town or city name, or the
zip code. Towns with similar names are
shown in the list while you type. When
the desired city or town appears in the
list, tap the name to select the
destination.
Enter the street name. Streets with
similar names are shown in the list while
you type. When the correct street name
appears in the list, tap the name to
select the destination.
Enter the house number, then tap
"Done".
The location will be shown on the
map. Tap "Select" to continue or tap
"Back" to enter another address.
When the new route is shown, tap
"Done". For more information about the
route, tap "Details". To change your
route, for example, to travel via a
particular location or to select a new
destination, tap "Change route".
You are guided to your destination,
using spoken instructions and
on-screen directions.
Map update
There are two modes to download a
map update:
Most recent maps guarantee:ifa
new map is available for your system
within 90 days of initial use, it can be
downloaded once free of charge. The
specific TomTom Home option on the
248
MULTIMEDIA

menu must be selected to use the most
recent maps guarantee: select “Tools”
and when “Use most recent maps
guarantee”. For further information visit
the www.tomtom.com website
Map update: it is possible to
purchase a new version of the map
installed on the system.
USB device setup
To update the map, use an USB device
that meets the following requirements:
Ideally, the USB device should be
empty.
The USB device must have at least
8 GB of memory free.
The USB device must use a
FAT-32 file system.
The USB device must not be
blocked and must allow files to be
saved.
NoteThe use of a memory stick is
recommended, while the use of mass
storage devices, such as mobile
phones or multimedia players, is not
recommended.
To prepare an USB device, proceed as
follows:
SelectNavigation updatesin the
settingsmenu.
You are asked whether you wish to
prepare an USB device for downloading
updates.
SelectYes.
Insert the USB device.
NoteIf the system continues to ask
you to insert the USB device, check
that the device meets the requirements
indicated previously, then retry.
The system starts to prepare the USB
device.
When the USB device is ready, a
dedicated message is displayed.
Remove the USB device and
connect it to the computer. The new
map can now be downloaded to the
USB device.
TOMTOM HOME
INSTALLATION
To install TomTom HOME and create a
MyTomTom account, proceed as
follows:
Download and install the TomTom
HOME application on the computer. On
the computer, access
www.tomtom.com/getstarted. Select
"Download TomTom HOME", then
follow the instructions provided.
Connect the USB device prepared
with the computer. TomTom HOME is
started automatically.
Select "Enter" in the top right corner.
Select "Create account" and enter
the required details to create a
MyTomTom account. A MyTomTom
account is required to receive map
updates.After the account is created, you are
asked whether you wish to connect the
Uconnect™system to your account.
The USB device prepared represents
yourUconnect™system.
Select "Connect device", then select
"close".
A map can now be downloaded to the
USB device.
DOWNLOAD A MAP
The map can be updated in two ways:
Most recent maps guarantee: if a
new map is available for your system
within 90 days of initial use, it can be
downloaded once free of charge.
Map update: it is possible to
purchase a new version of the map
installed on the system.
To check availability or purchase a map,
make sure that you have prepared an
USB device and installed TomTom
HOME on your computer.
Connect the USB device to the
computer.
Downloading a map
If a map update is available for the
system, this update is included in the
list of updates available.
NoteIf the most recent map is already
installed on the system, the update is
not proposed.
249

VOICE COMMANDS
NoteFor languages not supported by
the system, voice commands are not
available.
To use the voice commands, press the
button ("Voice" button) on the
steering wheel and give the command
you want to activate, out loud.
Global
The following voice commands can be
given after pressing the
button on
the steering wheel:
Help
Cancel
Repeat
Voice Prompts
Navigation
Phone
The following voice commands can be
given after pressing the
button on
the steering wheel and saying "Go to
telephone":
Call
Dial
Redial
Call back
Last calls
Outgoing calls
Missed calls
Incoming calls
Phonebook
Search
Show SMS
SMS voice commands
The following voice commands can be
given after pressing the
button on
the steering wheel:
Send an SMS to "0123456"
Send an SMS to "Mario Rossi"
"mobile"
Show messages
Radio
The following voice commands can be
given after pressing the
button on
the steering wheel:
Tune to FM "frequency"
Tune to AM "frequency"
Tune to "radio station name" FM
Tune to "radio station name" DAB
channel
Media
The following voice commands can be
given after pressing the
button on
the steering wheel:
Play song...
Play album…
Play artist…
Play genre…
Play playlist…
Play podcast…
Play audiobook…
Play track number…
Select the source...
Display...Navigation
(Uconnect 5" Radio Nav LIVE only)
The following voice commands can be
given after pressing the
button on
the steering wheel:
Drive Home
2D view
3D view
Clear route
Add Favourite
Repeat instruction
251

cards for navigation exclusively
separate from SD cards for MP3 use
exclusively). Avoid transferring content
from one SD card to another.
AUX SUPPORT
To activate AUX mode, connect an
appropriate device to the AUX socket
on the vehicle.
Adjust the volume using the
(ON/OFF) button/knob on the front
panel or using the volume adjustment
control on the connected device.
IMPORTANT
The functions of the device connected
with the AUX socket are directly
managed by the device itself: it is not
possible to change track/folder/playlist
or control playing start/end/pause with
the controls on the front panel or on the
steering wheel.
Do not leave the cable of your portable
player connected to the AUX socket
after disconnection, to avoid possible
hiss from the speakers.
PHONE MODE
PHONE MODE
ACTIVATION
Press the PHONE button on the front
panel to activate the Phone mode.
The buttons on the display can be used
to:
compose the phone number (using
the graphic keypad on the display);
display and call the contacts in the
mobile phone phonebook;
display and call contacts from the
registers of recent calls;
pair up to 10 phones to make access
and connection easier and quicker;
transfer calls from the system to the
mobile phone and vice versa and
deactivate the microphone audio for
private conversations.
The mobile phone audio is transmitted
through the vehicles’s audio system; the
system automatically mutes the radio
when the Phone function is used.
NOTE For the list of compatible mobile
phones and functions supported,
consult the www.driveuconnect.eu
website
PAIRING A MOBILE
PHONE
Proceed as follows:
activate theBluetooth®function on
the mobile phone;
press the PHONE button on the front
panel;
if no phone is paired with the system
yet, the display shows a dedicated
screen;
select "Yes" to start the pairing
procedure, then search for the
Uconnect™device on the mobile
phone (if "No" is selected, the Phone
main screen is displayed);
when prompted by the mobile
phone, use its keypad to enter the PIN
code shown on the system display or
confirm on the mobile phone the PIN
displayed;
from the “Phone” screen you can
always pair a mobile phone by pressing
the “Settings” button: press the “Add
Device” button and proceed as
described above;
during the pairing stage a screen is
displayed showing the progress of the
operation;
when the pairing procedure is
completed successfully, a screen is
displayed: answer "Yes" to the question
to pair the mobile phone as favourite
(the mobile phone will have priority over
all other mobile phones to be paired
259

CLOCK
Pressing the time at the middle of the
top of the display allows you to set the
time.
General information
The general information about the
vehicle is displayed in the central part of
the display:
the outside temperature, expressed
in the selected unit of measurement;
mobile phone battery charge (when a
mobile is paired);
theicon (if aBluetooth®device is
connected);
phone network signal intensity (if a
mobile phone is connected).
COMPASS
Press the "Compass" button to display
the direction in which you are driving
and "Navigation mode" information.
TRIP
Press the "Trip" button to access the
screens containing the Trip Computer
information processed by the
instrument panel.
UconnectTM LIVE(if present)
By pressing the "Uconnect™LIVE"
buton, you can access the
Uconnect™LIVEservices. For further
information, see paragraphUconnect™5" Radio LIVE /
Uconnect™5" Radio Nav LIVE.
SETTINGS
Press thebutton on the front panel
to display the "Settings" menu.
NOTE The menu items displayed can
vary according to the versions.
The menu includes the following items:
Display;
Units;
Voice commands;
Clock & Date;
Safety & Driving Assistance;
Lights;
Doors & Locks;
Vehicle Shutdown Options;
Audio;
Phone/Bluetooth;
Sirius XM Setup (where provided);
Radio Setup;
System Information;
Restore Default Settings;
Clear Personal Data.
Driving safety and assistance
(where provided)
This function can be used to carry out
the following adjustments:
"Rear View Camera" (where
provided): allows you to activate the
display of images from the camera
when reverse is engaged.
"Rear view camera delayed
deactivation" (where provided): allows
you to delay the disappearance of
images from the rear camera when
reverse is disengaged.
"Guidelines for load platform camera"
(where provided): allows you to activate
dynamic grids that indicate the route of
the vehicle.
"Frnt Coll. Warning" (where
provided): allows you to select the Full
Brake Control system operation mode.
The options available are:
- "Off": the system is deactivated;
- "Only warning": the system intervenes
only by providing the driver with a
warning (where provided);
- "Only active braking": the system
intervenes by activating automatic
braking (where provided);
- "Warning + active braking": the
system intervenes by providing the
driver with a warning and activating
automatic braking.
"Forward Collision System
Sensitivity" (where provided): allows you
to select the intervention readiness for
the system according to the distance of
the obstacle. The options available are
"Near", "Med", "Far".
"Park Assist" (where provided):
allows you to select the type of warning
provided by the Park Assist system.
261

To activate the main navigation menu,
press the NAV button on the front
panel, then press one of the following
buttons on the screen:
"Where to?": to find or navigate to
the destination;
"View map": to display the map;
"Info": to display all the navigation
information;
"Emergency": to search for Hospitals
or Police Stations located near the
destination. It is also possible to view
your current position on the display and
save, in "Favourites", the location of the
Hospitals or Police Stations.
VIEW MAP
Press the "View Map" button in the
main Navigation Menu to display the
map relative to the current position.
When the display shows the map, the
following options are available:
"Menu": press this button to return
to the main Navigation Menu;
"+/–": press the "+" or " –" button to
change the dimension of the map (it is
not possible to zoom in on minor
roads);
"Time of Arrival/Time to
Destination/Distance"(only during
navigation): press this button at the top
right of the display to view one of the
following options: "Time of Arrival",
"Time to Destination", "Distance".
"Turn List"(only during navigation):
press the list of turns along the route at
the middle of the top of the display.
Select a turn through the following
options: "Show on Map" or "Avoid
Street".
"Options": press this button to
display the map display options.
INFORMATION
Press the "Information" button in the
main Navigation Menu to select from
the following information:
Where Am I?
Traffic
"Trip comp." (Trip Computer)
You can press the
button to return
to the previously active screen or the
"X" button to exit.
EMERGENCY
Press the "Emergency" button in the
main Navigation Menu to select one of
the following options for searching for
and navigating towards a destination:
"Hospital": press this button to set a
trip to a hospital near the destination;
"Police": press this button to set a
trip to a police station near the
destination.
263
NAVIGATION MAIN MENU
IMPORTANT Navigation maps are
pre-loaded on the system, therefore no
external support is needed.
NOTE To update the navigation maps,
contact a Fiat Dealership.

264

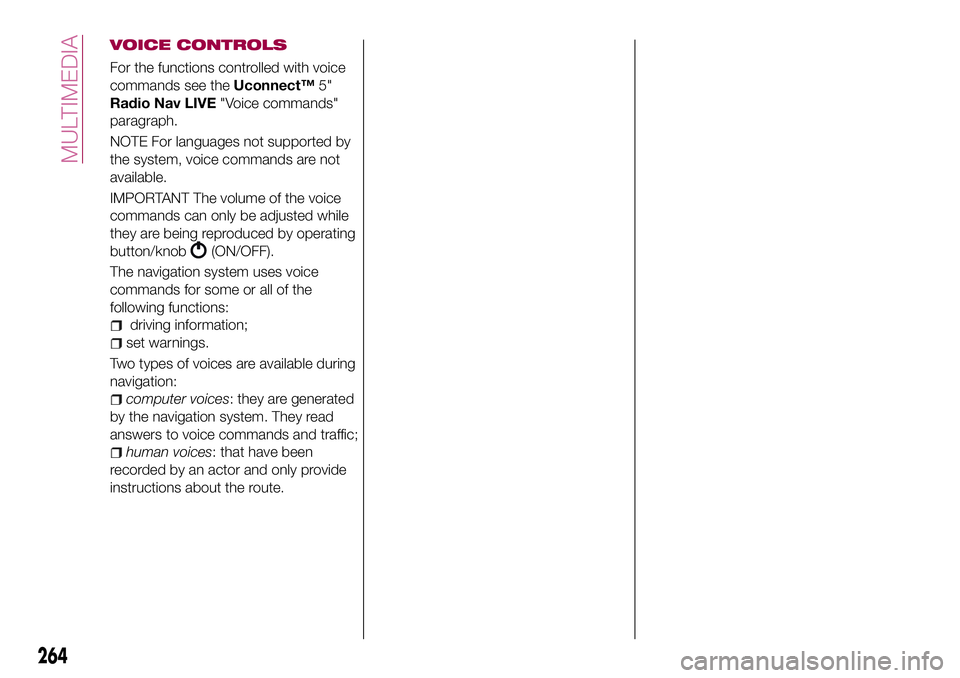

MULTIMEDIA
VOICE CONTROLS
For the functions controlled with voice
commands see theUconnect™5"
Radio Nav LIVE"Voice commands"
paragraph.
NOTE For languages not supported by
the system, voice commands are not
available.
IMPORTANT The volume of the voice
commands can only be adjusted while
they are being reproduced by operating
button/knob
(ON/OFF).
The navigation system uses voice
commands for some or all of the
following functions:
driving information;
set warnings.
Two types of voices are available during
navigation:
computer voices: they are generated
by the navigation system. They read
answers to voice commands and traffic;
human voices: that have been
recorded by an actor and only provide
instructions about the route.
