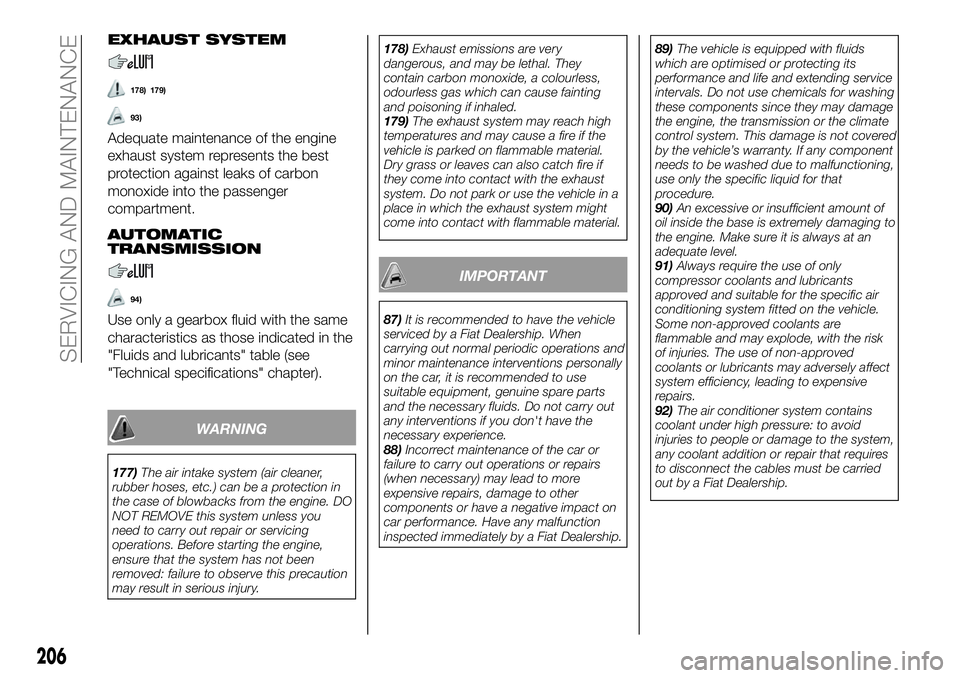

EXHAUST SYSTEM
178) 179)
93)
Adequate maintenance of the engine
exhaust system represents the best
protection against leaks of carbon
monoxide into the passenger
compartment.
AUTOMATIC
TRANSMISSION
94)
Use only a gearbox fluid with the same
characteristics as those indicated in the
"Fluids and lubricants" table (see
"Technical specifications" chapter).
WARNING
177)The air intake system (air cleaner,
rubber hoses, etc.) can be a protection in
the case of blowbacks from the engine. DO
NOT REMOVE this system unless you
need to carry out repair or servicing
operations. Before starting the engine,
ensure that the system has not been
removed: failure to observe this precaution
may result in serious injury.178)Exhaust emissions are very
dangerous, and may be lethal. They
contain carbon monoxide, a colourless,
odourless gas which can cause fainting
and poisoning if inhaled.
179)The exhaust system may reach high
temperatures and may cause a fire if the
vehicle is parked on flammable material.
Dry grass or leaves can also catch fire if
they come into contact with the exhaust
system. Do not park or use the vehicle in a
place in which the exhaust system might
come into contact with flammable material.
IMPORTANT
87)It is recommended to have the vehicle
serviced by a Fiat Dealership. When
carrying out normal periodic operations and
minor maintenance interventions personally
on the car, it is recommended to use
suitable equipment, genuine spare parts
and the necessary fluids. Do not carry out
any interventions if you don't have the
necessary experience.
88)Incorrect maintenance of the car or
failure to carry out operations or repairs
(when necessary) may lead to more
expensive repairs, damage to other
components or have a negative impact on
car performance. Have any malfunction
inspected immediately by a Fiat Dealership.89)The vehicle is equipped with fluids
which are optimised or protecting its
performance and life and extending service
intervals. Do not use chemicals for washing
these components since they may damage
the engine, the transmission or the climate
control system. This damage is not covered
by the vehicle’s warranty. If any component
needs to be washed due to malfunctioning,
use only the specific liquid for that
procedure.
90)An excessive or insufficient amount of
oil inside the base is extremely damaging to
the engine. Make sure it is always at an
adequate level.
91)Always require the use of only
compressor coolants and lubricants
approved and suitable for the specific air
conditioning system fitted on the vehicle.
Some non-approved coolants are
flammable and may explode, with the risk
of injuries. The use of non-approved
coolants or lubricants may adversely affect
system efficiency, leading to expensive
repairs.
92)The air conditioner system contains
coolant under high pressure: to avoid
injuries to people or damage to the system,
any coolant addition or repair that requires
to disconnect the cables must be carried
out by a Fiat Dealership.
206
SERVICING AND MAINTENANCE

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle is
made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.
IDENTIFICATION DATA.........213
ENGINE..................214
WHEELS.................217
DIMENSIONS..............219
WEIGHTS.................221
SUPPLIES................225
FLUIDS AND LUBRICANTS......230
PERFORMANCE............234
FUEL CONSUMPTION - CO
EMISSIONS................235
PRESCRIPTIONS FOR HANDLING
THE CAR AT THE END OF ITS
LIFE....................236
212
TECHNICAL SPECIFICATIONS
2

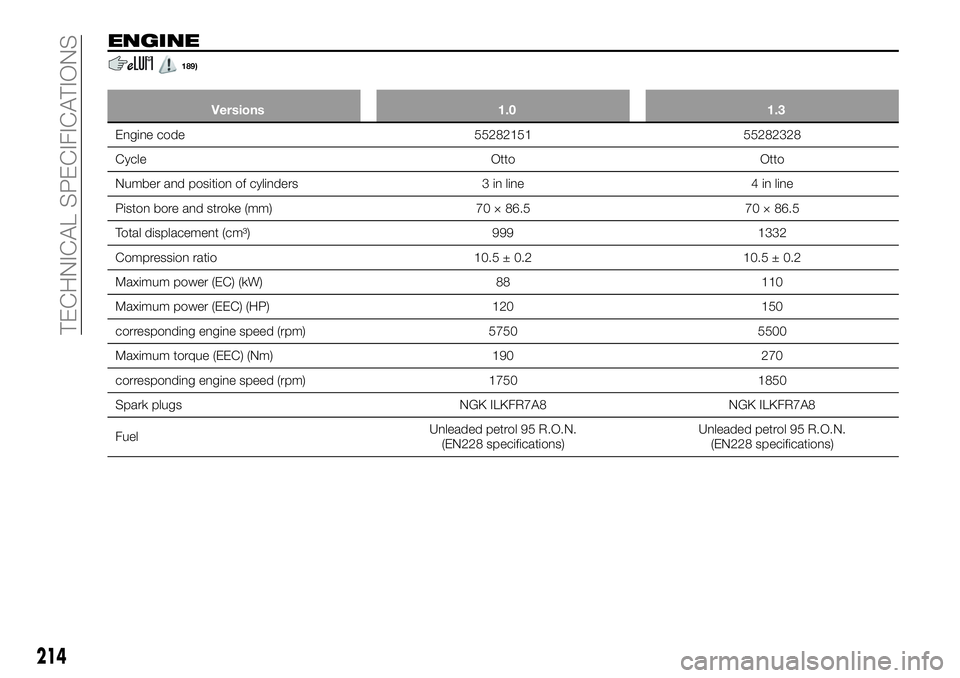

ENGINE
189)
Versions 1.0 1.3
Engine code 55282151 55282328
Cycle Otto Otto
Number and position of cylinders 3 in line 4 in line
Piston bore and stroke (mm) 70 × 86.5 70 × 86.5
Total displacement (cm³) 999 1332
Compression ratio 10.5 ± 0.2 10.5 ± 0.2
Maximum power (EC) (kW) 88 110
Maximum power (EEC) (HP) 120 150
corresponding engine speed (rpm) 5750 5500
Maximum torque (EEC) (Nm) 190 270
corresponding engine speed (rpm) 1750 1850
Spark plugs NGK ILKFR7A8 NGK ILKFR7A8
FuelUnleaded petrol 95 R.O.N.
(EN228 specifications)Unleaded petrol 95 R.O.N.
(EN228 specifications)
214
TECHNICAL SPECIFICATIONS

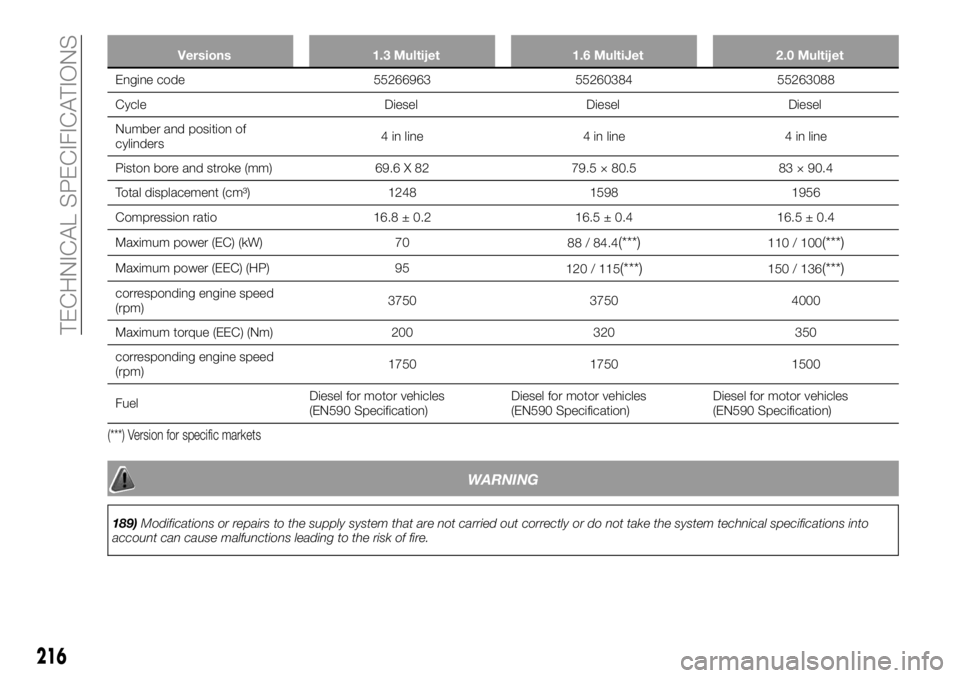

Versions 1.3 Multijet 1.6 MultiJet 2.0 Multijet
Engine code 55266963 55260384 55263088
Cycle Diesel Diesel Diesel
Number and position of
cylinders4 in line 4 in line 4 in line
Piston bore and stroke (mm) 69.6 X 82 79.5 × 80.5 83 × 90.4
Total displacement (cm³) 1248 1598 1956
Compression ratio 16.8 ± 0.2 16.5 ± 0.4 16.5 ± 0.4
Maximum power (EC) (kW) 70
88 / 84.4
(***)110 / 100(***)
Maximum power (EEC) (HP) 95
120 / 115(***)150 / 136(***)
corresponding engine speed
(rpm)3750 3750 4000
Maximum torque (EEC) (Nm) 200 320 350
corresponding engine speed
(rpm)1750 1750 1500
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(***) Version for specific markets
WARNING
189)Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
216
TECHNICAL SPECIFICATIONS

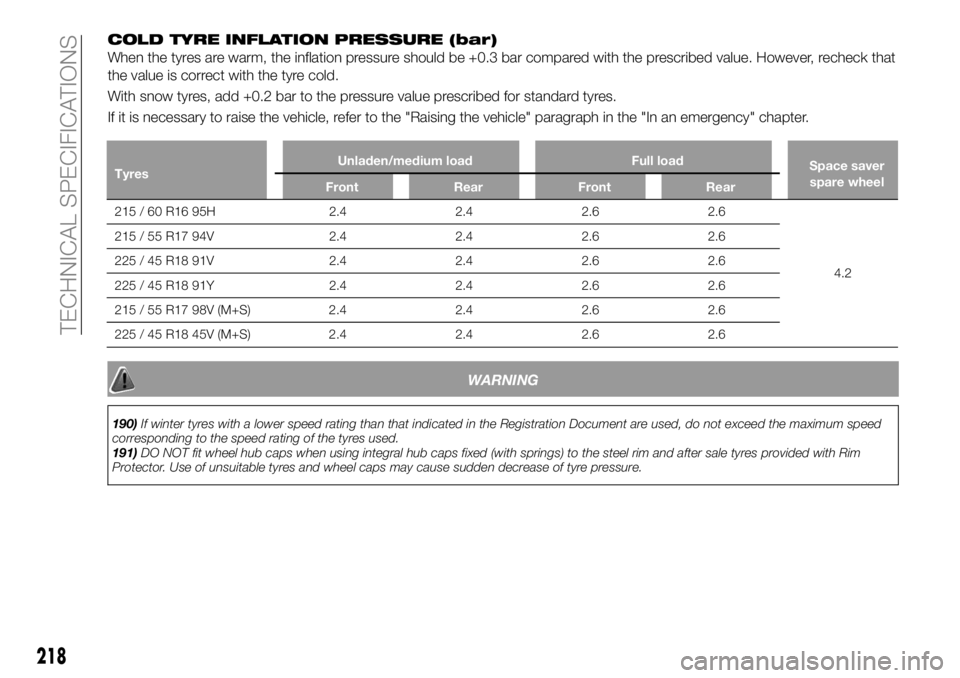

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar compared with the prescribed value. However, recheck that
the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
WARNING
190)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
191)DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
218
TECHNICAL SPECIFICATIONS
TyresUnladen/medium load Full load
Space saver
spare wheel
Front Rear Front Rear
215 / 60 R16 95H 2.4 2.4 2.6 2.6
4.2 215 / 55 R17 94V 2.4 2.4 2.6 2.6
225 / 45 R18 91V 2.4 2.4 2.6 2.6
225 / 45 R18 91Y 2.4 2.4 2.6 2.6
215 / 55 R17 98V (M+S) 2.4 2.4 2.6 2.6
225 / 45 R18 45V (M+S) 2.4 2.4 2.6 2.6

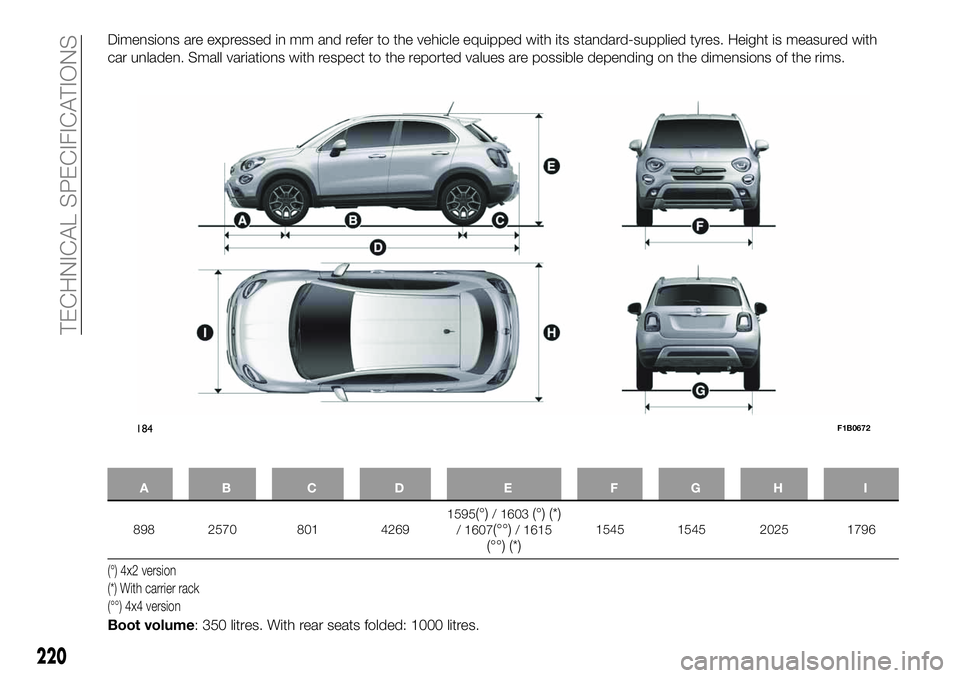

Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
car unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D E FGH I
898 2570 801 42691595(°)/ 1603(°) (*)/ 1607(°°)/ 1615(°°) (*)
1545 1545 2025 1796
(°) 4x2 version
(*) With carrier rack
(°°) 4x4 version
Boot volume: 350 litres. With rear seats folded: 1000 litres.
184F1B0672
220
TECHNICAL SPECIFICATIONS

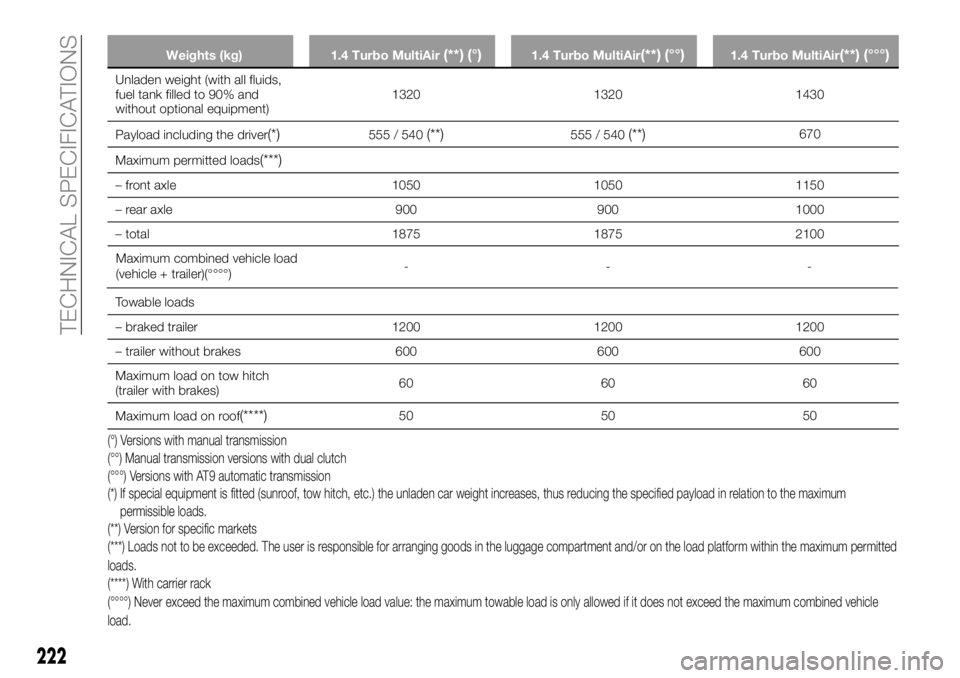

Weights (kg) 1.4 Turbo MultiAir(**) (°)1.4 Turbo MultiAir(**) (°°)1.4 Turbo MultiAir(**) (°°°)
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment)1320 1320 1430
Payload including the driver
(*)555 / 540(**)555 / 540(**)670
Maximum permitted loads
(***)
– front axle 1050 1050 1150
– rear axle 900 900 1000
– total 1875 1875 2100
Towable loads
– braked trailer 1200 1200 1200
– trailer without brakes 600 600 600
Maximum load on tow hitch
(trailer with brakes)60 60 60
Maximum load on roof
(****)50 50 50
(°)
Versions
with
manual
transmission
(°°)
Manual
transmission
versions
with
dual
clutch
(°°°)
Versions
with
AT 9
automatic
transmission
(*)
If
special
equipment
is
fitted
(sunroof,
tow
hitch,
etc.)
the
unladen
car
weight
increases,
thus
reducing
the
specified
payload
in
relation
to
the
maximum
permissible
loads.
(**)
Version
for
specific
markets
(***)
Loads
not
to

be
exceeded.
The
user
is
responsible
for
arranging
goods
in
the
luggage
compartment
and/or
on
the
load
platform
within
the
maximum
permitted
loads.
(****)

With
carrier
rack
<000900a100a100a100a1000a0001002f0046005700460053000100460059004400460046004500010055004900460001004e00420059004a004e0056004e000100440050004e0043004a004f004600450001005700460049004a0044004d00460001004d00
5000420045000100570042004d00560046001b000100550049><00460001004e00420059004a004e0056004e000100550050005800420043004d00460001004d0050004200450001004a005400010050004f004d005a00010042004d004d00500058004600450001004a00470001004a005500010045005000460054000100
4f005000550001004600590044004600460045000100550049>F
NBYJNVN
DPNCJOFE
WFIJDMF

MPBE
222
TECHNICAL SPECIFICATIONS
.BYJNVN
DPNCJOFE
WFIJDMF
MPBE

WFIJDMF

USBJMFS
¡¡¡¡

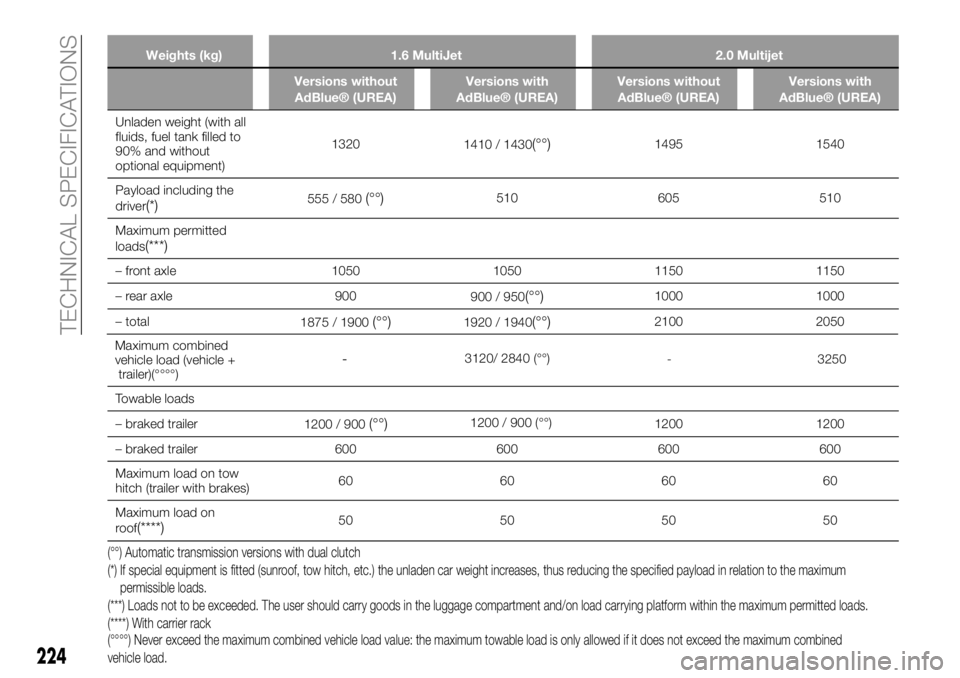

Weights (kg) 1.6 MultiJet 2.0 Multijet
Versions without
AdBlue® (UREA)Versions with
AdBlue® (UREA)Versions without
AdBlue® (UREA)Versions with
AdBlue® (UREA)
Unladen weight (with all
fluids, fuel tank filled to
90% and without
optional equipment)1320
1410 / 1430
(°°)1495 1540
Payload including the
driver
(*)555 / 580(°°)510 605 510
Maximum permitted
loads
(***)
– front axle 1050 1050 1150 1150
– rear axle 900
900 / 950
(°°)1000 1000
– total
1875 / 1900
(°°)1920 / 1940(°°)2100 2050
Towable loads
– braked trailer
1200 / 900
(°°)


¡¡
1200 1200
– braked trailer 600 600 600 600
Maximum load on tow
hitch (trailer with brakes)60 60 60 60
Maximum load on
roof
(****)50 50 50 50
(°°)
Automatic
transmission
versions
with
dual
clutch
(*)
If
special
equipment
is
fitted
(sunroof,
tow
hitch,
etc.)
the
unladen
car
weight
increases,
thus
reducing
the
specified
payload
in
relation
to
the
maximum
permissible
loads.
(***)
Loads
not
to
be
exceeded.
The
user
should
carry
goods
in
the
luggage
compartment
and/on
load
carrying

platform
within
the
maximum
permitted
loads.
(****)

With
carrier
rack
<000900a100a100a100a1000a0001002f0046005700460053000100460059004400460046004500010055004900460001004e00420059004a004e0056004e000100440050004e0043004a004f004600450001005700460049004a0044004d00460001004d00
5000420045000100570042004d00560046001b000100550049><00460001004e00420059004a004e0056004e000100550050005800420043004d00460001004d0050004200450001004a005400010050004f004d005a00010042004d004d00500058004600450001004a00470001004a005500010045005000460054000100
4f005000550001004600590044004600460045000100550049>F
NBYJNVN
DPNCJOFE

WFIJDMF
MPBE
224
TECHNICAL SPECIFICATIONS.BYJNVN
DPNCJOFE

WFIJDMF
MPBE
WFIJDMF


USBJMFS
¡¡¡¡











¡¡






1.4 Turbo
MultiAir(**)
(°)1.4 Turbo
MultiAir(**)
(°°)1.4 Turbo
MultiAir(**)
(°°°)Prescribed fuels and original lubricants
Fuel tank (litres) 48 48 48
Unleaded petrol with RON no lower than 95
(EN228 specifications)
including a reserve of (litres) 5 - 7 5 - 7 5 - 7
Engine cooling system (litres) 5.2 5.2 5.2Mixture of distilled water and PARAFLU
UP
50%(*)
Engine sump (litres) 3.2 3.2 3.2 SELENIA DIGITEK P.E.
Engine sump and filter (litres) 3.6 3.6 3.6 SELENIA DIGITEK P.E.
Gearbox casing/differential (litres) 1.8 2.1 6.0TUTELA TRANSMISSION GEARFORCE (versions
with manual transmission/dual clutch automatic
transmission) / TUTELA TRANSMISSION AS8
(versions with AT9 automatic transmission)
Idler unit (PTU) (litres) – – 0.4 TUTELA TRANSMISSION B-5X
Rear differential (litres) – – 0.6 TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg) 0.83 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5 2.5Mixture of water and PETRONAS DURANCE
SC35
(**) Version for specific markets (°) Versions with manual transmission
(°°) Versions with dual clutch automatic transmission
(°°°) Versions with AT9 automatic transmission
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU
UPand 40% demineralised water.
226
TECHNICAL SPECIFICATIONS

1.6 MultiJet 2.0 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 55 55
Diesel for motor vehicles (EN590 Specification)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 6.1 6.5Mixture of distilled water and PARAFLU
UP
50%(*)
Engine sump and filter (litres) 4.8 4.8SELENIA WR FORWARD 0W-30 (versions
without AdBlue®) / SELENIA WR FORWARD
0W-20 (versions with AdBlue®)
Gearbox casing/differential (litres)
1.8
(°)/ 2.1(°°)6.0(°°°)
TUTELA TRANSMISSION GEARFORCE (versions
with manual transmission/dual clutch automatic
transmission) / TUTELA TRANSMISSION AS8
(versions with AT9 automatic transmission)
Idler unit (PTU) (litres) – 0.4 TUTELA TRANSMISSION B-5X
Rear differential (litres) – 0.6 TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and PETRONAS DURANCE
SC35
AdBlue® tank (where provided)
capacity approximately (litres)13 13AdBlue® DIN 70 070 and ISO 22241-1
99) 100)
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(°) Versions with manual transmission
(°°) Automatic transmission versions with dual clutch
(°°°) Versions with AT9 automatic transmission
IMPORTANT
99)
228
TECHNICAL SPECIFICATIONS
The distribution companies are responsible for the compliance of their product. Observe the precautions of storage and maintenance, in
order to preserve the initial qualities. The manufacturer will not recognise any guarantee in case of malfunctions and damage caused to the
car due to the use of not in accordance with regulations.
AdBlue
®
