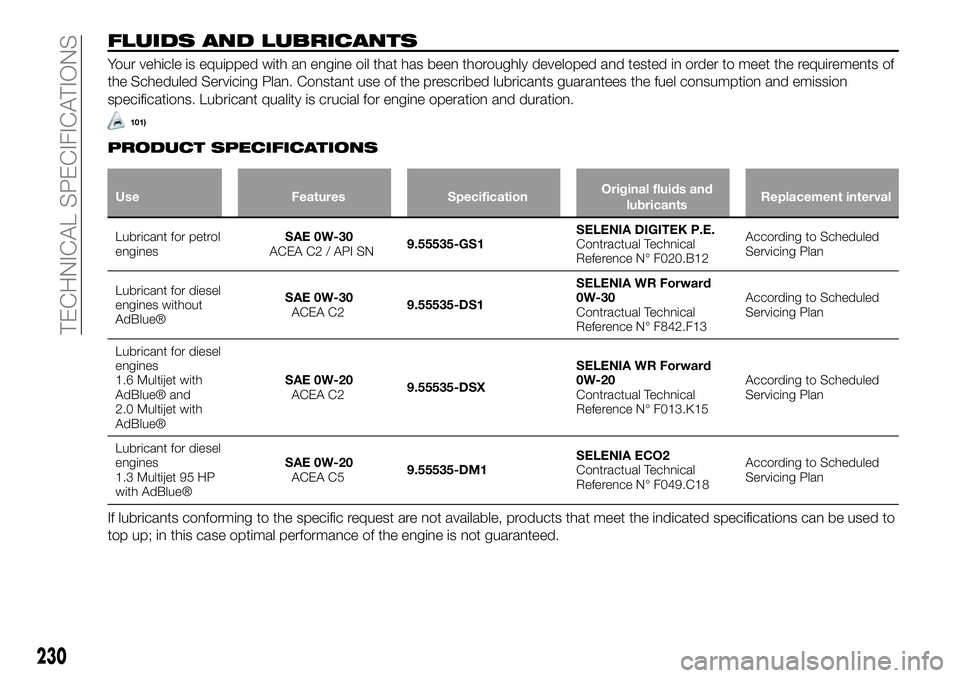

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
101)
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
enginesSAE 0W-30
ACEA C2 / API SN9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for diesel
engines without
AdBlue®SAE 0W-30
ACEA C29.55535-DS1SELENIA WR Forward
0W-30
Contractual Technical
Reference N° F842.F13According to Scheduled
Servicing Plan
Lubricant for diesel
engines
1.6 Multijet with
AdBlue® and
2.0 Multijet with
AdBlue®SAE 0W-20
ACEA C29.55535-DSXSELENIA WR Forward
0W-20
Contractual Technical
Reference N° F013.K15According to Scheduled
Servicing Plan
Lubricant for diesel
engines
1.3 Multijet 95 HP
with AdBlue®SAE 0W-20
ACEA
C9.55535-DM1SELENIA ECO2
Contractual Technical
Reference N° F049.C18According to Scheduled
Servicing Plan
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
230
TECHNICAL SPECIFICATIONS

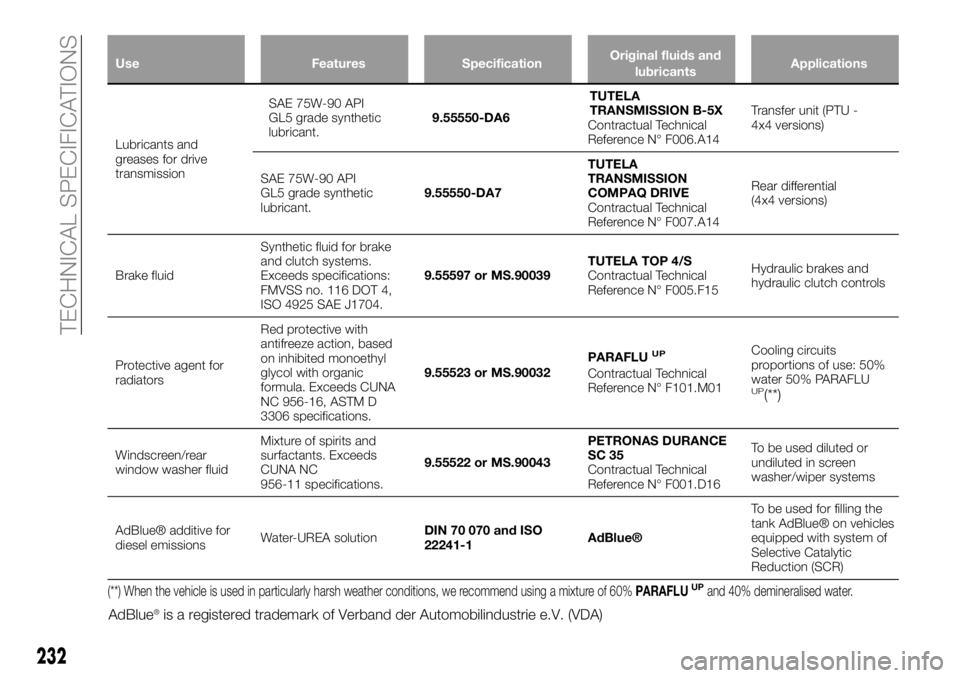

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSAE 75W-90 API
GL5 grade synthetic
lubricant.9.55550-DA6TUTELA
TRANSMISSION B-5X
Contractual Technical
Reference N° F006.A14Transfer unit (PTU -
4x4 versions)
SAE 75W-90 API
GL5 grade synthetic
lubricant.9.55550-DA7TUTELA
TRANSMISSION
COMPAQ DRIVE
Contractual Technical
Reference N° F007.A14Rear differential
(4x4 versions)
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLU
UP
Contractual Technical
Reference N° F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLU
UP(**)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications.9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
AdBlue® additive for
diesel emissionsWater-UREA solutionDIN 70 070 and ISO
22241-1AdBlue®To be used for filling the
tank AdBlue® on vehicles
equipped with system of
Selective Catalytic
Reduction (SCR)
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
232
TECHNICAL SPECIFICATIONS
AdBlue®is a registered trademark of Verband der Automobilindustrie e.V. (VDA)

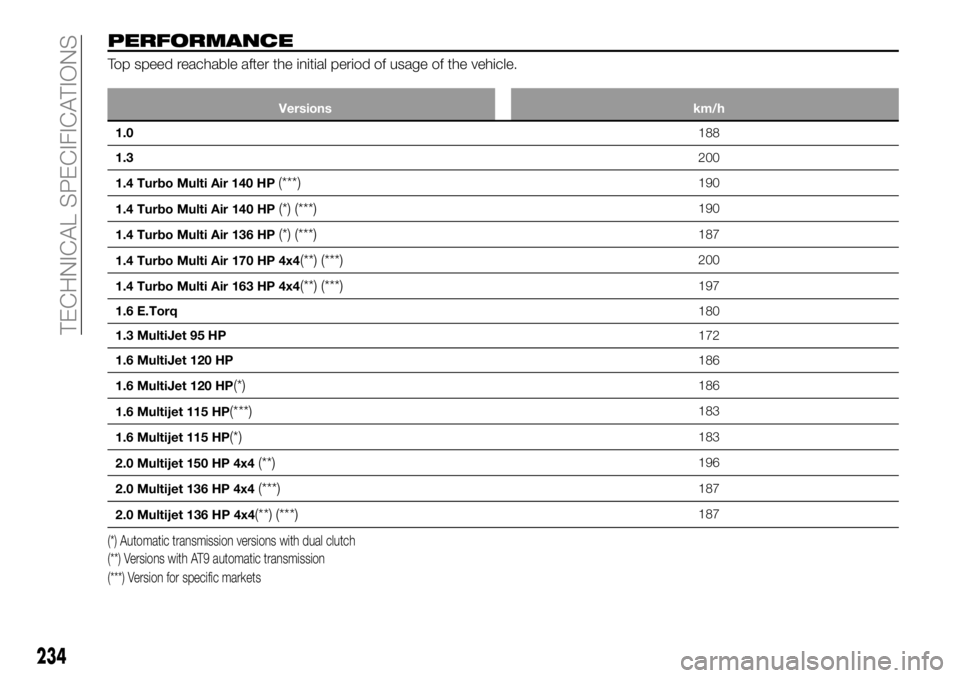

PERFORMANCE
Top speed reachable after the initial period of usage of the vehicle.
Versions km/h
1.0188
1.3200
1.4 Turbo Multi Air 140 HP
(***)190
1.4 Turbo Multi Air 140 HP
(*) (***)190
1.4 Turbo Multi Air 136 HP
(*) (***)187
1.4 Turbo Multi Air 170 HP 4x4
(**) (***)200
1.4 Turbo Multi Air 163 HP 4x4
(**) (***)197
1.6 E.Torq180
1.3 MultiJet 95 HP172
1.6 MultiJet 120 HP186
1.6 MultiJet 120 HP
(*)186
1.6 Multijet 115 HP
(***)183
1.6 Multijet 115 HP
(*)183
2.0 Multijet 150 HP 4x4
(**)196
2.0 Multijet 136 HP 4x4
(***)187
2.0 Multijet 136 HP 4x4
(**) (***)187
(***) Version for specific markets (*) Automatic transmission versions with dual clutch
(**) Versions with AT9 automatic transmission
234
TECHNICAL SPECIFICATIONS

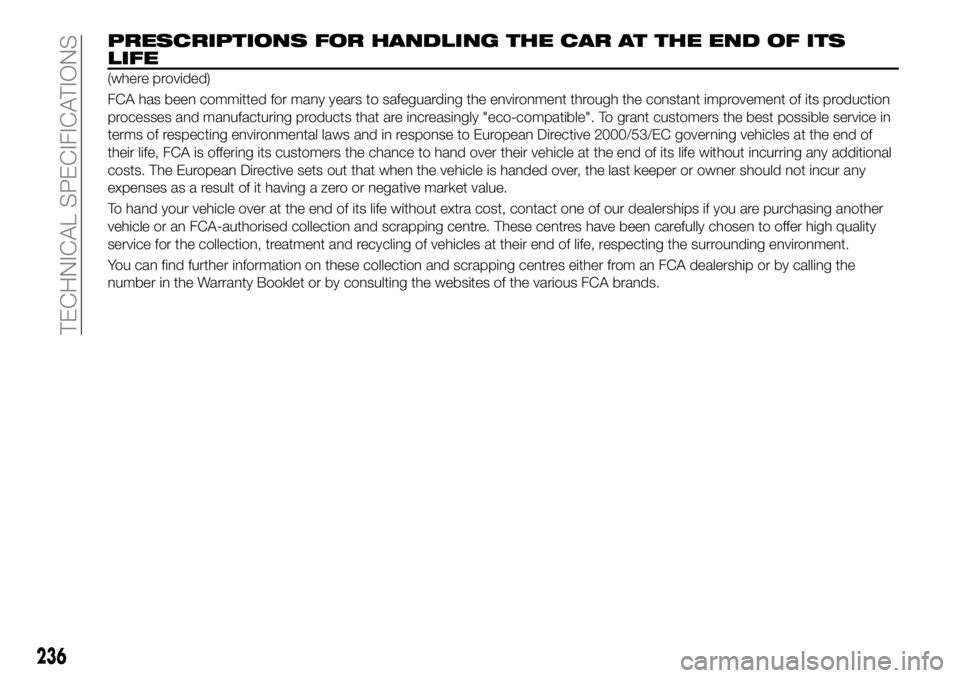

PRESCRIPTIONS FOR HANDLING THE CAR AT THE END OF ITS
LIFE
(where provided)
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service in
terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
236
TECHNICAL SPECIFICATIONS

Reconfigurable load platform......44
Refuelling procedure..........147
emergency refuelling........147
Refuelling the vehicle..........147
Replacing a bulb.............152
Replacing an external bulb......155
Rims and tyres (dimensions)......217
SBR (Seat Belt Reminder)
system..................89
Scheduled Servicing..........179
Screen wiper/washer...........30
Seat belts..................88
Seats.....................19
Service Position (windscreen
wiper)...................32
Service schedule.........180 ,184
Servicing procedures..........204
Side bag..................111
Side direction indicators (bulb
replacement)..............156
Side lights/daytime running lights
(DRL) (bulb replacement)......155Smart washing function.........30
Snow chains...............207
Speed Limiter...............127
Start&Stop system...........125
Starting the engine...........114
Steering lock................13
Steering wheel...............23
Supplies..................225
Symbols....................4
Tail lights (bulb replacement).....156
TC (system).................76
Technical specifications........213
The keys...................11
Third brake light (bulb
replacement)..............157
Tips, controls and general
information...............238
Towing the vehicle............176
Towing trailers..............144
Traffic Sign Recognition (system) . . .140
Trip Computer...............50TSC (system)................77
Tyres (inflation pressure)........218
Uconnect™ 7" HD - Uconnect™
7" HD Nav
Android Auto.............262
Apple CarPlay............262
Phone mode.............259
Settings................264
Uconnect™ LIVE Services.....261
Uconnect™ 7” HD LIVE /
Uconnect™ 7” HD Nav LIVE. . . .250
Uconnect™ Radio............240
Use of the owner handbook.......6
Warning lights and messages.....51
Weights..................221
Wheels and tyres.............207
Window bag...............111
Windows (cleaning)...........209
Windscreen/rear window wiper....30
