FIAT 600 2007 1.G Owners Manual

90IN AN EMERGENCY
GENERAL INSTRUCTIONS
When a light is not working, check
that it has not fused before changing
the bulb.
For location of fuses, refer to
IF A
FUSE BLOWS
in this chapter.
Before replacing a bulb that does not
work, check that the contacts are not
oxidised.
Burnt-out bulbs must be replaced
with ones of the same type.
Always check the height of the head-
light beam after changing a bulb.
fig. 11
P4Q00160
IMPORTANTOn the inside sur-
face of the headlight there could ap-
pear a slight coat of fogging; this does
not show a defect, since it is a natural
occurrence due to low temperature
and to the degree of humidity in the
air; it will soon disappear as soon as
the lights are turned on. The presence
of drops inside the headlight shows
water seepage, refer to the Fiat
Dealership.
083-104 Seicento GB 22-11-2007 10:50 Pagina 90

91IN AN EMERGENCY

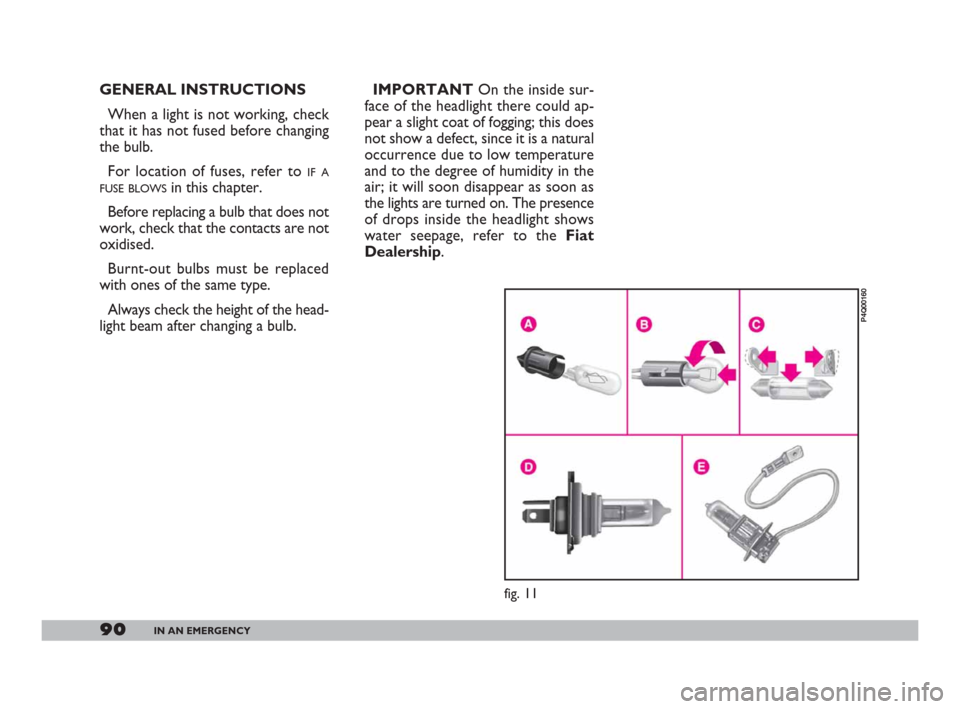

TYPES OF BULBS fig. 11
Several types of bulbs are installed in
the car:
A. Glass bulbs Snapped into posi-
tion. Pull to remove.
B. Bayonet connection bulbs Re-
move from the bulb holder by press-
ing the bulb and rotating it anti-clock-
wise.
C. Cylindrical bulbs Remove by
pulling away from terminals.
D. Double filament halogen
bulbs To remove the bulb release the
clip holding the bulb in place.
E. Halogen bulb To remove the
bulb, release the clip holding the bulb
in place. BULB (fig. 11) TYPE W
MAIN BEAM
DIPPED BEAM
FRONT SIDE LIGHTS
FRONT DIRECTION INDICATORS
SIDE DIRECTION INDICATORS
REAR DIRECTION INDICATORS
BRAKE/TAILLIGHTS
REVERSE LIGHT
REAR FOGLIGHT
CEILING LAMP
NUMBER PLATE LIGHT
FRONT FOGLIGHT
ADDITIONAL BRAKE LIGHT (3rdbrake light)
D
D
A
B
A
B
B
B
B
C
B
E
AH4 60/55
H4 60/55
W5W 5
P21W 21
W5W 5
P21W 21
P21/5W 21/5
P21W 21
P21W 21
CW5 5
R5W 5
H3 55
W5W 5
083-104 Seicento GB 22-11-2007 10:50 Pagina 91

92IN AN EMERGENCY
3)fit a new bulb, making the tabs
E-fig. 14 on the metal part coincide
with the specific housings on the
headlight dish;
4)refasten the clip, refit the rubber
guard and refit the connector.
IF AN EXTERIOR LIGHT BURNS OUT
MAIN BEAM AND DIPPED
BEAM HEADLIGHTS
To replace a halogen bulb:

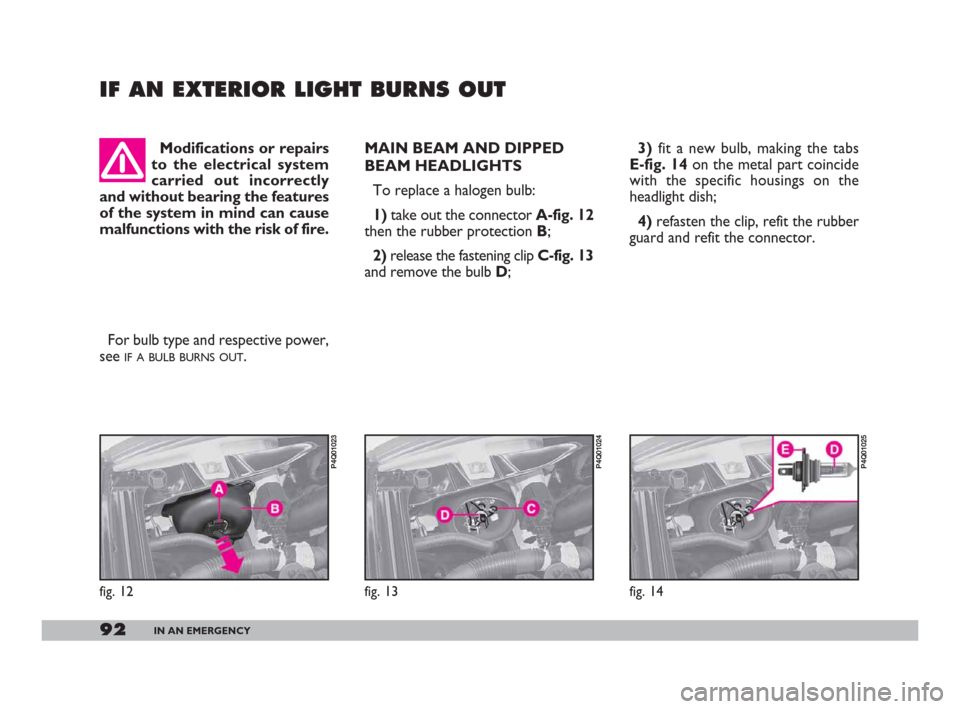

1)take out the connector A-fig. 12
then the rubber protection B;
2)release the fastening clip C-fig. 13
and remove the bulb D;
fig. 12
P4Q01023
fig. 14
P4Q01025
Modifications or repairs
to the electrical system
carried out incorrectly
and without bearing the features
of the system in mind can cause
malfunctions with the risk of fire.
For bulb type and respective power,
see
IF A BULB BURNS OUT.
fig. 13
P4Q01024
083-104 Seicento GB 22-11-2007 10:50 Pagina 92

93IN AN EMERGENCY
3)replace the bulb and refit the bulb
holder A.
Front direction indicators
To replace the 12V-21W bulb:
1) release the clip A-fig. 17, work-
ing in the direction of the arrow;
2)remove the lens unit B-fig. 18
from the front;
3)the bulb holder Cis connected to
the lens. Turn it slightly to remove;
4)remove the bulb D, pushing it in
slightly and turning it anti-clockwise at
the same time;5)after changing the bulb, refit the
bulb holder onto the lens;
6)replace the lens unit in its seating
inserting the tabs E-fig. 19in the
guides Fto the side of the light;
7)refasten the clip A-fig. 17. FRONT SIDE LIGHTS
To replace the 12V-5W bulb:

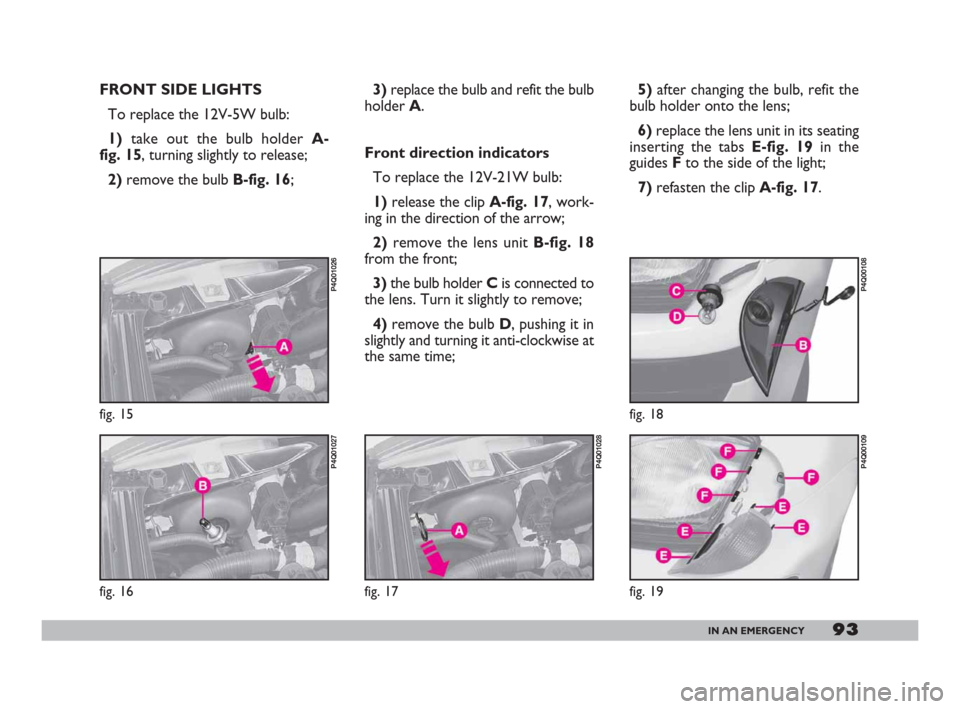

1)take out the bulb holder A-
fig. 15, turning slightly to release;
2)remove the bulb B-fig. 16;
fig. 16
P4Q01027
fig. 15
P4Q01026
fig. 17
P4Q01028
fig. 18
P4Q00108
fig. 19
P4Q00109
083-104 Seicento GB 22-11-2007 10:50 Pagina 93

94IN AN EMERGENCY
SIDE DIRECTION
INDICATORS
To replace the 12V-5W bulb:

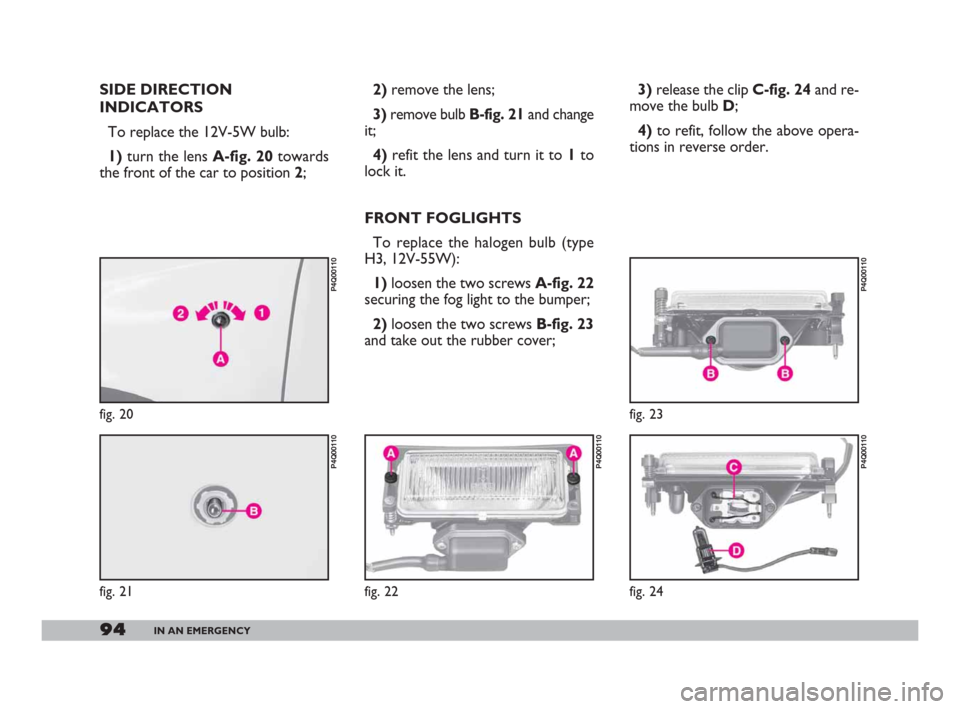

1)turn the lens A-fig. 20towards
the front of the car to position 2;2)remove the lens;
3)remove bulb B-fig. 21and change
it;
4)refit the lens and turn it to 1 to
lock it.
FRONT FOGLIGHTS
To replace the halogen bulb (type
H3, 12V-55W):
1)loosen the two screws A-fig. 22
securing the fog light to the bumper;
2)loosen the two screws B-fig. 23
and take out the rubber cover;3)release the clip C-fig. 24and re-
move the bulb D;
4)to refit, follow the above opera-
tions in reverse order.
fig. 20
P4Q00110
fig. 21
P4Q00110
fig. 22
P4Q00110
fig. 23
P4Q00110
fig. 24
P4Q00110
083-104 Seicento GB 22-11-2007 10:50 Pagina 94

95IN AN EMERGENCY
REAR LIGHT CLUSTER
To replace a bulb:

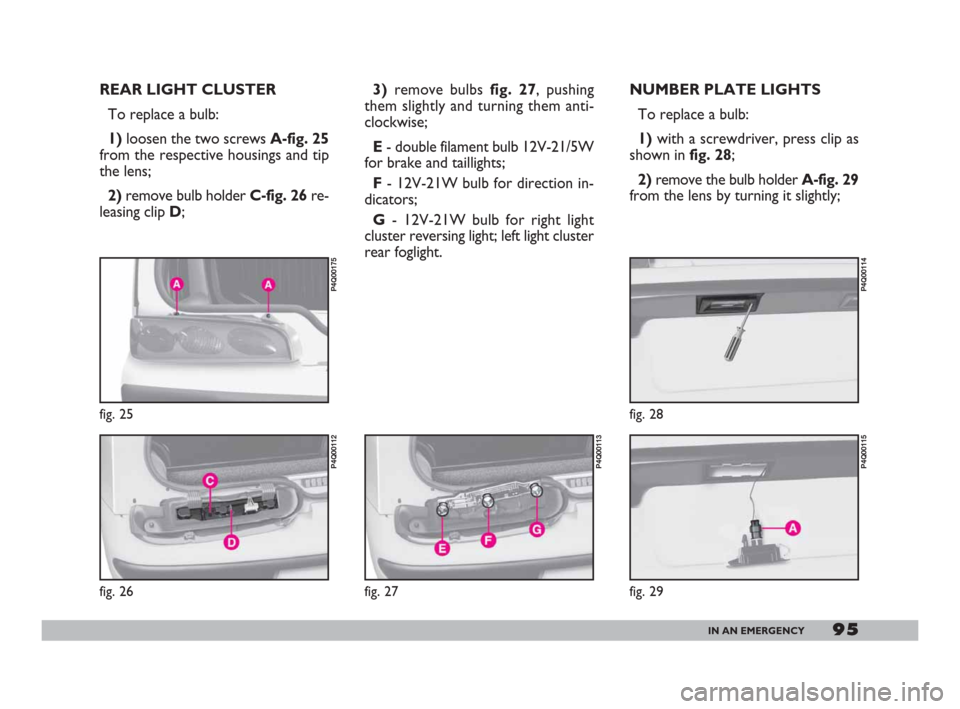

1)loosen the two screws A-fig. 25
from the respective housings and tip
the lens;
2)remove bulb holder C-fig. 26 re-
leasing clip D; 3)remove bulbs fig. 27, pushing
them slightly and turning them anti-
clockwise;
E- double filament bulb 12V-21/5W
for brake and taillights;
F- 12V-21W bulb for direction in-
dicators;
G- 12V-21W bulb for right light
cluster reversing light; left light cluster
rear foglight. NUMBER PLATE LIGHTS
To replace a bulb:
1) with a screwdriver, press clip as
shown in fig. 28;
2) remove the bulb holder A-fig. 29
from the lens by turning it slightly;
fig. 25
P4Q00175
fig. 26
P4Q00112
fig. 27
P4Q00113
fig. 28
P4Q00114
fig. 29
P4Q00115
083-104 Seicento GB 22-11-2007 10:50 Pagina 95

96IN AN EMERGENCY
3) change bulb B-fig. 30 by pressing
a 12V-5W bulb into the holder. THIRD BRAKE LIGHT
To replace one or more 12V-5W
bulbs:

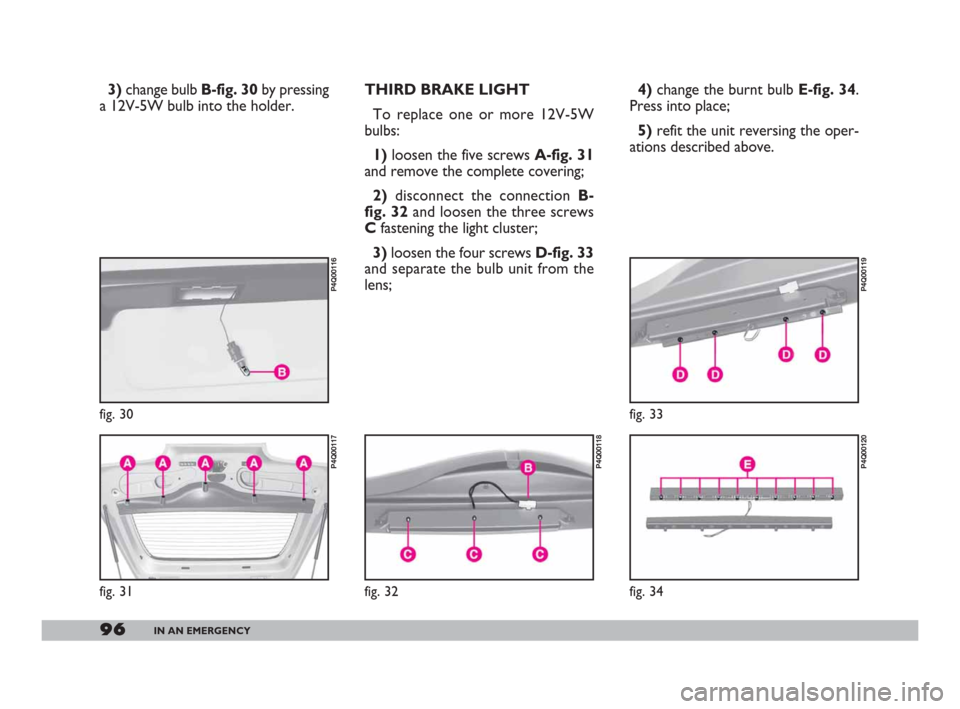

1) loosen the five screws A-fig. 31
and remove the complete covering;
2) disconnect the connection B-
fig. 32and loosen the three screws
C fastening the light cluster;
3) loosen the four screws D-fig. 33
and separate the bulb unit from the
lens;4) change the burnt bulb E-fig. 34.
Press into place;
5) refit the unit reversing the oper-
ations described above.
fig. 31
P4Q00117
fig. 30
P4Q00116
fig. 32
P4Q00118
fig. 34
P4Q00120
fig. 33
P4Q00119
083-104 Seicento GB 22-11-2007 10:50 Pagina 96

97IN AN EMERGENCY
IF AN INTERIOR
LIGHT BURNS OUT IF A FUSE BLOWS
A fuse is an element for protecting
the electrical system. A fuse will trip
(i.e. it will blow) in the event of a fail-
ure or improper interventions in the
electrical system.
If an electrical device is not working,
check whether the respective fuse is
blown. The conductor should be in-
tact. If it is not, replace the fuse with
another with the same amperage
(same colour) fig. 37.
A- Undamaged fuse.
B - Fuse with broken filament. Modifications or repairs
to the electrical system
carried out incorrectly
and without bearing the features
of the system in mind can cause
malfunctions with the risk of fire. COURTESY LIGHT

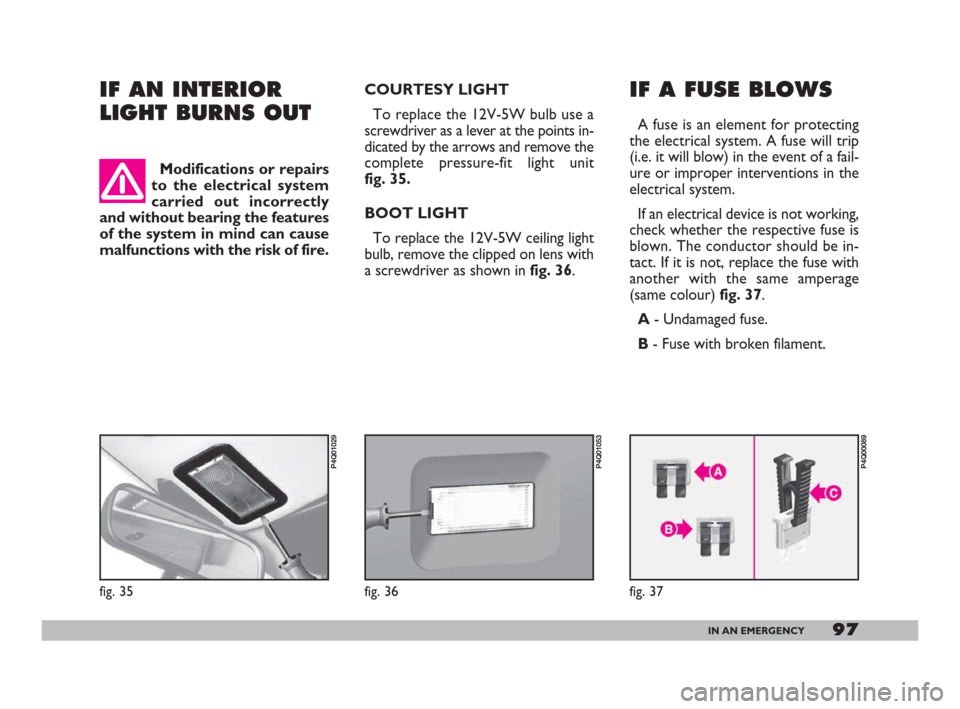

To replace the 12V-5W bulb use a
screwdriver as a lever at the points in-
dicated by the arrows and remove the
complete pressure-fit light unit
fig. 35.
BOOT LIGHT
To replace the 12V-5W ceiling light
bulb, remove the clipped on lens with
a screwdriver as shown in fig. 36.
fig. 35
P4Q01029
fig. 37
P4Q00089
fig. 36
P4Q01053
083-104 Seicento GB 22-11-2007 10:50 Pagina 97

98IN AN EMERGENCY
Never change a fuse
with another amperage:
fire risk !To locate the fuse, refer to the table
on the following pages. Do not attempt to re-
pair a blown maxi fuse.
Go to a Fiat Dealership.
If the fuse blows again,
have the car inspected at
a Fiat Dealership.
fig. 38
P4Q00121
fig. 39
P4Q01030
Remove the blown use with the
tongs Cwhich can be found in the
fusebox.
Never replace a broken
fuse with anything other
than a new fuse. Always
use a fuse of the same colour.
Before changing a fuse,
check the ignition key has
been removed and that
all the other electric devices have
been turned off/disabled. FUSE LOCATION
The fusebox is located to the left of
the steering wheel. To reach the fuse-
box, loosen the screw B-fig. 38 fas-
tening the cover A.
The numbers indicating the devices
corresponding to the fuses are shown
on the back of the cover fig. 39.
083-104 Seicento GB 22-11-2007 10:50 Pagina 98

99IN AN EMERGENCY
An additional 7.5A fuse is located by
the side of the climate control system.
It can be reached from inside the pas-
senger compartment under the dash-
board.
Fuses in the engine
compartment
A fusebox is located on the left side
of the engine compartment behind the
battery. It contains four high amper-
age fuses A-fig. 40 (MAXI FUSES)
which act as additional fire protection
in preventing high intensity cables
from overheating the following :
A- 30A - injection control unit.
B- 40A - Ignition switch.
C- 30A - engine cooling fan.D- 60A -dashboard fusebox
power.
IMPORTANT Go directly to a
Fiat Dealershipto have any one of
these four fuses restored.
Other version-specific fuses are
arranged next to the four MAXI fuses.
They protect the following devices:
E - 30A - climate control sys-
tem.
F - 30A - optional power cir-
cuits.
G - 40A - electrical power
steering system.
H - 60A - ABSA fusebox B-fig. 41 containing other
three fuses is located in the engine
compartment on the right-hand side.
To reach the fuses, loosen the two
nuts A and remove the cover B.
Fuses fig. 42 protect:
1 - 7.5A -Fiat CODE and control
unit (+30)
2 - 15A -injection system auxiliary
units and climate control
system auxiliary units
3 - 7.5A -Fiat CODE and elec-
tronic injection control
unit (15/54)
fig. 40
P4Q01031
fig. 41
P4Q01032
fig. 42
P4Q01033
