Page 51 of 146

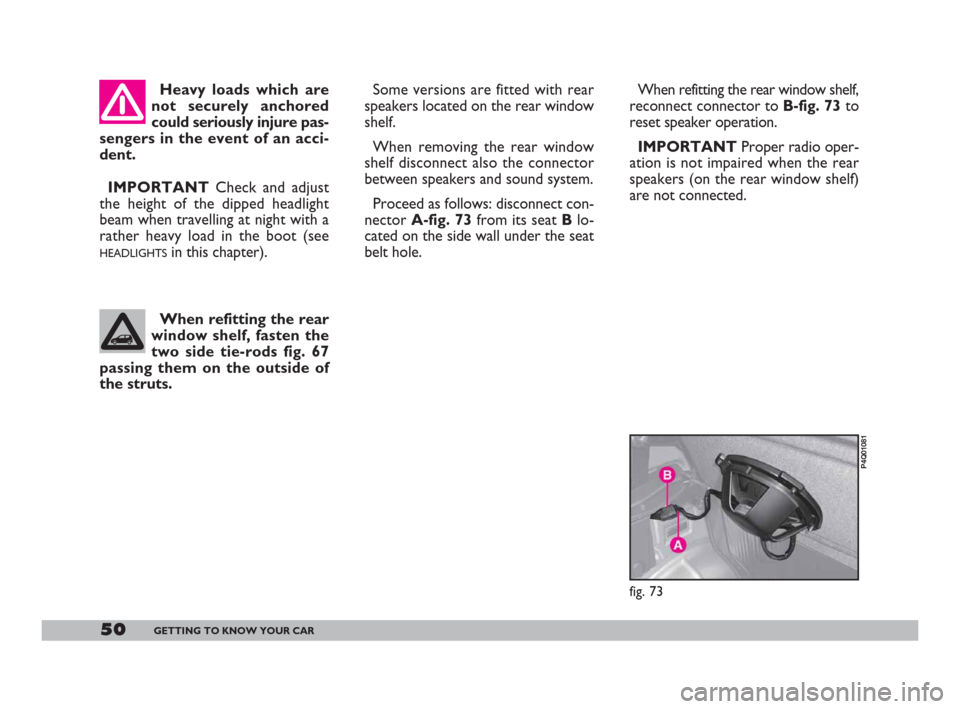

50GETTING TO KNOW YOUR CAR
Heavy loads which are
not securely anchored
could seriously injure pas-
sengers in the event of an acci-
dent.
IMPORTANTCheck and adjust
the height of the dipped headlight
beam when travelling at night with a
rather heavy load in the boot (see
HEADLIGHTSin this chapter).
When refitting the rear
window shelf, fasten the
two side tie-rods fig. 67
passing them on the outside of
the struts.
Some versions are fitted with rear
speakers located on the rear window
shelf.
When removing the rear window
shelf disconnect also the connector
between speakers and sound system.
Proceed as follows: disconnect con-
nector A-fig. 73from its seat Blo-
cated on the side wall under the seat
belt hole. When refitting the rear window shelf,
reconnect connector to B-fig. 73to
reset speaker operation.
IMPORTANTProper radio oper-
ation is not impaired when the rear
speakers (on the rear window shelf)
are not connected.
fig. 73
P4Q01081
001-069 Seicento GB 22-11-2007 10:49 Pagina 50
Page 52 of 146

51GETTING TO KNOW YOUR CAR
BONNETTo open the bonnet:
1) Pull the lever shown infig. 74in
the direction of the arrow.
2)Press tab B as shown in fig. 75.
3) Lift the bonnet and release the
support rod B-fig. 76from its clip A.
4)Place the tip of the support rod
in recess C of the bonnet.Important. The bonnet
might fall violently if the
support rod is not posi-
tioned properly.
This should only be
done when the car is sta-
tionary.
Before opening the bon-
net, check the wind-
screen wiper arms are
not lifted from the windscreen.
When the engine is hot,
mind your hands when
working inside the engine
compartment to avoid burning
yourself. Never put your hands
near the fan: it could start up
even without the key in the
switch. Wait until the engine
cools down.
fig. 74
P4Q00025
fig. 75
P4Q01093
001-069 Seicento GB 22-11-2007 10:49 Pagina 51
Page 53 of 146

52GETTING TO KNOW YOUR CAR
Take care that scarves,
ties or loose clothing do
not accidentally come
near moving parts; they could
become entangled with serious
danger for the wearer. To close the bonnet:
1)keep the bonnet lid raised with
one hand and remove the rod B-
fig. 76from the recess with the other
Cthen secure it in its clip A.
2) lower the bonnet until approx. 20
cm from the engine compartment and
then let it drop, ensuring it is fully
closed and not just held in position by
the safety catch.
If the bonnet does not close properly
do not push it down but open it again
and repeat the above procedure.ROOF RACK/
SKI RACK
ANCHORING
ARRANGEMENT fig. 77
The anchoring seats for roof racks
are shown in the illustration.
The rear clips are to be secured in
the area immediately above the side
window rubbers.
Specific roof/ski racks are available in
the Fiat Lineaccessori range.
For safety reasons the
bonnet shall always be
perfectly closed when
travelling. Always check for
proper bonnet locking. If the bon-
net is left inadvertently open, stop
the car immediately and close the
bonnet.
fig. 76
P4Q00070
fig. 77
P4Q00071
001-069 Seicento GB 22-11-2007 10:49 Pagina 52
Page 54 of 146

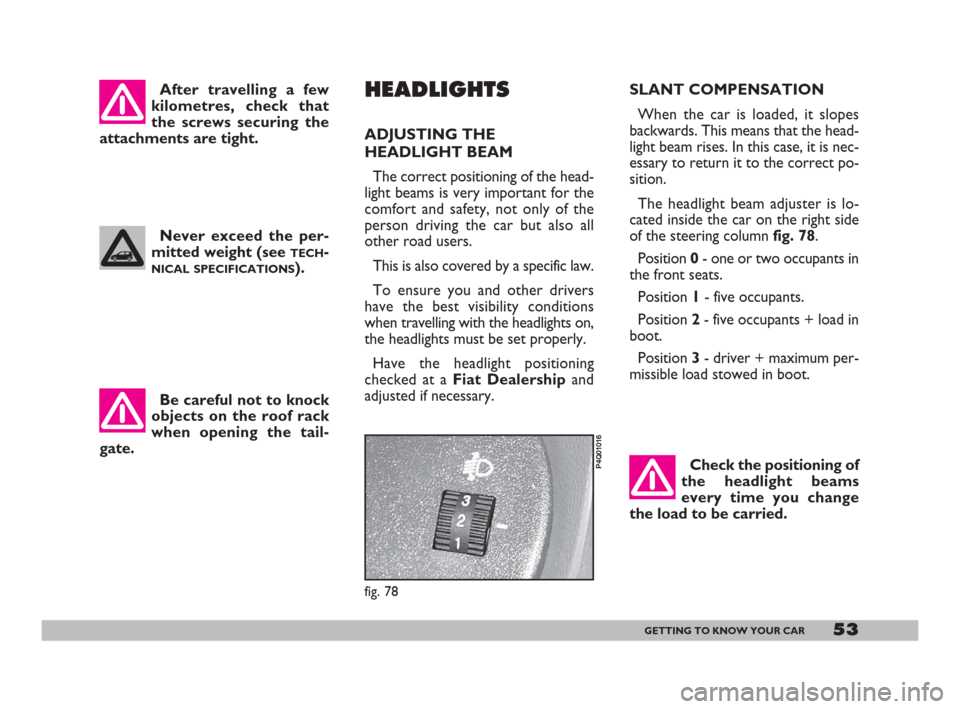

53GETTING TO KNOW YOUR CAR
After travelling a few
kilometres, check that
the screws securing the
attachments are tight.
Never exceed the per-
mitted weight (see
TECH-
NICAL SPECIFICATIONS). SLANT COMPENSATION
When the car is loaded, it slopes
backwards. This means that the head-
light beam rises. In this case, it is nec-
essary to return it to the correct po-
sition.
The headlight beam adjuster is lo-
cated inside the car on the right side
of the steering column fig. 78.
Position 0- one or two occupants in
the front seats.
Position 1- five occupants.
Position 2- five occupants + load in
boot.
Position 3- driver + maximum per-
missible load stowed in boot.
Be careful not to knock
objects on the roof rack
when opening the tail-
gate.
HEADLIGHTS
ADJUSTING THE
HEADLIGHT BEAM
The correct positioning of the head-
light beams is very important for the
comfort and safety, not only of the
person driving the car but also all
other road users.
This is also covered by a specific law.
To ensure you and other drivers
have the best visibility conditions
when travelling with the headlights on,
the headlights must be set properly.
Have the headlight positioning
checked at a Fiat Dealershipand
adjusted if necessary.
fig. 78
P4Q01016Check the positioning of
the headlight beams
every time you change
the load to be carried.
001-069 Seicento GB 22-11-2007 10:49 Pagina 53
Page 55 of 146

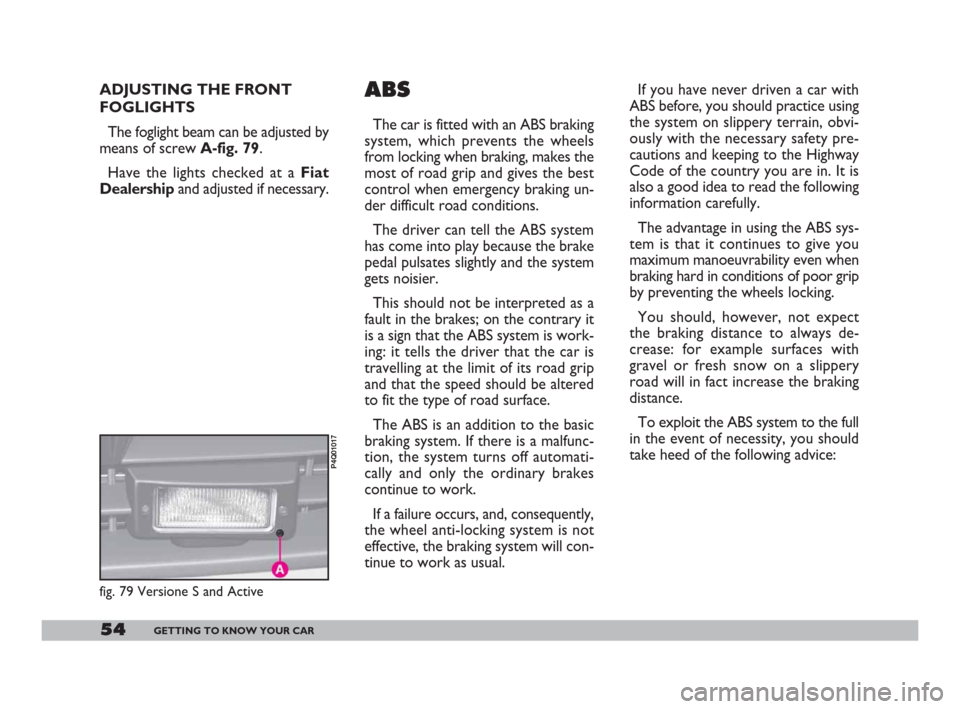

54GETTING TO KNOW YOUR CAR
ADJUSTING THE FRONT
FOGLIGHTS
The foglight beam can be adjusted by
means of screw A-fig. 79.
Have the lights checked at a Fiat
Dealershipand adjusted if necessary. If you have never driven a car with
ABS before, you should practice using
the system on slippery terrain, obvi-
ously with the necessary safety pre-
cautions and keeping to the Highway
Code of the country you are in. It is
also a good idea to read the following
information carefully.
The advantage in using the ABS sys-
tem is that it continues to give you
maximum manoeuvrability even when
braking hard in conditions of poor grip
by preventing the wheels locking.
You should, however, not expect
the braking distance to always de-
crease: for example surfaces with
gravel or fresh snow on a slippery
road will in fact increase the braking
distance.
To exploit the ABS system to the full
in the event of necessity, you should
take heed of the following advice:ABS
The car is fitted with an ABS braking
system, which prevents the wheels
from locking when braking, makes the
most of road grip and gives the best
control when emergency braking un-
der difficult road conditions.
The driver can tell the ABS system
has come into play because the brake
pedal pulsates slightly and the system
gets noisier.
This should not be interpreted as a
fault in the brakes; on the contrary it
is a sign that the ABS system is work-
ing: it tells the driver that the car is
travelling at the limit of its road grip
and that the speed should be altered
to fit the type of road surface.
The ABS is an addition to the basic
braking system. If there is a malfunc-
tion, the system turns off automati-
cally and only the ordinary brakes
continue to work.
If a failure occurs, and, consequently,
the wheel anti-locking system is not
effective, the braking system will con-
tinue to work as usual.
fig. 79 Versione S and Active
P4Q01017
001-069 Seicento GB 22-11-2007 10:49 Pagina 54
Page 56 of 146

55GETTING TO KNOW YOUR CAR
The ABS exploits the
road hold available as
much as possible but can-
not increase it. You should al-
ways drive carefully on slippery
surfaces and avoid any unneces-
sary risks.Braking while cornering always re-
quires extreme care even when using
ABS.
The most important advice to follow
is this:
If the ABS intervenes, it
means that the grip be-
tween the type and the
road is reduced with respect to
the normal conditions. Reduce
speed immediately to match the
poor road conditions.
If there is a fault in the
system and the instru-
ment panel warning light
>comes on, drive you car
slowly to a Fiat Dealership, to
have the system checked and put
right.When the ABS cuts in,
and you feel the brake
pedal pulsating, do not
remove your foot, but keep it
pressed. In doing so you will stop
in the shortest amount of space
possible under the current road
conditions.
If you follow these tips you will be
able to brake better in any situation.
IMPORTANTCars with ABS may
only be fitted with wheel rims, tyres
and brake pads of the make and
model approved by the manufacturer.The system is completed with an
electronic brake force distributor
called EBD which improves braking
system performance by means of the
ABSsystem control unit and sensors.
The car is fitted with an
electronic braking device
(EBD). The >and x
warning light will come on at the
same time when the engine is
running to indicate that there is
an EBD system failure. In this
case violent braking may be ac-
companied by early rear wheel
locking with the possibility of
skidding. Drive the car extremely
carefully to the nearest Fiat Deal-
ership to have the system
checked.
001-069 Seicento GB 22-11-2007 10:49 Pagina 55
Page 57 of 146

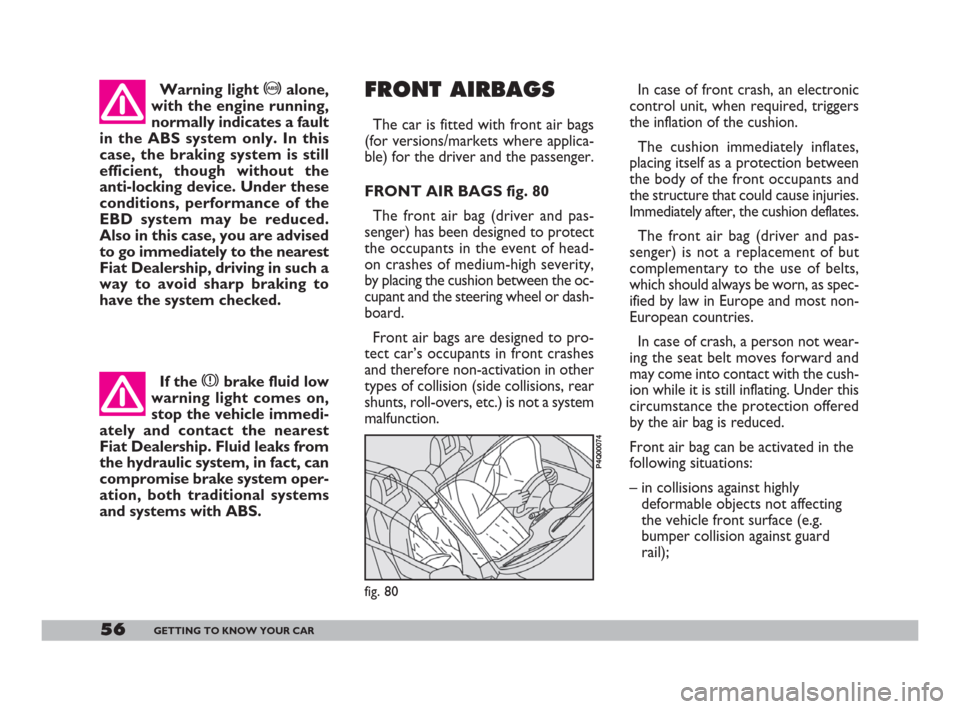

56GETTING TO KNOW YOUR CAR
Warning light >alone,
with the engine running,
normally indicates a fault
in the ABS system only. In this
case, the braking system is still
efficient, though without the
anti-locking device. Under these
conditions, performance of the
EBD system may be reduced.
Also in this case, you are advised
to go immediately to the nearest
Fiat Dealership, driving in such a
way to avoid sharp braking to
have the system checked. FRONT AIRBAGS
The car is fitted with front air bags
(for versions/markets where applica-
ble) for the driver and the passenger.
FRONT AIR BAGS fig. 80
The front air bag (driver and pas-
senger) has been designed to protect
the occupants in the event of head-
on crashes of medium-high severity,
by placing the cushion between the oc-
cupant and the steering wheel or dash-
board.
Front air bags are designed to pro-
tect car’s occupants in front crashes
and therefore non-activation in other
types of collision (side collisions, rear
shunts, roll-overs, etc.) is not a system
malfunction.In case of front crash, an electronic
control unit, when required, triggers
the inflation of the cushion.
The cushion immediately inflates,
placing itself as a protection between
the body of the front occupants and
the structure that could cause injuries.
Immediately after, the cushion deflates.
The front air bag (driver and pas-
senger) is not a replacement of but
complementary to the use of belts,
which should always be worn, as spec-
ified by law in Europe and most non-
European countries.
In case of crash, a person not wear-
ing the seat belt moves forward and
may come into contact with the cush-
ion while it is still inflating. Under this
circumstance the protection offered
by the air bag is reduced.
Front air bag can be activated in the
following situations:
– in collisions against highly
deformable objects not affecting
the vehicle front surface (e.g.
bumper collision against guard
rail); If the xbrake fluid low
warning light comes on,
stop the vehicle immedi-
ately and contact the nearest
Fiat Dealership. Fluid leaks from
the hydraulic system, in fact, can
compromise brake system oper-
ation, both traditional systems
and systems with ABS.
fig. 80
P4Q00074
001-069 Seicento GB 22-11-2007 10:49 Pagina 56
Page 58 of 146

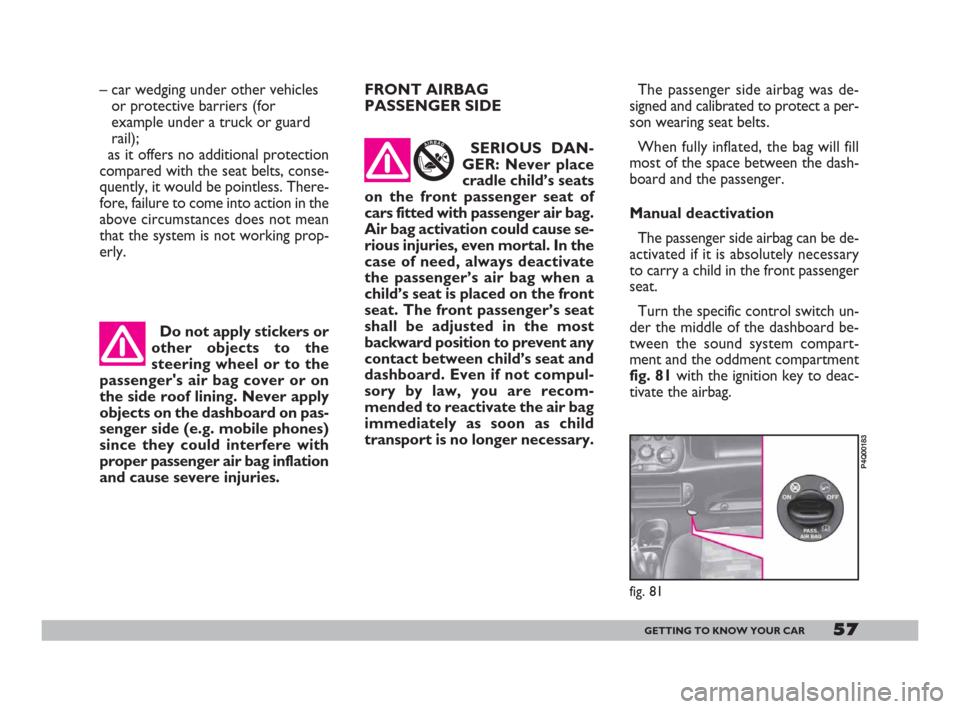

57GETTING TO KNOW YOUR CAR
Do not apply stickers or
other objects to the
steering wheel or to the
passenger's air bag cover or on
the side roof lining. Never apply
objects on the dashboard on pas-
senger side (e.g. mobile phones)
since they could interfere with
proper passenger air bag inflation
and cause severe injuries. – car wedging under other vehicles
or protective barriers (for
example under a truck or guard
rail);
as it offers no additional protection
compared with the seat belts, conse-
quently, it would be pointless. There-
fore, failure to come into action in the
above circumstances does not mean
that the system is not working prop-
erly.FRONT AIRBAG
PASSENGER SIDEThe passenger side airbag was de-
signed and calibrated to protect a per-
son wearing seat belts.
When fully inflated, the bag will fill
most of the space between the dash-
board and the passenger.
Manual deactivation
The passenger side airbag can be de-
activated if it is absolutely necessary
to carry a child in the front passenger
seat.
Turn the specific control switch un-
der the middle of the dashboard be-
tween the sound system compart-
ment and the oddment compartment
fig. 81with the ignition key to deac-
tivate the airbag. SERIOUS DAN-
GER: Never place
cradle child’s seats
on the front passenger seat of
cars fitted with passenger air bag.
Air bag activation could cause se-
rious injuries, even mortal. In the
case of need, always deactivate
the passenger’s air bag when a
child’s seat is placed on the front
seat. The front passenger’s seat
shall be adjusted in the most
backward position to prevent any
contact between child’s seat and
dashboard. Even if not compul-
sory by law, you are recom-
mended to reactivate the air bag
immediately as soon as child
transport is no longer necessary.
fig. 81
P4Q00183
001-069 Seicento GB 22-11-2007 10:49 Pagina 57
Page 59 of 146

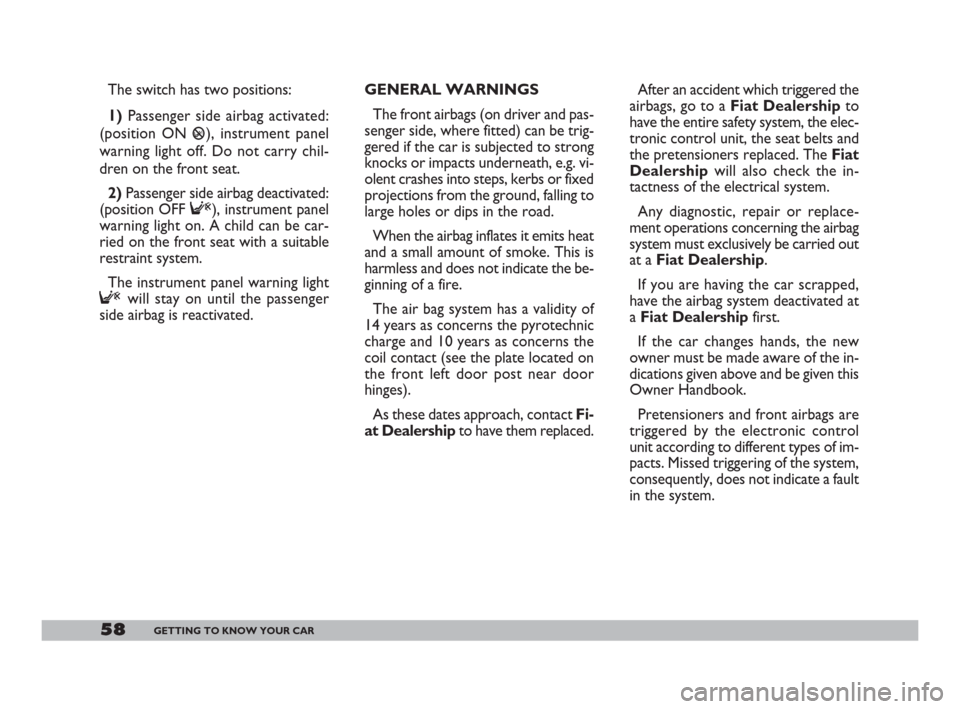

58GETTING TO KNOW YOUR CAR
The switch has two positions:
1) Passenger side airbag activated:
(position ON
P), instrument panel
warning light off. Do not carry chil-
dren on the front seat.
2)Passenger side airbag deactivated:
(position OFF F), instrument panel
warning light on. A child can be car-
ried on the front seat with a suitable
restraint system.
The instrument panel warning light
Fwill stay on until the passenger
side airbag is reactivated. GENERAL WARNINGS
The front airbags (on driver and pas-
senger side, where fitted) can be trig-
gered if the car is subjected to strong
knocks or impacts underneath, e.g. vi-
olent crashes into steps, kerbs or fixed
projections from the ground, falling to
large holes or dips in the road.
When the airbag inflates it emits heat
and a small amount of smoke. This is
harmless and does not indicate the be-
ginning of a fire.
The air bag system has a validity of
14 years as concerns the pyrotechnic
charge and 10 years as concerns the
coil contact (see the plate located on
the front left door post near door
hinges).
As these dates approach, contact Fi-
at Dealershipto have them replaced.After an accident which triggered the
airbags, go to a Fiat Dealershipto
have the entire safety system, the elec-
tronic control unit, the seat belts and
the pretensioners replaced. The Fiat
Dealershipwill also check the in-
tactness of the electrical system.
Any diagnostic, repair or replace-
ment operations concerning the airbag
system must exclusively be carried out
at a Fiat Dealership.
If you are having the car scrapped,
have the airbag system deactivated at
a Fiat Dealershipfirst.
If the car changes hands, the new
owner must be made aware of the in-
dications given above and be given this
Owner Handbook.
Pretensioners and front airbags are
triggered by the electronic control
unit according to different types of im-
pacts. Missed triggering of the system,
consequently, does not indicate a fault
in the system.
001-069 Seicento GB 22-11-2007 10:49 Pagina 58
Page 60 of 146

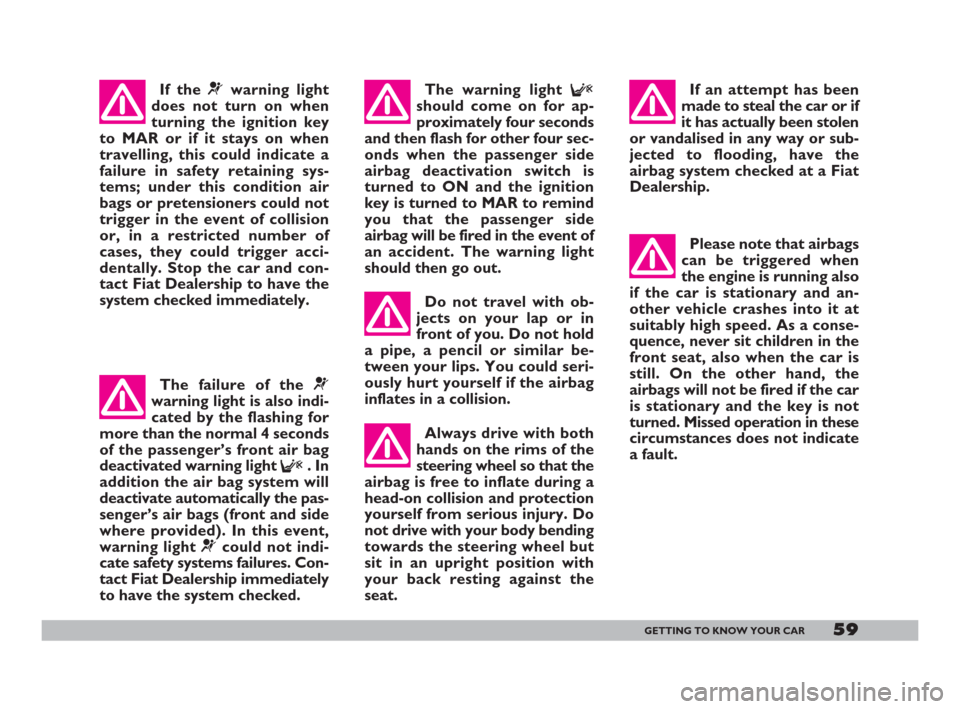

59GETTING TO KNOW YOUR CAR
If the ¬warning light
does not turn on when
turning the ignition key
to MAR or if it stays on when
travelling, this could indicate a
failure in safety retaining sys-
tems; under this condition air
bags or pretensioners could not
trigger in the event of collision
or, in a restricted number of
cases, they could trigger acci-
dentally. Stop the car and con-
tact Fiat Dealership to have the
system checked immediately.
Do not travel with ob-
jects on your lap or in
front of you. Do not hold
a pipe, a pencil or similar be-
tween your lips. You could seri-
ously hurt yourself if the airbag
inflates in a collision. The warning light Fshould come on for ap-
proximately four seconds
and then flash for other four sec-
onds when the passenger side
airbag deactivation switch is
turned to ON and the ignition
key is turned to MAR to remind
you that the passenger side
airbag will be fired in the event of
an accident. The warning light
should then go out.
Always drive with both
hands on the rims of the
steering wheel so that the
airbag is free to inflate during a
head-on collision and protection
yourself from serious injury. Do
not drive with your body bending
towards the steering wheel but
sit in an upright position with
your back resting against the
seat. If an attempt has been
made to steal the car or if
it has actually been stolen
or vandalised in any way or sub-
jected to flooding, have the
airbag system checked at a Fiat
Dealership.
Please note that airbags
can be triggered when
the engine is running also
if the car is stationary and an-
other vehicle crashes into it at
suitably high speed. As a conse-
quence, never sit children in the
front seat, also when the car is
still. On the other hand, the
airbags will not be fired if the car
is stationary and the key is not
turned. Missed operation in these
circumstances does not indicate
a fault.
The failure of the ¬
warning light is also indi-
cated by the flashing for
more than the normal 4 seconds
of the passenger’s front air bag
deactivated warning light
F. In
addition the air bag system will
deactivate automatically the pas-
senger’s air bags (front and side
where provided). In this event,
warning light
¬could not indi-
cate safety systems failures. Con-
tact Fiat Dealership immediately
to have the system checked.
001-069 Seicento GB 22-11-2007 10:49 Pagina 59
