buttons FIAT BARCHETTA 2001 1.G Radio Tape Player And External CD Manual

9Cyan GialloMagenta Nero603.47.453
9
KEY
[K]: In radio mode
[J]: In tape player mode
[I]: In CD mode
NOTE:
Various functions and settings can be made by press-
ing the up/down [3] and left/right [18] buttons. This
operation is called the “Alpha-Touch Controller”
function. 17.Band selection button, manual tuning
(BAND) [K]
Change tape side button (PROG) [J]
CD Changer magazine button (MAG) [I]
18.Bass, balance, manual/automatic tuning, dis-
tant/locale search, tape fast forward/reverse,
next/last tape/CD track, CD fast forward/re-
verse buttons (left/right) (Gand H) [J],
[K], [I]

10Cyan GialloMagenta Nero603.47.453
10
OPERATION
MAIN OPERATIONS
IMPORTANTTurn the volume down before
turning the sound system off. Sound quality will be
perfect and the sound system will not be damaged
when you turn it back on.
Turning the sound system on and adjusting the vol-
ume
1.Press the (POWER) button [2] to turn the
sound system on. Press the (POWER) button for at
least one second to turn the sound system off.
2. Press the function button (FUNC)[2] to select
Radio, Tape and CD functions cyclically as follows:
Radio➞Tape ➞CD ➞Radio
The message “NO CASS”will appear if there is
no tape in the player.The message “NO DISC”will appear if there is
no CD in the magazine or if the CD player is not
connected.
3.Press the up/down buttons [3] to adjust the vol-
ume.
N: to turn volume up
O: to turn volume down
Audio adjustments
1. Press the audio mode (A-M) [1] to select the
mode required. The mode changes each time the
(A-M) button is pressed as follows:
BASS / TREB(bass / treble) ➞BAL / FAD(bal-
ance / fader) ➞previous mode.
2. Adjust bass and treble with the left/right and the
up / down buttons [18], [3].

G: Decrease bass
H: Increase bass

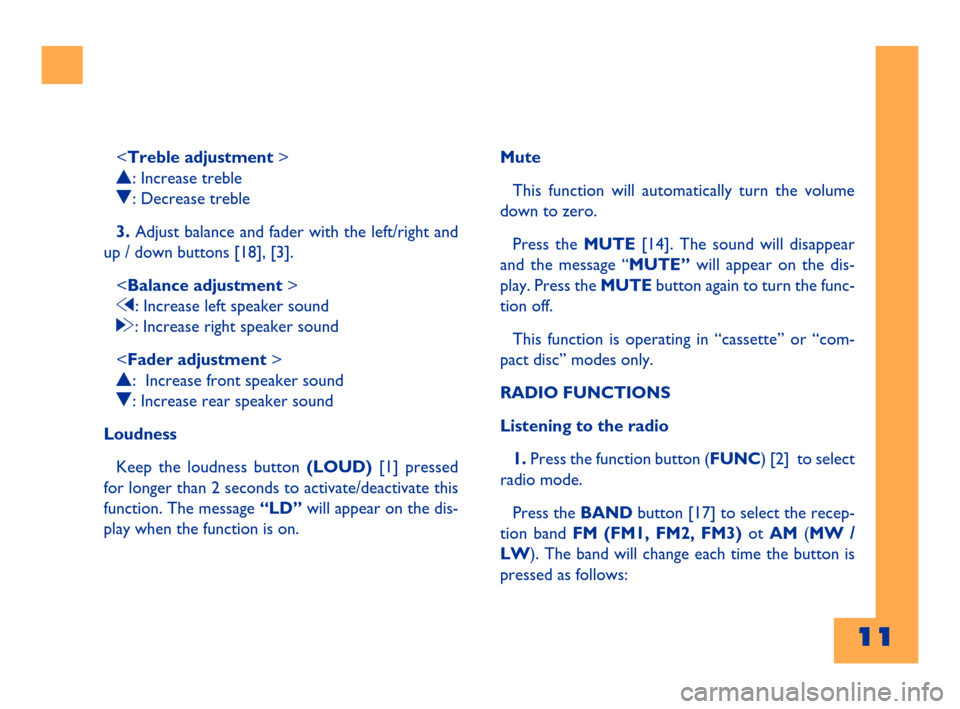

11Cyan GialloMagenta Nero603.47.453
11
Mute
This function will automatically turn the volume
down to zero.
Press the MUTE[14]. The sound will disappear
and the message “MUTE” will appear on the dis-
play. Press the MUTEbutton again to turn the func-
tion off.
This function is operating in “cassette” or “com-
pact disc” modes only.
RADIO FUNCTIONS
Listening to the radio
1. Press the function button (FUNC) [2] to select
radio mode.
Press the BANDbutton [17] to select the recep-
tion band FM (FM1, FM2, FM3) ot AM (MW /
LW). The band will change each time the button is
pressed as follows:
N: Increase treble
O: Decrease treble
3.Adjust balance and fader with the left/right and
up / down buttons [18], [3].

G: Increase left speaker sound
H: Increase right speaker sound

N: Increase front speaker sound
O: Increase rear speaker sound
Loudness
Keep the loudness button (LOUD)[1] pressed
for longer than 2 seconds to activate/deactivate this
function. The message“LD”will appear on the dis-
play when the function is on.

13Cyan GialloMagenta Nero603.47.453
13
Automatic storage
1.Press theBANDbutton [17] to select the
band.
2.Press theASbutton [10]. for 2 seconds or
more. Strong signals will be automatically stored in
pre-set memory. If less than 6 strong stations are
available, the previously stored stations will be kept
for the pre-set buttons where no new stations can
be stored.
Recalling pre-set stations
1.Press the BANDbutton [17] to select the
band.
2.Press the pre-set buttons [12] to select the re-
quired station. 3. The messageMANwill appear on the display
and manual tuning is possible.
4.Press the left /right buttons [18] to tune to the
stations
The system will return automatically to automatic
tuning after 7 seconds.
Manual station storage
24 stations (6 each in the FM1, FM2, FM3, AM
bands) can be stored as follows:
1. Press the BANDbutton [17] to select the
band.
2. Press the left/right buttons [18] to tune to the
station to be stored.
3. Press the pre-setting button [12] where to
store the station for 2 seconds or more.
Note: When storing a station, the station previ-
ously stored for that button will be deleted.

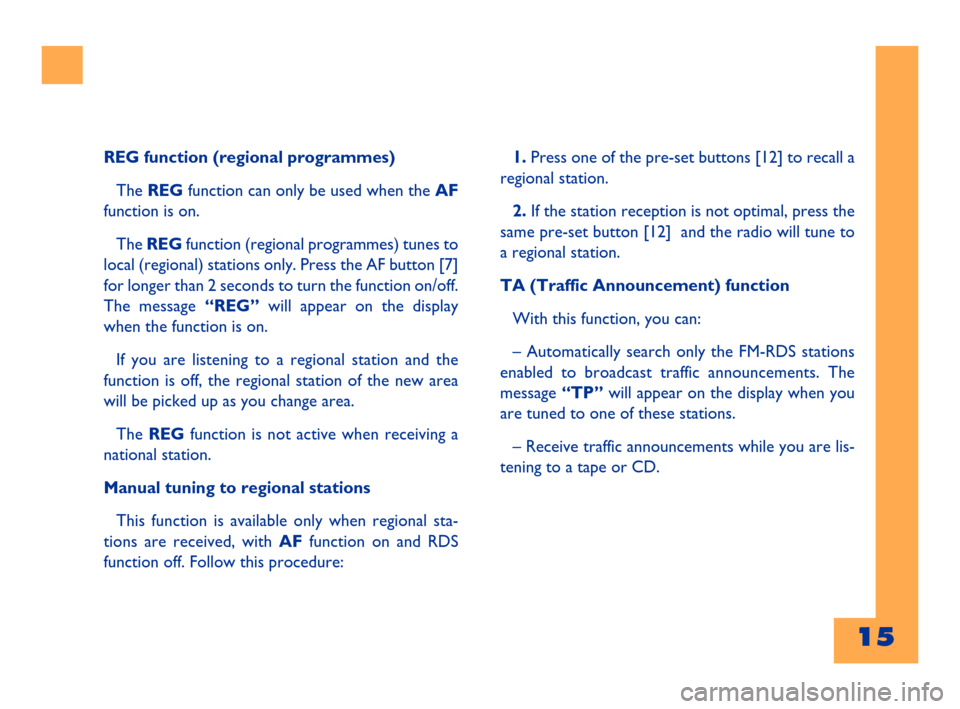

15Cyan GialloMagenta Nero603.47.453
15
1.Press one of the pre-set buttons [12] to recall a
regional station.
2. If the station reception is not optimal, press the
same pre-set button [12] and the radio will tune to
a regional station.
TA (Traffic Announcement) function
With this function, you can:
– Automatically search only the FM-RDS stations
enabled to broadcast traffic announcements. The
message “TP”will appear on the display when you
are tuned to one of these stations.
– Receive traffic announcements while you are lis-
tening to a tape or CD. REG function (regional programmes)
The REGfunction can only be used when the AF
function is on.
The REGfunction (regional programmes) tunes to
local (regional) stations only. Press the AF button [7]
for longer than 2 seconds to turn the function on/off.
The message “REG”will appear on the display
when the function is on.
If you are listening to a regional station and the
function is off, the regional station of the new area
will be picked up as you change area.
The REGfunction is not active when receiving a
national station.
Manual tuning to regional stations
This function is available only when regional sta-
tions are received, with AFfunction on and RDS
function off. Follow this procedure:

18Cyan GialloMagenta Nero603.47.453
OPERATION
18
Pre-setting TA, emergency (ALARM) and
PTY-NEWS functions volume
You can adjust the volume for TA, ALARMand
PTY-NEWSfunctions as required.
During TA, ALARMand PTY-NEWS broad-
casts, the sound system volume will automatically
adapt to the pre-set volume level.
The factory setting is TA VOL 9.
Volume will not change if it is set to a higher level
duringTA, ALARM and PTY-NEWSbroadcasts.
If it is set to a level, it will change to the volume set
with the following procedure:
1. Press theTA button [9] for more than 2 sec-
onds. If the volume is not adjusted within the follow-
ing 7 seconds, the display will automatically return to
radio mode.
2.To adjust the volume, use the up/down buttons
[3].3. Press the TAbutton [9] to end the procedure.
TAPE PLAYER OPERATION
Insert a tape in the desk facing rightwards. Play-
back will start automatically.
Correct equalisation of the player will be per-
formed according to the type of tape used (e.g.
chromium or metal tapes).
At the end of the tape, the other side of the tape
will be played automatically.
To change tape side before the end, press the
PROG button [17].
