stop start FIAT BARCHETTA 2001 1.G Radio Tape Player And External CD Manual

14Cyan GialloMagenta Nero603.47.453
OPERATION
14
RDS FUNCTIONS
RDS (Radio Data System)
The radio must be tuned toFMto access the RDS
functions.
The RDS system gives you automatic tuning to the
optimal frequency of the RDS-enabled stations being
listened to (AFfunction). You can therefore contin-
ue to listen to the station without having to alter the
frequency when you change the area. Obviously the
station you are listening to must be picked up in the
area you are travelling through.
If the signal is very weak and/or if the reception is
bad, the sound system will mute for a few seconds
while seeking an alternative frequency for the sta-
tion. If this occurs frequently, we recommend turn-
ing the AFfunction off.If an RDSstation can non longer be picked up in
your current position and the AFfunction is on, the
message AFon the display will flash. As soon as cor-
rect reception is restored, “AF”will stop flashing.
The RDS will also display the name of the station
you are listening to (PSfunction).
Alternative frequency search (AF function)
Press the AFbutton [7] to activate/deactivate the
function. When the function is on, the message AF
will appear (or flash) on the display.
If reception worsens, the message “AF”will start
flashing and the device will attempt to tune to an al-
ternative frequency. If the switch-over is not possi-
ble, the message “SEARCH”will appear on the
display and the sound system will tune to the current
station before starting the search.

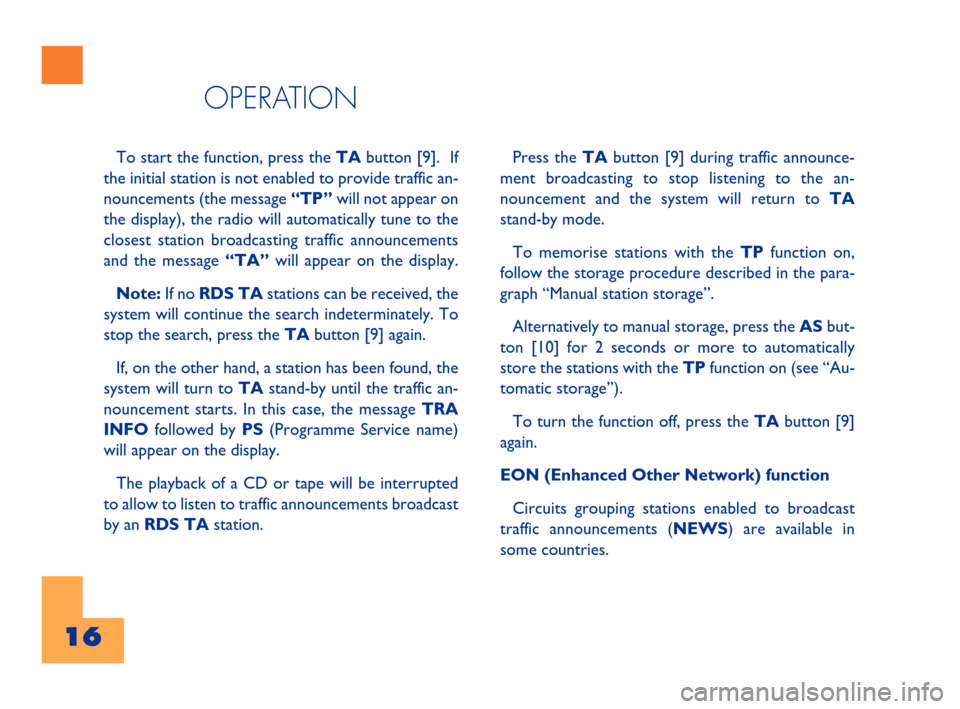

16Cyan GialloMagenta Nero603.47.453
OPERATION
16
To start the function, press theTAbutton [9]. If
the initial station is not enabled to provide traffic an-
nouncements (the message “TP”will not appear on
the display), the radio will automatically tune to the
closest station broadcasting traffic announcements
and the message “TA” will appear on the display.
Note: If no RDS TA stations can be received, the
system will continue the search indeterminately. To
stop the search, press the TAbutton [9] again.
If, on the other hand, a station has been found, the
system will turn to TAstand-by until the traffic an-
nouncement starts. In this case, the message TRA
INFOfollowed by PS(Programme Service name)
will appear on the display.
The playback of a CD or tape will be interrupted
to allow to listen to traffic announcements broadcast
by an RDS TA station.Press the TAbutton [9] during traffic announce-
ment broadcasting to stop listening to the an-
nouncement and the system will return to TA
stand-by mode.
To memorise stations with the TPfunction on,
follow the storage procedure described in the para-
graph “Manual station storage”.
Alternatively to manual storage, press the AS but-
ton [10] for 2 seconds or more to automatically
store the stations with the TP function on (see “Au-
tomatic storage”).
To turn the function off, press the TAbutton [9]
again.
EON (Enhanced Other Network) function
Circuits grouping stations enabled to broadcast
traffic announcements (NEWS) are available in
some countries.

19Cyan GialloMagenta Nero603.47.453
19
H: Press this button to fast forward the tape
G:Press this button to rewind the tape.
The radio will be turned on while the tape is being
fast forwarded/rewound.
Last/next track search (Auto Program
Control function)
Press the left/right button [18] twice.
H: Press this button twice to go to the beginning
of the next track
G: Press this button twice to return to the begin-
ning of the track being played. Press the button again
to go to the beginning of the last track.
During automatic search, the radio will be played. Playing an inserted tape
Press the FUNCbutton [2] to select tape mode.
Playback will start automatically.
Pause function
Press the play / pause button [14] to stop playback
temporarily. Press it again to start playback again.
Ejecting a tape
Press the eject button [5], to eject the tape auto-
matically.
The system will switch to radio mode automatical-
ly 4 seconds after pressing the eject button.
Fast forward/reverse
Press the left / right button [18].

20Cyan GialloMagenta Nero603.47.453
OPERATION
20
Scanning tape tracks (forward)
Press the SCN button [6] to play the first 10 sec-
onds of each track on the tape. The message
“SCAN” will appear on the display. Press theSCN
button [6] again to stop the scan.
Repeat track
Press the RPTbutton [8] to play the last track
again. The message “RPT”will appear on the dis-
play. To quit this mode, press the RPTbutton again
[8].
Dolby B noise reduction function
Press the Dolby B NR[15] to start the function.
The message“B NR”will appear on the display.
Press the button again to turn the function off.Skip blank tape function
This function will skip blank tape sections lasting
for longer than 12 seconds and automatically start
playing the next recorded section.
To turn the function on, press the BLSbutton
[13] until the message“BLS”appears on the dis-
play. Press the button again to turn the function off.
Note:
In some cases, the following functions may not
work correctly:
– next/last track search
– track scan
– repeat track
– skip blank tape.

24Cyan GialloMagenta Nero603.47.453
24
Fast forward/fast backward
Keep the left/right button [18] pressed.
G: fast backward
H: fast forward
Hold the button pressed for longer than 1 second
to advance at a speed equal to 3 times normal speed.
Hold the button pressed for longer than 3 seconds
to advance at a speed equal to 30 times normal
speed.
Scan tracks on selected CD
Press the SCNbutton [6] to play the first 10 sec-
onds of each track on the selected CD. The message
“SCAN”will appear on the display. Press the SCN
button [6] again to stop the scan.The scan will start from the next track with re-
spect to the one being played.
Scan tracks on all CD’s
Press the SCNbutton [6] for more than 2 sec-
onds to play the first 10 seconds of all the discs in
the player. The messages “DISC”and “SCN”will
appear on the display. Press theSCNbutton [6]
again to stop the scan.
The scan will start from the next track with re-
spect to the one being played.
Repeat track
Press the RPTbutton [8] to play the track sever-
al times. The message “RPT”will appear on the dis-
play. Press theRPTbutton[8] again to end this
mode.
OPERATION
