open bonnet FIAT BRAVO 2007 2.G Owners Manual

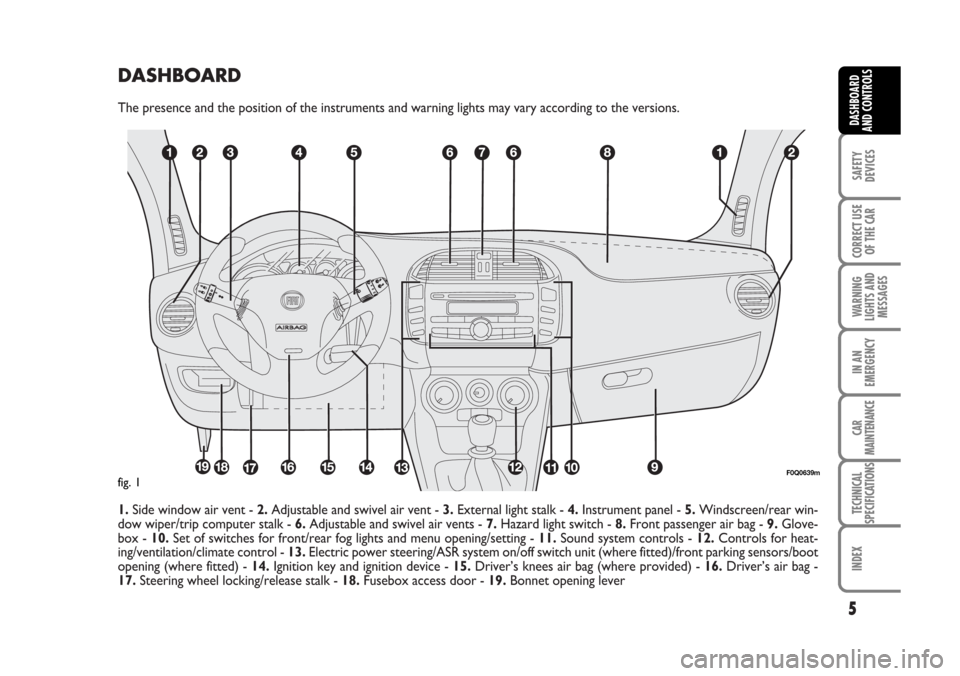

DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
1.Side window air vent - 2.Adjustable and swivel air vent - 3.External light stalk - 4.Instrument panel - 5.Windscreen/rear win-
dow wiper/trip computer stalk - 6.Adjustable and swivel air vents - 7.Hazard light switch - 8.Front passenger air bag - 9.Glove-
box - 10.Set of switches for front/rear fog lights and menu opening/setting - 11.Sound system controls - 12.Controls for heat-
ing/ventilation/climate control - 13.Electric power steering/ASR system on/off switch unit (where fitted)/front parking sensors/boot
opening (where fitted) - 14.Ignition key and ignition device - 15.Driver’s knees air bag (where provided) - 16.Driver’s air bag -
17.Steering wheel locking/release stalk - 18.Fusebox access door - 19.Bonnet opening lever
5
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0Q0639mfig. 1
001-022 BRAVO GB 10-05-2007 8:57 Pagina 5

16
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ALARM
(where provided)
The alarm function is provided in addition
to all remote control functions previous-
ly described and it is controlled by the re-
ceiver located under the dashboard, next
to the fuse box.WHEN THE ALARM
IS TRIGGERED
The alarm comes into action in the fol-
lowing cases:
❒unlawful opening of one of the doors,
bonnet or boot (perimetral protec-
tion);
❒attempt to start the engine (turning the
ignition key to MAR);
❒battery cable cutting;
❒presence of moving bodies in the pas-
senger’s compartment (volumetric pro-
tection);
❒abnormal raising/sloping of the car. Depending on the markets, the cutting in
of the alarm causes operation of the siren
and direction indicators (for about 26 sec-
onds). The ways of operating and the num-
ber of cycles may vary depending on the
markets.
A maximum number of sound/sight cycles
is however envisaged.
The volume sensing and anti-lift protec-
tions may be turned off by operating the
control on the front courtesy light (see
“Volume-sensing/anti-lift protection” para-
graph).
IMPORTANT The engine immobiliser
function is guaranteed by the Fiat CODE
system, which is automatically activated
when the ignition key is removed.
001-022 BRAVO GB 10-05-2007 8:57 Pagina 16

83
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
BONNET
TO OPEN THE BONNET
Proceed as follows:
❒pull lever A-fig. 96in the direction of
the arrow;
❒pull lever B-fig. 97and raise the bon-
net.
❒lift the bonnet and at the same time re-
lease the rod C-fig. 98from the catch,
then fit the rod end into the bonnet re-
cess D.
IMPORTANT Before opening the bonnet,
check that windscreen wiper arms are not
lifted from the windscreen.TO CLOSE THE BONNET
Proceed as follows:
❒hold the bonnet up with one hand and
with the other remove rod C-fig. 98
from recess Dand fit it back into its
catch;
❒lower the bonnet at approx. 20 cen-
timetres from the engine compartment
and then let it drop, ensuring that it is
fully closed and not just held in position
by the safety catch. If the bonnet does
not close properly, do not push it down
but open it again and repeat the above
procedure. If the bonnet is not shut
properly, the instrument panel warning
light ´or symbol Swill turn on to-
gether with the message on the display
(see section “Warning lights and mes-
sages”).
fig. 96F0Q0689mfig. 97
B
F0Q0690m
fig. 98F0Q0748m
083-104 BRAVO GB 10-05-2007 9:10 Pagina 83

84
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

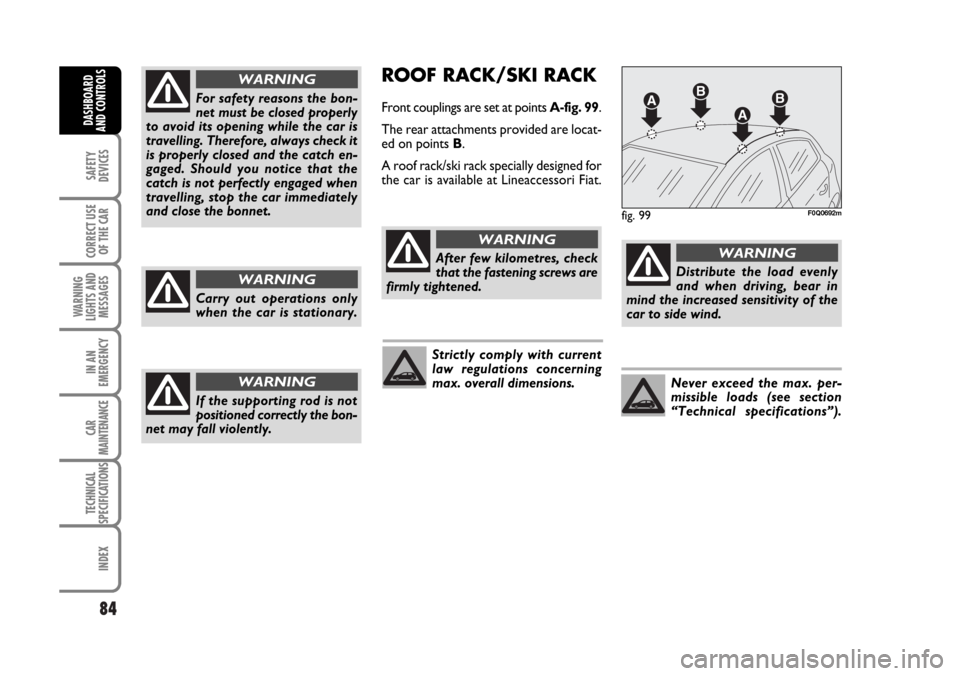

ROOF RACK/SKI RACK
Front couplings are set at points A-fig. 99.
The rear attachments provided are locat-
ed on points B.
A roof rack/ski rack specially designed for
the car is available at Lineaccessori Fiat.
fig. 99F0Q0692m
After few kilometres, check
that the fastening screws are
firmly tightened.
WARNING
Strictly comply with current
law regulations concerning
max. overall dimensions.
Distribute the load evenly
and when driving, bear in
mind the increased sensitivity of the
car to side wind.
WARNING
Never exceed the max. per-
missible loads (see section
“Technical specifications”).
For safety reasons the bon-
net must be closed properly
to avoid its opening while the car is
travelling. Therefore, always check it
is properly closed and the catch en-
gaged. Should you notice that the
catch is not perfectly engaged when
travelling, stop the car immediately
and close the bonnet.
WARNING
Carry out operations only
when the car is stationary.
WARNING
If the supporting rod is not
positioned correctly the bon-
net may fall violently.
WARNING
083-104 BRAVO GB 10-05-2007 9:10 Pagina 84

141
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS ...................................................... 142
LOW BRAKE FLUID.............................................................. 142
HANDBRAKE ON ................................................................. 142
BRAKE PAD WEAR .............................................................. 142
AIR BAG FAILURE ................................................................. 143
FRONT PASSENGER AIR BAG/
SIDE BAGS DEACTIVATED ......................................................... 143
SEAT BELTS NOT FASTENED ........................................... 144
LOW BATTERY CHARGE .................................................. 144
LOW ENGINE OIL PRESSURE........................................... 144
EXHAUSTED OIL ................................................................. 144
LOW ENGINE OIL LEVEL .................................................. 145
“DUALDRIVE” ELECTRIC POWER
STEERING FAILURE............................................................... 145
“DUALDRIVE” ELECTRIC POWER STEERING
ACTIVATION ........................................................................ 145
ENGINE COOLANT HIGH TEMPERATURE................. 146
INCOMPLETE DOOR LOCKING..................................... 146
BOOT OPEN ........................................................................... 146
BONNET OPEN ..................................................................... 146
GENERIC FAILURE INDICATION .................................. 147
DIESEL PARTICULATE FILTER CLOGGED .................. 147
FUEL RESERVE......................................................................... 148
EOBD/INJECTION SYSTEM FAILURE ............................. 148
ESP SYSTEM ............................................................................ 149
HILL HOLDER FAILURE ..................................................... 149GLOW PLUG WARMING ................................................. 149
GLOW PLUG WARMING FAILURE ................................ 149
WATER IN DIESEL FUEL FILTER ...................................... 150
ABS SYSTEM FAILURE .......................................................... 150
EBD SYSTEM FAILURE ......................................................... 150
CAR PROTECTION SYSTEM
FAILURE FIAT CODE............................................................ 151
ALARM FAILURE .................................................................... 151
THEFT ATTEMPT ................................................................... 151
LOW TYRE PRESSURE ........................................................ 151
CHECK TYRE PRESSURE ................................................... 151
TYRE PRESSURE UNSUITABLE FOR SPEED ................. 151
EXTERNAL LIGHTS FAILURE ............................................ 153
BRAKE LIGHTS FAILURE..................................................... 153
REAR FOGLIGHTS ................................................................ 153
FRONT FOG LIGHTS ........................................................... 153
LEFT-HAND DIRECTION INDICATOR ........................ 153
RIGHT-HAND DIRECTION INDICATOR .................... 153
SIDE/TAILLIGHTS AND LOW BEAMS............................ 154
FOLLOW ME HOME ............................................................ 154
MAIN BEAMS ........................................................................... 154
CRUISE CONTROL ............................................................. 154
POSSIBLE PRESENCE OF ICE ON THE ROAD ............ 154
LIMITED RANGE ................................................................... 154
ASR SYSTEM ........................................................................... 154
SPEED LIMIT EXCEEDED ................................................... 154
SPORT FUNCTION ACTIVATION ................................. 154
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
141-154 BRAVO GB 10-05-2007 9:17 Pagina 141

146
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNING
LIGHTS AND
MESSAGES
ENGINE COOLANT
HIGH TEMPERATURE
(red)
Turning the ignition key to MAR
the warning light turns on, but it should go
off after few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒normal driving conditions: stop the
car, switch off the engine and check
whether the water level in the reser-
voir is not below the MIN mark. Oth-
erwise wait for few seconds to allow
engine cooling, then open slowly and
carefully the cap, top up coolant and
check whether its level is falling be-
tween MIN and MAX marks in the
reservoir. Check visually any leak and if
when restarting the warning light
comes on again, contact a Fiat Dealer-
ship.
❒Car heavy duty(e.g.: towing trailer
uphill of fully laden car): decrease speed,
if the warning light stays on, stop the
car. Wait for 2 or 3 minutes leaving the
engine on and slightly accelerated to
further activate the circulation of the
coolant fluid, then switch the engine off.
Check proper coolant level as de-
scribed previously.
IMPORTANT Under severe use of the
car, keep the engine on and slightly accel-
erated for few minutes before switching it
off.
The display will show the dedicated mes-
sage.
ç
INCOMPLETE DOOR
LOCKING (red)
The warning light (or the sym-
bol on the display) turns on when
one or more doors are not properly shut.
The buzzer will sound when one or more
doors are open and the car is moving.
´
BOOT OPEN
The symbol (where provided)
on the display turns on when
the boot is not properly shut.
On certain versions the warning light
´turns on instead.
R
BONNET OPEN
The symbol (where provided)
on the display turns on when
the bonnet is not properly shut.
On certain versions the warning light
´turns on instead.
S
141-154 BRAVO GB 10-05-2007 9:17 Pagina 146

209
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
ADVICE FOR PRESERVING
THE BODYWORK
Paint
Paintwork does not only serve an aesteth-
ic purpose, but also protects the under-
lying sheet metal.
In the case of deep scrapes or scores, you
are advised to have the necessary touch-
ing up carried out immediately to avoid
the formation of rust. Use only original
paint products for touching up (see “Body-
work paint identification plate” in section
“Technical specification”).
Normal paint maintenance consists in
washing at intervals depending on the con-
ditions and environment of use. For ex-
ample, in highly polluted areas, or if the
roads are sprayed with salt, it is wise to
wash the car more frequently.To wash the car correctly proceed as fol-
lows:
❒ remove the aerial from the roof to pre-
vent damage to it if the car is washed in
an automatic system;
❒ wash the body using a low pressure jet
of water;
❒ wipe a sponge with a slightly soapy so-
lution over the bodywork, frequently
rinsing with the sponge;
❒ rinse well with water and dry with a jet
of air or a chamois leather.
When drying, take particular care with the
less visible parts like door surrounds, bon-
net and around the headlights where wa-
ter may stagnate. The car should not be
taken to a closed area immediately, but left
in the open so that residual water can
evaporate.
Do not wash the car after it has been left
in the sun or with the bonnet hot: this may
alter the shine of the paintwork.Detergents cause water pol-
lution. Therefore the car
should be washed in areas
equipped for collecting and
purifying the liquid used in the washing
process.
Exterior plastic parts must be cleaned in
the same way as the rest of the car.
Where possible, do not park under trees;
the resinous substance many species re-
lease give the paint a dull appearance and
increase the possibility of triggering rust
processes.
IMPORTANT Bird droppings must be
washed off immediately and thoroughly as
the acid they contain is particularly ag-
gressive.
191-212 BRAVO GB 10-05-2007 9:21 Pagina 209

234

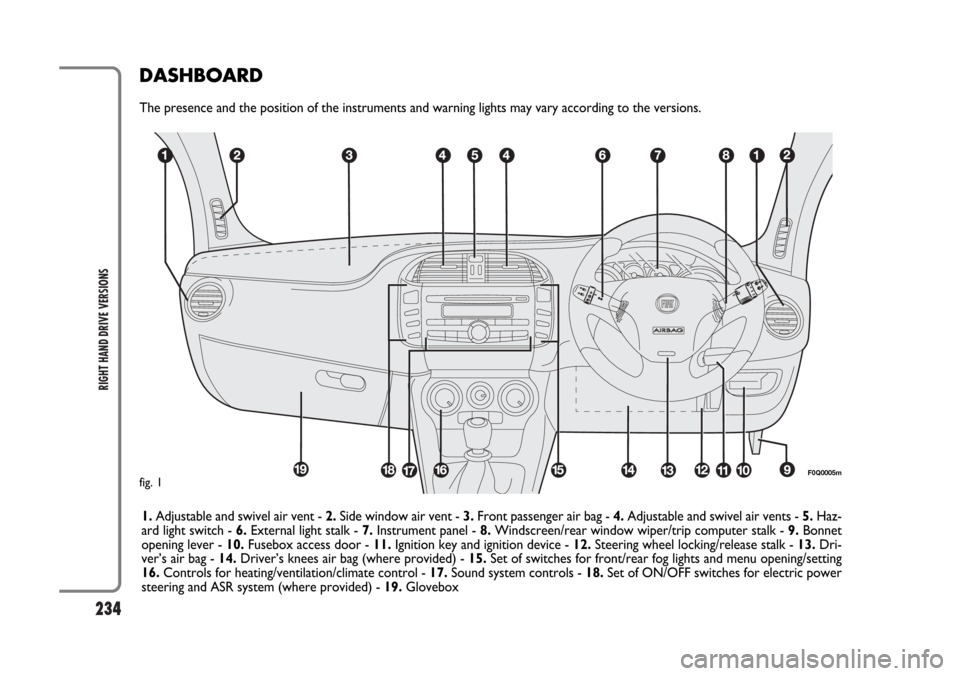

RIGHT HAND DRIVE VERSIONS
DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
1.Adjustable and swivel air vent - 2.Side window air vent - 3.Front passenger air bag - 4.Adjustable and swivel air vents - 5.Haz-
ard light switch - 6.External light stalk - 7.Instrument panel - 8.Windscreen/rear window wiper/trip computer stalk - 9.Bonnet
opening lever - 10.Fusebox access door - 11.Ignition key and ignition device - 12.Steering wheel locking/release stalk - 13.Dri-
ver’s air bag - 14.Driver’s knees air bag (where provided) - 15.Set of switches for front/rear fog lights and menu opening/setting
16.Controls for heating/ventilation/climate control - 17.Sound system controls - 18.Set of ON/OFF switches for electric power
steering and ASR system (where provided) - 19.Glovebox
F0Q0005mfig. 1
213-236 BRAVO GB 16-05-2007 10:11 Pagina 234
