FIAT BRAVO 2007 2.G Radio CD MP3 Manual

FADER adjustment .................................................................... 14
LOUDNESS function ............................................................... 14
Telephone provision ................................................................ 14
RADIO (Tuner) ......................................................................... 15
Presetting buttons .................................................................... 15
Storing the last station heard .................................................. 15
Automatic tuning ...................................................................... 15
Manual tuning ............................................................................. 16
SCAN function ........................................................................... 16
Scanning preset stations ........................................................... 16
Manual station storage ............................................................ 17
AUTOSTORE function ............................................................. 17
Listening to stored stations .................................................... 17
AF function ................................................................................. 18
TA function ................................................................................ 18
PTY function .............................................................................. 19
Menu ............................................................................................ 20
Available settings ....................................................................... 21
COMPACT DISC PLAYER .................................................... 25
Introduction ............................................................................... 25
Selecting the CD player .......................................................... 25
Loading/ejecting a CD ............................................................. 25
Display information .................................................................. 25
Track selection .......................................................................... 25
Fast forward/backward ............................................................ 26

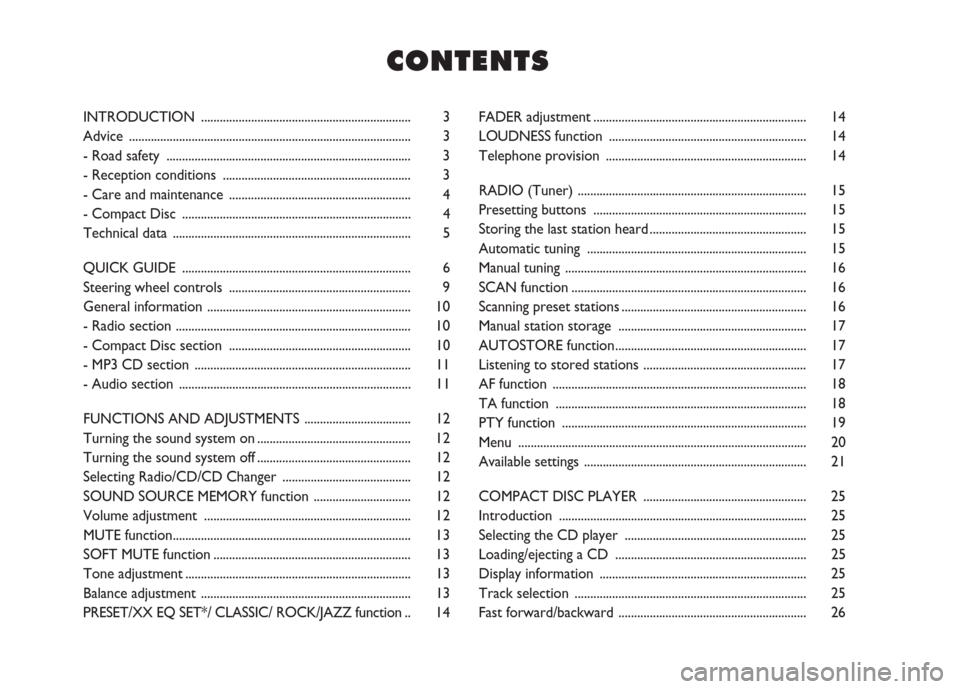

C C
O O
N N
T T
E E
N N
T T
S S
INTRODUCTION ................................................................... 3
Advice .......................................................................................... 3
- Road safety .............................................................................. 3
- Reception conditions ............................................................ 3
- Care and maintenance .......................................................... 4
- Compact Disc ......................................................................... 4
Technical data ............................................................................ 5

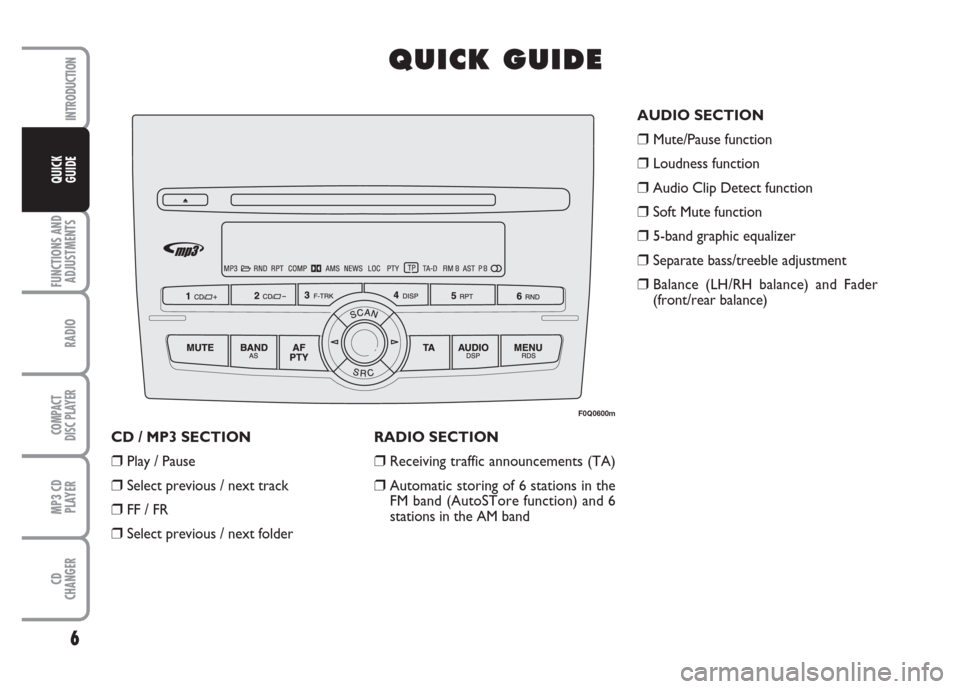

QUICK GUIDE ......................................................................... 6

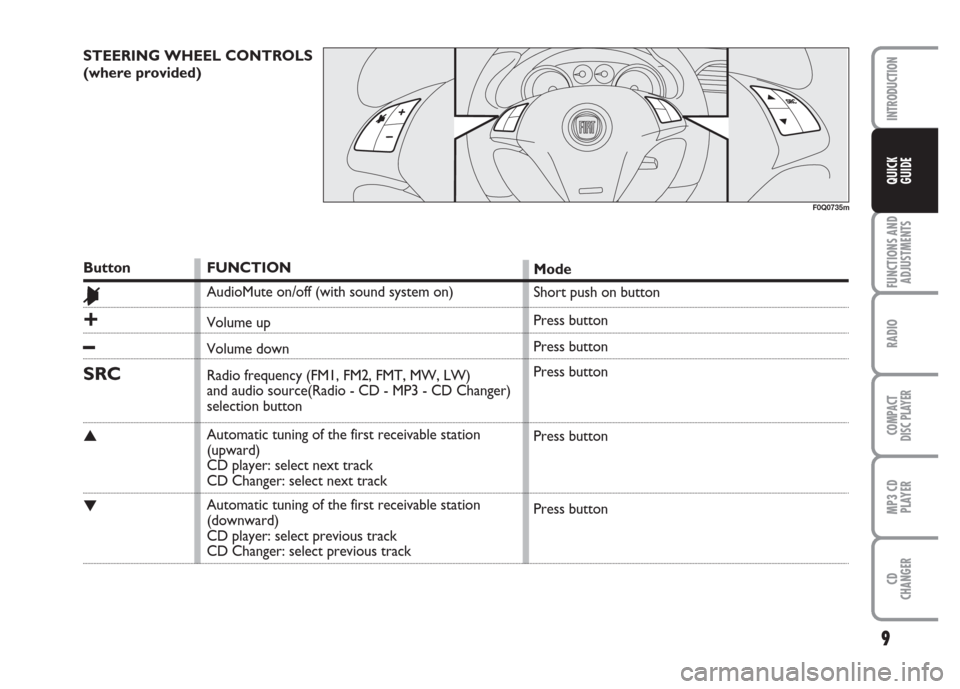

Steering wheel controls .......................................................... 9

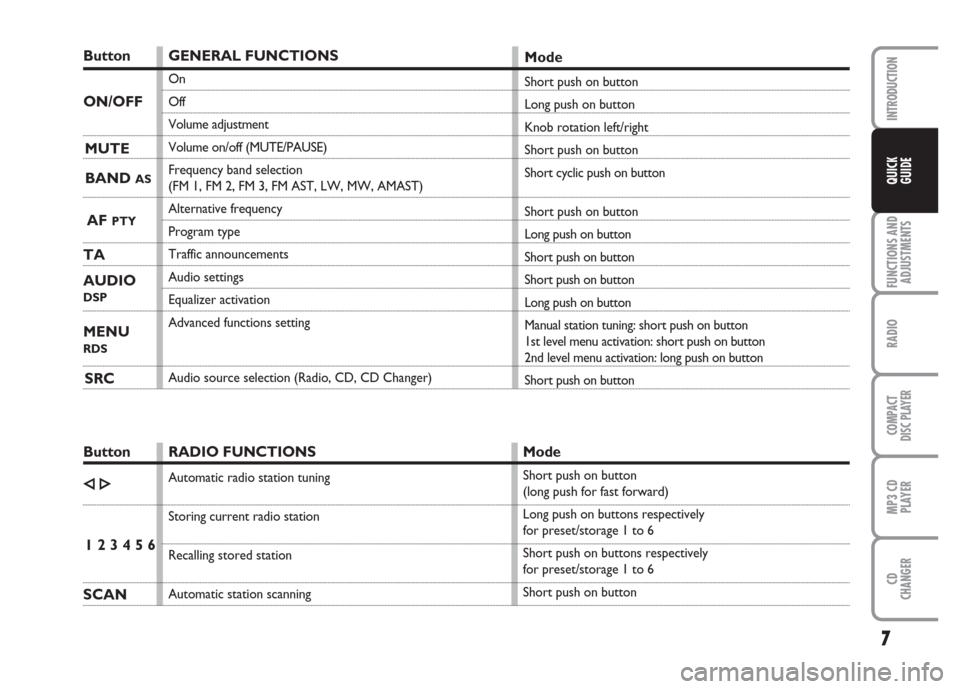

General information ................................................................. 10
- Radio section ........................................................................... 10
- Compact Disc section .......................................................... 10
- MP3 CD section ..................................................................... 11
- Audio section .......................................................................... 11
FUNCTIONS AND ADJUSTMENTS .................................. 12
Turning the sound system on ................................................. 12
Turning the sound system off ................................................. 12
Selecting Radio/CD/CD Changer ......................................... 12
SOUND SOURCE MEMORY function ............................... 12
Volume adjustment .................................................................. 12
MUTE function............................................................................ 13
SOFT MUTE function ............................................................... 13
Tone adjustment ........................................................................ 13
Balance adjustment ................................................................... 13
PRESET/XX EQ SET*/ CLASSIC/ ROCK/JAZZ function .. 14

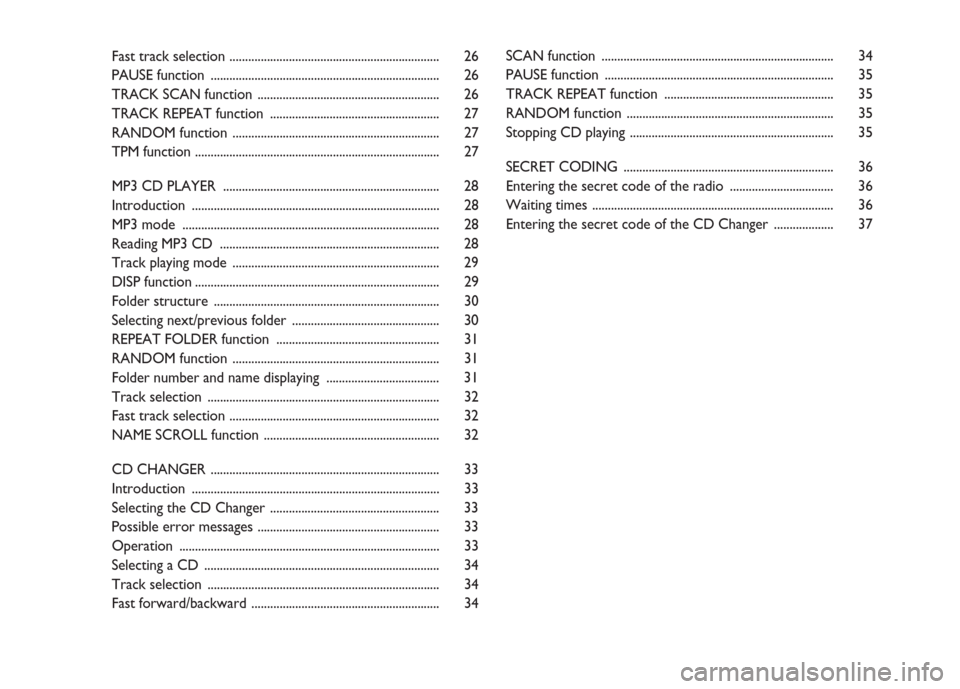

Fast track selection ................................................................... 26
PAUSE function ......................................................................... 26
TRACK SCAN function .......................................................... 26
TRACK REPEAT function ...................................................... 27
RANDOM function .................................................................. 27
TPM function .............................................................................. 27
MP3 CD PLAYER ..................................................................... 28
Introduction ............................................................................... 28
MP3 mode .................................................................................. 28
Reading MP3 CD ...................................................................... 28
Track playing mode .................................................................. 29
DISP function .............................................................................. 29
Folder structure ........................................................................ 30
Selecting next/previous folder ............................................... 30
REPEAT FOLDER function .................................................... 31
RANDOM function .................................................................. 31
Folder number and name displaying .................................... 31
Track selection .......................................................................... 32
Fast track selection ................................................................... 32
NAME SCROLL function ........................................................ 32
CD CHANGER ......................................................................... 33
Introduction ............................................................................... 33
Selecting the CD Changer ...................................................... 33
Possible error messages .......................................................... 33
Operation ................................................................................... 33
Selecting a CD ........................................................................... 34
Track selection .......................................................................... 34
Fast forward/backward ............................................................ 34SCAN function .......................................................................... 34
PAUSE function ......................................................................... 35
TRACK REPEAT function ...................................................... 35
RANDOM function .................................................................. 35
Stopping CD playing ................................................................. 35
SECRET CODING ................................................................... 36
Entering the secret code of the radio ................................. 36
Waiting times ............................................................................. 36
Entering the secret code of the CD Changer ................... 37

3
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTIONADVICE
Road safety
You are advised to learn how to use the
various sound system functions (e.g.: stor-
ing stations) before starting to drive.
Reception conditions
Reception conditions change constantly
when driving. Reception can be disturbed
by the presence of mountains, buildings,
bridges particularly when far away from
the broadcaster received.
IMPORTANT When receiving traffic in-
formation, the volume may be higher than
normal.
I I
N N
T T
R R
O O
D D
U U
C C
T T
I I
O O
N N

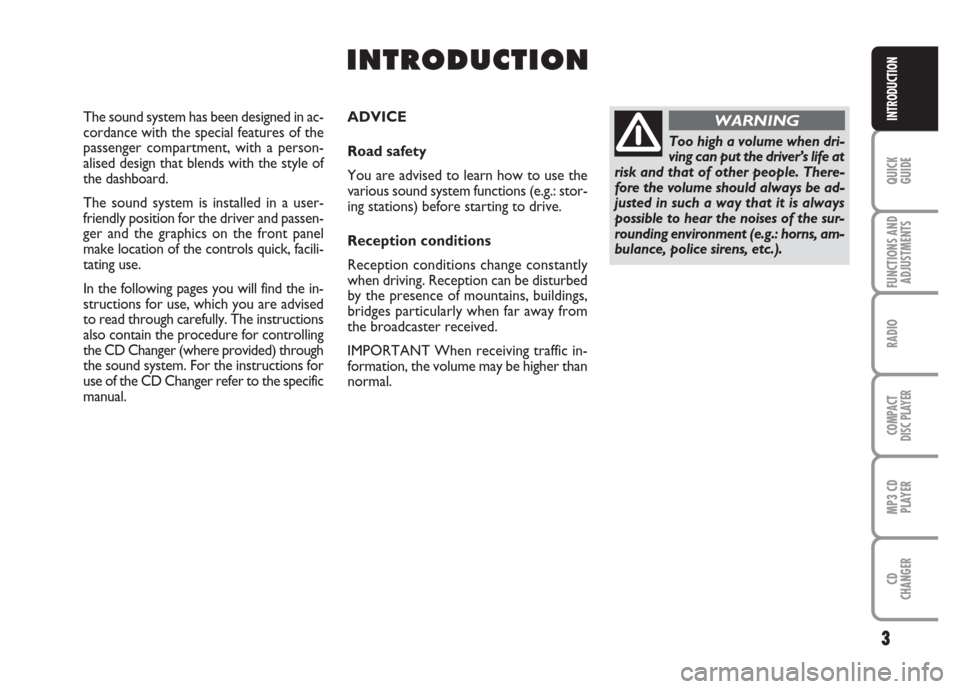

The sound system has been designed in ac-
cordance with the special features of the
passenger compartment, with a person-
alised design that blends with the style of
the dashboard.
The sound system is installed in a user-
friendly position for the driver and passen-
ger and the graphics on the front panel
make location of the controls quick, facili-
tating use.
In the following pages you will find the in-
structions for use, which you are advised
to read through carefully. The instructions
also contain the procedure for controlling
the CD Changer (where provided) through
the sound system. For the instructions for
use of the CD Changer refer to the specific
manual.
Too high a volume when dri-
ving can put the driver’s life at
risk and that of other people. There-
fore the volume should always be ad-
justed in such a way that it is always
possible to hear the noises of the sur-
rounding environment (e.g.: horns, am-
bulance, police sirens, etc.).
WARNING

QUICK
GUIDE
4
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION

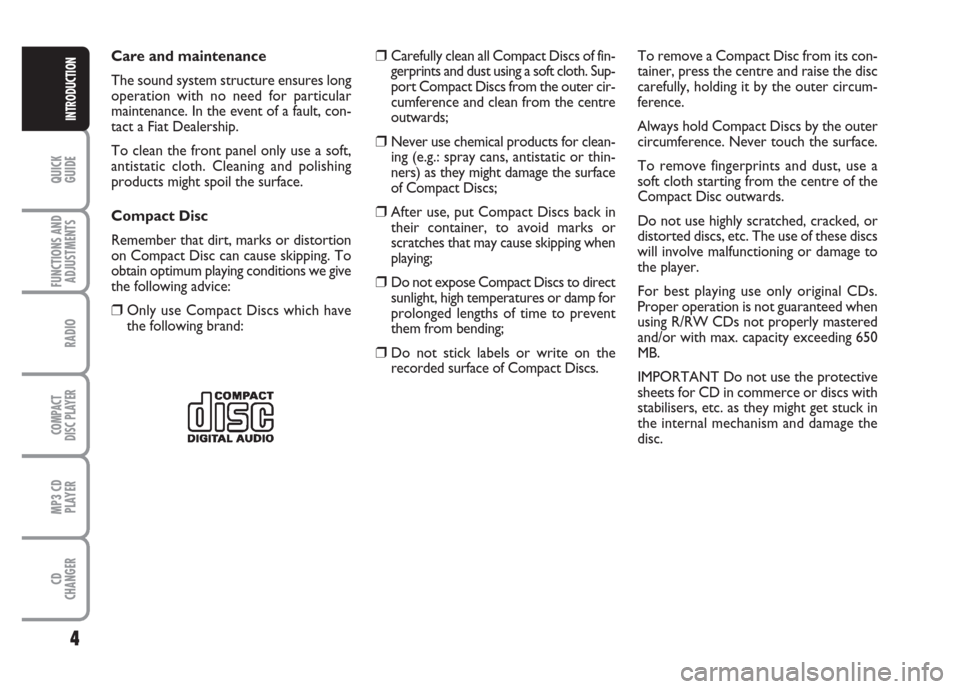

❒Carefully clean all Compact Discs of fin-
gerprints and dust using a soft cloth. Sup-
port Compact Discs from the outer cir-
cumference and clean from the centre
outwards;
❒Never use chemical products for clean-
ing (e.g.: spray cans, antistatic or thin-
ners) as they might damage the surface
of Compact Discs;
❒After use, put Compact Discs back in
their container, to avoid marks or
scratches that may cause skipping when
playing;
❒Do not expose Compact Discs to direct
sunlight, high temperatures or damp for
prolonged lengths of time to prevent
them from bending;
❒Do not stick labels or write on the
recorded surface of Compact Discs.To remove a Compact Disc from its con-
tainer, press the centre and raise the disc
carefully, holding it by the outer circum-
ference.
Always hold Compact Discs by the outer
circumference. Never touch the surface.
To remove fingerprints and dust, use a
soft cloth starting from the centre of the
Compact Disc outwards.
Do not use highly scratched, cracked, or
distorted discs, etc. The use of these discs
will involve malfunctioning or damage to
the player.
For best playing use only original CDs.
Proper operation is not guaranteed when
using R/RW CDs not properly mastered
and/or with max. capacity exceeding 650
MB.
IMPORTANT Do not use the protective
sheets for CD in commerce or discs with
stabilisers, etc. as they might get stuck in
the internal mechanism and damage the
disc. Care and maintenance
The sound system structure ensures long
operation with no need for particular
maintenance. In the event of a fault, con-
tact a Fiat Dealership.
To clean the front panel only use a soft,
antistatic cloth. Cleaning and polishing
products might spoil the surface.
Compact Disc
Remember that dirt, marks or distortion
on Compact Disc can cause skipping. To
obtain optimum playing conditions we give
the following advice:
❒Only use Compact Discs which have
the following brand:

5
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION

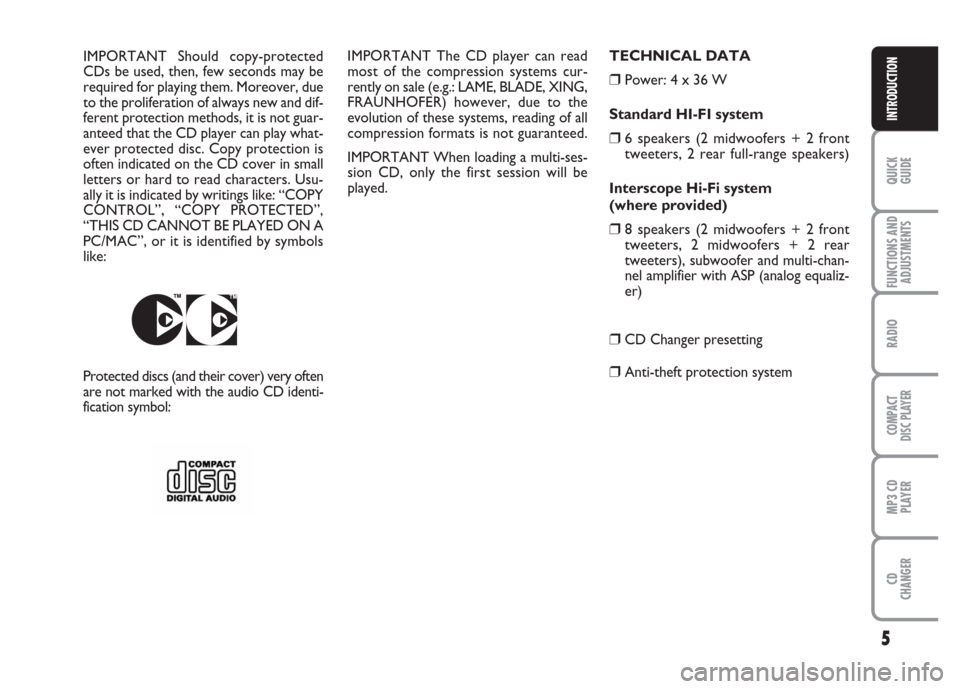

IMPORTANT The CD player can read
most of the compression systems cur-
rently on sale (e.g.: LAME, BLADE, XING,
FRAUNHOFER) however, due to the
evolution of these systems, reading of all
compression formats is not guaranteed.
IMPORTANT When loading a multi-ses-
sion CD, only the first session will be
played. IMPORTANT Should copy-protected
CDs be used, then, few seconds may be
required for playing them. Moreover, due
to the proliferation of always new and dif-
ferent protection methods, it is not guar-
anteed that the CD player can play what-
ever protected disc. Copy protection is
often indicated on the CD cover in small
letters or hard to read characters. Usu-
ally it is indicated by writings like: “COPY
CONTROL”, “COPY PROTECTED”,
“THIS CD CANNOT BE PLAYED ON A
PC/MAC”, or it is identified by symbols
like:TECHNICAL DATA
❒Power: 4 x 36 W
Standard HI-FI system
❒6 speakers (2 midwoofers + 2 front
tweeters, 2 rear full-range speakers)
Interscope Hi-Fi system
(where provided)
❒8 speakers (2 midwoofers + 2 front
tweeters, 2 midwoofers + 2 rear
tweeters), subwoofer and multi-chan-
nel amplifier with ASP (analog equaliz-
er)
❒CD Changer presetting
❒Anti-theft protection systemProtected discs (and their cover) very often
are not marked with the audio CD identi-
fication symbol:

6
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
Q Q
U U
I I
C C
K K
G G
U U
I I
D D
E E
AUDIO SECTION
❒Mute/Pause function
❒Loudness function
❒Audio Clip Detect function
❒Soft Mute function
❒5-band graphic equalizer
❒Separate bass/treeble adjustment
❒Balance (LH/RH balance) and Fader
(front/rear balance)
F0Q0600m
CD / MP3 SECTION
❒Play / Pause
❒Select previous / next track
❒FF / FR
❒Select previous / next folderRADIO SECTION
❒Receiving traffic announcements (TA)
❒Automatic storing of 6 stations in the
FM band (AutoSTore function) and 6
stations in the AM band

7
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
Button
Button
GENERAL FUNCTIONS
On
Off
Volume adjustment
Volume on/off (MUTE/PAUSE)
Frequency band selection
(FM 1, FM 2, FM 3, FM AST, LW, MW, AMAST)
Alternative frequency
Program type
Traffic announcements
Audio settings
Equalizer activation
Advanced functions setting
Audio source selection (Radio, CD, CD Changer)
Mode
Short push on button
Long push on button
Knob rotation left/right
Short push on button
Short cyclic push on button
Short push on button
Long push on button
Short push on button
Short push on button
Long push on button
Manual station tuning: short push on button
1st level menu activation: short push on button
2nd level menu activation: long push on button
Short push on button
RADIO FUNCTIONS
Automatic radio station tuning
Storing current radio station
Recalling stored station
Automatic station scanning
Mode
Short push on button
(long push for fast forward)
Long push on buttons respectively
for preset/storage 1 to 6
Short push on buttons respectively
for preset/storage 1 to 6
Short push on button
ON/OFF
MUTE
BAND
AS
AF PTY
TA
AUDIO
DSP
MENU
RDS
SRC
ÈÍ
1 2 3 4 5 6
SCAN

8
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE

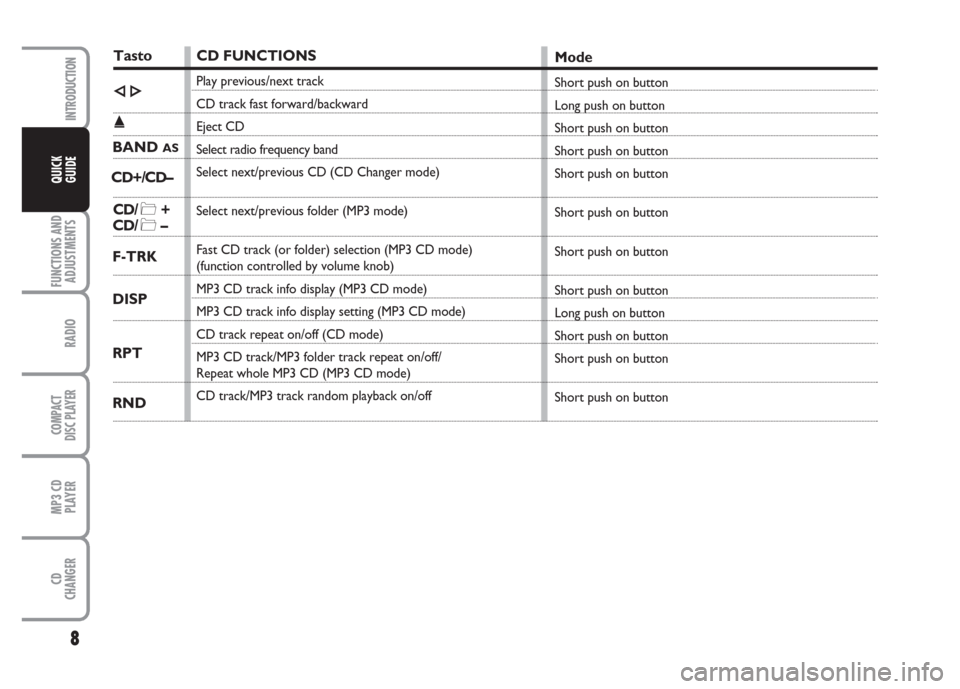

TastoCD FUNCTIONS
Play previous/next track
CD track fast forward/backward
Eject CD
Select radio frequency band
Select next/previous CD (CD Changer mode)
Select next/previous folder (MP3 mode)
Fast CD track (or folder) selection (MP3 CD mode)
(function controlled by volume knob)
MP3 CD track info display (MP3 CD mode)
MP3 CD track info display setting (MP3 CD mode)
CD track repeat on/off (CD mode)
MP3 CD track/MP3 folder track repeat on/off/
Repeat whole MP3 CD (MP3 CD mode)
CD track/MP3 track random playback on/off
Mode
Short push on button
Long push on button
Short push on button
Short push on button
Short push on button
Short push on button
Short push on button
Short push on button
Long push on button
Short push on button
Short push on button
Short push on buttonÈÍ
˚
BAND
AS
CD/ *+
CD/ *–
F-TRK
RPT
RND DISP CD+/CD–

9
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
STEERING WHEEL CONTROLS
(where provided)
F0Q0735m
Button
&
+
–
SRC
▲
▼
FUNCTION
AudioMute on/off (with sound system on)
Volume up
Volume down
Radio frequency (FM1, FM2, FMT, MW, LW)
and audio source(Radio - CD - MP3 - CD Changer)
selection button
Automatic tuning of the first receivable station
(upward)
CD player: select next track
CD Changer: select next track
Automatic tuning of the first receivable station
(downward)
CD player: select previous track
CD Changer: select previous trackMode
Short push on button
Press button
Press button
Press button
Press button
Press button
