FIAT BRAVO 2007 2.G Radio CD MP3 Manual

QUICK
GUIDE
20
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
RADIO
PTY setting
Press button AF
PTYfor over 2 seconds to
display the PTY code of the current sta-
tion. Select the required code by turning
the button/knob ON/OFF and then press
button Èor Íto start automatic seek-
ing of stations with the PTY code select-
ed. Automatic seek will stop automatical-
ly to the next station broadcasting the PTY
programme selected. The type of pro-
gramme will be displayed (e.g. “POP”) with
the word “PTY” flashing.
IMPORTANT If no station is broadcasting
the selected PTY, the last station will be
tuned and the PTY function is aborted.
PTY function deactivation
After entering the PTY mode, if no oper-
ation is performed within 10 seconds, the
radio returns to the mode active before
pressing the AF
PTYbutton and it will store
the last PTY code selected. MENU
MENU
RDSbutton options
To activate the Menu, press briefly the
button MENU
RDS.
In this way you open the first level Menu.
To open the second level menu keep the
MENU
RDSbutton pressed for over 2 sec-
onds.
To scroll the Menu options press repeat-
edly the MENU
RDSbutton.
First levelMenu options are the follow-
ing:
1 MANUAL TUNING SEEK on/off
2 CD Compression
3 Confirmation beep (BEEP)
4 Tuning sensitivity adjustment (SENS
DX/LO)
5 News programmes on/off (NEWS)
6 Automatic volume adjustment with car
speed (SVC)
7 Traffic announcements tuning (EON
TA)
8 Loudness on/off (LOUD- NESS)
9 CD naming (CD NAMING) (only in CD
Changer mode);
10 CD naming/track selection (TPM =
Track Program Memory)
Press buttons Èor Íto activate/deacti-
vate the function selected.Second levelMenu options are the fol-
lowing:
1 Time display of the current RDS station
(if available)
2 “Audio distortion clipper” on/off (AU-
DIO CLIP DETECT)
3 Max volume setting at switching on
(MAX VOLUME)
4 Telephone volume adjustment (PHONE)
5 AUTO setting selection which enables
to set radio turning on/off depending on
car ignition/switching off.
Use the button/knob ON/OFF to turn
on/off the function selected.
NOTE Each time you pass to next setting,
the previous one will be stored.

21
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
RADIO

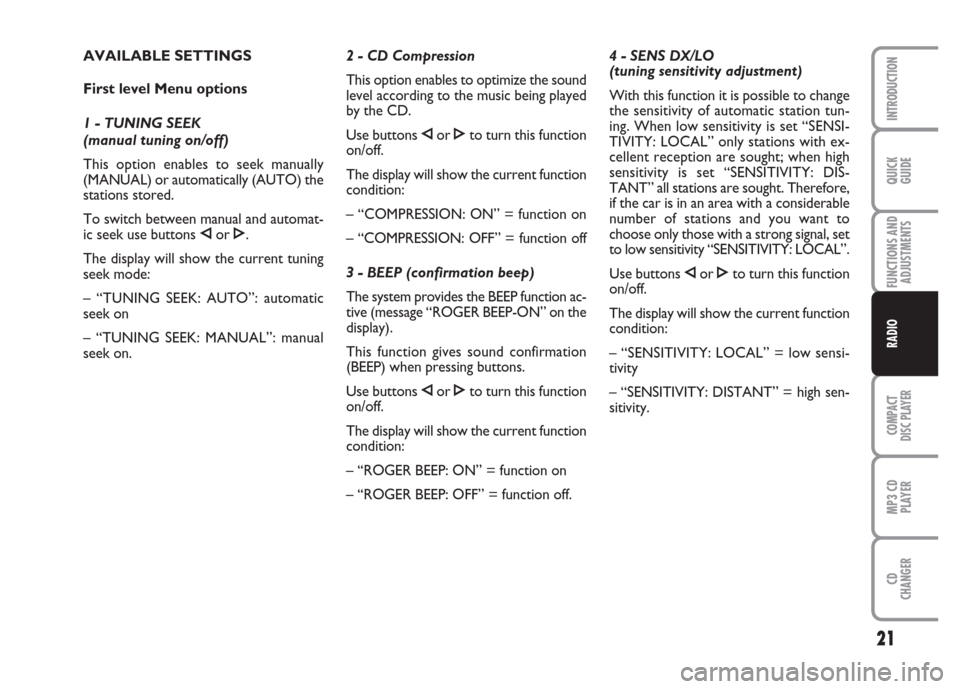

AVAILABLE SETTINGS
First level Menu options
1 - TUNING SEEK
(manual tuning on/off)
This option enables to seek manually
(MANUAL) or automatically (AUTO) the
stations stored.
To switch between manual and automat-
ic seek use buttons Èor Í.
The display will show the current tuning
seek mode:
– “TUNING SEEK: AUTO”: automatic
seek on
– “TUNING SEEK: MANUAL”: manual
seek on.2 - CD Compression
This option enables to optimize the sound
level according to the music being played
by the CD.
Use buttons Èor Íto turn this function
on/off.
The display will show the current function
condition:
– “COMPRESSION: ON” = function on
– “COMPRESSION: OFF” = function off
3 - BEEP (confirmation beep)
The system provides the BEEP function ac-
tive (message “ROGER BEEP-ON” on the
display).
This function gives sound confirmation
(BEEP) when pressing buttons.
Use buttons Èor Íto turn this function
on/off.
The display will show the current function
condition:
– “ROGER BEEP: ON” = function on
– “ROGER BEEP: OFF” = function off.4 - SENS DX/LO
(tuning sensitivity adjustment)
With this function it is possible to change
the sensitivity of automatic station tun-
ing. When low sensitivity is set “SENSI-
TIVITY: LOCAL” only stations with ex-
cellent reception are sought; when high
sensitivity is set “SENSITIVITY: DIS-
TANT” all stations are sought. Therefore,
if the car is in an area with a considerable
number of stations and you want to
choose only those with a strong signal, set
to low sensitivity “SENSITIVITY: LOCAL”.
Use buttons Èor Íto turn this function
on/off.
The display will show the current function
condition:
– “SENSITIVITY: LOCAL” = low sensi-
tivity
– “SENSITIVITY: DISTANT” = high sen-
sitivity.

QUICK
GUIDE
22
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
RADIO

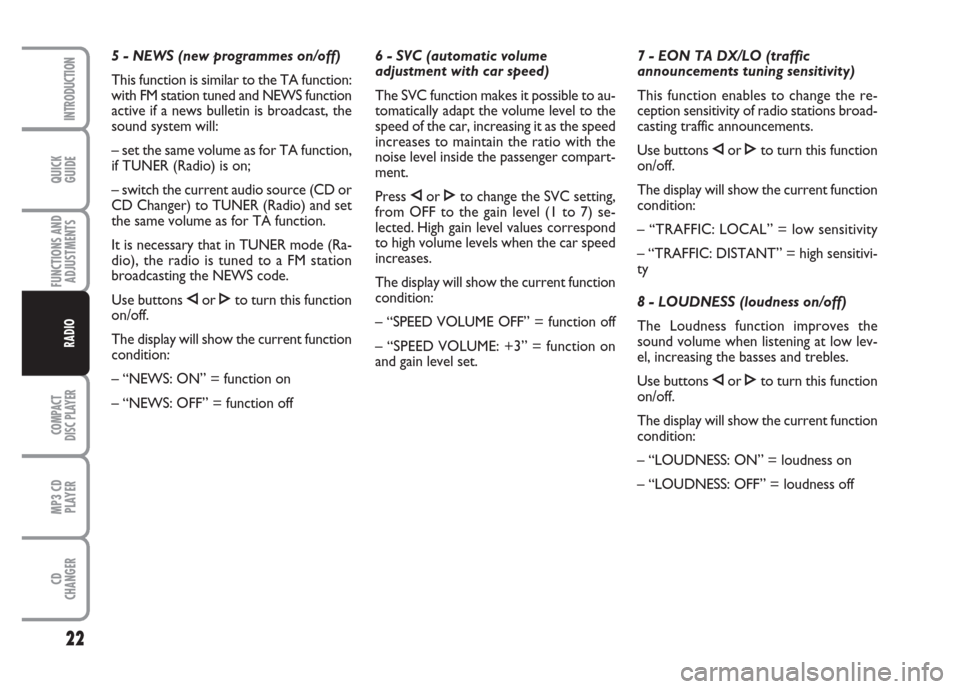

5 - NEWS (new programmes on/off)
This function is similar to the TA function:
with FM station tuned and NEWS function
active if a news bulletin is broadcast, the
sound system will:
– set the same volume as for TA function,
if TUNER (Radio) is on;
– switch the current audio source (CD or
CD Changer) to TUNER (Radio) and set
the same volume as for TA function.
It is necessary that in TUNER mode (Ra-
dio), the radio is tuned to a FM station
broadcasting the NEWS code.
Use buttons Èor Íto turn this function
on/off.
The display will show the current function
condition:
– “NEWS: ON” = function on
– “NEWS: OFF” = function off6 - SVC (automatic volume
adjustment with car speed)
The SVC function makes it possible to au-
tomatically adapt the volume level to the
speed of the car, increasing it as the speed
increases to maintain the ratio with the
noise level inside the passenger compart-
ment.
Press Èor Íto change the SVC setting,
from OFF to the gain level (1 to 7) se-
lected. High gain level values correspond
to high volume levels when the car speed
increases.
The display will show the current function
condition:
– “SPEED VOLUME OFF” = function off
– “SPEED VOLUME: +3” = function on
and gain level set.7 - EON TA DX/LO (traffic
announcements tuning sensitivity)
This function enables to change the re-
ception sensitivity of radio stations broad-
casting traffic announcements.
Use buttons Èor Íto turn this function
on/off.
The display will show the current function
condition:
– “TRAFFIC: LOCAL” = low sensitivity
– “TRAFFIC: DISTANT” = high sensitivi-
ty
8 - LOUDNESS (loudness on/off)
The Loudness function improves the
sound volume when listening at low lev-
el, increasing the basses and trebles.
Use buttons Èor Íto turn this function
on/off.
The display will show the current function
condition:
– “LOUDNESS: ON” = loudness on
– “LOUDNESS: OFF” = loudness off

23
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
RADIO

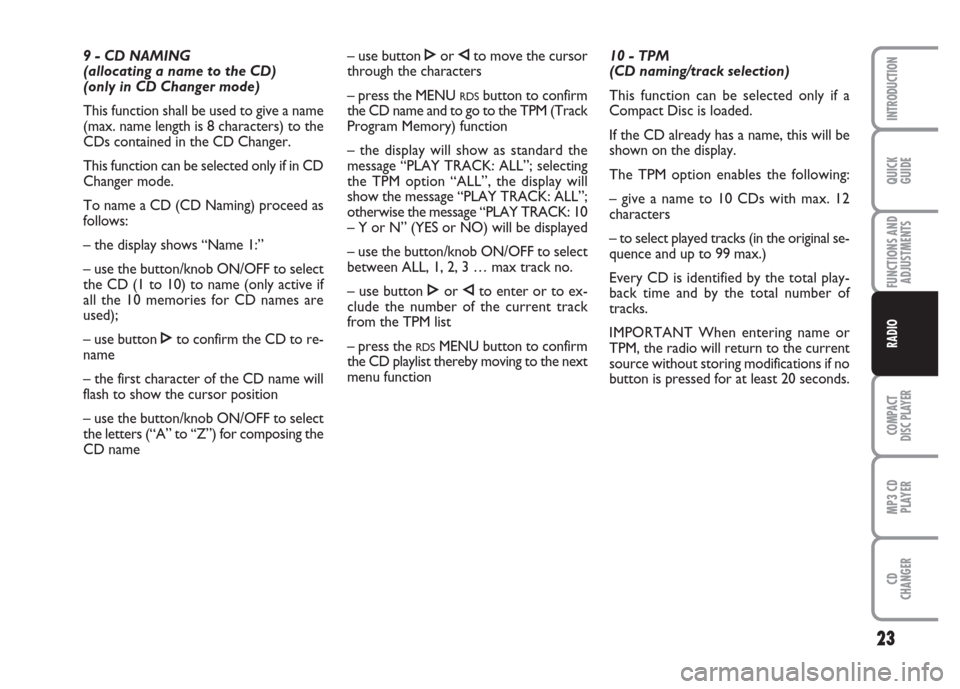

9 - CD NAMING
(allocating a name to the CD)
(only in CD Changer mode)
This function shall be used to give a name
(max. name length is 8 characters) to the
CDs contained in the CD Changer.
This function can be selected only if in CD
Changer mode.
To name a CD (CD Naming) proceed as
follows:
– the display shows “Name 1:”
– use the button/knob ON/OFF to select
the CD (1 to 10) to name (only active if
all the 10 memories for CD names are
used);
– use button Íto confirm the CD to re-
name
– the first character of the CD name will
flash to show the cursor position
– use the button/knob ON/OFF to select
the letters (“A” to “Z”) for composing the
CD name– use button Íor Èto move the cursor
through the characters
– press the MENU
RDSbutton to confirm
the CD name and to go to the TPM (Track
Program Memory) function
– the display will show as standard the
message “PLAY TRACK: ALL”; selecting
the TPM option “ALL”, the display will
show the message “PLAY TRACK: ALL”;
otherwise the message “PLAY TRACK: 10
– Y or N” (YES or NO) will be displayed
– use the button/knob ON/OFF to select
between ALL, 1, 2, 3 … max track no.
– use button Íor Èto enter or to ex-
clude the number of the current track
from the TPM list
– press the
RDSMENU button to confirm
the CD playlist thereby moving to the next
menu function10 - TPM
(CD naming/track selection)
This function can be selected only if a
Compact Disc is loaded.
If the CD already has a name, this will be
shown on the display.
The TPM option enables the following:
– give a name to 10 CDs with max. 12
characters
– to select played tracks (in the original se-
quence and up to 99 max.)
Every CD is identified by the total play-
back time and by the total number of
tracks.
IMPORTANT When entering name or
TPM, the radio will return to the current
source without storing modifications if no
button is pressed for at least 20 seconds.

QUICK
GUIDE
24
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
RADIO

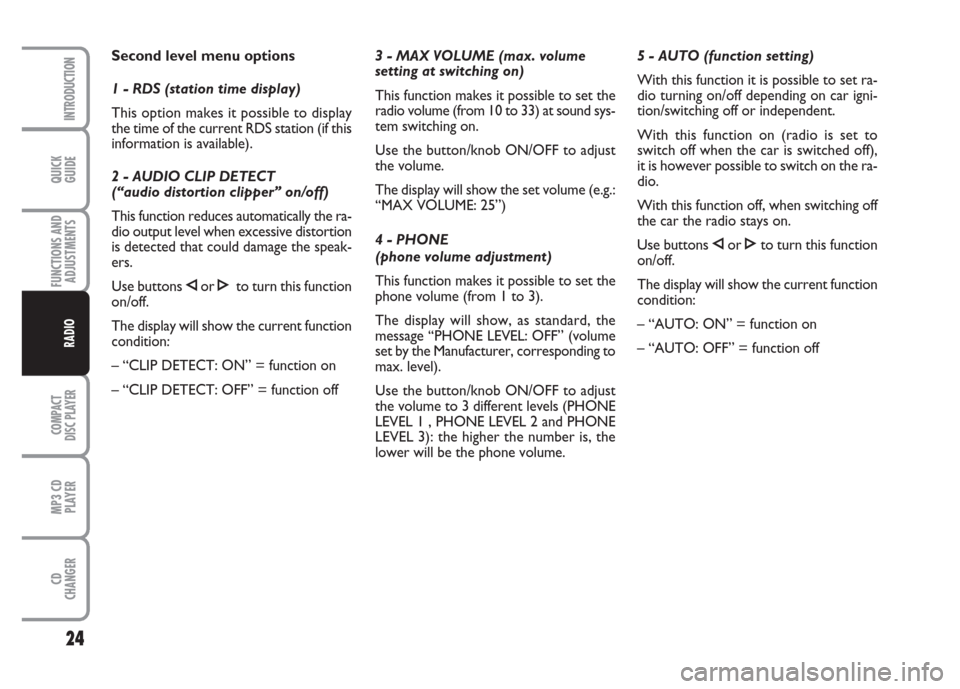

Second level menu options
1 - RDS (station time display)
This option makes it possible to display
the time of the current RDS station (if this
information is available).
2 - AUDIO CLIP DETECT
(“audio distortion clipper” on/off)
This function reduces automatically the ra-
dio output level when excessive distortion
is detected that could damage the speak-
ers.
Use buttons Èor Íto turn this function
on/off.
The display will show the current function
condition:
– “CLIP DETECT: ON” = function on
– “CLIP DETECT: OFF” = function off3 - MAX VOLUME (max. volume
setting at switching on)
This function makes it possible to set the
radio volume (from 10 to 33) at sound sys-
tem switching on.
Use the button/knob ON/OFF to adjust
the volume.
The display will show the set volume (e.g.:
“MAX VOLUME: 25”)
4 - PHONE
(phone volume adjustment)
This function makes it possible to set the
phone volume (from 1 to 3).
The display will show, as standard, the
message “PHONE LEVEL: OFF” (volume
set by the Manufacturer, corresponding to
max. level).
Use the button/knob ON/OFF to adjust
the volume to 3 different levels (PHONE
LEVEL 1 , PHONE LEVEL 2 and PHONE
LEVEL 3): the higher the number is, the
lower will be the phone volume.5 - AUTO (function setting)
With this function it is possible to set ra-
dio turning on/off depending on car igni-
tion/switching off or independent.
With this function on (radio is set to
switch off when the car is switched off),
it is however possible to switch on the ra-
dio.
With this function off, when switching off
the car the radio stays on.
Use buttons Èor Íto turn this function
on/off.
The display will show the current function
condition:
– “AUTO: ON” = function on
– “AUTO: OFF” = function off

25
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
COMPACT
DISC PLAYER
INTRODUCTION
This section only describes CD player op-
eration variants: as concerns sound sys-
tem operation, refer to section “FUNC-
TIONS AND ADJUSTMENTS”.
SELECTING THE CD PLAYER
To turn on the Compact Disc player in-
tegral with the sound system, when a CD
is already inserted, turn on the sound sys-
tem by pressing the button/knob ON/OFF
then press briefly and repeatedly button
SRC to select the “CD” mode.
Inserting a CD, also when the sound sys-
tem is off, will turn the CD player on au-
tomatically.
For optimal playing use only original CDs.
When using R/RW CDs, use top quality
CDs mastered at the as low as possible
speed.LOADING/EJECTING A CD
To insert the CD, set it gently in place to
activate the powered loading system,
which will position it correctly.
Press button ˚with the sound system on,
to operate the powered CD eject system.
DISPLAY INFORMATION
When the CD player is working, the dis-
play shows information which has the fol-
lowing meaning:
– “CD”: indicates the CD mode
– “TRACK 12”: shows the number of the
track on the CD
– “11.04”: shows the time elapsed since
the start of the track TRACK SELECTION
(forward/backward)
Press briefly button Íto play the next
track on the CD and button Èto play the
previous one.
To select tracks continuously, keep the
button pressed.
If playing the track started more than 3
seconds ago, pressing button Èthe track
is played again from the start. In this case
if wanting to play the previous track, press
the button Ètwice consecutively.
C C
O O
M M
P P
A A
C C
T T
D D
I I
S S
C C
P P
L L
A A
Y Y
E E
R R

QUICK
GUIDE
26
FUNCTIONS AND
ADJUSTMENTS
RADIO
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
COMPACT
DISC PLAYER
FAST FORWARD/BACKWARD
Keep button Ípressed to move the track
selected forward at high speed and keep
button Èpressed to move it quickly back-
ward. Fast forward/backward is stopped
once the button is released.FAST TRACK SELECTION
(forward/backward)
Press briefly the button/knob
3
F-TRKto enter the fast track selection
mode. The sound system display will show
the wording “TRx FAST-TRACK” (x in-
dicates the track number).
Turn the button/knob ON/OFF to select
the required track, and press it briefly to
confirm: track playback will start.
PAUSE FUNCTION
To pause the CD player, press briefly the
MUTE button. The display will show the
message “CD PAUSE”.
To resume playing the track, press button
MUTE again.TRACK SCAN FUNCTION
(scanning CD tracks)
With this function it is possible to play the
beginning of all the tracks contained in the
CD.
Keep button SCAN pressed to play the
first 10 seconds of every track on the CD.
The scanning sequence is the following:
– from the track played up to the last one
on the CD
– from the first track up to the one played
until the start of scanning.
The Scan function is interrupted in the fol-
lowing cases:
– turning the sound system off
– pressing again button SCAN
– changing the sound source

27
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
COMPACT
DISC PLAYER

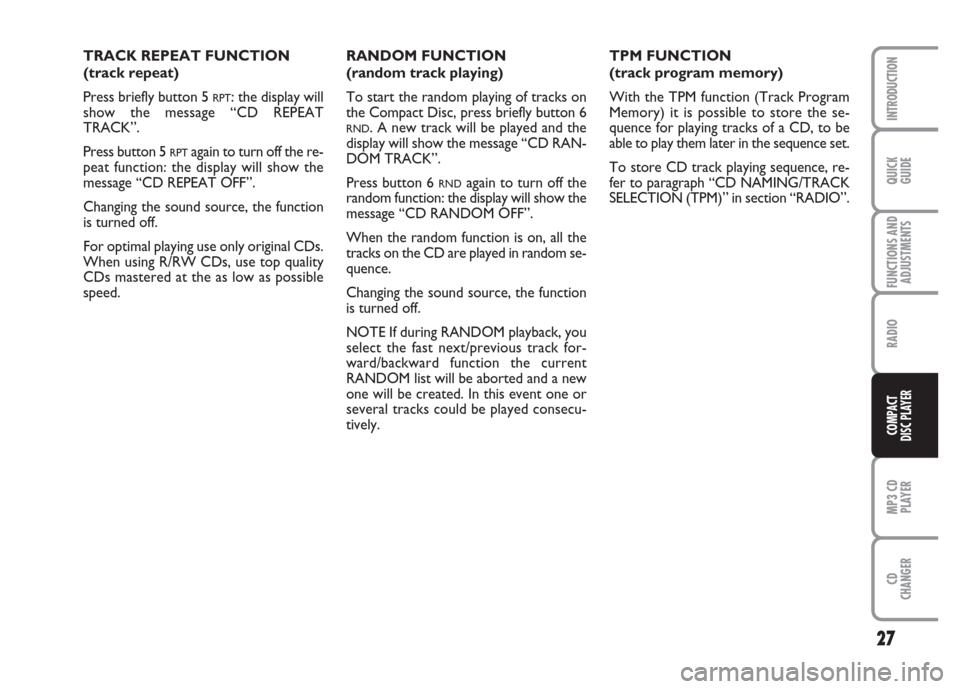

TRACK REPEAT FUNCTION
(track repeat)
Press briefly button 5
RPT: the display will
show the message “CD REPEAT
TRACK”.
Press button 5
RPTagain to turn off the re-
peat function: the display will show the
message “CD REPEAT OFF”.
Changing the sound source, the function
is turned off.
For optimal playing use only original CDs.
When using R/RW CDs, use top quality
CDs mastered at the as low as possible
speed.RANDOM FUNCTION
(random track playing)
To start the random playing of tracks on
the Compact Disc, press briefly button 6
RND. A new track will be played and the
display will show the message “CD RAN-
DOM TRACK”.
Press button 6
RNDagain to turn off the
random function: the display will show the
message “CD RANDOM OFF”.
When the random function is on, all the
tracks on the CD are played in random se-
quence.
Changing the sound source, the function
is turned off.
NOTE If during RANDOM playback, you
select the fast next/previous track for-
ward/backward function the current
RANDOM list will be aborted and a new
one will be created. In this event one or
several tracks could be played consecu-
tively.TPM FUNCTION
(track program memory)
With the TPM function (Track Program
Memory) it is possible to store the se-
quence for playing tracks of a CD, to be
able to play them later in the sequence set.
To store CD track playing sequence, re-
fer to paragraph “CD NAMING/TRACK
SELECTION (TPM)” in section “RADIO”.

QUICK
GUIDE
28
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
MP3 CD
PLAYER

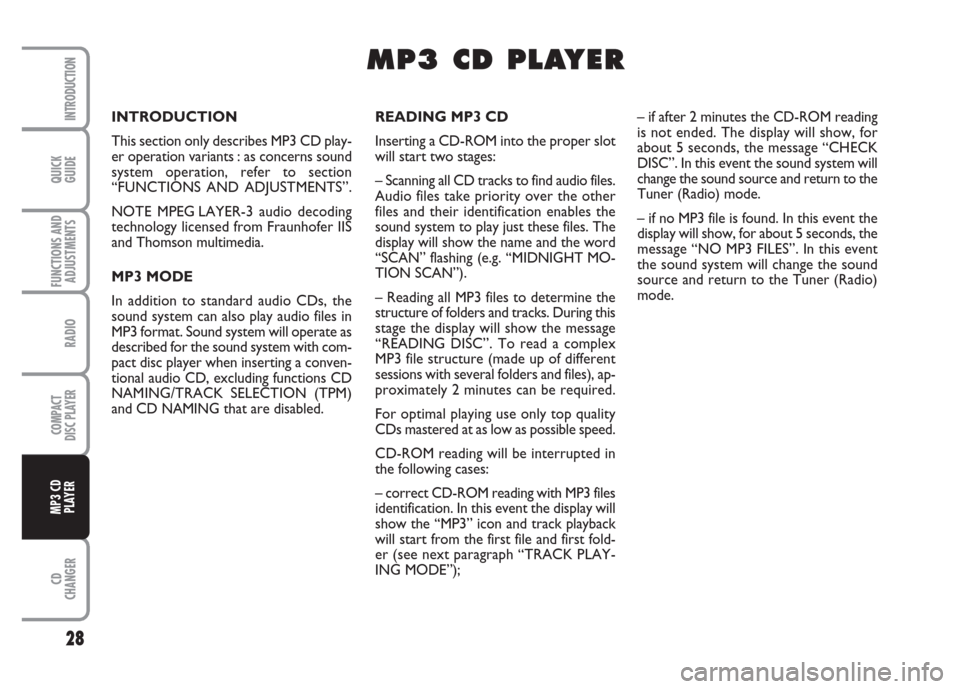

INTRODUCTION
This section only describes MP3 CD play-
er operation variants : as concerns sound
system operation, refer to section
“FUNCTIONS AND ADJUSTMENTS”.
NOTE MPEG LAYER-3 audio decoding
technology licensed from Fraunhofer IIS
and Thomson multimedia.
MP3 MODE
In addition to standard audio CDs, the
sound system can also play audio files in
MP3 format. Sound system will operate as
described for the sound system with com-
pact disc player when inserting a conven-
tional audio CD, excluding functions CD
NAMING/TRACK SELECTION (TPM)
and CD NAMING that are disabled.READING MP3 CD
Inserting a CD-ROM into the proper slot
will start two stages:
– Scanning all CD tracks to find audio files.
Audio files take priority over the other
files and their identification enables the
sound system to play just these files. The
display will show the name and the word
“SCAN” flashing (e.g. “MIDNIGHT MO-
TION SCAN”).
– Reading all MP3 files to determine the
structure of folders and tracks. During this
stage the display will show the message
“READING DISC”. To read a complex
MP3 file structure (made up of different
sessions with several folders and files), ap-
proximately 2 minutes can be required.
For optimal playing use only top quality
CDs mastered at as low as possible speed.
CD-ROM reading will be interrupted in
the following cases:
– correct CD-ROM reading with MP3 files
identification. In this event the display will
show the “MP3” icon and track playback
will start from the first file and first fold-
er (see next paragraph “TRACK PLAY-
ING MODE”);– if after 2 minutes the CD-ROM reading
is not ended. The display will show, for
about 5 seconds, the message “CHECK
DISC”. In this event the sound system will
change the sound source and return to the
Tuner (Radio) mode.
– if no MP3 file is found. In this event the
display will show, for about 5 seconds, the
message “NO MP3 FILES”. In this event
the sound system will change the sound
source and return to the Tuner (Radio)
mode.
M M
P P
3 3
C C
D D
P P
L L
A A
Y Y
E E
R R

29
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
MP3 CD
PLAYER

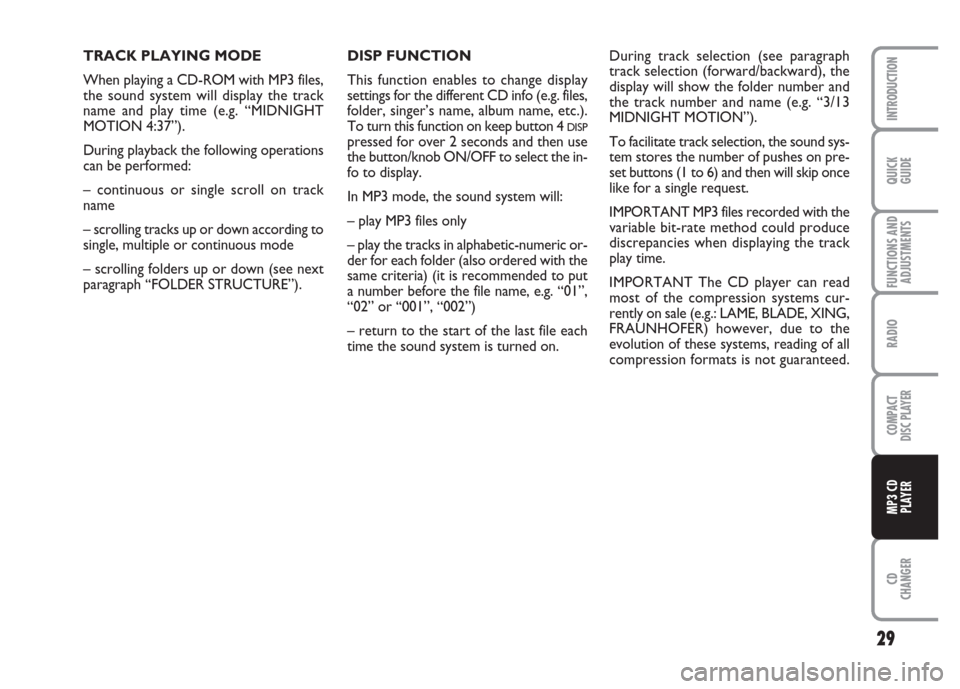

TRACK PLAYING MODE
When playing a CD-ROM with MP3 files,
the sound system will display the track
name and play time (e.g. “MIDNIGHT
MOTION 4:37”).
During playback the following operations
can be performed:
– continuous or single scroll on track
name
– scrolling tracks up or down according to
single, multiple or continuous mode
– scrolling folders up or down (see next
paragraph “FOLDER STRUCTURE”).DISP FUNCTION
This function enables to change display
settings for the different CD info (e.g. files,
folder, singer’s name, album name, etc.).
To turn this function on keep button 4
DISPpressed for over 2 seconds and then use
the button/knob ON/OFF to select the in-
fo to display.
In MP3 mode, the sound system will:
– play MP3 files only
– play the tracks in alphabetic-numeric or-
der for each folder (also ordered with the
same criteria) (it is recommended to put
a number before the file name, e.g. “01”,
“02” or “001”, “002”)
– return to the start of the last file each
time the sound system is turned on.During track selection (see paragraph
track selection (forward/backward), the
display will show the folder number and
the track number and name (e.g. “3/13
MIDNIGHT MOTION”).
To facilitate track selection, the sound sys-
tem stores the number of pushes on pre-
set buttons (1 to 6) and then will skip once
like for a single request.
IMPORTANT MP3 files recorded with the
variable bit-rate method could produce
discrepancies when displaying the track
play time.
IMPORTANT The CD player can read
most of the compression systems cur-
rently on sale (e.g.: LAME, BLADE, XING,
FRAUNHOFER) however, due to the
evolution of these systems, reading of all
compression formats is not guaranteed.
