WARNING LIGHTS
AND MESSAGESREDUCE GEAR CHANGES
The message appears in the display to in-
dicate that the driver is using the gearbox
incorrectly.
Incorrect use (by the driver) could auto-
matically activate a procedure for pro-
tecting the system. DUALOGIC GEARBOX
FAILURE (red)
When the ignition key is
turned to MAR, the warning
light turns on and should go off after a few
seconds.
The warning light on the dial comes on
flashing (together with a message in the
display and a buzzer) to indicate that the
gearbox is faulty.
t
If a fault is present, contact
a Fiat Dealership as soon as
possible to check the sys-
tem.
Contact a Fiat Dealership if
the message remains in the
display.
❒if necessary, with the engine off it is pos-
sible to engage 1stgear or reverse (R)
with the ignition ONand the brake
pressed. In this case, gear shifts must be
made allowing at least 5 minutes to
elapse between one gear shift and the
next to safeguard the operation of the
hydraulic system and the pump in par-
ticular;
❒pressing the accelerator pedal quickly
until it is in the end of travel position
and switchin off the ASR function, if
present, using the button in the dash-
board allows for a responsive take off.
❒during hill starts, accelerate gradually
but fully immediately after releasing the
handbrake or brake pedal to allow the
engine to increase its rpm to a greater
extent and overcome higher gradients
with more torque.
603.83.941 Bravo Dualogic GB 5-05-2008 10:53 Pagina 10

11

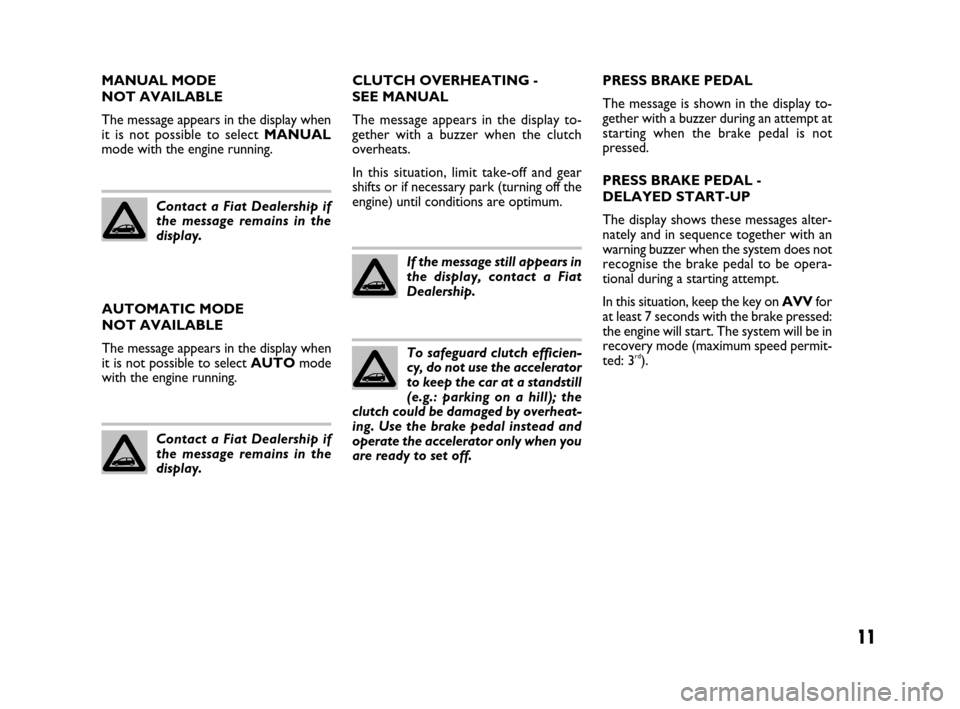

MANUAL MODE
NOT AVAILABLE
The message appears in the display when
it is not possible to select MANUAL
mode with the engine running.
Contact a Fiat Dealership if
the message remains in the
display.
AUTOMATIC MODE
NOT AVAILABLE
The message appears in the display when
it is not possible to select AUTOmode
with the engine running.CLUTCH OVERHEATING -
SEE MANUAL
The message appears in the display to-
gether with a buzzer when the clutch
overheats.
In this situation, limit take-off and gear
shifts or if necessary park (turning off the
engine) until conditions are optimum.PRESS BRAKE PEDAL
The message is shown in the display to-
gether with a buzzer during an attempt at
starting when the brake pedal is not
pressed.
PRESS BRAKE PEDAL -
DELAYED START-UP
The display shows these messages alter-
nately and in sequence together with an
warning buzzer when the system does not
recognise the brake pedal to be opera-
tional during a starting attempt.
In this situation, keep the key on AVVfor
at least 7 seconds with the brake pressed:
the engine will start. The system will be in
recovery mode (maximum speed permit-
ted: 3
rd).
Contact a Fiat Dealership if
the message remains in the
display.
If the message still appears in
the display, contact a Fiat
Dealership.
To safeguard clutch efficien-
cy, do not use the accelerator
to keep the car at a standstill
(e.g.: parking on a hill); the
clutch could be damaged by overheat-
ing. Use the brake pedal instead and
operate the accelerator only when you
are ready to set off.
603.83.941 Bravo Dualogic GB 5-05-2008 10:53 Pagina 11

12

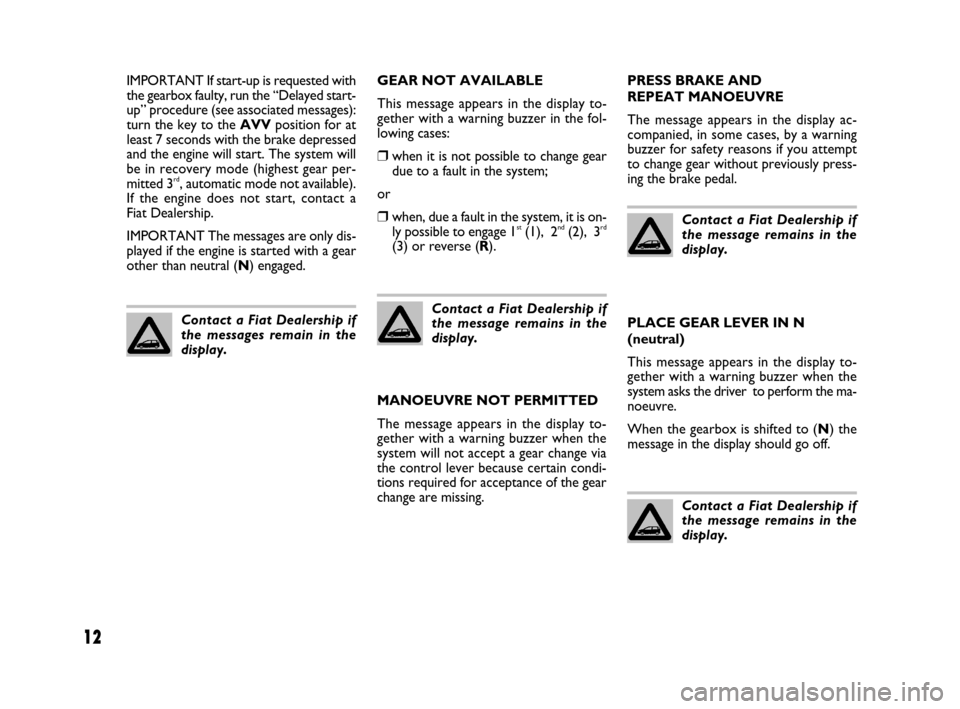

GEAR NOT AVAILABLE
This message appears in the display to-
gether with a warning buzzer in the fol-
lowing cases:
❒when it is not possible to change gear
due to a fault in the system;
or
❒when, due a fault in the system, it is on-
ly possible to engage 1st(1), 2nd(2), 3rd
(3) or reverse (R).PRESS BRAKE AND
REPEAT MANOEUVRE
The message appears in the display ac-
companied, in some cases, by a warning
buzzer for safety reasons if you attempt
to change gear without previously press-
ing the brake pedal.
Contact a Fiat Dealership if
the message remains in the
display.
Contact a Fiat Dealership if
the message remains in the
display.
Contact a Fiat Dealership if
the message remains in the
display.
Contact a Fiat Dealership if
the messages remain in the
display.
IMPORTANT If start-up is requested with
the gearbox faulty, run the “Delayed start-
up” procedure (see associated messages):
turn the key to the AVVposition for at
least 7 seconds with the brake depressed
and the engine will start. The system will
be in recovery mode (highest gear per-
mitted 3
rd, automatic mode not available).
If the engine does not start, contact a
Fiat Dealership.
IMPORTANT The messages are only dis-
played if the engine is started with a gear
other than neutral (N) engaged.
MANOEUVRE NOT PERMITTED
The message appears in the display to-
gether with a warning buzzer when the
system will not accept a gear change via
the control lever because certain condi-
tions required for acceptance of the gear
change are missing.PLACE GEAR LEVER IN N
(neutral)
This message appears in the display to-
gether with a warning buzzer when the
system asks the driver to perform the ma-
noeuvre.
When the gearbox is shifted to (N) the
message in the display should go off.
603.83.941 Bravo Dualogic GB 5-05-2008 10:53 Pagina 12

13

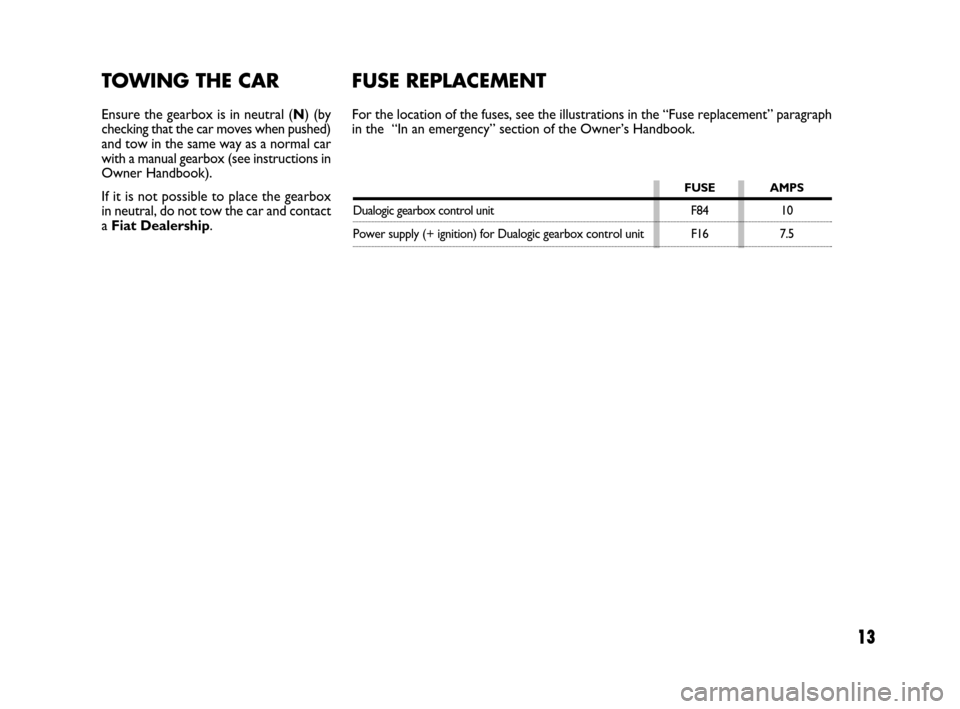

TOWING THE CAR
Ensure the gearbox is in neutral (N) (by
checking that the car moves when pushed)
and tow in the same way as a normal car
with a manual gearbox (see instructions in
Owner Handbook).
If it is not possible to place the gearbox
in neutral, do not tow the car and contact
a Fiat Dealership.
FUSE REPLACEMENT
For the location of the fuses, see the illustrations in the “Fuse replacement” paragraph
in the “In an emergency” section of the Owner’s Handbook.
FUSE AMPS
Dualogic gearbox control unit F84 10
Power supply (+ ignition) for Dualogic gearbox control unit F16 7.5
603.83.941 Bravo Dualogic GB 5-05-2008 10:53 Pagina 13

14

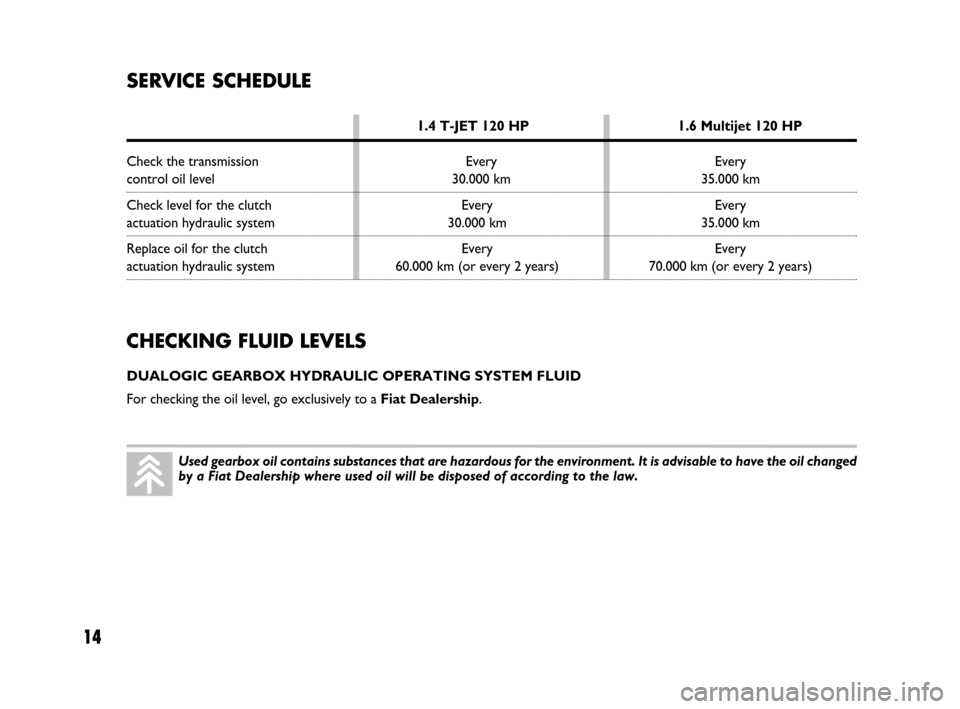

Used gearbox oil contains substances that are hazardous for the environment. It is advisable to have the oil changed
by a Fiat Dealership where used oil will be disposed of according to the law.
CHECKING FLUID LEVELS
DUALOGIC GEARBOX HYDRAULIC OPERATING SYSTEM FLUID
For checking the oil level, go exclusively to a Fiat Dealership.
SERVICE SCHEDULE
1.4 T-JET 120 HP 1.6 Multijet 120 HP
Check the transmission Every Every
control oil level 30.000 km 35.000 km
Check level for the clutch Every Every
actuation hydraulic system 30.000 km 35.000 km
Replace oil for the clutch Every Every
actuation hydraulic system 60.000 km (or every 2 years) 70.000 km (or every 2 years)
603.83.941 Bravo Dualogic GB 5-05-2008 10:53 Pagina 14

15

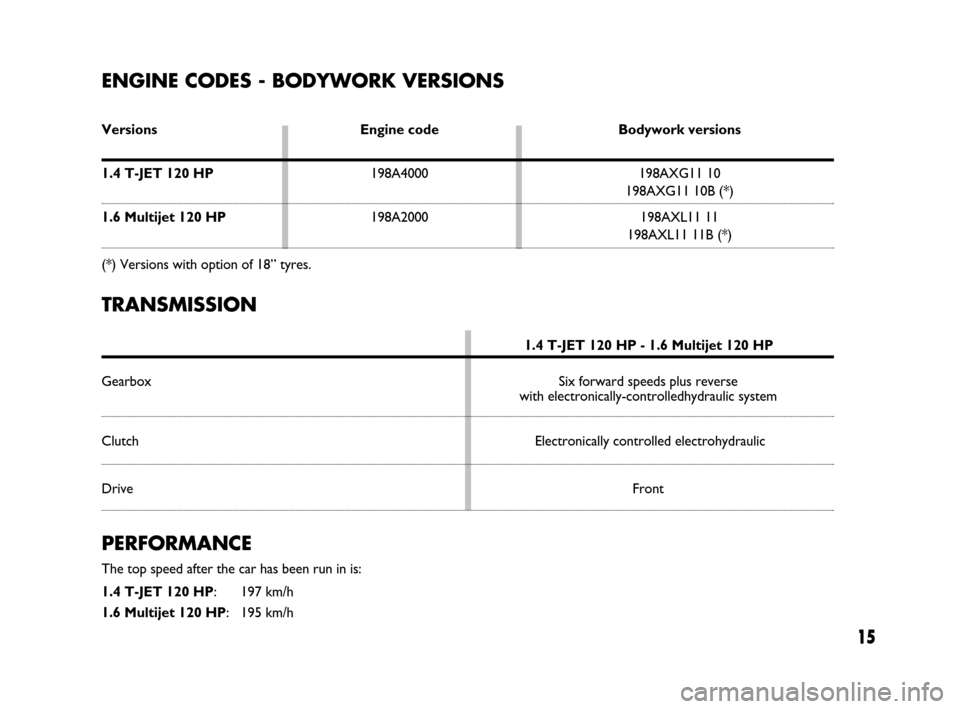

ENGINE CODES - BODYWORK VERSIONS
Versions Engine code Bodywork versions
1.4 T-JET 120 HP198A4000 198AXG11 10
198AXG11 10B (*)
1.6 Multijet 120 HP198A2000 198AXL11 11
198AXL11 11B (*)
(*) Versions with option of 18” tyres.
PERFORMANCE
The top speed after the car has been run in is:
1.4 T-JET 120 HP: 197 km/h
1.6 Multijet 120 HP: 195 km/h
TRANSMISSION
1.4 T-JET 120 HP - 1.6 Multijet 120 HP
Gearbox Six forward speeds plus reverse
with electronically-controlledhydraulic system
Clutch Electronically controlled electrohydraulic
DriveFront
603.83.941 Bravo Dualogic GB 5-05-2008 10:53 Pagina 15

16

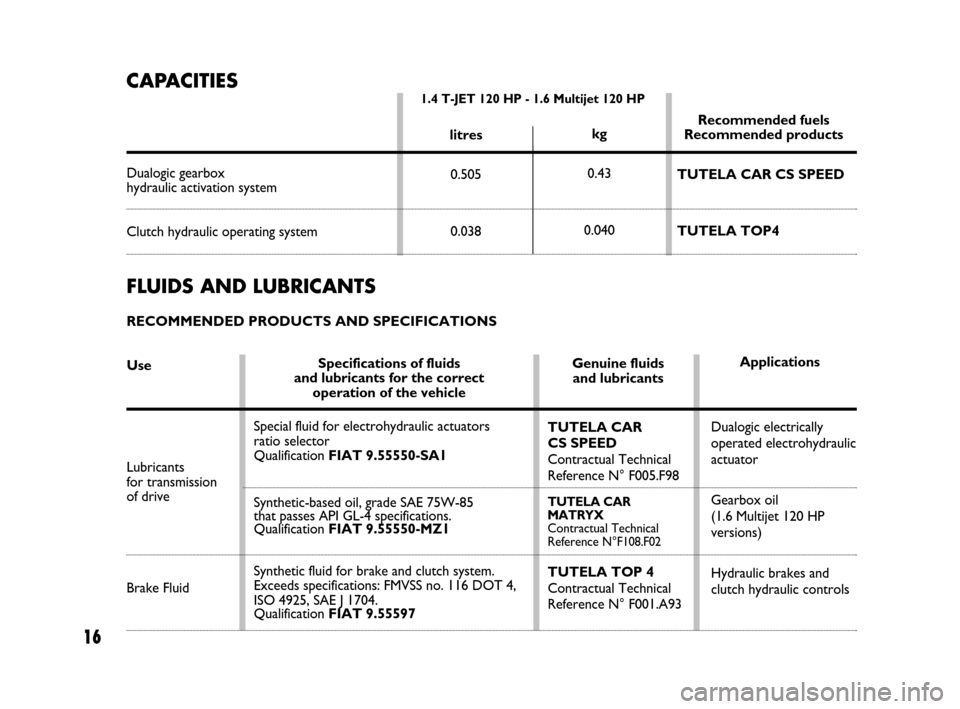

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use
Lubricants
for transmission
of drive
Brake Fluid
Specifications of fluids
and lubricants for the correct
operation of the vehicle
Special fluid for electrohydraulic actuators
ratio selector
Qualification FIAT 9.55550-SA1
Synthetic-based oil, grade SAE 75W-85
that passes API GL-4 specifications.
Qualification FIAT 9.55550-MZ1
Synthetic fluid for brake and clutch system.
Exceeds specifications: FMVSS no. 116 DOT 4,
ISO 4925, SAE J 1704.
Qualification FIAT 9.55597Genuine fluids
and lubricants
TUTELA CAR
CS SPEED
Contractual Technical
Reference N° F005.F98
TUTELA CAR
MATRYX
Contractual Technical
Reference N°F108.F02
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93Applications
Dualogic electrically
operated electrohydraulic
actuator
Gearbox oil
(1.6 Multijet 120 HP
versions)
Hydraulic brakes and
clutch hydraulic controls
1.4 T-JET 120 HP - 1.6 Multijet 120 HP
kg
0.43
0.040
CAPACITIES
Dualogic gearboxhydraulic activation system
Clutch hydraulic operating system
litres
0.505
0.038Recommended fuels
Recommended products
TUTELA CAR CS SPEED
TUTELA TOP4
603.83.941 Bravo Dualogic GB 5-05-2008 10:53 Pagina 16

17

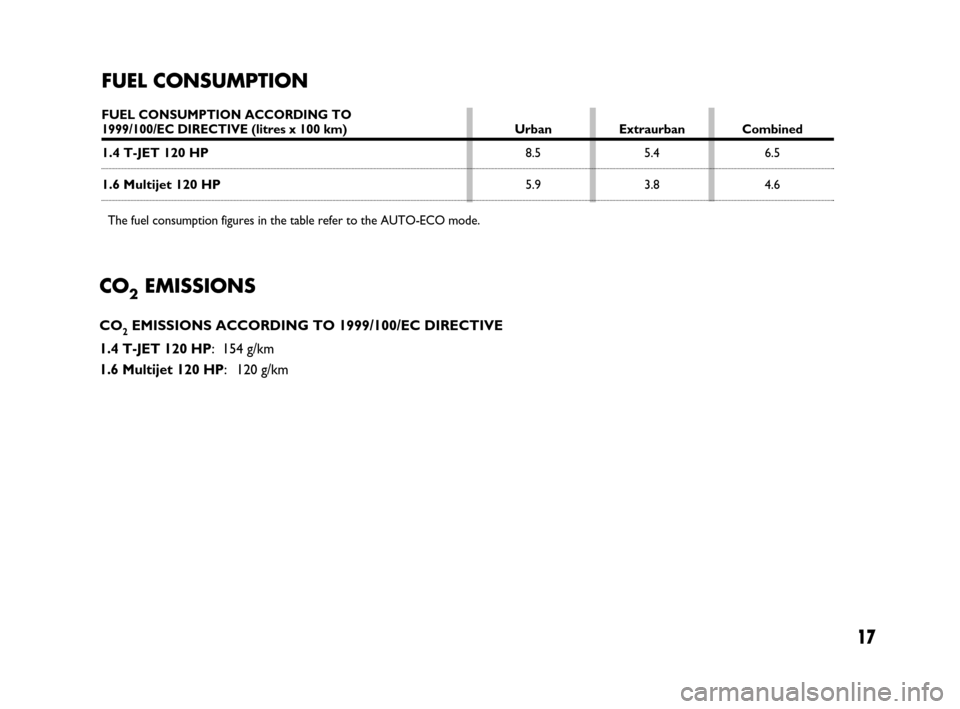

CO2EMISSIONS ACCORDING TO 1999/100/EC DIRECTIVE
1.4 T-JET 120 HP: 154 g/km
1.6 Multijet 120 HP: 120 g/km
CO2EMISSIONS
FUEL CONSUMPTION
FUEL CONSUMPTION ACCORDING TO 1999/100/EC DIRECTIVE (litres x 100 km) Urban Extraurban Combined
1.4 T-JET 120 HP8.5 5.4 6.5
1.6 Multijet 120 HP5.9 3.8 4.6
The fuel consumption figures in the table refer to the AUTO-ECO mode.
