FIAT BRAVO 2008 2.G Ready To Go Manual

FIATBRAVO
READY TO GO
603.83.124 Pronti Bravo GB 9-07-2008 12:54 Pagina cop1

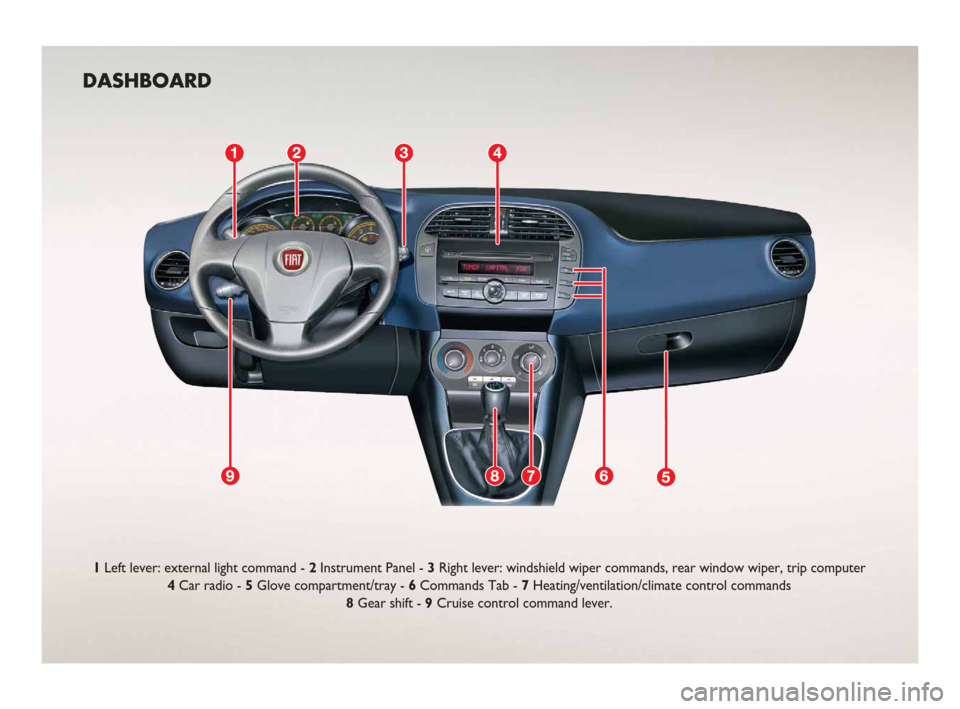

DASHBOARD
1Left lever: external light command - 2Instrument Panel - 3Right lever: windshield wiper commands, rear window wiper, trip computer
4Car radio - 5Glove compartment/tray - 6Commands Tab - 7Heating/ventilation/climate control commands
8Gear shift - 9Cruise control command lever.
603.83.124 Pronti Bravo GB 9-07-2008 12:54 Pagina 1

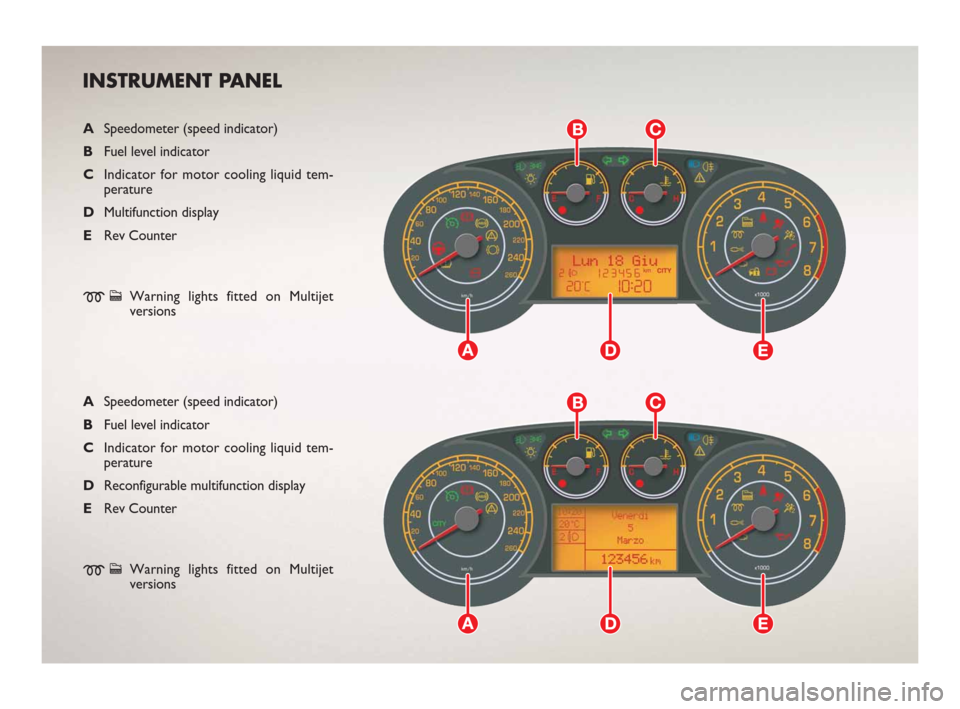

INSTRUMENT PANEL
ASpeedometer (speed indicator)
BFuel level indicator
CIndicator for motor cooling liquid tem-
perature
DMultifunction display
ERev Counter
mcWarning lights fitted on Multijet
versions
ASpeedometer (speed indicator)
BFuel level indicator
CIndicator for motor cooling liquid tem-
perature
DReconfigurable multifunction display
ERev Counter
mcWarning lights fitted on Multijet
versions
603.83.124 Pronti Bravo GB 9-07-2008 12:54 Pagina 2

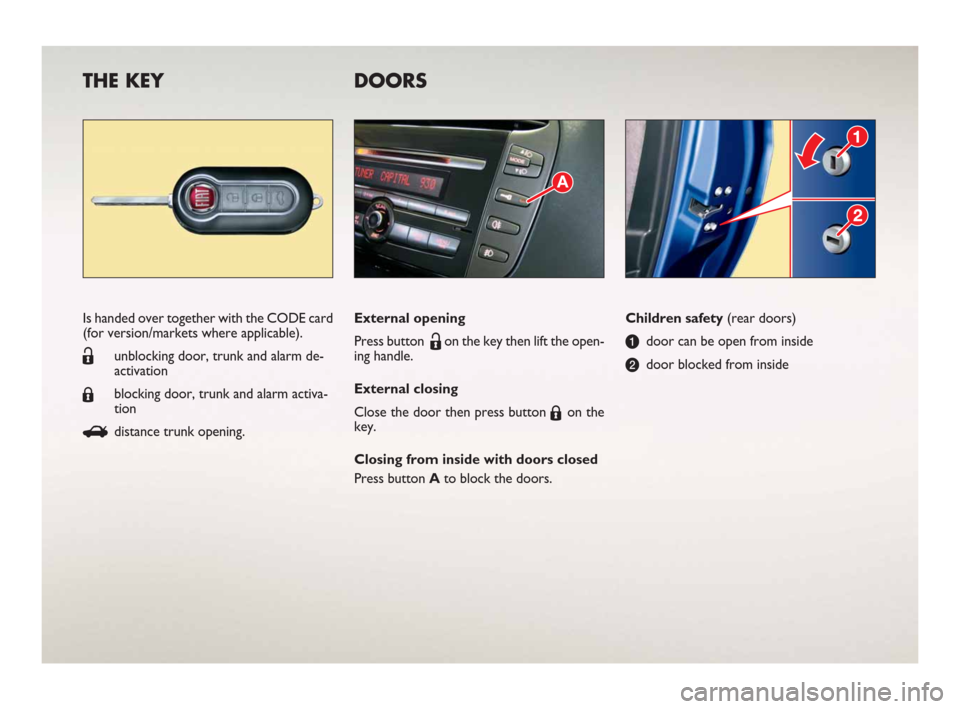

THE KEY DOORS
Children safety (rear doors)
adoor can be open from inside
bdoor blocked from insideIs handed over together with the CODE card
(for version/markets where applicable).
Ëunblocking door, trunk and alarm de-
activation
Áblocking door, trunk and alarm activa-
tion
Rdistance trunk opening.External opening
Press button
Ëon the key then lift the open-
ing handle.
External closing
Close the door then press button
Áon the
key.
Closing from inside with doors closed
Press button Ato block the doors.
A
603.83.124 Pronti Bravo GB 9-07-2008 12:54 Pagina 3

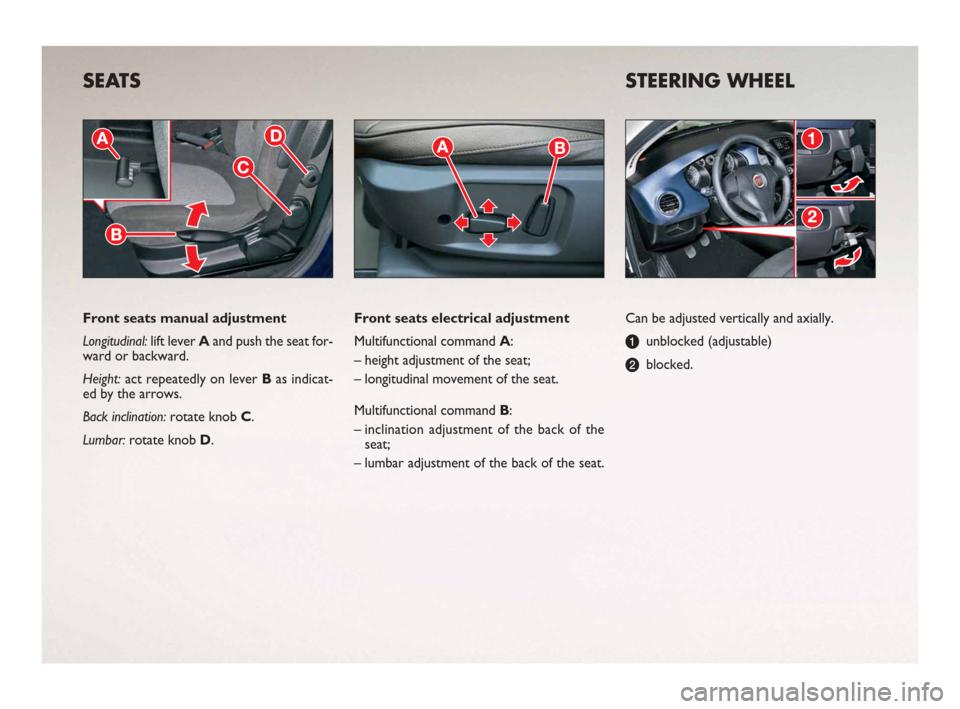

SEATS
Can be adjusted vertically and axially.
aunblocked (adjustable)
bblocked. Front seats manual adjustment
Longitudinal: lift lever Aand push the seat for-
ward or backward.
Height: act repeatedly on lever Bas indicat-
ed by the arrows.
Back inclination: rotate knob C.
Lumbar: rotate knob D.
STEERING WHEEL
Front seats electrical adjustment
Multifunctional command A:
– height adjustment of the seat;
– longitudinal movement of the seat.
Multifunctional command B:
– inclination adjustment of the back of the
seat;
– lumbar adjustment of the back of the seat.
603.83.124 Pronti Bravo GB 9-07-2008 12:54 Pagina 4

HEAD RESTRAINTS SAFETY BELTS REARVIEW MIRRORS
Front
To adjust upwards: lift the headrest.
To adjust downwards: press button Aand low-
er the headrest.
Rear
Bring the headrests to the “all extracted” po-
sition.To buckle: hold the hooking tang Aand insert
it in buckle B, until you hear a blocking click
To unbuckle:them press button C.
Internal mirrors
Normal position or anti-dazzling by means of
lever A.
External mirrors
Bselect mirror left/right
Cadjustment of selected mirror.
603.83.124 Pronti Bravo GB 9-07-2008 12:54 Pagina 5

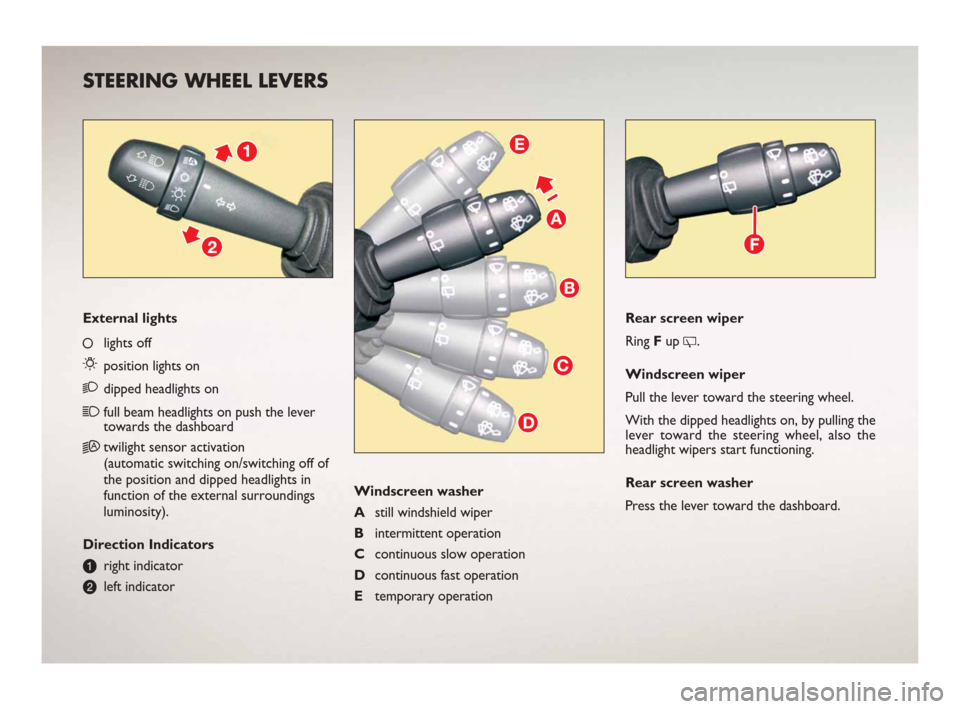

Rear screen wiper
Ring Fup
'.
Windscreen wiper
Pull the lever toward the steering wheel.
With the dipped headlights on, by pulling the
lever toward the steering wheel, also the
headlight wipers start functioning.
Rear screen washer
Press the lever toward the dashboard.
Windscreen washer
Astill windshield wiper
Bintermittent operation
Ccontinuous slow operation
Dcontinuous fast operation
Etemporary operation
STEERING WHEEL LEVERS
External lights
ålights off
6position lights on
2dipped headlights on
1full beam headlights on push the lever
towards the dashboard
2Atwilight sensor activation
(automatic switching on/switching off of
the position and dipped headlights in
function of the external surroundings
luminosity).
Direction Indicators
aright indicator
bleft indicator
603.83.124 Pronti Bravo GB 9-07-2008 12:54 Pagina 6

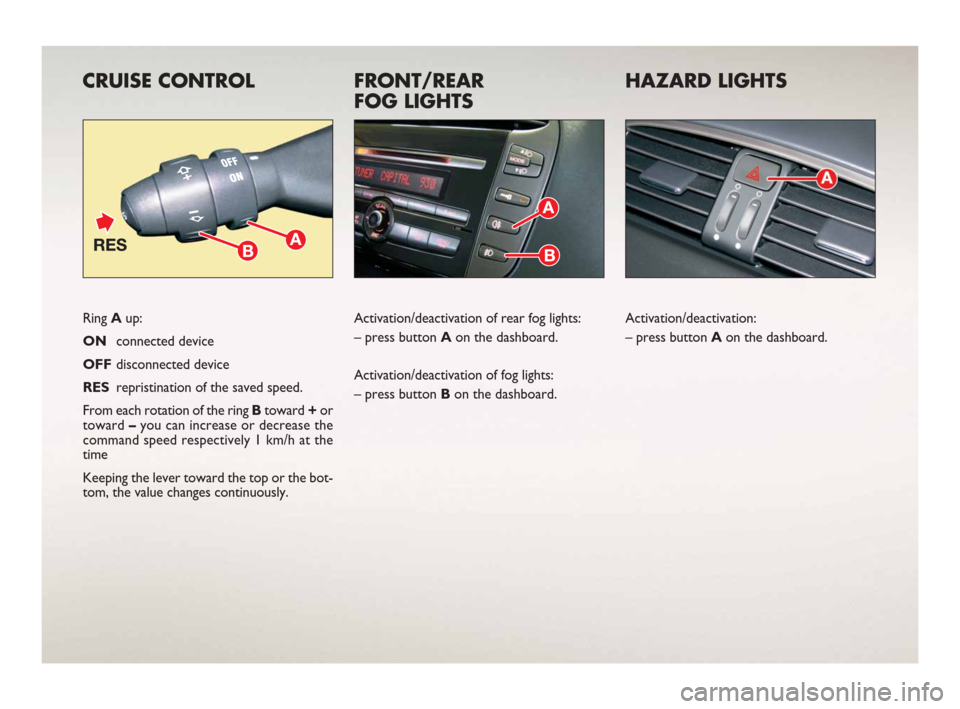

CRUISE CONTROL
Ring Aup:
ONconnected device
OFF disconnected device
RESrepristination of the saved speed.
From each rotation of the ring Btoward +or
toward –you can increase or decrease the
command speed respectively 1 km/h at the
time
Keeping the lever toward the top or the bot-
tom, the value changes continuously.Activation/deactivation of rear fog lights:
– press button Aon the dashboard.
Activation/deactivation of fog lights:
– press button Bon the dashboard.
HAZARD LIGHTS
Activation/deactivation:
– press button Aon the dashboard.
FRONT/REAR
FOG LIGHTS
603.83.124 Pronti Bravo GB 9-07-2008 12:54 Pagina 7

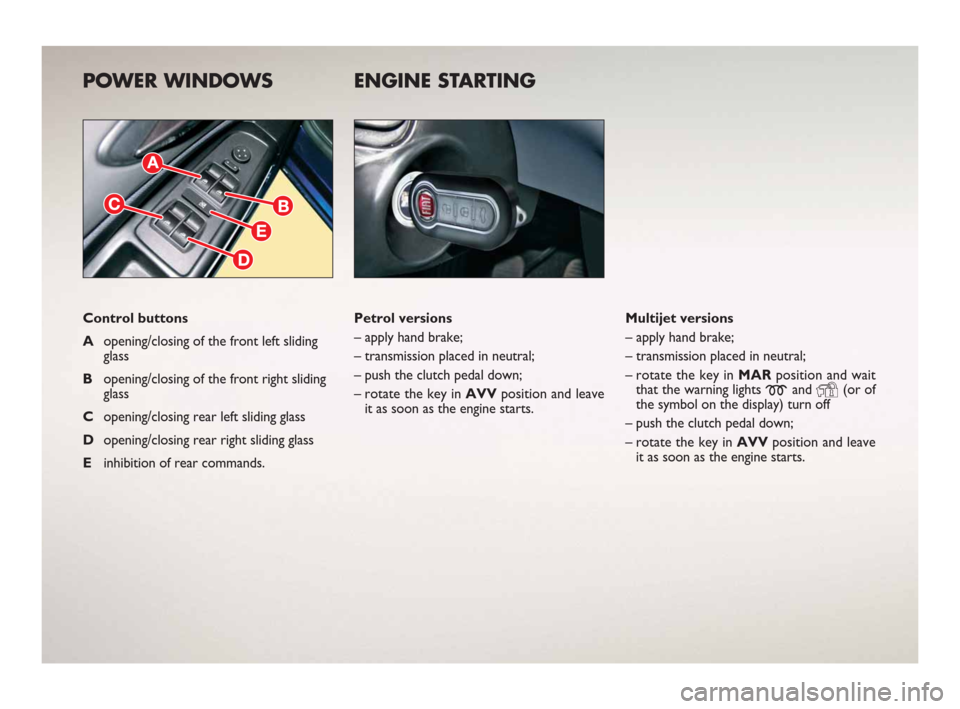

POWER WINDOWS
Control buttons
Aopening/closing of the front left sliding
glass
Bopening/closing of the front right sliding
glass
Copening/closing rear left sliding glass
Dopening/closing rear right sliding glass
Einhibition of rear commands.Petrol versions
– apply hand brake;
– transmission placed in neutral;
– push the clutch pedal down;
– rotate the key in AVVposition and leave
it as soon as the engine starts.
ENGINE STARTING
Multijet versions
– apply hand brake;
– transmission placed in neutral;
– rotate the key in MARposition and wait
that the warning lights
mand Y(or of
the symbol on the display) turn off
– push the clutch pedal down;
– rotate the key in AVVposition and leave
it as soon as the engine starts.
603.83.124 Pronti Bravo GB 9-07-2008 12:54 Pagina 8

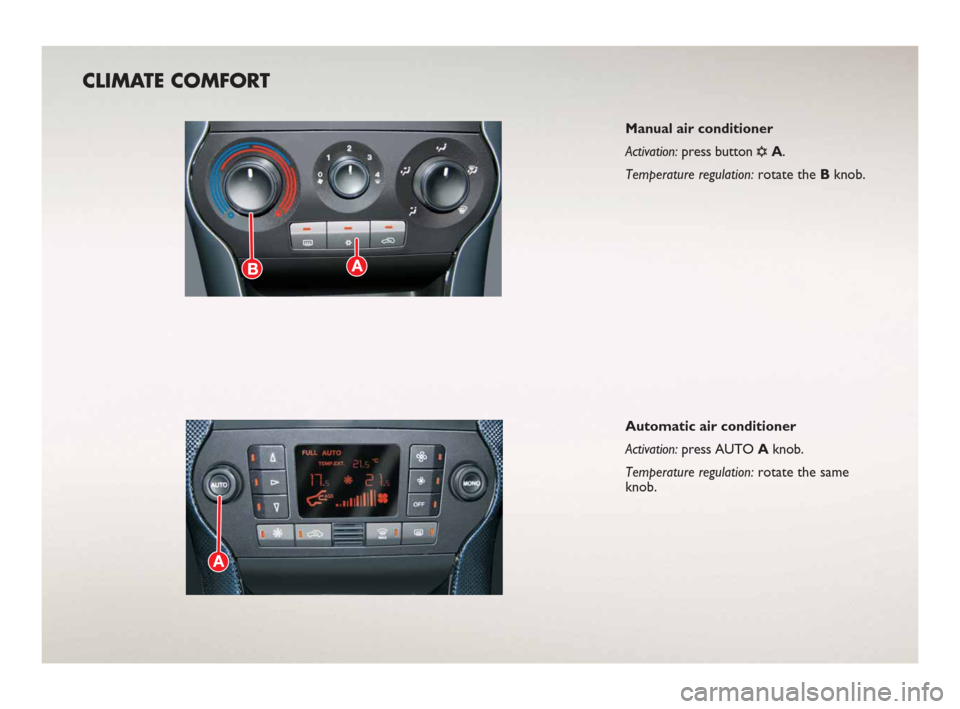

CLIMATE COMFORT
Manual air conditioner
Activation:press button
√A.
Temperature regulation:rotate the Bknob.
Automatic air conditioner
Activation:press AUTO Aknob.
Temperature regulation:rotate the same
knob.
