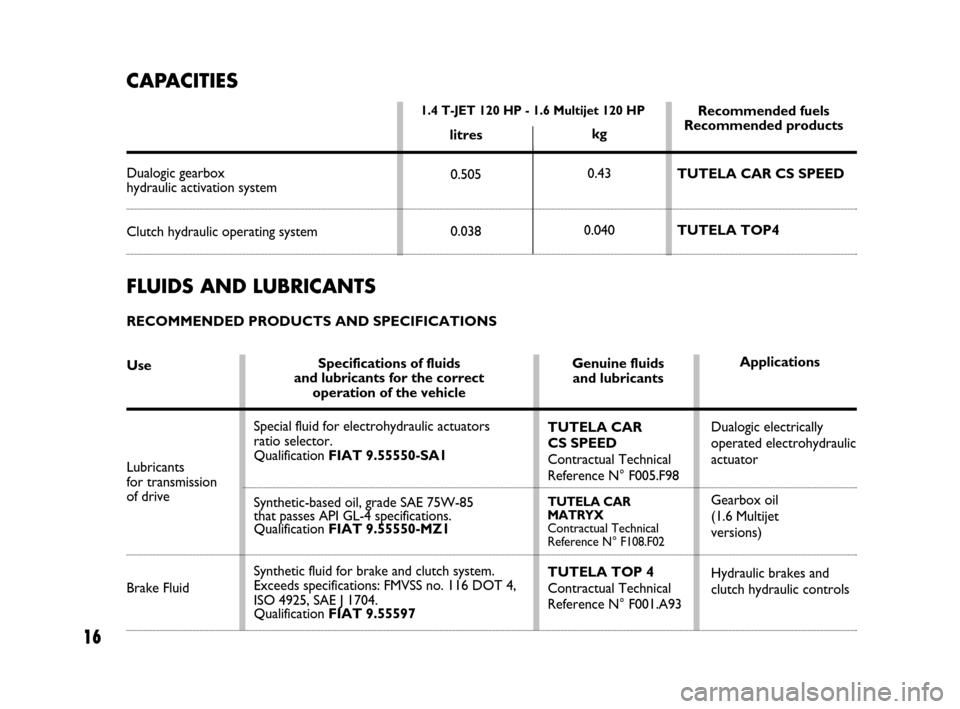

technical specifications FIAT BRAVO 2009 2.G Dualogic Transmission Manual

16
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use
Lubricants
for transmission
of drive
Brake Fluid
Specifications of fluids
and lubricants for the correct
operation of the vehicle
Special fluid for electrohydraulic actuators
ratio selector.
Qualification FIAT 9.55550-SA1
Synthetic-based oil, grade SAE 75W-85
that passes API GL-4 specifications.
Qualification FIAT 9.55550-MZ1
Synthetic fluid for brake and clutch system.
Exceeds specifications: FMVSS no. 116 DOT 4,
ISO 4925, SAE J 1704.
Qualification FIAT 9.55597Genuine fluids
and lubricants
TUTELA CAR
CS SPEED
Contractual Technical
Reference N° F005.F98
TUTELA CAR
MATRYX
Contractual Technical
Reference N° F108.F02
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93Applications
Dualogic electrically
operated electrohydraulic
actuator
Gearbox oil
(1.6 Multijet
versions)
Hydraulic brakes and
clutch hydraulic controls
1.4 T-JET 120 HP - 1.6 Multijet 120 HP
kg
0.43
0.040
CAPACITIES
Dualogic gearboxhydraulic activation system
Clutch hydraulic operating system
litres
0.505
0.038Recommended fuels
Recommended products
TUTELA CAR CS SPEED
TUTELA TOP4
604.39.991 Bravo Dualogic GB 6-04-2009 10:23 Pagina 16
