FIAT BRAVO 2009 2.G Owners Manual

180
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

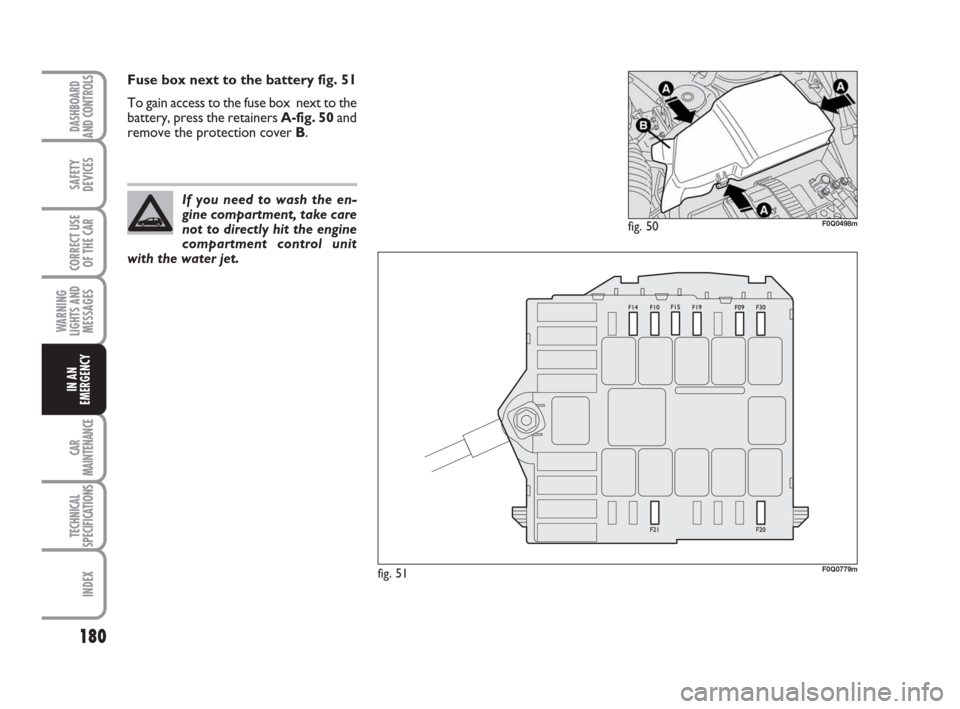

Fuse box next to the battery fig. 51
To gain access to the fuse box next to the
battery, press the retainers A-fig. 50and
remove the protection cover B.
fig. 51F0Q0779m
fig. 50F0Q0498m
If you need to wash the en-
gine compartment, take care
not to directly hit the engine
compartment control unit
with the water jet.
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 180

181
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

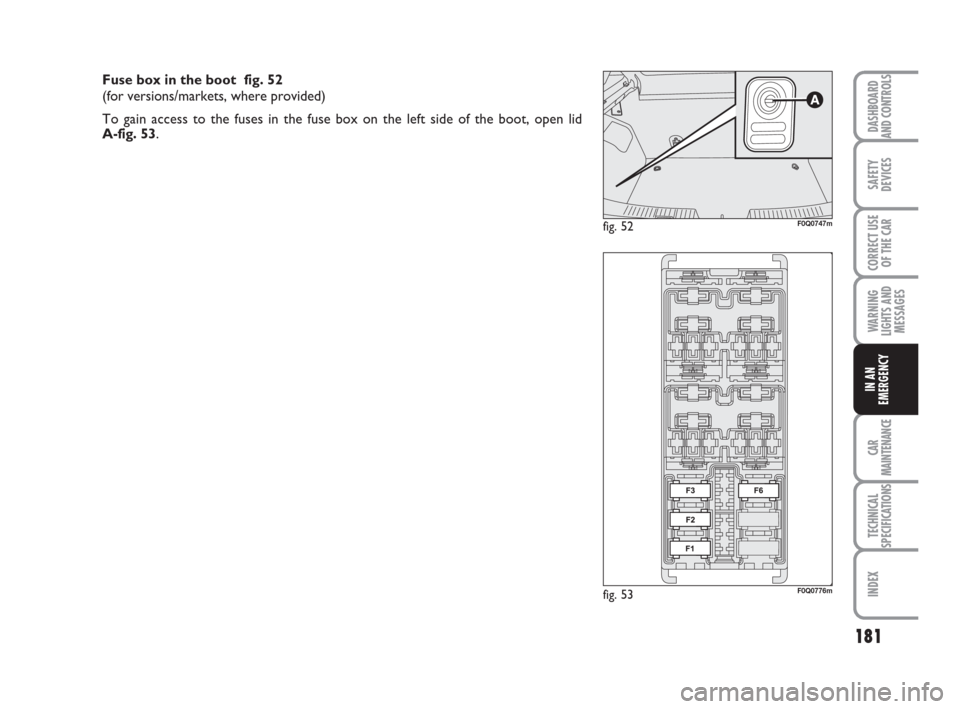

Fuse box in the boot fig. 52
(for versions/markets, where provided)
To gain access to the fuses in the fuse box on the left side of the boot, open lid
A-fig. 53.
fig. 52F0Q0747m
fig. 53F0Q0776m
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 181

182
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
FUSE SUMMARY TABLE
LIGHTS FUSE AMPERE FIGURE
Right dipped beam (quartz-iodine headlights) F12 7.5 49
Right dipped beam (Bi-Xenon headlights) F12 15 49
Left dipped beam (quartz-iodine headlights) F13 7.5 49
Left dipped beam (Bi-Xenon headlights) F13 15 49
Reversing light F35 7.5 49
Third stop light F37 7.5 49
Rear fog light (driver’s side) F53 7.5 49
Front fog light/Cornering light, RH F09 7.5 51
Right main beam headlight F14 7.5 51
Left main beam headlight F15 10 51
Front fog light/Cornering light, LH F30 7.5 51
155-190 BRAVO GB.qxd 11-11-2009 10:56 Pagina 182

183
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
COMPONENTS FUSE AMPERE FIGURE
Single-tone horn F10 10 51
Headlight alignment correction system
(versions with halogen headlights) F13 7.5 49
Conditioner compressor F19 7.5 51
Headlight washer motor pump F20 20 51
Fuel motor pump on tank F21 15 51
Remote switch coils on fuse box in engine compartment (CVM)/
Body Computer control unit (NBC) F31 5 49
Hi-Fi system subwoofer F32 15 49
Rear left power window F33 20 49
Rear right power window F34 20 49
Brake pedal control (normally closed contact NC)/
water in diesel fuel sensor/flow meter F35 5 49
155-190 BRAVO GB.qxd 11-11-2009 10:56 Pagina 183

184
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
COMPONENTS FUSE AMPERE FIGURE
Door opening system control unit (CGP)
(door opening/closing, safe lock, tailgate release) F36 20 49
Brake pedal control (normally closed contact NA)/
Instrument panel (NQS)/gas-discharge lamp control units
on front headlights F37 7.5 49
Sound system/Sound system presetting/Radionavigator/Blue&Me System/
Alarm siren (CSA)/Alarm system on ceiling light/Internal cooling unit
system/Tyre pressure monitoring control unit (CPP)/
Diagnostic socket connector/Rear ceiling lights F39 10 49
Heated rear window F40 30 49
Electric door mirror defrosters/Defrosters on front nozzles F41 7.5 49
Windscreen wiper/Windscreen/rear window washer bidirectional
motor pump system on steering column stalk F43 30 49
Current outlets/Cigar lighter F44 15 49
155-190 BRAVO GB.qxd 11-11-2009 10:56 Pagina 184

185
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
COMPONENTS FUSE AMPERE FIGURE
Power sunroof motor F46 20 49
Front power window (driver side) F47 20 49
Front power window (passenger side) F48 20 49
Emergency control panel (illumination)/Central right and left branch
control panel (illumination, ASR switch)/
Controls on steering wheel (illumination)/Control panel on front
ceiling light (illumination)/Volumetric protection alarm system control
unit (deactivation)/Power sunroof (control unit,
control illumination)/rain sensor/daylight sensor on
driving mirror/Front seat warming activation controls F49 5 49
Air bag control unit (NAB) F50 7.5 49
Internal cooling unit system/Sound system presetting/
Cruise Control lever/Blu&Me system control unit/Parking sensor
control unit (NSP)/Air quality sensor (AQS)/Automatic
air-conditioner/Electric door mirrors (moving, folding)/
Tyre pressure monitoring control unit (CPP) F51 5 49
Rear window wiper F52 15 49
155-190 BRAVO GB.qxd 11-11-2009 10:56 Pagina 185

186
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
COMPONENTS FUSE AMPERE FIGURE
Instrument panel (NQS) F53 7.5 49
Right front seat adjustment F1 30 53
Left front seat adjustment F2 30 53
Left front seat heating F3 10 53
Right front seat heating F6 10 53
155-190 BRAVO GB.qxd 11-11-2009 10:56 Pagina 186

187
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
IF THE BATTERY IS FLAT
IMPORTANT The battery charging pro-
cedure is described only for information
purposes. This operation should be car-
ried out by Fiat Dealership.
Charging should be slow at a low amp rat-
ing for 24 hours. Charging for a longer
time may damage the battery.Charge the battery as follows:❒ disconnect battery negative terminal;
❒ connect the charger cables to the bat-
tery terminals, observing the poles;
❒ turn on the charger;
❒ when you have finished, turn the charg-
er off before disconnecting the battery;
❒ reconnect battery negative terminal.
IMPORTANT Where relevant, switch the
electronic car alarm off with remote con-
trol (see “Alarm” in section “Dashboard
and controls”).
The liquid contained in the
battery is poisonous and cor-
rosive. Avoid contact with the skin or
eyes. The battery should be charged
in a well ventilated place, away from
naked flames or possible sources of
sparks: danger of explosion and fire.
WARNING
Do not attempt to charge a
frozen battery: it must first-
ly be thawed, otherwise it may burst.
If freezing has occurred, the battery
should be checked by skilled person-
nel to make sure that the internal el-
ements are not damaged and that the
body is not cracked, with the risk of
leaking poisonous and corrosive acid.
WARNING
155-190 BRAVO GB.qxd 11-11-2009 10:56 Pagina 187

TOWING THE CAR
The tow ring provided with the car is
housed in the tool box under the boot
mat.
TOW RING HOOKING
Proceed as follows:
❒release the cap operating the tab A-fig.
55-56;
❒ take the tow hook Bfrom its support;
❒ tighten the ring on the rear or front
threaded pin.
fig. 54F0Q0729m
188
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

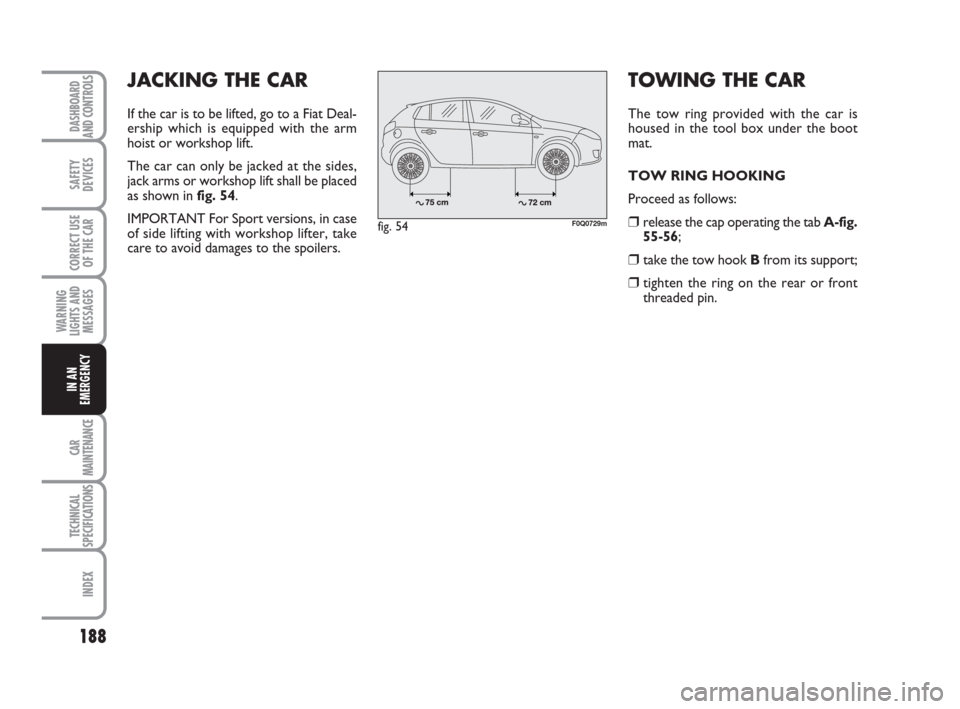

JACKING THE CAR
If the car is to be lifted, go to a Fiat Deal-
ership which is equipped with the arm
hoist or workshop lift.
The car can only be jacked at the sides,
jack arms or workshop lift shall be placed
as shown in fig. 54.
IMPORTANT For Sport versions, in case
of side lifting with workshop lifter, take
care to avoid damages to the spoilers.
155-190 BRAVO GB.qxd 11-11-2009 10:56 Pagina 188

189
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

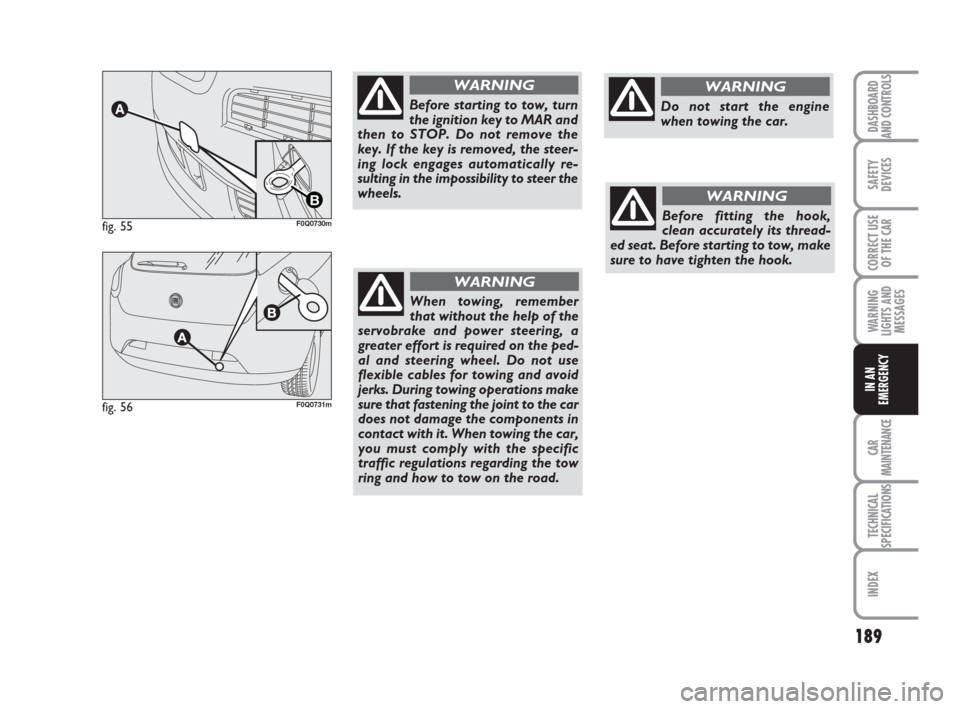

fig. 55
B
F0Q0730m
fig. 56F0Q0731m
Before starting to tow, turn
the ignition key to MAR and
then to STOP. Do not remove the
key. If the key is removed, the steer-
ing lock engages automatically re-
sulting in the impossibility to steer the
wheels.
WARNING
When towing, remember
that without the help of the
servobrake and power steering, a
greater effort is required on the ped-
al and steering wheel. Do not use
flexible cables for towing and avoid
jerks. During towing operations make
sure that fastening the joint to the car
does not damage the components in
contact with it. When towing the car,
you must comply with the specific
traffic regulations regarding the tow
ring and how to tow on the road.
WARNING
Do not start the engine
when towing the car.
WARNING
Before fitting the hook,
clean accurately its thread-
ed seat. Before starting to tow, make
sure to have tighten the hook.
WARNING
155-190 BRAVO GB.qxd 11-11-2009 10:56 Pagina 189
