FIAT BRAVO 2009 2.G Owners Manual

170
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

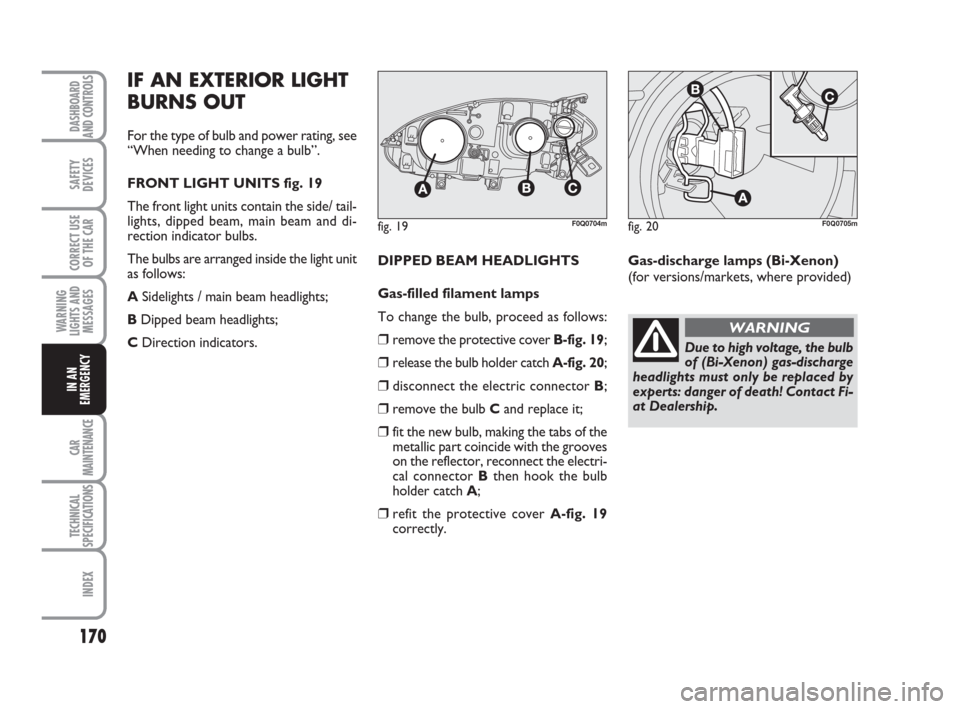

IF AN EXTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT LIGHT UNITS fig. 19
The front light units contain the side/ tail-
lights, dipped beam, main beam and di-
rection indicator bulbs.
The bulbs are arranged inside the light unit
as follows:
ASidelights / main beam headlights;
BDipped beam headlights;
CDirection indicators.DIPPED BEAM HEADLIGHTS
Gas-filled filament lamps
To change the bulb, proceed as follows:
❒remove the protective cover B-fig. 19;
❒release the bulb holder catch A-fig. 20;
❒disconnect the electric connector B;
❒remove the bulb Cand replace it;
❒fit the new bulb, making the tabs of the
metallic part coincide with the grooves
on the reflector, reconnect the electri-
cal connector Bthen hook the bulb
holder catch A;
❒refit the protective cover A-fig. 19
correctly.
fig. 19F0Q0704mfig. 20F0Q0705m
Gas-discharge lamps (Bi-Xenon)
(for versions/markets, where provided)
Due to high voltage, the bulb
of (Bi-Xenon) gas-discharge
headlights must only be replaced by
experts: danger of death! Contact Fi-
at Dealership.
WARNING
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 170

171
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

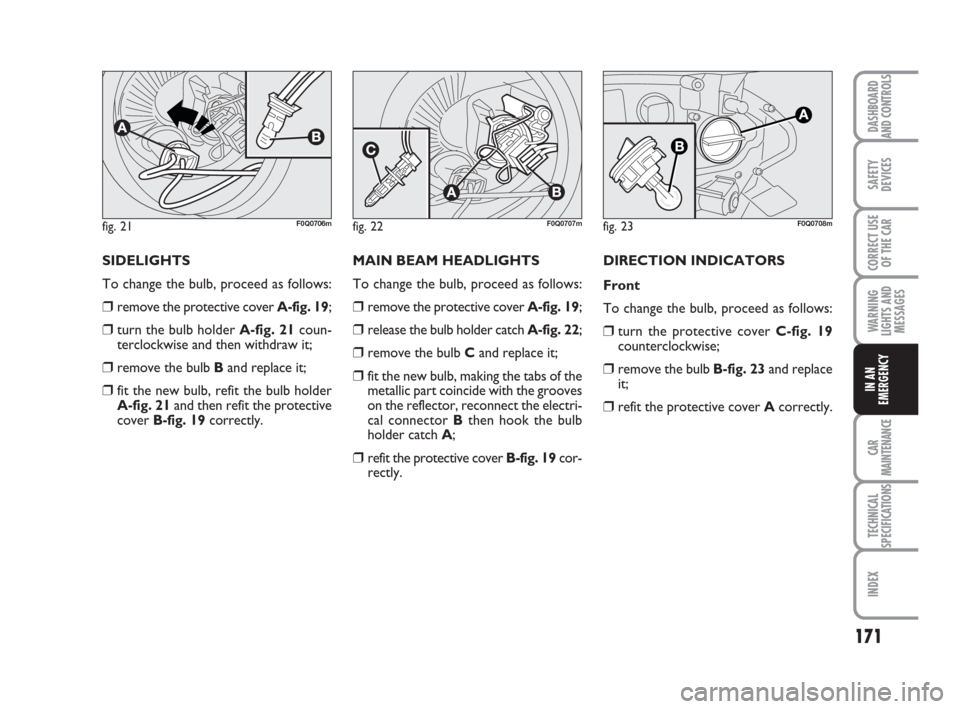

SIDELIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover A-fig. 19;
❒turn the bulb holder A-fig. 21coun-
terclockwise and then withdraw it;
❒remove the bulb Band replace it;
❒fit the new bulb, refit the bulb holder
A-fig. 21 and then refit the protective
coverB-fig. 19correctly.MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover A-fig. 19;
❒release the bulb holder catch A-fig. 22;
❒remove the bulb Cand replace it;
❒fit the new bulb, making the tabs of the
metallic part coincide with the grooves
on the reflector, reconnect the electri-
cal connector Bthen hook the bulb
holder catch A;
❒refit the protective cover B-fig. 19cor-
rectly.
fig. 21F0Q0706mfig. 22F0Q0707mfig. 23F0Q0708m
DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❒turn the protective cover C-fig. 19
counterclockwise;
❒remove the bulb B-fig. 23and replace
it;
❒refit the protective cover Acorrectly.
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 171

172
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

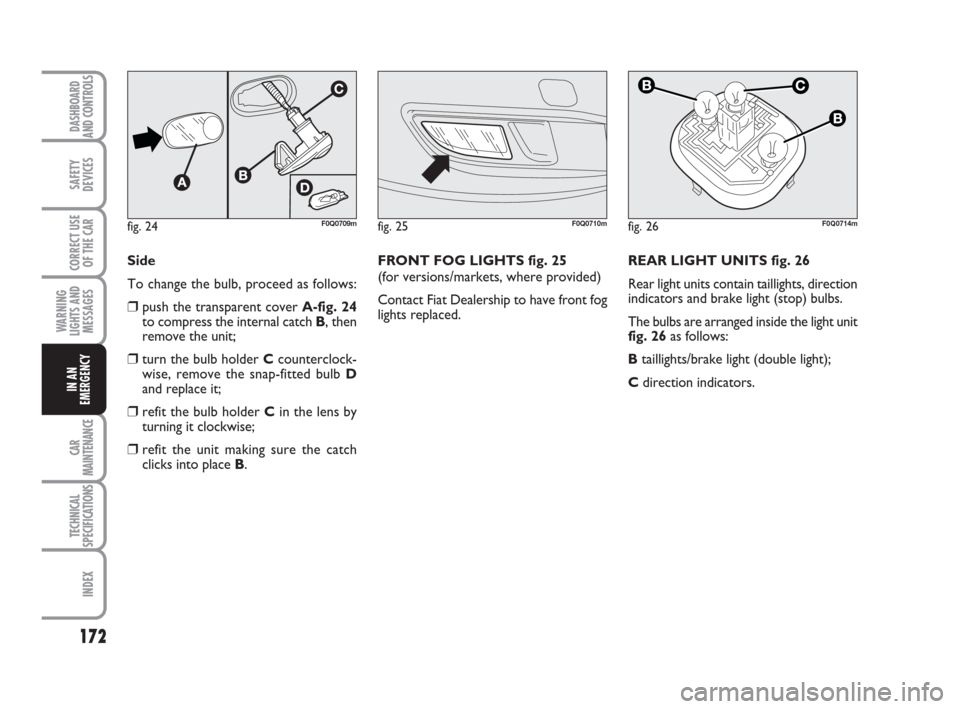

REAR LIGHT UNITS fig. 26
Rear light units contain taillights, direction
indicators and brake light (stop) bulbs.
The bulbs are arranged inside the light unit
fig. 26as follows:
B taillights/brake light (double light);
C direction indicators. Side
To change the bulb, proceed as follows:
❒push the transparent cover A-fig. 24
to compress the internal catch B, then
remove the unit;
❒turn the bulb holder C counterclock-
wise, remove the snap-fitted bulb D
and replace it;
❒refit the bulb holder Cin the lens by
turning it clockwise;
❒refit the unit making sure the catch
clicks into place B.FRONT FOG LIGHTS fig. 25
(for versions/markets, where provided)
Contact Fiat Dealership to have front fog
lights replaced.
fig. 24F0Q0709mfig. 25F0Q0710mfig. 26F0Q0714m
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 172

173
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

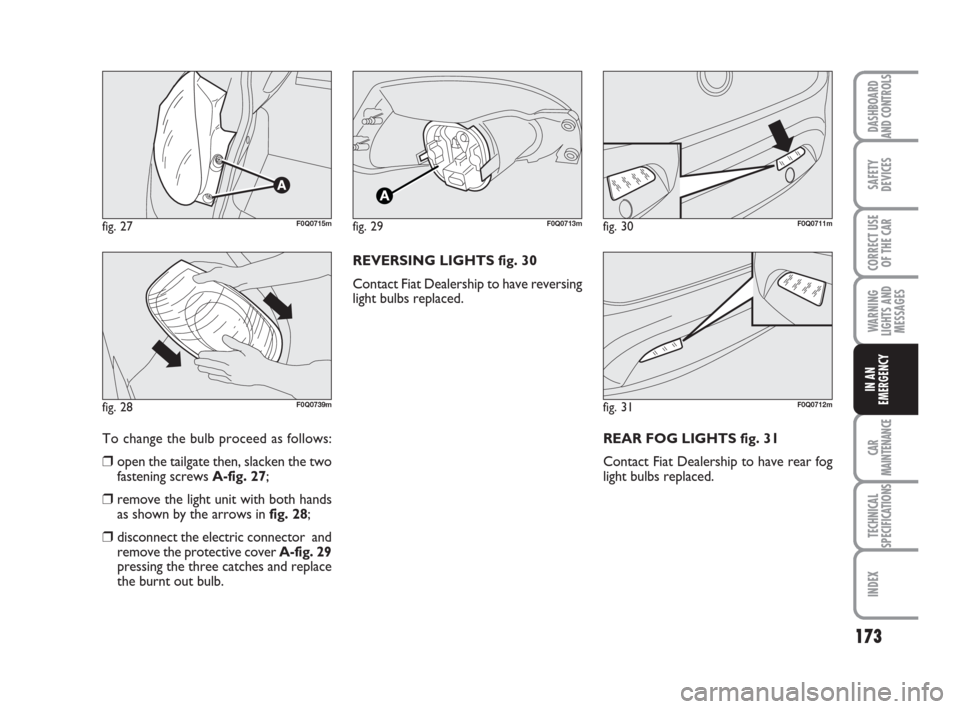

To change the bulb proceed as follows:
❒open the tailgate then, slacken the two
fastening screws A-fig. 27;
❒remove the light unit with both hands
as shown by the arrows in fig. 28;
❒disconnect the electric connector and
remove the protective cover A-fig. 29
pressing the three catches and replace
the burnt out bulb.REVERSING LIGHTS fig. 30
Contact Fiat Dealership to have reversing
light bulbs replaced.
REAR FOG LIGHTS fig. 31
Contact Fiat Dealership to have rear fog
light bulbs replaced.
fig. 27F0Q0715mfig. 30F0Q0711m
fig. 31F0Q0712mfig. 28F0Q0739m
fig. 29F0Q0713m
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 173

174
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

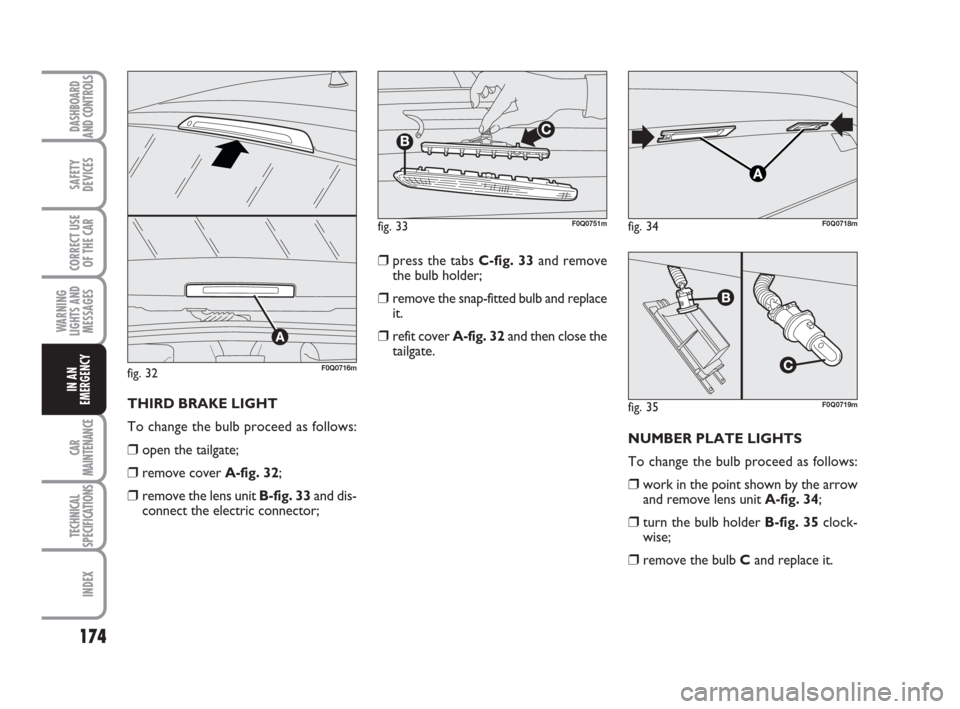

NUMBER PLATE LIGHTS
To change the bulb proceed as follows:
❒work in the point shown by the arrow
and remove lens unit A-fig. 34;
❒turn the bulb holder B-fig. 35clock-
wise;
❒remove the bulb C and replace it. THIRD BRAKE LIGHT
To change the bulb proceed as follows:
❒open the tailgate;
❒remove cover A-fig. 32;
❒remove the lens unit B-fig. 33and dis-
connect the electric connector;
❒press the tabs C-fig. 33and remove
the bulb holder;
❒remove the snap-fitted bulb and replace
it.
❒refit cover A-fig. 32and then close the
tailgate.
fig. 33F0Q0751m
fig. 32F0Q0716m
fig. 34F0Q0718m
fig. 35F0Q0719m
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 174

175
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

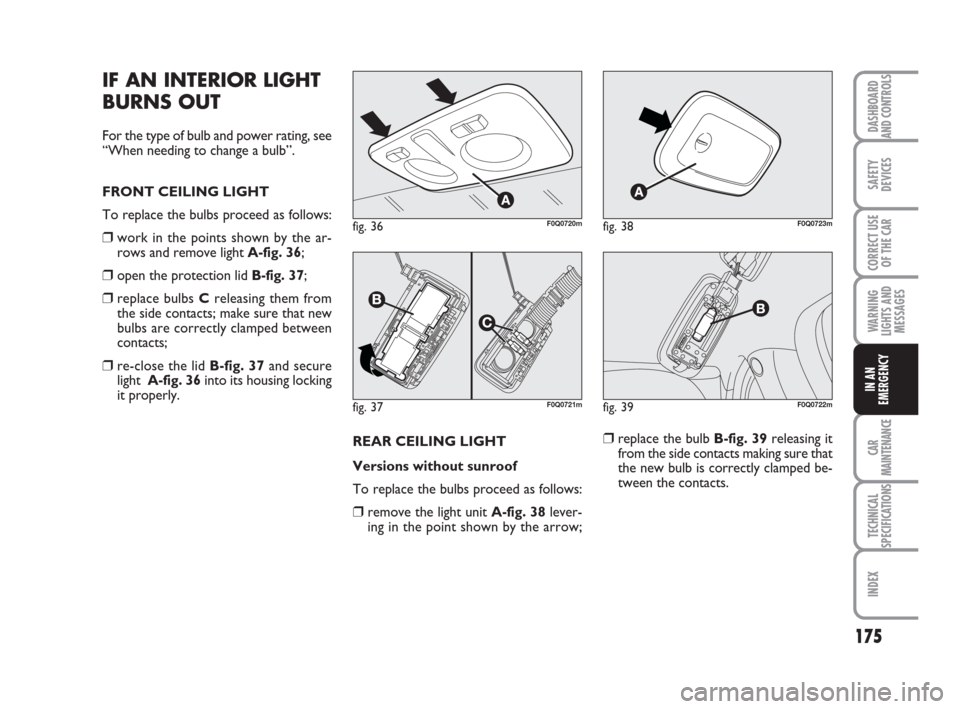

IF AN INTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT CEILING LIGHT
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light A-fig. 36;
❒open the protection lid B-fig. 37;
❒replace bulbs Creleasing them from
the side contacts; make sure that new
bulbs are correctly clamped between
contacts;
❒re-close the lid B-fig. 37and secure
light A-fig. 36into its housing locking
it properly.
fig. 36F0Q0720m
fig. 37F0Q0721m
REAR CEILING LIGHT
Versions without sunroof
To replace the bulbs proceed as follows:
❒remove the light unit A-fig. 38lever-
ing in the point shown by the arrow;
❒replace the bulb B-fig. 39releasing it
from the side contacts making sure that
the new bulb is correctly clamped be-
tween the contacts.
fig. 38F0Q0723m
fig. 39F0Q0722m
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 175

176
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

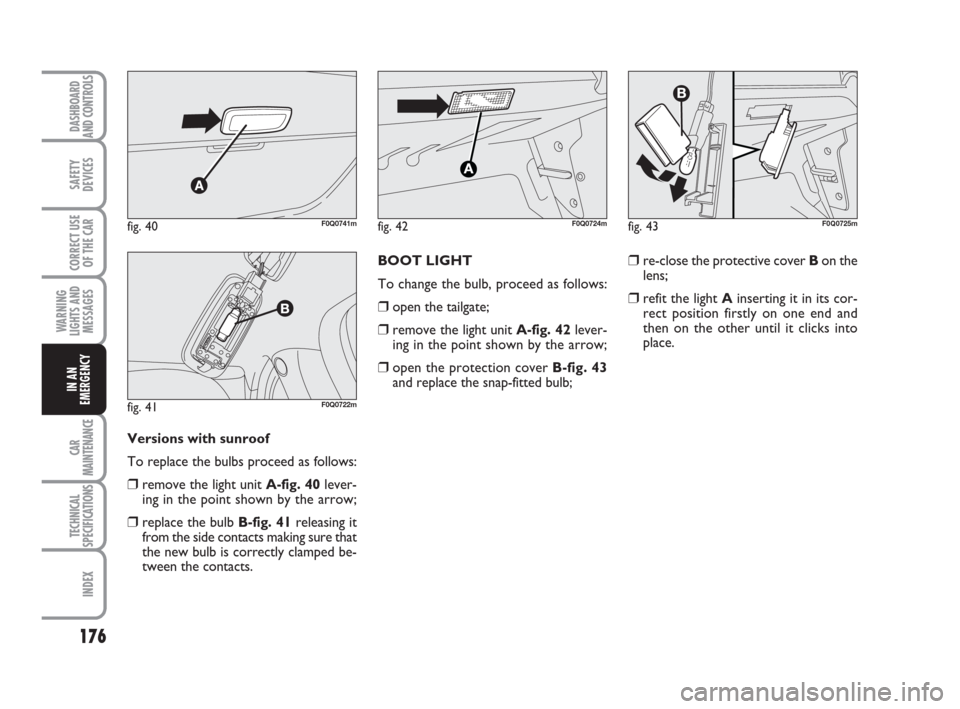

Versions with sunroof
To replace the bulbs proceed as follows:
❒remove the light unit A-fig. 40lever-
ing in the point shown by the arrow;
❒replace the bulb B-fig. 41releasing it
from the side contacts making sure that
the new bulb is correctly clamped be-
tween the contacts.
❒re-close the protective cover Bon the
lens;
❒refit the light Ainserting it in its cor-
rect position firstly on one end and
then on the other until it clicks into
place. BOOT LIGHT
To change the bulb, proceed as follows:❒open the tailgate;
❒remove the light unit A-fig. 42lever-
ing in the point shown by the arrow;
❒open the protection cover B-fig. 43
and replace the snap-fitted bulb;
fig. 40F0Q0741mfig. 42F0Q0724mfig. 43F0Q0725m
fig. 41F0Q0722m
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 176

177
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

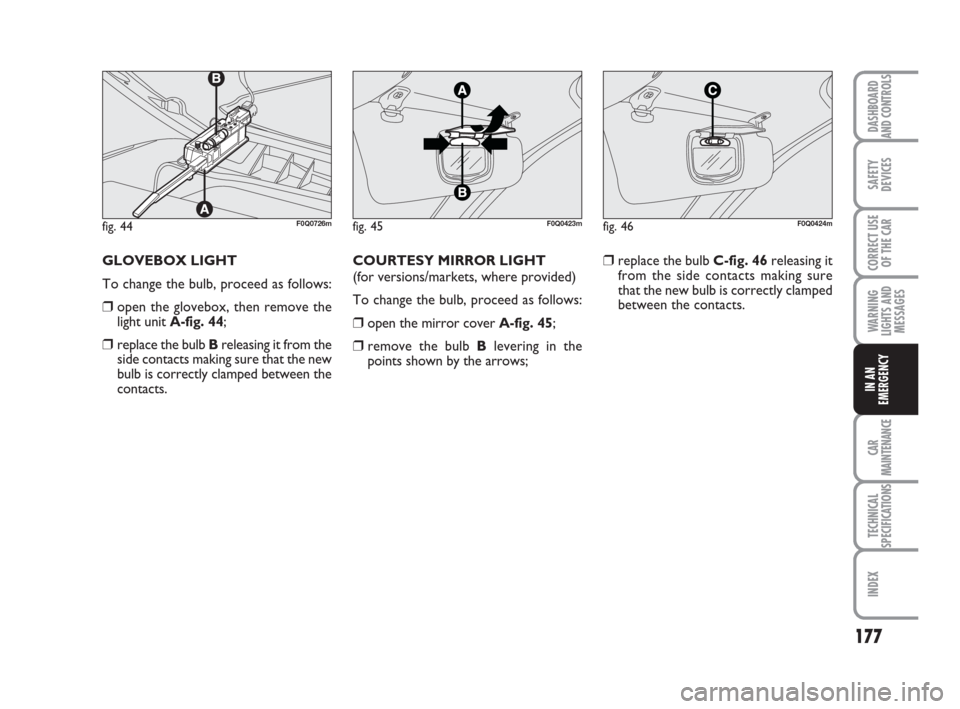

GLOVEBOX LIGHT
To change the bulb, proceed as follows:
❒open the glovebox, then remove the
light unit A-fig. 44;
❒replace the bulb Breleasing it from the
side contacts making sure that the new
bulb is correctly clamped between the
contacts.COURTESY MIRROR LIGHT
(for versions/markets, where provided)
To change the bulb, proceed as follows:
❒open the mirror cover A-fig. 45;
❒remove the bulb Blevering in the
points shown by the arrows;
fig. 44F0Q0726mfig. 45F0Q0423mfig. 46F0Q0424m
❒replace the bulb C-fig. 46releasing it
from the side contacts making sure
that the new bulb is correctly clamped
between the contacts.
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 177

Before replacing a fuse, make
sure the ignition key has been
removed and that all the oth-
er services are switched off
and/or disengaged.
178
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact a Fiat Dealership.
WARNING
If a fuse blows again, contact
a Fiat Dealership.
WARNING

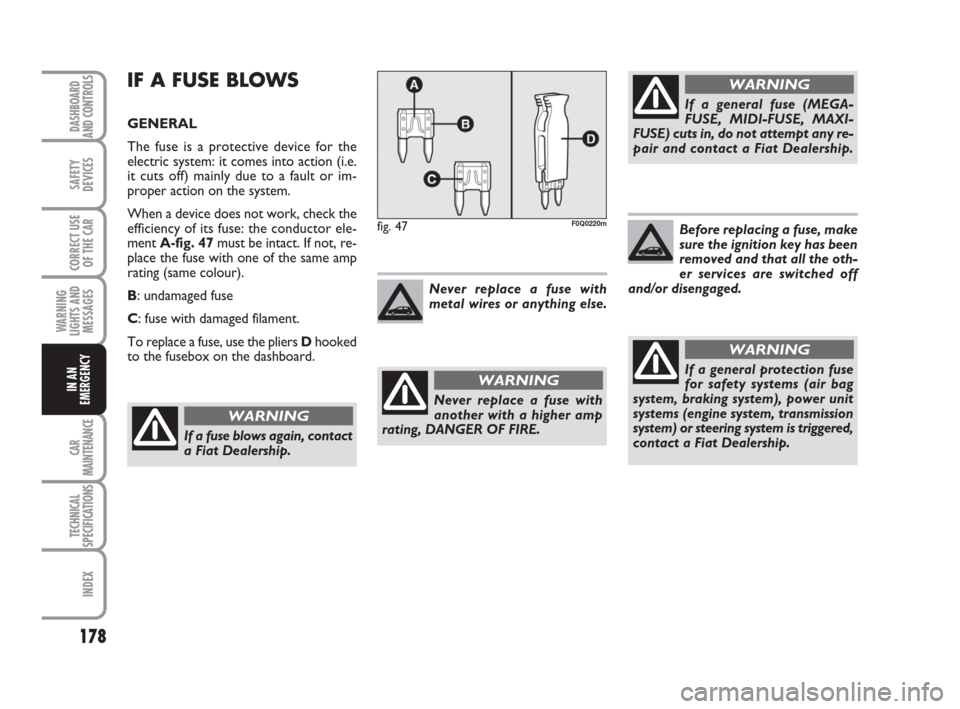

IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse: the conductor ele-
ment A-fig. 47must be intact. If not, re-
place the fuse with one of the same amp
rating (same colour).
B: undamaged fuse
C: fuse with damaged filament.
To replace a fuse, use the pliers Dhooked
to the fusebox on the dashboard.Never replace a fuse with
metal wires or anything else.
fig. 47F0Q0220m
Never replace a fuse with
another with a higher amp
rating, DANGER OF FIRE.
WARNINGIf a general protection fuse
for safety systems (air bag
system, braking system), power unit
systems (engine system, transmission
system) or steering system is triggered,
contact a Fiat Dealership.
WARNING
155-190 BRAVO GB.qxd 11-11-2009 10:55 Pagina 178

179
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
FUSE LOCATION
The vehicle fuses are grouped in three
control units:
❒instrument dashboard fuse control
unit;
❒fuse control unit in engine compart-
ment;
❒fuse control unit in luggage compart-
ment;
fig. 49F0Q0778m
fig. 48F0Q0727m
Fuse box on the dashboard fig. 49
To gain access to the fuses in the fuse box
on the dashboard, loosen the three fas-
tening screw A-fig. 48and remove the
cover B.
