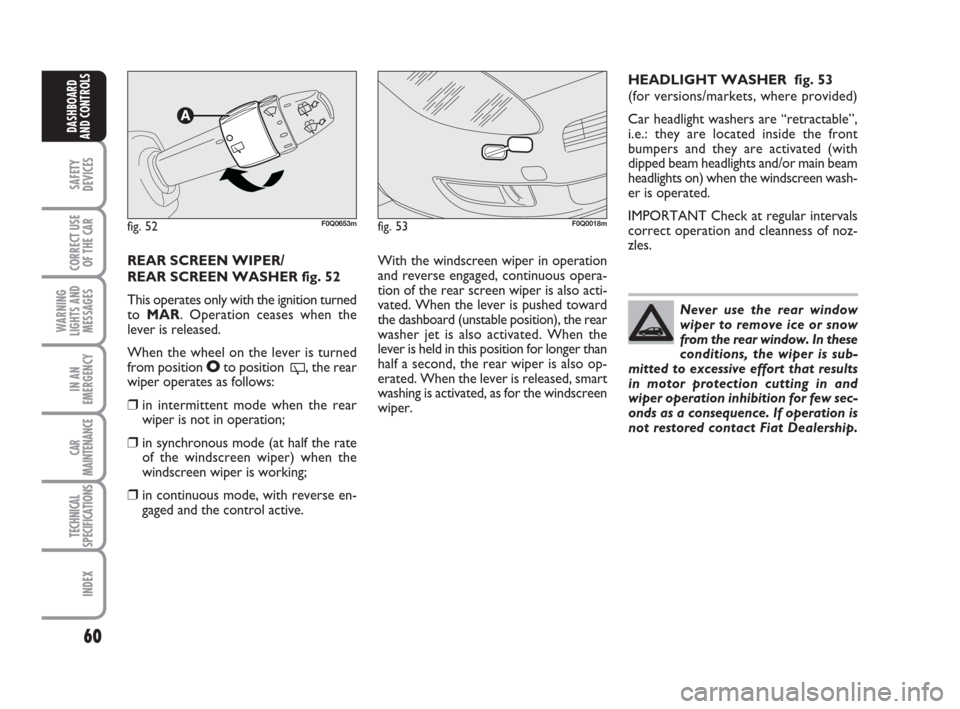

REAR SCREEN WASHER fig. 52
This operates only with the ignition turned
to MAR. Operation ceases when the
lever is released.
When the wheel on the lever is turned
from position
Oto position ', the rear
wiper operates as follows:
❒in intermittent mode when the rear
wiper is not in operation;
❒in synchronous mode (at half the rate
of the windscreen wiper) when the
windscreen wiper is working;
❒in continuous mode, with reverse en-
gaged and the control active.HEADLIGHT WASHER fig. 53
(for versions/markets, where provided)
Car headlight washers are “retractable”,
i.e.: they are located inside the front
bumpers and they are activated (with
dipped beam headlights and/or main beam
headlights on) when the windscreen wash-
er is operated.
IMPORTANT Check at regular intervals
correct operation and cleanness of noz-
zles.
Never use the rear window
wiper to remove ice or snow
from the rear window. In these
conditions, the wiper is sub-
mitted to excessive effort that results
in motor protection cutting in and
wiper operation inhibition for few sec-
onds as a consequence. If operation is
not restored contact Fiat Dealership.
fig. 52F0Q0653m
With the windscreen wiper in operation
and reverse engaged, continuous opera-
tion of the rear screen wiper is also acti-
vated. When the lever is pushed toward
the dashboard (unstable position), the rear
washer jet is also activated. When the
lever is held in this position for longer than
half a second, the rear wiper is also op-
erated. When the lever is released, smart
washing is activated, as for the windscreen
wiper.
fig. 53F0Q0018m
057-082 BRAVO GB.qxd 11-11-2009 10:53 Pagina 60

61
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DEVICE ENGAGEMENT
Turn knurled ring A-fig. 54to ON.
The device may only be engaged in 4
thor
higher speeds. Travelling downhill with the
device engaged, the car speed may in-
crease more than the memorised one.
When the device is activated, the warning
light
Üon the instrument panel turns on
(together with the message on the display)
(see section “Warning lights and mes-
sages”).TO MEMORISE SPEED
Proceed as follows:
❒turn the knurled ring A-fig. 54to ON
and press the accelerator pedal to the
required speed;
❒turn the knurled ring Bto (+) for at
least three seconds, then release it. The
car speed is memorised and it is there-
fore possible to release the accelerator
pedal.
In the case of need (when overtaking for
instance) acceleration is possible simply
pressing the accelerator pedal: releasing
the accelerator pedal, the car will return
to the speed memorised previously.
fig. 54F0Q0648m

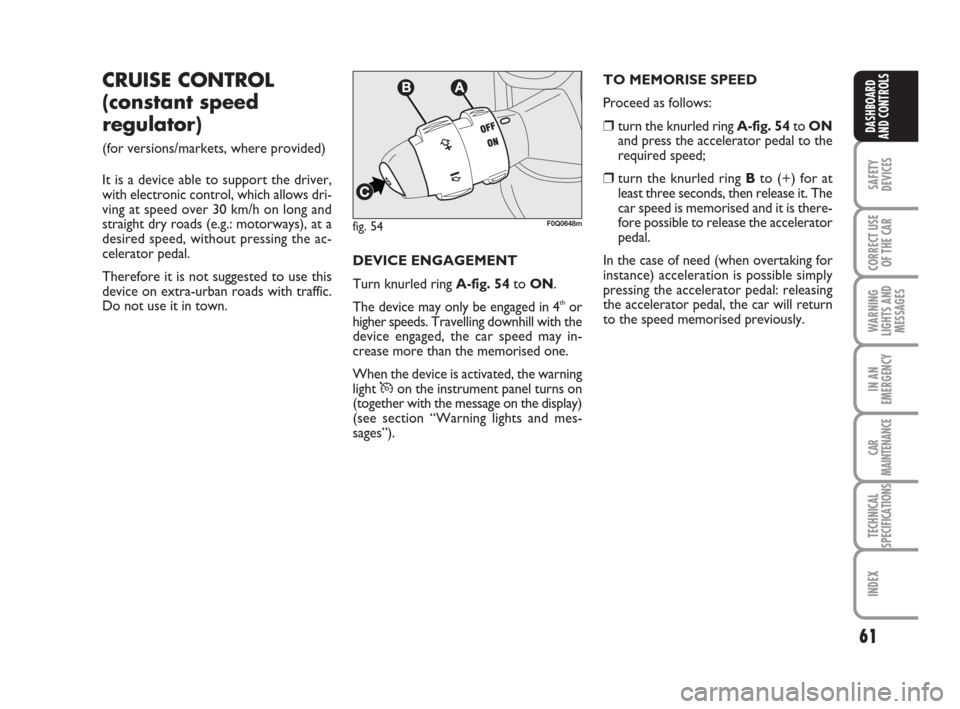

CRUISE CONTROL
(constant speed
regulator)
(for versions/markets, where provided)
It is a device able to support the driver,
with electronic control, which allows dri-
ving at speed over 30 km/h on long and
straight dry roads (e.g.: motorways), at a
desired speed, without pressing the ac-
celerator pedal.
Therefore it is not suggested to use this
device on extra-urban roads with traffic.
Do not use it in town.
057-082 BRAVO GB.qxd 11-11-2009 10:53 Pagina 61

62
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

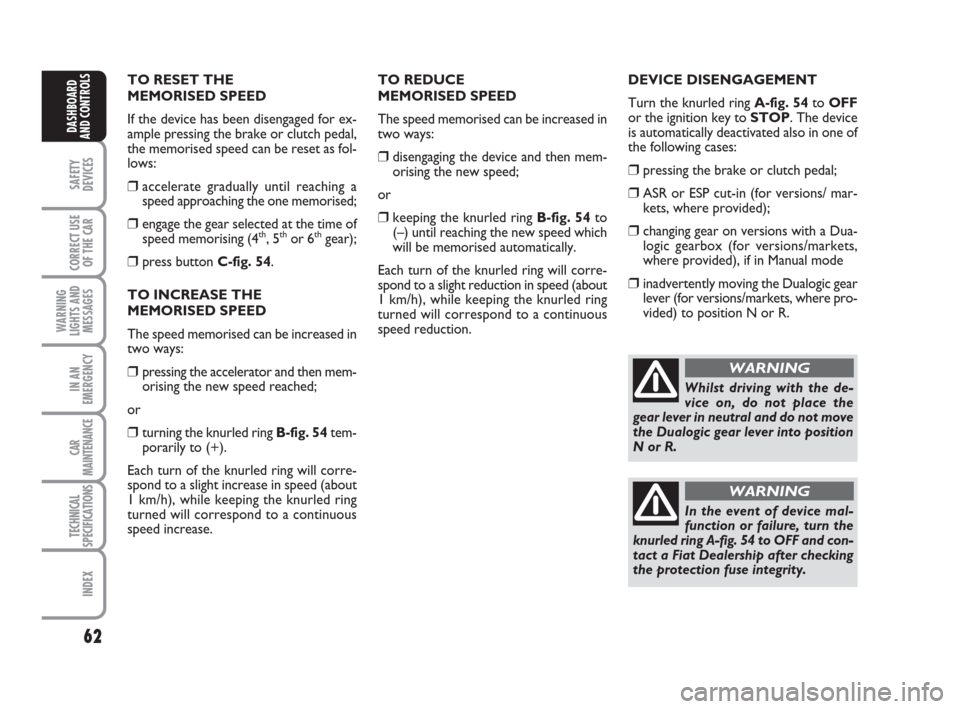

Whilst driving with the de-
vice on, do not place the
gear lever in neutral and do not move
the Dualogic gear lever into position
N or R.
WARNING
In the event of device mal-
function or failure, turn the
knurled ring A-fig. 54 to OFF and con-
tact a Fiat Dealership after checking
the protection fuse integrity.
WARNING
TO RESET THE
MEMORISED SPEED
If the device has been disengaged for ex-
ample pressing the brake or clutch pedal,
the memorised speed can be reset as fol-
lows:
❒accelerate gradually until reaching a
speed approaching the one memorised;
❒engage the gear selected at the time of
speed memorising (4th, 5thor 6thgear);
❒press button C-fig. 54.
TO INCREASE THE
MEMORISED SPEED
The speed memorised can be increased in
two ways:
❒pressing the accelerator and then mem-
orising the new speed reached;
or
❒turning the knurled ring B-fig. 54tem-
porarily to (+).
Each turn of the knurled ring will corre-
spond to a slight increase in speed (about
1 km/h), while keeping the knurled ring
turned will correspond to a continuous
speed increase. TO REDUCE
MEMORISED SPEED
The speed memorised can be increased in
two ways:
❒disengaging the device and then mem-
orising the new speed;
or
❒keeping the knurled ring B-fig. 54to
(–) until reaching the new speed which
will be memorised automatically.
Each turn of the knurled ring will corre-
spond to a slight reduction in speed (about
1 km/h), while keeping the knurled ring
turned will correspond to a continuous
speed reduction.DEVICE DISENGAGEMENT
Turn the knurled ring A-fig. 54to OFF
or the ignition key to STOP. The device
is automatically deactivated also in one of
the following cases:
❒pressing the brake or clutch pedal;
❒ASR or ESP cut-in (for versions/ mar-
kets, where provided);
❒changing gear on versions with a Dua-
logic gearbox (for versions/markets,
where provided), if in Manual mode
❒inadvertently moving the Dualogic gear
lever (for versions/markets, where pro-
vided) to position N or R.
057-082 BRAVO GB.qxd 11-11-2009 10:53 Pagina 62

63
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

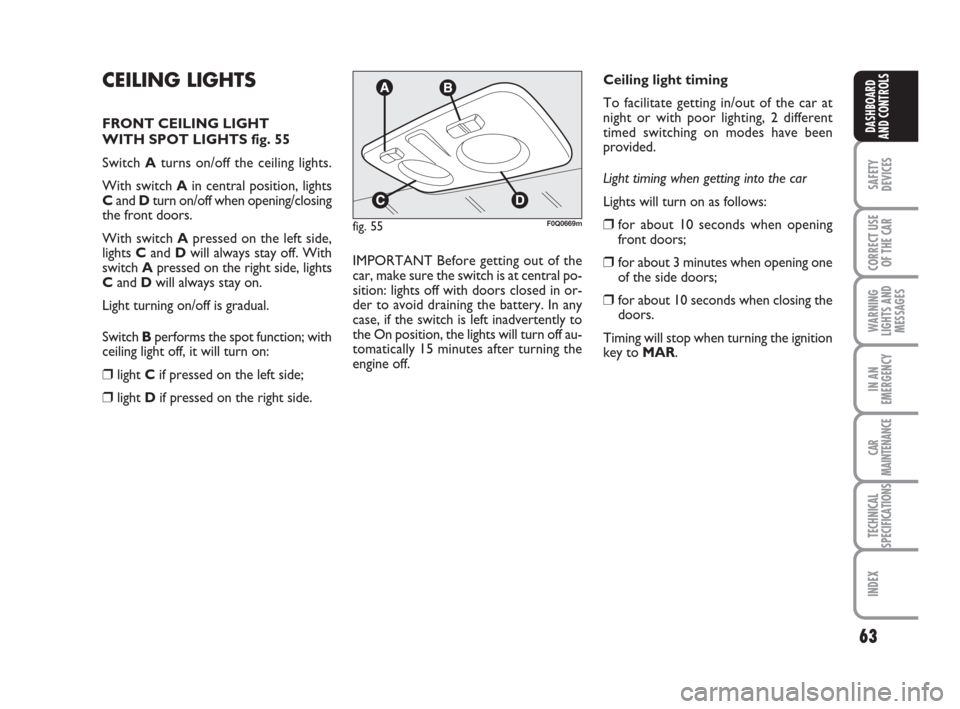

CEILING LIGHTS
FRONT CEILING LIGHT
WITH SPOT LIGHTS fig. 55
Switch Aturns on/off the ceiling lights.
With switch Ain central position, lights
Cand Dturn on/off when opening/closing
the front doors.
With switch Apressed on the left side,
lights Cand Dwill always stay off. With
switch Apressed on the right side, lights
Cand Dwill always stay on.
Light turning on/off is gradual.
Switch Bperforms the spot function; with
ceiling light off, it will turn on:
❒light Cif pressed on the left side;
❒light Dif pressed on the right side.IMPORTANT Before getting out of the
car, make sure the switch is at central po-
sition: lights off with doors closed in or-
der to avoid draining the battery. In any
case, if the switch is left inadvertently to
the On position, the lights will turn off au-
tomatically 15 minutes after turning the
engine off.Ceiling light timing
To facilitate getting in/out of the car at
night or with poor lighting, 2 different
timed switching on modes have been
provided.
Light timing when getting into the car
Lights will turn on as follows:
❒for about 10 seconds when opening
front doors;
❒for about 3 minutes when opening one
of the side doors;
❒for about 10 seconds when closing the
doors.
Timing will stop when turning the ignition
key to MAR.
fig. 55F0Q0669m
057-082 BRAVO GB.qxd 11-11-2009 10:53 Pagina 63

64
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 56F0Q0670m

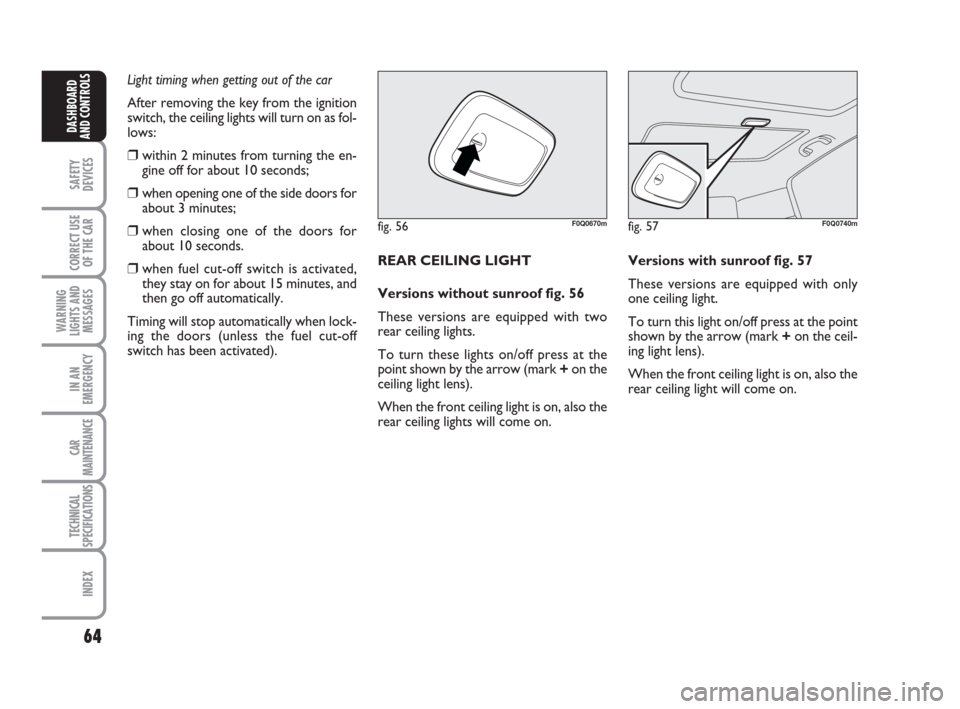

Light timing when getting out of the car
After removing the key from the ignition
switch, the ceiling lights will turn on as fol-
lows:
❒within 2 minutes from turning the en-
gine off for about 10 seconds;
❒when opening one of the side doors for
about 3 minutes;
❒when closing one of the doors for
about 10 seconds.
❒when fuel cut-off switch is activated,
they stay on for about 15 minutes, and
then go off automatically.
Timing will stop automatically when lock-
ing the doors (unless the fuel cut-off
switch has been activated).
fig. 57F0Q0740m
REAR CEILING LIGHT
Versions without sunroof fig. 56
These versions are equipped with two
rear ceiling lights.
To turn these lights on/off press at the
point shown by the arrow (mark +on the
ceiling light lens).
When the front ceiling light is on, also the
rear ceiling lights will come on.Versions with sunroof fig. 57
These versions are equipped with only
one ceiling light.
To turn this light on/off press at the point
shown by the arrow (mark +on the ceil-
ing light lens).
When the front ceiling light is on, also the
rear ceiling light will come on.
057-082 BRAVO GB.qxd 11-11-2009 10:53 Pagina 64

65
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

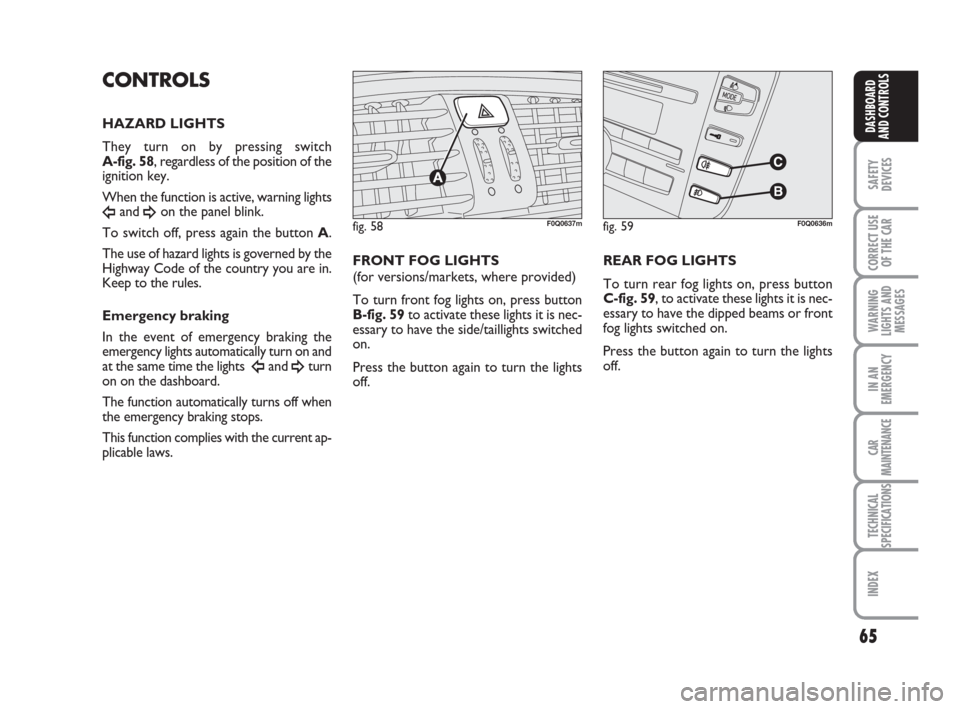

FRONT FOG LIGHTS
(for versions/markets, where provided)
To turn front fog lights on, press button
B-fig. 59to activate these lights it is nec-
essary to have the side/taillights switched
on.
Press the button again to turn the lights
off.
fig. 58F0Q0637mfig. 59F0Q0636m
CONTROLS
HAZARD LIGHTS
They turn on by pressing switch
A-fig. 58, regardless of the position of the
ignition key.
When the function is active, warning lights
Îand ¥on the panel blink.
To switch off, press again the button A.
The use of hazard lights is governed by the
Highway Code of the country you are in.
Keep to the rules.
Emergency braking
In the event of emergency braking the
emergency lights automatically turn on and
at the same time the lights
Îand ¥turn
on on the dashboard.
The function automatically turns off when
the emergency braking stops.
This function complies with the current ap-
plicable laws.REAR FOG LIGHTS
To turn rear fog lights on, press button
C-fig. 59, to activate these lights it is nec-
essary to have the dipped beams or front
fog lights switched on.
Press the button again to turn the lights
off.
057-082 BRAVO GB.qxd 11-11-2009 10:53 Pagina 65

66
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

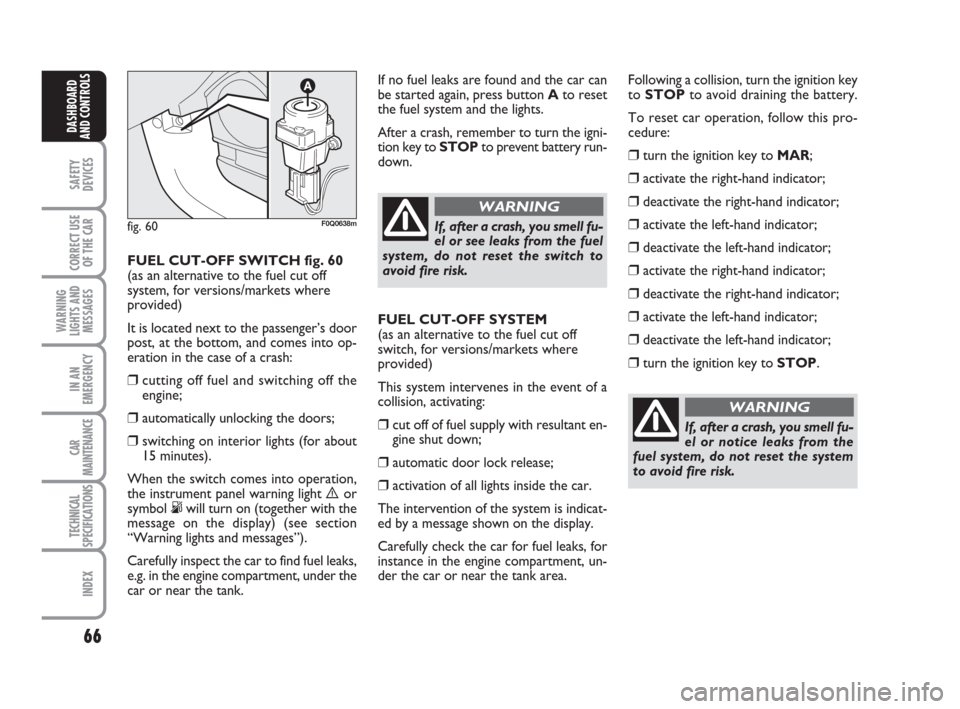

FUEL CUT-OFF SWITCH fig. 60
(as an alternative to the fuel cut off
system, for versions/markets where
provided)
It is located next to the passenger’s door
post, at the bottom, and comes into op-
eration in the case of a crash:
❒cutting off fuel and switching off the
engine;
❒automatically unlocking the doors;
❒switching on interior lights (for about
15 minutes).
When the switch comes into operation,
the instrument panel warning light èor
symbol °will turn on (together with the
message on the display) (see section
“Warning lights and messages”).
Carefully inspect the car to find fuel leaks,
e.g. in the engine compartment, under the
car or near the tank.
fig. 60F0Q0638mIf, after a crash, you smell fu-
el or see leaks from the fuel
system, do not reset the switch to
avoid fire risk.
WARNING
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reset the system
to avoid fire risk.
WARNING
If no fuel leaks are found and the car can
be started again, press button Ato reset
the fuel system and the lights.
After a crash, remember to turn the igni-
tion key to STOPto prevent battery run-
down.
FUEL CUT-OFF SYSTEM
(as an alternative to the fuel cut off
switch, for versions/markets where
provided)
This system intervenes in the event of a
collision, activating:
❒cut off of fuel supply with resultant en-
gine shut down;
❒automatic door lock release;
❒activation of all lights inside the car.
The intervention of the system is indicat-
ed by a message shown on the display.
Carefully check the car for fuel leaks, for
instance in the engine compartment, un-
der the car or near the tank area.Following a collision, turn the ignition key
to STOPto avoid draining the battery.
To reset car operation, follow this pro-
cedure:
❒turn the ignition key to MAR;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒turn the ignition key to STOP.
057-082 BRAVO GB.qxd 17-11-2009 15:46 Pagina 66

Pay attention not to spill the
drinks: the food box bottom
however is provided with a hole
to drain spilled liquids, if any.
67
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
INTERIOR FITTINGS
FRONT ARMREST WITH
ODDMENT COMPARTMENT
(for versions/markets, where provided)
It is located between the front seats. An
oddment compartment and a conditioned
food box (for versions/markets, where
provided) are fitted inside the armrest
(see next paragraphs).

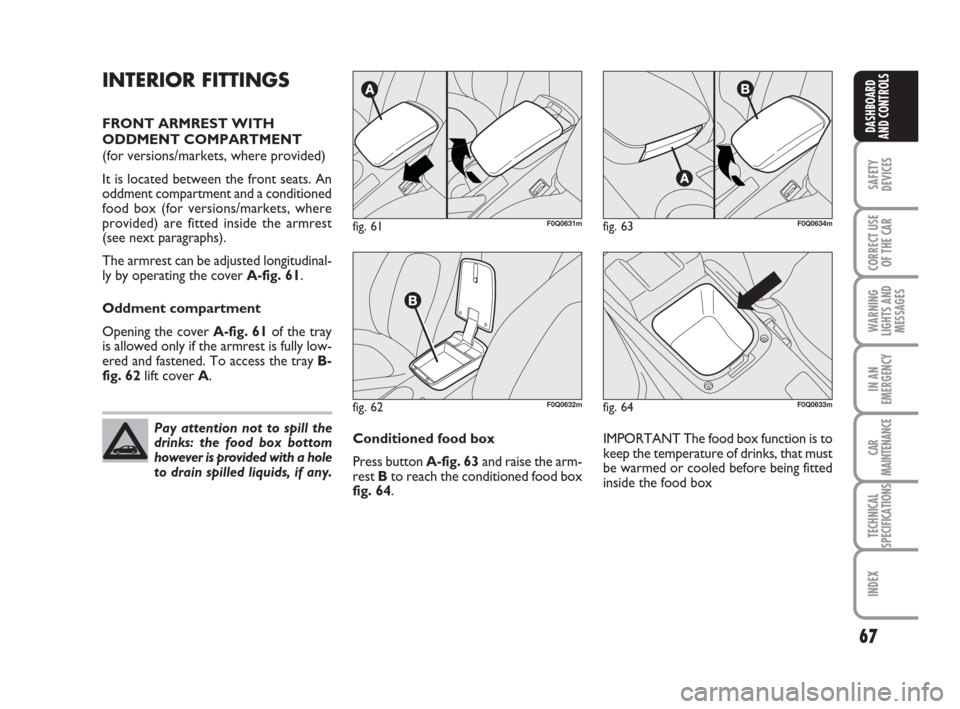

The armrest can be adjusted longitudinal-
ly by operating the cover A-fig. 61.
Oddment compartment
Opening the cover A-fig. 61of the tray
is allowed only if the armrest is fully low-
ered and fastened. To access the tray B-
fig. 62lift cover A.
IMPORTANT The food box function is to
keep the temperature of drinks, that must
be warmed or cooled before being fitted
inside the food box
fig. 61F0Q0631m
fig. 62F0Q0632m
fig. 63F0Q0634m
fig. 64F0Q0633m
Conditioned food box
Press button A-fig. 63and raise the arm-
rest Bto reach the conditioned food box
fig. 64.
057-082 BRAVO GB.qxd 11-11-2009 10:53 Pagina 67

68
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Never travel with the odd-
ment compartments open to
prevent risk of injuries in the event of
a crash.
WARNING
REAR ARMREST
(for versions/markets, where provided)
To use the rear armrest A-fig. 65, low-
er it as shown in the figure.
The armrest houses two recesses
Bfor holding glasses and/or cans. To use
them pull the tab Cin arrow direction.
Inside the armrest, after lifting the cover,
there is an oddment compartment.ODDMENT COMPARTMENTS
Oddment compartment on
passenger’s side
Open the oddment compartment moving
the handle A-fig. 66as shown by the ar-
row.
When the oddment compartment is
opened, an interior courtesy light comes
on. Such light stays on for about 15 min-
utes after having turned the key to STOP.
If during this time a door or the boot are
opened, the light will come on again for
about 15 minutes.
fig. 66F0Q0635m
fig. 65F0Q0010m
fig. 67F0Q0012m
Oddment compartment under
driver’s seat fig. 67
(for versions/markets, where provided)
Certain versions are fitted with an odd-
ment compartment under the passenger’s
seat: only stow objects weighing less than
1.5 kg.
Operate handleA-fig. 67to open the
compartment.
057-082 BRAVO GB.qxd 11-11-2009 10:53 Pagina 68

69
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CIGAR LIGHTER
(for versions/markets, where provided)
It is located on the central console, near
the handbrake lever.
Press button A-fig. 68/ato switch on the
cigar lighter with ignition key at MAR.
After few seconds the button will return
to its initial position and is ready for use.
IMPORTANT Always check that the cig-
ar lighter has turned off.
IMPORTANT The cigar lighter gets very
hot. Handle it with care and make sure
that it is not used by children: danger of
fire and/or burns. CURRENT OUTLET (12V)

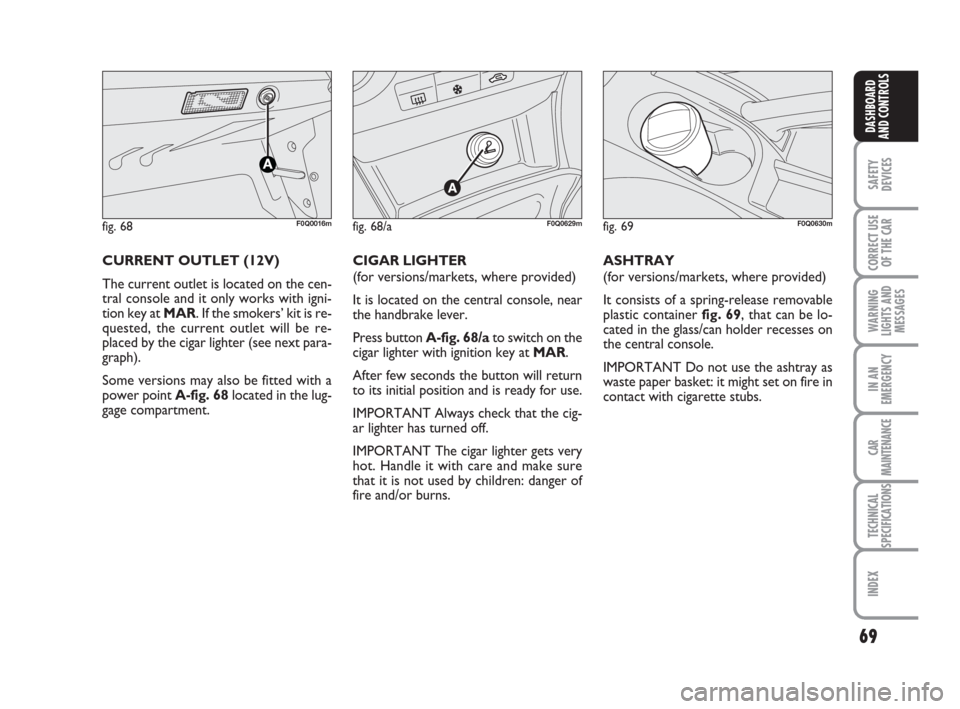

The current outlet is located on the cen-
tral console and it only works with igni-
tion key at MAR. If the smokers’ kit is re-
quested, the current outlet will be re-
placed by the cigar lighter (see next para-
graph).
Some versions may also be fitted with a
power point A-fig. 68located in the lug-
gage compartment.ASHTRAY
(for versions/markets, where provided)
It consists of a spring-release removable
plastic container fig. 69, that can be lo-
cated in the glass/can holder recesses on
the central console.
IMPORTANT Do not use the ashtray as
waste paper basket: it might set on fire in
contact with cigarette stubs.
fig. 68/aF0Q0629mfig. 69F0Q0630mfig. 68F0Q0016m
057-082 BRAVO GB.qxd 11-11-2009 10:53 Pagina 69
