10
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

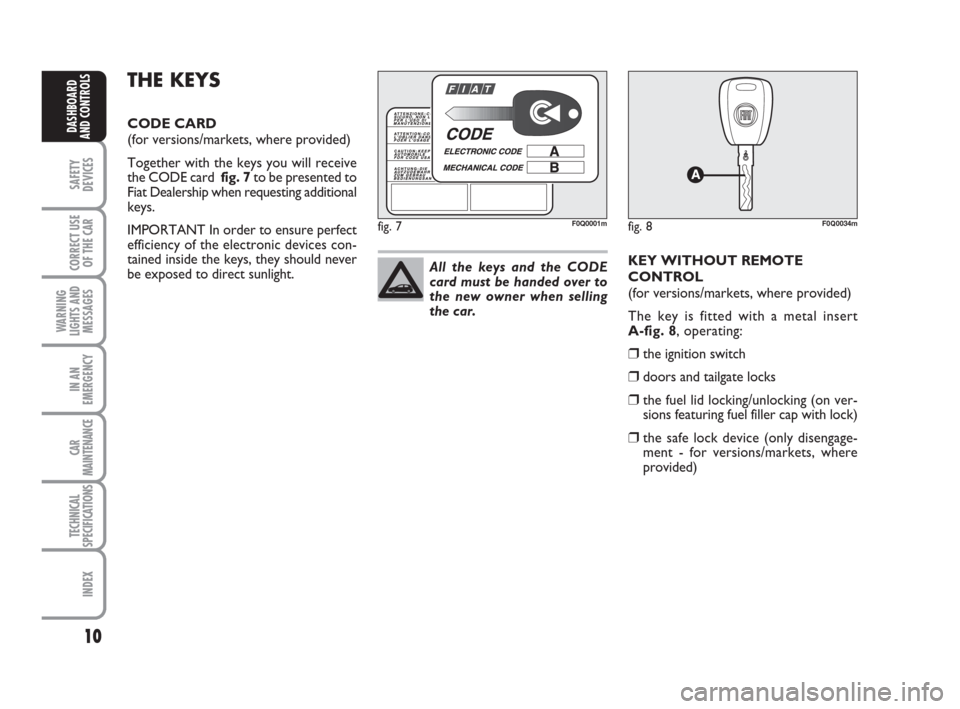

THE KEYS
CODE CARD
(for versions/markets, where provided)
Together with the keys you will receive
the CODE card fig. 7to be presented to
Fiat Dealership when requesting additional
keys.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.KEY WITHOUT REMOTE
CONTROL
(for versions/markets, where provided)
The key is fitted with a metal insert
A-fig. 8, operating:
❒the ignition switch
❒doors and tailgate locks
❒the fuel lid locking/unlocking (on ver-
sions featuring fuel filler cap with lock)
❒the safe lock device (only disengage-
ment - for versions/markets, where
provided) All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 7F0Q0001mfig. 8F0Q0034m
001-022 BRAVO GB:001-022 BRAVO GB 11-11-2009 14:06 Pagina 10

11
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

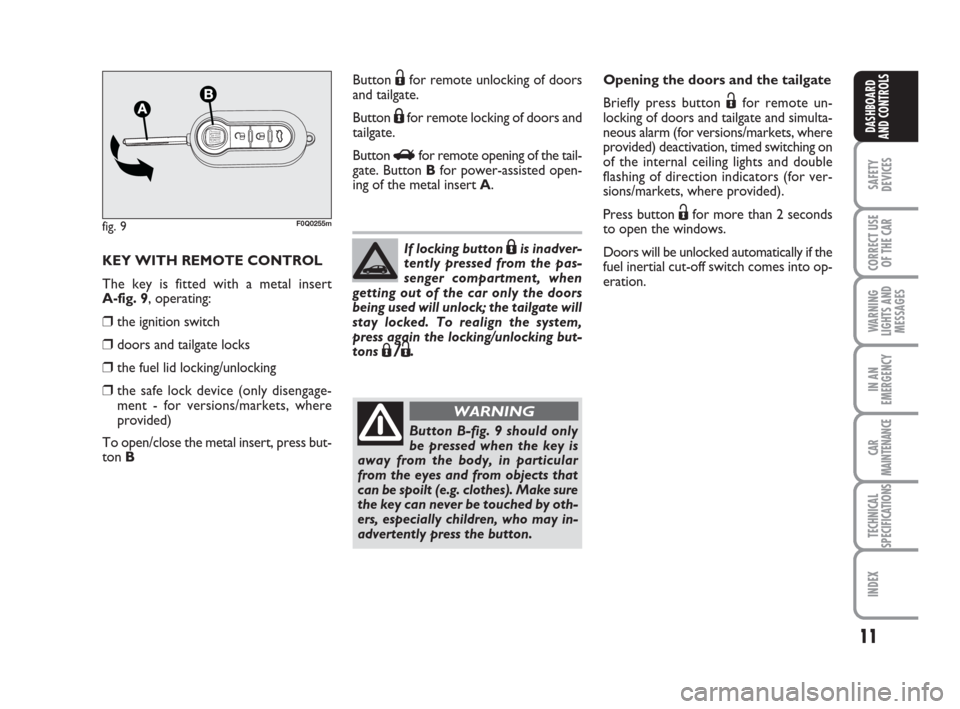

KEY WITH REMOTE CONTROL
The key is fitted with a metal insert
A-fig. 9, operating:
❒the ignition switch
❒doors and tailgate locks
❒the fuel lid locking/unlocking
❒the safe lock device (only disengage-
ment - for versions/markets, where
provided)
To open/close the metal insert, press but-
ton BButton
Ëfor remote unlocking of doors
and tailgate.
Button
Áfor remote locking of doors and
tailgate.
Button
Rfor remote opening of the tail-
gate. Button Bfor power-assisted open-
ing of the metal insert A.
If locking button
Áis inadver-
tently pressed from the pas-
senger compartment, when
getting out of the car only the doors
being used will unlock; the tailgate will
stay locked. To realign the system,
press again the locking/unlocking but-
tons
Á/Ë.
Button B-fig. 9 should only
be pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
WARNING
fig. 9F0Q0255m
Opening the doors and the tailgate
Briefly press button
Ëfor remote un-
locking of doors and tailgate and simulta-
neous alarm (for versions/markets, where
provided) deactivation, timed switching on
of the internal ceiling lights and double
flashing of direction indicators (for ver-
sions/markets, where provided).
Press button
Ëfor more than 2 seconds
to open the windows.
Doors will be unlocked automatically if the
fuel inertial cut-off switch comes into op-
eration.
001-022 BRAVO GB:001-022 BRAVO GB 11-11-2009 14:06 Pagina 11

12
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Closing the doors and the tailgate
Briefly press button
Áfor remote lock-
ing of doors and tailgate and simultaneous
alarm (for versions/markets, where pro-
vided) activation, switching off of the in-
ternal ceiling lights and single flashing of di-
rection indicators.
Press button
Áfor more than 2 seconds
to close the windows. If the button is
briefly pressed twice, the safe lock device
(for versions/markets, where provided) is
activated (see next paragraph “Safe lock
device”).
If one or more doors are open, locking
will not be activated and the central pan-
el led A-fig. 10and direction indicators
will flash rapidly. If only the tailgate is open
the doors will lock.Opening the tailgate by the
remote control
Press button
Rto open the tailgate by
remote control even if the alarm (for ver-
sions/markets, where provided) is on.
Opening the tailgate is accompanied by the
direction indicators flashing twice; clos-
ing is accompanied by a single flash only if
the alarm is on.
Opening the tailgate (with alarm on) will
obtain the deactivation of boot volumet-
ric protection and perimetral sensor.
Closing the tailgate will reactivate boot
volumetric protection and perimetral sen-
sor.
fig. 10F0Q0742m
Leds on central panel
When locking the doors, led A-fig. 10
switches on for about 3 seconds and than
starts flashing (deterrence function).
Once doors are locked, if one or more
doors or the tailgate are not closed cor-
rectly, the led and direction indicators
start flashing quickly.
001-022 BRAVO GB:001-022 BRAVO GB 11-11-2009 14:06 Pagina 12

13
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

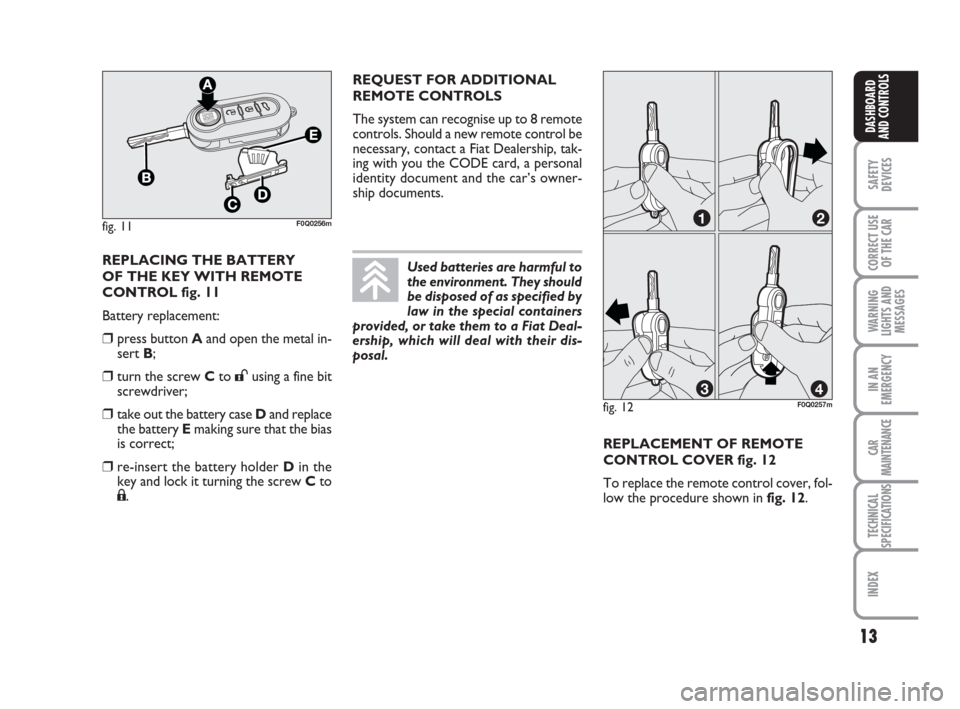

REPLACING THE BATTERY
OF THE KEY WITH REMOTE
CONTROL fig. 11
Battery replacement:
❒press button Aand open the metal in-
sert B;
❒turn the screw Cto :using a fine bit
screwdriver;
❒take out the battery case Dand replace
the battery Emaking sure that the bias
is correct;
❒re-insert the battery holder Din the
key and lock it turning the screw Cto
;.REQUEST FOR ADDITIONAL
REMOTE CONTROLS
The system can recognise up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership, tak-
ing with you the CODE card, a personal
identity document and the car’s owner-
ship documents.
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat Deal-
ership, which will deal with their dis-
posal.
fig. 11F0Q0256m
REPLACEMENT OF REMOTE
CONTROL COVER fig. 12
To replace the remote control cover, fol-
low the procedure shown in fig. 12.
fig. 12
34
12
F0Q0257m
001-022 BRAVO GB:001-022 BRAVO GB 11-11-2009 14:06 Pagina 13

14
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

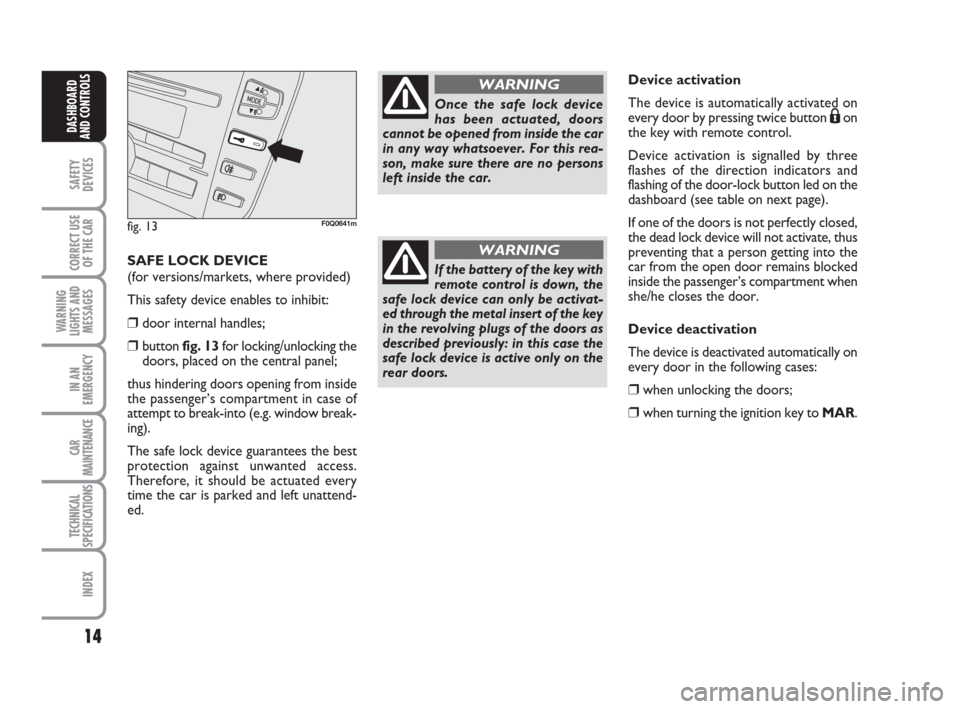

SAFE LOCK DEVICE
(for versions/markets, where provided)
This safety device enables to inhibit:
❒door internal handles;
❒buttonfig. 13for locking/unlocking the
doors, placed on the central panel;
thus hindering doors opening from inside
the passenger’s compartment in case of
attempt to break-into (e.g. window break-
ing).
The safe lock device guarantees the best
protection against unwanted access.
Therefore, it should be actuated every
time the car is parked and left unattend-
ed.
fig. 13F0Q0641m
Device activation
The device is automatically activated on
every door by pressing twice button
Áon
the key with remote control.
Device activation is signalled by three
flashes of the direction indicators and
flashing of the door-lock button led on the
dashboard (see table on next page).
If one of the doors is not perfectly closed,
the dead lock device will not activate, thus
preventing that a person getting into the
car from the open door remains blocked
inside the passenger’s compartment when
she/he closes the door.
Device deactivation
The device is deactivated automatically on
every door in the following cases:
❒when unlocking the doors;
❒when turning the ignition key to MAR.
Once the safe lock device
has been actuated, doors
cannot be opened from inside the car
in any way whatsoever. For this rea-
son, make sure there are no persons
left inside the car.
WARNING
If the battery of the key with
remote control is down, the
safe lock device can only be activat-
ed through the metal insert of the key
in the revolving plugs of the doors as
described previously: in this case the
safe lock device is active only on the
rear doors.
WARNING
001-022 BRAVO GB:001-022 BRAVO GB 11-11-2009 14:06 Pagina 14

15
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
The main functions that can be activated with the keys (with or without remote control) are the following:
Door
opening
Key turning
counterclockwise
(driver side) or
clockwise
(passenger side)
(where provided)
Key turning
counterclockwise
(driver side) or
clockwise
Pressing briefly
button Ë
2 flashings
Deterrence led
turning offDoor
closing
Key turning
clockwise
(driver side) or
counterclockwise
(passenger side)
(where provided)
Key turning
clockwise
(driver side) or
counterclockwise
Pressing briefly
button Á
1 flashing
Turned on fixed for
approx. 3 seconds
followed by deter-
rence led flashing
Window
opening
–
–
Prolonged pressing
(> 2 seconds) on
button Ë
2 flashings
Turning off
deterrence ledWindow
closing
–
–
Prolonged pressing
(> 2 seconds) on
button Á
1 flashing
Deterrence led
flashingSafe lock
(for versions/
markets, where
provided)
–
–
Double pressing
on button Á
3 flashings
Double flashing
and then
deterrence led
flashingTailgate
opening
–
–
Press
button R
2 flashings
Deterrent led
flashingType
of key
Key without
remote
control
(for versions/
markets,
where
provided)
Key with
remote
control
Direction
indicators
flashing
(only with key
with remote
control)
Led on
central
dashboard
001-022 BRAVO GB:001-022 BRAVO GB 11-11-2009 14:06 Pagina 15

16
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

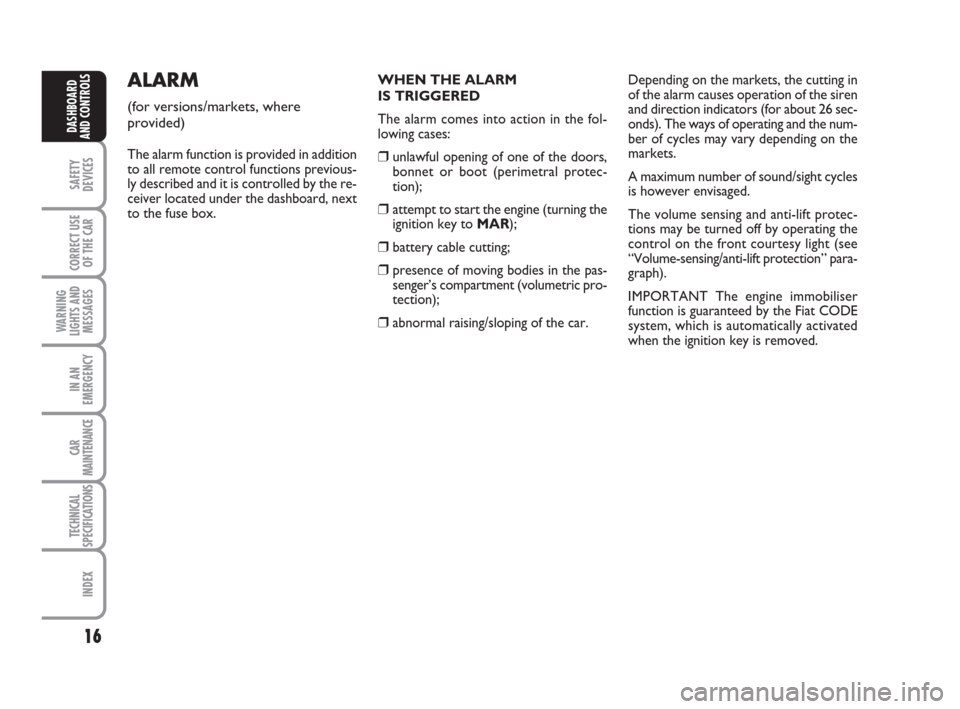

ALARM
(for versions/markets, where
provided)
The alarm function is provided in addition
to all remote control functions previous-
ly described and it is controlled by the re-
ceiver located under the dashboard, next
to the fuse box.WHEN THE ALARM
IS TRIGGERED
The alarm comes into action in the fol-
lowing cases:❒unlawful opening of one of the doors,
bonnet or boot (perimetral protec-
tion);
❒attempt to start the engine (turning the
ignition key to MAR);
❒battery cable cutting;
❒presence of moving bodies in the pas-
senger’s compartment (volumetric pro-
tection);
❒abnormal raising/sloping of the car. Depending on the markets, the cutting in
of the alarm causes operation of the siren
and direction indicators (for about 26 sec-
onds). The ways of operating and the num-
ber of cycles may vary depending on the
markets.
A maximum number of sound/sight cycles
is however envisaged.
The volume sensing and anti-lift protec-
tions may be turned off by operating the
control on the front courtesy light (see
“Volume-sensing/anti-lift protection” para-
graph).
IMPORTANT The engine immobiliser
function is guaranteed by the Fiat CODE
system, which is automatically activated
when the ignition key is removed.
001-022 BRAVO GB:001-022 BRAVO GB 11-11-2009 14:06 Pagina 16

17
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

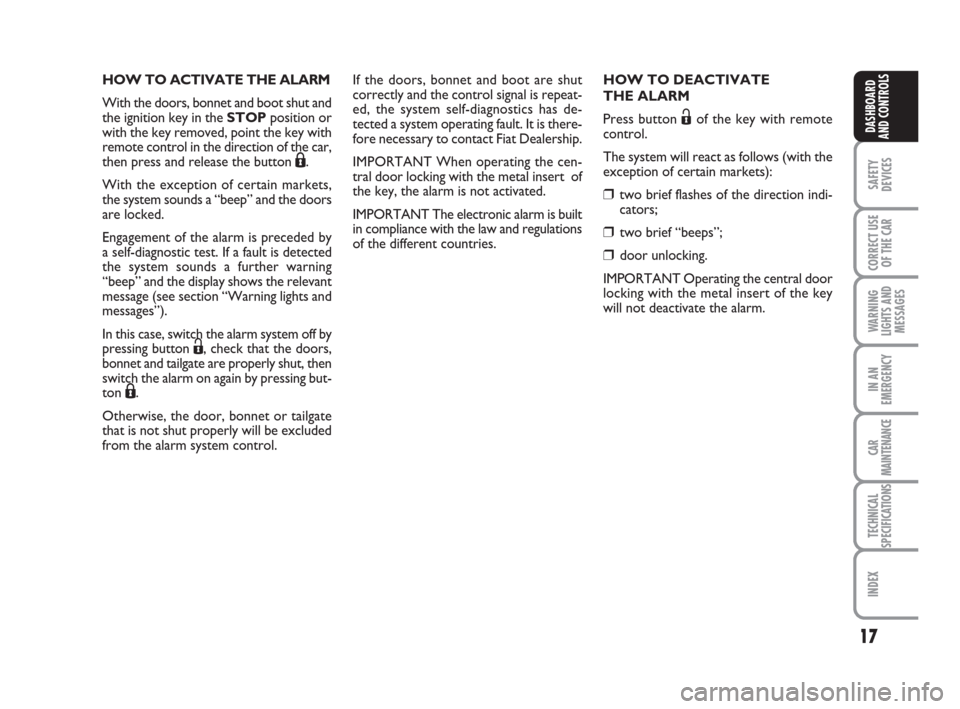

HOW TO ACTIVATE THE ALARM
With the doors, bonnet and boot shut and
the ignition key in the STOPposition or
with the key removed, point the key with
remote control in the direction of the car,
then press and release the button
Á.
With the exception of certain markets,
the system sounds a “beep” and the doors
are locked.
Engagement of the alarm is preceded by
a self-diagnostic test. If a fault is detected
the system sounds a further warning
“beep” and the display shows the relevant
message (see section “Warning lights and
messages”).
In this case, switch the alarm system off by
pressing button
Ë, check that the doors,
bonnet and tailgate are properly shut, then
switch the alarm on again by pressing but-
ton
Á.
Otherwise, the door, bonnet or tailgate
that is not shut properly will be excluded
from the alarm system control.If the doors, bonnet and boot are shut
correctly and the control signal is repeat-
ed, the system self-diagnostics has de-
tected a system operating fault. It is there-
fore necessary to contact Fiat Dealership.
IMPORTANT When operating the cen-
tral door locking with the metal insert of
the key, the alarm is not activated.
IMPORTANT The electronic alarm is built
in compliance with the law and regulations
of the different countries.HOW TO DEACTIVATE
THE ALARM
Press button
Ëof the key with remote
control.
The system will react as follows (with the
exception of certain markets):
❒two brief flashes of the direction indi-
cators;
❒two brief “beeps”;
❒door unlocking.
IMPORTANT Operating the central door
locking with the metal insert of the key
will not deactivate the alarm.
001-022 BRAVO GB:001-022 BRAVO GB 11-11-2009 14:06 Pagina 17

18
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

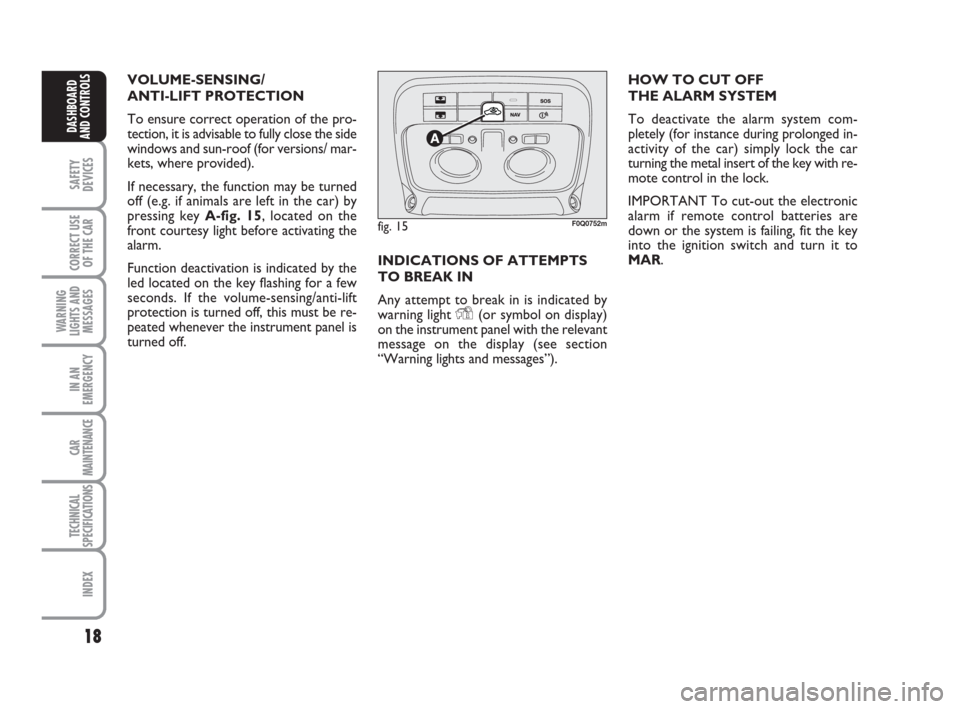

VOLUME-SENSING/
ANTI-LIFT PROTECTION
To ensure correct operation of the pro-
tection, it is advisable to fully close the side
windows and sun-roof (for versions/ mar-
kets, where provided).
If necessary, the function may be turned
off (e.g. if animals are left in the car) by
pressing key A-fig. 15, located on the
front courtesy light before activating the
alarm.
Function deactivation is indicated by the
led located on the key flashing for a few
seconds. If the volume-sensing/anti-lift
protection is turned off, this must be re-
peated whenever the instrument panel is
turned off.INDICATIONS OF ATTEMPTS
TO BREAK IN
Any attempt to break in is indicated by
warning light
Y(or symbol on display)
on the instrument panel with the relevant
message on the display (see section
“Warning lights and messages”).HOW TO CUT OFF
THE ALARM SYSTEM
To deactivate the alarm system com-
pletely (for instance during prolonged in-
activity of the car) simply lock the car
turning the metal insert of the key with re-
mote control in the lock.
IMPORTANT To cut-out the electronic
alarm if remote control batteries are
down or the system is failing, fit the key
into the ignition switch and turn it to
MAR.
fig. 15F0Q0752m
001-022 BRAVO GB:001-022 BRAVO GB 11-11-2009 14:06 Pagina 18

77
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

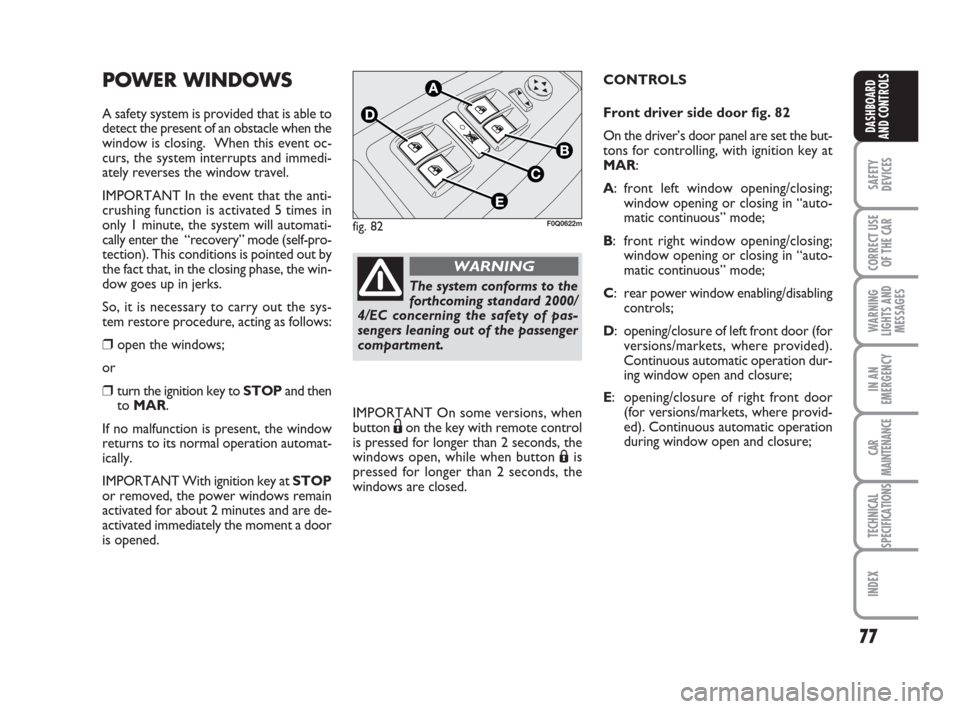

POWER WINDOWS
A safety system is provided that is able to
detect the present of an obstacle when the
window is closing. When this event oc-
curs, the system interrupts and immedi-
ately reverses the window travel.
IMPORTANT In the event that the anti-
crushing function is activated 5 times in
only 1 minute, the system will automati-
cally enter the “recovery” mode (self-pro-
tection). This conditions is pointed out by
the fact that, in the closing phase, the win-
dow goes up in jerks.
So, it is necessary to carry out the sys-
tem restore procedure, acting as follows:
❒ open the windows;
or
❒turn the ignition key to STOPand then
to MAR.
If no malfunction is present, the window
returns to its normal operation automat-
ically.
IMPORTANT With ignition key at STOP
or removed, the power windows remain
activated for about 2 minutes and are de-
activated immediately the moment a door
is opened.
The system conforms to the
forthcoming standard 2000/
4/EC concerning the safety of pas-
sengers leaning out of the passenger
compartment.
WARNING
IMPORTANT On some versions, when
button Ëon the key with remote control
is pressed for longer than 2 seconds, the
windows open, while when button Áis
pressed for longer than 2 seconds, the
windows are closed.
fig. 82F0Q0622m
CONTROLS
Front driver side door fig. 82
On the driver’s door panel are set the but-
tons for controlling, with ignition key at
MAR:
A: front left window opening/closing;
window opening or closing in “auto-
matic continuous” mode;
B: front right window opening/closing;
window opening or closing in “auto-
matic continuous” mode;
C: rear power window enabling/disabling
controls;
D: opening/closure of left front door (for
versions/markets, where provided).
Continuous automatic operation dur-
ing window open and closure;
E: opening/closure of right front door
(for versions/markets, where provid-
ed). Continuous automatic operation
during window open and closure;
057-082 BRAVO GB.qxd 11-11-2009 10:53 Pagina 77
