FIAT BRAVO 2013 2.G User Guide
Manufacturer: FIAT, Model Year: 2013, Model line: BRAVO, Model: FIAT BRAVO 2013 2.GPages: 299, PDF Size: 5.86 MB
Page 11 of 299
Sport versions with reconfigurable multifunction display
Warning lights supplied on diesel versions only
On diesel versions, the end of scale for the rev counter is 6000 rpm.
A. Speedometer B. Fuel level gauge with reserve warning light C. Engine coolant temperature gauge with overheating
warning light D. Rev counter E. Reconfigurable multifunction display.
fig. 5
F0Q0613
7GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 12 of 299
SYMBOLSSome car components have coloured labels whose
symbols indicate precautions to be observed when
using this component.
A plate summarising these symbols fig. 6 can be
found under the bonnet.
THE FIAT CODE SYSTEMTo further protect your car from theft, it has been
fitted with an engine immobilising system. It is
automatically activated when the ignition key is
removed.
There is an electronic device in each key which can
identify the signal emitted, when the engine is
started, from an aerial built into the ignition switch.
The signal is the "password", different every time
the vehicle is started, through which the control
unit recognises the key and enables starting.
OPERATION
Each time the vehicle is started turning the ignition
key to MAR-ON, the Fiat CODE system control
unit sends an acknowledgement code to the engine
control unit to deactivate the immobiliser. The
code is sent only if the Fiat CODE system control
unit has acknowledged the code received from
the key.
Each time the ignition key is turned to STOP, the
Fiat CODE system deactivates the functions of the
engine management control unit.
If, during starting, the code is not correctly
recognised, the
warning light (or symbol on the
display) switches on in the instrument panel.
In this case, turn the key to STOP and then to
MAR-ON; if it is still locked, try again with the
other keys that come with the vehicle. Contact a
Fiat Dealership if you still cannot start the engine.
fig. 6
F0Q0640
8
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 13 of 299
IMPORTANT Each key has its own code which
must be stored by the system’s control unit. To
have new keys stored, up to a maximum number of
eight keys, contact a Fiat Dealership and be ready
to present all the keys you have in your possession,
the CODE card, a personal identity document
and the car ownership documents. The codes for
keys not presented during the storing procedure
will be deleted to ensure that any keys that are lost
or stolen cannot be used to start the engine.
warning light (or symbol on the display)
on whilst driving
❒If the
warning light (or symbol in the display)
switches on, this means that the system is
running self-diagnosis (caused, for example, by a
voltage drop).
❒If thewarning light (or symbol in the display)
stays on, contact a Fiat dealership.
The electronic components inside the key
may be damaged if the key is subjected
to strong shocks.
THE KEYSCODE CARD
(for versions/markets, where provided)
A CODE card fig. 7 is provided together with the
vehicle keys. This should be presented to a Fiat
Dealership should you require any duplicate keys.
IMPORTANT In order to ensure complete
efficiency of the electronic devices inside the keys,
they should never be exposed to direct sunlight.
The ignition key and the CODE card
must be handed over to the new owner
when selling the car.
fig. 7
F0Q0001
9GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 14 of 299
KEY WITHOUT REMOTE CONTROL
(for versions/markets, where provided)
The key is provided with a metal insert A fig. 8,
which operates:
❒the ignition switch
❒the door lock
❒the fuel flap lock/release (on versions supplied
with a lockable plug)
❒the safe lock device (deactivation only - for
versions/markets, where provided).KEY WITH REMOTE CONTROL
The key is provided with a metal insert A fig. 9,
which operates:
❒the ignition switch
❒the door lock
❒the fuel flap lock/unlock
❒the safe lock device (deactivation only - for
versions/markets, where provided)
To open/close the metal insert, press button B.
Button
remotely unlocks the doors and the
tailgate.
Buttonremotely locks the doors and the tailgate.
Buttonremotely open the tailgate. Button B
opens power-assisted opening of metal insert A.
fig. 8
F0Q0034
fig. 9
F0Q0255
10GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 15 of 299
If the button for locking doors
from
the inside is accidentally pressed, only
the doors opened for getting out of the
car are released; the tailgate remains locked. For
system reset , press the lock/release buttons
again
/
.
WARNING
Press button B fig. 9 only with the key
away from your body, specifically
from your eyes and from objects which could
get damaged (e.g. your clothes). Do not leave
the key unattended to avoid the button being
accidentally pressed while it is being handled,
e.g. by a child.Unlocking the doors and the tailgate
Briefly press button
for unlocking the doors and
tailgate with the alarm being switched off at the
same time (for versions/markets, where provided),
timed switching-on of internal roof lights and
double flashing of direction indicators (for
versions/markets, where provided).
Pressing button
for longer than 2 seconds:
window opening.
Doors will be unlocked automatically if the fuel
inertia cut-off switch comes into operation.
11GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 16 of 299

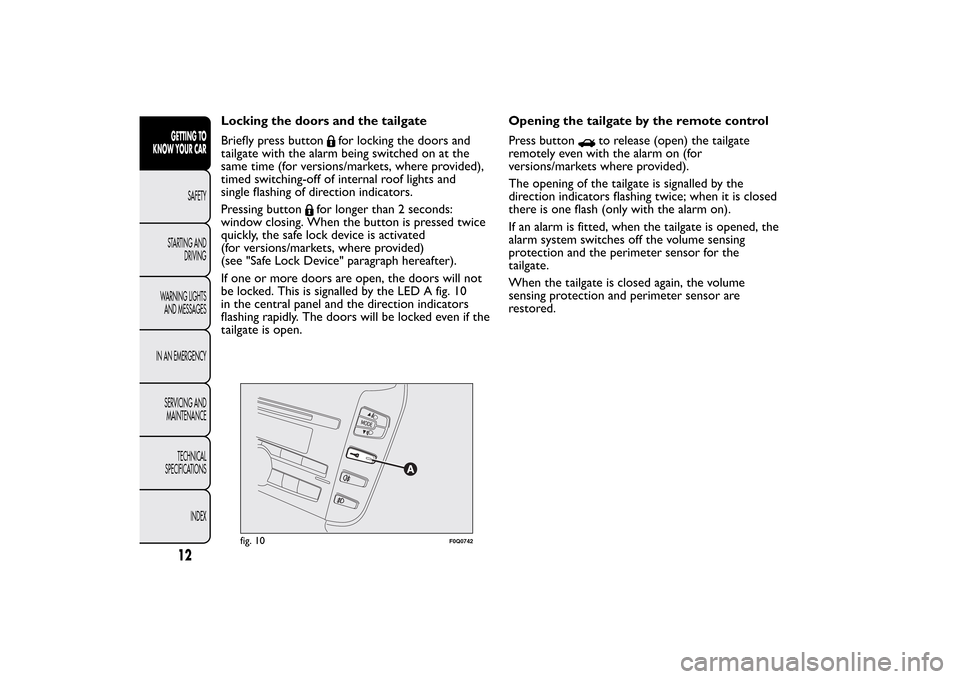

Locking the doors and the tailgate
Briefly press button
for locking the doors and
tailgate with the alarm being switched on at the
same time (for versions/markets, where provided),
timed switching-off of internal roof lights and
single flashing of direction indicators.
Pressing button
for longer than 2 seconds:
window closing. When the button is pressed twice
quickly, the safe lock device is activated
(for versions/markets, where provided)
(see "Safe Lock Device" paragraph hereafter).
If one or more doors are open, the doors will not
be locked. This is signalled by the LED A fig. 10
in the central panel and the direction indicators
flashing rapidly. The doors will be locked even if the
tailgate is open.Opening the tailgate by the remote control
Press button
to release (open) the tailgate
remotely even with the alarm on (for
versions/markets where provided).
The opening of the tailgate is signalled by the
direction indicators flashing twice; when it is closed
there is one flash (only with the alarm on).
If an alarm is fitted, when the tailgate is opened, the
alarm system switches off the volume sensing
protection and the perimeter sensor for the
tailgate.
When the tailgate is closed again, the volume
sensing protection and perimeter sensor are
restored.
fig. 10
F0Q0742
12GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 17 of 299

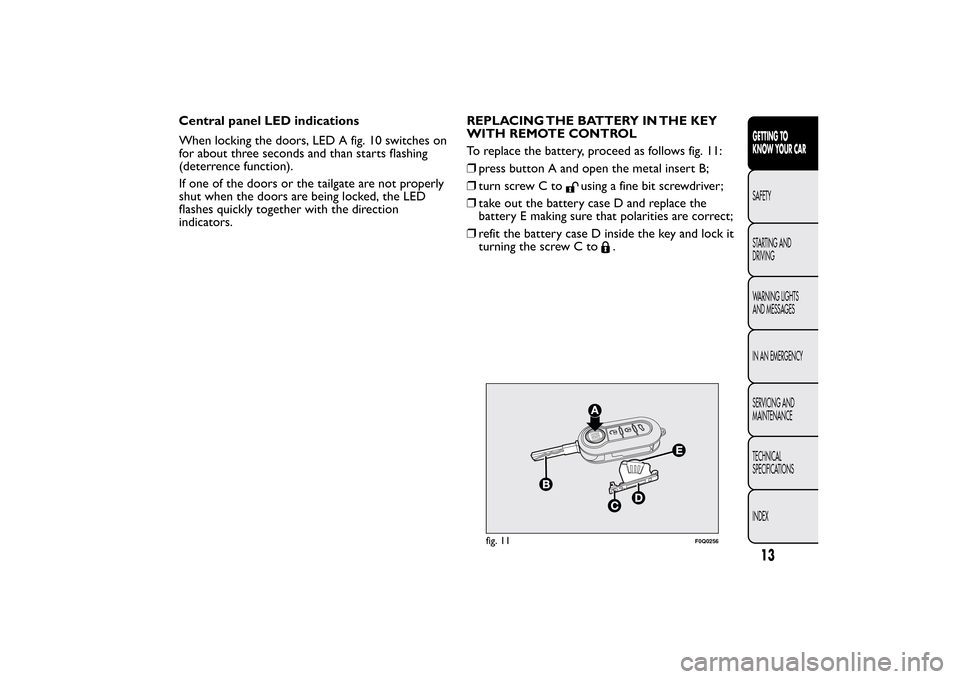

Central panel LED indications
When locking the doors, LED A fig. 10 switches on
for about three seconds and than starts flashing
(deterrence function).
If one of the doors or the tailgate are not properly
shut when the doors are being locked, the LED
flashes quickly together with the direction
indicators.REPLACING THE BATTERY IN THE KEY
WITH REMOTE CONTROL
To replace the battery, proceed as follows fig. 11:
❒press button A and open the metal insert B;
❒turn screw C to
using a fine bit screwdriver;
❒take out the battery case D and replace the
battery E making sure that polarities are correct;
❒refit the battery case D inside the key and lock it
turning the screw C to
.
fig. 11
F0Q0256
13GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 18 of 299

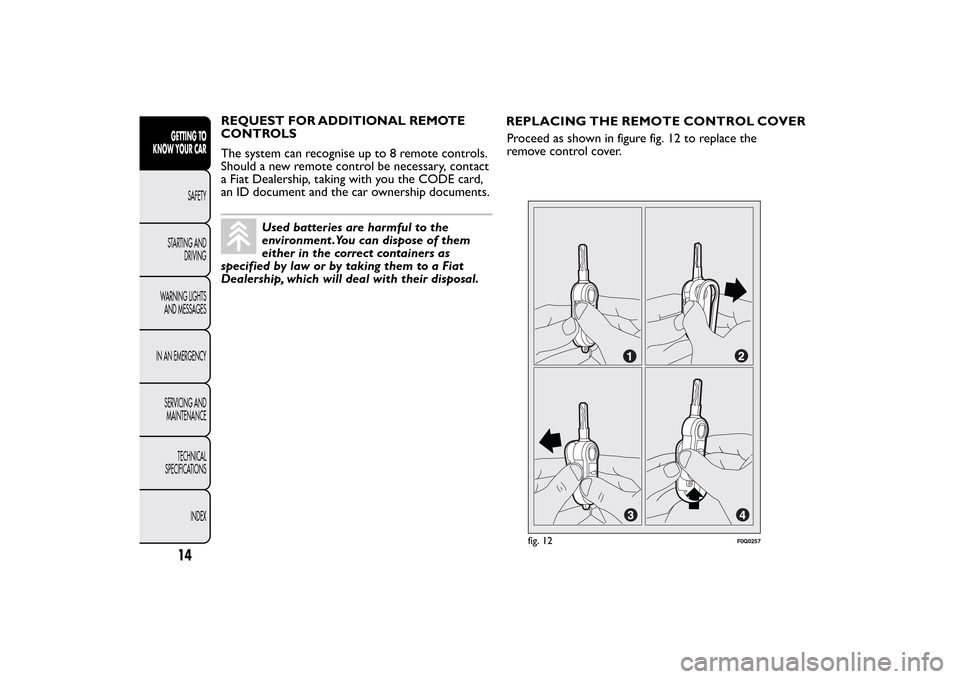

REQUEST FOR ADDITIONAL REMOTE
CONTROLS
The system can recognise up to 8 remote controls.
Should a new remote control be necessary, contact
a Fiat Dealership, taking with you the CODE card,
an ID document and the car ownership documents.
Used batteries are harmful to the
environment .You can dispose of them
either in the correct containers as
specified by law or by taking them to a Fiat
Dealership, which will deal with their disposal.Proceed as shown in figure fig. 12 to replace the
remove control cover.
fig. 12
F0Q0257
14GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
REPLACING THE REMOTE CONTROL COVER
Page 19 of 299

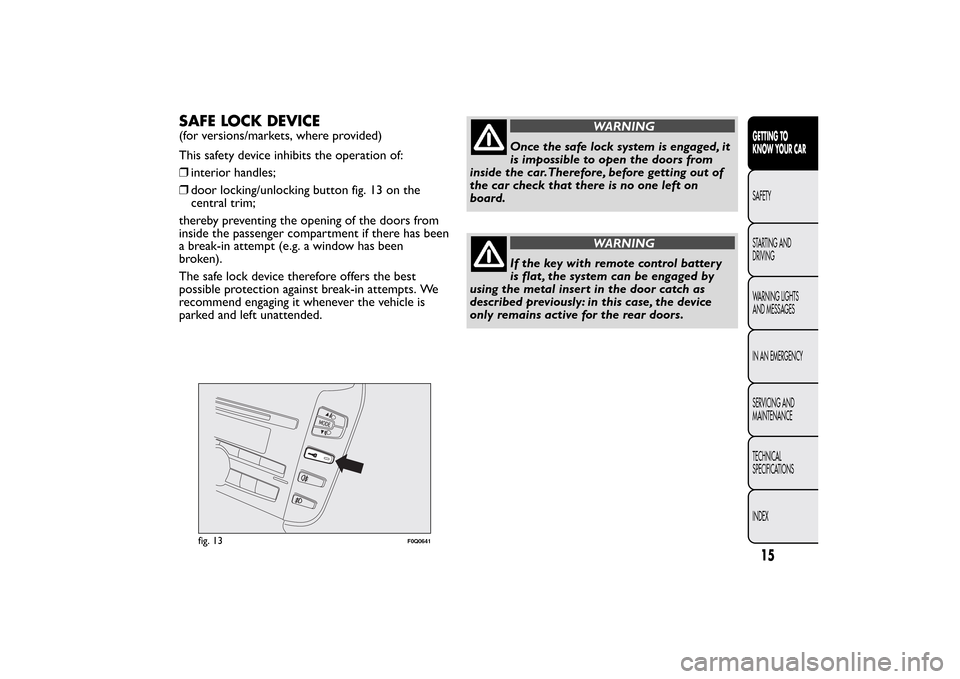

SAFE LOCK DEVICE(for versions/markets, where provided)
This safety device inhibits the operation of:
❒interior handles;
❒door locking/unlocking button fig. 13 on the
central trim;
thereby preventing the opening of the doors from
inside the passenger compartment if there has been
a break-in attempt (e.g. a window has been
broken).
The safe lock device therefore offers the best
possible protection against break-in attempts. We
recommend engaging it whenever the vehicle is
parked and left unattended.
WARNING
Once the safe lock system is engaged, it
is impossible to open the doors from
inside the car.Therefore, before getting out of
the car check that there is no one left on
board.
WARNING
If the key with remote control battery
is flat , the system can be engaged by
using the metal insert in the door catch as
described previously: in this case, the device
only remains active for the rear doors.
fig. 13
F0Q0641
15GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 20 of 299

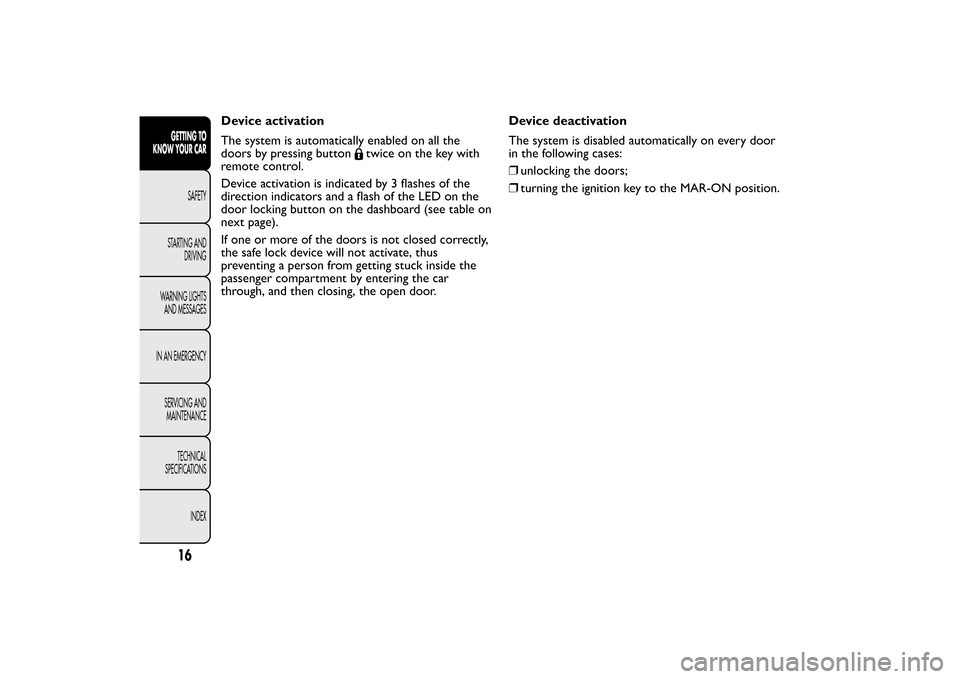

Device activation
The system is automatically enabled on all the
doors by pressing button
twice on the key with
remote control.
Device activation is indicated by 3 flashes of the
direction indicators and a flash of the LED on the
door locking button on the dashboard (see table on
next page).
If one or more of the doors is not closed correctly,
the safe lock device will not activate, thus
preventing a person from getting stuck inside the
passenger compartment by entering the car
through, and then closing, the open door.Device deactivation
The system is disabled automatically on every door
in the following cases:
❒unlocking the doors;
❒turning the ignition key to the MAR-ON position.
16GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
