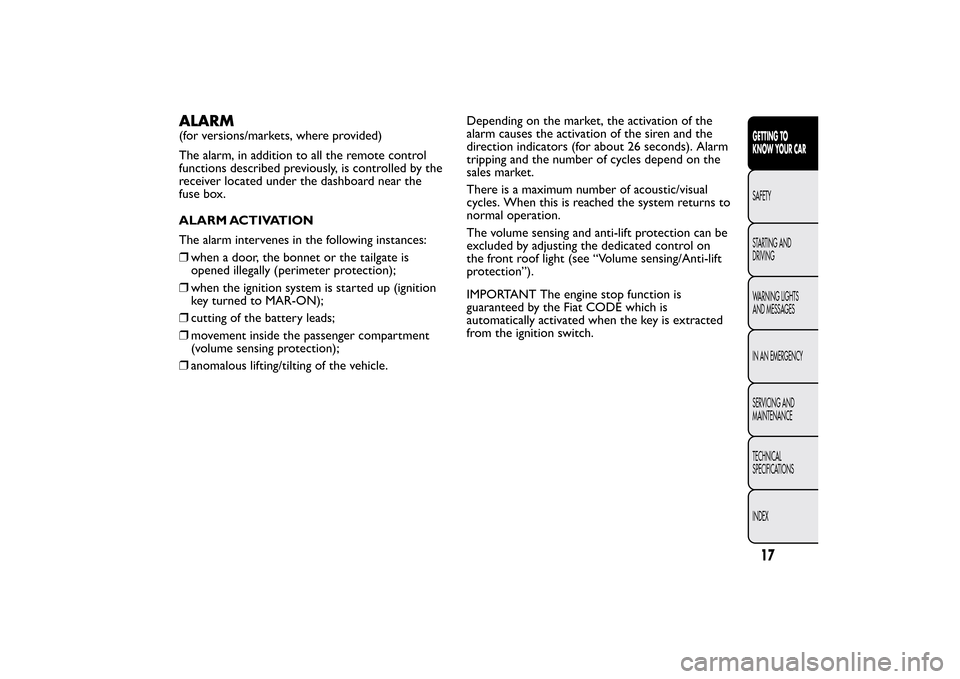

ALARM(for versions/markets, where provided)
The alarm, in addition to all the remote control
functions described previously, is controlled by the
receiver located under the dashboard near the
fuse box.
ALARM ACTIVATION
The alarm intervenes in the following instances:
❒when a door, the bonnet or the tailgate is
opened illegally (perimeter protection);
❒when the ignition system is started up (ignition
key turned to MAR-ON);
❒cutting of the battery leads;
❒movement inside the passenger compartment
(volume sensing protection);
❒anomalous lifting/tilting of the vehicle.Depending on the market, the activation of the
alarm causes the activation of the siren and the
direction indicators (for about 26 seconds). Alarm
tripping and the number of cycles depend on the
sales market.
There is a maximum number of acoustic/visual
cycles. When this is reached the system returns to
normal operation.
The volume sensing and anti-lift protection can be
excluded by adjusting the dedicated control on
the front roof light (see “Volume sensing/Anti-lift
protection”).
IMPORTANT The engine stop function is
guaranteed by the Fiat CODE which is
automatically activated when the key is extracted
from the ignition switch.
17GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 22 of 299

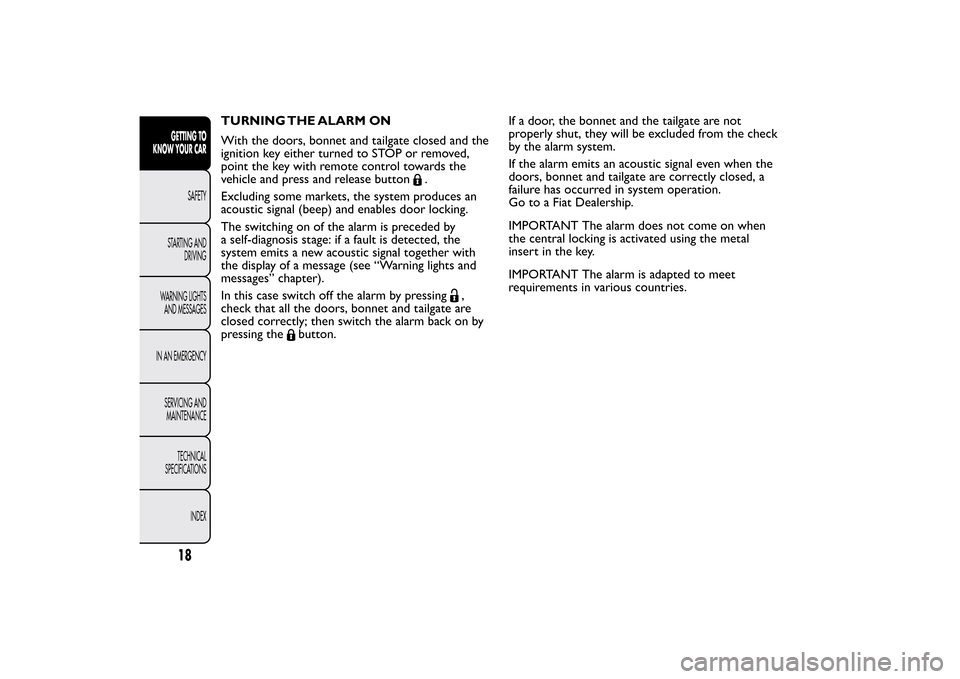

TURNING THE ALARM ON
With the doors, bonnet and tailgate closed and the
ignition key either turned to STOP or removed,
point the key with remote control towards the
vehicle and press and release button
.
Excluding some markets, the system produces an
acoustic signal (beep) and enables door locking.
The switching on of the alarm is preceded by
a self-diagnosis stage: if a fault is detected, the
system emits a new acoustic signal together with
the display of a message (see “Warning lights and
messages” chapter).
In this case switch off the alarm by pressing
,
check that all the doors, bonnet and tailgate are
closed correctly; then switch the alarm back on by
pressing the
button.If a door, the bonnet and the tailgate are not
properly shut, they will be excluded from the check
by the alarm system.
If the alarm emits an acoustic signal even when the
doors, bonnet and tailgate are correctly closed, a
failure has occurred in system operation.
Go to a Fiat Dealership.
IMPORTANT The alarm does not come on when
the central locking is activated using the metal
insert in the key.
IMPORTANT The alarm is adapted to meet
requirements in various countries.
18GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 23 of 299

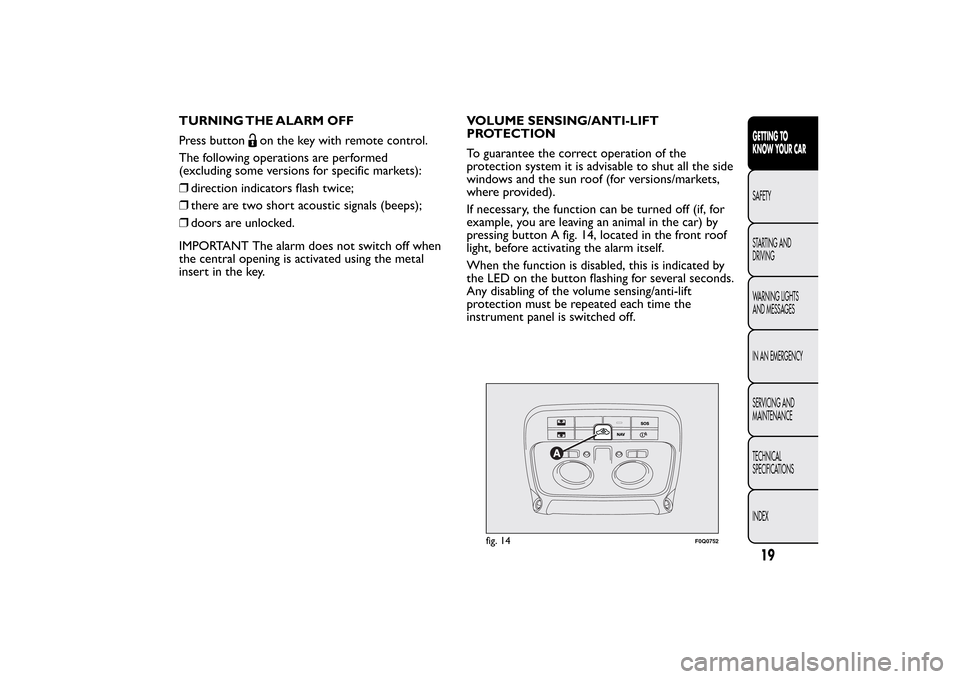

TURNING THE ALARM OFF
Press button
on the key with remote control.
The following operations are performed
(excluding some versions for specific markets):
❒direction indicators flash twice;
❒there are two short acoustic signals (beeps);
❒doors are unlocked.
IMPORTANT The alarm does not switch off when
the central opening is activated using the metal
insert in the key.VOLUME SENSING/ANTI-LIFT
PROTECTION
To guarantee the correct operation of the
protection system it is advisable to shut all the side
windows and the sun roof (for versions/markets,
where provided).
If necessary, the function can be turned off (if, for
example, you are leaving an animal in the car) by
pressing button A fig. 14, located in the front roof
light, before activating the alarm itself.
When the function is disabled, this is indicated by
the LED on the button flashing for several seconds.
Any disabling of the volume sensing/anti-lift
protection must be repeated each time the
instrument panel is switched off.
fig. 14
F0Q0752
19GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 24 of 299

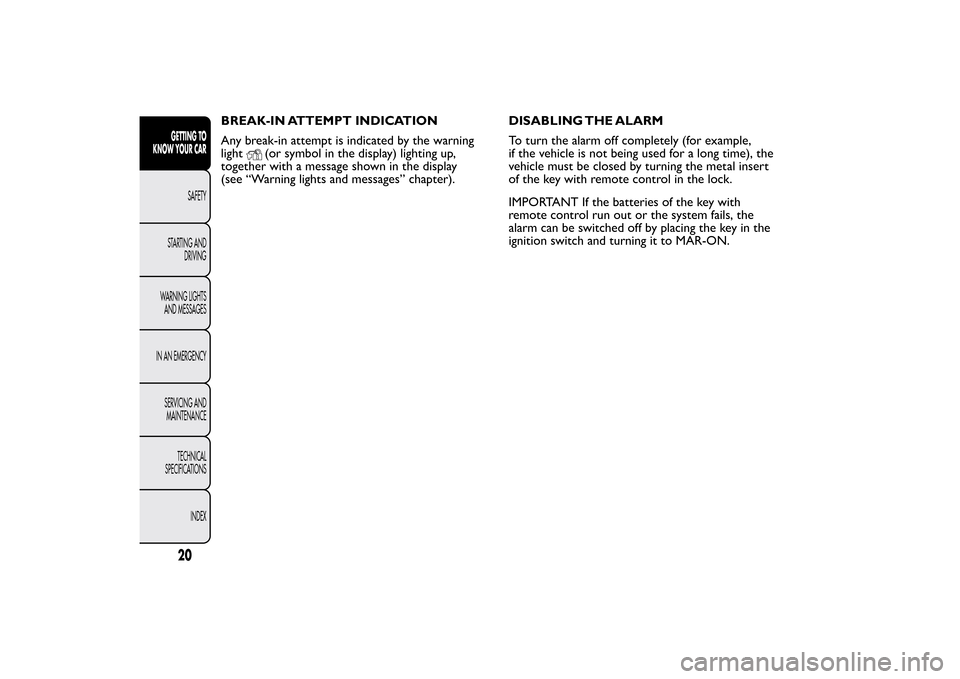

BREAK-IN ATTEMPT INDICATION
Any break-in attempt is indicated by the warning
light
(or symbol in the display) lighting up,
together with a message shown in the display
(see “Warning lights and messages” chapter).DISABLING THE ALARM
To turn the alarm off completely (for example,
if the vehicle is not being used for a long time), the
vehicle must be closed by turning the metal insert
of the key with remote control in the lock.
IMPORTANT If the batteries of the key with
remote control run out or the system fails, the
alarm can be switched off by placing the key in the
ignition switch and turning it to MAR-ON.
20GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 25 of 299

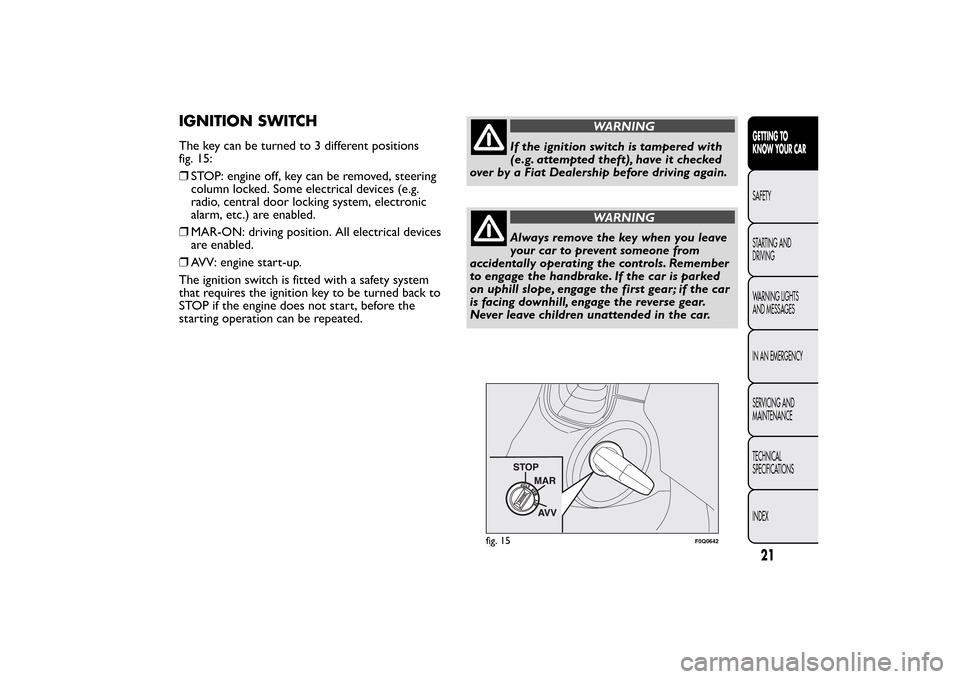

IGNITION SWITCHThe key can be turned to 3 different positions
fig. 15:
❒STOP: engine off, key can be removed, steering
column locked. Some electrical devices (e.g.
radio, central door locking system, electronic
alarm, etc.) are enabled.
❒MAR-ON: driving position. All electrical devices
are enabled.
❒AVV: engine start-up.
The ignition switch is fitted with a safety system
that requires the ignition key to be turned back to
STOP if the engine does not start, before the
starting operation can be repeated.
WARNING
If the ignition switch is tampered with
(e.g. attempted theft), have it checked
over by a Fiat Dealership before driving again.
WARNING
Always remove the key when you leave
your car to prevent someone from
accidentally operating the controls. Remember
to engage the handbrake. If the car is parked
on uphill slope, engage the first gear; if the car
is facing downhill, engage the reverse gear.
Never leave children unattended in the car.
fig. 15
F0Q0642
21GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 26 of 299

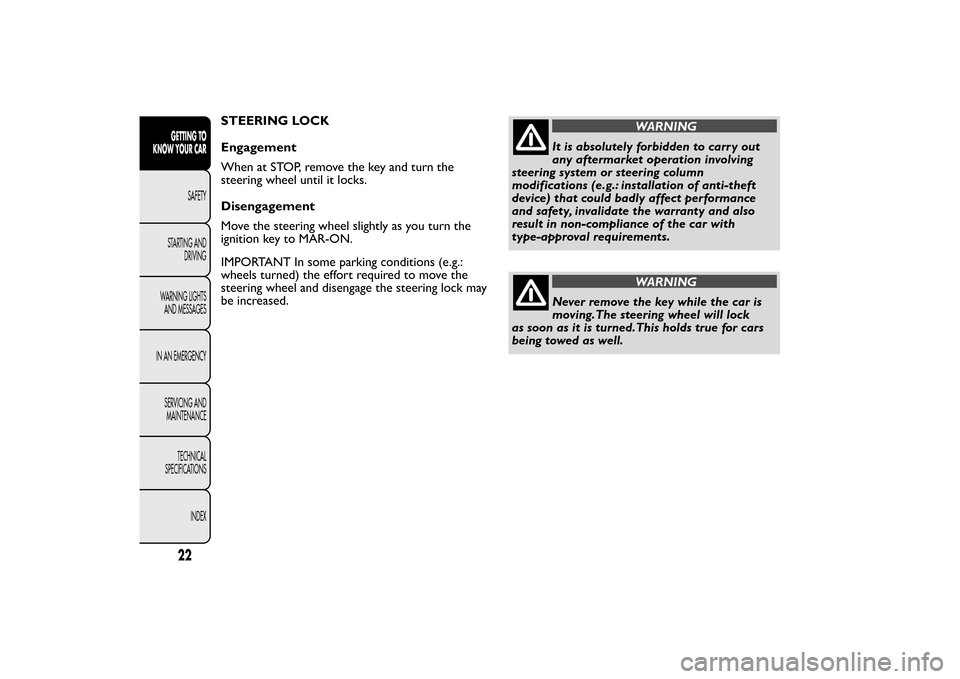

STEERING LOCK
Engagement
When at STOP, remove the key and turn the
steering wheel until it locks.
Disengagement
Move the steering wheel slightly as you turn the
ignition key to MAR-ON.
IMPORTANT In some parking conditions (e.g.:
wheels turned) the effort required to move the
steering wheel and disengage the steering lock may
be increased.
WARNING
It is absolutely forbidden to carr y out
any aftermarket operation involving
steering system or steering column
modifications (e.g.: installation of anti-theft
device) that could badly affect performance
and safety, invalidate the warranty and also
result in non-compliance of the car with
type-approval requirements.
WARNING
Never remove the key while the car is
moving.The steering wheel will lock
as soon as it is turned.This holds true for cars
being towed as well.
22GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 27 of 299

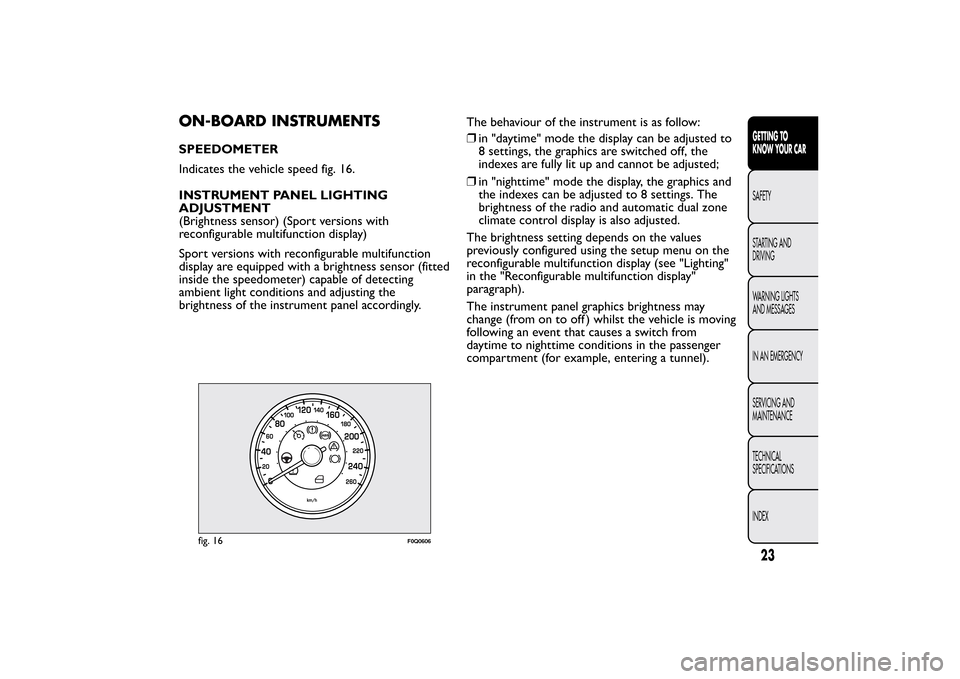

ON-BOARD INSTRUMENTSSPEEDOMETER
Indicates the vehicle speed fig. 16.
INSTRUMENT PANEL LIGHTING
ADJUSTMENT
(Brightness sensor) (Sport versions with
reconfigurable multifunction display)
Sport versions with reconfigurable multifunction
display are equipped with a brightness sensor (fitted
inside the speedometer) capable of detecting
ambient light conditions and adjusting the
brightness of the instrument panel accordingly.The behaviour of the instrument is as follow:
❒in "daytime" mode the display can be adjusted to
8 settings, the graphics are switched off, the
indexes are fully lit up and cannot be adjusted;
❒in "nighttime" mode the display, the graphics and
the indexes can be adjusted to 8 settings. The
brightness of the radio and automatic dual zone
climate control display is also adjusted.
The brightness setting depends on the values
previously configured using the setup menu on the
reconfigurable multifunction display (see "Lighting"
in the "Reconfigurable multifunction display"
paragraph).
The instrument panel graphics brightness may
change (from on to off ) whilst the vehicle is moving
following an event that causes a switch from
daytime to nighttime conditions in the passenger
compartment (for example, entering a tunnel).
fig. 16
F0Q0606
23GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 28 of 299

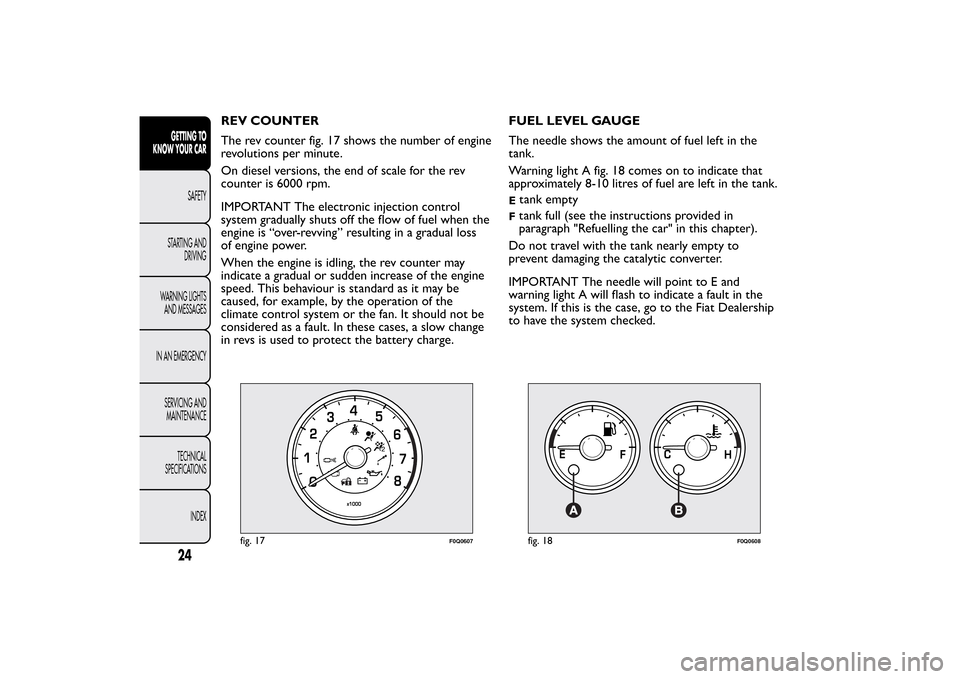

REV COUNTER
The rev counter fig. 17 shows the number of engine
revolutions per minute.
On diesel versions, the end of scale for the rev
counter is 6000 rpm.
IMPORTANT The electronic injection control
system gradually shuts off the flow of fuel when the
engine is “over-revving” resulting in a gradual loss
of engine power.
When the engine is idling, the rev counter may
indicate a gradual or sudden increase of the engine
speed. This behaviour is standard as it may be
caused, for example, by the operation of the
climate control system or the fan. It should not be
considered as a fault. In these cases, a slow change
in revs is used to protect the battery charge.FUEL LEVEL GAUGE
The needle shows the amount of fuel left in the
tank.
Warning light A fig. 18 comes on to indicate that
approximately 8-10 litres of fuel are left in the tank.
Etank emptyFtank full (see the instructions provided in
paragraph "Refuelling the car" in this chapter).
Do not travel with the tank nearly empty to
prevent damaging the catalytic converter.
IMPORTANT The needle will point to E and
warning light A will flash to indicate a fault in the
system. If this is the case, go to the Fiat Dealership
to have the system checked.
fig. 17
F0Q0607
fig. 18
F0Q0608
24GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 29 of 299

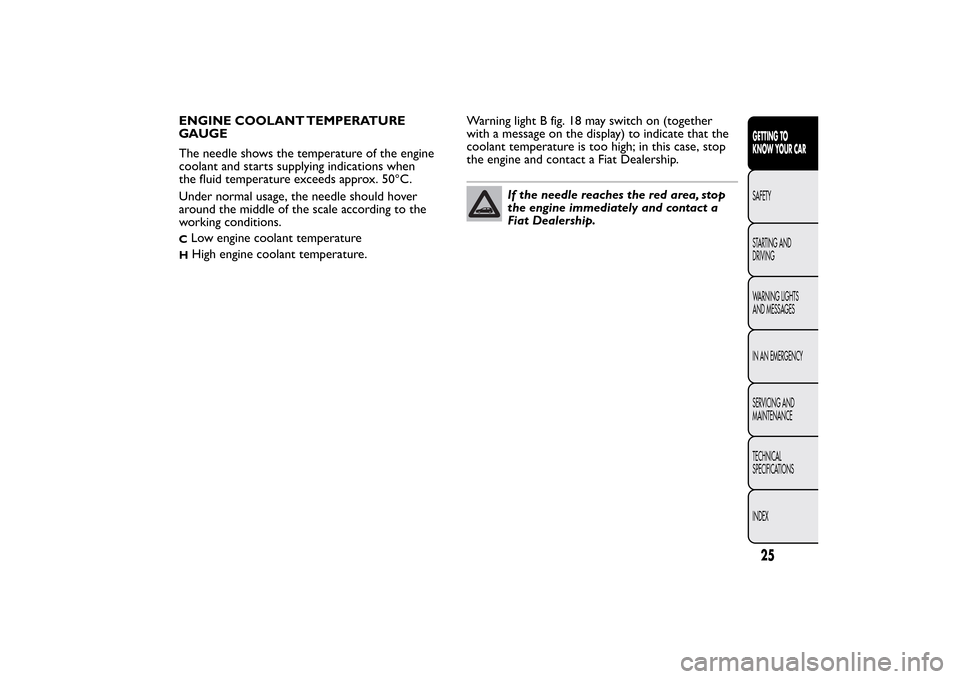

ENGINE COOLANT TEMPERATURE
GAUGE
The needle shows the temperature of the engine
coolant and starts supplying indications when
the fluid temperature exceeds approx. 50°C.
Under normal usage, the needle should hover
around the middle of the scale according to the
working conditions.C
Low engine coolant temperature
H
High engine coolant temperature.Warning light B fig. 18 may switch on (together
with a message on the display) to indicate that the
coolant temperature is too high; in this case, stop
the engine and contact a Fiat Dealership.
If the needle reaches the red area, stop
the engine immediately and contact a
Fiat Dealership.
25GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 30 of 299

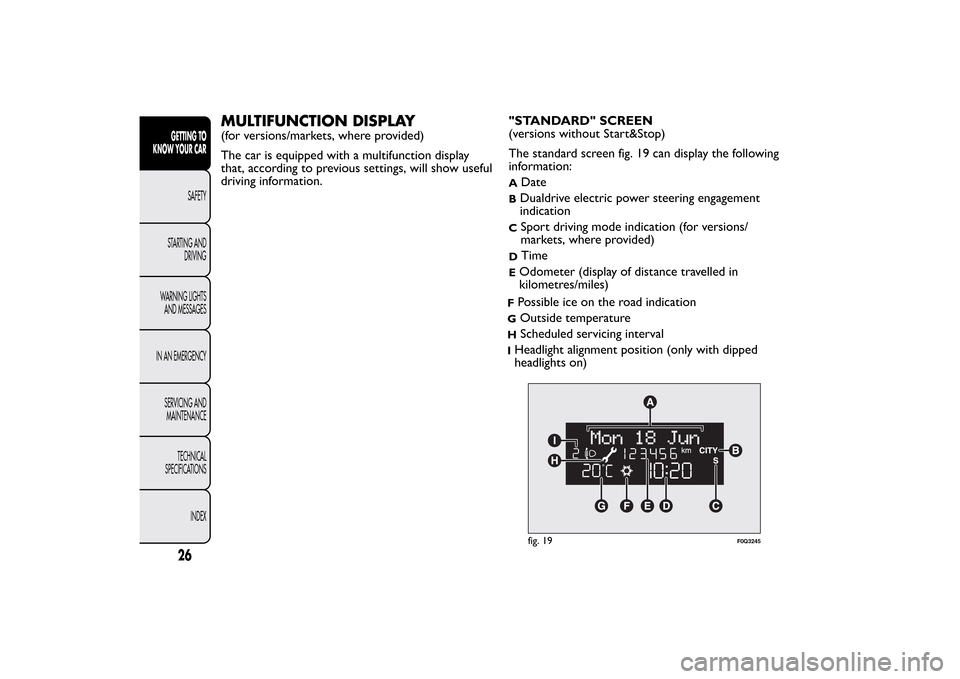

MULTIFUNCTION DISPLAY(for versions/markets, where provided)
The car is equipped with a multifunction display
that, according to previous settings, will show useful
driving information."STANDARD" SCREEN
(versions without Start&Stop)
The standard screen fig. 19 can display the following
information:
A
Date
BDualdrive electric power steering engagement
indicationC
Sport driving mode indication (for versions/
markets, where provided)
D
Time
EOdometer (display of distance travelled in
kilometres/miles)fig. 19
F0Q3245
26GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
FPossible ice on the road indicationG
Outside temperature
H
Scheduled servicing interval
IHeadlight alignment position (only with dipped
headlights on)
