❒The performance of the parking assistance system
may also be affected by the position of the
sensors. For example, if the geometry is altered
(as a result of wear of the shock absorbers,
suspension), the tyres are changed, the vehicle is
too heavily laden or specific tuning is carried
out that lowers the vehicle.
❒The detection of obstacles at the top part of the
car may not be guaranteed because the system
detects obstacles that could cause an impact with
the car in the bottom part.
AT THE FILLING STATIONMOTORI DIESEL - Operation at low
temperatures
If the outside temperature is very low, diesel
thickens due to the formation of paraffin clots with
consequent defective operation of the fuel supply
system.
In order to avoid these problems, different types of
diesel are distributed according to the season:
summer type, winter type and arctic type
(cold/mountain areas). If refuelling with diesel fuel
whose specifications are not suitable for the current
temperature, it is advisable to mix TUTELA DIESEL
ART additive in the proportions shown on the
container. Pour the additive into the tank before the
diesel fuel.
When using or parking the car for a long time in the
mountains or cold areas, it is advisable to refuel
using locally available diesel. In this case, it is also
advisable to keep the tank over 50% full.
107GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

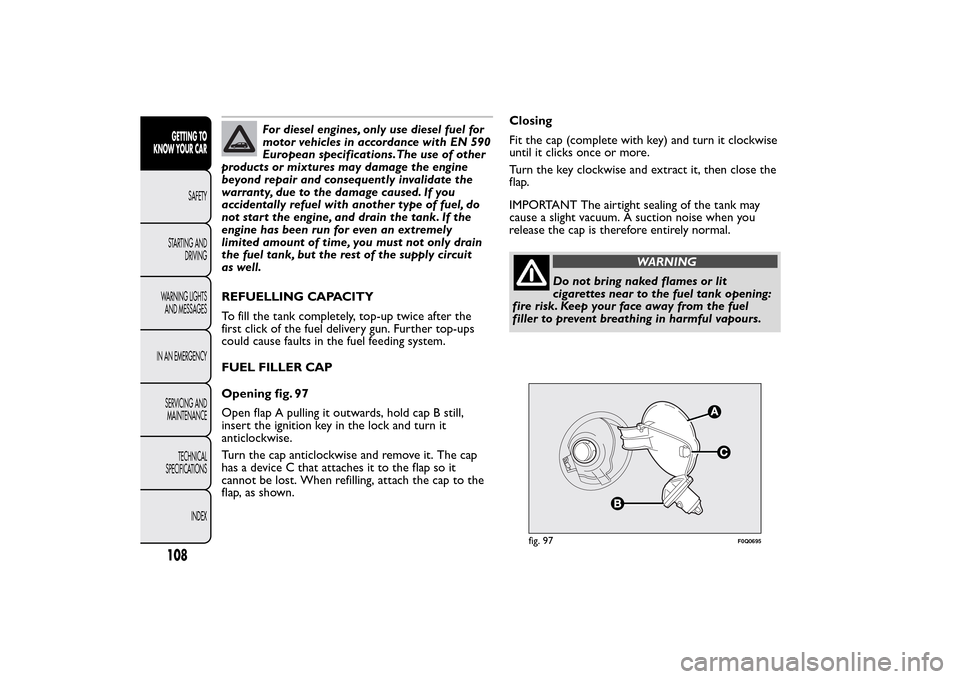

For diesel engines, only use diesel fuel for
motor vehicles in accordance with EN 590
European specifications.The use of other
products or mixtures may damage the engine
beyond repair and consequently invalidate the
warranty, due to the damage caused. If you
accidentally refuel with another type of fuel, do
not start the engine, and drain the tank. If the
engine has been run for even an extremely
limited amount of time, you must not only drain
the fuel tank, but the rest of the supply circuit
as well.
REFUELLING CAPACITY
To fill the tank completely, top-up twice after the
first click of the fuel delivery gun. Further top-ups
could cause faults in the fuel feeding system.
FUEL FILLER CAP
Opening fig. 97
Open flap A pulling it outwards, hold cap B still,
insert the ignition key in the lock and turn it
anticlockwise.
Turn the cap anticlockwise and remove it. The cap
has a device C that attaches it to the flap so it
cannot be lost. When refilling, attach the cap to the
flap, as shown.Closing
Fit the cap (complete with key) and turn it clockwise
until it clicks once or more.
Turn the key clockwise and extract it, then close the
flap.
IMPORTANT The airtight sealing of the tank may
cause a slight vacuum. A suction noise when you
release the cap is therefore entirely normal.
WARNING
Do not bring naked flames or lit
cigarettes near to the fuel tank opening:
fire risk. Keep your face away from the fuel
filler to prevent breathing in harmful vapours.
fig. 97
F0Q0695
108GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

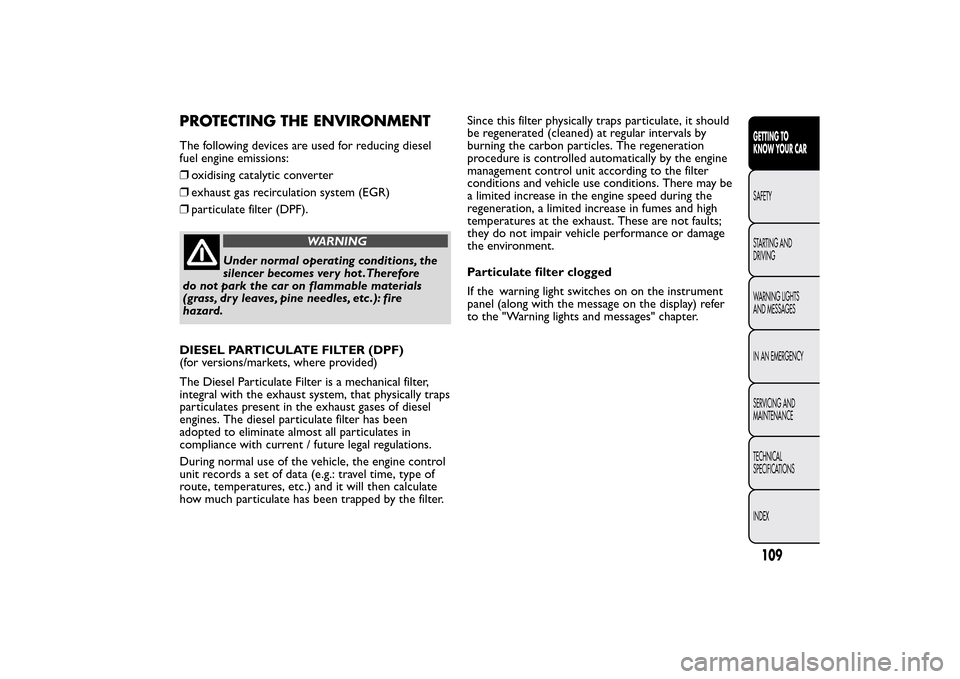

PROTECTING THE ENVIRONMENTThe following devices are used for reducing diesel
fuel engine emissions:
❒oxidising catalytic converter
❒exhaust gas recirculation system (EGR)
❒particulate filter (DPF).
WARNING
Under normal operating conditions, the
silencer becomes very hot .Therefore
do not park the car on flammable materials
(grass, dry leaves, pine needles, etc .): fire
hazard.
DIESEL PARTICULATE FILTER (DPF)
(for versions/markets, where provided)
The Diesel Particulate Filter is a mechanical filter,
integral with the exhaust system, that physically traps
particulates present in the exhaust gases of diesel
engines. The diesel particulate filter has been
adopted to eliminate almost all particulates in
compliance with current / future legal regulations.
During normal use of the vehicle, the engine control
unit records a set of data (e.g.: travel time, type of
route, temperatures, etc.) and it will then calculate
how much particulate has been trapped by the filter.Since this filter physically traps particulate, it should
be regenerated (cleaned) at regular intervals by
burning the carbon particles. The regeneration
procedure is controlled automatically by the engine
management control unit according to the filter
conditions and vehicle use conditions. There may be
a limited increase in the engine speed during the
regeneration, a limited increase in fumes and high
temperatures at the exhaust. These are not faults;
they do not impair vehicle performance or damage
the environment.
Particulate filter clogged
If the warning light switches on on the instrument
panel (along with the message on the display) refer
to the "Warning lights and messages" chapter.
109GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SAFETY
SEAT BELTSUSING THE SEAT BELTS
The seat belt should be worn keeping the torso
straight and rested against the backrest.
To fasten the seat belts, hold the tongue A fig. 98
and insert it into the buckle B, until it clicks into
place.
If the seat belt jams during removal, let it rewind for
a short stretch, then pull it out again without jerking.
To unfasten the seat belt, press button C. Guide
the seat belt with your hand while it is rewinding, to
prevent it from twisting.Through the retractor, the seat belt automatically
adapts to the body of the occupant wearing it,
allowing freedom of movement.
The reel may lock when the car is parked on a steep
slope: this is perfectly normal. Furthermore, the
reel mechanism locks the belt if it is pulled sharply or
in the event of sudden braking, collisions and
high-speed bends.
The rear seat is fitted with inertia seat belts with
three anchor points and a reel for the side seats and
the middle one.
Wear the rear seat belts as shown in fig. 99.
fig. 98
F0Q0696
fig. 99
F0Q0267
110GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

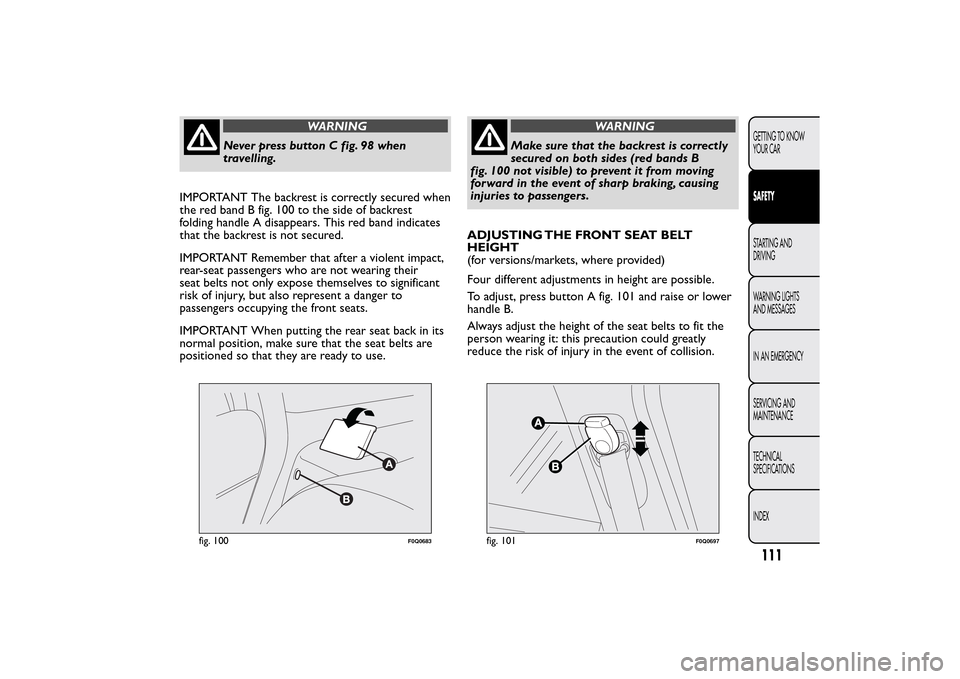

WARNING
Never press button C fig. 98 when
travelling.
IMPORTANT The backrest is correctly secured when
the red band B fig. 100 to the side of backrest
folding handle A disappears. This red band indicates
that the backrest is not secured.
IMPORTANT Remember that after a violent impact,
rear-seat passengers who are not wearing their
seat belts not only expose themselves to significant
risk of injury, but also represent a danger to
passengers occupying the front seats.
IMPORTANT When putting the rear seat back in its
normal position, make sure that the seat belts are
positioned so that they are ready to use.
WARNING
Make sure that the backrest is correctly
secured on both sides (red bands B
fig. 100 not visible) to prevent it from moving
forward in the event of sharp braking, causing
injuries to passengers.
ADJUSTING THE FRONT SEAT BELT
HEIGHT
(for versions/markets, where provided)
Four different adjustments in height are possible.
To adjust, press button A fig. 101 and raise or lower
handle B.
Always adjust the height of the seat belts to fit the
person wearing it: this precaution could greatly
reduce the risk of injury in the event of collision.
fig. 100
F0Q0683
fig. 101
F0Q0697
111GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

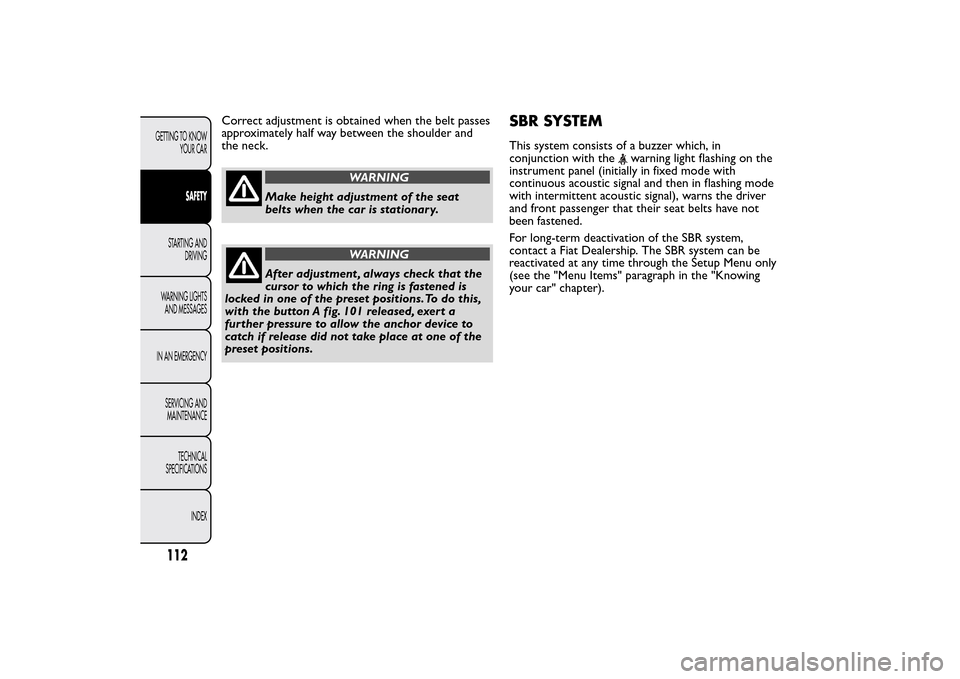

Correct adjustment is obtained when the belt passes
approximately half way between the shoulder and
the neck.
WARNING
Make height adjustment of the seat
belts when the car is stationary.
WARNING
After adjustment , always check that the
cursor to which the ring is fastened is
locked in one of the preset positions.To do this,
with the button A fig. 101 released, exert a
fur ther pressure to allow the anchor device to
catch if release did not take place at one of the
preset positions.
SBR SYSTEMThis system consists of a buzzer which, in
conjunction with the
warning light flashing on the
instrument panel (initially in fixed mode with
continuous acoustic signal and then in flashing mode
with intermittent acoustic signal), warns the driver
and front passenger that their seat belts have not
been fastened.
For long-term deactivation of the SBR system,
contact a Fiat Dealership. The SBR system can be
reactivated at any time through the Setup Menu only
(see the "Menu Items" paragraph in the "Knowing
your car" chapter).
112GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

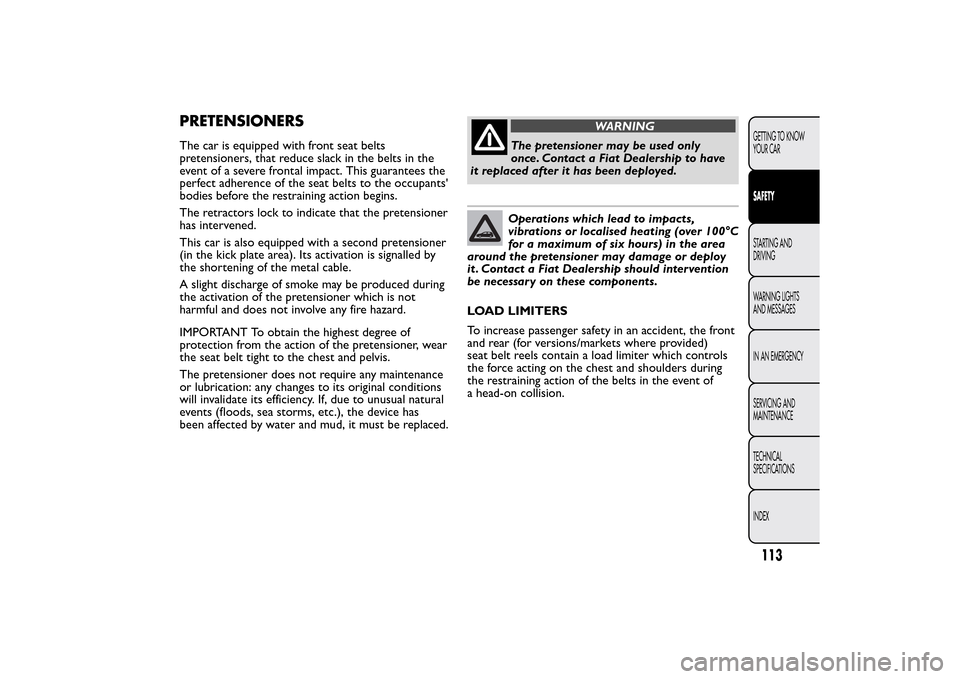

PRETENSIONERSThe car is equipped with front seat belts
pretensioners, that reduce slack in the belts in the
event of a severe frontal impact. This guarantees the
perfect adherence of the seat belts to the occupants'
bodies before the restraining action begins.
The retractors lock to indicate that the pretensioner
has intervened.
This car is also equipped with a second pretensioner
(in the kick plate area). Its activation is signalled by
the shortening of the metal cable.
A slight discharge of smoke may be produced during
the activation of the pretensioner which is not
harmful and does not involve any fire hazard.
IMPORTANT To obtain the highest degree of
protection from the action of the pretensioner, wear
the seat belt tight to the chest and pelvis.
The pretensioner does not require any maintenance
or lubrication: any changes to its original conditions
will invalidate its efficiency. If, due to unusual natural
events (floods, sea storms, etc.), the device has
been affected by water and mud, it must be replaced.
WARNING
The pretensioner may be used only
once. Contact a Fiat Dealership to have
it replaced after it has been deployed.Operations which lead to impacts,
vibrations or localised heating (over 100°C
for a maximum of six hours) in the area
around the pretensioner may damage or deploy
it . Contact a Fiat Dealership should intervention
be necessar y on these components.
LOAD LIMITERS
To increase passenger safety in an accident, the front
and rear (for versions/markets where provided)
seat belt reels contain a load limiter which controls
the force acting on the chest and shoulders during
the restraining action of the belts in the event of
a head-on collision.
113GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

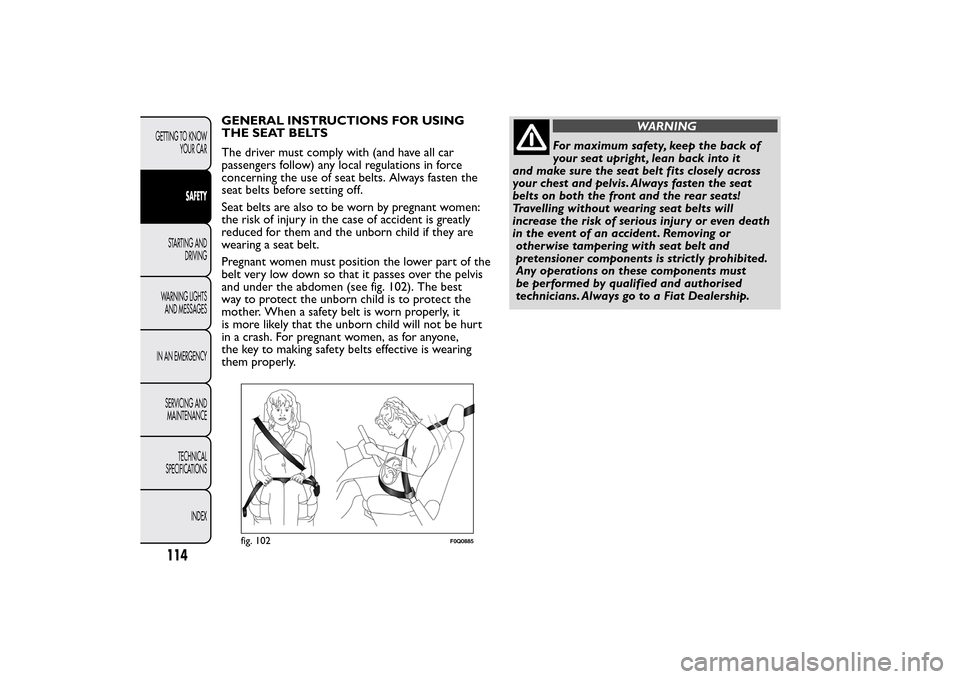

GENERAL INSTRUCTIONS FOR USING
THE SEAT BELTS
The driver must comply with (and have all car
passengers follow) any local regulations in force
concerning the use of seat belts. Always fasten the
seat belts before setting off.
Seat belts are also to be worn by pregnant women:
the risk of injury in the case of accident is greatly
reduced for them and the unborn child if they are
wearing a seat belt.
Pregnant women must position the lower part of the
belt very low down so that it passes over the pelvis
and under the abdomen (see fig. 102). The best
way to protect the unborn child is to protect the
mother. When a safety belt is worn properly, it
is more likely that the unborn child will not be hurt
in a crash. For pregnant women, as for anyone,
the key to making safety belts effective is wearing
them properly.
WARNING
For maximum safety, keep the back of
your seat upright , lean back into it
and make sure the seat belt fits closely across
your chest and pelvis. Always fasten the seat
belts on both the front and the rear seats!
Travelling without wearing seat belts will
increase the risk of serious injury or even death
in the event of an accident . Removing or
otherwise tampering with seat belt and
pretensioner components is strictly prohibited.
Any operations on these components must
be performed by qualified and authorised
technicians. Always go to a Fiat Dealership.
fig. 102
F0Q0885
114GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

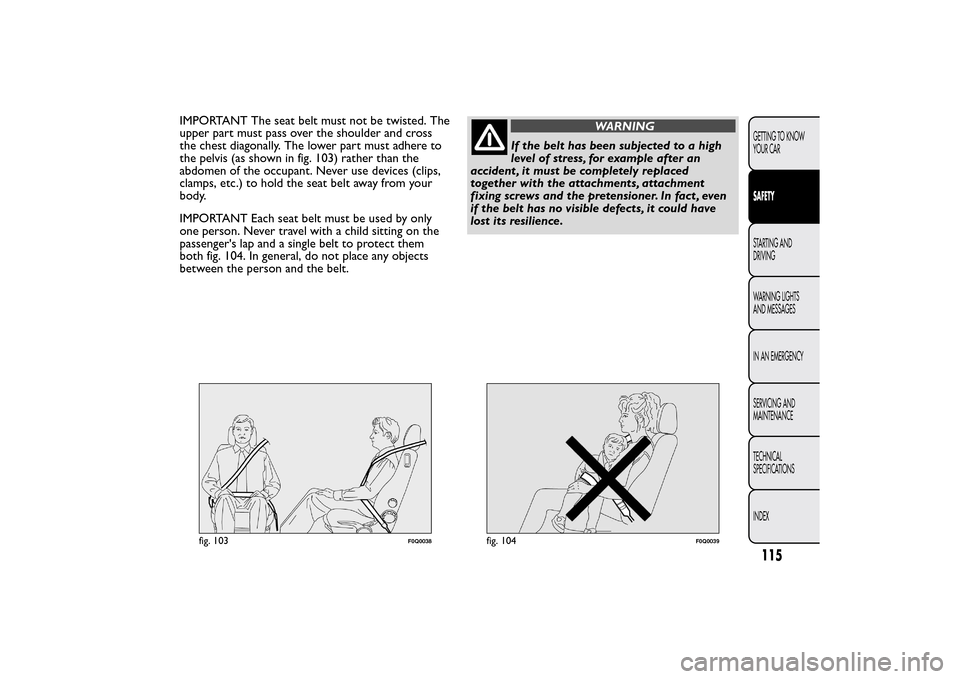

IMPORTANT The seat belt must not be twisted. The
upper part must pass over the shoulder and cross
the chest diagonally. The lower part must adhere to
the pelvis (as shown in fig. 103) rather than the
abdomen of the occupant. Never use devices (clips,
clamps, etc.) to hold the seat belt away from your
body.
IMPORTANT Each seat belt must be used by only
one person. Never travel with a child sitting on the
passenger's lap and a single belt to protect them
both fig. 104. In general, do not place any objects
between the person and the belt.
WARNING
If the belt has been subjected to a high
level of stress, for example after an
accident , it must be completely replaced
together with the attachments, attachment
fixing screws and the pretensioner. In fact , even
if the belt has no visible defects, it could have
lost its resilience.
fig. 103
F0Q0038
fig. 104
F0Q0039
115GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

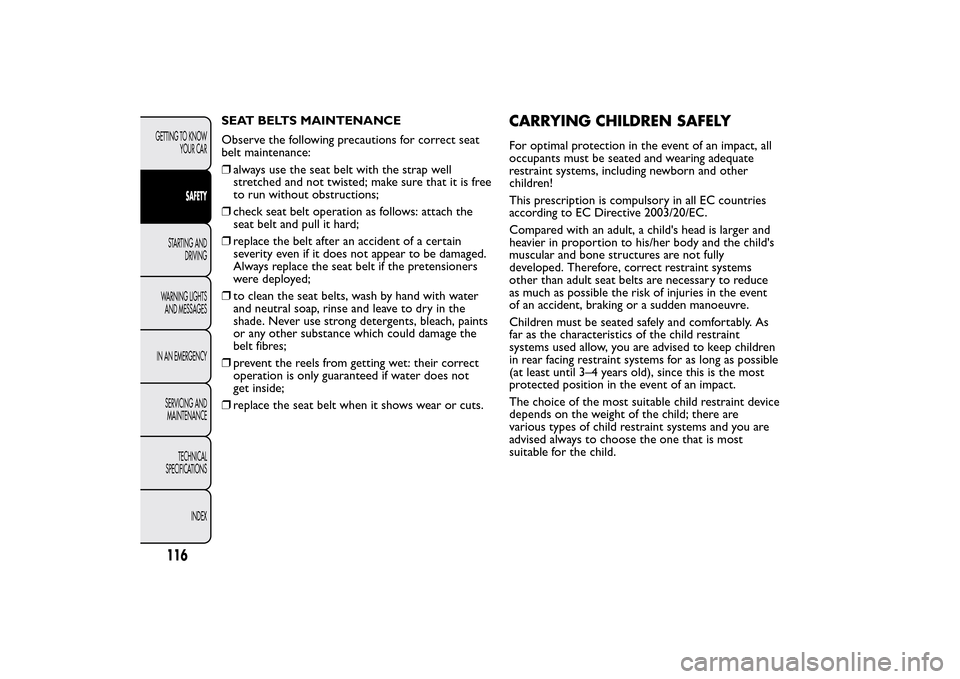

SEAT BELTS MAINTENANCE
Observe the following precautions for correct seat
belt maintenance:
❒always use the seat belt with the strap well
stretched and not twisted; make sure that it is free
to run without obstructions;
❒check seat belt operation as follows: attach the
seat belt and pull it hard;
❒replace the belt after an accident of a certain
severity even if it does not appear to be damaged.
Always replace the seat belt if the pretensioners
were deployed;
❒to clean the seat belts, wash by hand with water
and neutral soap, rinse and leave to dry in the
shade. Never use strong detergents, bleach, paints
or any other substance which could damage the
belt fibres;
❒prevent the reels from getting wet: their correct
operation is only guaranteed if water does not
get inside;
❒replace the seat belt when it shows wear or cuts.
CARRYING CHILDREN SAFELYFor optimal protection in the event of an impact, all
occupants must be seated and wearing adequate
restraint systems, including newborn and other
children!
This prescription is compulsory in all EC countries
according to EC Directive 2003/20/EC.
Compared with an adult, a child's head is larger and
heavier in proportion to his/her body and the child's
muscular and bone structures are not fully
developed. Therefore, correct restraint systems
other than adult seat belts are necessary to reduce
as much as possible the risk of injuries in the event
of an accident, braking or a sudden manoeuvre.
Children must be seated safely and comfortably. As
far as the characteristics of the child restraint
systems used allow, you are advised to keep children
in rear facing restraint systems for as long as possible
(at least until 3–4 years old), since this is the most
protected position in the event of an impact.
The choice of the most suitable child restraint device
depends on the weight of the child; there are
various types of child restraint systems and you are
advised always to choose the one that is most
suitable for the child.
116GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
